Toyota C-hr

2023-10 → present · chassis MAXH2#,ZYX20 · catalogue 528220 · Europe

Supported model Data version 2023-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

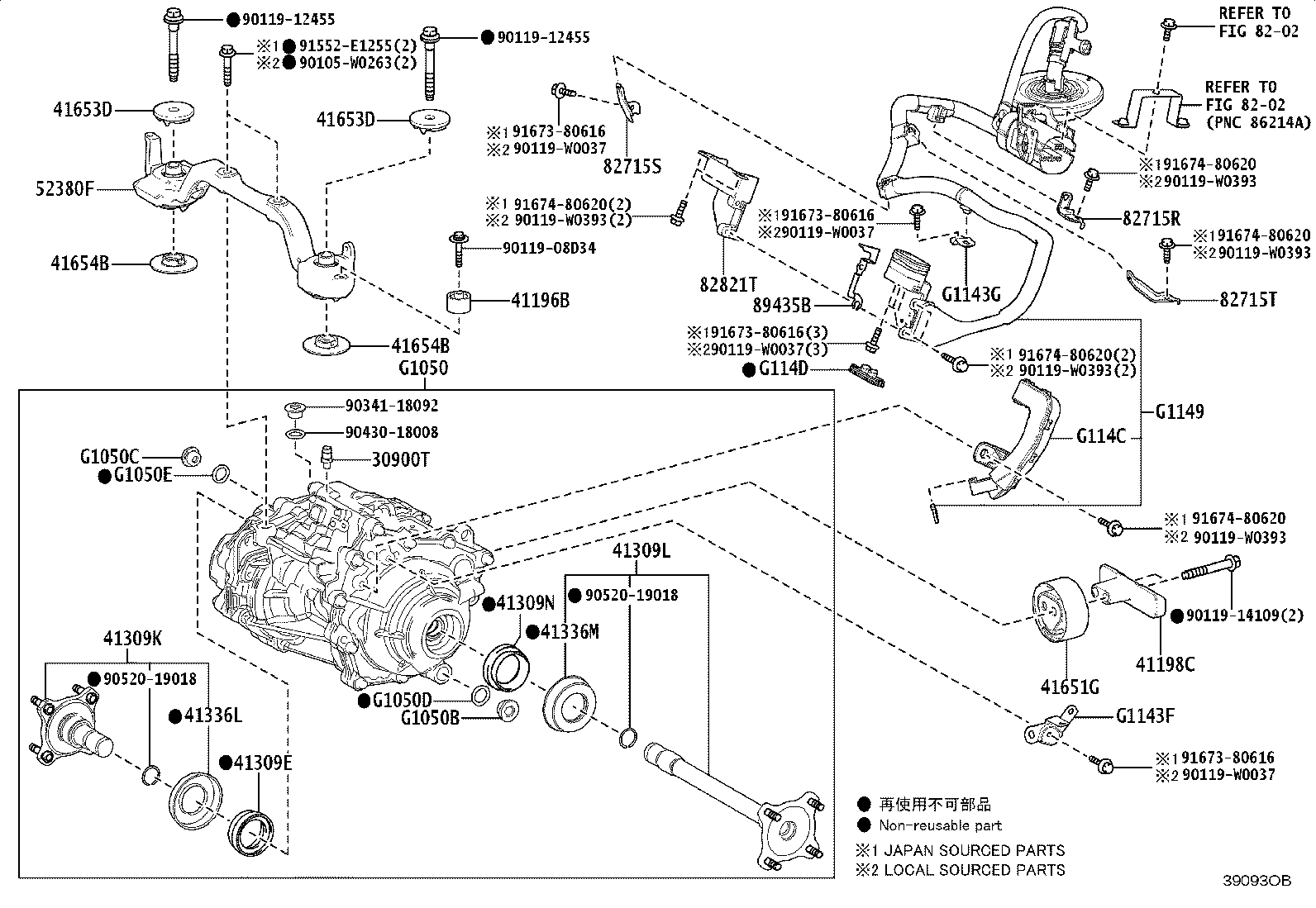

Exploded illustration 39093OB 9167480620 — not listed in this catalogue 41198C — DAMPER, DIFFERENTIAL MASS (1 parts) 41651G — CUSHION, DIFFERENTIAL MOUNT (1 parts) 9167480620 — not listed in this catalogue 9167480620 — not listed in this catalogue 9167380616 — not listed in this catalogue 9167380616 — not listed in this catalogue 9011914109 — not listed in this catalogue 30900T — PLUG, BREATHER(FOR REAR TRACTION MOTOR) (1 parts) 82715R — BRACKET, WIRING HARNESS CLAMP, NO.1 (1 parts) G1143F — BRACKET, MOTOR CABLE, NO.2 (1 parts) 82715T — BRACKET, WIRING HARNESS CLAMP, NO.3 (1 parts) 82715S — BRACKET, WIRING HARNESS CLAMP, NO.2 (1 parts) G1143G — BRACKET, MOTOR CABLE, NO.3 (1 parts) 41309N — SEAL, TYPE T OIL(FOR DIFFERENTIAL SIDE GEAR SHAFT LH) (1 parts) G1050B — PLUG, DRAIN(FOR REAR TRACTION MOTOR) (1 parts) G1050D — GASKET, DRAIN PLUG(FOR REAR TRACTION MOTOR) (1 parts) G1050E — GASKET, FILLER PLUG(FOR REAR TRACTION MOTOR) (1 parts) 41309E — SEAL, TYPE T OIL(FOR DIFFERENTIAL SIDE GEAR SHAFT RH) (1 parts) G114D — CAP, MOTOR CABLE TERMINAL (1 parts) 9034118092 — not listed in this catalogue 9043018008 — not listed in this catalogue G1149 — CABLE(FOR REAR TRACTION MOTOR) (1 parts) G114C — PROTECTOR, MOTOR CABLE (1 parts) G1050 — MOTOR ASSY, RR TRACTION W/TRANSAXLE (2 parts) 82821T — COVER, CONNECTOR (1 parts) 9052019018 — not listed in this catalogue 41309L — SHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, LH (1 parts) 41336M — DUST COVER, DIFFERENTIAL SIDE GEAR SHAFT, LH (1 parts) 9052019018 — not listed in this catalogue 41309K — SHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, RH (1 parts) 41336L — DUST COVER, DIFFERENTIAL SIDE GEAR SHAFT, RH (1 parts) 52380F — SUPPORT ASSY, DIFFERENTIAL, FRONT (1 parts) 41654B — STOPPER, DIFFERENTIAL MOUNT,LOWER (1 parts) 41654B — STOPPER, DIFFERENTIAL MOUNT,LOWER (1 parts) 41653D — STOPPER, DIFFERENTIAL MOUNT,UPPER (1 parts) 41196B — DAMPER, DIFFERENTIAL DYNAMIC (1 parts) 41653D — STOPPER, DIFFERENTIAL MOUNT,UPPER (1 parts) 9011912455 — not listed in this catalogue 9011908D34 — not listed in this catalogue 9011912455 — not listed in this catalogue 91552E1255 — not listed in this catalogue 90105W0263 — not listed in this catalogue 90119W0037 — not listed in this catalogue 90119W0037 — not listed in this catalogue 90119W0393 — not listed in this catalogue 90119W0393 — not listed in this catalogue 9167380616 — not listed in this catalogue 90119W0037 — not listed in this catalogue 90119W0393 — not listed in this catalogue 9167480620 — not listed in this catalogue 90119W0393 — not listed in this catalogue 8202 — not listed in this catalogue 8202 — not listed in this catalogue 9167380616 — not listed in this catalogue 90119W0037 — not listed in this catalogue 9167480620 — not listed in this catalogue 90119W0393 — not listed in this catalogue 89435B — BRACKET, CONNECTOR COVER (1 parts) G1050C — PLUG, FILLER(FOR REAR TRACTION MOTOR) (1 parts)
39093OB · 30 callouts, 30 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
29 parts on this figure
Part number Description Fitment Price
30900T — Plug, Breather(FOR REAR TRACTION MOTOR)
90930-03247 Plug, Breather(FOR REAR TRACTION MOTOR)
2023-10 → —
MAXH25 —
41196B — Damper, Differential Dynamic
41196-16010 Damper, Differential Dynamic
2023-10 → —
MAXH25 —
41198C — Damper, Differential Mass
41198-16010 Damper, Differential Mass
2023-10 → —
MAXH25 —
41309E — Seal, Type T Oil(FOR DIFFERENTIAL SIDE GEAR SHAFT RH)
90311-38103 Seal, Type T Oil(FOR DIFFERENTIAL SIDE GEAR SHAFT RH)
2023-10 → —
MAXH25 —
41309K — Shaft Sub-assy, Differential Side Gear, RH
41309-28080 Shaft Sub-assy, Differential Side Gear, RH
2023-10 → —
MAXH25 —
41309L — Shaft Sub-assy, Differential Side Gear, LH
41309-28071 Shaft Sub-assy, Differential Side Gear, LH
2023-10 → —
MAXH25 —
41309N — Seal, Type T Oil(FOR DIFFERENTIAL SIDE GEAR SHAFT LH)
90311-37008 Seal, Type T Oil(FOR DIFFERENTIAL SIDE GEAR SHAFT LH)
2023-10 → —
MAXH25 —
41336L — Dust Cover, Differential Side Gear Shaft, RH
41336-47020 Dust Cover, Differential Side Gear Shaft, RH
2023-10 → —
MAXH25 —
41336M — Dust Cover, Differential Side Gear Shaft, LH
41336-28070 Dust Cover, Differential Side Gear Shaft, LH
2023-10 → —
MAXH25 —
41651G — Cushion, Differential Mount
41651-16020 Cushion, Differential Mount
2023-10 → —
MAXH25 —
41653D — Stopper, Differential Mount,Upper
41653-16010 Stopper, Differential Mount,Upper
2023-10 → —
MAXH25 —
41654B — Stopper, Differential Mount,Lower
41654-16010 Stopper, Differential Mount,Lower
2023-10 → —
MAXH25 —
52380F — Support Assy, Differential, Front
52380-16020 Support Assy, Differential, Front
2023-10 → —
MAXH25 —
82715R — Bracket, Wiring Harness Clamp, NO.1
G1143-47070 Bracket, Wiring Harness Clamp, NO.1
2023-10 → —
MAXH25 —
82715S — Bracket, Wiring Harness Clamp, NO.2
G1143-47110 Bracket, Wiring Harness Clamp, NO.2
2023-10 → —
MAXH25 —
82715T — Bracket, Wiring Harness Clamp, NO.3
G1143-47120 Bracket, Wiring Harness Clamp, NO.3
2023-10 → —
MAXH25 —
82821T — Cover, Connector
82821-47510 Cover, Connector
2023-10 → —
MAXH25 —
89435B — Bracket, Connector Cover
89435-12010 Bracket, Connector Cover
2023-10 → —
MAXH25 —
G1050 — Motor Assy, RR Traction W/Transaxle
G1050-28040 Motor Assy, RR Traction W/Transaxle
2023-10 → 2024-12 ended
MAXH25 —
G1050-28041 Motor Assy, RR Traction W/Transaxle
2025-01 → —
MAXH25 —
G1050B — Plug, Drain(FOR REAR TRACTION MOTOR)
90341-18092 Plug, Drain(FOR REAR TRACTION MOTOR)
2023-10 → —
MAXH25 —
G1050C — Plug, Filler(FOR REAR TRACTION MOTOR)
90341-18092 Plug, Filler(FOR REAR TRACTION MOTOR)
2023-10 → —
MAXH25 —
G1050D — Gasket, Drain Plug(FOR REAR TRACTION MOTOR)
90430-18008 Gasket, Drain Plug(FOR REAR TRACTION MOTOR)
2023-10 → —
MAXH25 —
G1050E — Gasket, Filler Plug(FOR REAR TRACTION MOTOR)
90430-18008 Gasket, Filler Plug(FOR REAR TRACTION MOTOR)
2023-10 → —
MAXH25 —
G1143F — Bracket, Motor Cable, NO.2
G1143-47090 Bracket, Motor Cable, NO.2
2023-10 → —
MAXH25 —
G1143G — Bracket, Motor Cable, NO.3
G1143-47100 Bracket, Motor Cable, NO.3
2023-10 → —
MAXH25 —
G1149 — Cable(FOR REAR TRACTION MOTOR)
G1149-10010 Cable(FOR REAR TRACTION MOTOR)
2023-10 → —
MAXH25 —
G114C — Protector, Motor Cable
G114C-47020 Protector, Motor Cable
2023-10 → —
MAXH25 —
G114D — Cap, Motor Cable Terminal
G114D-30010 Cap, Motor Cable Terminal
2023-10 → —
MAXH25 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
