Toyota C-hr

2023-10 → present · chassis MAXH2#,ZYX20 · catalogue 528220 · Europe

Supported model Data version 2023-12

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

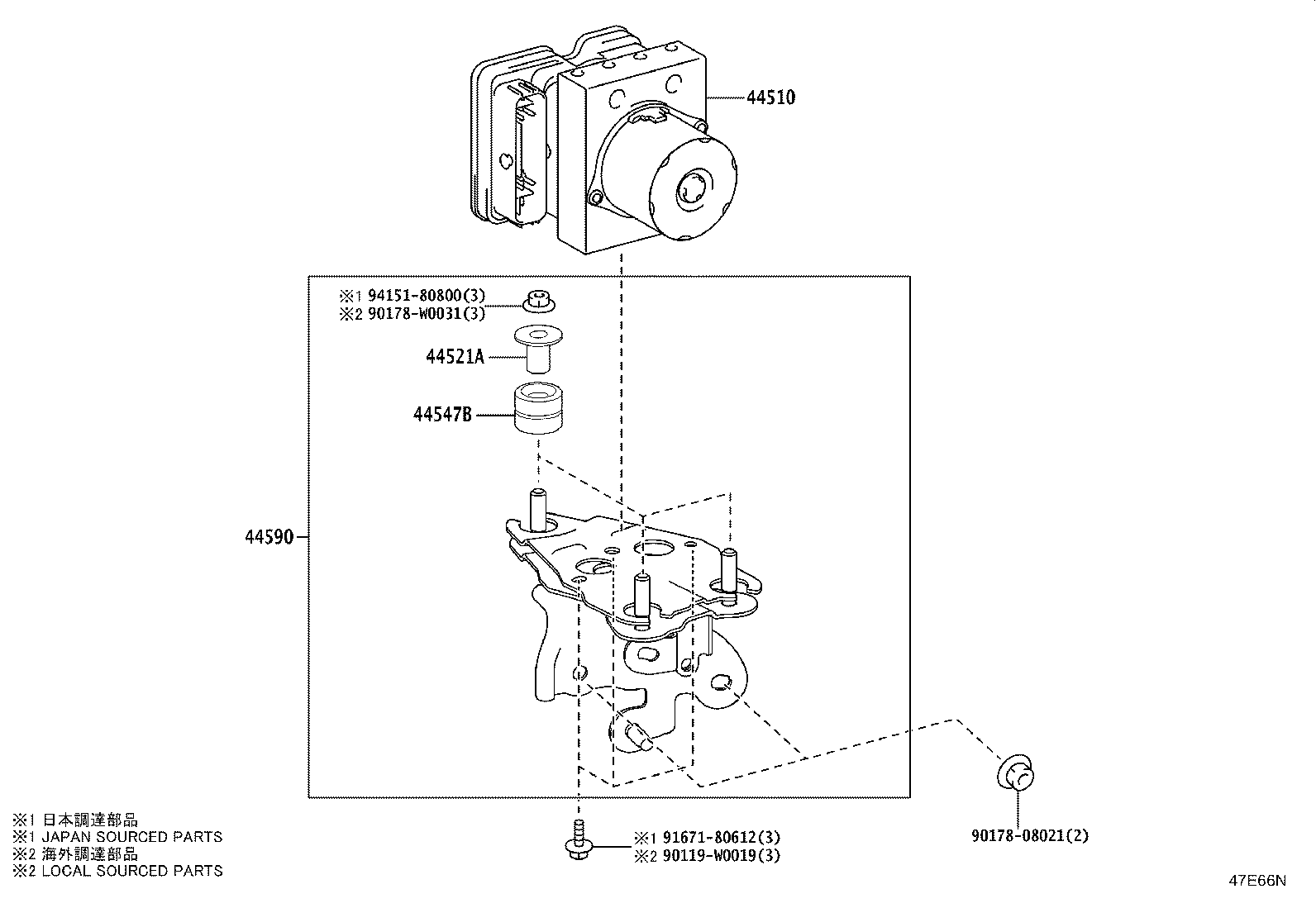

19 parts on this figure

Part number	Description	Fitment	Price
44510 — Actuator Assy, Brake
44050-F4400 note	Actuator Assy, Brake 2023-10 → —	MAXH20,25,ZYX20 LHD (E,G,K) EUR	—
44050-F4400 note	Actuator Assy, Brake 2023-10 → —	MAXH20,25,ZYX20 LHD (E,G,K) EUR	—
44050-F4400 note	Actuator Assy, Brake 2023-10 → —	ZYX20 (E,G,K) TUR	—
44050-F4410	Actuator Assy, Brake 2023-10 → —	MAXH20,25,ZYX20 LHD	—
44050-F4420	Actuator Assy, Brake 2023-10 → —	MAXH20,25,ZYX20 ARL	—
44050-F4420 note	Actuator Assy, Brake 2023-10 → —	MAXH20,25,ZYX20 RHD (E,G,K) EUR	—
44050-F4420 note	Actuator Assy, Brake 2023-10 → —	MAXH20,25,ZYX20 RHD (E,G,K) EUR	—
44050-F4430	Actuator Assy, Brake 2023-10 → —	MAXH20,25,ZYX20 RHD EUR	—
44050-F4480 note	Actuator Assy, Brake 2024-01 → —	MAXH21 LHD	—
44050-F4480 note	Actuator Assy, Brake 2024-01 → —	MAXH21 LHD	—
44050-F4490	Actuator Assy, Brake 2024-01 → —	MAXH21 LHD	—
44050-F4500 note	Actuator Assy, Brake 2024-01 → —	MAXH21 RHD	—
44050-F4500 note	Actuator Assy, Brake 2024-01 → —	MAXH21 RHD	—
44050-F4510	Actuator Assy, Brake 2024-01 → —	MAXH21 RHD	—
44521A — Collar, Brake Actuator Case, NO.1
44521-02040	Collar, Brake Actuator Case, NO.1 2024-11 → —	MAXH2#,ZYX20	—
44521-33020	Collar, Brake Actuator Case, NO.1 2023-10 → 2024-10 ended	MAXH2#,ZYX20	—
44547B — Cushion, Brake Actuator Bracket
44547-33100	Cushion, Brake Actuator Bracket 2023-10 → —	MAXH2#,ZYX20	—
44590 — Bracket Assy, Brake Actuator
44590-F4120	Bracket Assy, Brake Actuator 2023-10 → —	MAXH2#,ZYX20 LHD	—
44590-F4130	Bracket Assy, Brake Actuator 2023-10 → —	MAXH2#,ZYX20 RHD	—

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
