Exploded illustration 5891A8 58923A — PANEL, CONSOLE REAR END (3 parts) 9046705171 — not listed in this catalogue 58910D — CLIP(FOR CONSOLE BOX) (1 parts) 58817A — INSERT, CONSOLE BOX, FRONT NO.2 (2 parts) 58910D — CLIP(FOR CONSOLE BOX) (1 parts) 58816B — INSERT, CONSOLE BOX (2 parts) 58804A — PANEL SUB-ASSY, CONSOLE, UPPER (8 parts) 9046705172 — not listed in this catalogue 9046705172 — not listed in this catalogue 58915 — PANEL, BOX BOTTOM (4 parts) 58916F — MAT, BOX BOTTOM, NO.1 (4 parts) 58915 — PANEL, BOX BOTTOM (4 parts) 58916F — MAT, BOX BOTTOM, NO.1 (4 parts) 58833B — GARNISH, CONSOLE UPPER PANEL, NO.1 (2 parts) 9046705172 — not listed in this catalogue 9046705172 — not listed in this catalogue 58821A — PANEL, CONSOLE (1 parts) 58811B — BOX, CONSOLE (1 parts) 90119W0037 — not listed in this catalogue 58815A — CARPET, CONSOLE BOX (1 parts) 58825A — POCKET, CONSOLE BOX (1 parts) 90167W0007 — not listed in this catalogue 90167W0007 — not listed in this catalogue 90119W0037 — not listed in this catalogue 58985 — RETAINER, CONSOLE BOX (2 parts) 90167W0007 — not listed in this catalogue 58911A — PANEL, BOX SIDE, NO.1 (2 parts) 58912C — PANEL, BOX SIDE, NO.2 (2 parts) 90167W0007 — not listed in this catalogue 58995A — BRACKET, CONSOLE BOX MOUNTING, NO.1 (4 parts) 58996A — BRACKET, CONSOLE BOX MOUNTING, NO.2 (1 parts) 58916G — MAT, BOX BOTTOM, NO.2 (2 parts) 90119W0310 — not listed in this catalogue 58995A — BRACKET, CONSOLE BOX MOUNTING, NO.1 (4 parts) 9046705172 — not listed in this catalogue 58822A — PANEL, CONSOLE, UPPER REAR (2 parts) 9046705171 — not listed in this catalogue 9046705171 — not listed in this catalogue 90167W0007 — not listed in this catalogue 58959B — CUSHION, CONSOLE COMPARTMENT DOOR (1 parts) 58908A — LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR (2 parts) 58905 — DOOR SUB-ASSY, CONSOLE COMPARTMENT (2 parts) 90167W0007 — not listed in this catalogue 90167W0007 — not listed in this catalogue 90105W0252 — not listed in this catalogue 90119W0310 — not listed in this catalogue

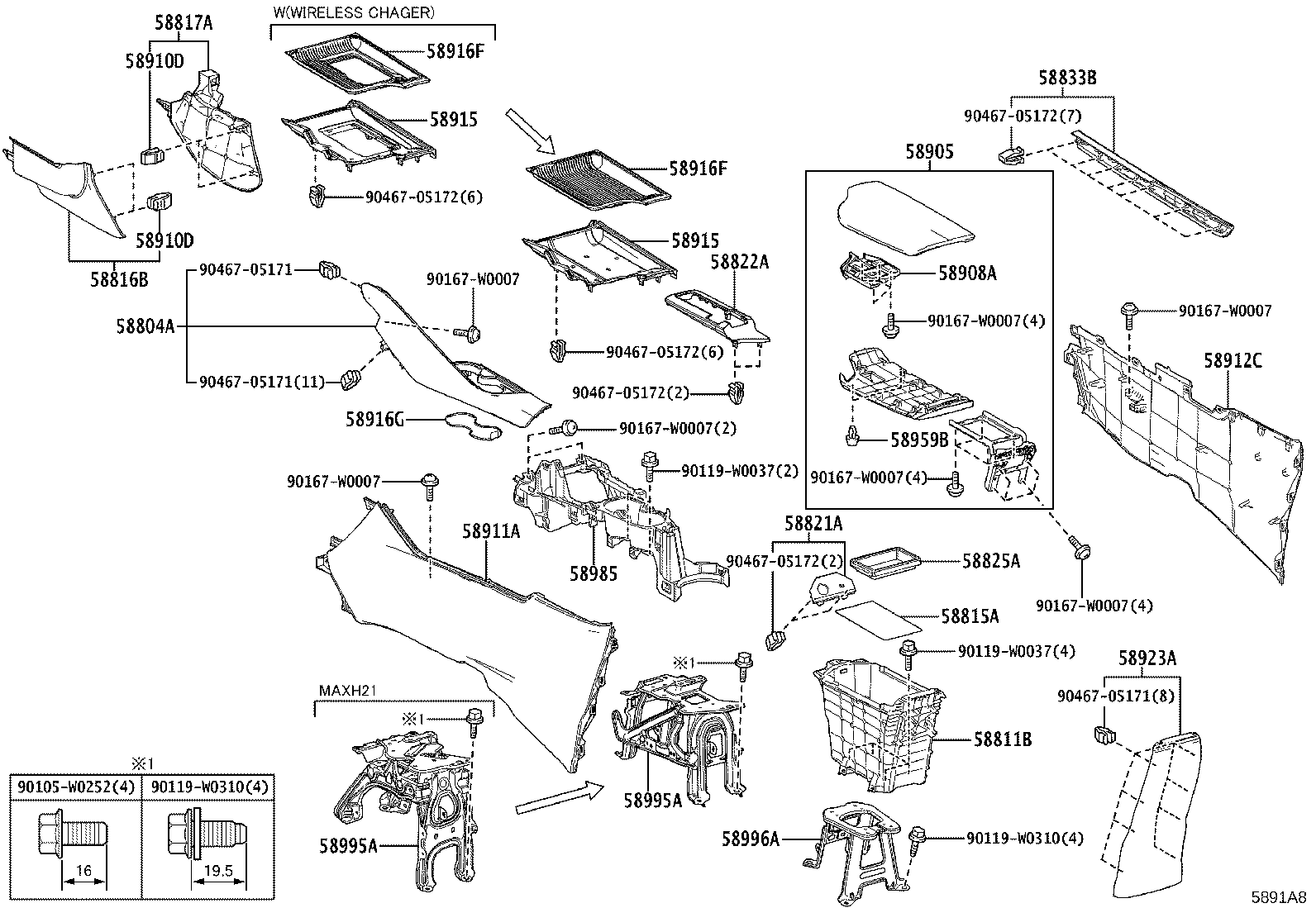

5891A8 · 26 callouts, 20 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
50 parts on this figure
Part number Description Fitment Price
58804A — Panel Sub-assy, Console, Upper
58804-F4230-C3 note Panel Sub-assy, Console, Upper
2023-10 → —
MAXH2#,ZYX20 LHD (K,N) —
58804-F4230-C4 note Panel Sub-assy, Console, Upper
2023-10 → —
MAXH2#,ZYX20 LHD E —
58804-F4230-C5 note Panel Sub-assy, Console, Upper
2023-10 → —
MAXH2#,ZYX20 LHD G —
58804-F4230-C5 note Panel Sub-assy, Console, Upper
2023-10 → —
MAXH2#,ZYX20 LHD E —
58804-F4240-C3 note Panel Sub-assy, Console, Upper
2023-10 → —
MAXH2#,ZYX20 RHD (K,N) —
58804-F4240-C4 note Panel Sub-assy, Console, Upper
2023-10 → —
MAXH2#,ZYX20 RHD E —
58804-F4240-C5 note Panel Sub-assy, Console, Upper
2023-10 → —
MAXH2#,ZYX20 RHD G —
58804-F4240-C5 note Panel Sub-assy, Console, Upper
2023-10 → —
MAXH2#,ZYX20 RHD E —
58811B — Box, Console
58812-F4050 Box, Console
2023-10 → —
MAXH2#,ZYX20 —
58815A — Carpet, Console Box
58815-F4050 Carpet, Console Box
2023-10 → —
MAXH2#,ZYX20 —
58816B — Insert, Console Box
58816-F4050-C0 note Insert, Console Box
2023-10 → —
MAXH2#,ZYX20 LHD —
58816-F4060-C0 note Insert, Console Box
2023-10 → —
MAXH2#,ZYX20 RHD —
58817A — Insert, Console Box, Front NO.2
58817-F4050-C0 note Insert, Console Box, Front NO.2
2023-10 → —
MAXH2#,ZYX20 LHD —
58817-F4060-C0 note Insert, Console Box, Front NO.2
2023-10 → —
MAXH2#,ZYX20 RHD —
58821A — Panel, Console
58821-F4030 Panel, Console
2023-10 → —
MAXH2#,ZYX20 —
58822A — Panel, Console, Upper Rear
58822-F4230 Panel, Console, Upper Rear
2023-10 → —
MAXH2#,ZYX20 LHD —
58822-F4240 Panel, Console, Upper Rear
2023-10 → —
MAXH2#,ZYX20 RHD —
58825A — Pocket, Console Box
58825-F4010 Pocket, Console Box
2023-10 → —
MAXH2#,ZYX20 —
58833B — Garnish, Console Upper Panel, NO.1
58833-F4050-C1 note Garnish, Console Upper Panel, NO.1
2023-10 → —
MAXH2#,ZYX20 LHD —
58833-F4060-C1 note Garnish, Console Upper Panel, NO.1
2023-10 → —
MAXH2#,ZYX20 RHD —
58905 — Door Sub-assy, Console Compartment
58905-F4060-C1 note Door Sub-assy, Console Compartment
2023-10 → —
MAXH2#,ZYX20 LHD —
58905-F4070-C1 note Door Sub-assy, Console Compartment
2023-10 → —
MAXH2#,ZYX20 RHD —
58908A — Lock Sub-assy, Console Compartment Door
58908-F4050 Lock Sub-assy, Console Compartment Door
2023-10 → —
MAXH2#,ZYX20 LHD —
58908-F4060 Lock Sub-assy, Console Compartment Door
2023-10 → —
MAXH2#,ZYX20 RHD —
58910D — Clip(FOR CONSOLE BOX)
90467-05172 Clip(FOR CONSOLE BOX)
2023-10 → —
MAXH2#,ZYX20 —
58911A — Panel, Box Side, NO.1
58911-F4080-C0 note Panel, Box Side, NO.1
2023-10 → —
MAXH2#,ZYX20 LHD —
58911-F4100-C0 note Panel, Box Side, NO.1
2023-10 → —
MAXH2#,ZYX20 RHD —
58912C — Panel, Box Side, NO.2
58912-F4080-C0 note Panel, Box Side, NO.2
2023-10 → —
MAXH2#,ZYX20 LHD —
58912-F4100-C0 note Panel, Box Side, NO.2
2023-10 → —
MAXH2#,ZYX20 RHD —
58915 — Panel, Box Bottom
58915-F4010 note Panel, Box Bottom
2023-10 → —
MAXH2#,ZYX20 LHD —
58915-F4020 note Panel, Box Bottom
2023-10 → —
MAXH2#,ZYX20 RHD —
58915-F4030 Panel, Box Bottom
2023-10 → —
MAXH2#,ZYX20 LHD —
58915-F4040 Panel, Box Bottom
2023-10 → —
MAXH2#,ZYX20 RHD —
58916F — Mat, Box Bottom, NO.1
58916-F4130 Mat, Box Bottom, NO.1
2023-10 → —
MAXH2#,ZYX20 LHD —
58916-F4150 Mat, Box Bottom, NO.1
2023-10 → —
MAXH2#,ZYX20 RHD —
58916-F4160 note Mat, Box Bottom, NO.1
2023-10 → —
MAXH2#,ZYX20 LHD —
58916-F4170 note Mat, Box Bottom, NO.1
2023-10 → —
MAXH2#,ZYX20 RHD —
58916G — Mat, Box Bottom, NO.2
58916-F4120 Mat, Box Bottom, NO.2
2023-10 → —
MAXH2#,ZYX20 LHD —
58916-F4140 Mat, Box Bottom, NO.2
2023-10 → —
MAXH2#,ZYX20 RHD —
58923A — Panel, Console Rear End
58923-F4070-C0 note Panel, Console Rear End
2023-10 → —
MAXH2#,ZYX20 K,N —
58923-F4090-C0 note Panel, Console Rear End
2023-10 → —
MAXH2#,ZYX20 E,G —
58923-F4090-C0 note Panel, Console Rear End
2023-10 → —
MAXH2#,ZYX20 (K,N) (EUR,TUR) —
58959B — Cushion, Console Compartment Door
58959-60060 Cushion, Console Compartment Door
2023-10 → —
MAXH2#,ZYX20 —
58985 — Retainer, Console Box
58985-F4050 Retainer, Console Box
2023-10 → —
MAXH2#,ZYX20 LHD —
58985-F4060 Retainer, Console Box
2023-10 → —
MAXH2#,ZYX20 RHD —
58995A — Bracket, Console Box Mounting, NO.1
58995-F4100 Bracket, Console Box Mounting, NO.1
2023-10 → —
MAXH20,25,ZYX20 LHD —
58995-F4110 Bracket, Console Box Mounting, NO.1
2023-10 → —
MAXH20,25,ZYX20 RHD —
58995-F4120 Bracket, Console Box Mounting, NO.1
2024-01 → —
MAXH21 LHD —
58995-F4130 Bracket, Console Box Mounting, NO.1
2024-01 → —
MAXH21 RHD —
58996A — Bracket, Console Box Mounting, NO.2
58996-F4070 Bracket, Console Box Mounting, NO.2
2023-10 → —
MAXH2#,ZYX20 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
