Toyota C-hr

2023-10 → present · chassis MAXH2#,ZYX20 · catalogue 528220 · Europe

Supported model Data version 2023-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 4 illustrations

Illustrations

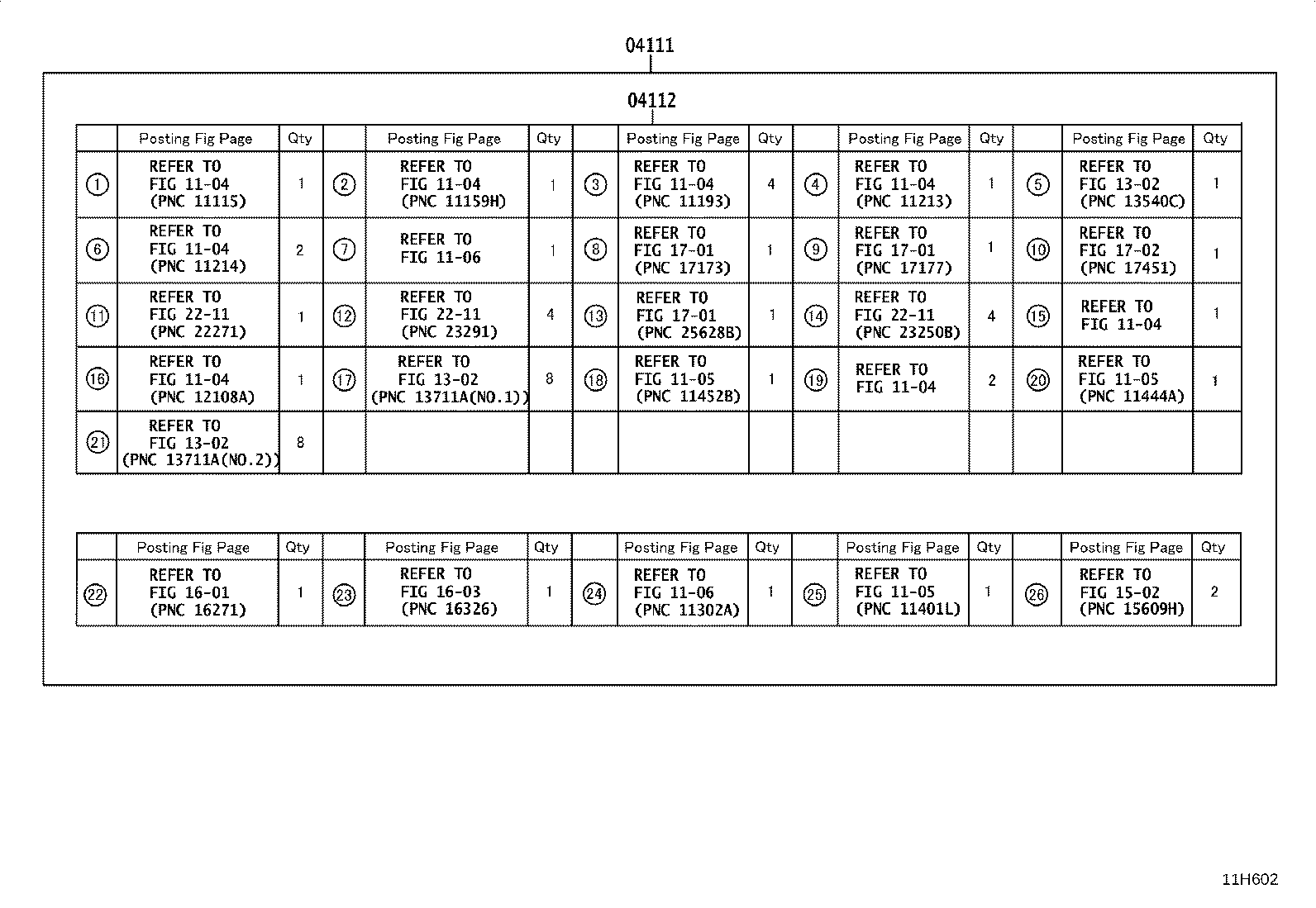

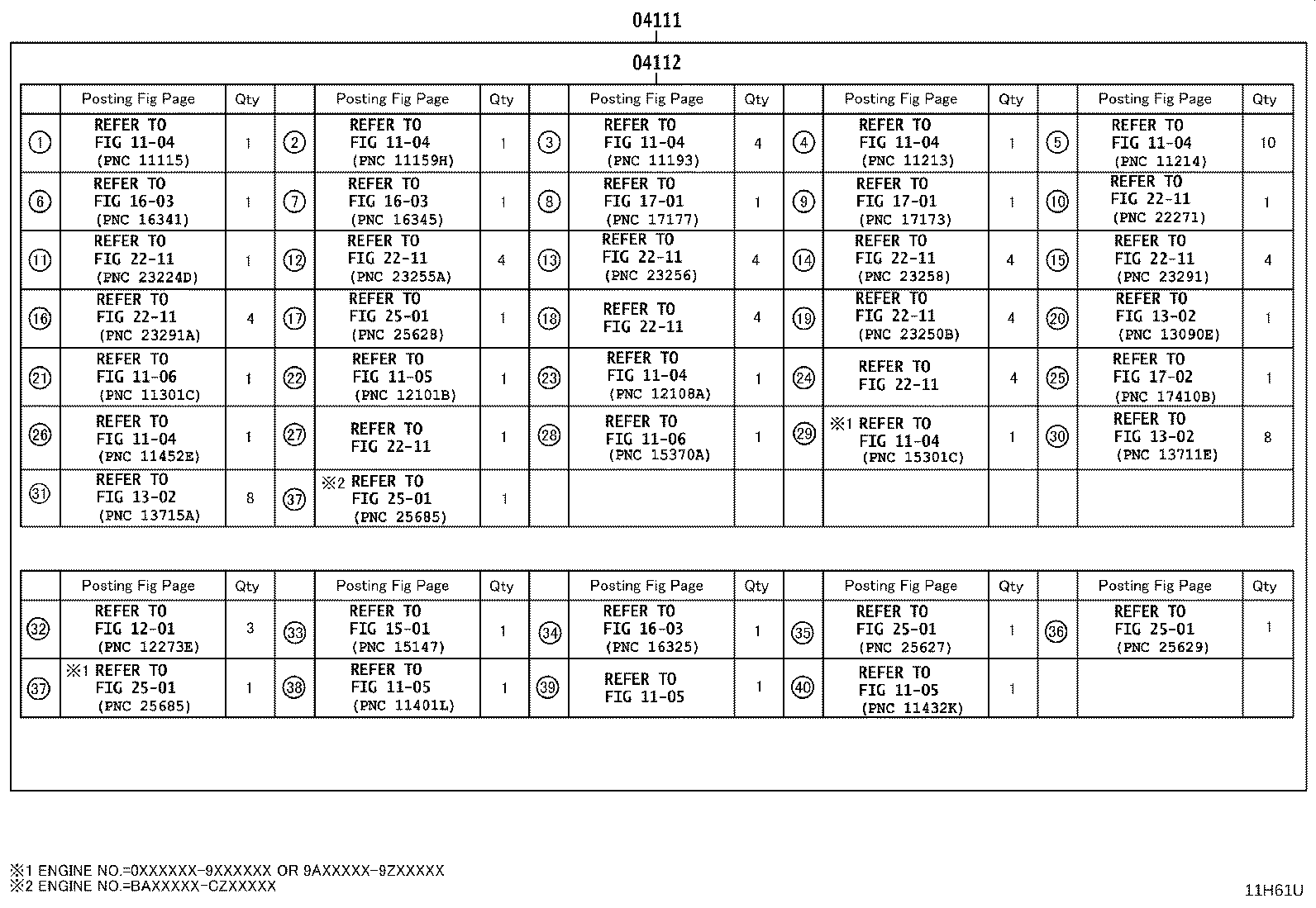

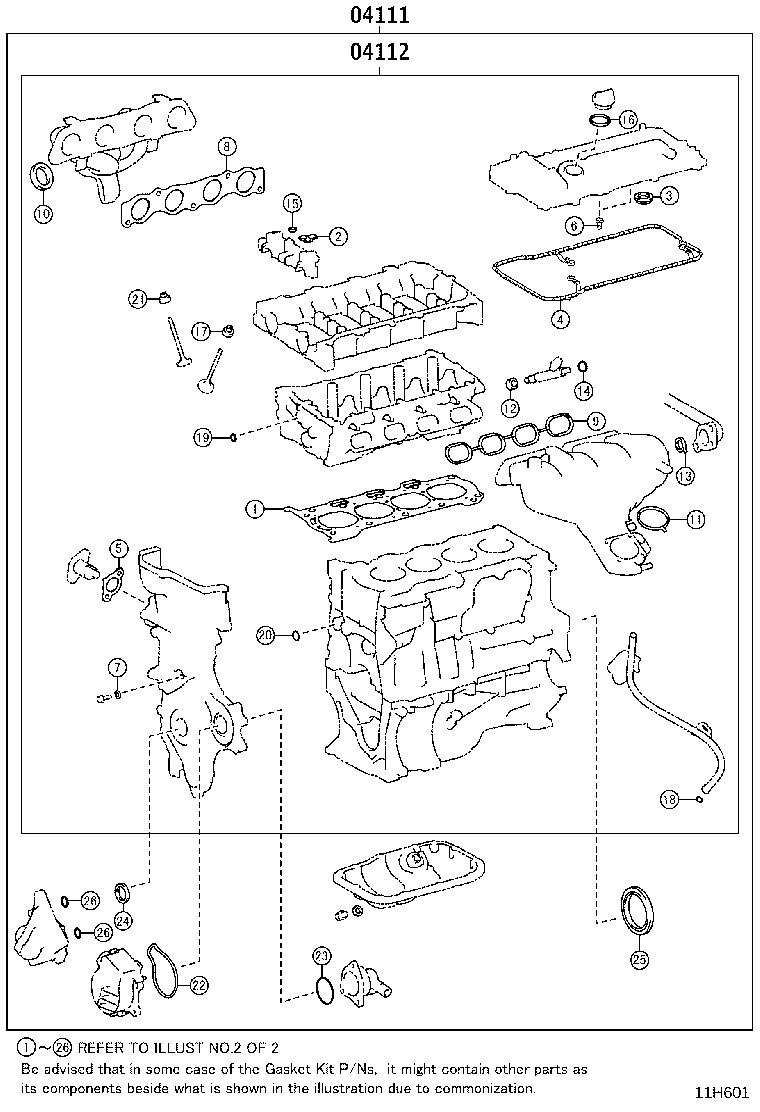

Figure 11H61T 11H61T 2023-10 → — Figure 11H61U 11H61U 2023-10 → — Figure 11H601 11H601 2023-10 → — Figure 11H602 11H602 2023-10 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
