Toyota C-hr

2023-10 → present · chassis MAXH2#,ZYX20 · catalogue 528220 · Europe

Supported model Data version 2023-12

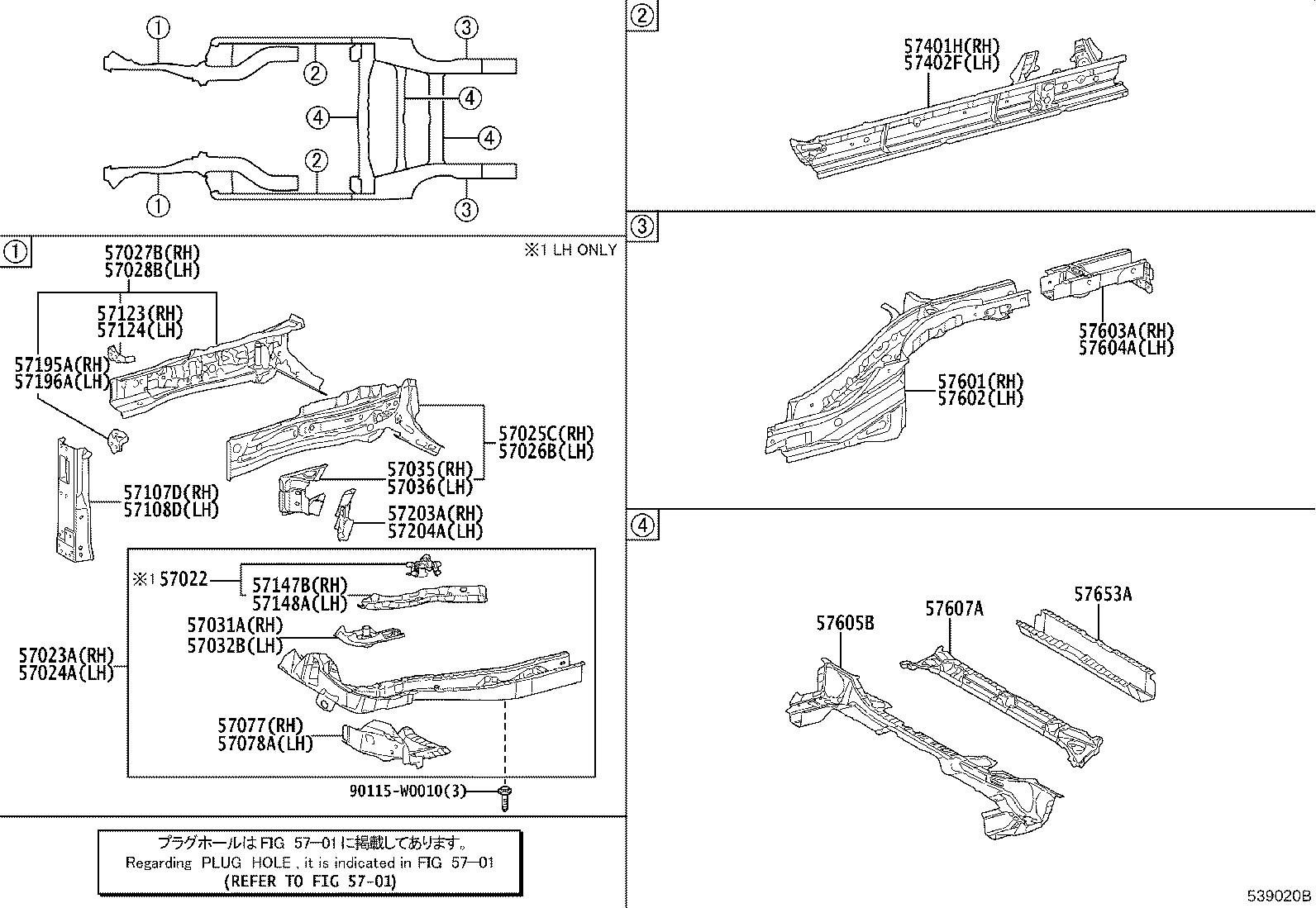

Floor Side Member

34 part groups · 2 illustrations

PNC	Description
57022	Bracket Sub-assy, Body Mounting, NO.1 LH
57023A	Member Sub-assy, Rear Side, RH
57024A	Member Sub-assy, Rear Side, LH
57025C	Member Sub-assy, Front Side, Outer RH
57026B	Member Sub-assy, Front Side, Outer LH
57027B	Member Sub-assy, Front Side, Inner RH
57028B	Member Sub-assy, Front Side, Inner LH
57031A	Reinforce Sub-assy, Front Side Member, NO.2 RH
57032B	Reinforcement Sub-assy, Front Side Member, NO.2 LH
57035	Panel Sub-assy, Front Step, RH
57036	Panel Sub-assy, Front Step, LH
57077	Box Sub-assy, Torque, Front RH
57078A	Box Sub-assy, Torque, Front LH
57107D	Reinforce Sub-assy, Front Bumper Mounting, RH
57108D	Reinforce Sub-assy, Front Bumper Mounting, LH
57123	Support, Front Side Member, RH
57124	Support, Front Side Member, LH
57147B	Plate, Front Side Member, Rear RH
57148A	Plate, Front Side Member, Rear LH
57191E	Member Sub-assy, Front Side, Inner Rear RH
57192C	Member Sub-assy, Front Side, Inner Rear LH
57195A	Reinforcement, Front Side Member, Front RH
57196A	Reinforcement, Front Side Member, Front LH
57203A	Extension Sub-assy, Front Side Member, NO.2 RH
57204A	Extension Sub-assy, Front Side Member, NO.2 LH
57401H	Member Sub-assy, Floor Side, Inner RH
57402F	Member Sub-assy, Floor Side, Inner LH
57601	Member Sub-assy, Rear Floor Side, RH
57602	Member Sub-assy, Rear Floor Side, LH
57603A	Member Sub-assy, Rear Floor Side, Rear RH
57604A	Member Sub-assy, Rear Floor Side, Rear LH
57605B	Member Sub-assy, Rear Floor Cross, NO.1
57607A	Member Sub-assy, Rear Floor Cross, NO.3
57653A	Member, Rear Floor Cross, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
