Toyota C-hr

2023-10 → present · chassis MAXH2#,ZYX20 · catalogue 528220 · Europe

Supported model Data version 2023-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

18 part groups · 6 illustrations

Illustrations

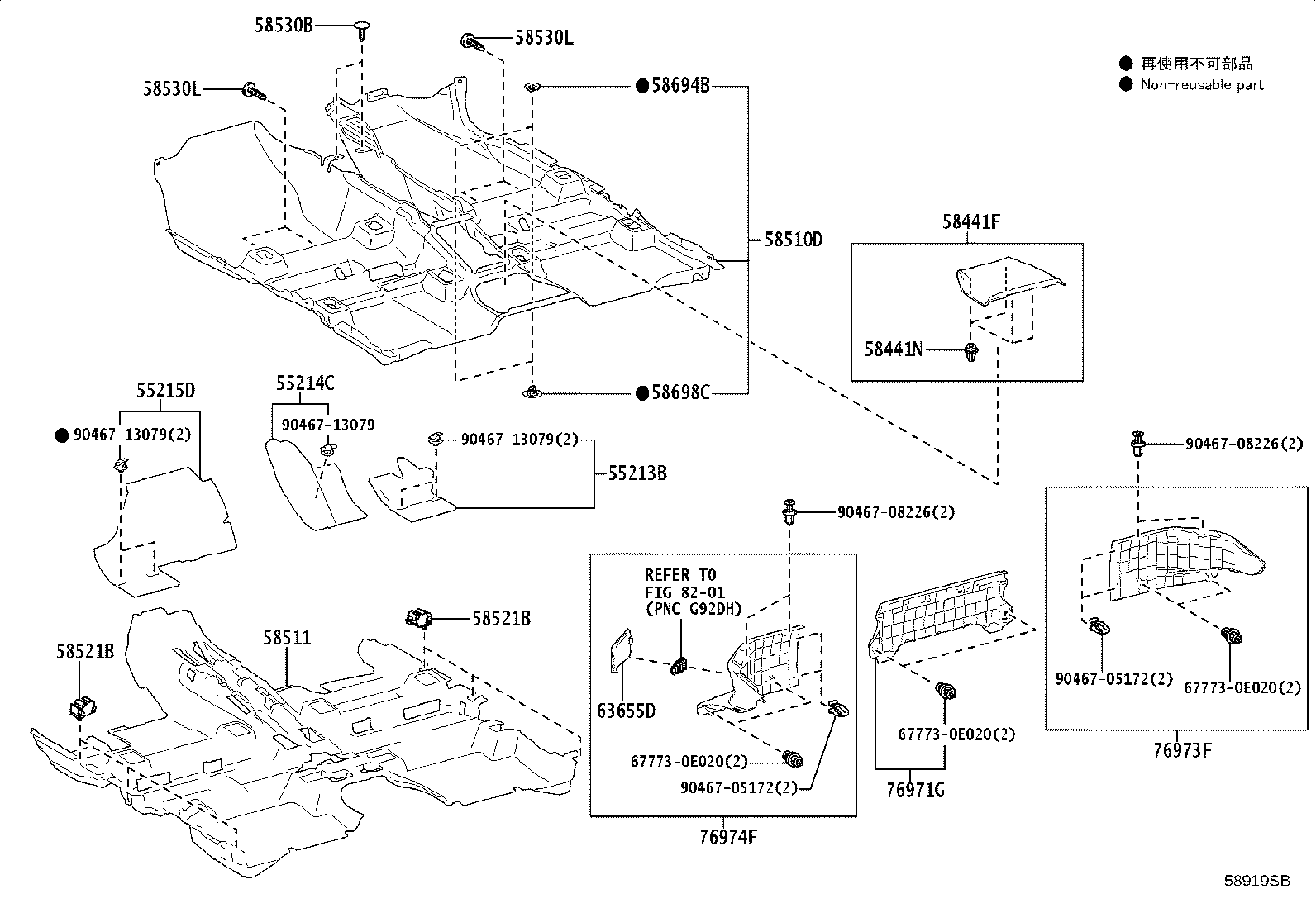

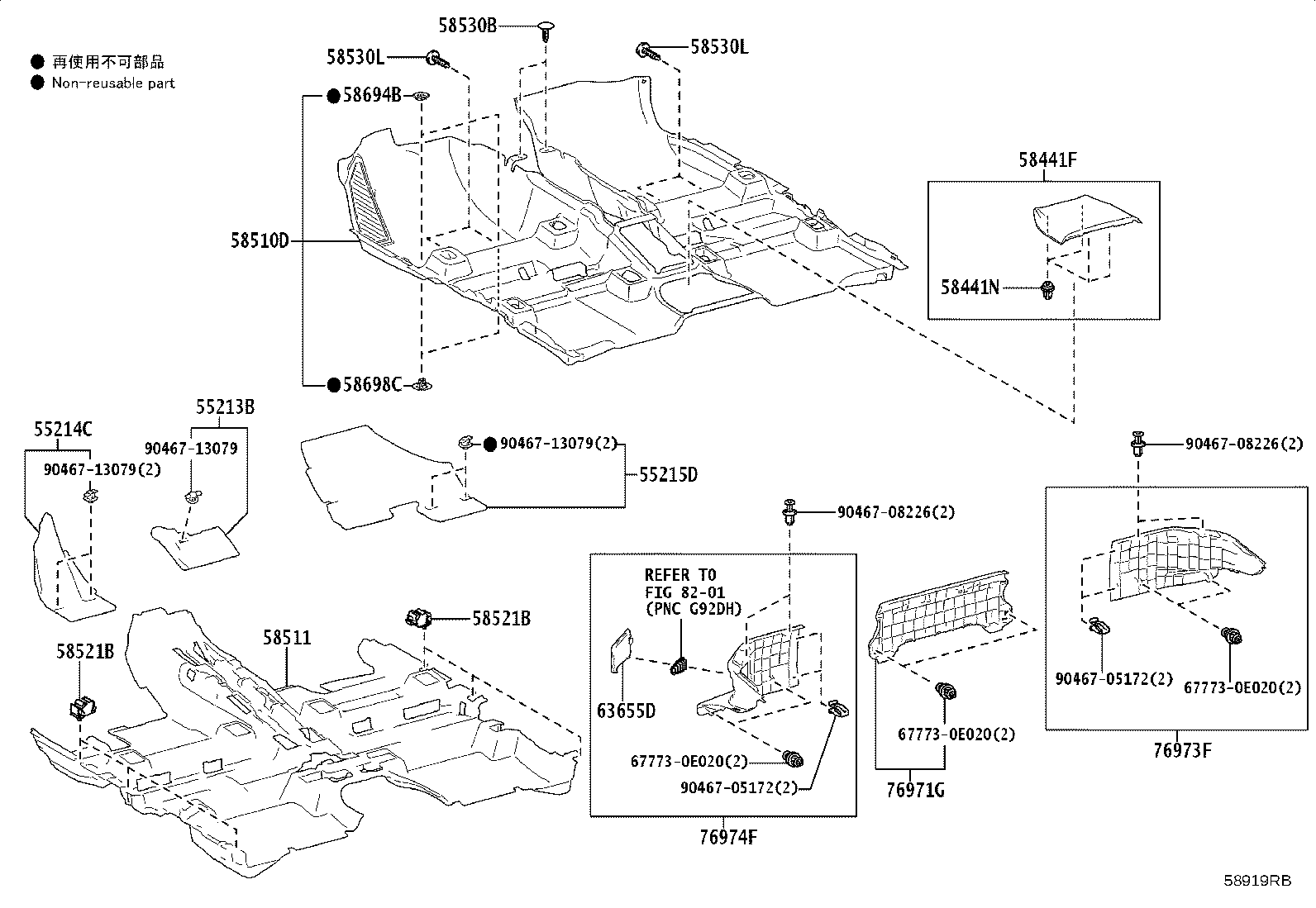

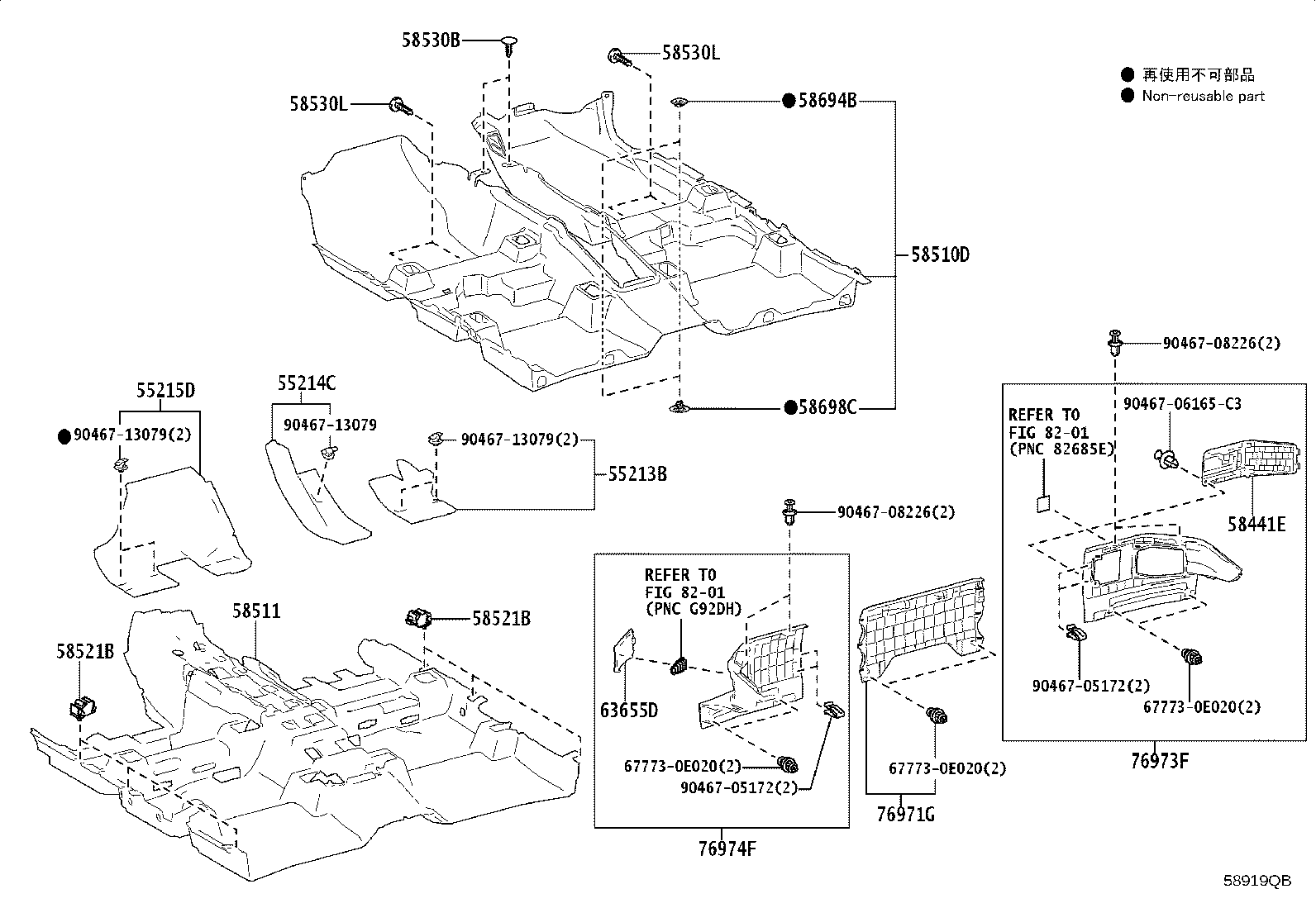

Figure 58919PB 58919PB 2023-10 → — Figure 58919QB 58919QB 2023-10 → — Figure 58919RB 58919RB 2024-01 → — Figure 58919SB 58919SB 2024-01 → — Figure 58919N 58919N 2023-10 → — Figure 58919O 58919O 2023-10 → —

Part groups

PNCDescription
55213B Pad, Dash Panel Insulator, NO.1
55214C Pad, Dash Panel Insulator, NO.2
55215D Pad, Dash Panel Insulator, NO.3
58441E Cover, Battery Service Hole
58441F Cover, Battery Service Hole
58441N Clip(FOR BATTERY SERVICE HOLE COVER)
58510D Carpet Assy, Floor, Front
58510H Mat Assy, Floor
58511 Mat, Floor, Front
58521B Hook, Floor Carpet
58530B Clip(FOR FRONT FLOOR CARPET)
58530L Clip, Floor Carpet, Center
58694B Plate, Mat Set, Upper
58698C Plate, Mat Set, Lower
63655D Cover, Air Intake
76971G Cover, Rear Under
76973F Cover, Rear Under Side, RH
76974F Cover, Rear Under Side, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
