Toyota C-hr
2023-10 → present · chassis MAXH2#,ZYX20 · catalogue 528220 · Europe
Supported model
Data version 2023-12

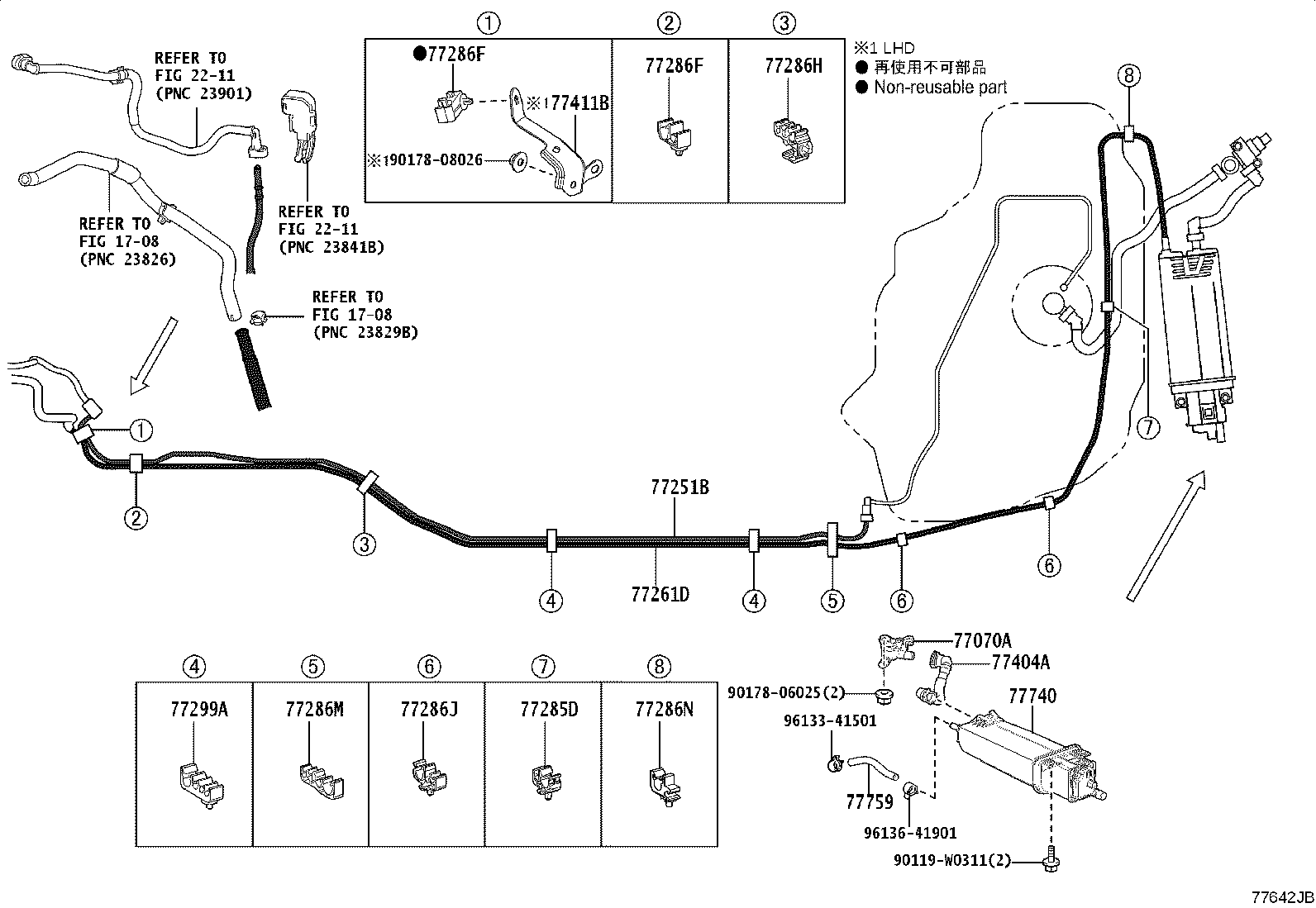

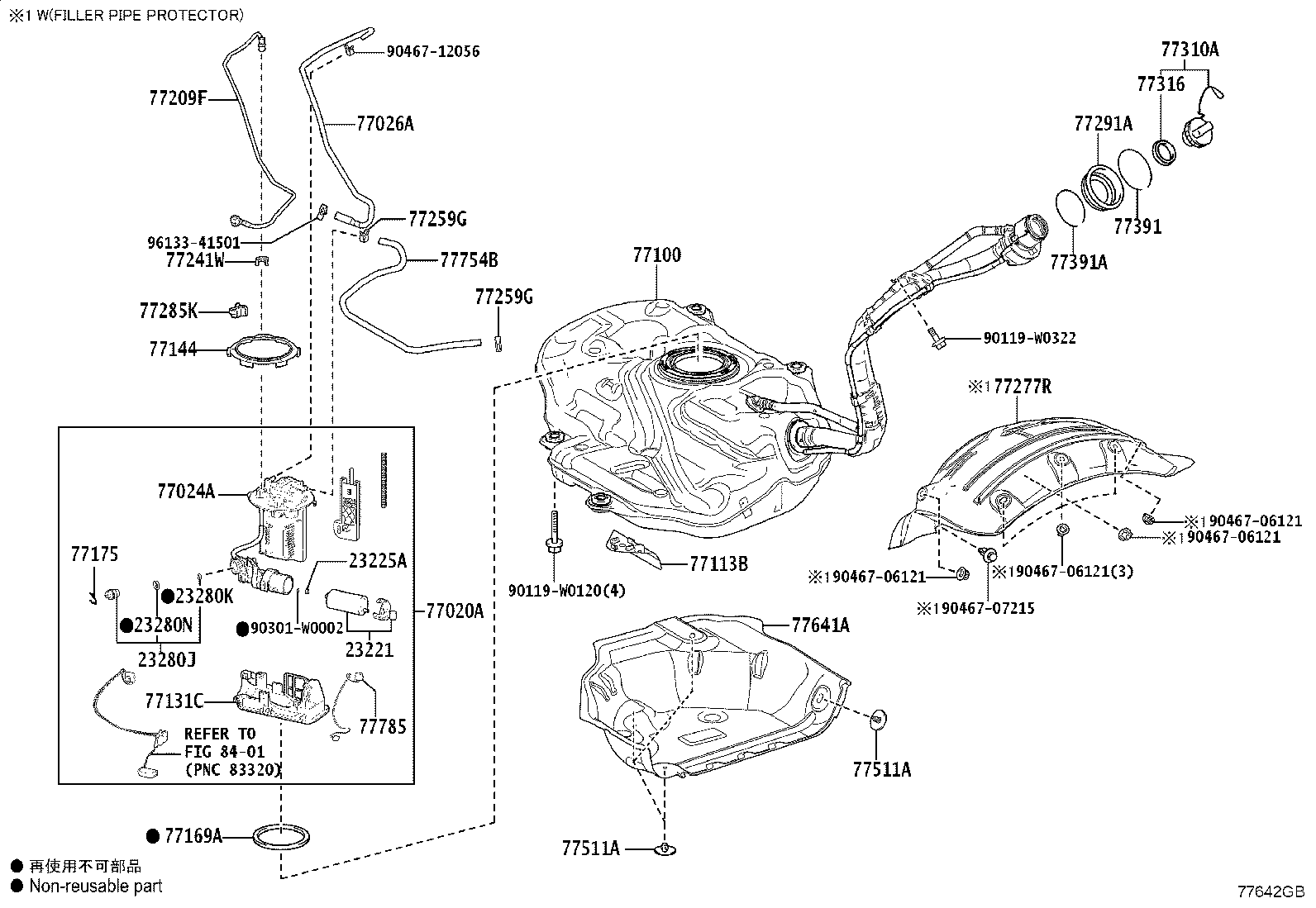

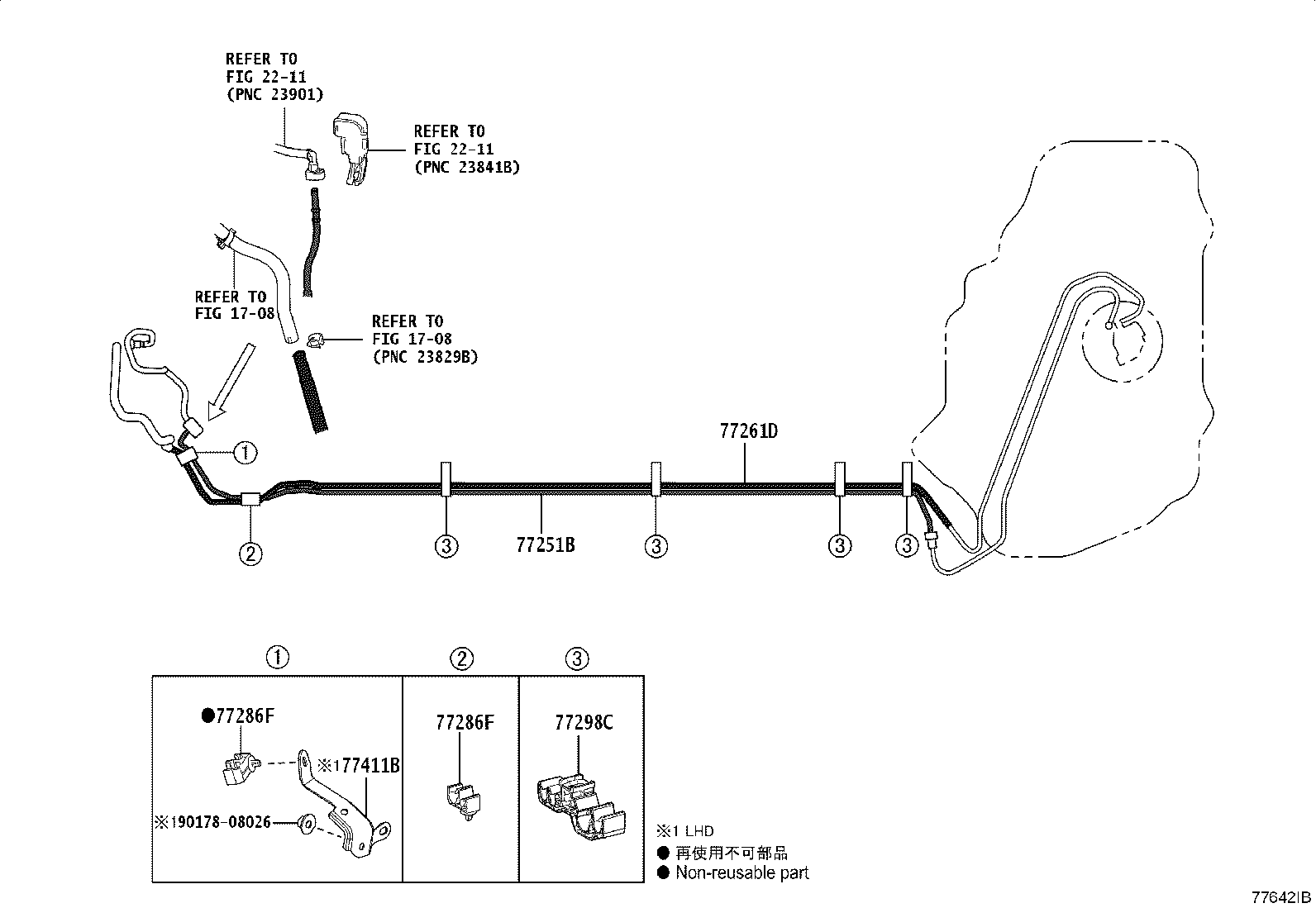

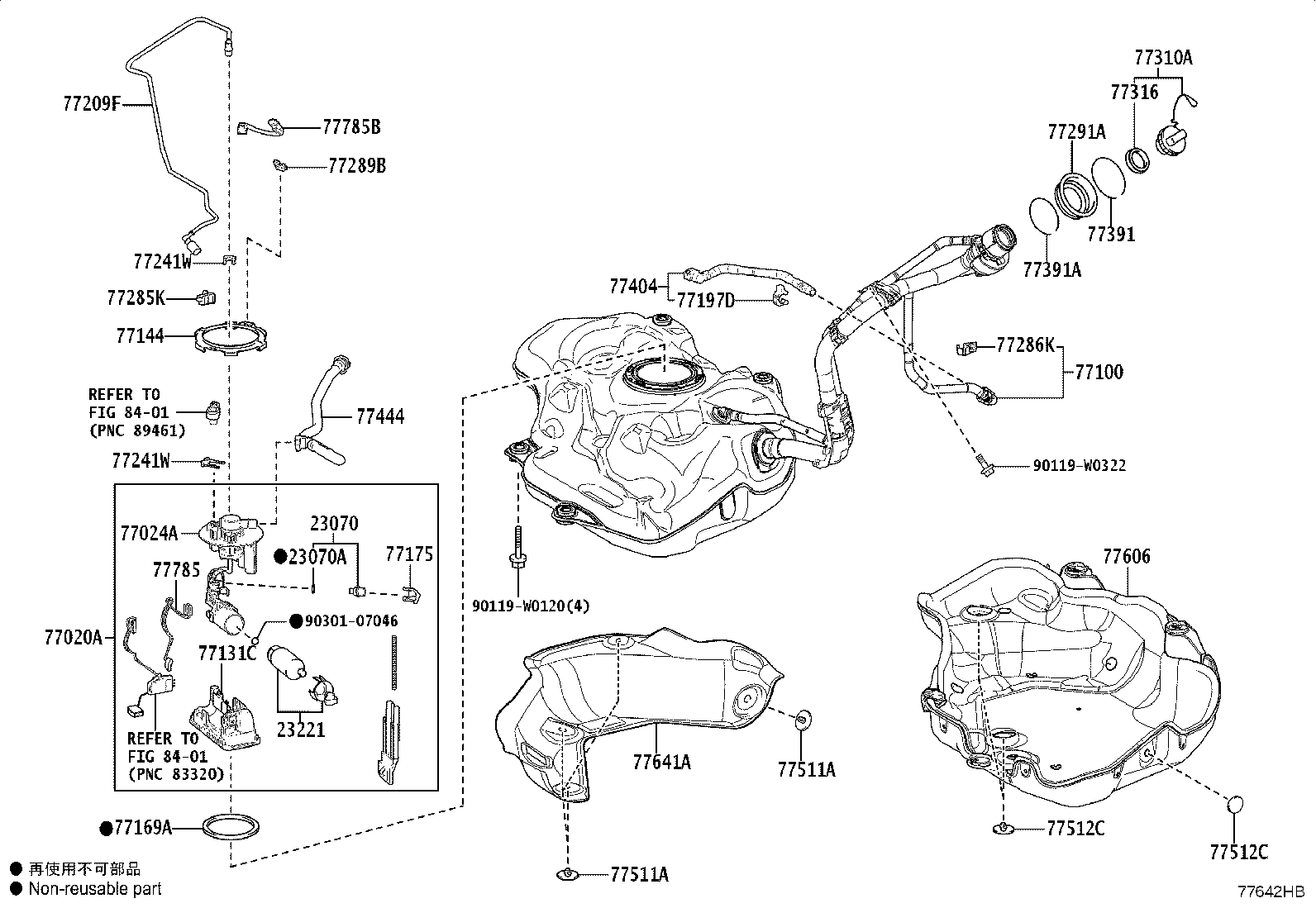

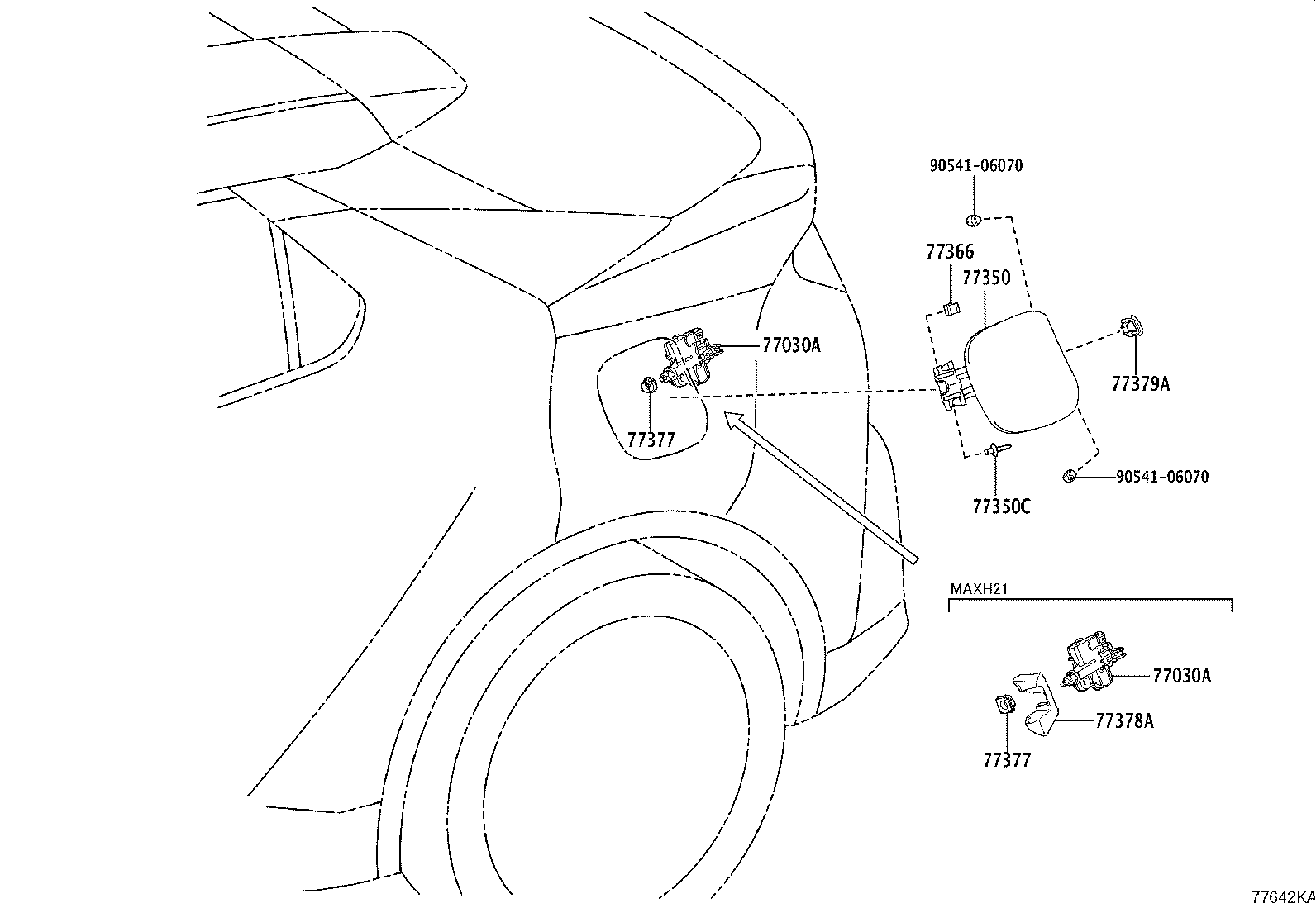

Fuel Tank & Tube
60 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 23070 | Valve Assy, Fuel Main |
| 23070A | Ring, O, NO.1(FOR FUEL MAIN VALVE) |
| 23221 | Pump, Fuel |
| 23225A | Spacer, Fuel Pump |
| 23280J | Regulator Assy, Fuel Pressure |
| 23280K | Ring, O(FOR FUEL PRESSURE REGULATOR) |
| 23280N | Ring, O(FOR FUEL PRESSURE REGULATOR), NO.2 |
| 77020A | Tube Assy, Fuel Suction W/Pump & Gage |
| 77024A | Plate Sub-assy, Fuel Suction |
| 77026A | Tube Sub-assy, Fuel Evaporation, NO.1 |
| 77030A | Lock Assy, Fuel Lid W/Motor |
| 77070A | Valve Assy, Close Tank |
| 77100 | Tank Assy, Fuel |
| 77113B | Plate, Fuel Tank Side |
| 77131C | Sub-tank, Fuel, NO.1 |
| 77144 | Retainer, Fuel Pump Gauge |
| 77169A | Gasket, Fuel Suction Tube Set |
| 77175 | Support, Fuel Suction, NO.2 |
| 77197D | Clamp, Evaporation Vent Tube, NO.2 |
| 77209F | Tube Sub-assy, Fuel Tank Main |
| 77241W | Clip, Tube Joint |
| 77251B | Tube, Fuel Main |
| 77259G | Clip, Fuel Hose |
| 77261D | Tube, Fuel Tank TO Canister |
| 77277R | Protector, Fuel Tank Filler Pipe |
| 77285D | Clamp, Fuel Tube, NO.1 |
| 77285K | Clamp, Fuel Tube, NO.1 |
| 77286F | Clamp, Fuel Tube, NO.2 |
| 77286H | Clamp, Fuel Tube, NO.3 |
| 77286J | Clamp, Fuel Tube, NO.4 |
| 77286K | Clamp, Fuel Tube, NO.2 |
| 77286M | Clamp, Fuel Tube, NO.6 |
| 77286N | Clamp, Fuel Tube, NO.7 |
| 77289B | Clamp, Fuel Tube, NO.3 |
| 77291A | Shield, Fuel Tank Filler Pipe |
| 77298C | Clamp, Fuel Tube, NO.4 |
| 77299A | Clamp, Fuel Tube, NO.5 |
| 77310A | Cap Assy, Fuel Tank |
| 77316 | Gasket, Fuel Tank Cap |
| 77350 | Lid Assy, Fuel Filler Opening |
| 77350C | Rivet |
| 77366 | Spring, Fuel Filler Opening Lid Hinge |
| 77377 | Retainer, Fuel Filler Opening Lid Lock |
| 77378A | Cover, Fuel Filler Opening Lid Lock |
| 77379A | Spacer, Fuel Lid Open Lever |
| 77391 | Ring, Fuel Inlet Box |
| 77391A | Ring, Fuel Inlet Box |
| 77404 | Hose Sub-assy, Fuel Tank Vent |
| 77404A | Hose Sub-assy, Fuel Tank Vent |
| 77411B | Support, Fuel Tube Grommet, NO.1 |
| 77444 | Hose, Fuel Tank Vent |
| 77511A | Bracket, Fuel Tank |
| 77512C | Bracket, Fuel Tank |
| 77606 | Protector Sub-assy, Fuel Tank, NO.1 |
| 77641A | Protector, Fuel Tank, NO.1 |
| 77740 | Canister Assy, Charcoal |
| 77754B | Hose, Charcoal Canister Outlet |
| 77759 | Hose, Charcoal Canister |
| 77785 | Harness, Fuel Pump |
| 77785B | Harness, Fuel Pump, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
