Toyota C-hr

2023-10 → present · chassis MAXH2#,ZYX20 · catalogue 528220 · Europe

Supported model Data version 2023-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

8 part groups · 3 illustrations

Illustrations

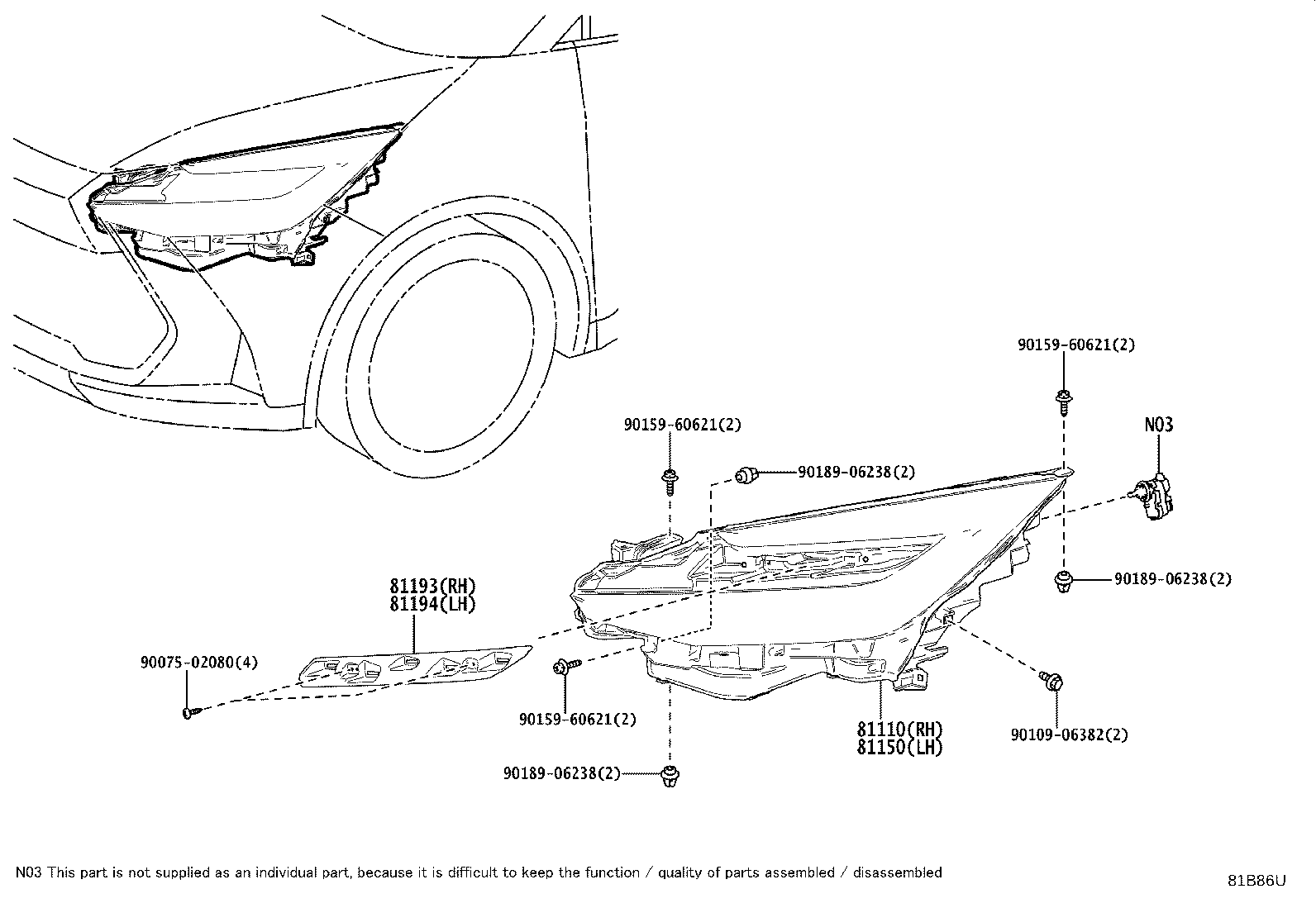

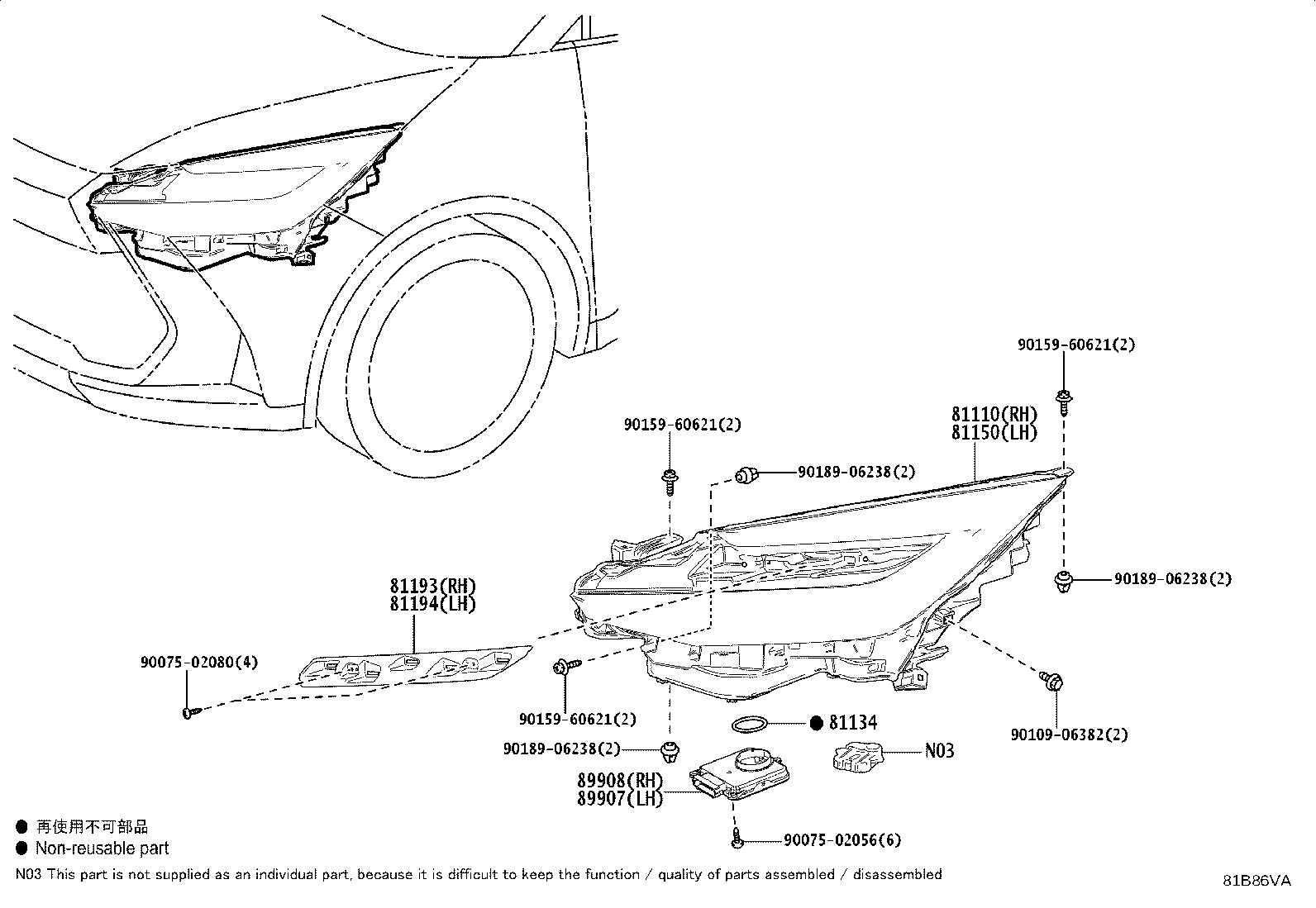

Figure 81B86T 81B86T 2023-10 → — Figure 81B86U 81B86U 2023-10 → — Figure 81B86VA 81B86VA 2023-10 → —

Part groups

PNCDescription
81110 Headlamp Assy, RH
81134 Gasket, Headlamp
8113A Led, Headlamp Front Turn Signal
81150 Headlamp Assy, LH
81193 Retainer, Headlamp Protector, Upper RH
81194 Retainer, Headlamp Protector, Upper LH
89907 Computer Sub-assy, Headlamp, LH
89908 Computer Sub-assy, Headlamp, RH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
