Toyota C-hr

2023-10 → present · chassis MAXH2#,ZYX20 · catalogue 528220 · Europe

Supported model Data version 2023-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

15 part groups · 2 illustrations

Illustrations

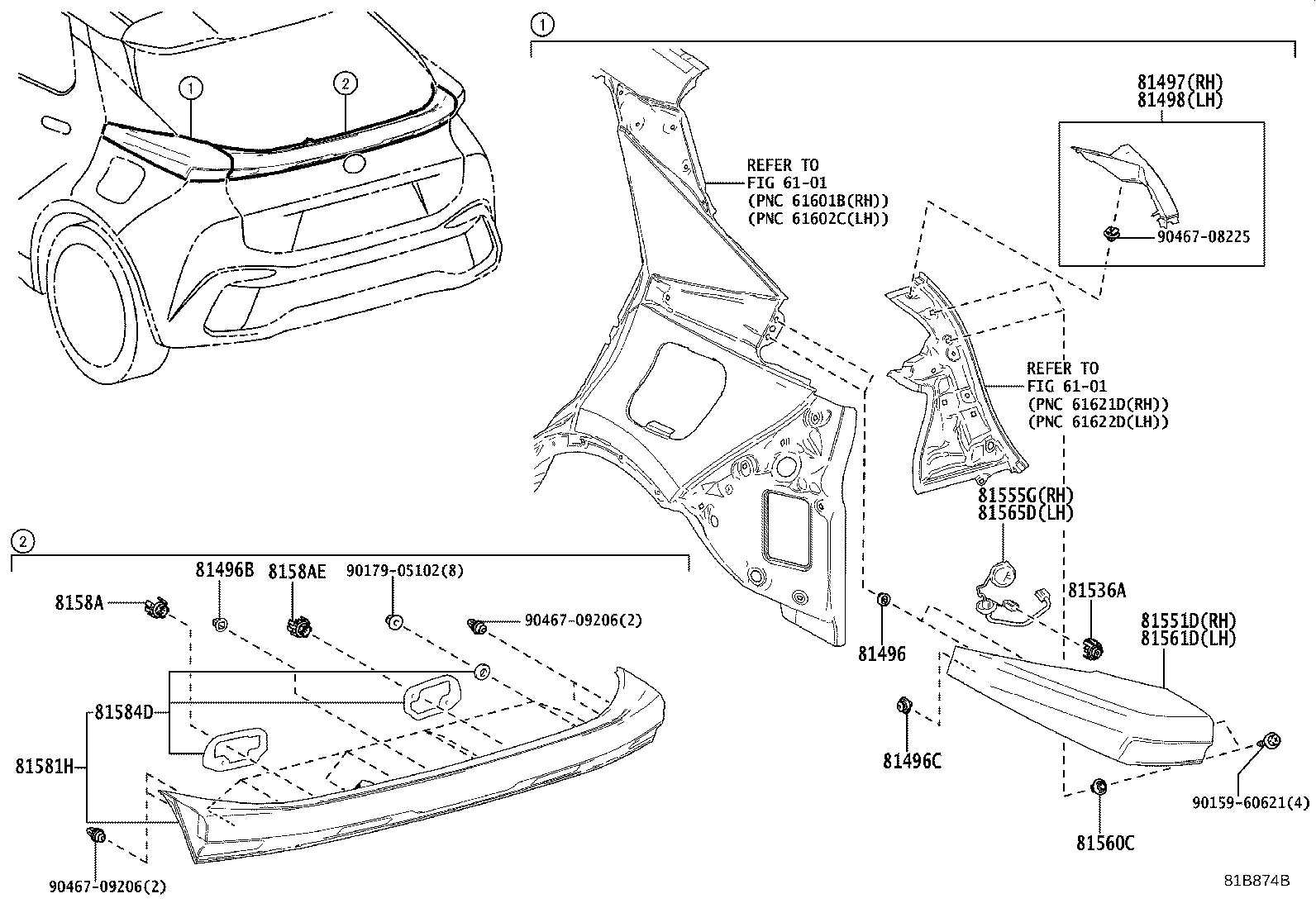

Figure 81B873C 81B873C 2023-10 → — Figure 81B874B 81B874B 2023-10 → —

Part groups

PNCDescription
81496 Guide, Rear Combination Lamp
81496B Guide, Rear Lamp
81496C Guide, Rear Combination Lamp, NO.2
81497 Cover, Rear Combination Lamp, RH
81498 Cover, Rear Combination Lamp, LH
81536A Led, Rear Combination Lamp
81551D Lens & Body, Rear Combination Lamp, RH
81555G Cord, Rear Combination Lamp, RH
81560C Grommet
81561D Lens & Body, Rear Combination Lamp, LH
81565D Cord, Rear Combination Lamp, LH
81581H Lens & Body, Rear Lamp
81584D Gasket, Rear Lamp
8158A Led, Rear Lamp
8158AE Led, Back-up Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
