Toyota C-hr
2023-10 → present · chassis MAXH2#,ZYX20 · catalogue 528220 · Europe
Supported model
Data version 2023-12
Switch & Relay & Computer
130 part groups · 16 illustrations
Illustrations
Part groups

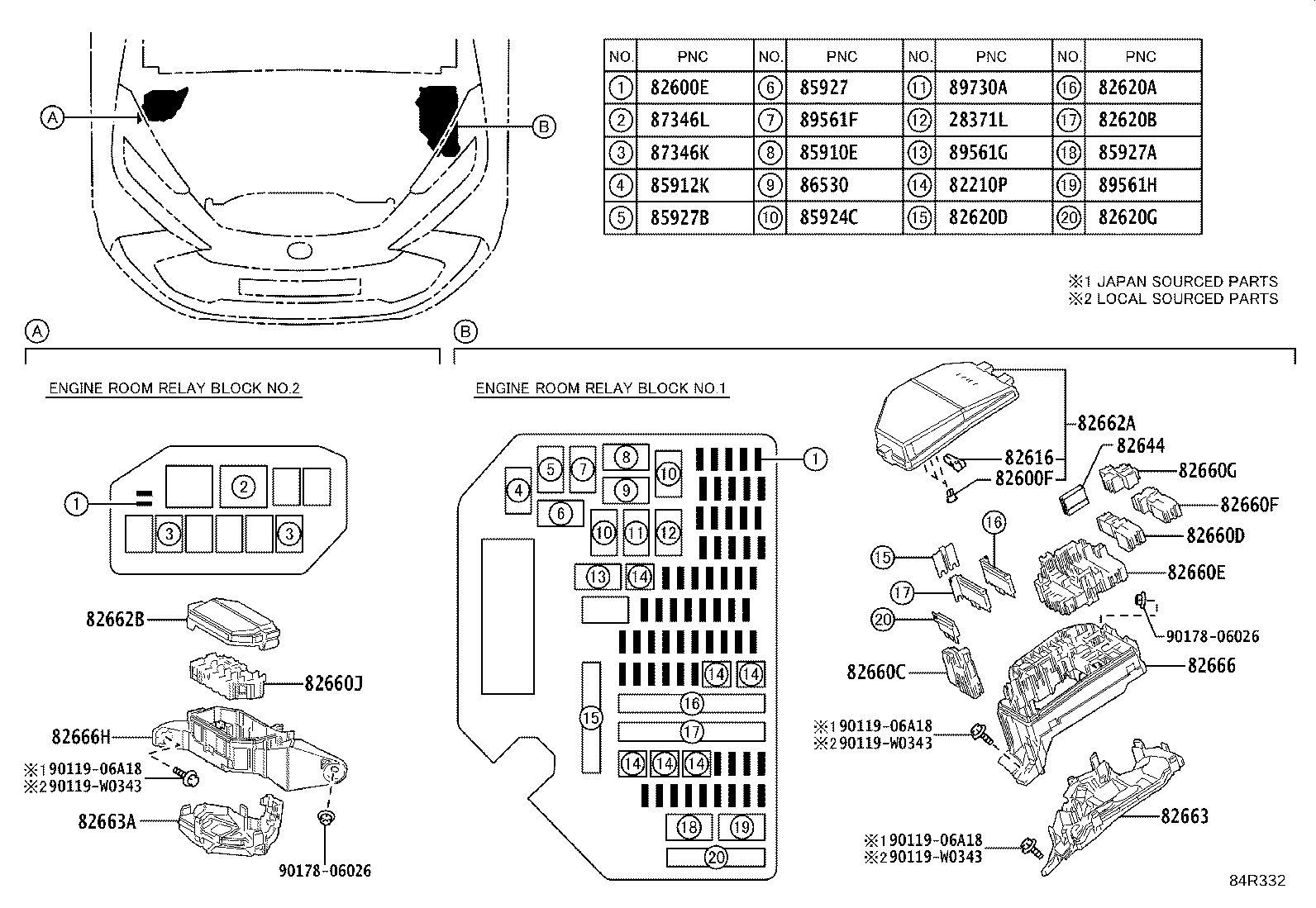

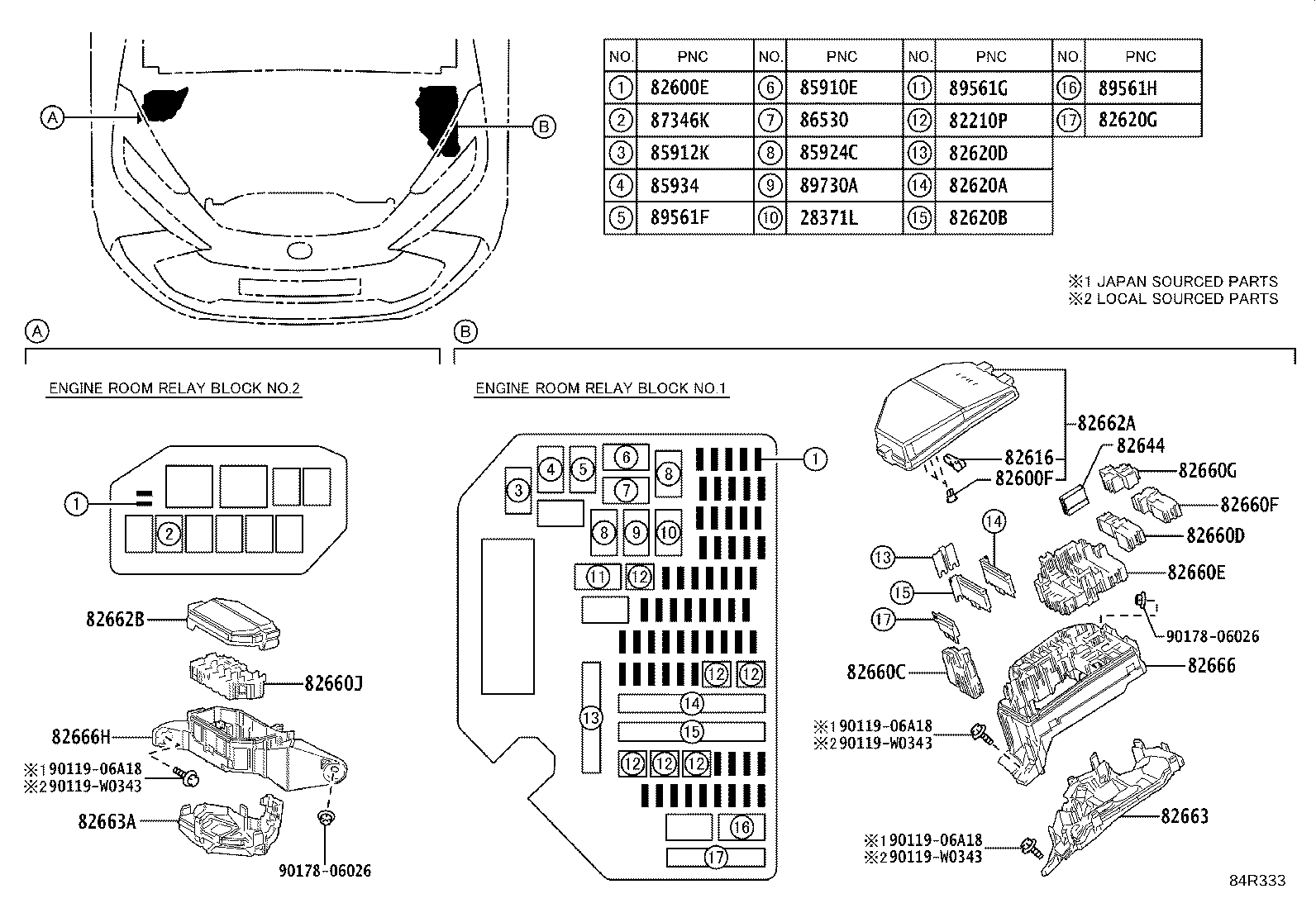

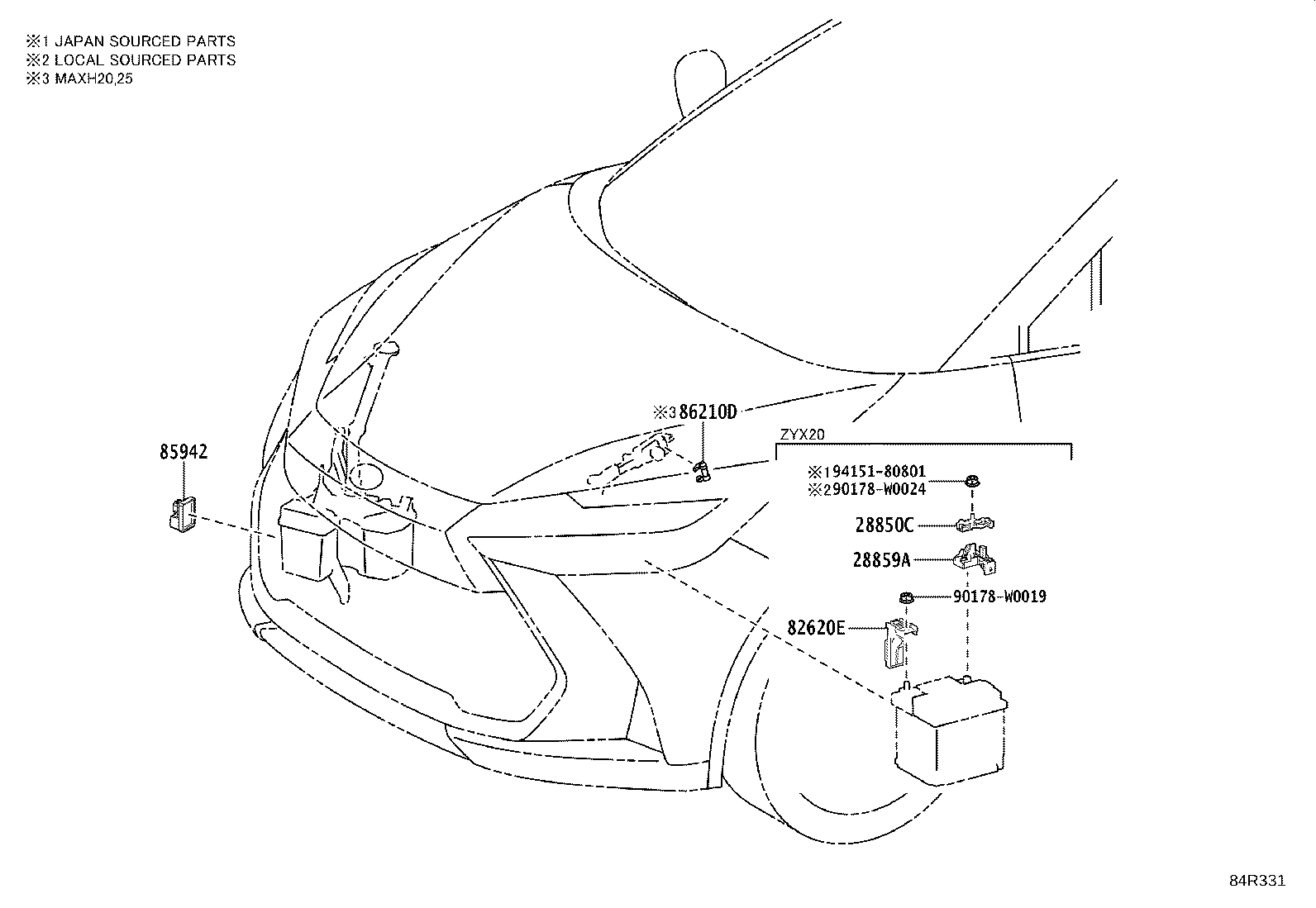

| PNC | Description |
|---|---|
| 28371L | Relay, Igp |
| 28850C | Sensor Assy, Battery State |
| 28859A | Holder, Battery Current Sensor |
| 28911 | Bracket, Integration Control Supply, NO.1 |
| 28912 | Supply, Integration Control |
| 69065A | Cylinder Sub-assy, Airbag Cut Off Switch |
| 82210N | Instrument Panel Fusible Link |
| 82210P | Engine Room Fusible Link |
| 82600D | Instrument Panel Fuse |
| 82600E | Engine Room Fuse |
| 82600F | Fuse, Fuse Block |
| 82610D | Block Assy, Fuse |
| 82616 | Puller, Fuse |
| 82620A | Block Assy, Fusible Link |
| 82620B | Block Assy, Fusible Link |
| 82620D | Block Assy, Fusible Link |
| 82620E | Block Assy, Fusible Link |
| 82620F | Block Assy, Fusible Link |
| 82620G | Block Assy, Fusible Link |
| 82644 | Computer, Semiconductor Power Integration |

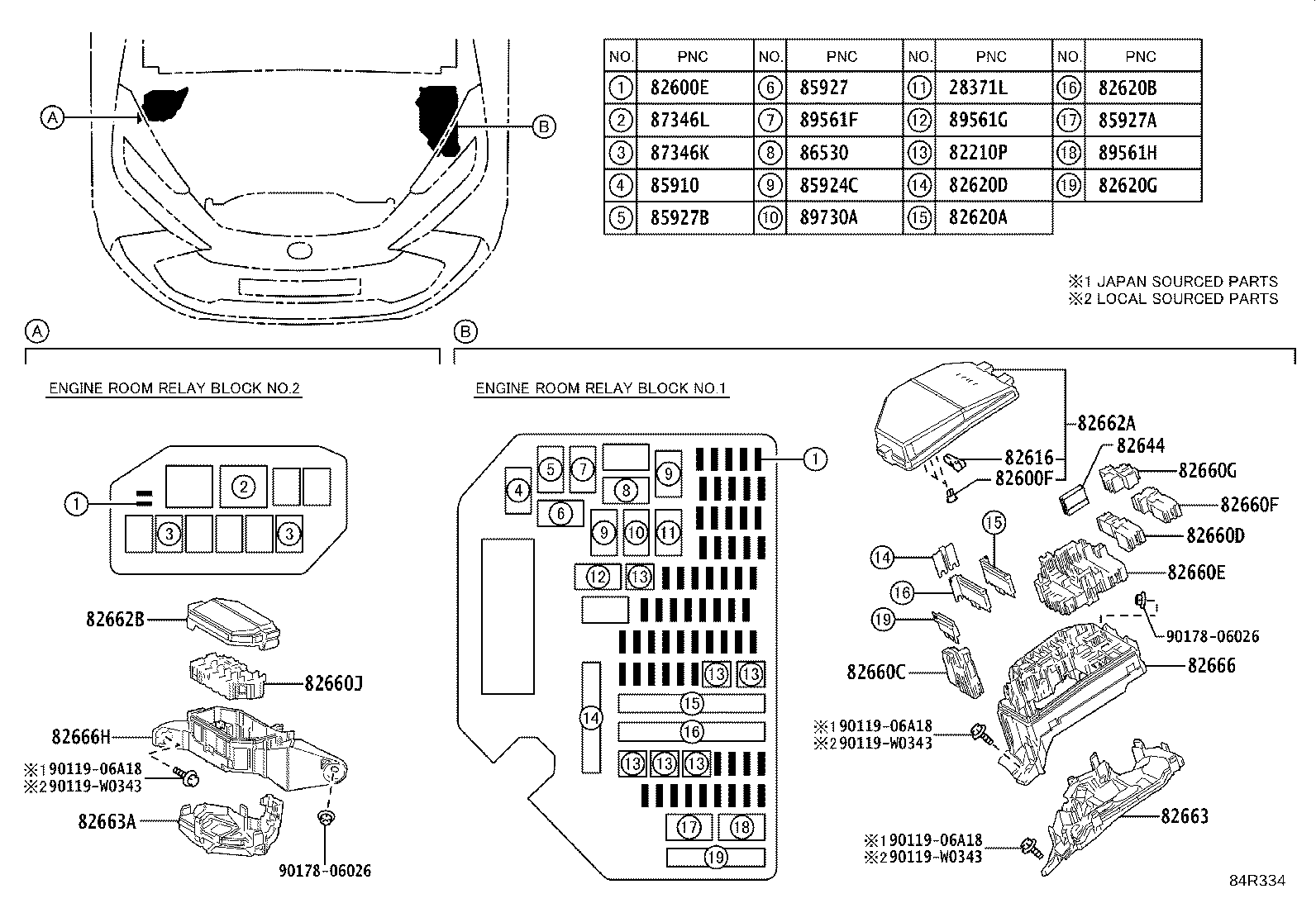

| 82660C | Block Assy, Relay |
| 82660D | Block Assy, Relay |
| 82660E | Block Assy, Relay |
| 82660F | Block Assy, Relay |
| 82660G | Block Assy, Relay |
| 82660H | Block Assy, Relay |
| 82660J | Block Assy, Relay |
| 82660K | Block Assy, Relay |
| 82660L | Block Assy, Relay |
| 82662A | Cover, Relay Block, Upper, NO.1 |
| 82662B | Cover, Relay Block, Upper, NO.2 |
| 82663 | Cover, Relay Block, Lower |
| 82663A | Cover, Relay Block, Lower, NO.2 |
| 82666 | Holder, Connector |
| 82666H | Holder, Connector, NO.2 |
| 82666J | Holder, Connector, NO.3 |

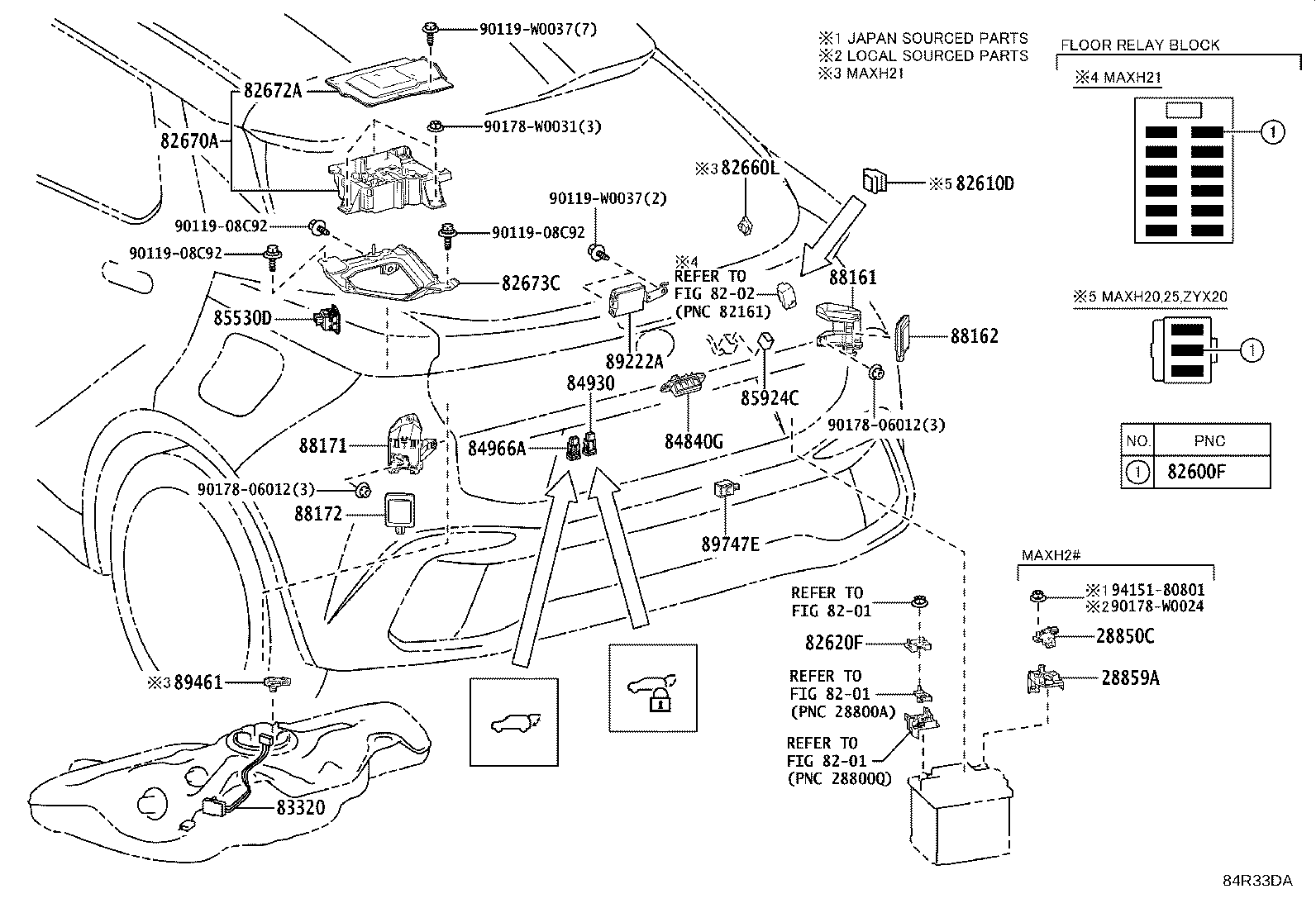

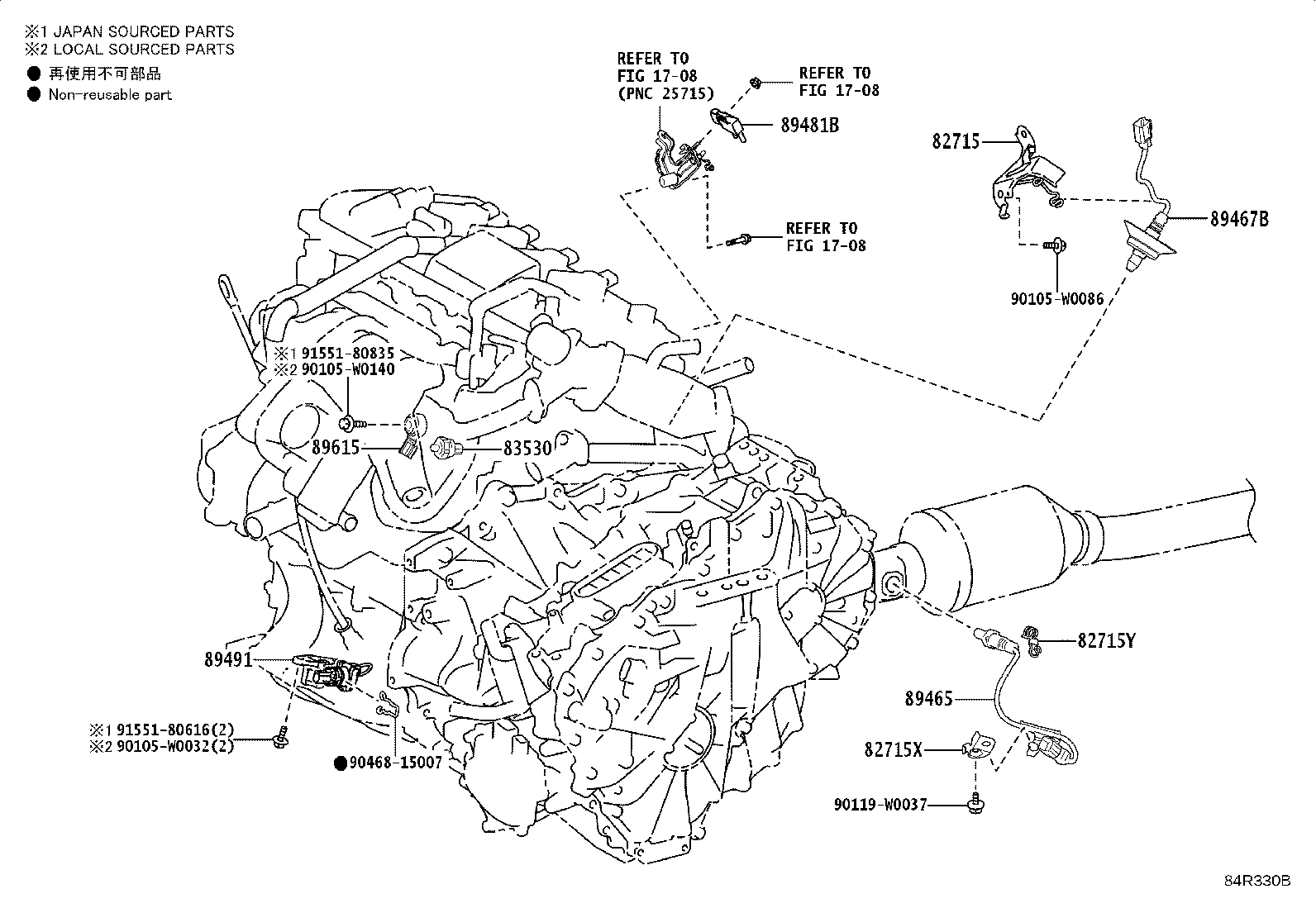

| 82670A | Block Assy, Junction, NO.1 |
| 82672A | Cover, Junction Block |
| 82672K | Cover, Power Distribution Box |
| 82673A | Bracket, Junction Block, NO.1 |
| 82673C | Bracket, Junction Block |
| 82715 | Bracket,Wiring Harness Clamp |
| 82715X | Bracket, Wiring Harness Clamp, NO.2 |
| 82715Y | Bracket, Wiring Harness Clamp, NO.3 |
| 82730G | Box Assy, Power Distribution |
| 83320 | Gage Assy, Fuel Sender |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |

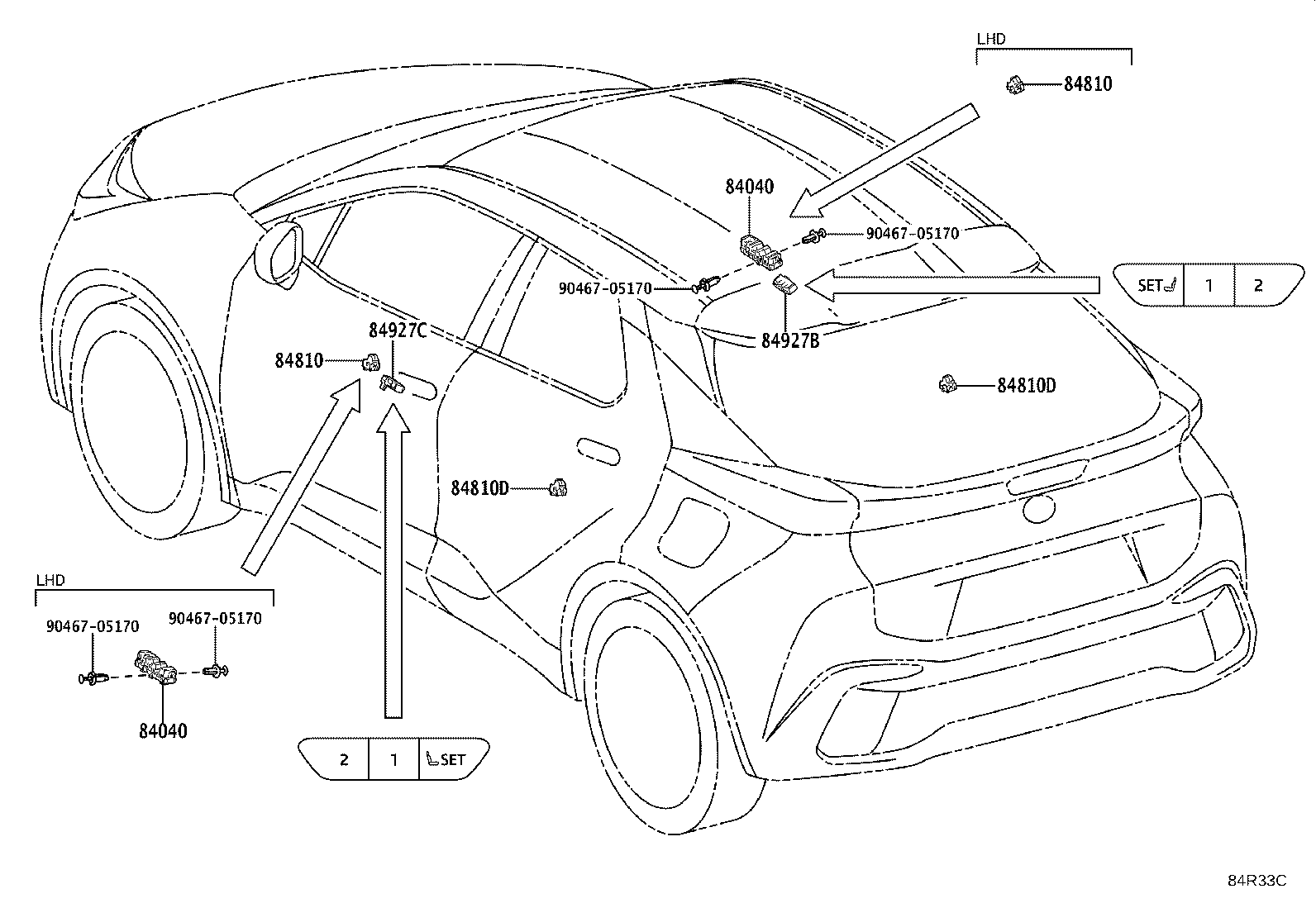

| 84040 | Master Switch Assy,Multiplex Network |

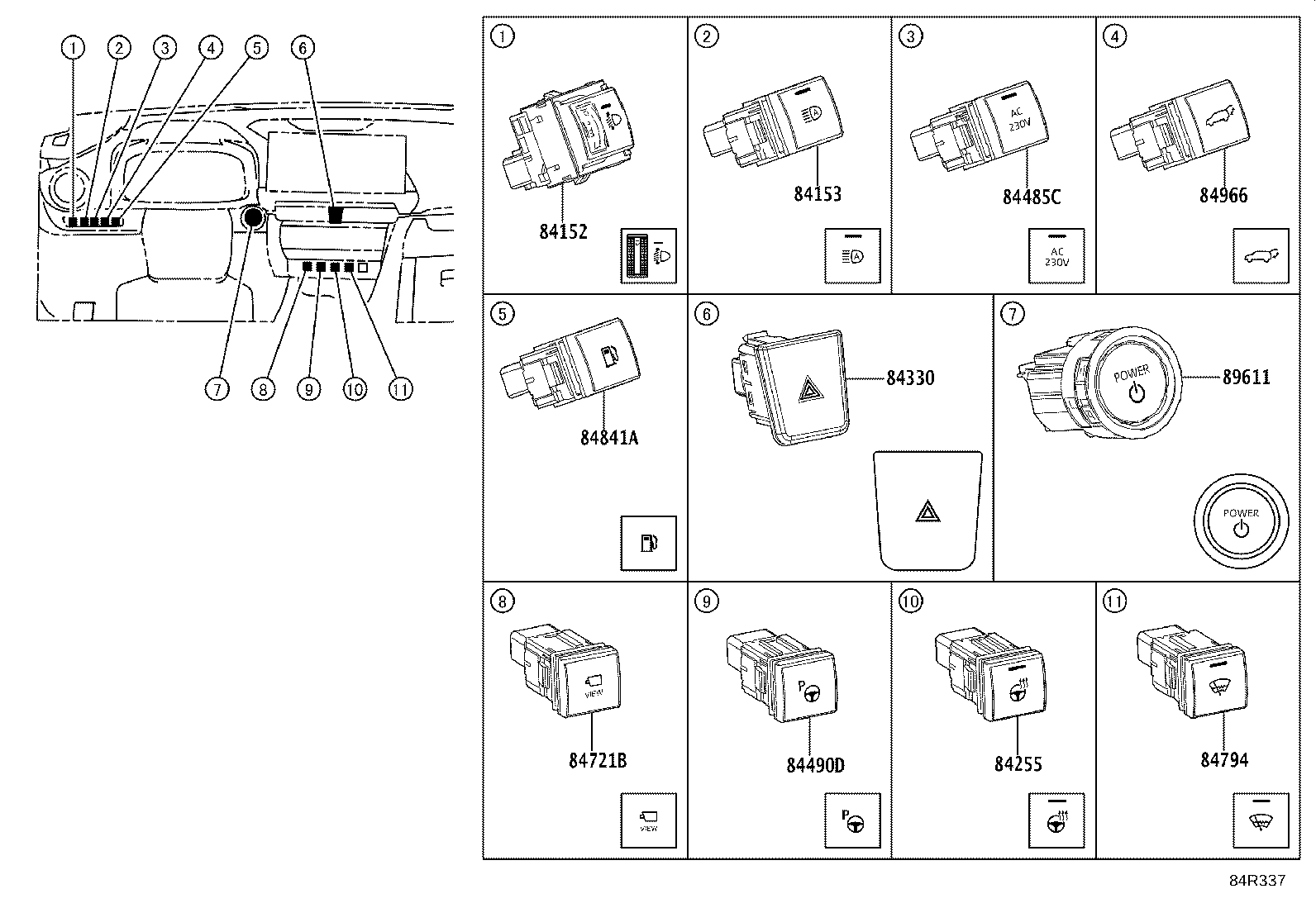

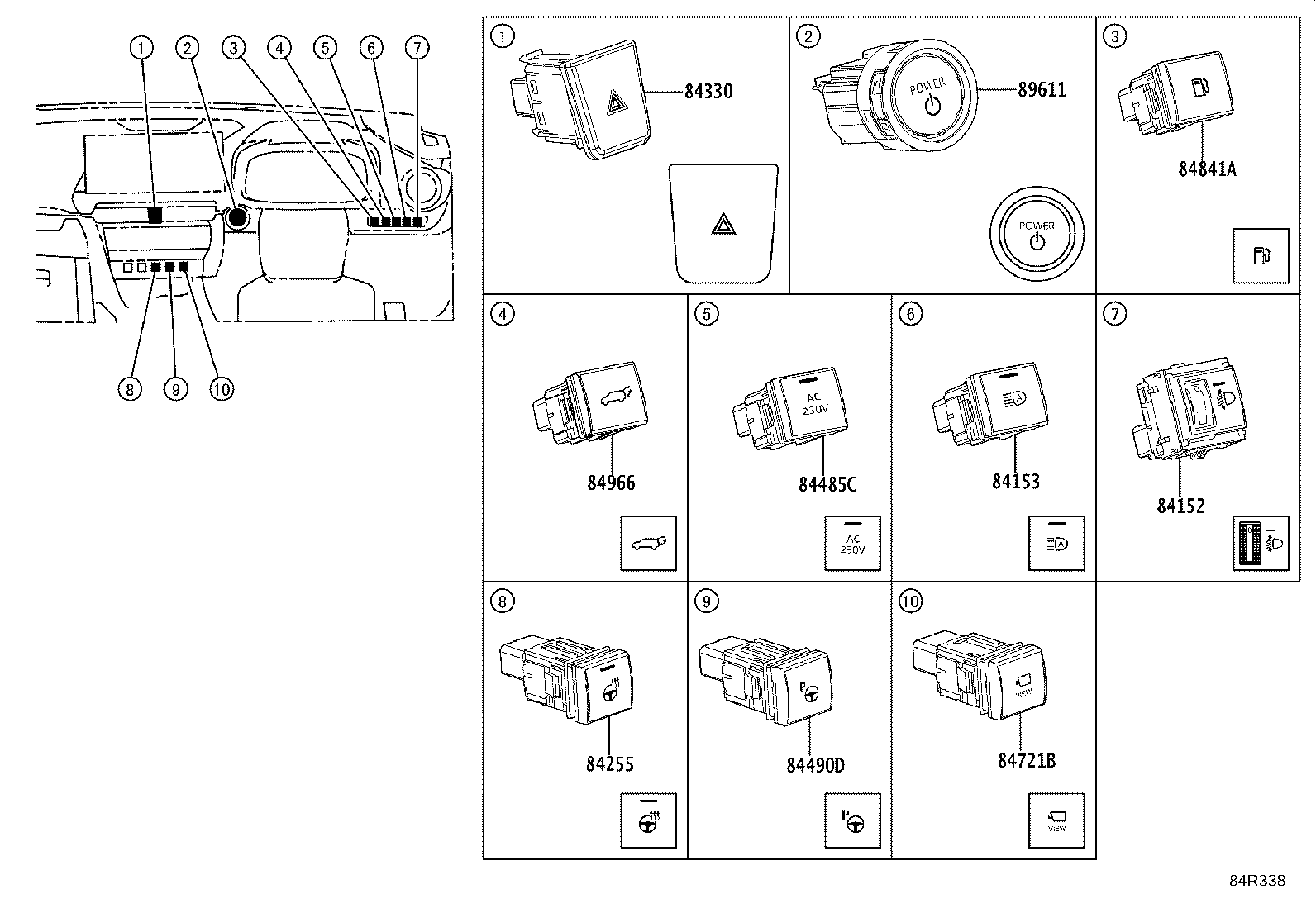

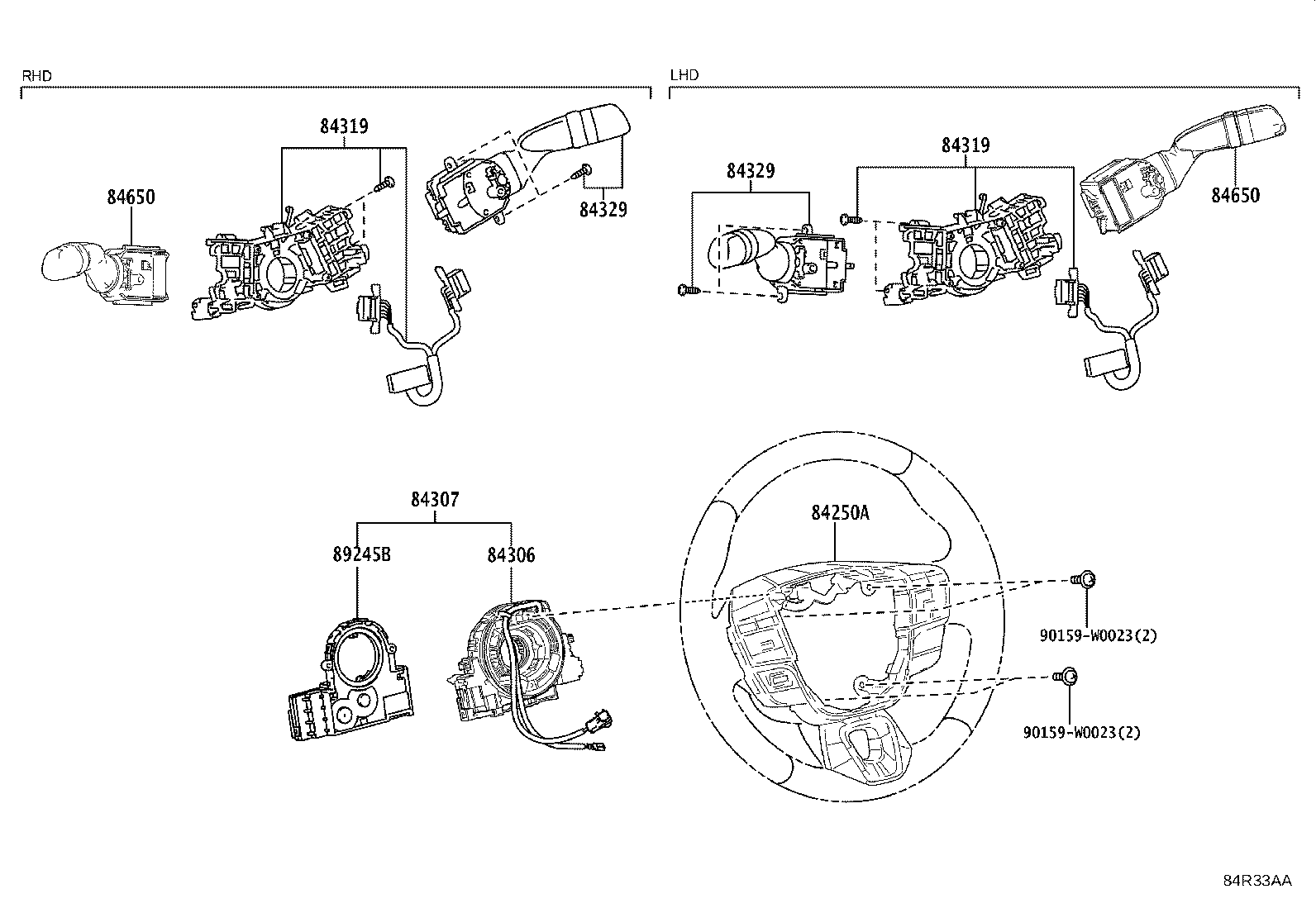

| 84152 | Switch, Headlamp Leveling |
| 84153 | Switch, Auto High Beam |
| 84250A | Switch Assy, Steering Pad |
| 84255 | Switch, Steering Heater |
| 84306 | Cable Sub-assy, Spiral |
| 84307 | Cable Sub-assy, Spiral W/Sensor |
| 84319 | Housing, Steering Wheel Switch |
| 84329 | Switch, Turn Signal |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84340 | Switch Assy, Stop Lamp |
| 84345 | Adjuster, Stop Lamp Switch Mounting |

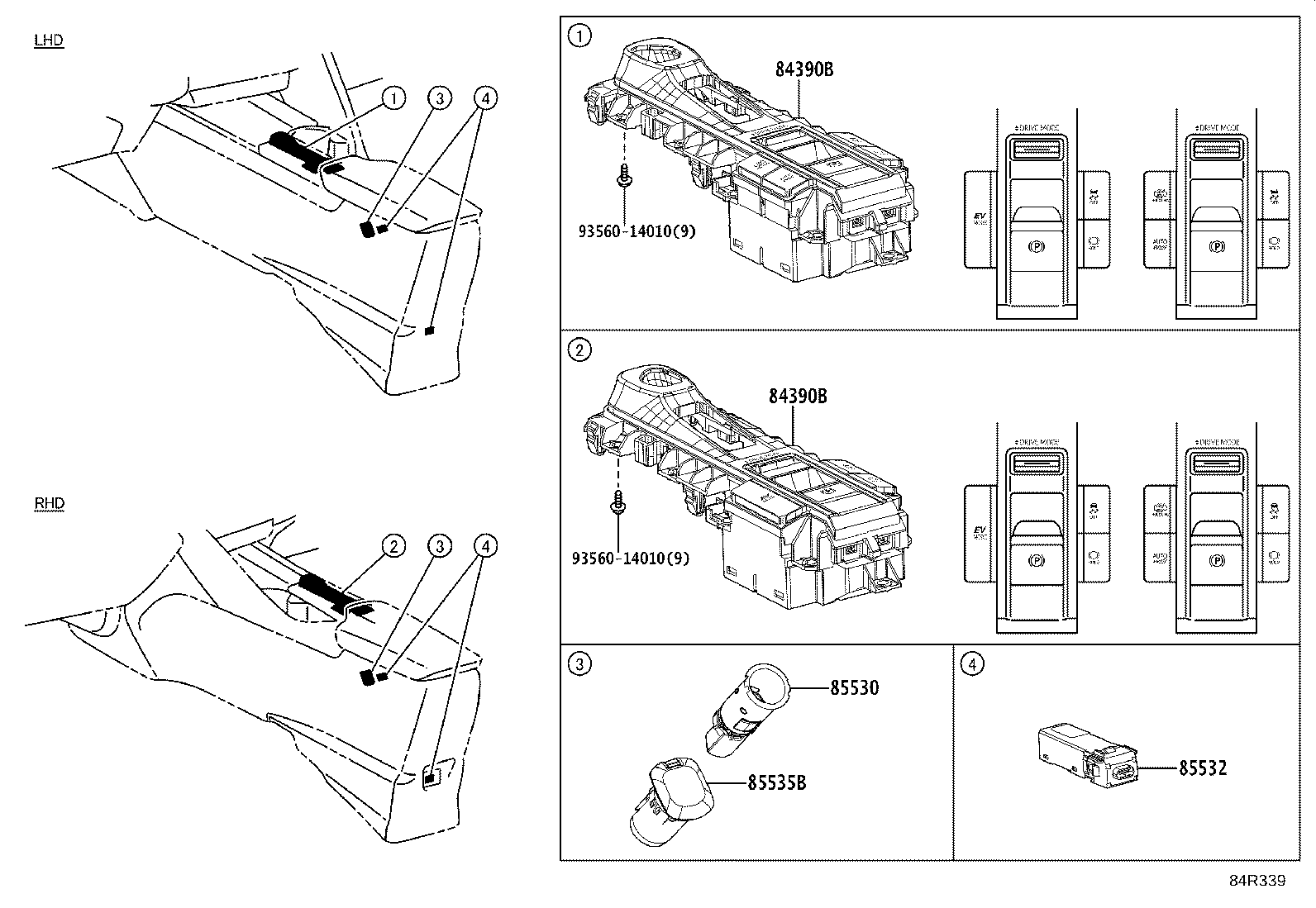

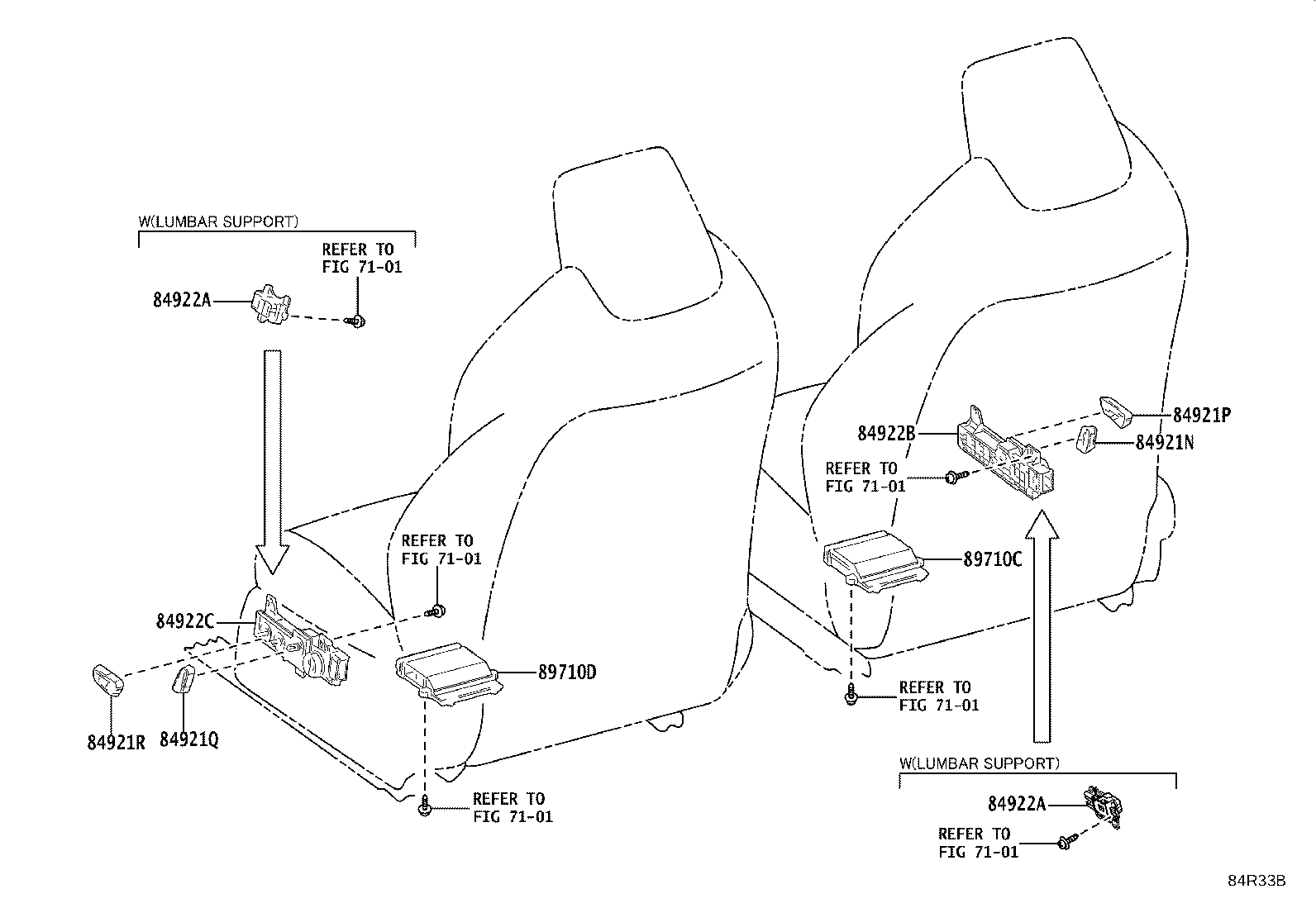

| 84390B | Switch Assy, Electric Parking Brake |
| 84485C | Switch, Power Outlet |
| 84490D | Switch Assy, Ipa Main |
| 84650 | Switch Assy, Windshield Wiper |
| 84721B | Switch, Panoramic View Monitor |
| 84794 | Switch, FR Wiper Deicer |
| 84794A | Relay, FR Wiper Deicer |
| 84810 | Switch Assy, Power Window Regulator |
| 84810D | Switch Assy, Power Window Regulator, Rear |
| 84840G | Switch Assy, Back Door Opener |
| 84841A | Switch, Fuel Lid Opener |
| 84921N | Knob, Power Seat Switch, RH (FOR RECLINING) |
| 84921P | Knob, Power Seat Switch, RH (FOR SLIDE & VERTICAL) |
| 84921Q | Knob, Power Seat Switch, LH (FOR RECLINING) |
| 84921R | Knob, Power Seat Switch, LH (FOR SLIDE & VERTICAL) |
| 84922A | Switch, Front Power Seat(FOR LUMBAR) |
| 84922B | Switch, Front Power Seat, RH |
| 84922C | Switch, Front Power Seat, LH |
| 84927B | Switch, Seat Memory, RH |
| 84927C | Switch, Seat Memory, LH |
| 84930 | Switch Assy, Door Control |
| 84966 | Switch, Power Back Door Control |
| 84966A | Switch, Power Back Door Control, NO.1 |
| 85530 | Socket Assy, Power Outlet, NO.1 |
| 85530D | Socket Assy, Power Outlet, NO.2 |
| 85532 | Socket, Usb Charger |
| 85535B | Cover, Power Outlet Socket, NO.1 |
| 85910 | Relay Assy, Circuit Opening |
| 85910E | Relay, Injector |
| 85912K | Relay, Vvt |
| 85918A | Relay, Door Control |
| 85924C | Relay, Igct |
| 85927 | Relay, Cooling Fan |
| 85927A | Relay, Cooling Fan, NO.2 |
| 85927B | Relay, Cooling Fan, NO.3 |
| 85934 | Relay, Magnet-clutch |
| 85942 | Relay, Headlamp Cleaner Control |
| 85965 | Relay, Room Lamp Control |
| 85970A | Relay Assy, Double Lock Door Control |
| 86210D | Fuse, High Voltage |
| 86530 | Relay Assy, Horn |
| 87346K | Relay, Ptc Heater |
| 87346L | Relay, Ptc Heater |
| 88161 | Bracket, Blind Spot Monitor, RH |
| 88162 | Sensor, Blind Spot Monitor, RH |
| 88171 | Bracket, Blind Spot Monitor, LH |
| 88172 | Sensor, Blind Spot Monitor, LH |

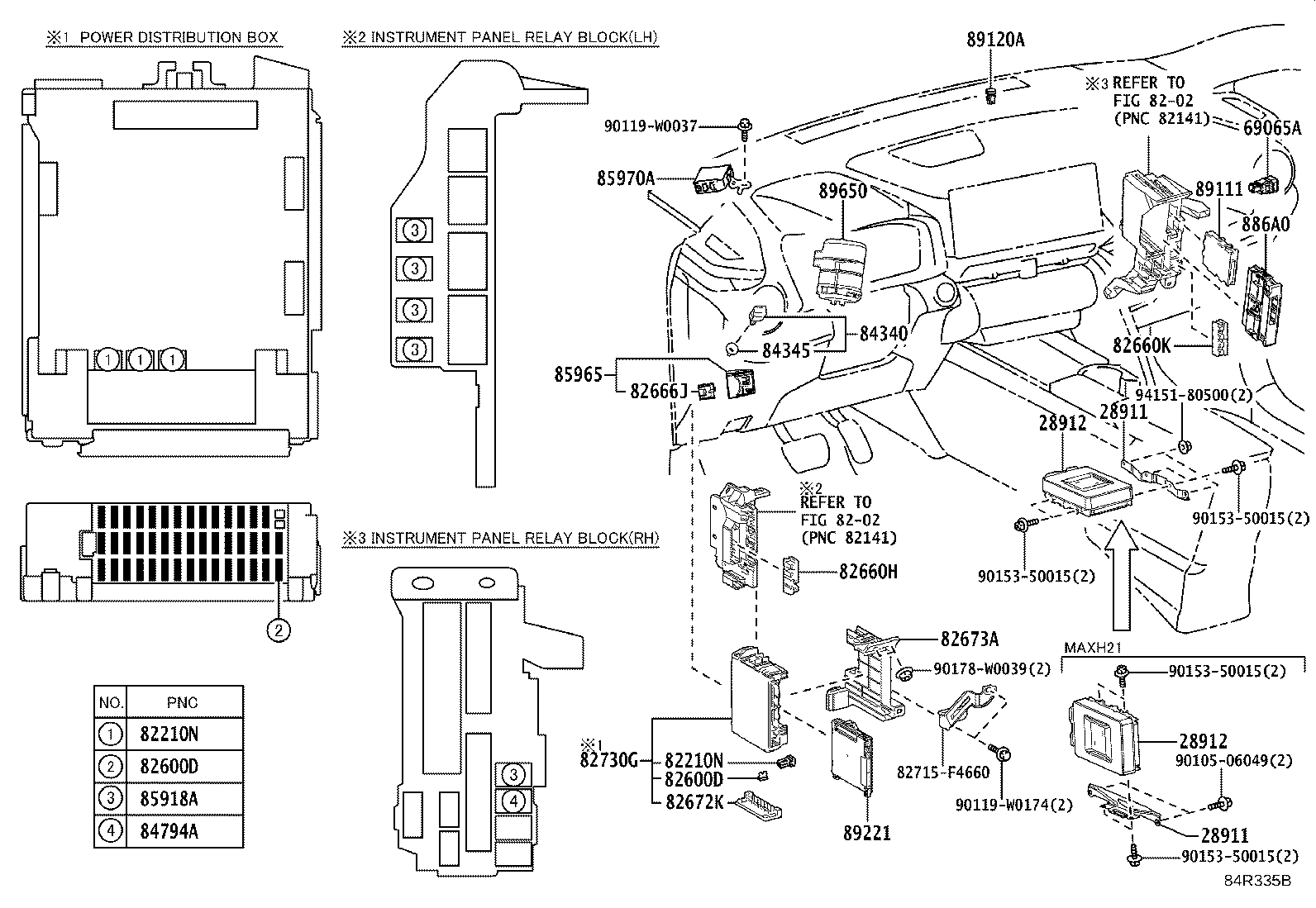

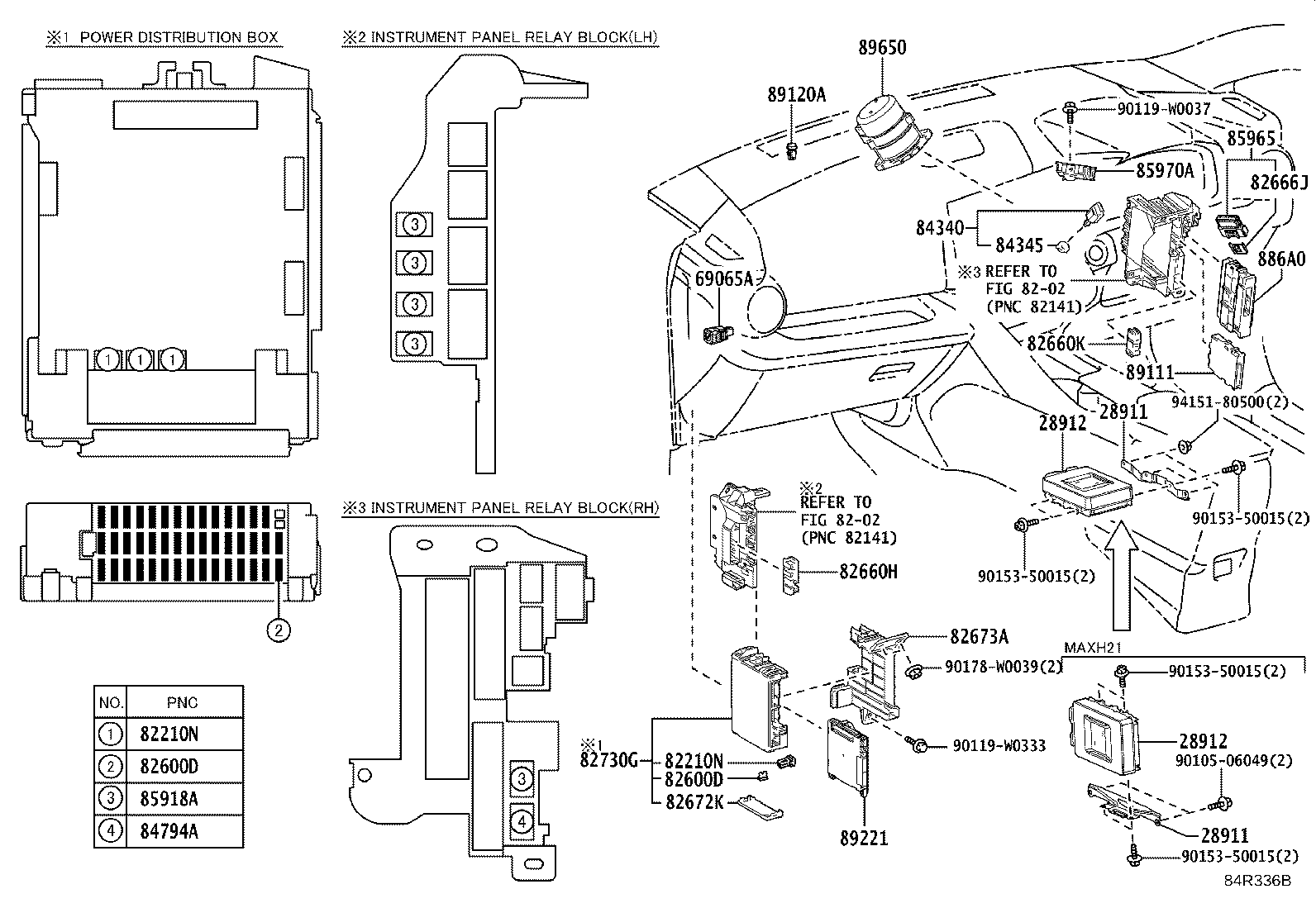

| 886A0 | Computer Assy, Heat Pump |
| 89111 | Computer, Network Gateway |
| 89120A | Sensor, Automatic Light Control |
| 89221 | Computer, Multiplex Network Body |
| 89222A | Computer, Multiplex Network Door |
| 89245B | Sensor, Steering |
| 89422A | Sensor, Water Temperature |
| 89461 | Sensor, Vapor Pressure |
| 89465 | Sensor, Oxygen |

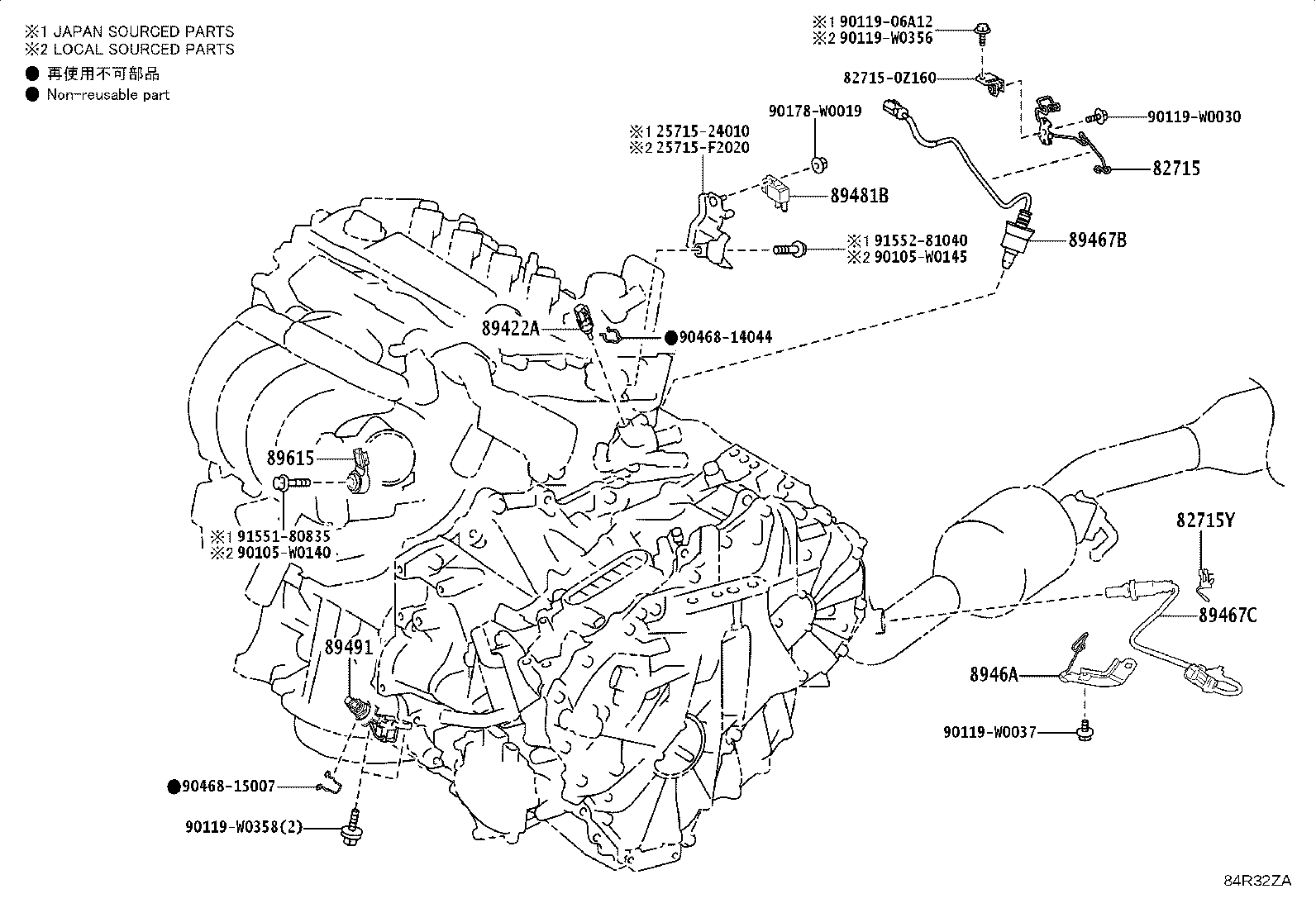

| 89467B | Sensor, Air Fuel Ratio |
| 89467C | Sensor, Air Fuel Ratio, NO.2 |
| 8946A | Bracket, Exhaust Sensor Clamp |
| 89481B | Sensor, Differential Pressure |
| 89491 | Sensor, Engine Oil Level |
| 89561F | Relay, Electronic Fuel Injection Main, NO.1 |
| 89561G | Relay, Electronic Fuel Injection Main, NO.2 |
| 89561H | Relay, Electronic Fuel Injection Main, NO.3 |
| 89611 | Switch, Push Start |
| 89615 | Sensor, Knock Control |
| 89650 | Computer Assy, Power Steering |
| 89710C | Computer Assy, Position Control, RH |
| 89710D | Computer Assy, Position Control, LH |
| 89730A | Relay(FOR SECURITY WARNING) |
| 89747E | Buzzer, Power Back Door Warning |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
