Toyota C-hr

2023-10 → present · chassis MAXH2#,ZYX20 · catalogue 528220 · Europe

Supported model Data version 2023-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Washer

13 part groups · 3 illustrations

Illustrations

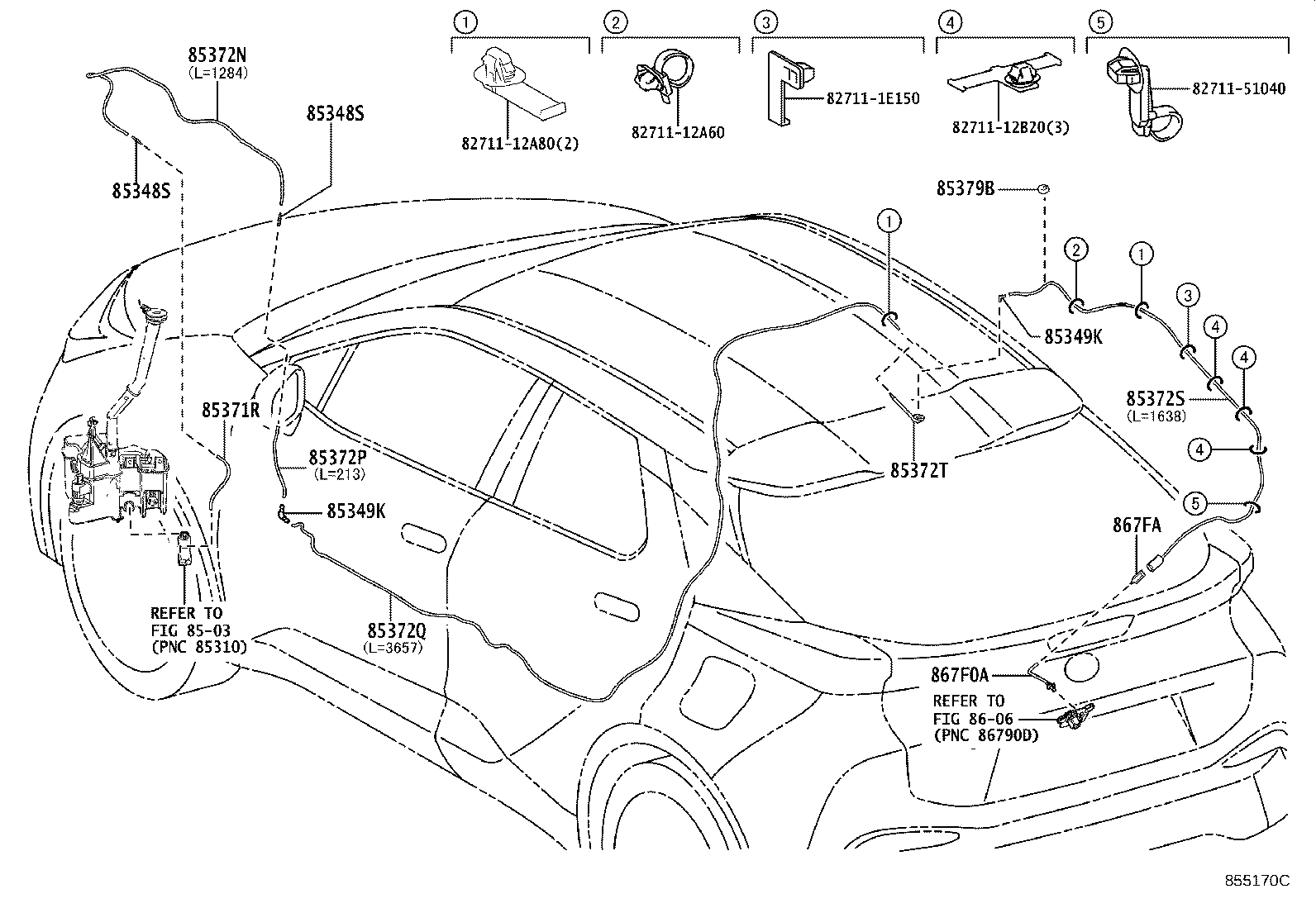

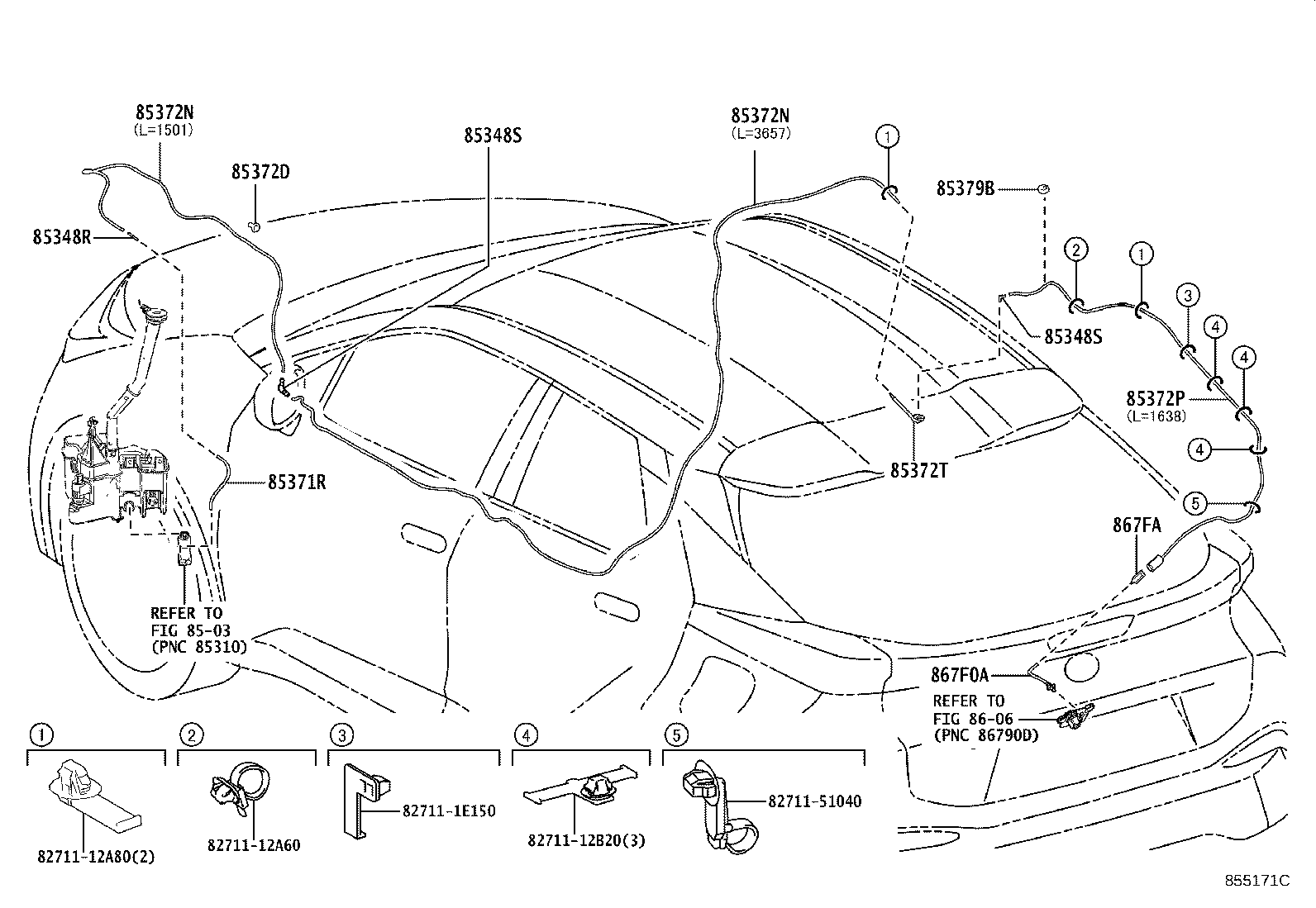

Figure 85516ZB 85516ZB 2023-10 → — Figure 855170C 855170C 2024-01 → — Figure 855171C 855171C 2024-01 → —

Part groups

PNCDescription
85348R Joint, Rear Washer Hose, NO.1
85348S Joint, Rear Washer Elbow, NO.1
85349K Joint, Rear Washer Elbow, NO.2
85371R Hose, Rear Washer (FROM MOTOR TO JOINT)
85372D Grommet, Rear Washer Hose
85372N Hose, Rear Washer (FROM JOINT TO JOINT), NO.1
85372P Hose, Rear Washer (FROM JOINT TO JOINT), NO.2
85372Q Hose, Rear Washer (FROM JOINT TO JOINT), NO.3
85372S Hose, Rear Washer (FROM JOINT TO JOINT), NO.4
85372T Grommet, Washer
85379B Grommet, Washer, A
867F0A Nozzle Assy, Camera Cleaner, NO.1
867FA Filter, Cleaner Hose
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
