Toyota C-hr

2023-10 → present · chassis MAXH2#,ZYX20 · catalogue 528220 · Europe

Supported model Data version 2023-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Camera & Rear Monitor Display

13 part groups · 2 illustrations

Illustrations

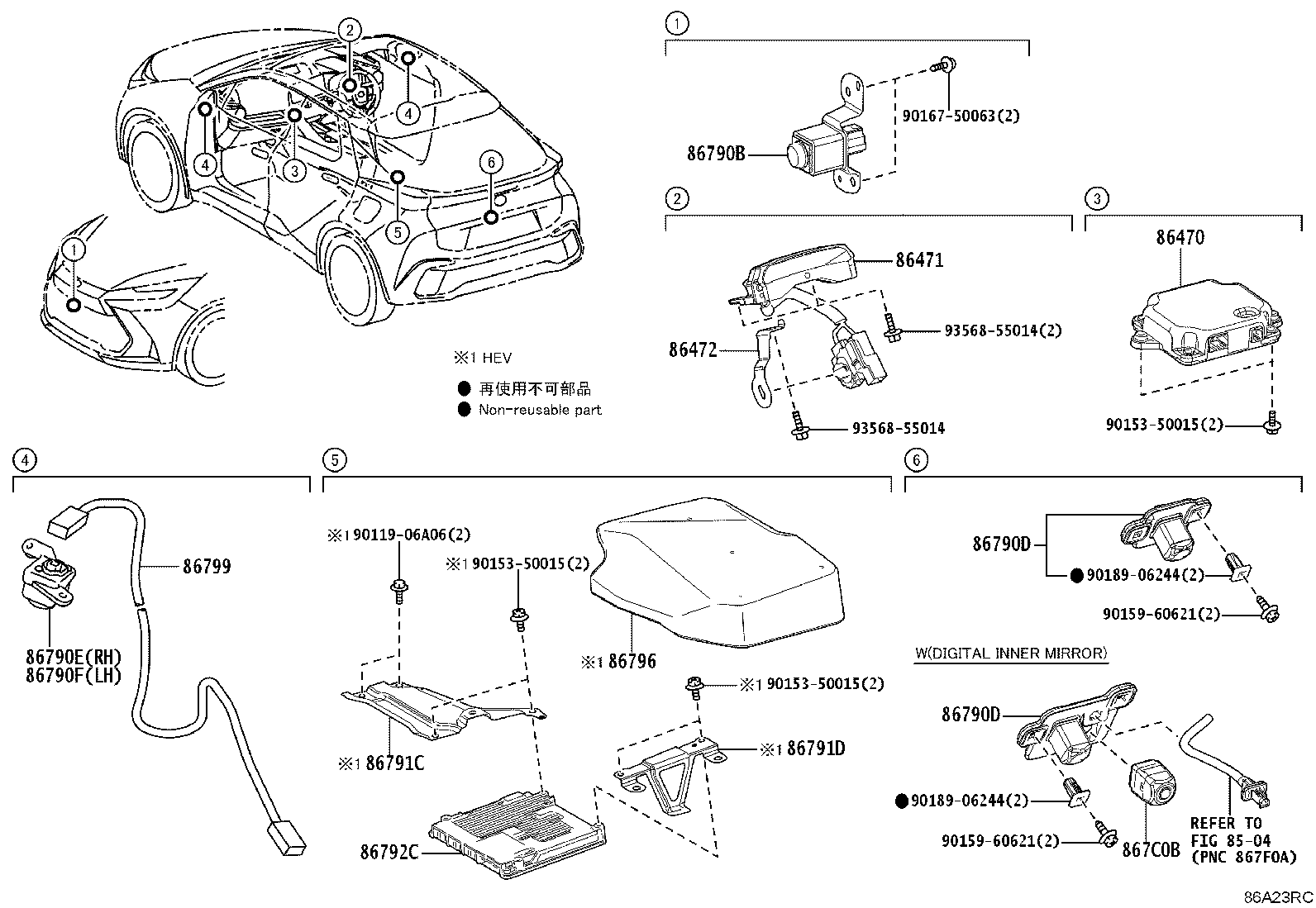

Figure 86A23QC 86A23QC 2023-10 → — Figure 86A23RC 86A23RC 2023-10 → —

Part groups

PNCDescription
86470 Computer Assy, Driver Monitor
86471 Camera, Driver Monitor
86472 Bracket, Driver Monitor
86790B Camera Assy, Television, FR
86790D Camera Assy, Television, RR
86790E Camera Assy, Television, Side RH
86790F Camera Assy, Television, Side LH
86791C Bracket, Computer Parking Assist, NO.1
86791D Bracket, Computer Parking Assist, NO.2
86792C Computer, Parking Assist
86796 Cover, Computer Parking Assist
86799 Wire, Television Camera
867C0B Camera Assy, Inner Mirror, RR
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
