Toyota C-hr
2023-10 → present · chassis MAXH2#,ZYX20 · catalogue 528220 · Europe
Supported model
Data version 2023-12
Telephone & Mayday

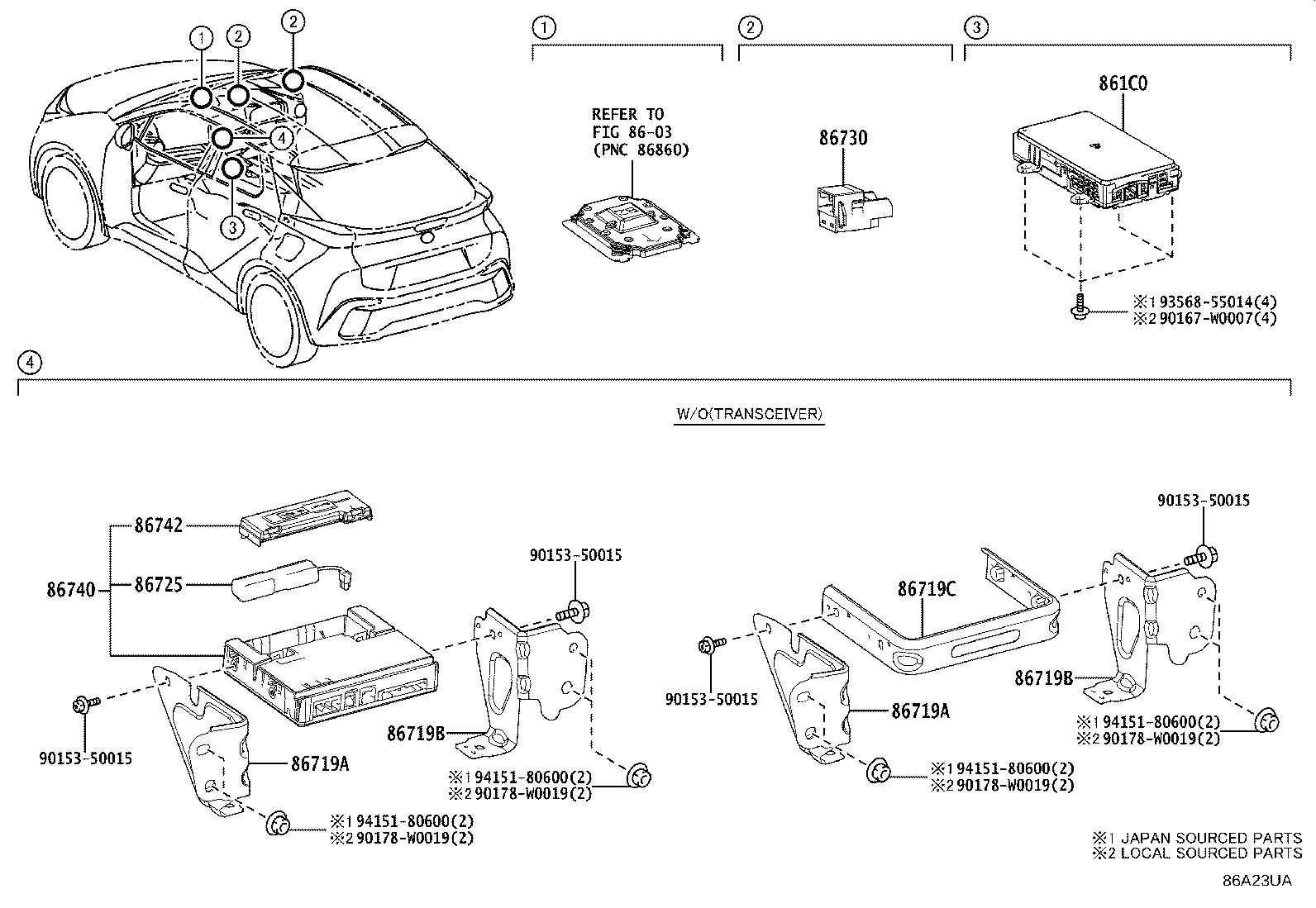

8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 861C0 | Cradle Assy, Mobile Wireless Charger |
| 86719A | Bracket, Telephone NO.1 |
| 86719B | Bracket, Telephone NO.2 |
| 86719C | Bracket, Telephone NO.3 |
| 86725 | Battery, Mobilephone |
| 86730 | Microphone Assy, Telephone |
| 86740 | Transceiver Assy, Telephone |
| 86742 | Cover, Transceiver |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
