Toyota C-hr

2016-10 → present · chassis MAXH10,NGX10,50,ZGX10,ZYX1# · catalogue 528510 · Europe

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 8 illustrations

Illustrations

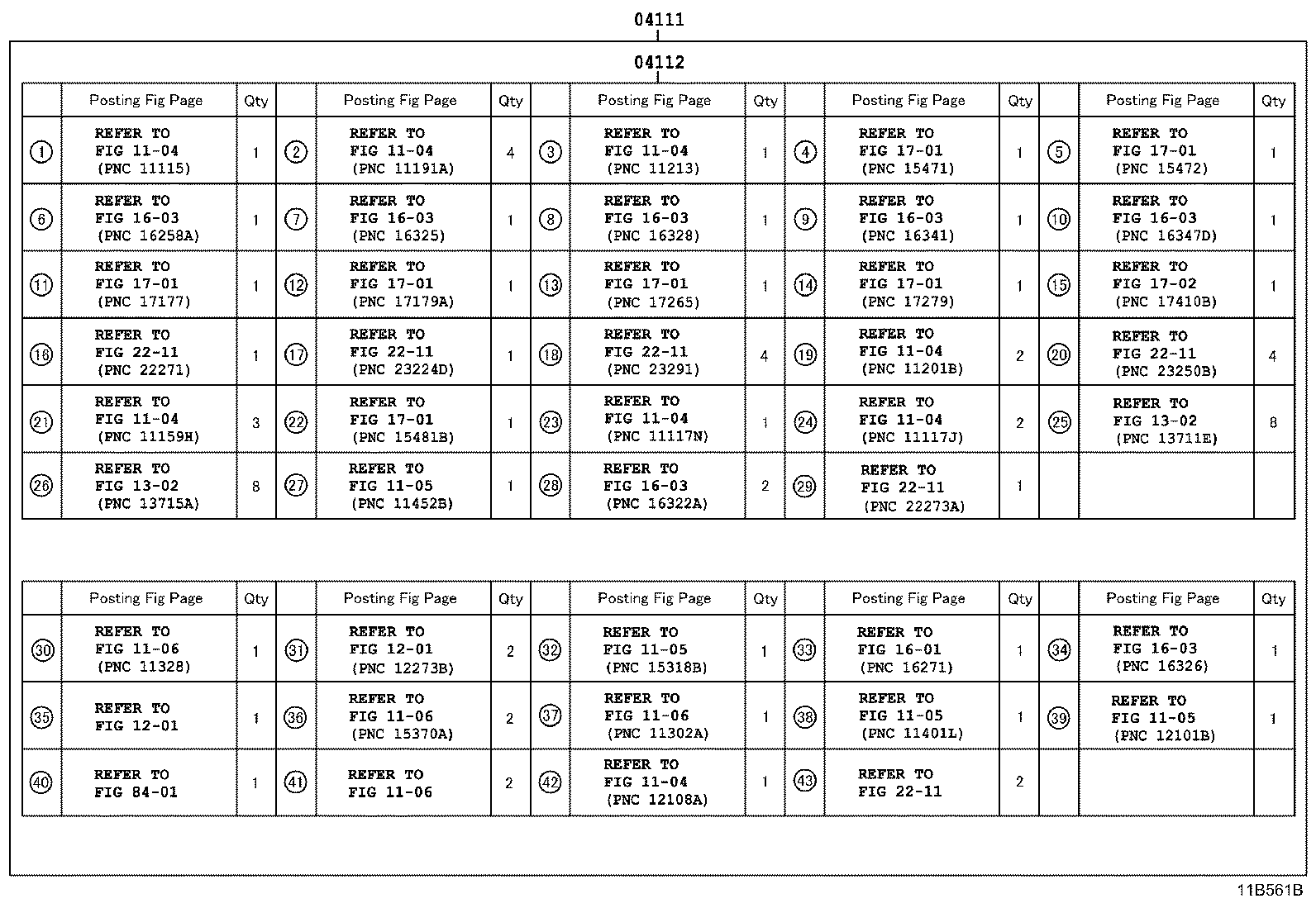

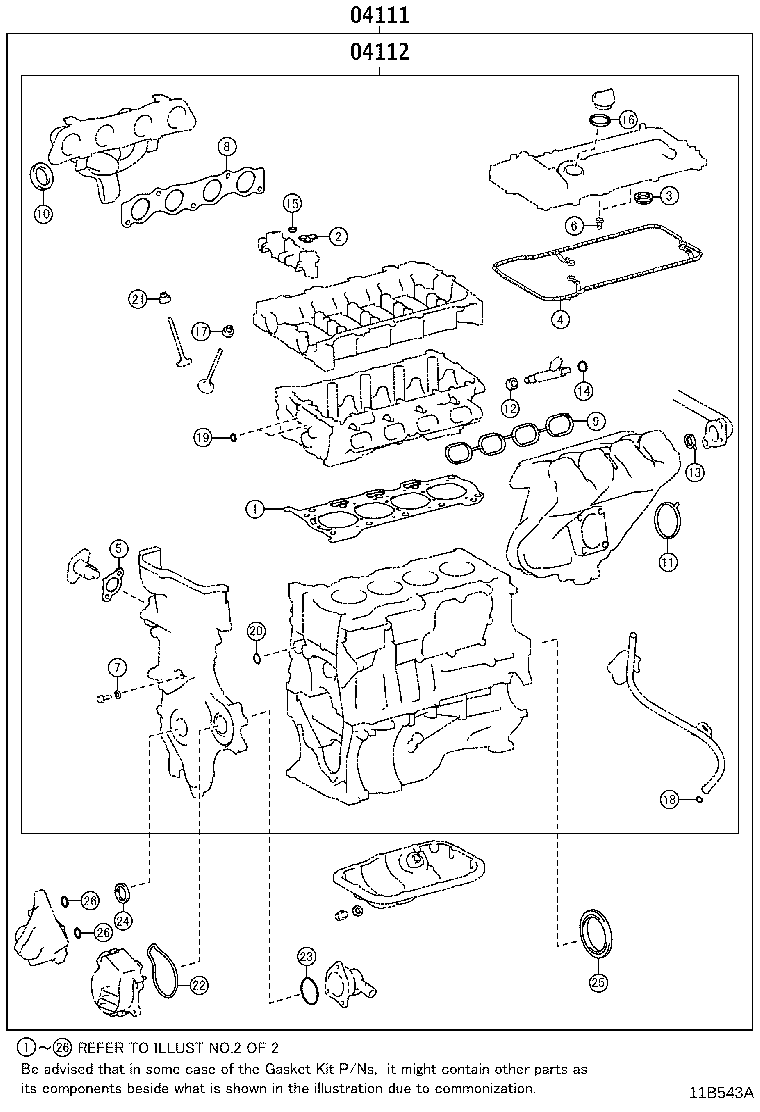

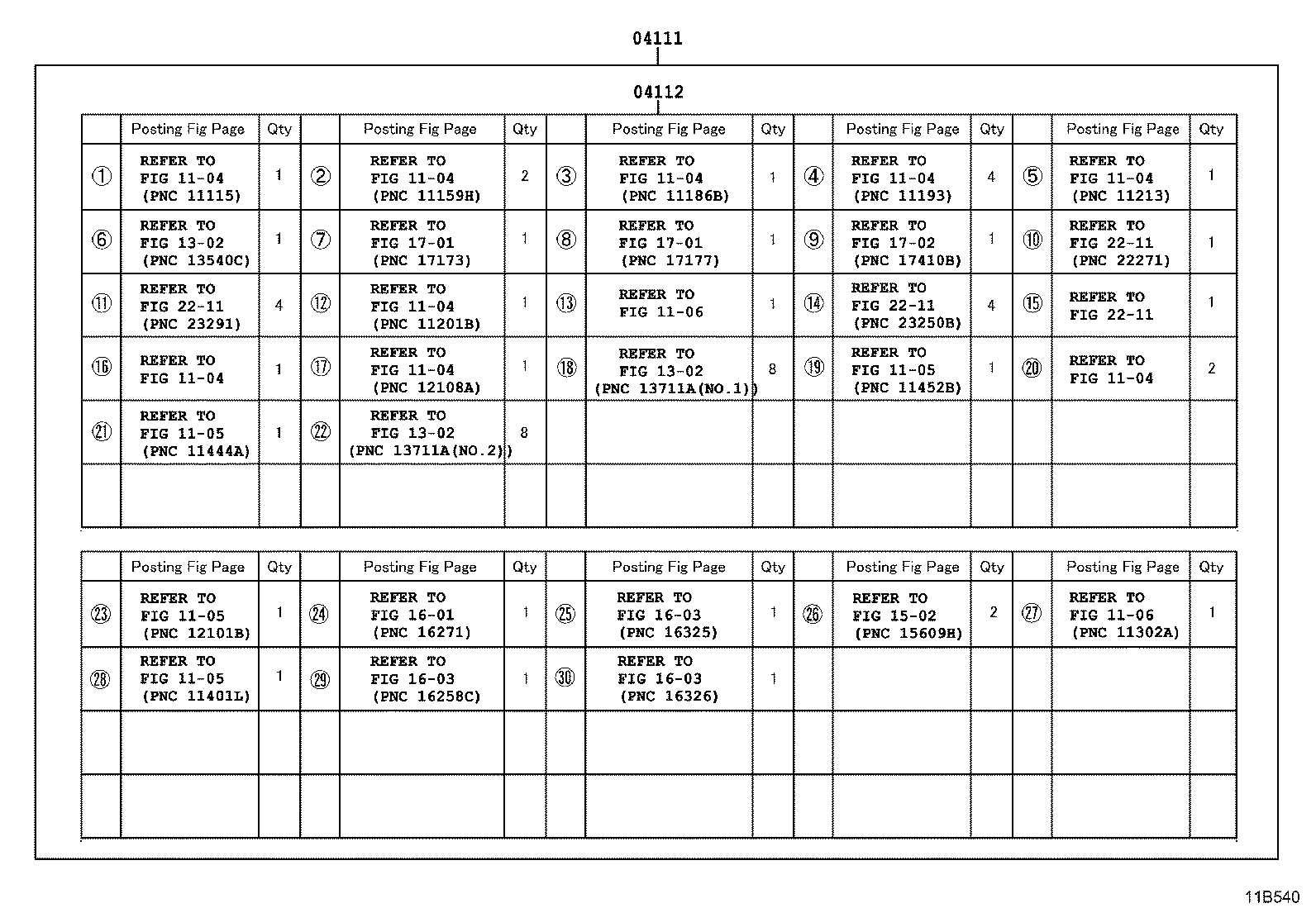

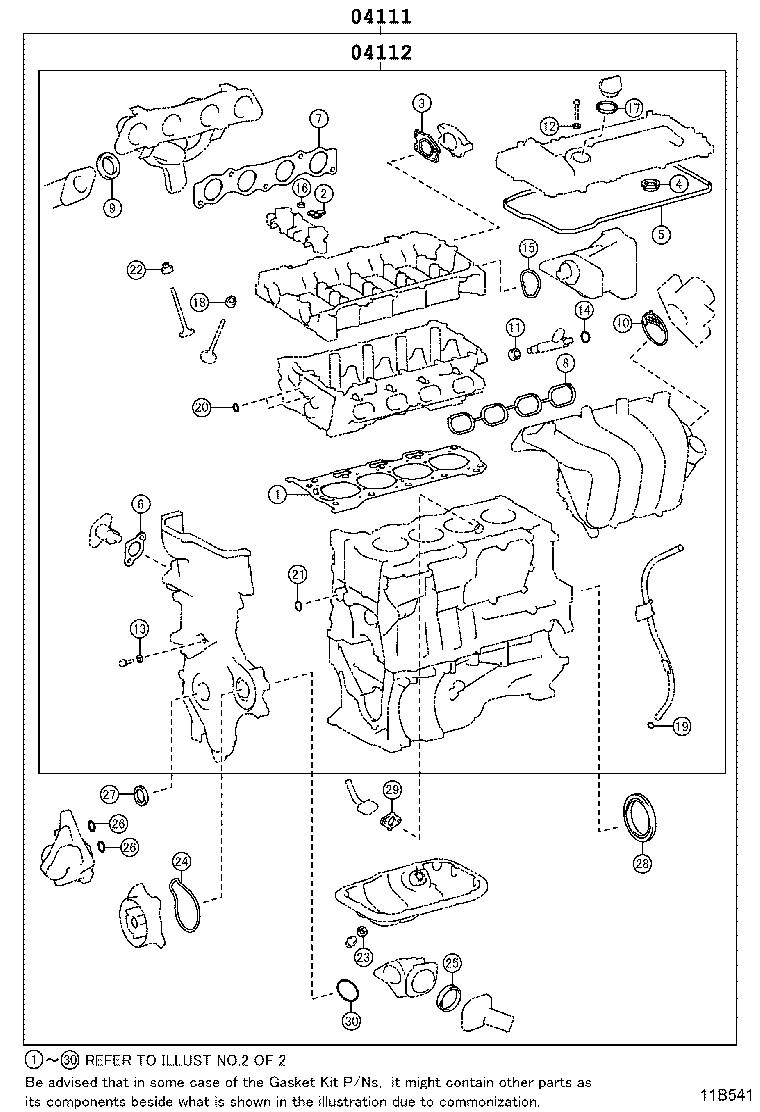

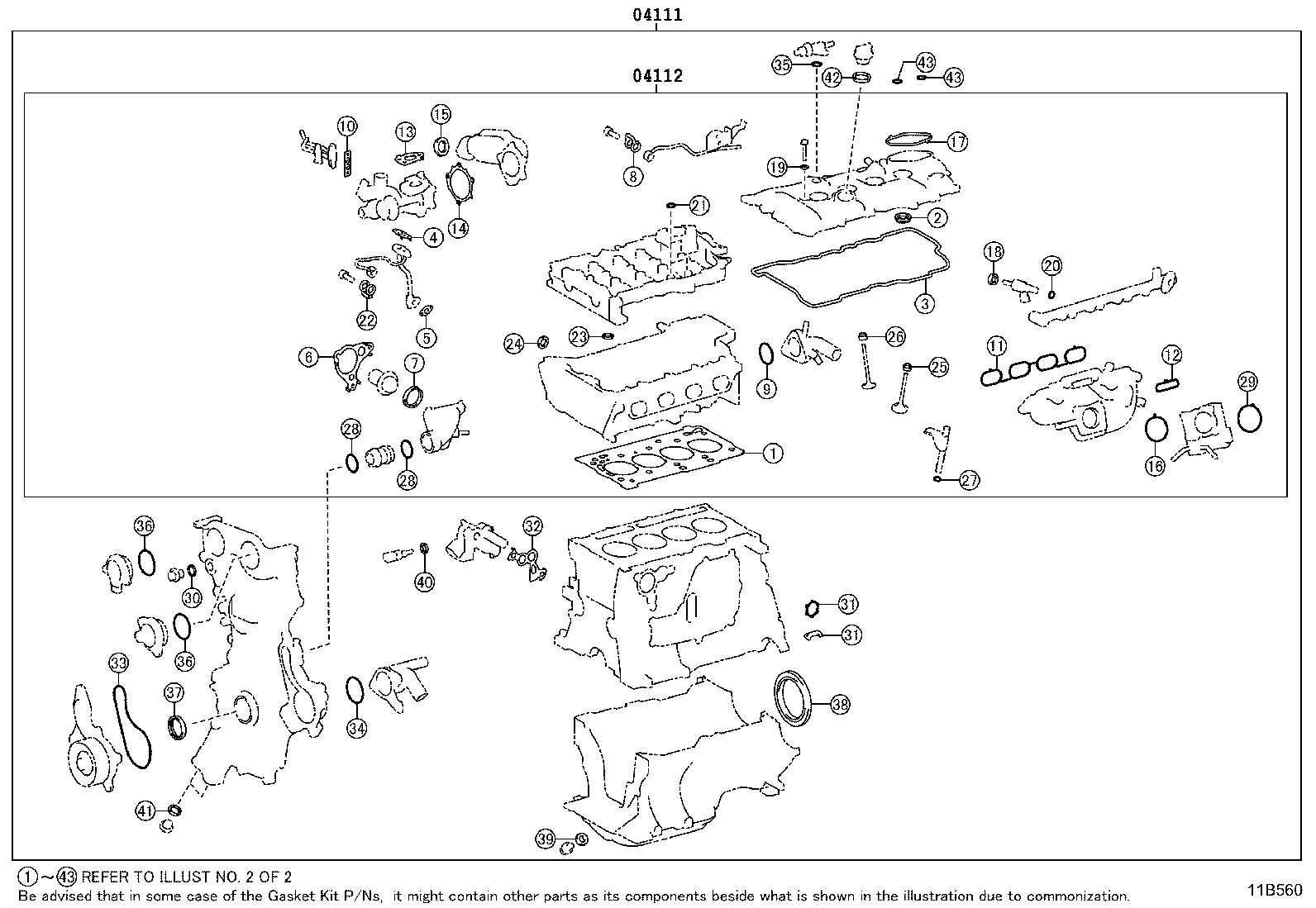

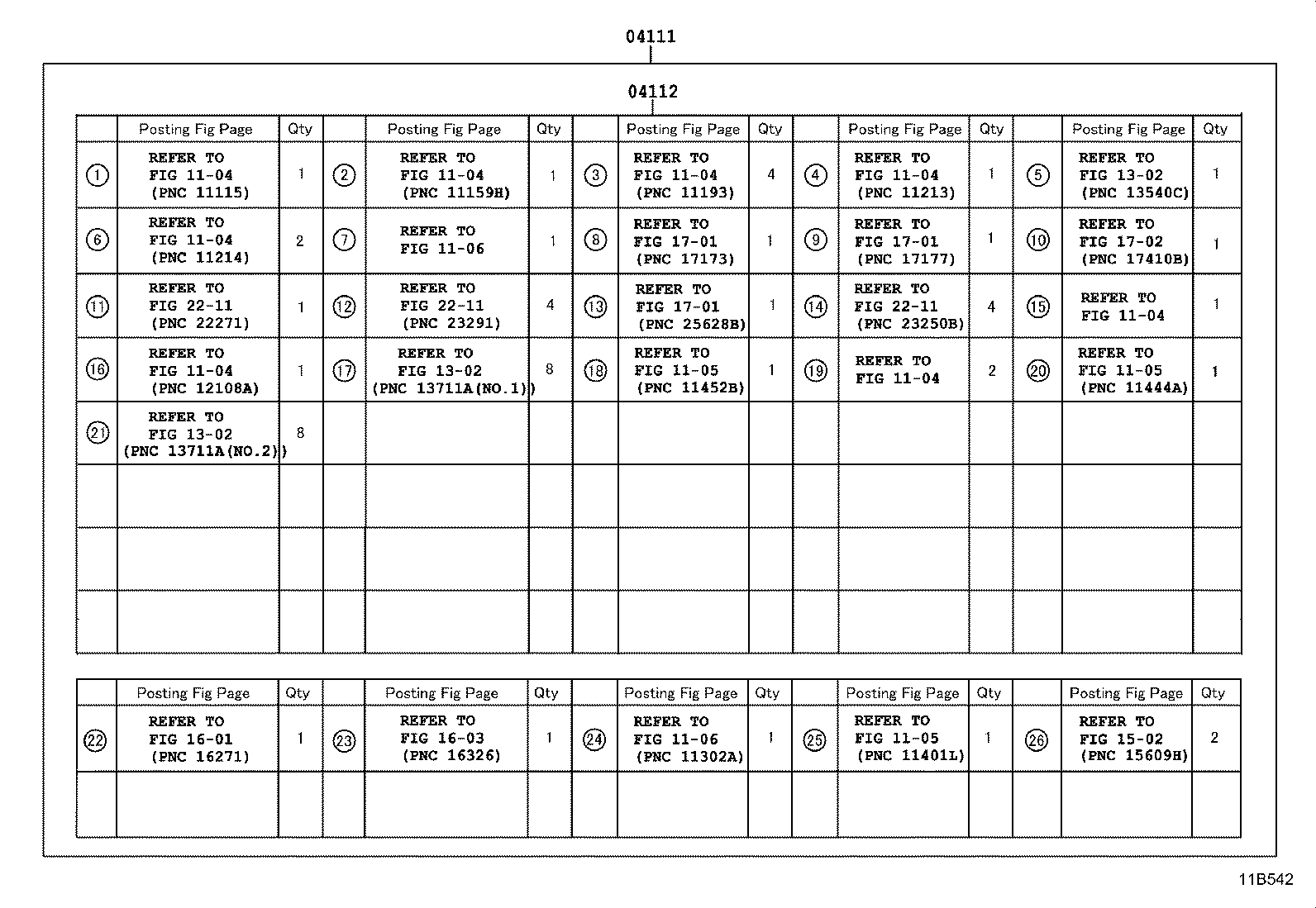

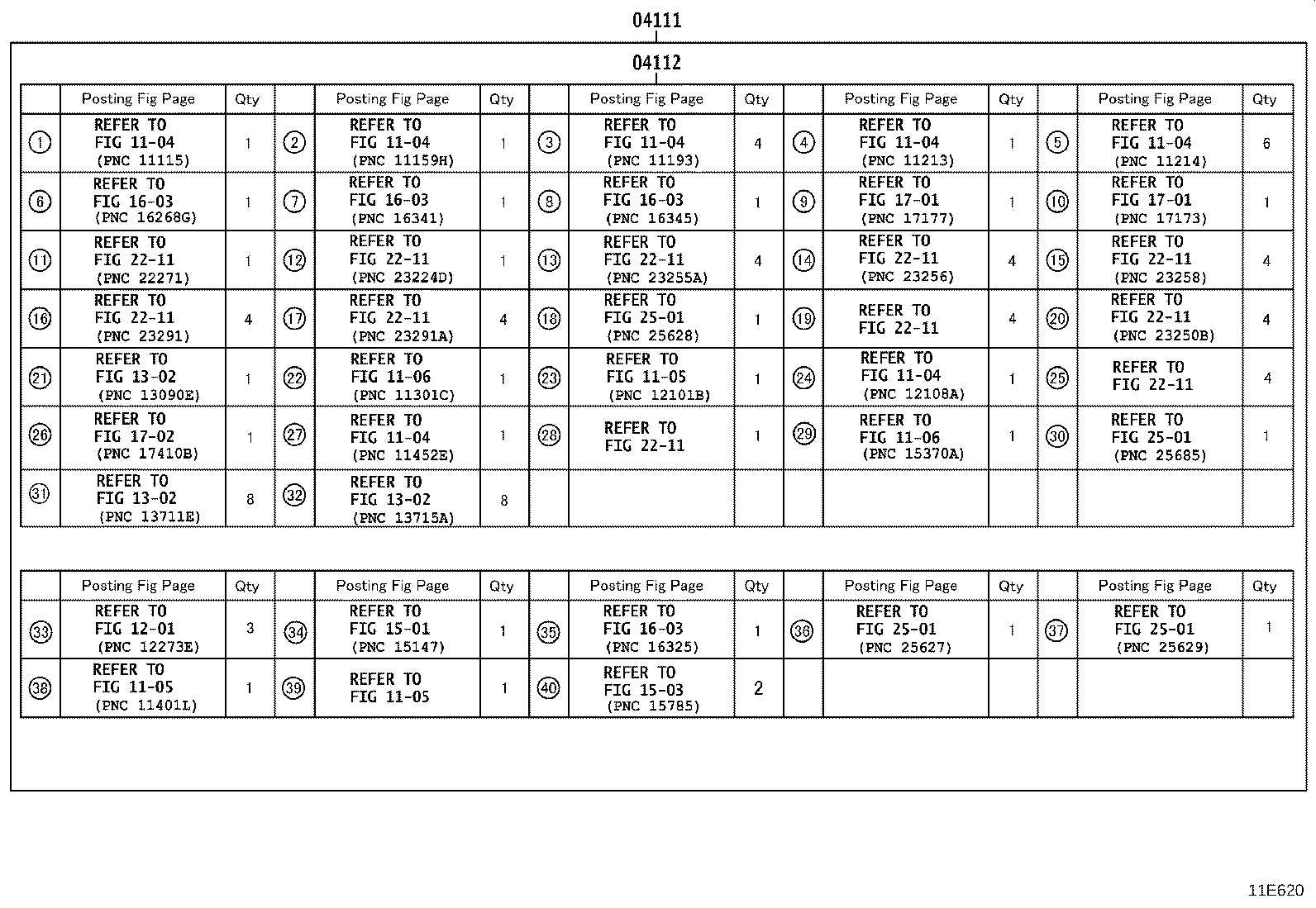

Figure 11E619 11E619 2019-09 → — Figure 11E620 11E620 2019-09 → — Figure 11B560 11B560 2016-10 → — Figure 11B561B 11B561B 2016-10 → — Figure 11B543A 11B543A 2016-10 → — Figure 11B542 11B542 2016-10 → — Figure 11B541 11B541 2016-10 → — Figure 11B540 11B540 2016-10 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
