Toyota C-hr

2016-10 → present · chassis MAXH10,NGX10,50,ZGX10,ZYX1# · catalogue 528510 · Europe

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

13 part groups · 5 illustrations

Illustrations

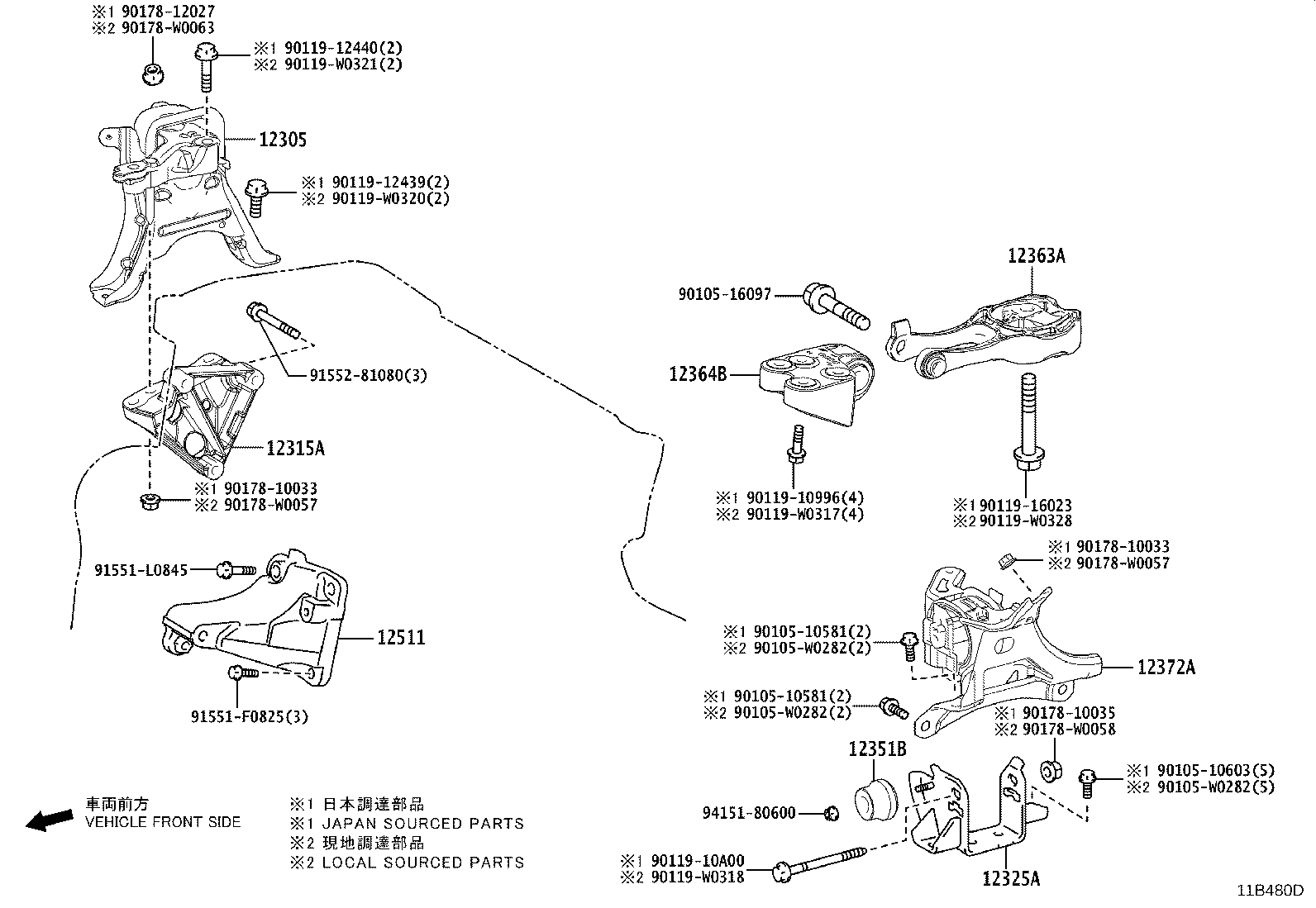

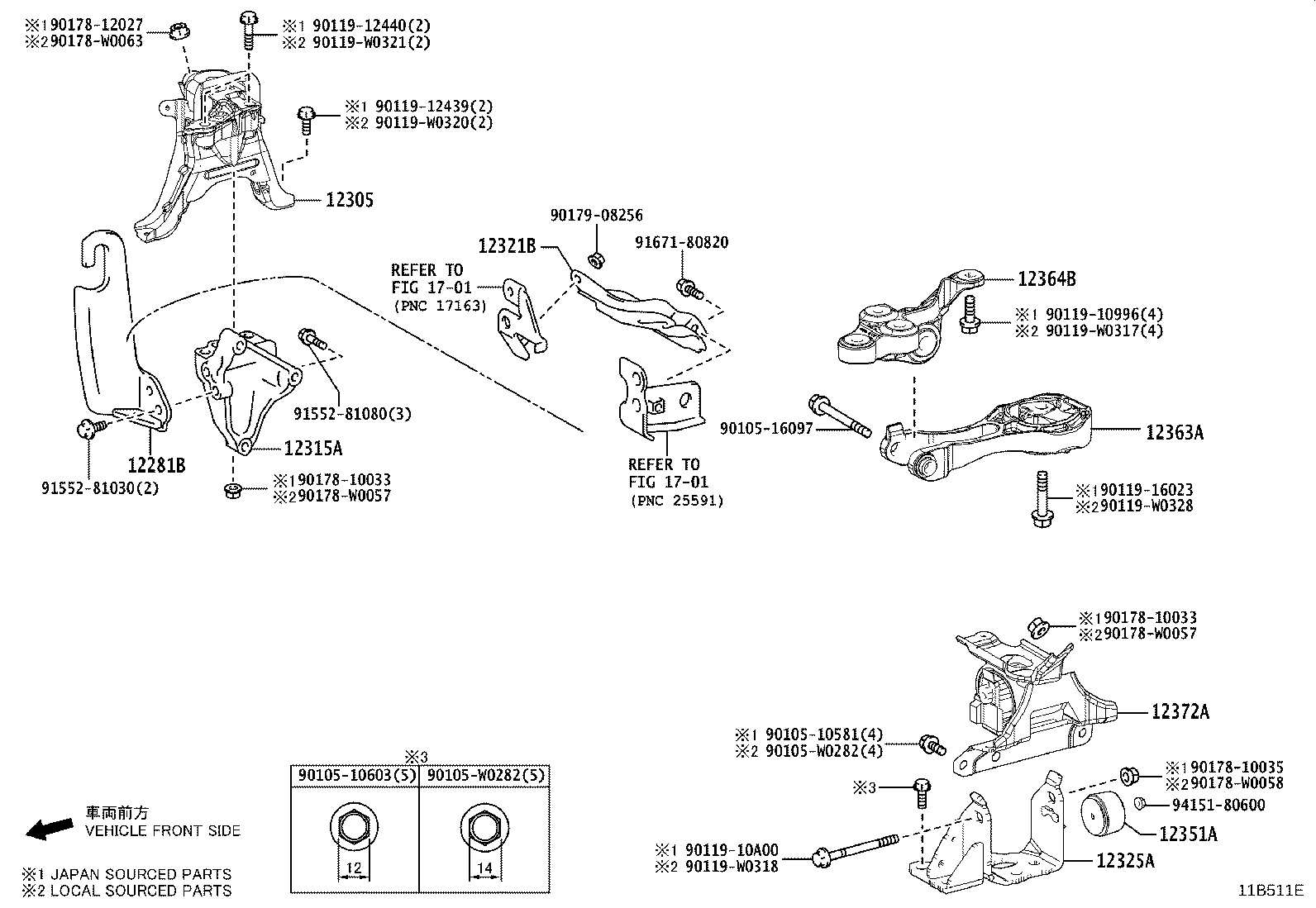

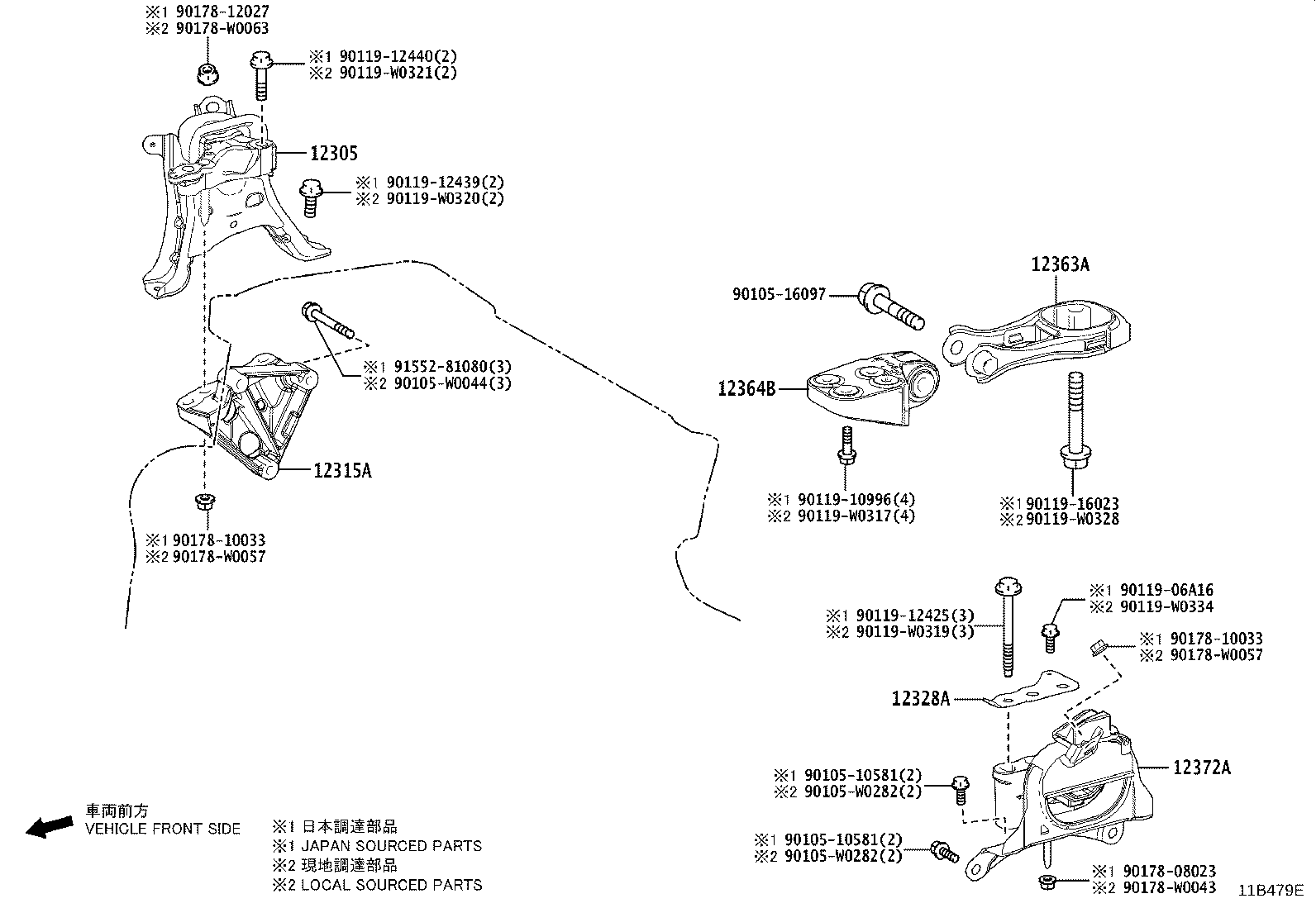

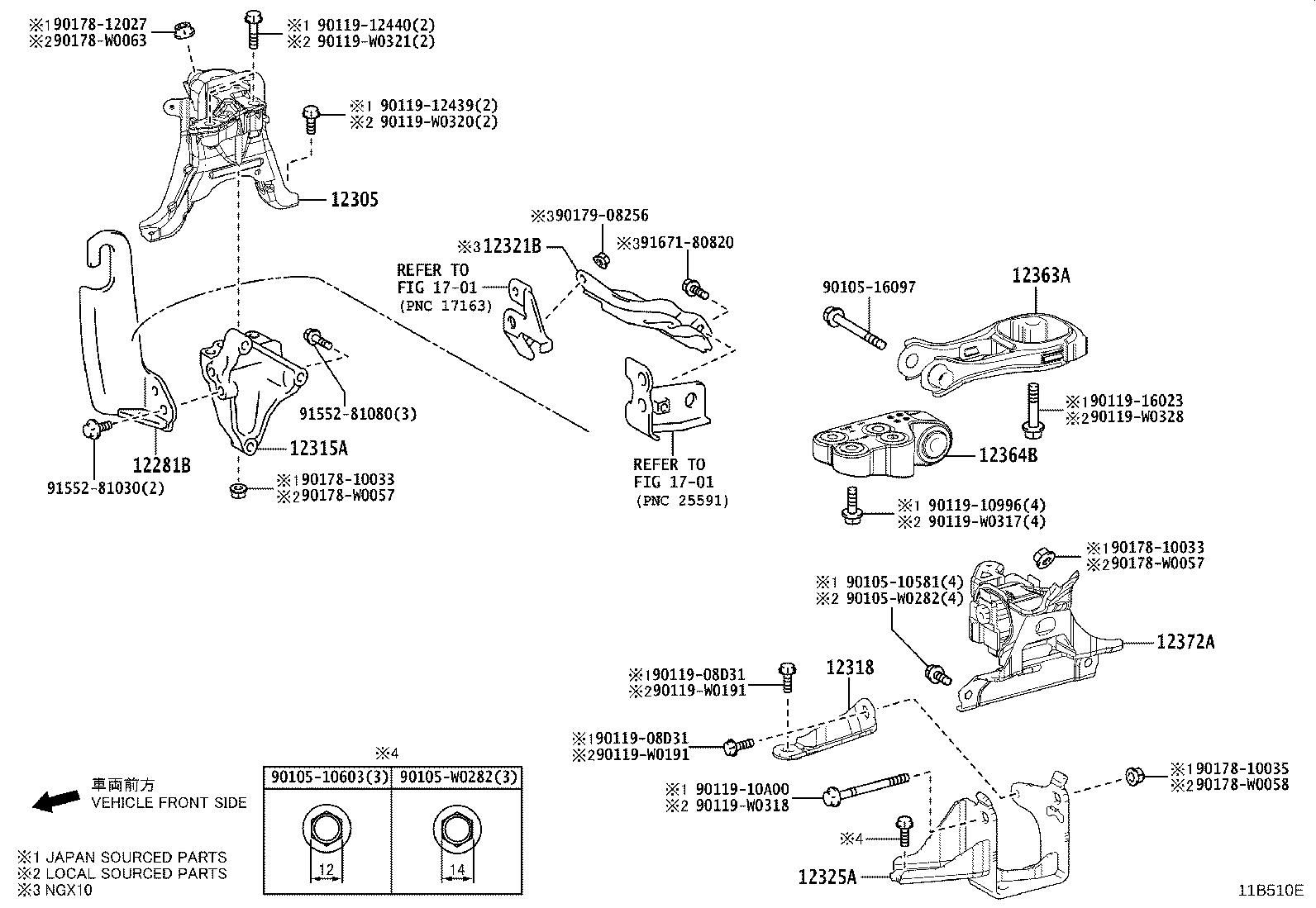

Figure 11E616B 11E616B 2019-09 → — Figure 11B510E 11B510E 2016-10 → — Figure 11B511E 11B511E 2016-10 → — Figure 11B479E 11B479E 2016-10 → — Figure 11B480D 11B480D 2016-10 → —

Part groups

PNCDescription
12281B Hanger, Engine, NO.1
12305 Insulator Sub-assy, Engine Mounting, RH
12315A Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12318 Stay, Engine Mounting, LH
12321B Insulator Sub-assy, Drive Shaft Heat
12325A Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12328A Stay, Engine Mounting, NO.2 LH
12351A Damper, Engine Mounting(FOR INSULATOR)
12351B Damper, Engine Mounting
12363A Rod, Engine Moving Control
12364B Rod, Engine Moving Control, NO.2
12372A Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12511 Bracket, Alternator, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
