Toyota C-hr

2016-10 → present · chassis MAXH10,NGX10,50,ZGX10,ZYX1# · catalogue 528510 · Europe

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ventilation Hose

14 part groups · 4 illustrations

Illustrations

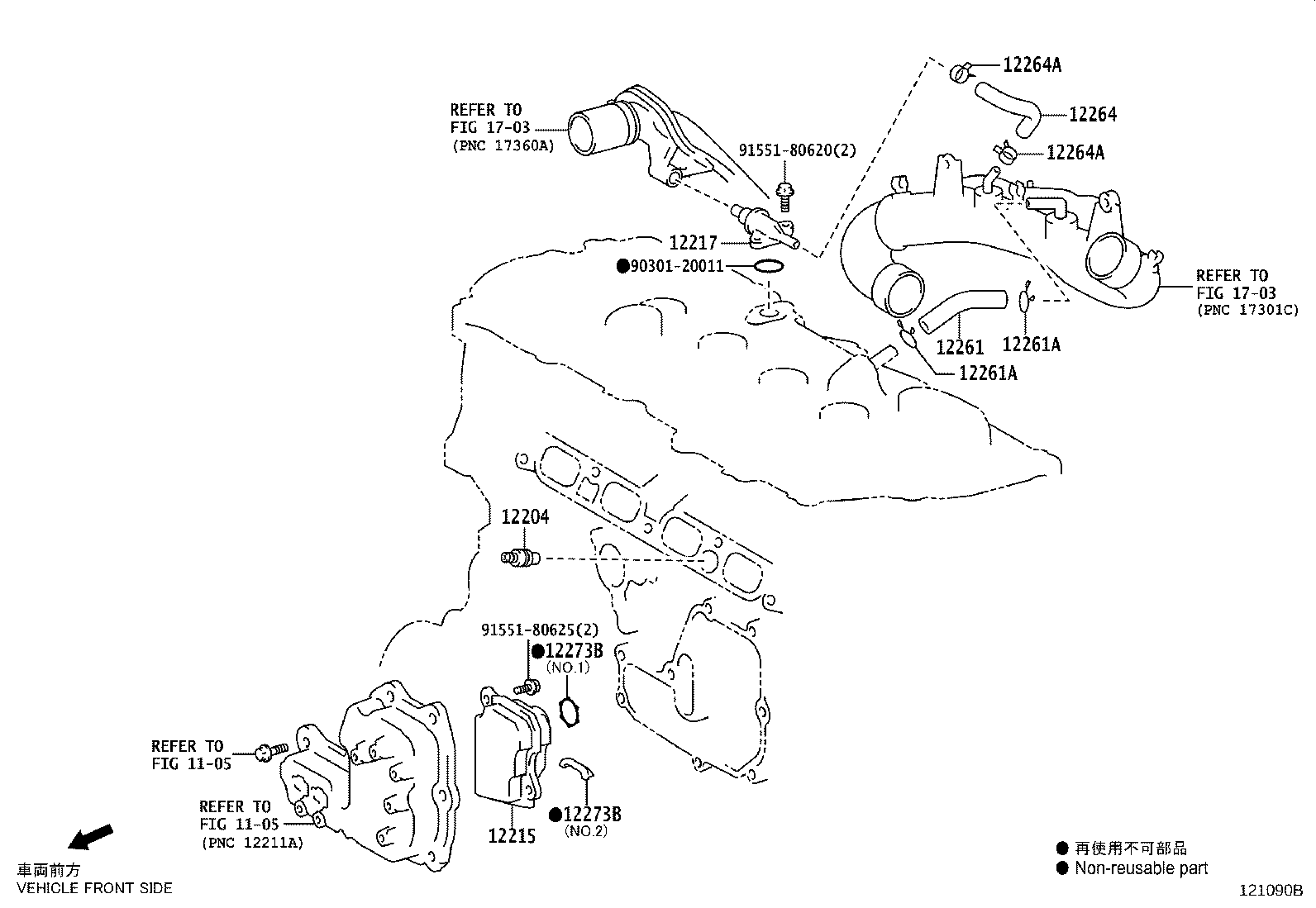

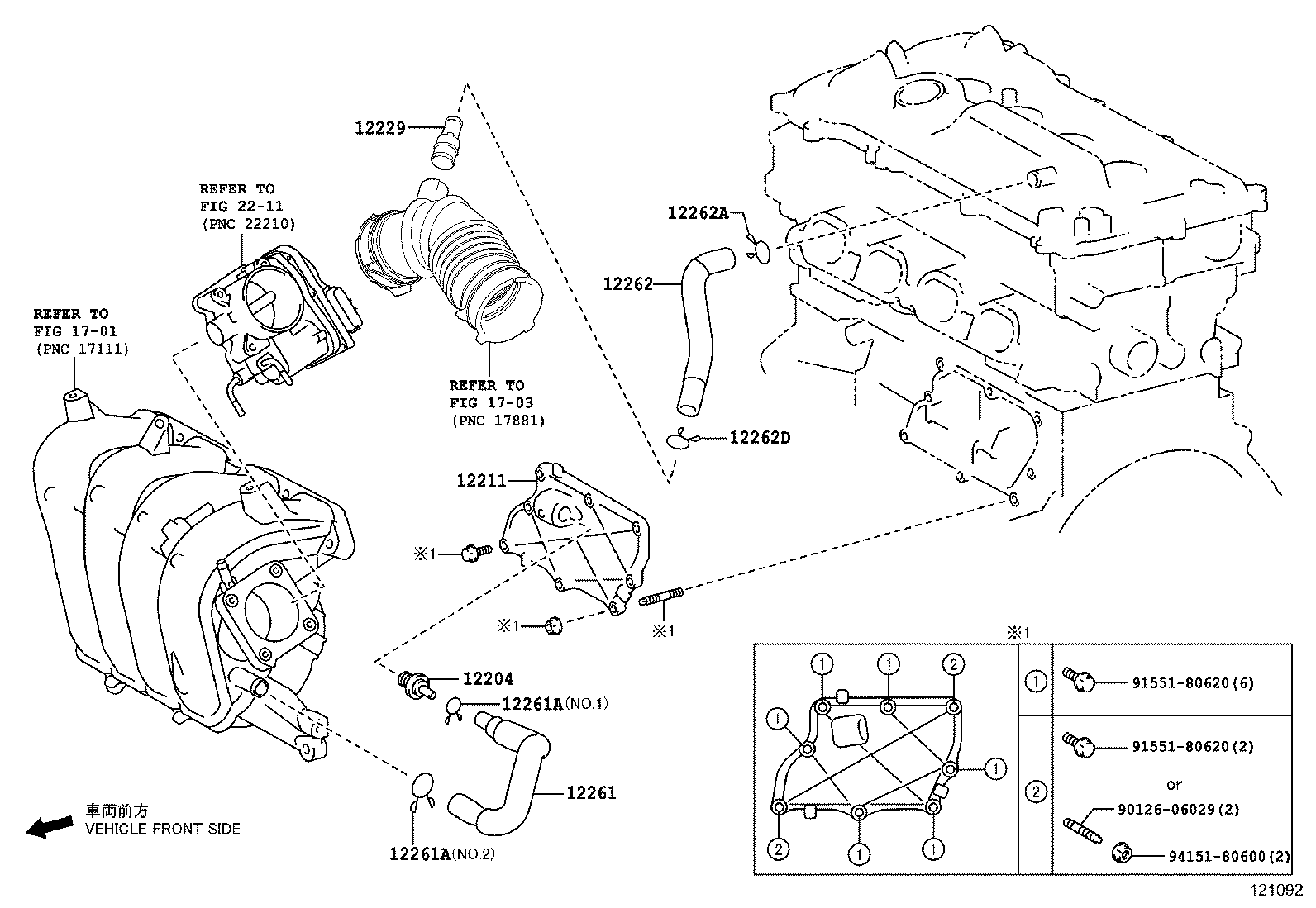

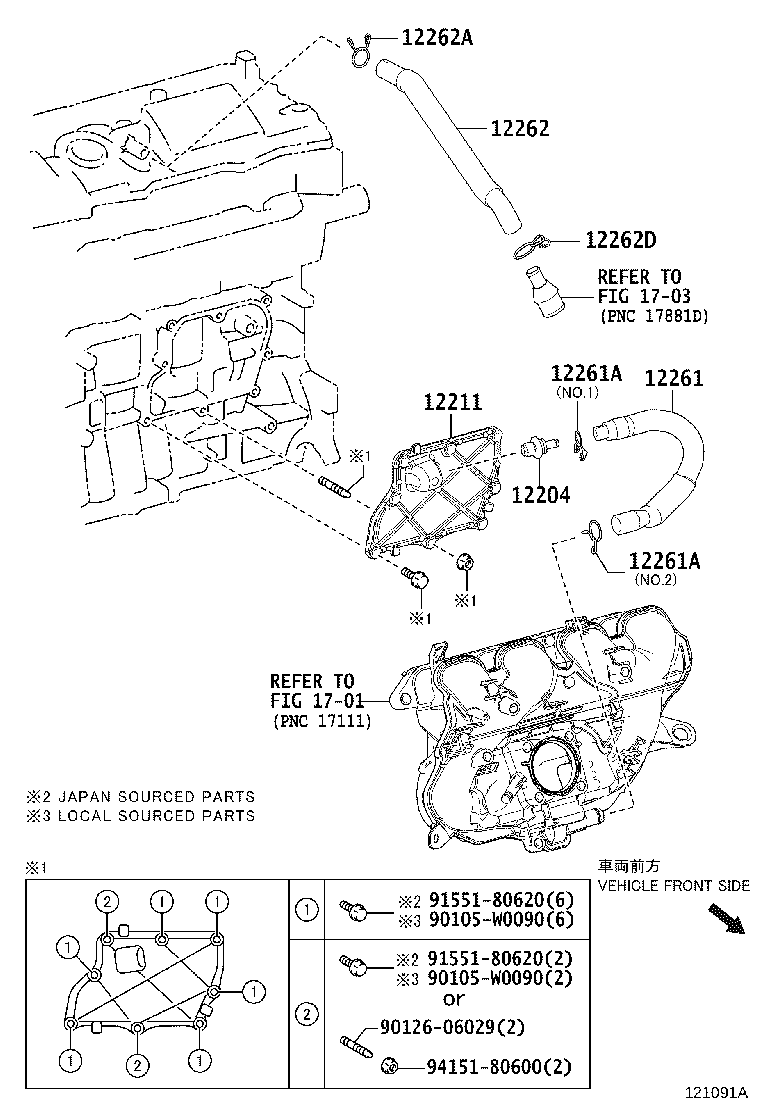

Figure 121381B 121381B 2019-09 → — Figure 121090B 121090B 2016-10 → — Figure 121092 121092 2016-10 → — Figure 121091A 121091A 2016-10 → —

Part groups

PNCDescription
12204 Valve Sub-assy, Ventilation
12211 Case, Ventilation, NO.1
12215 Separator, Case
12217 Ejector, Ventilation
12229 Pipe, Ventilation
12261 Hose, Ventilation
12261A Clip OR Clamp(FOR VENTILATION HOSE)
12262 Hose, Ventilation, NO.2
12262A Clip(FOR VENTILATION HOSE NO.2)
12262D Clip(FOR VENTILATION HOSE NO.2)
12264 Hose, Ventilation, NO.4
12264A Clip(FOR VENTILATION HOSE)
12273B Gasket, Oil Separator
12273E Gasket(FOR VENTILATION CASE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
