Toyota C-hr

2016-10 → present · chassis MAXH10,NGX10,50,ZGX10,ZYX1# · catalogue 528510 · Europe

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator & Water Outlet

139 part groups · 14 illustrations

Illustrations

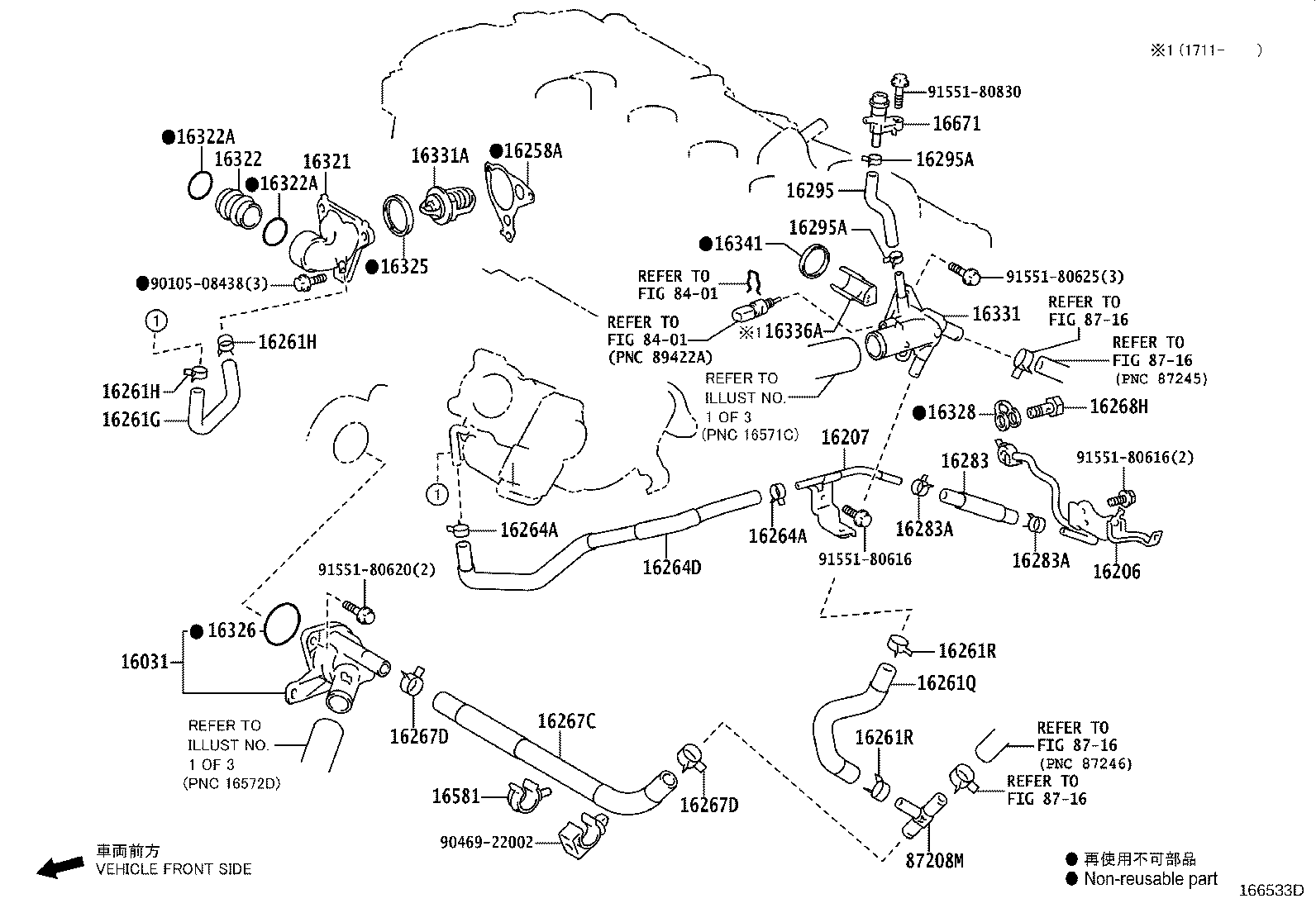

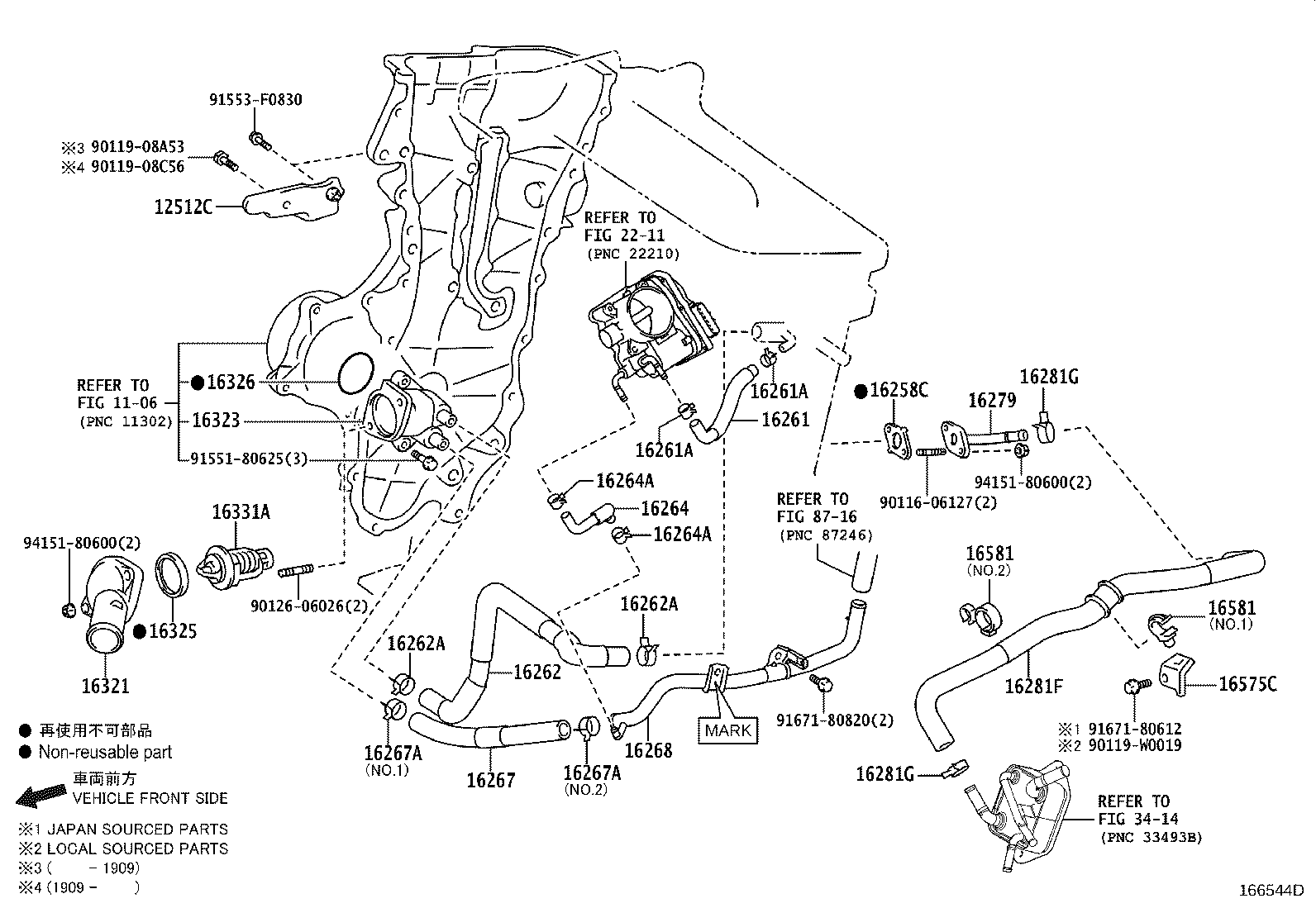

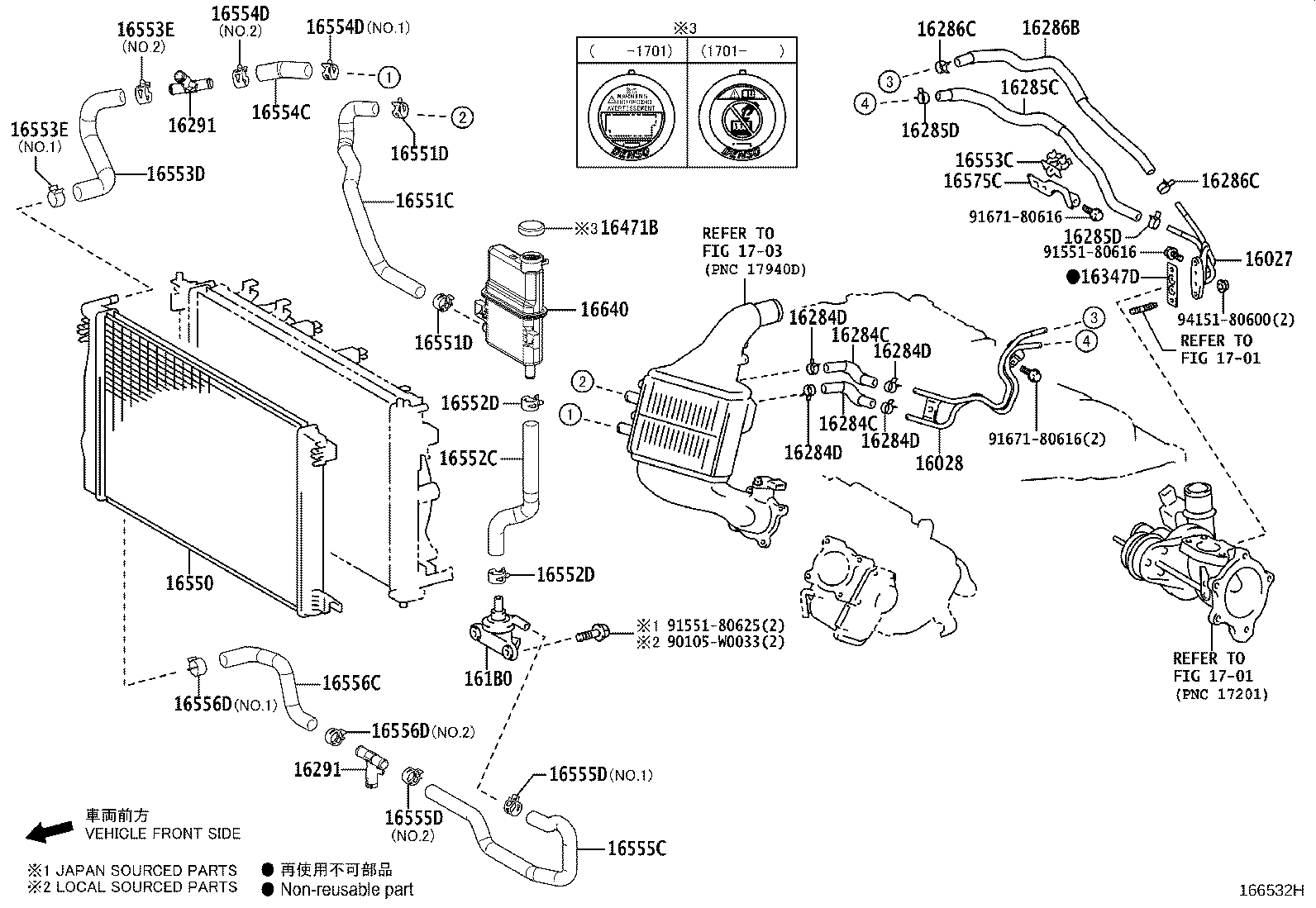

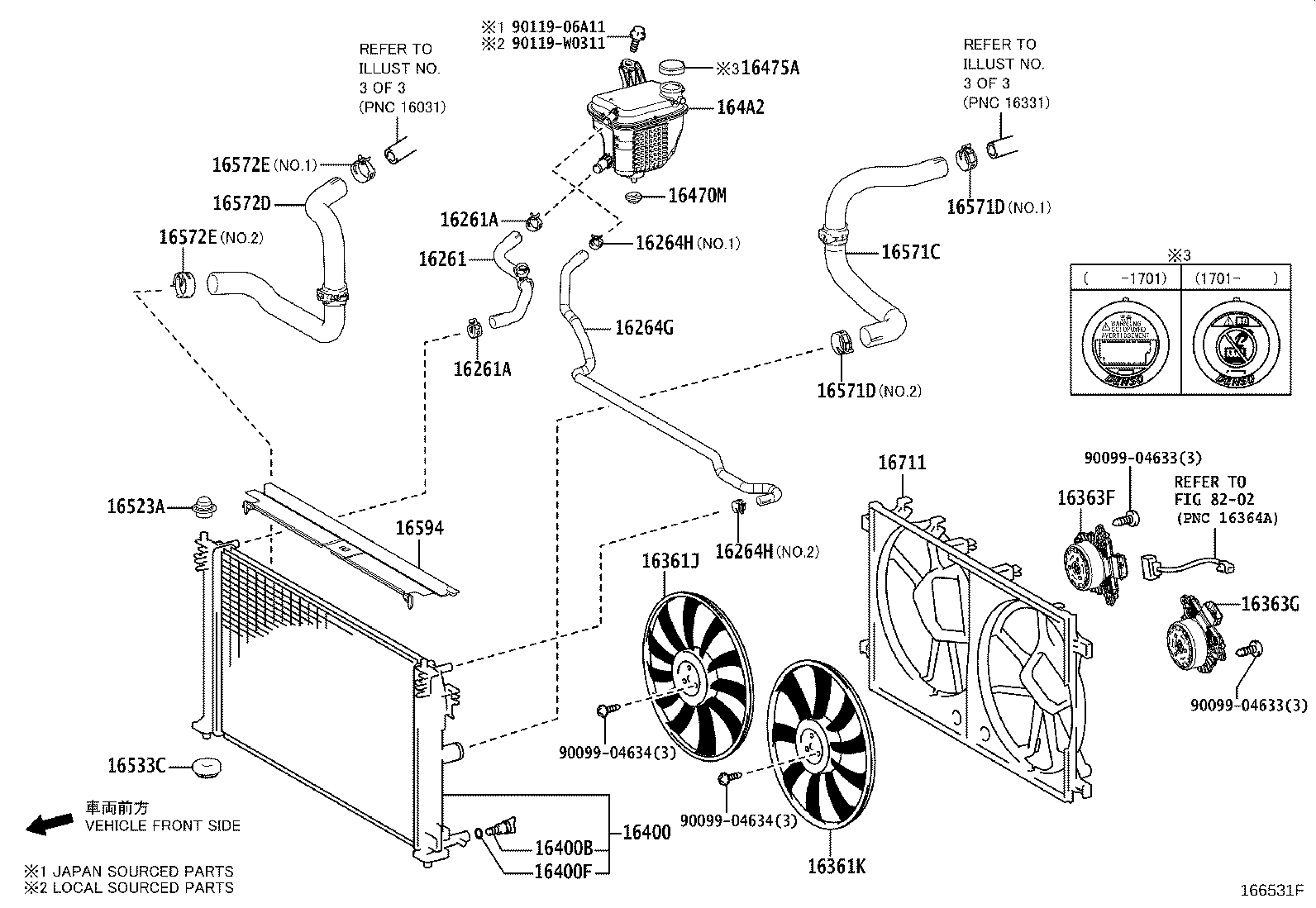

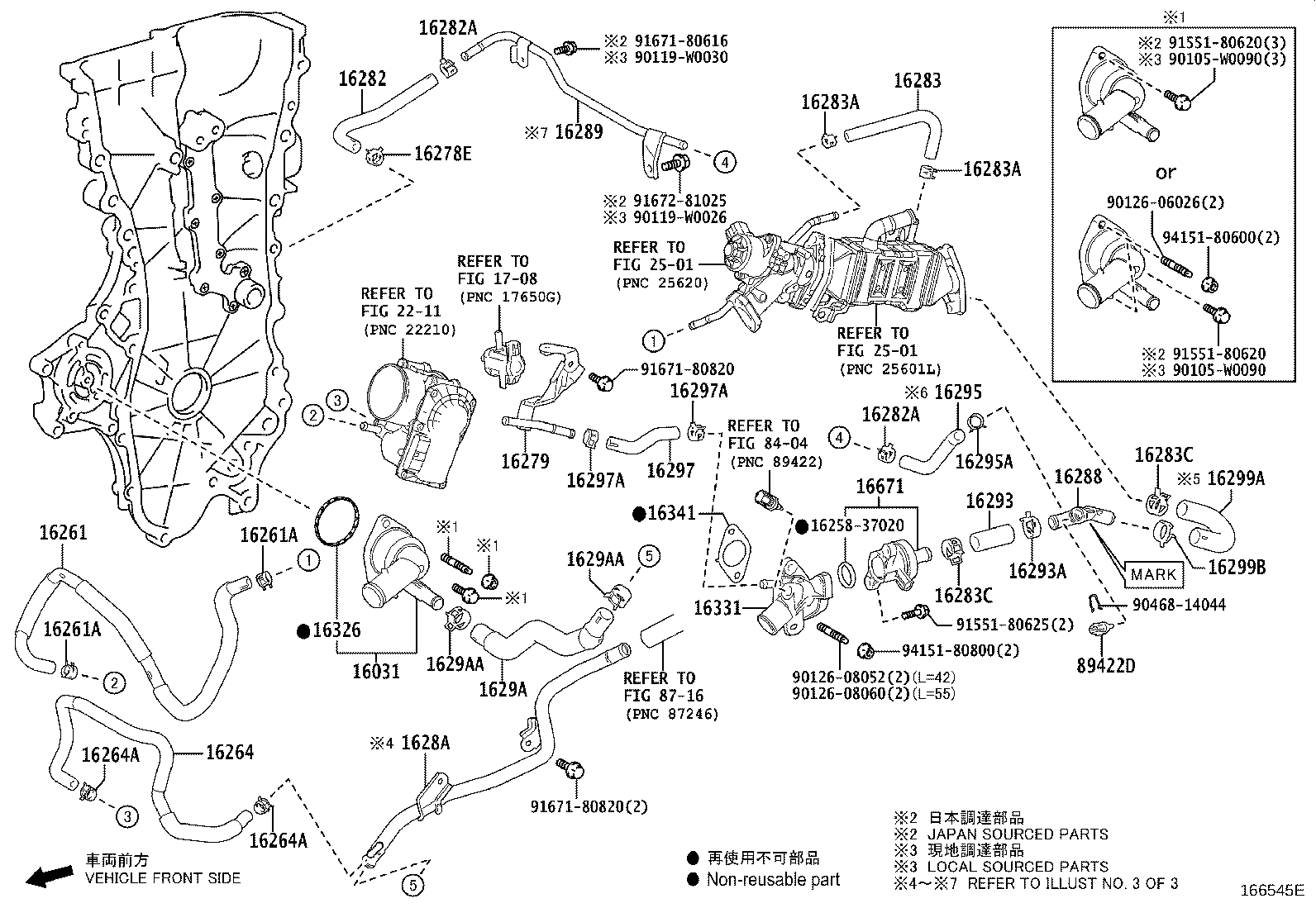

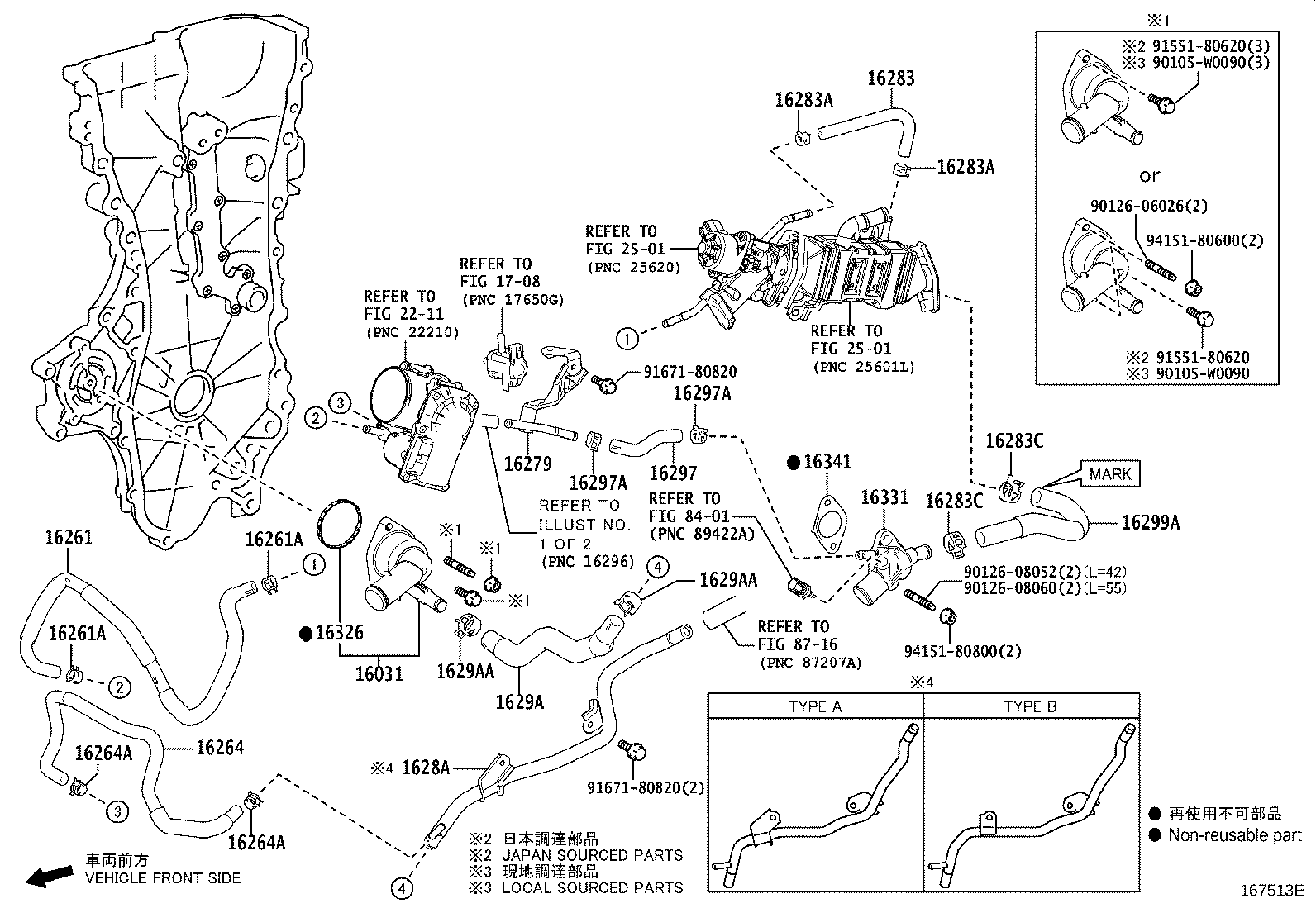

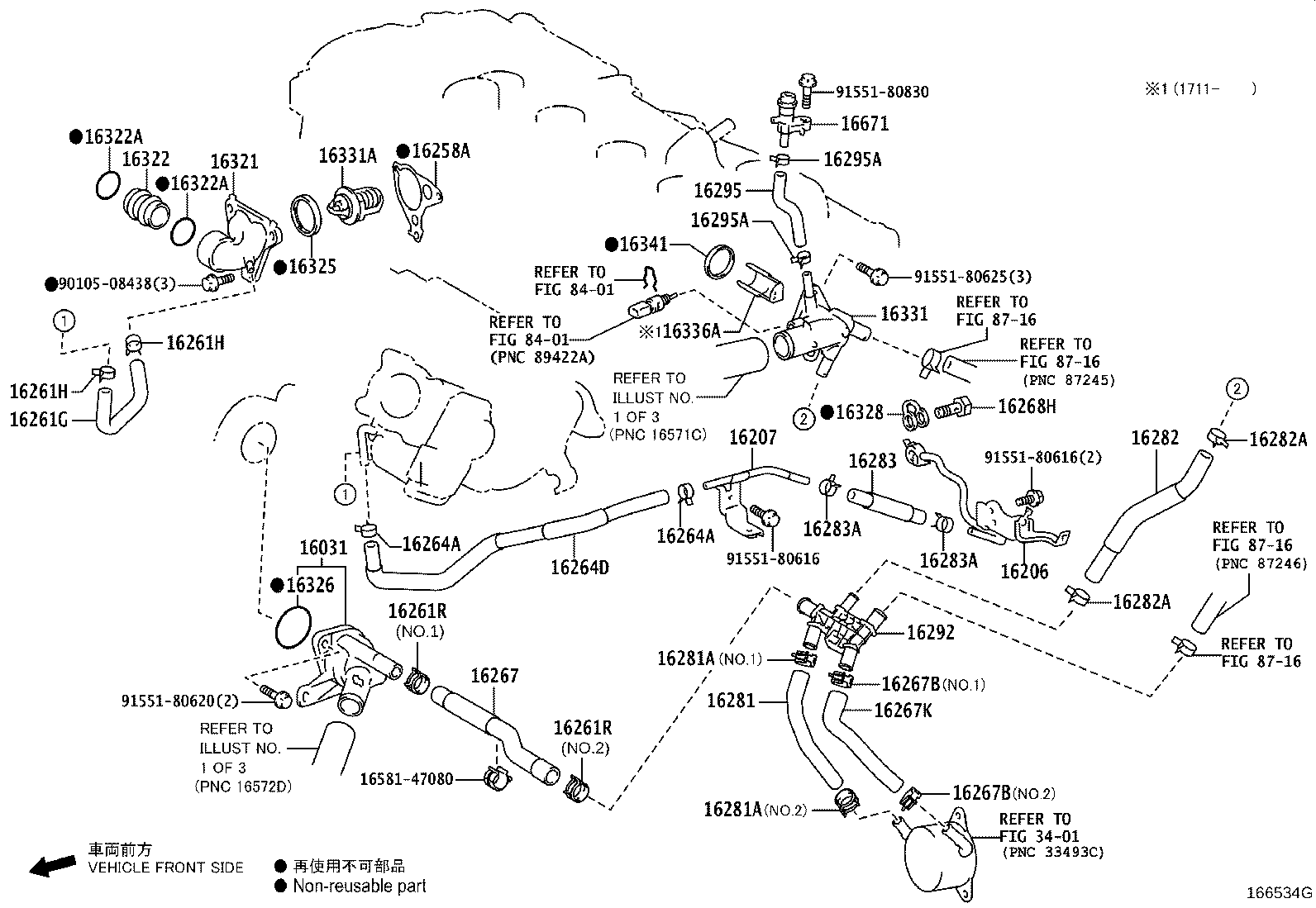

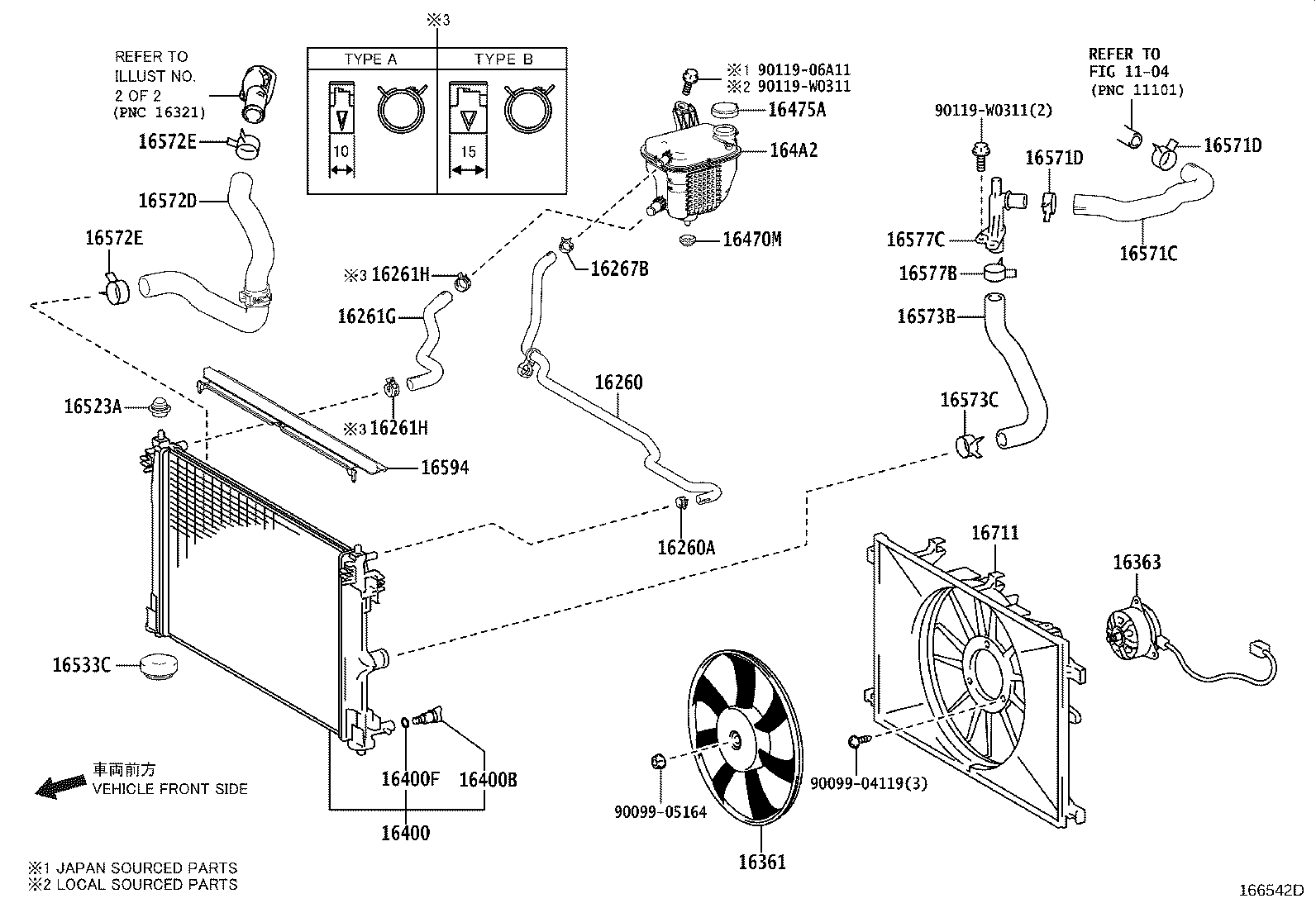

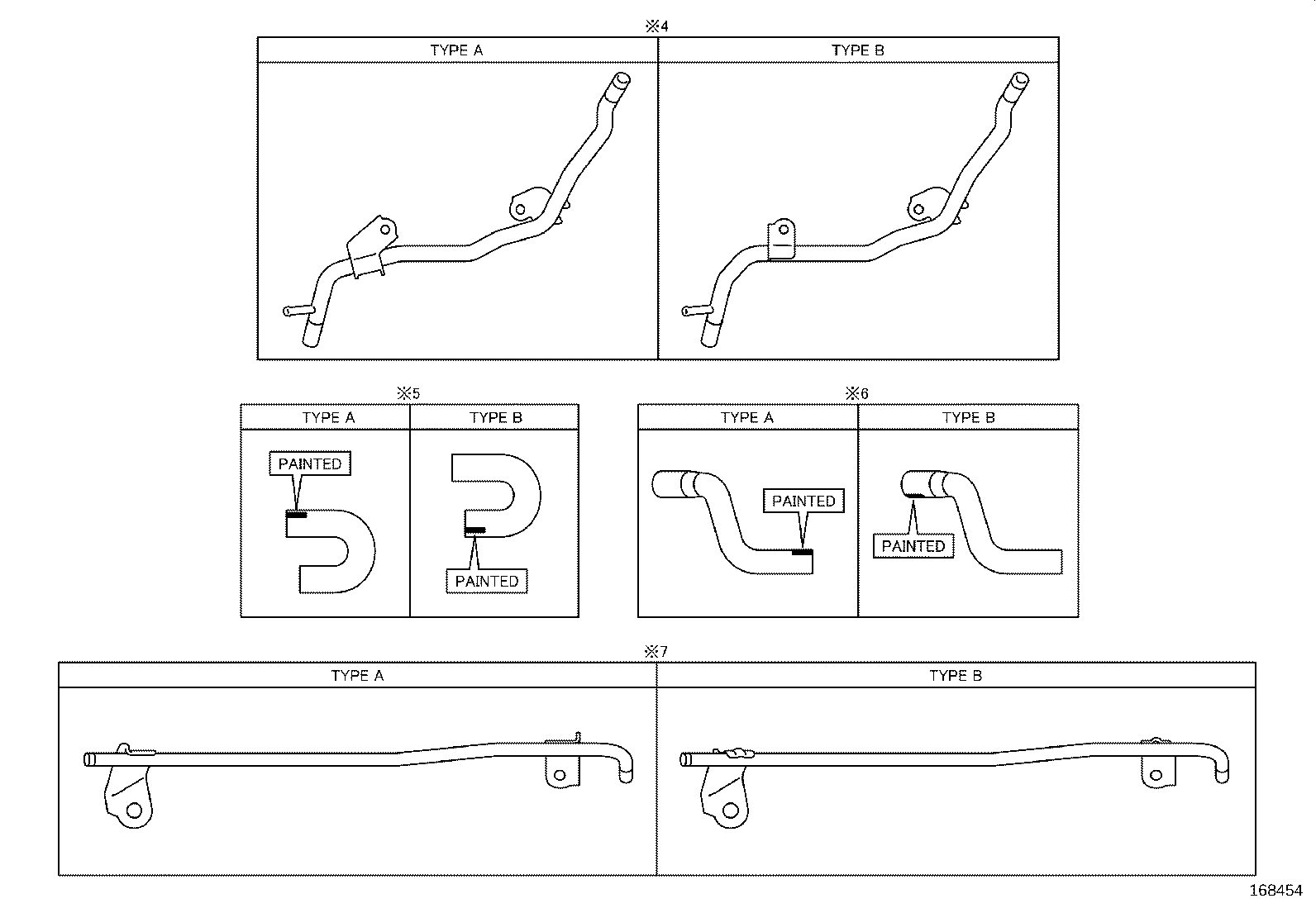

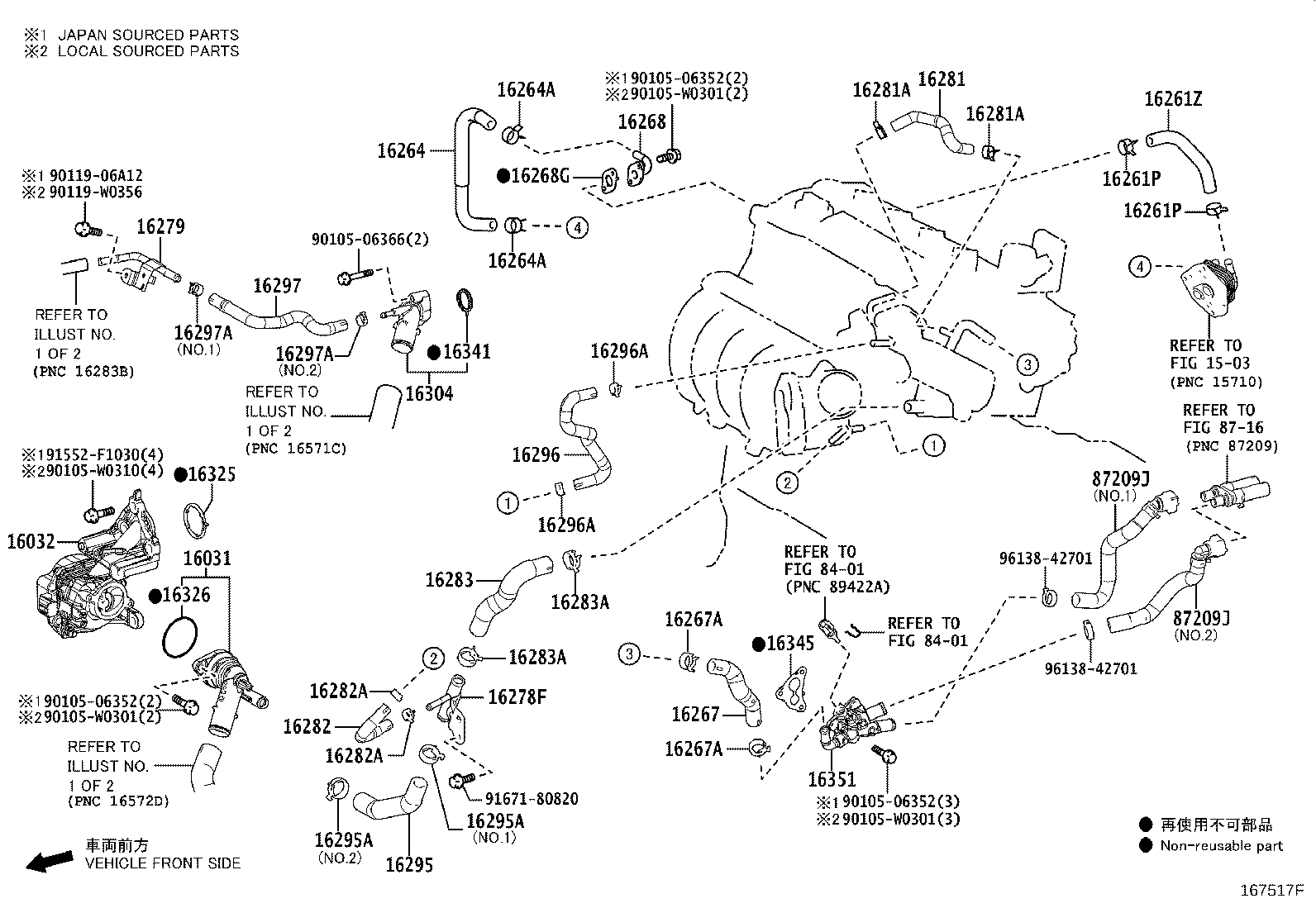

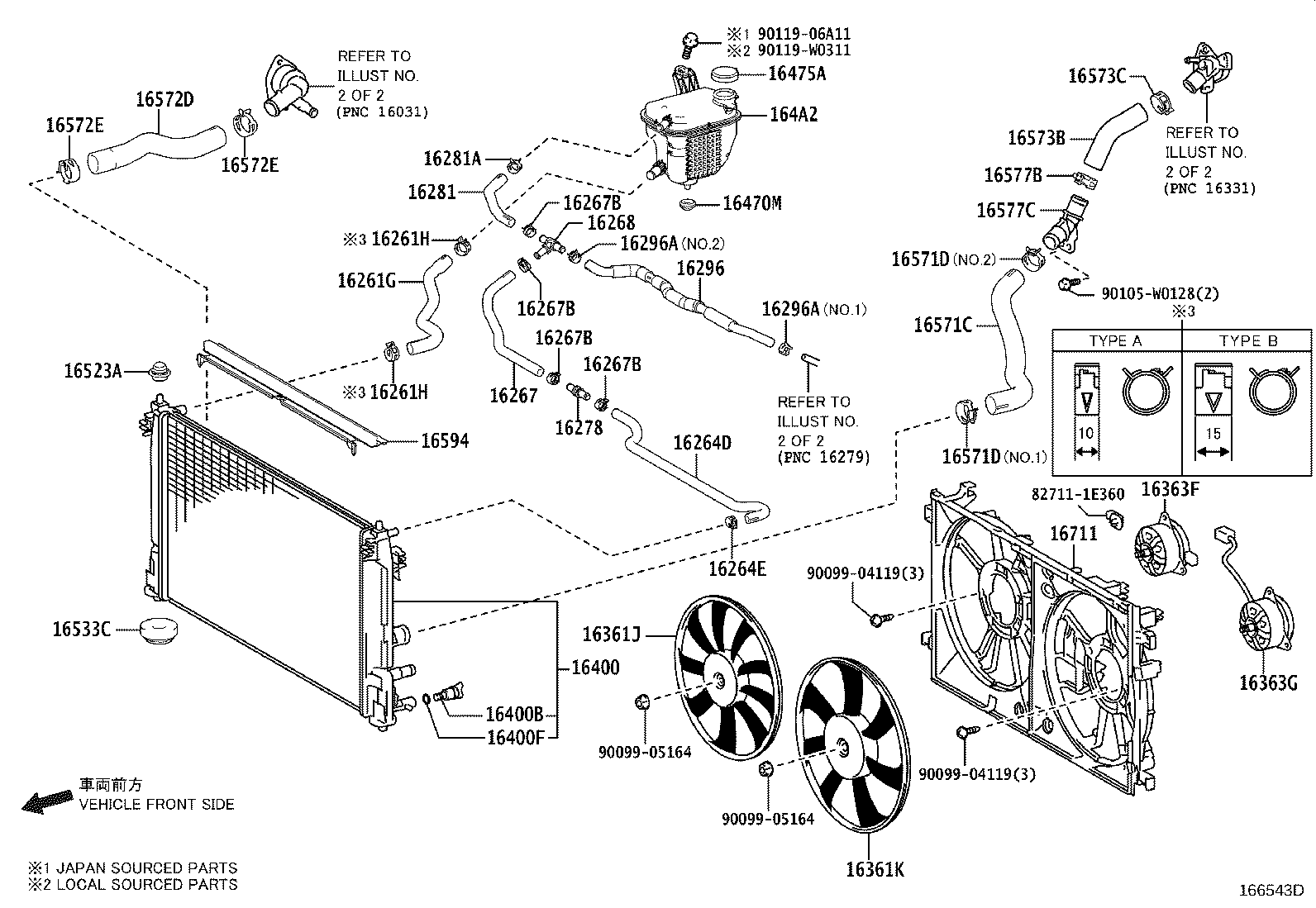

Figure 167516A 167516A 2019-09 → — Figure 167517F 167517F 2019-09 → — Figure 166531F 166531F 2016-10 → — Figure 166532H 166532H 2016-10 → — Figure 166533D 166533D 2016-10 → — Figure 166534G 166534G 2016-10 → — Figure 166542D 166542D 2016-10 → — Figure 166543E 166543E 2016-10 → — Figure 166544D 166544D 2016-10 → — Figure 166545E 166545E 2016-10 → 2019-09 Figure 166545E 166545E 2019-09 → — Figure 167513E 167513E 2019-09 → — Figure 168454 168454 2016-10 → 2019-09 Figure 168454 168454 2019-09 → —

Part groups

PNCDescription
12512C Bracket, Alternator, NO.2
16027 Pipe Sub-assy, Turbo Water, NO.1
16028 Pipe Sub-assy, Turbo Water, NO.2
16031 Water Inlet Sub-assy, W/Thermostat
16032 Housing Sub-assy, Water Inlet W/Water Pump
161B0 Pump Assy, Electric Water
16206 Pipe Sub-assy, Water By-pass
16207 Pipe Sub-assy, Water By-pass, NO.2
16258A Gasket(FOR HEATER RETURN)
16258C Gasket(FOR WATER BY-PASS PIPE)
16260 Hose Assy, Water By-pass
16260A Clip(FOR WATER BY-PASS HOSE ASSY)
16261 Hose, Water By-pass
16261A Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
16261G Hose, Water By-pass, NO.1
16261H Clip(FOR WATER BY-PASS HOSE NO.1)
16261L Hose, Water By-pass
16261P Clip(FOR WATER BY-PASS HOSE NO.2)
16261Q Hose, Water By-pass
16261R Clamp OR Clip(FOR WATER BY-PASS HOSE)
16261Z Hose, Water By-pass, NO.1
16262 Hose, Water Inlet
16262A Clip(FOR WATER INLET HOSE)
16264 Hose, Water By-pass, NO.2
16264A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
16264D Hose, Water By-pass, NO.2
16264E Clip(FOR WATER BY-PASS HOSE NO.2)
16264G Hose, Water By-pass, NO.3
16264H Clip(FOR WATER BY-PASS HOSE NO.3)
16267 Hose, Water By-pass, NO.3
16267A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
16267B Clip(FOR WATER BY-PASS HOSE)
16267C Hose, Water By-pass, NO.4
16267D Clip(FOR WATER BY-PASS HOSE NO.4)
16267K Hose, Water By-pass, NO.3
16268 Pipe, Water By-pass, NO.1
16268G Gasket(FOR WATER BY-PASS PIPE)
16268H Bolt, Union(FOR WATER BY-PASS PIPE)
16278 Pipe, Water By-pass, NO.2
16278E Clip(FOR WATER BY-PASS HOSE)
16278F Hose, Water By-pass, NO.2
16279 Pipe, Water By-pass, NO.3
16281 Hose, Water By-pass, NO.4
16281A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
16281F Hose, Water By-pass, NO.5
16281G Clip(FOR WATER BY-PASS HOSE NO.5)
16281N Hose, Water By-pass, NO.4
16282 Hose, Water By-pass, NO.5
16282A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
16283 Hose, Water By-pass, NO.6
16283A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
16283B Hose, Water By-pass
16283C Clamp OR Clip(FOR WATER BY-PASS HOSE)
16284C Hose, Intercooler Water, NO.1
16284D Clip(FOR INTERCOOLER WATER HOSE NO.1)
16285C Hose, Intercooler Water, NO.2
16285D Clip(FOR INTERCOOLER WATER HOSE NO.2)
16286B Hose, Intercooler Water, NO.3
16286C Clip(FOR INTERCOOLER WATER HOSE NO.3)
16288 Pipe, Water By-pass, NO.4
16289 Pipe, Water By-pass, NO.5
1628A Pipe, Water By-pass, NO.6
16291 Joint, Water Hose
16292 Joint, Water Hose, NO.2
16293 Hose, Water By-pass, NO.10
16293A Clip(FOR WATER BY-PASS HOSE NO.10)
16295 Hose, Water By-pass, NO.7
16295A Clip(FOR WATER BY-PASS HOSE NO.7)
16296 Hose, Water By-pass, NO.8
16296A Clip(FOR WATER BY-PASS HOSE NO.8)
16297 Hose, Water By-pass, NO.9
16297A Clip(FOR WATER BY-PASS HOSE NO.9)
16299A Hose, Water By-pass, NO.13
16299B Clip(FOR WATER BY-PASS HOSE NO.13)
1629A Hose, Water By-pass, NO.14
1629AA Clip(FOR WATER BY-PASS HOSE NO.14)
16304 Outlet Sub-assy, Water
16321 Inlet, Water
16322 Pipe, Water Inlet
16322A Ring, O(FOR WATER INLET)
16323 Housing, Water Inlet
16325 Gasket, Water Inlet Housing, NO.1
16326 Gasket, Water Inlet Housing, NO.2
16328 Gasket, Water Inlet Pipe
16331 Outlet, Water
16331A Thermostat
16336A Insert, Water Outlet
16341 Gasket, Water Outlet
16345 Gasket, Water Outlet Pipe
16347D Gasket, Water By-pass
16351 Outlet, Water By-pass
16361 Fan
16361J Fan, RH
16361K Fan, LH
16363 Motor, Cooling Fan
16363F Motor, Cooling Fan, RH
16363G Motor, Cooling Fan, LH
16400 Radiator Assy
16400B Plug, Radiator Drain Cock
16400F Packing(FOR RADIATOR DRAIN COCK)
16470M Grommet
16471B Cap, Reserve Tank
16475A Cap, Reserve Tank
164A2 Tank, Reserve Sealed W/O Cap
16523A Cushion, Radiator Support
16533C Grommet(FOR RADIATOR SUPPORT)
16550 Radiator Assy, Intercooler Cooling
16551C Hose, Intercooler Cooling Water, NO.1
16551D Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.1)
16552C Hose, Intercooler Cooling Water, NO.2
16552D Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.2)
16553C Clamp, Hose
16553D Hose, Intercooler Cooling Water, NO.3
16553E Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.3)
16554C Hose, Intercooler Cooling Water, NO.4
16554D Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.4)
16555C Hose, Intercooler Cooling Water, NO.5
16555D Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.5)
16556C Hose, Intercooler Cooling Water, NO.6
16556D Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.6)
16571C Hose, Radiator, NO.1
16571D Clip, Radiator Hose, NO.1
16572D Hose, Radiator, NO.2
16572E Clip, Radiator Hose, NO.2
16573B Hose, Radiator, NO.3
16573C Clamp OR Clip, Radiator Hose, NO.3
16575B Bracket, Water Hose Clamp, NO.2
16575C Bracket, Water Hose Clamp, NO.1
16577B Clamp OR Clip, Hose(FOR RADIATOR PIPE)
16577C Pipe, Radiator
16581 Clamp, Hose(FOR WATER HOSE)
16581B Clamp, Hose(FOR RADIATOR HOSE)
16594 Guide, Radiator Air, NO.2
16640 Tank Assy, Intercooler Reserve
16671 Valve, Water
16711 Shroud, Fan
87208M Pipe Sub-assy, Water
87209J Hose Sub-assy, Water
89422D Sensor, Water Temperature
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
