Toyota C-hr

2016-10 → present · chassis MAXH10,NGX10,50,ZGX10,ZYX1# · catalogue 528510 · Europe

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

28 part groups · 10 illustrations

Illustrations

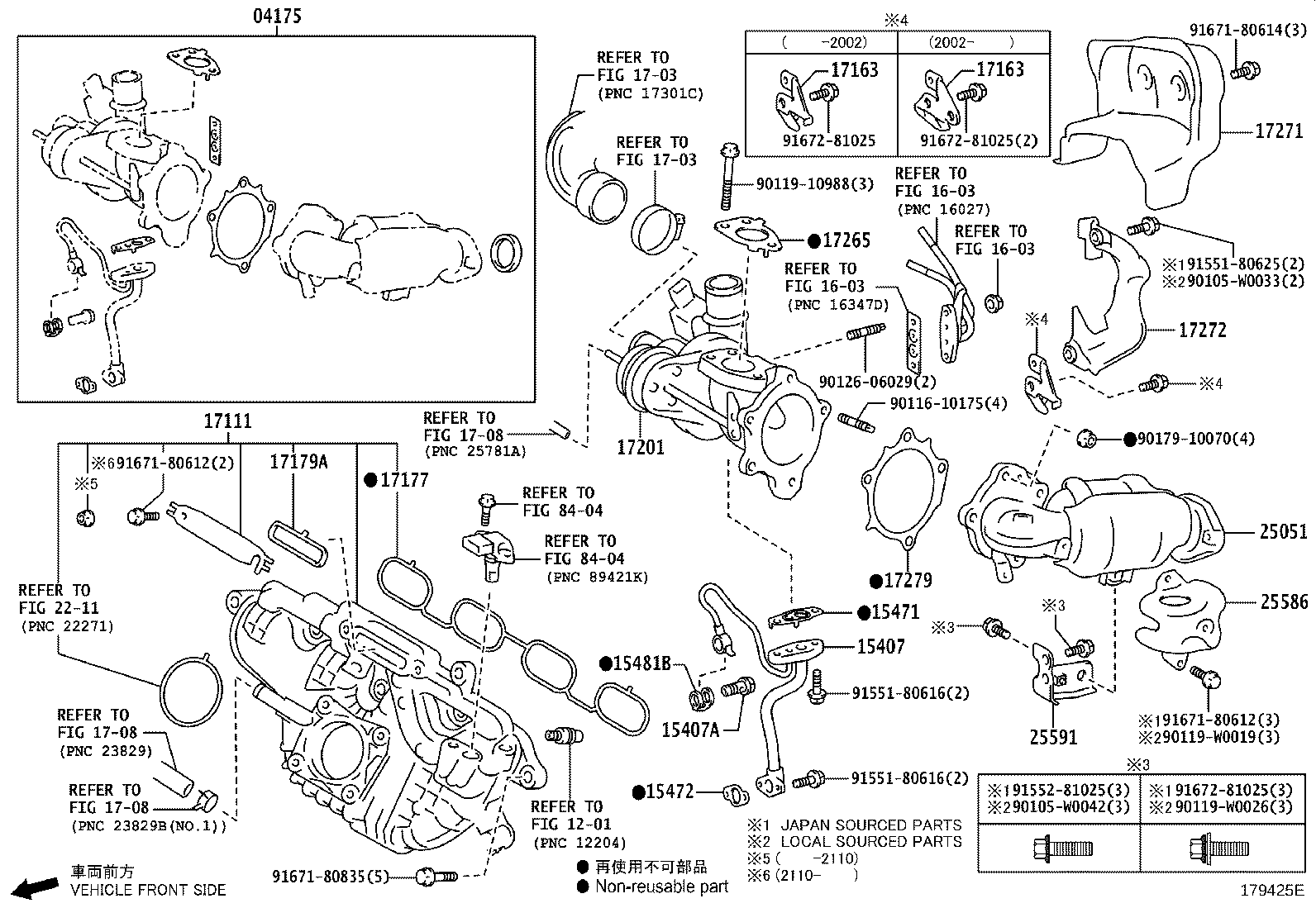

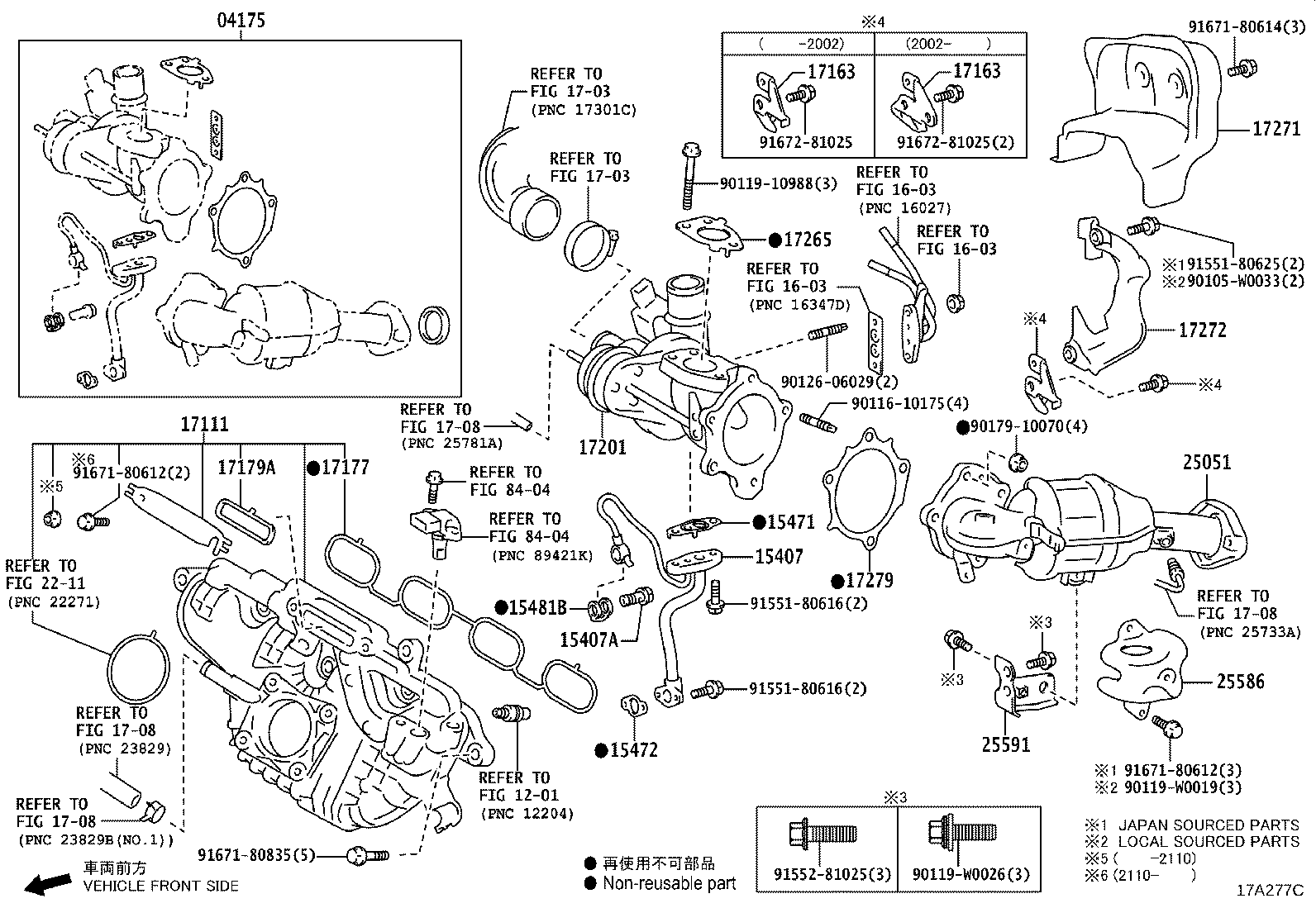

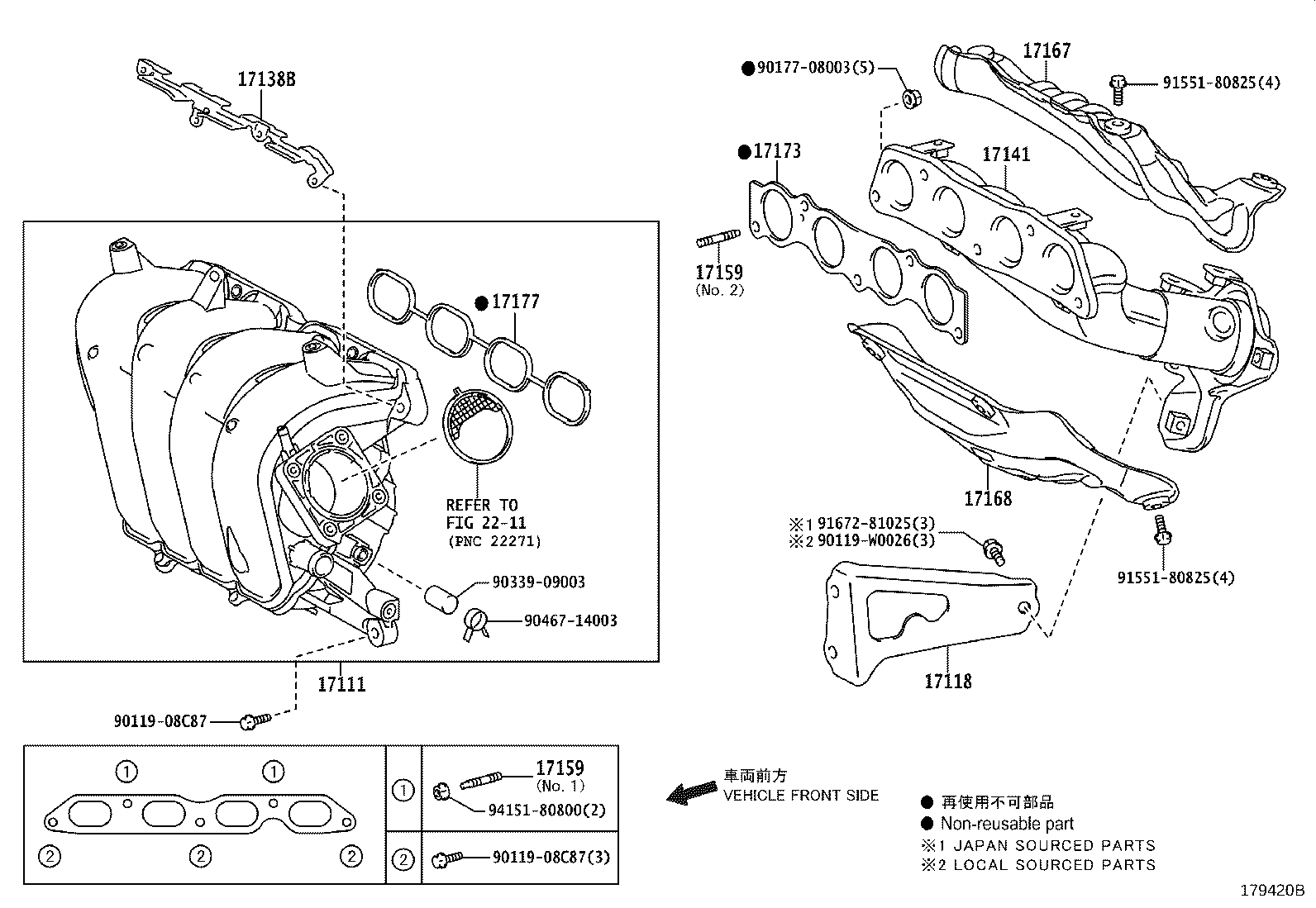

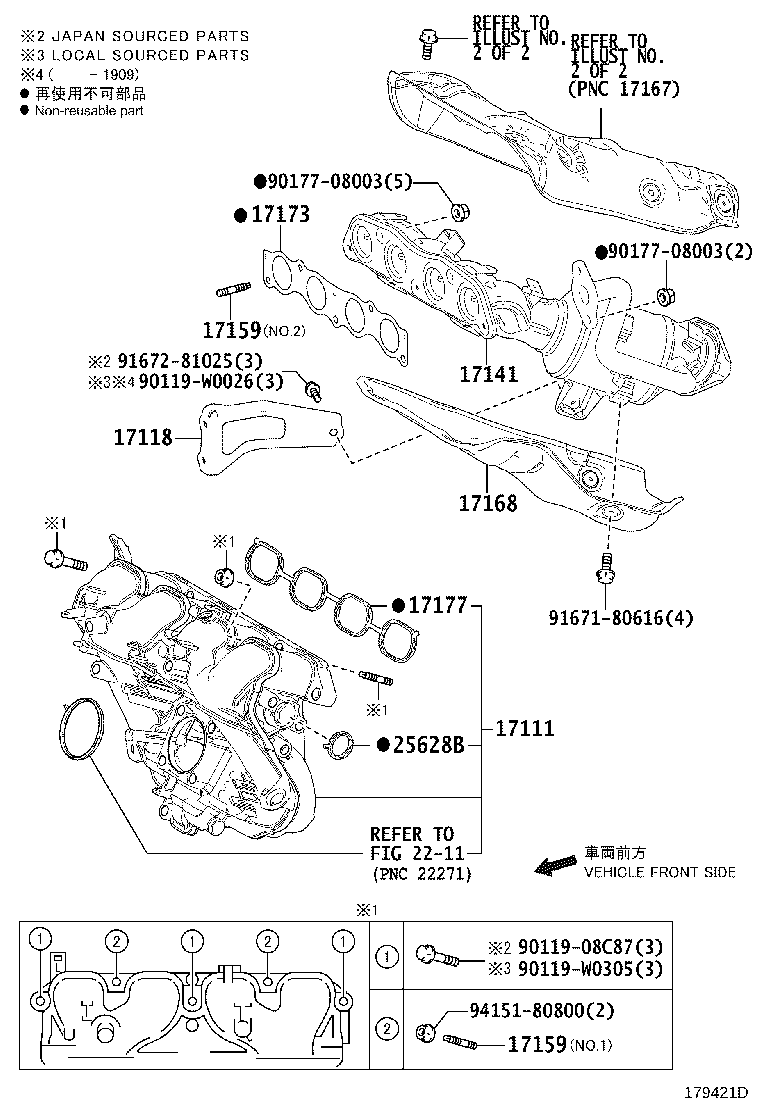

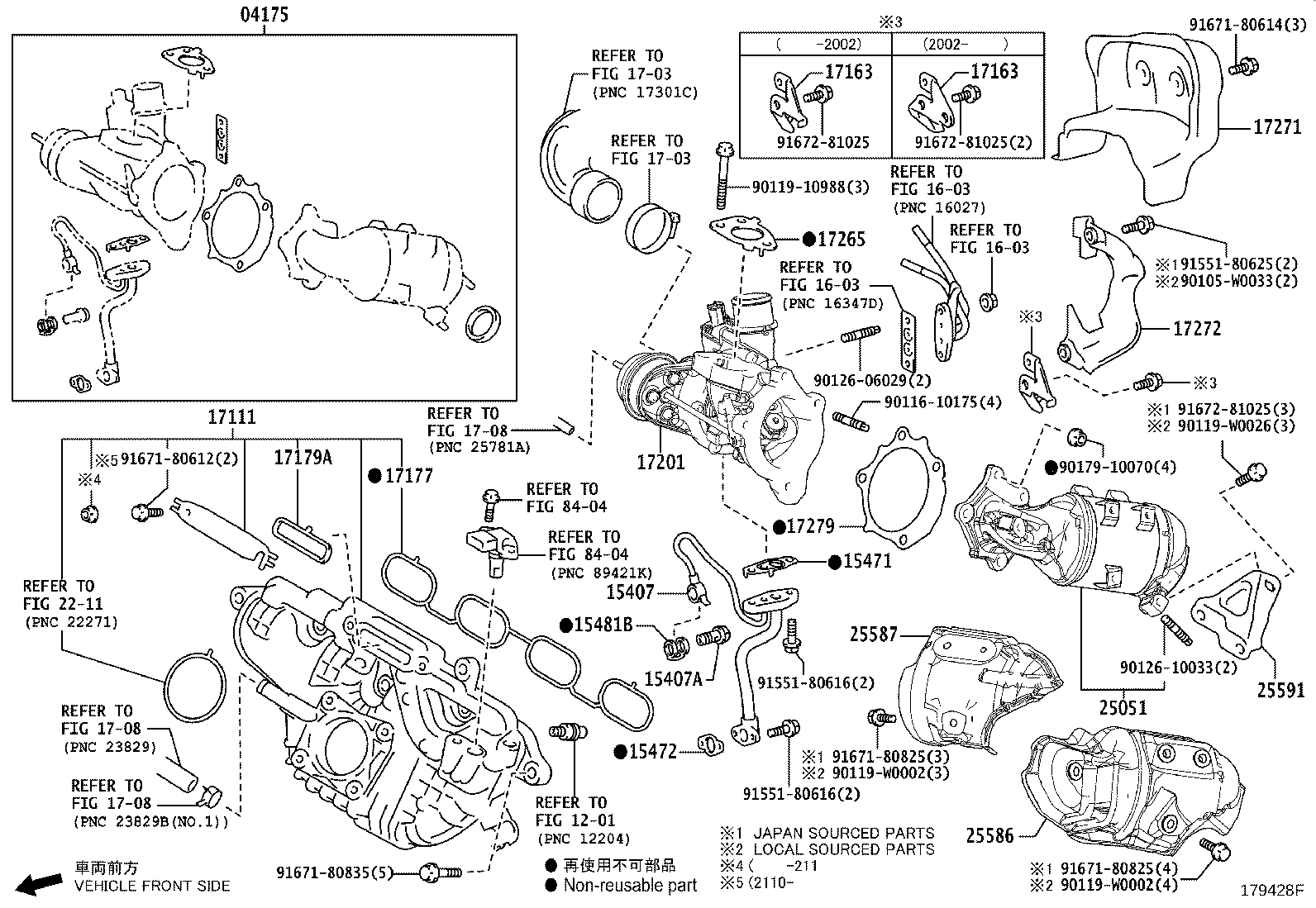

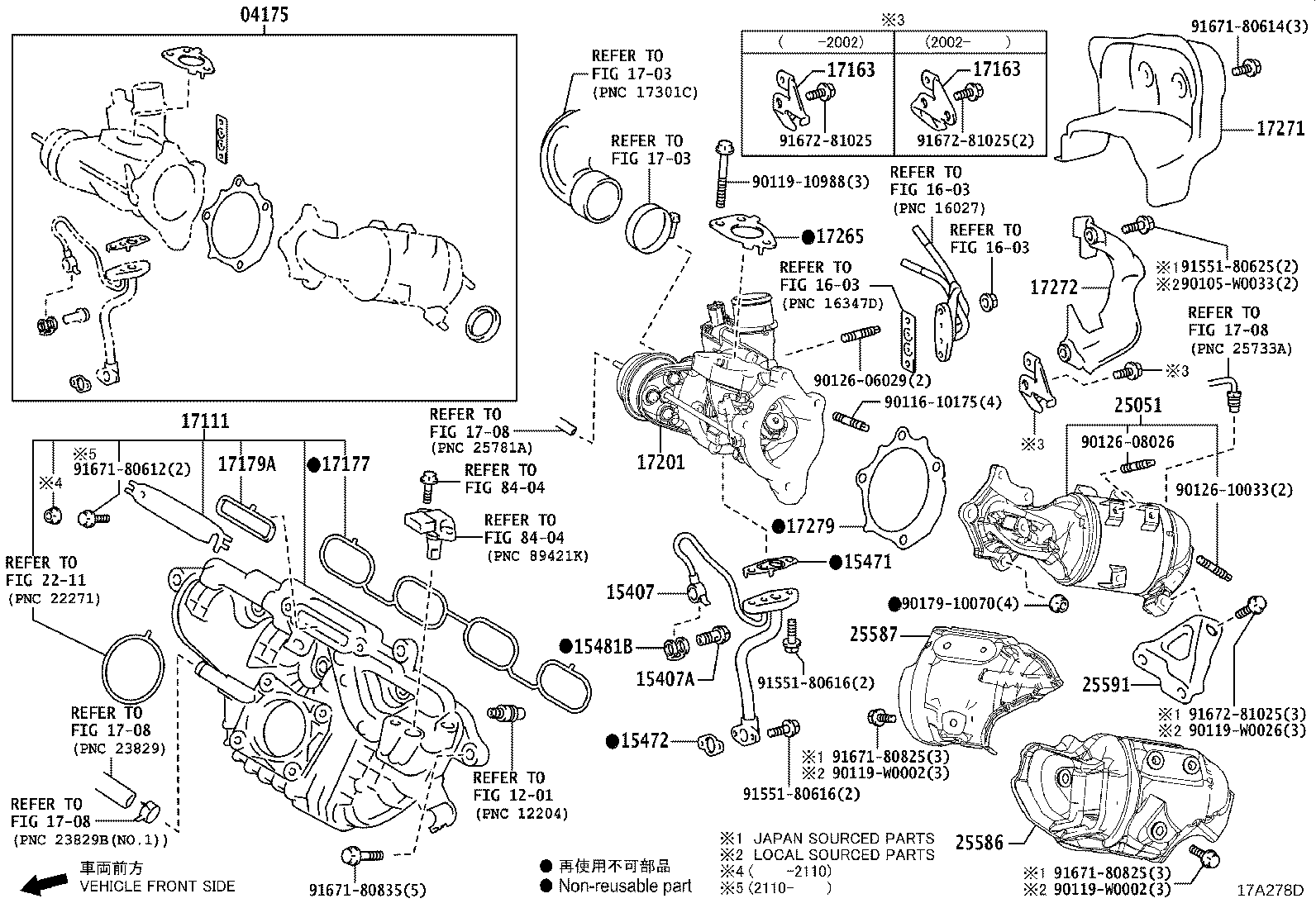

Figure 17A925B 17A925B 2019-09 → — Figure 179425E 179425E 2016-10 → 2018-05 Figure 179425E 179425E 2018-05 → — Figure 179428F 179428F 2016-10 → 2018-05 Figure 179428F 179428F 2018-05 → — Figure 17A277C 17A277C 2018-05 → — Figure 17A278D 17A278D 2018-05 → — Figure 179420B 179420B 2016-10 → — Figure 179421D 179421D 2016-10 → — Figure 17C061 17C061 2016-10 → —

Part groups

PNCDescription
04175 Gasket Kit, Turbocharger
15407 Pipe Sub-assy, Turbo Oil Inlet
15407A Bolt, Union(FOR TURBO OIL INLET PIPE)
15471 Gasket, Turbo Oil Inlet
15472 Gasket, Turbo Oil Outlet, NO.1
15481B Gasket(FOR UNION BOLT NO.1)
17111 Manifold, Intake
17118 Stay, Manifold
17138B Stay, Intake Manifold
17141 Manifold, Exhaust
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17163 Bracket, Heat Insulator, NO.1

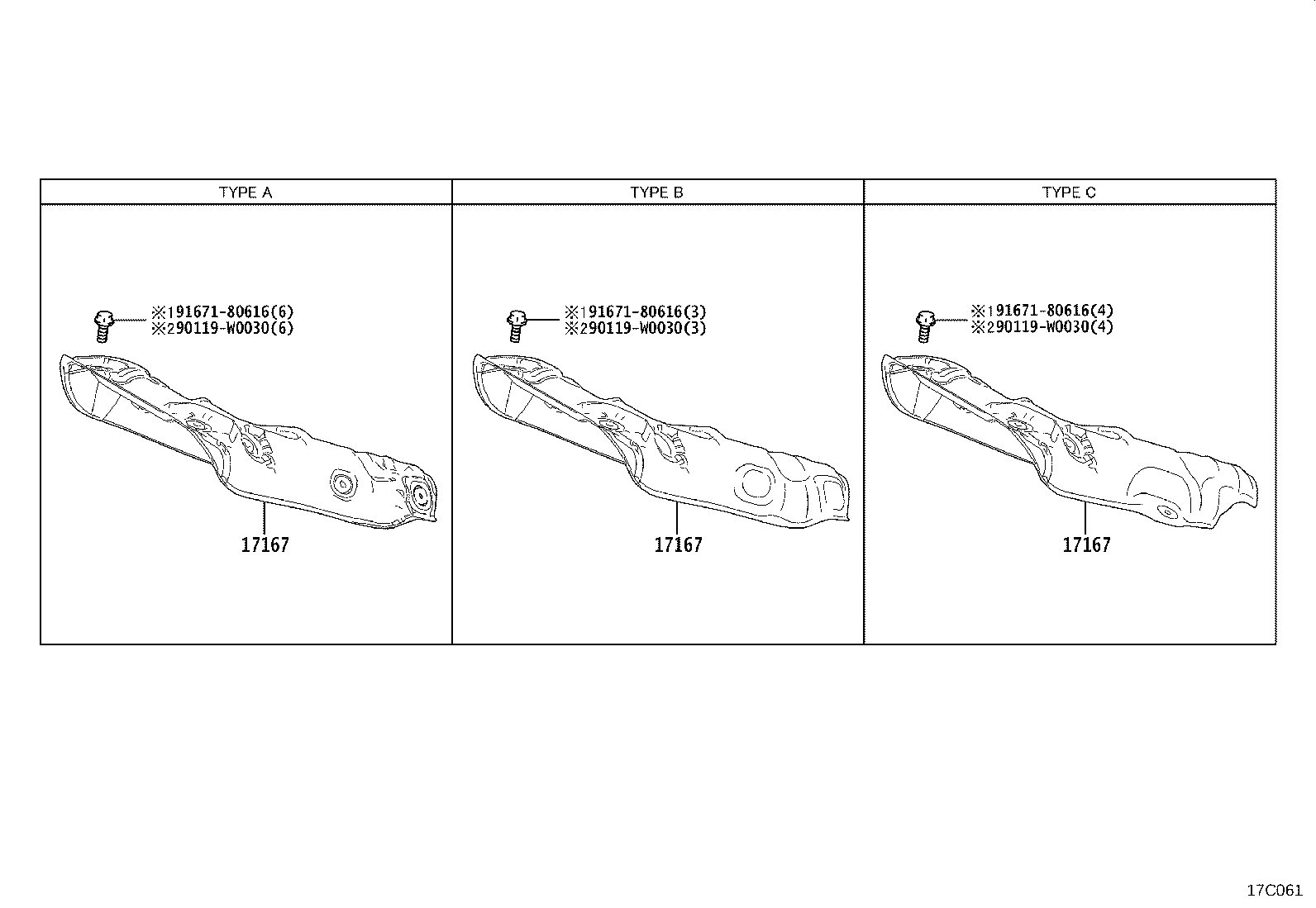

17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
17179A Gasket, Intake Manifold, NO.2
17201 Turbocharger Sub-assy
17265 Gasket, Turbocharger
17271 Insulator, Turbo, NO.1
17272 Insulator, Turbo, NO.2
17279 Gasket, Turbine Outlet Elbow
23835 Guard, Fuel Delivery, NO.2
25051 Converter Sub-assy, Exhaust Manifold
25586 Insulator, Manifold Converter, NO.1
25587 Insulator, Manifold Converter, NO.2
25591 Bracket, Manifold Support
25628B Gasket, Egr Inlet
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
