Toyota C-hr

2016-10 → present · chassis MAXH10,NGX10,50,ZGX10,ZYX1# · catalogue 528510 · Europe

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

30 part groups · 9 illustrations

Illustrations

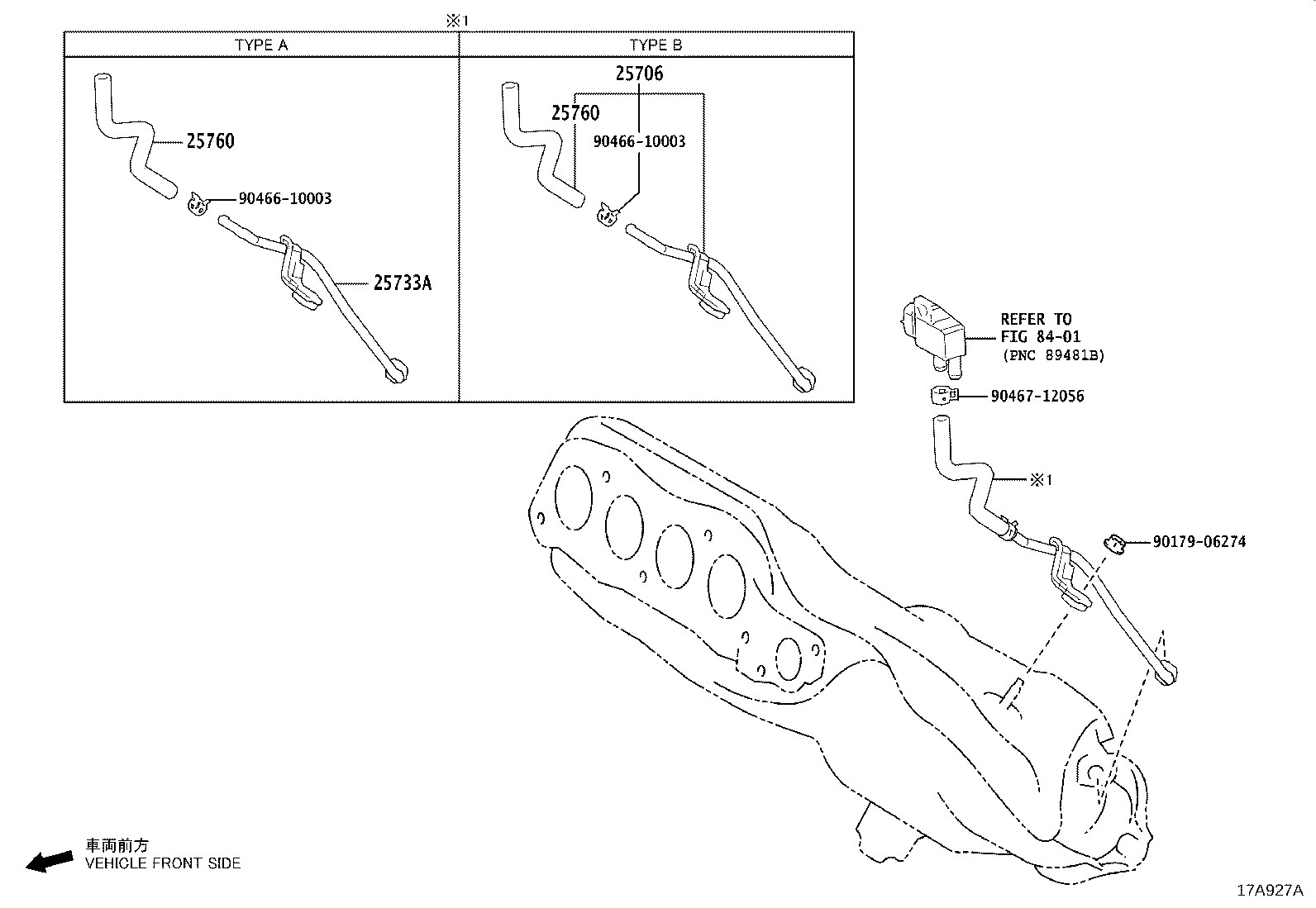

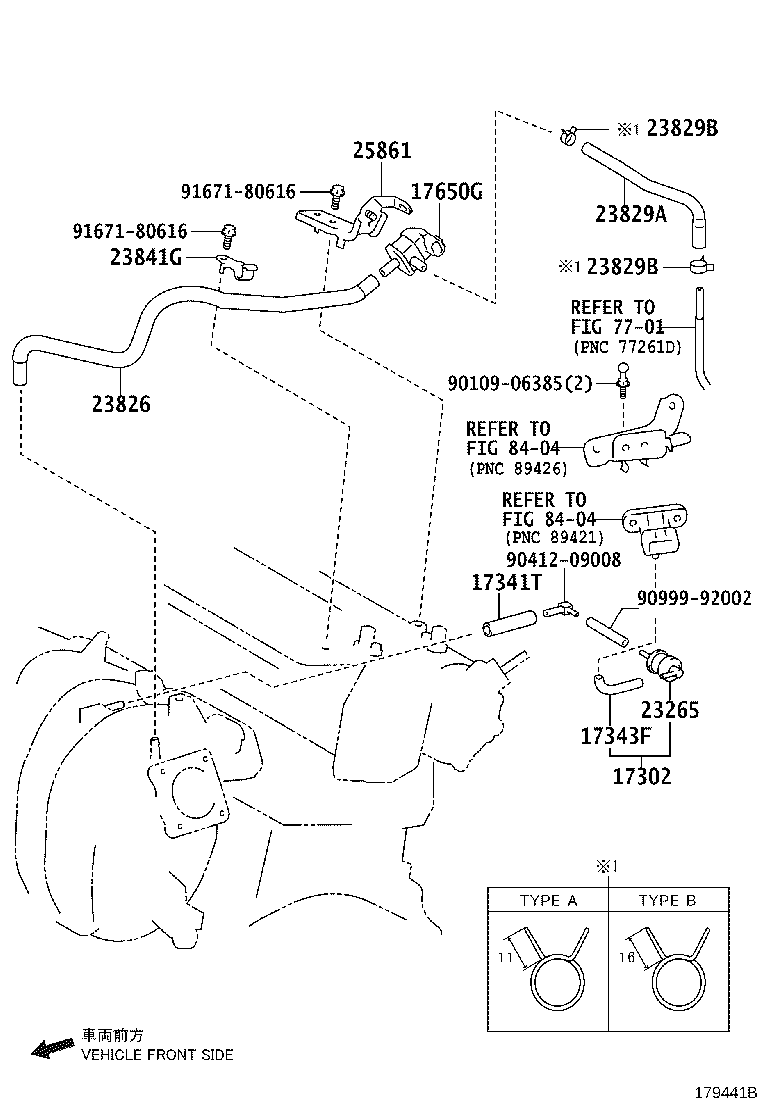

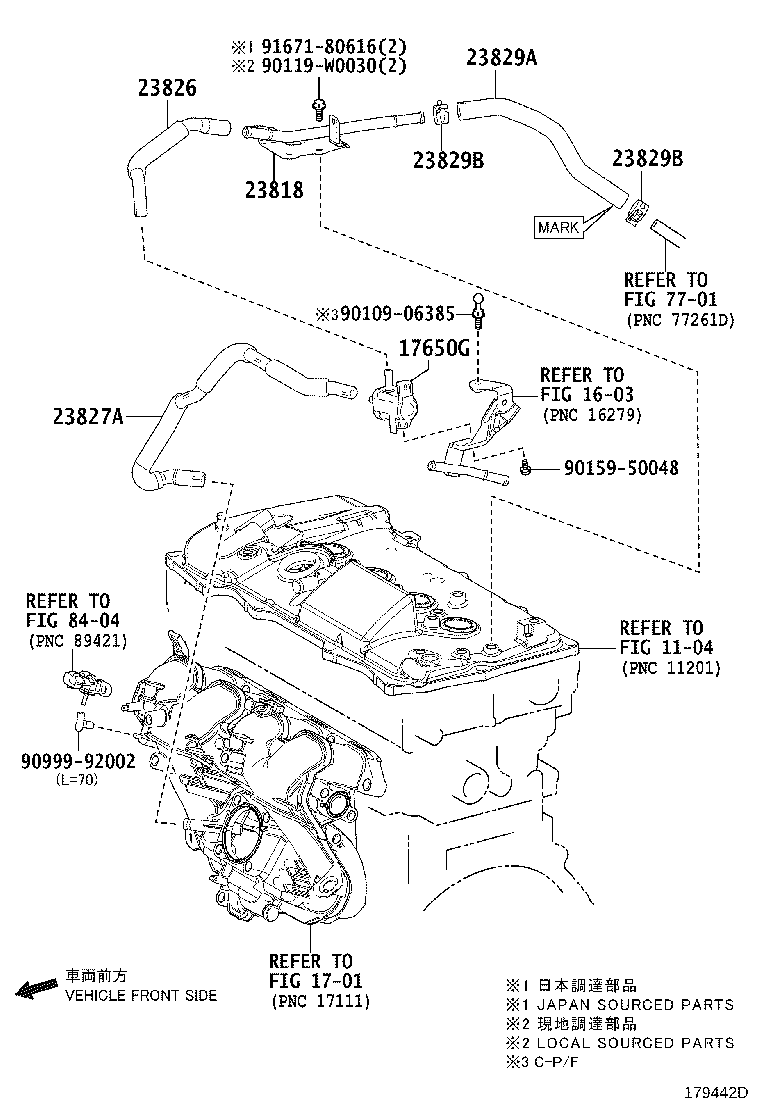

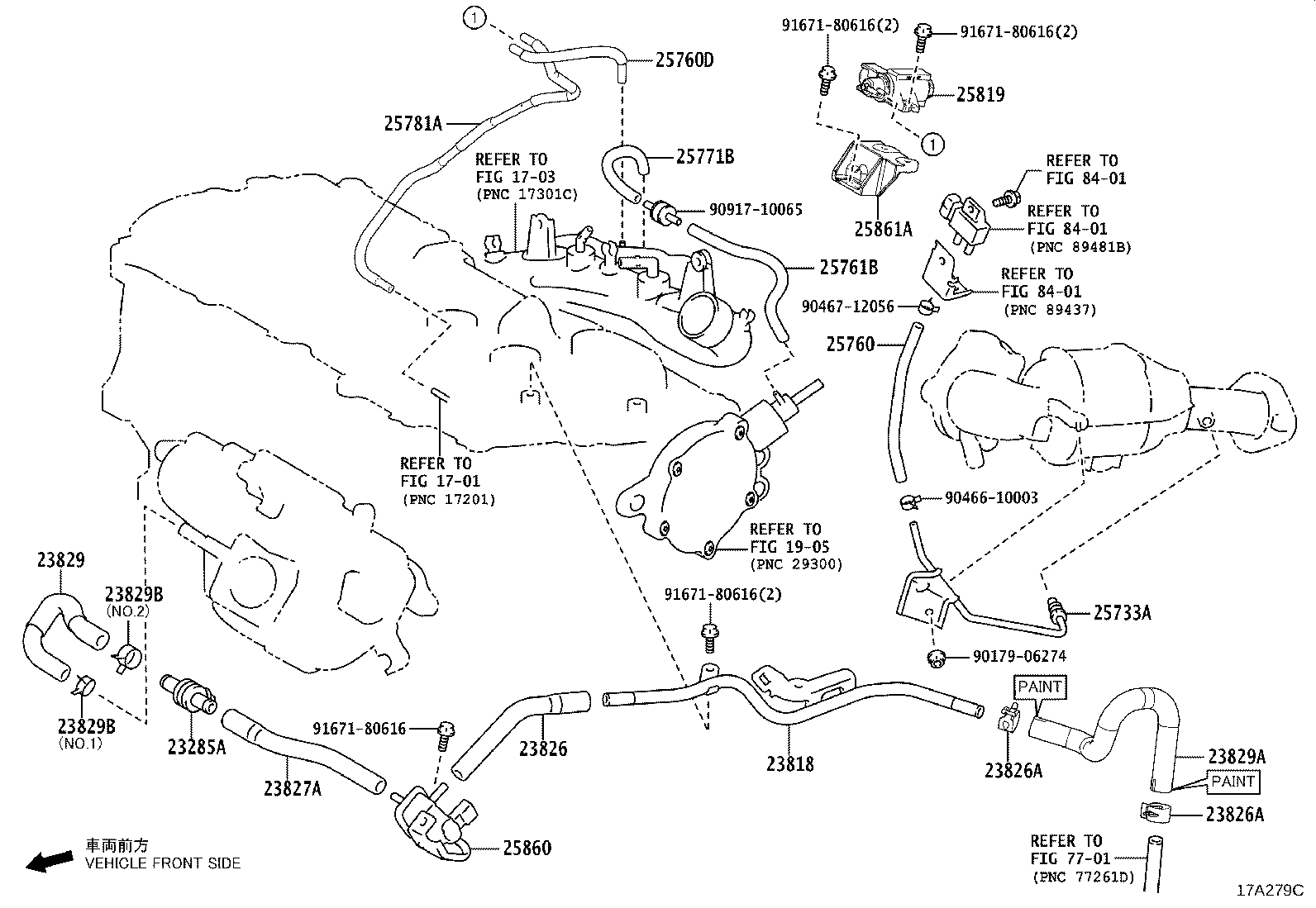

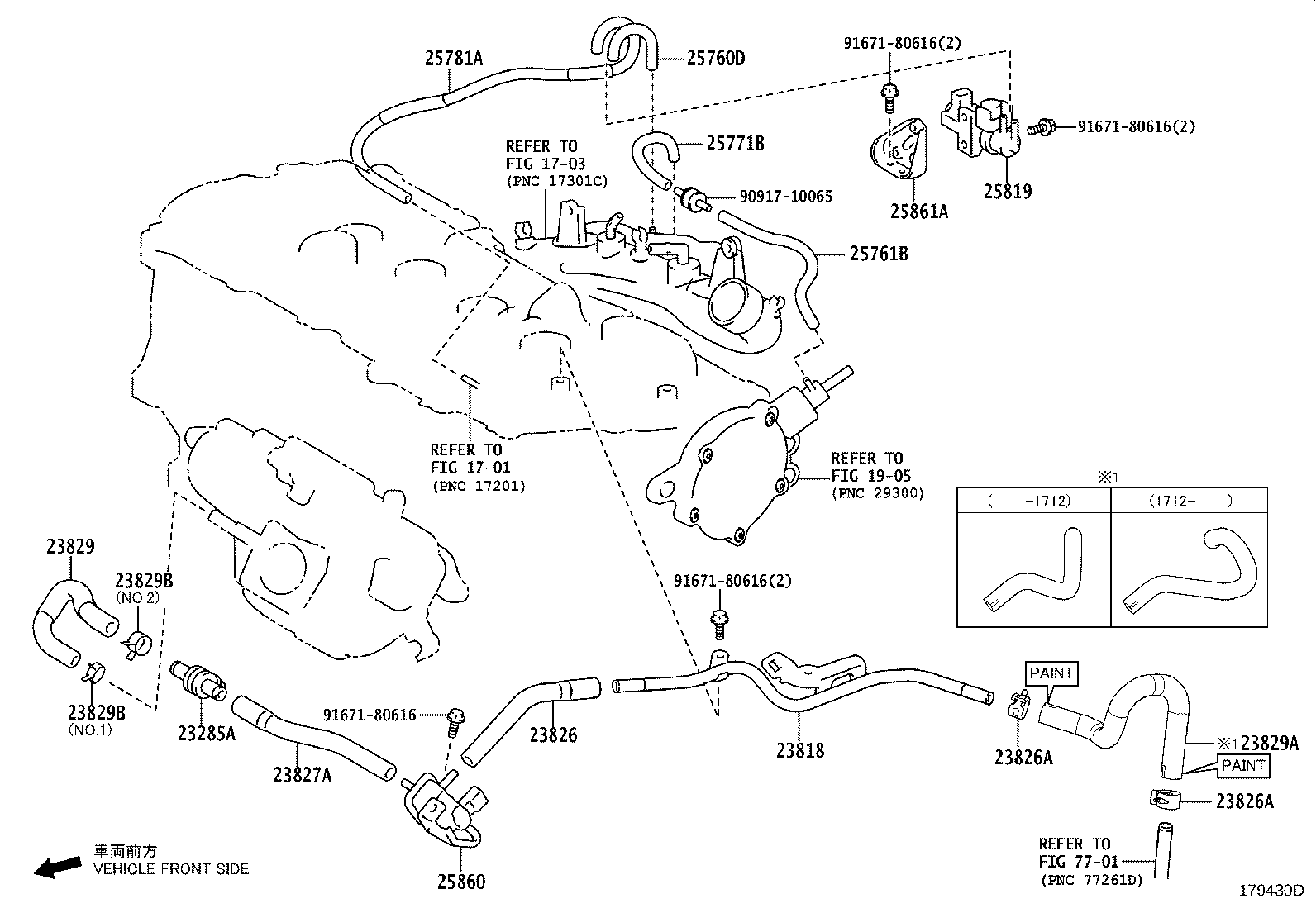

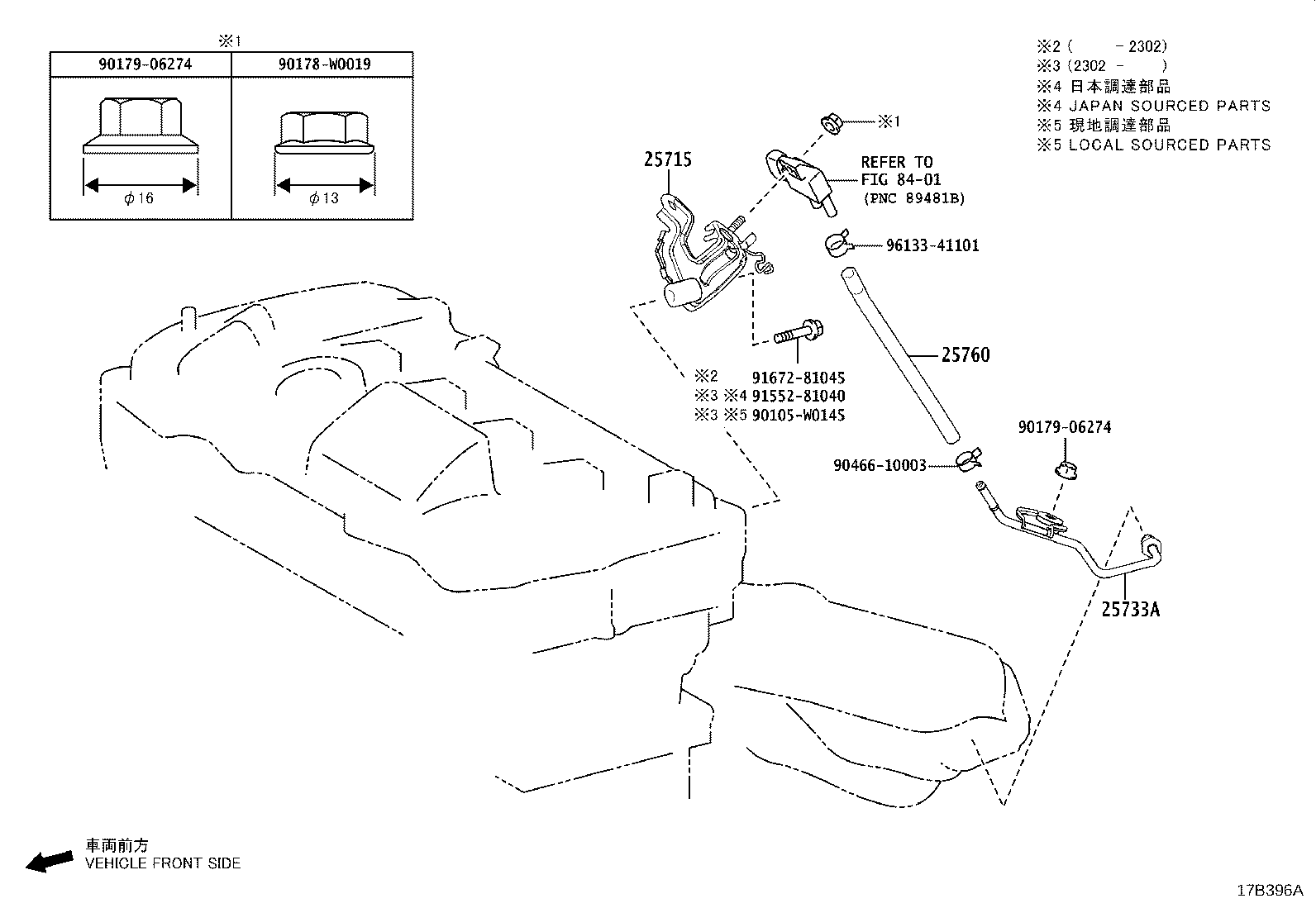

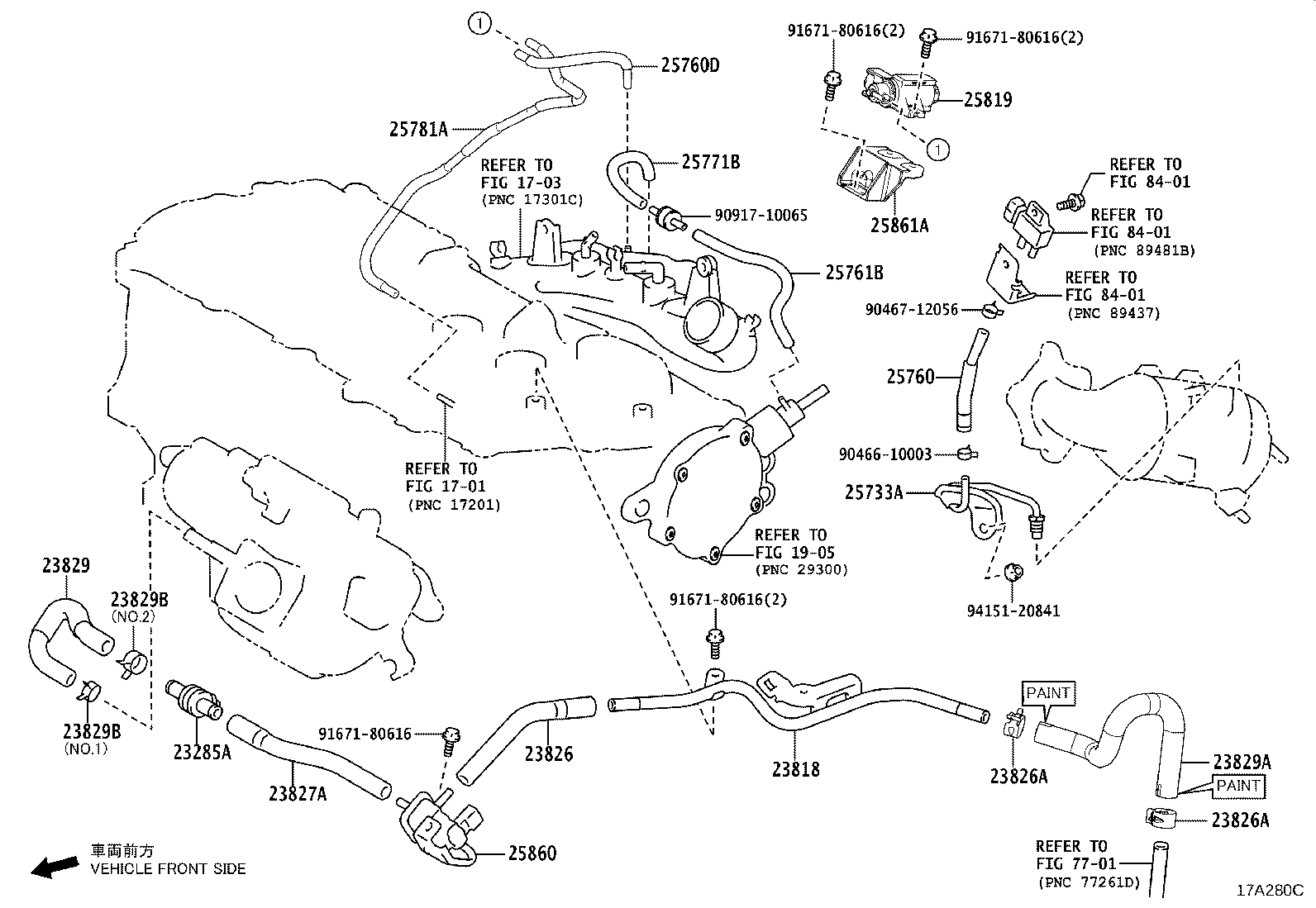

Figure 17A926 17A926 2019-09 → — Figure 17A927A 17A927A 2019-09 → — Figure 179430D 179430D 2016-10 → 2018-05 Figure 179430D 179430D 2018-05 → — Figure 17A279C 17A279C 2018-05 → — Figure 17A280C 17A280C 2018-05 → — Figure 179441B 179441B 2016-10 → — Figure 179442D 179442D 2016-10 → — Figure 17B396A 17B396A 2020-08 → —

Part groups

PNCDescription
17302 Hose Sub-assy, Air
17341T Hose, Air, NO.1
17343F Hose, Air, NO.3
17650G Valve, Duty Vacuum Switching
23265 Filter, Gas, NO.1
23285A Valve, Check, NO.1
23818 Pipe, Fuel Vapor Feed
23819 Pipe, Fuel Vapor Feed, NO.2
23826 Hose, Fuel Vapor Feed, NO.1
23826A Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
23827A Hose, Fuel Vapor Feed, NO.2
23827D Hose, Fuel Vapor Feed, NO.2
23827F Hose, Fuel Vapor Feed, NO.3
23829 Hose, Fuel Vapor Feed, NO.3
23829A Hose, Fuel Vapor Feed
23829B Clip(FOR FUEL VAPOR FEED HOSE)
23831 Connector, Fuel Vapor Feed, NO.1
23841G Clamp, Fuel Hose
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25715 Bracket, Emission Control Valve
25733A Pipe, Vacuum, NO.1
25760 Hose Assy, Vacuum Transmitting
25760D Hose Assy, Vacuum Transmitting, NO.4
25761B Hose, Vaccum Transmitting, NO.1
25771B Hose, Vaccum Transmitting, NO.2
25781A Hose, Vacuum Transmitting, NO.3
25819 Valve Assy, Vacuum Regulating
25860 Valve Assy, Vacuum Switching, NO.1
25861 Bracket, Vacuum Switching Valve
25861A Bracket, Vacuum Switching Valve, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
