Toyota C-hr

2016-10 → present · chassis MAXH10,NGX10,50,ZGX10,ZYX1# · catalogue 528510 · Europe

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Alternator

15 part groups · 2 illustrations

Illustrations

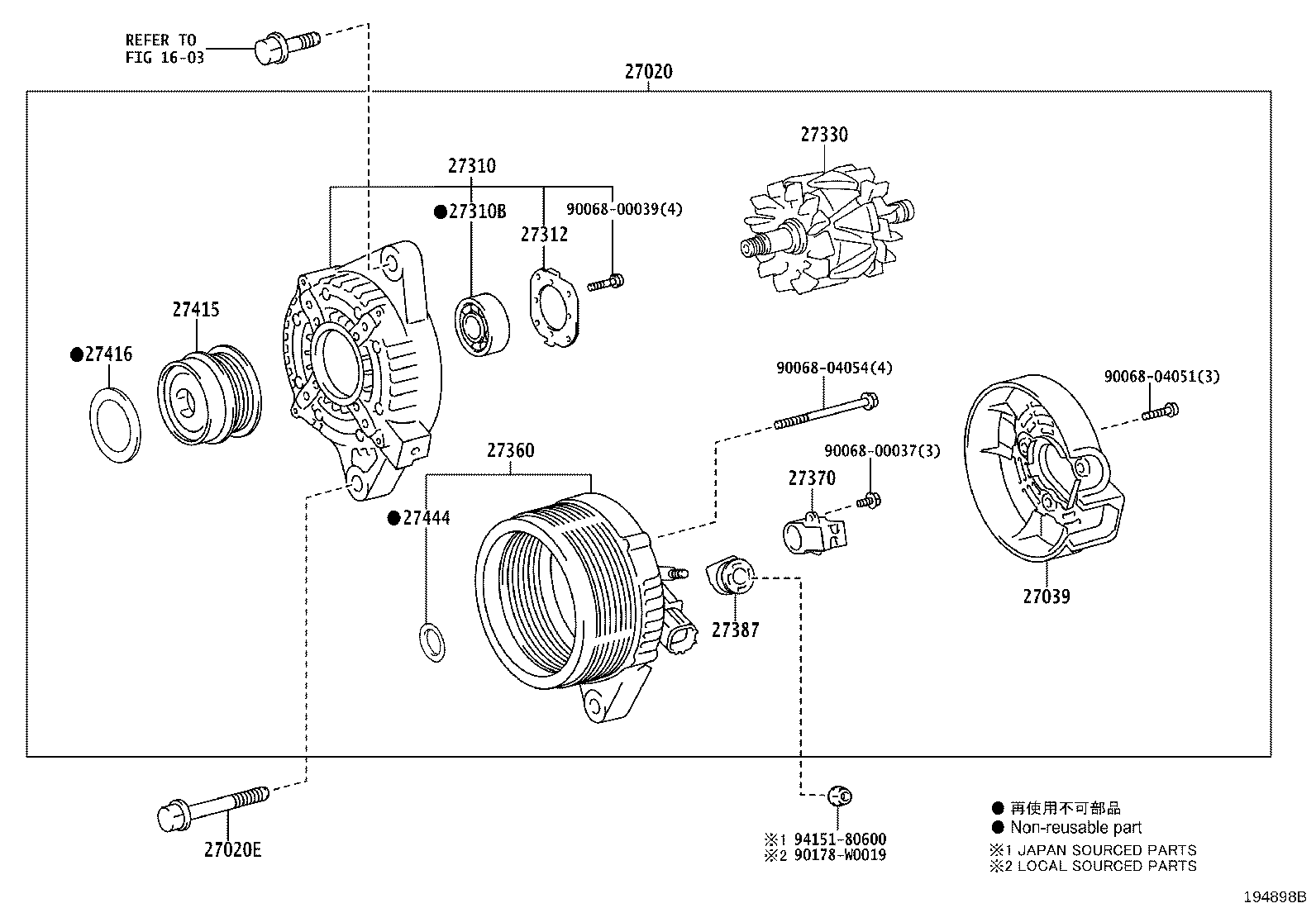

Figure 194895B 194895B 2016-10 → — Figure 194898B 194898B 2016-10 → —

Part groups

PNCDescription
27020 Alternator Assy
27020E Bolt(FOR ALTERNATOR)
27039 Cover, Alternator Rear End
27310 Frame Assy, Drive End, Alternator
27310B Bearing(FOR ALTERNATOR DRIVE END FRAME)
27312 Plate, Retainer
27330 Rotor Assy, Alternator
27360 Coil Assy, Alternator
27370 Holder Assy, Alternator Brush
27387 Insulator, Terminal
27403 Pulley Set, Alternator
27415 Pulley, Alternator W/Clutch
27416 Cap, Alternator Pulley
27444 Packing, Alternator Bearing Cover
27702 Regulator Sub-assy Generator W/Brush
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
