Toyota C-hr

2016-10 → present · chassis MAXH10,NGX10,50,ZGX10,ZYX1# · catalogue 528510 · Europe

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Starter

13 part groups · 3 illustrations

Illustrations

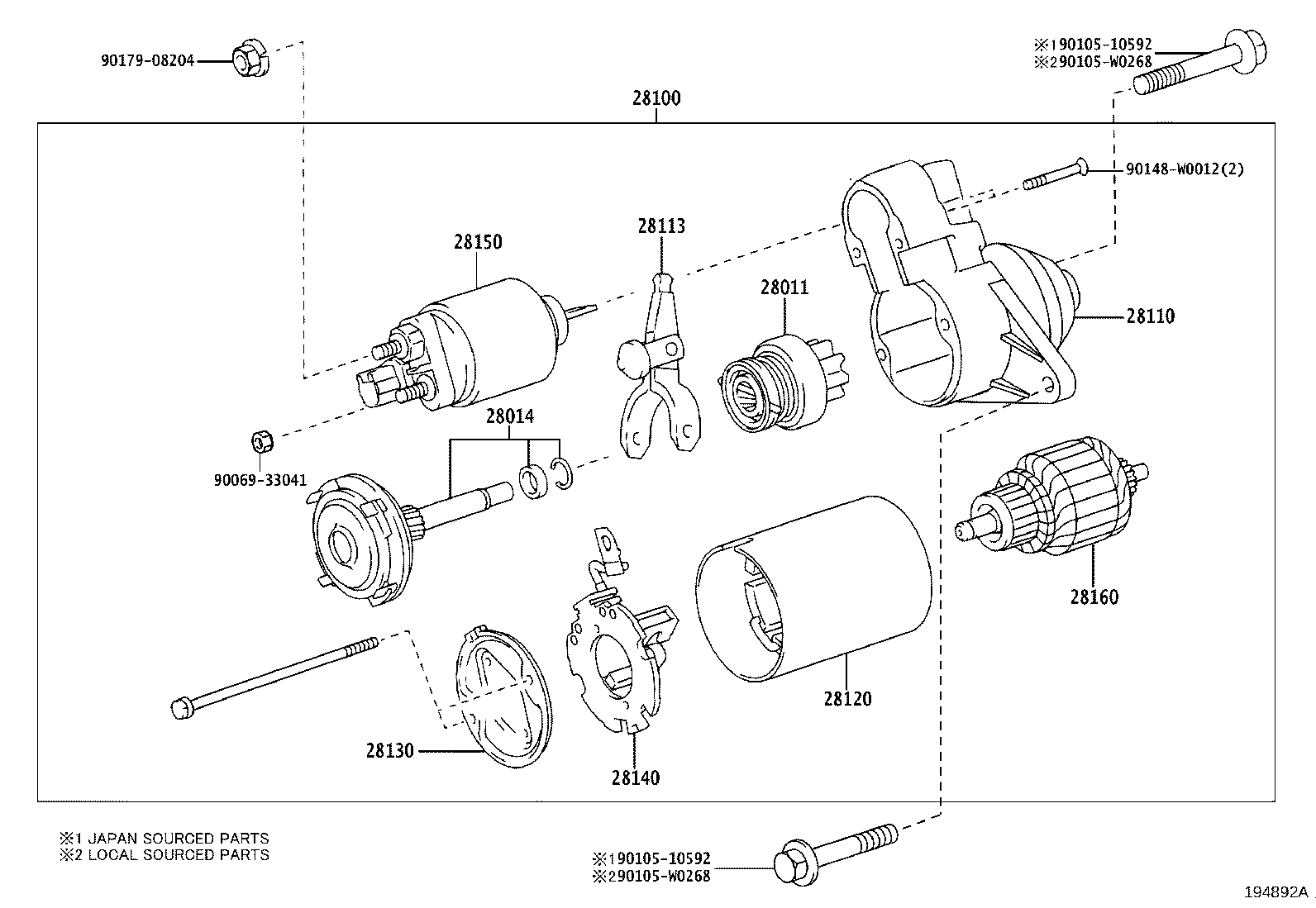

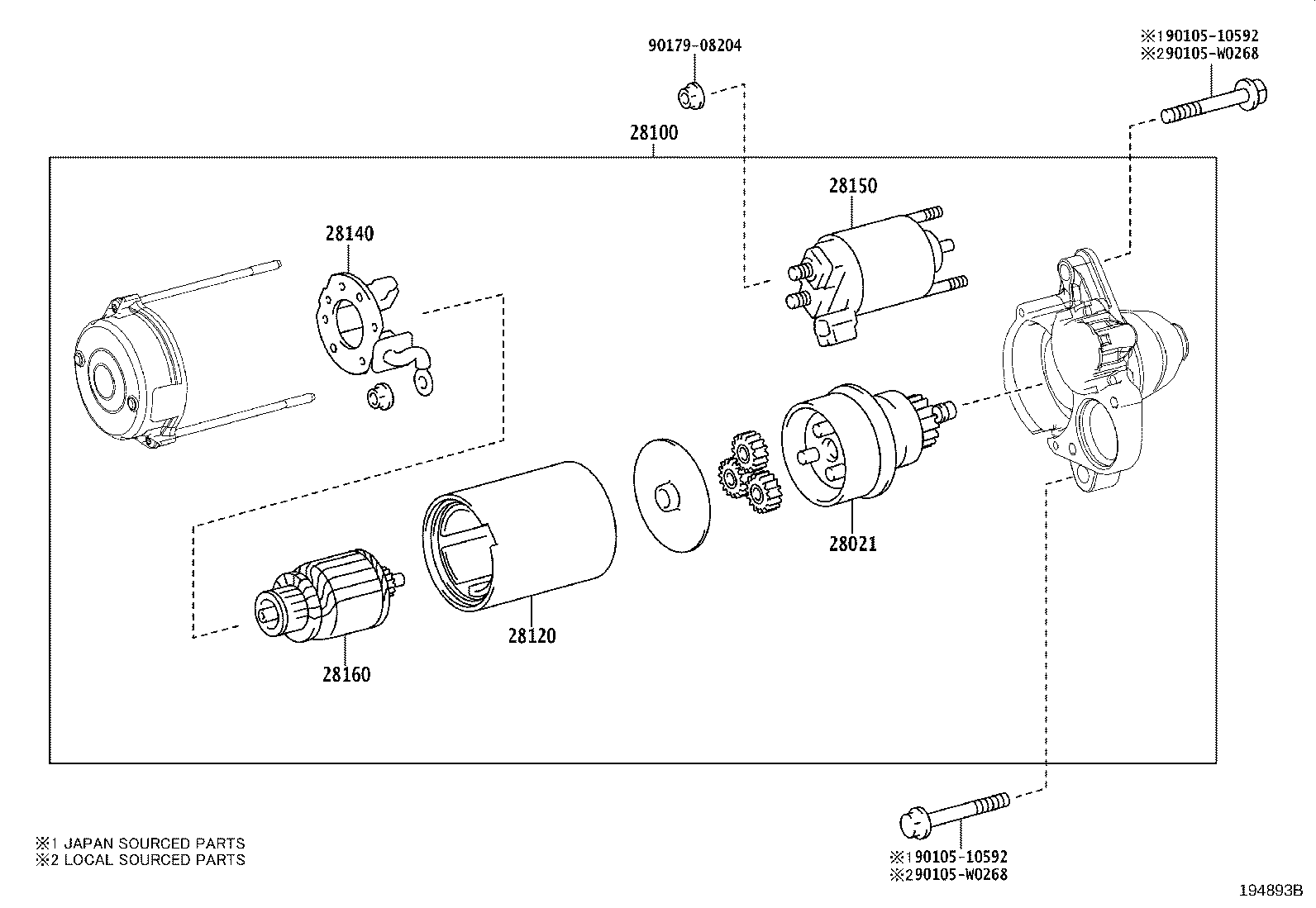

Figure 194891B 194891B 2016-10 → — Figure 194893B 194893B 2016-10 → — Figure 194892A 194892A 2016-10 → —

Part groups

PNCDescription
28011 Clutch Sub-assy, Starter
28014 Shaft Sub-assy, Planet Carrier
28021 Clutch Sub-assy, Starter Center Bearing
28100 Starter Assy
28110 Housing Assy, Starter Drive
28112 Bolt, Housing Set
28113 Lever, Starter Pinion Drive
28120 Yoke Assy, Starter
28130 Frame Assy, Starter Commutator End
28140 Holder Assy, Starter Brush
28150 Switch Assy, Magnet Starter
28160 Armature Assy, Starter
28192 Cover, Starter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
