Toyota C-hr

2016-10 → present · chassis MAXH10,NGX10,50,ZGX10,ZYX1# · catalogue 528510 · Europe

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch Pedal & Flexible Hose

17 part groups · 4 illustrations

Illustrations

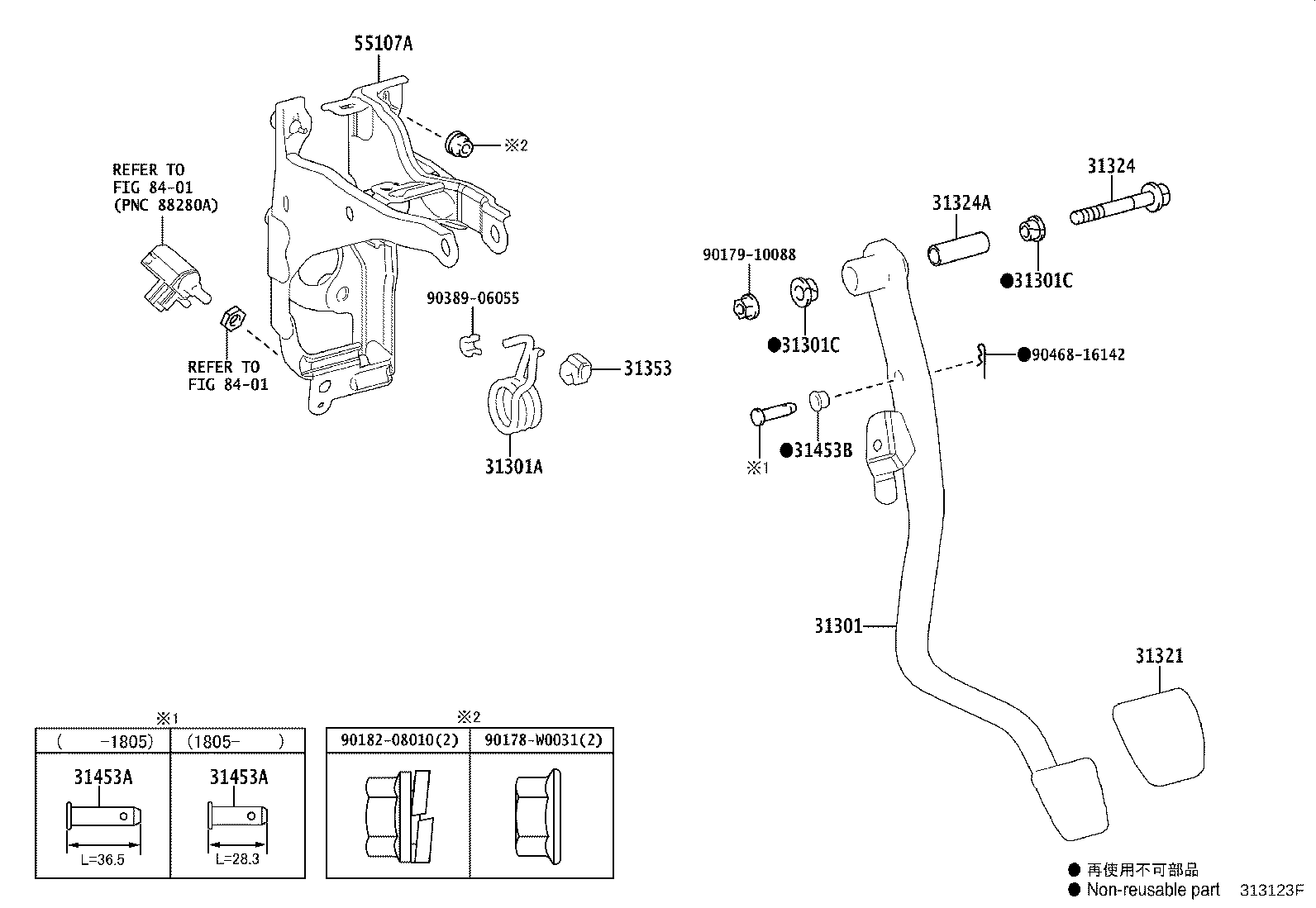

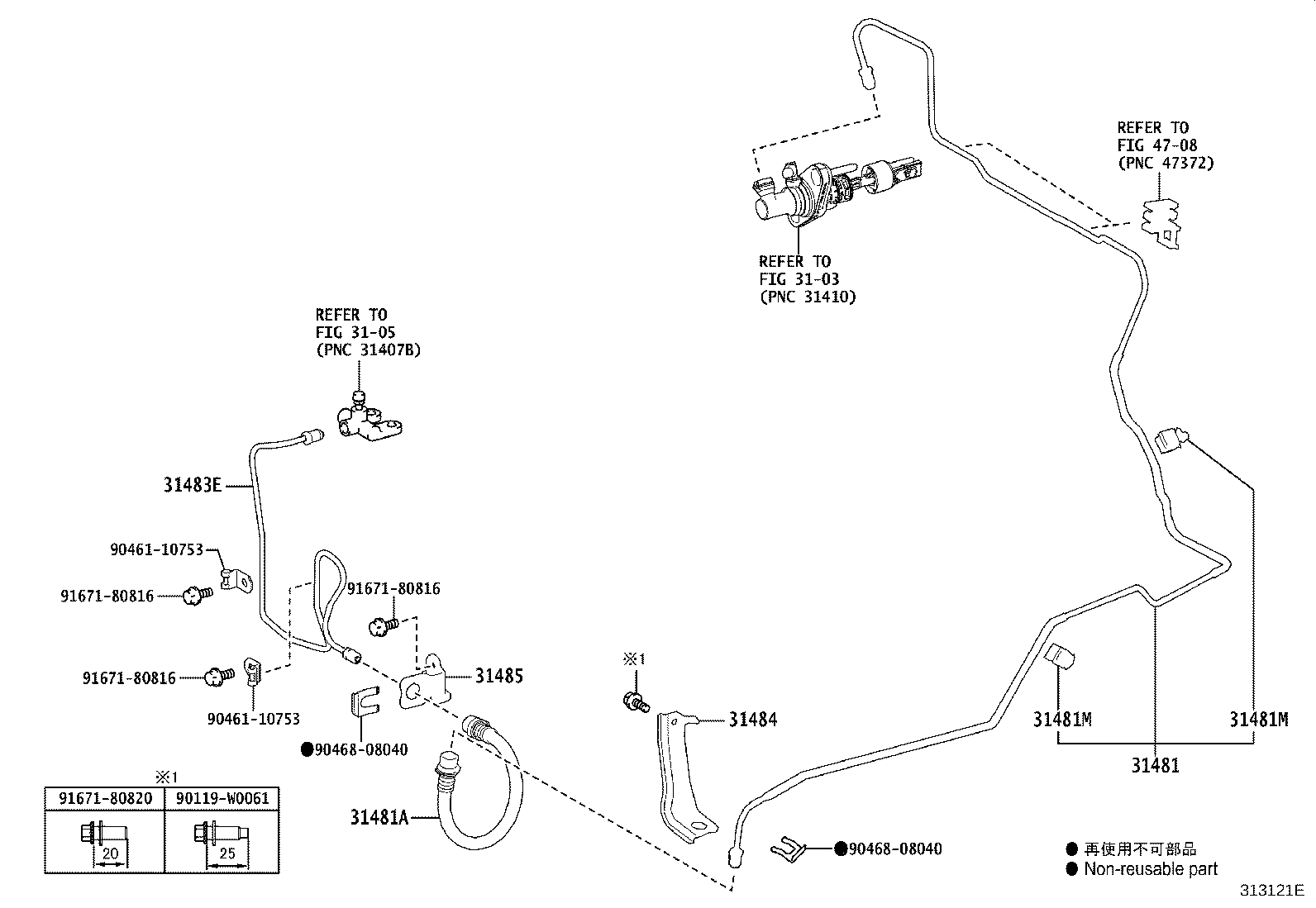

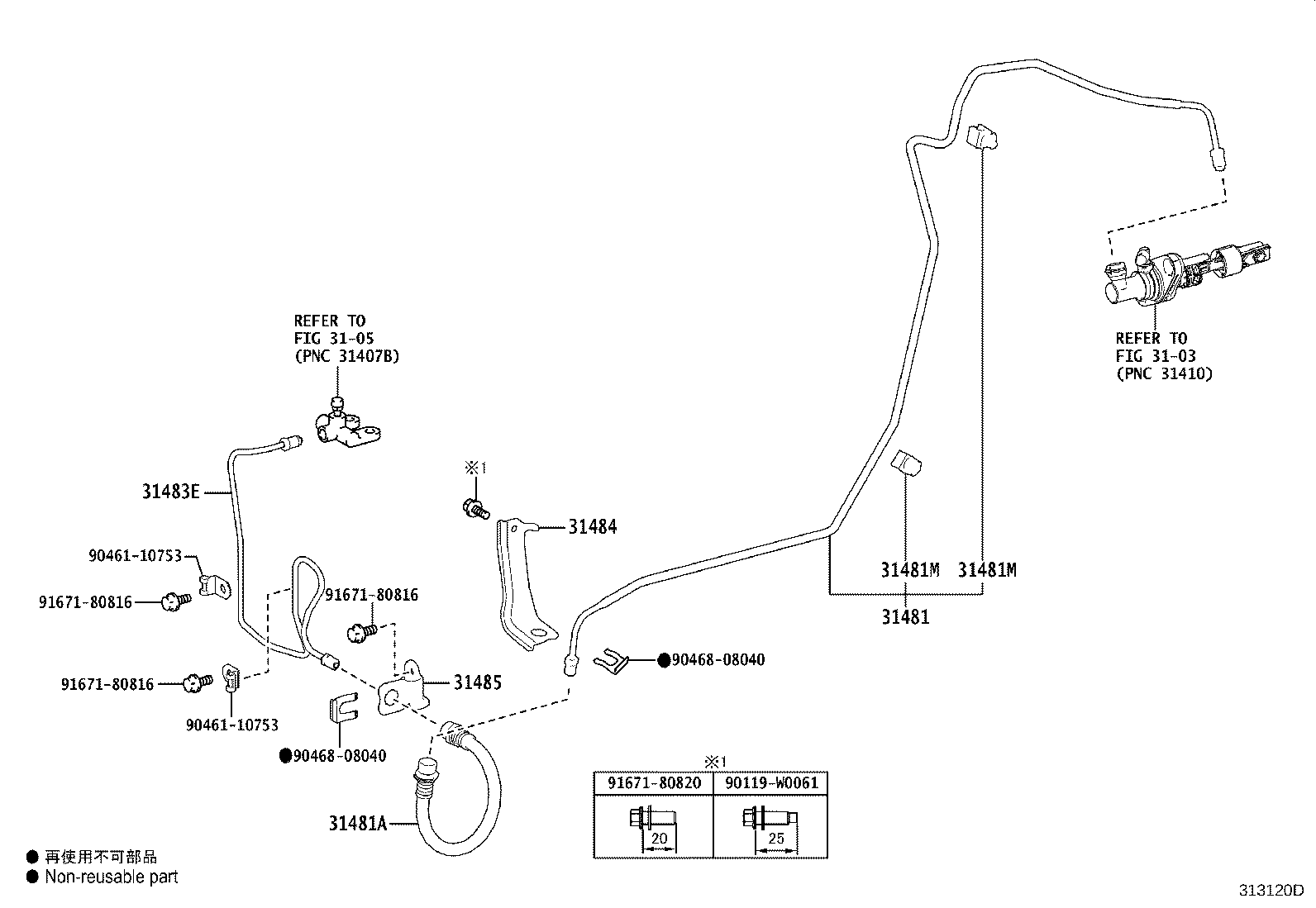

Figure 313122E 313122E 2016-10 → — Figure 313123F 313123F 2016-10 → — Figure 313120D 313120D 2016-10 → — Figure 313121E 313121E 2016-10 → —

Part groups

PNCDescription
31301 Pedal Sub-assy, Clutch
31301A Spring(FOR CLUTCH PEDAL)
31301C Bush(FOR CLUTCH PEDAL)
31321 Pad, Clutch Pedal
31324 Shaft, Clutch Pedal
31324A Collar, Clutch Pedal Shaft
31353 Holder, Clutch Pedal Spring
31453A Pin, W/Hole(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
31453B Bush(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
31481 Tube, Clutch Master Cylinder TO Flexible Hose
31481A Hose, Clutch, NO.1
31481M Clamp(FOR CLUTCH MASTER CYLINDER TUBE)
31483E Tube, Bleeder Clutch Release
31484 Bracket, Flexible Hose(FOR CLUTCH)
31485 Bracket, Flexible Hose, NO.2(FOR CLUTCH)
55105D Bracket Sub-assy, Clutch Pedal
55107A Support Sub-assy, Clutch Pedal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
