Toyota C-hr

2016-10 → present · chassis MAXH10,NGX10,50,ZGX10,ZYX1# · catalogue 528510 · Europe

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Cooler & Tube (HEV OR BEV OR FCEV)

9 part groups · 2 illustrations

Illustrations

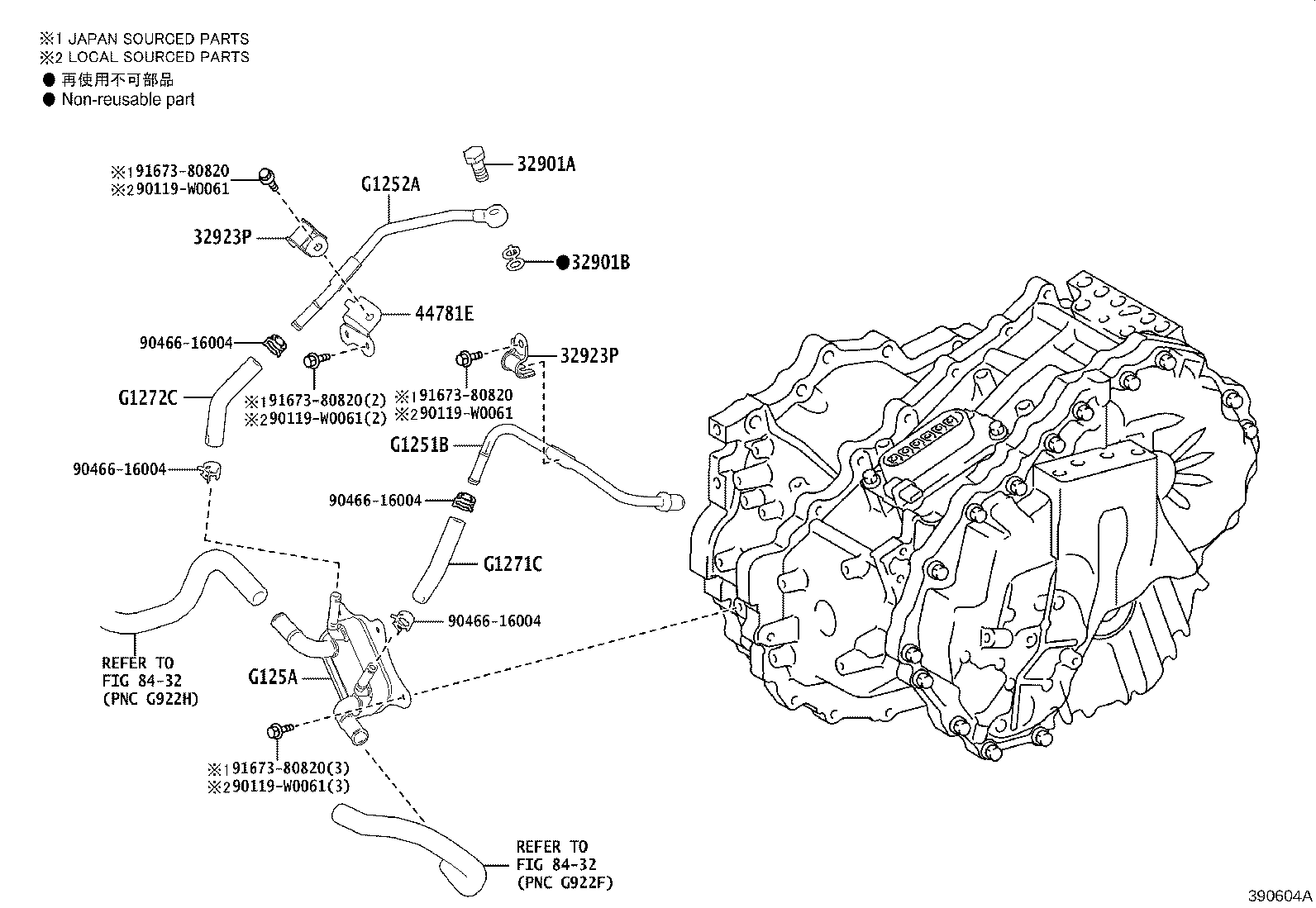

Figure 390469C 390469C 2016-10 → — Figure 390604A 390604A 2019-09 → —

Part groups

PNCDescription
32901A Bolt, Union(FOR OIL COOLER)
32901B Gasket(FOR OIL COOLER UNION)
32923P Clamp, Oil Cooler Tube, NO.1
44781E Bracket, Hose
G1251B Pipe, Motor Cooling, NO.1
G1252A Pipe, Motor Cooling, NO.2
G125A Cooler, Motor Cooling
G1271C Hose, Motor Cooling, NO.1
G1272C Hose, Motor Cooling, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
