Toyota C-hr

2016-10 → present · chassis MAXH10,NGX10,50,ZGX10,ZYX1# · catalogue 528510 · Europe

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

7 part groups · 3 illustrations

Illustrations

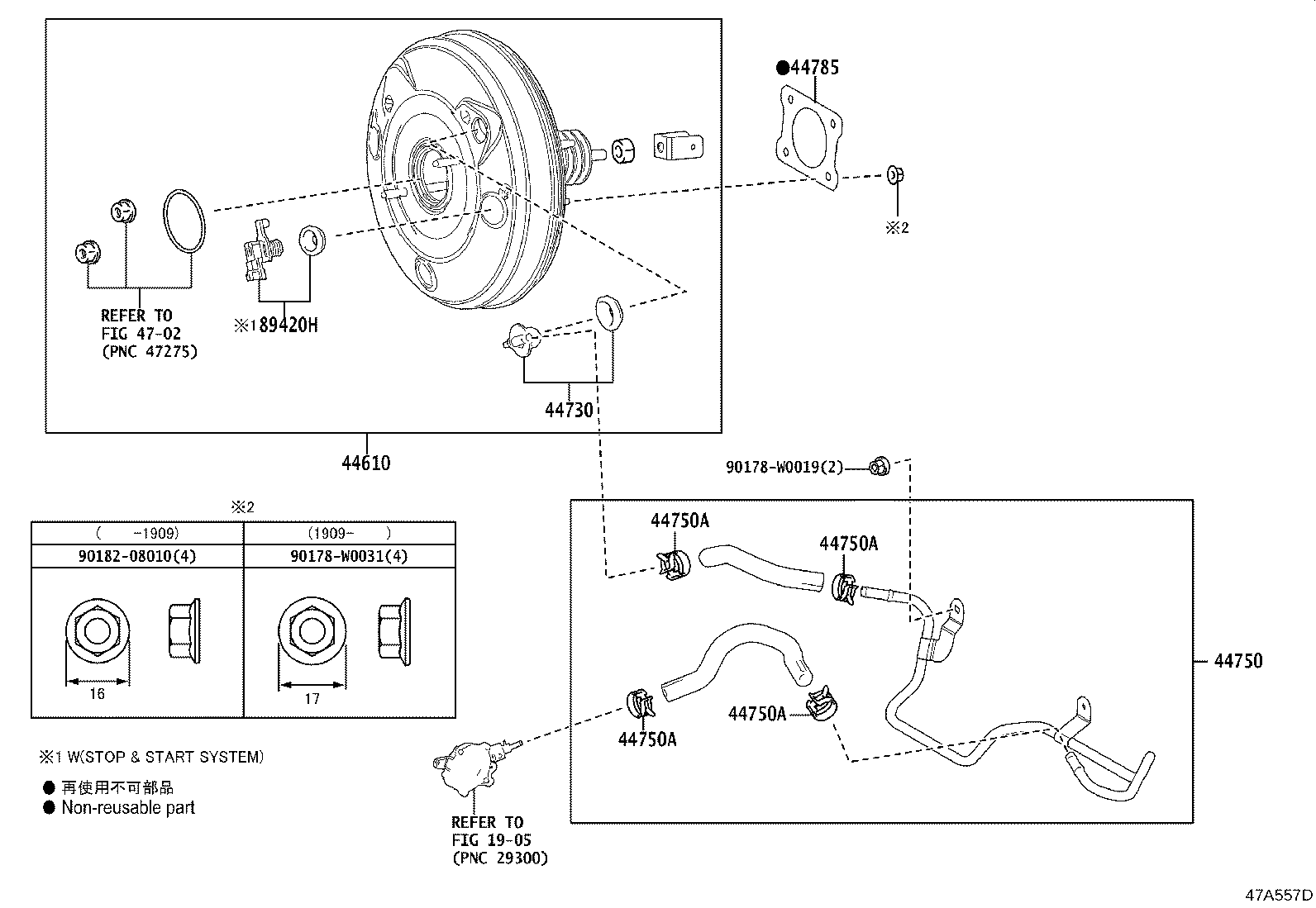

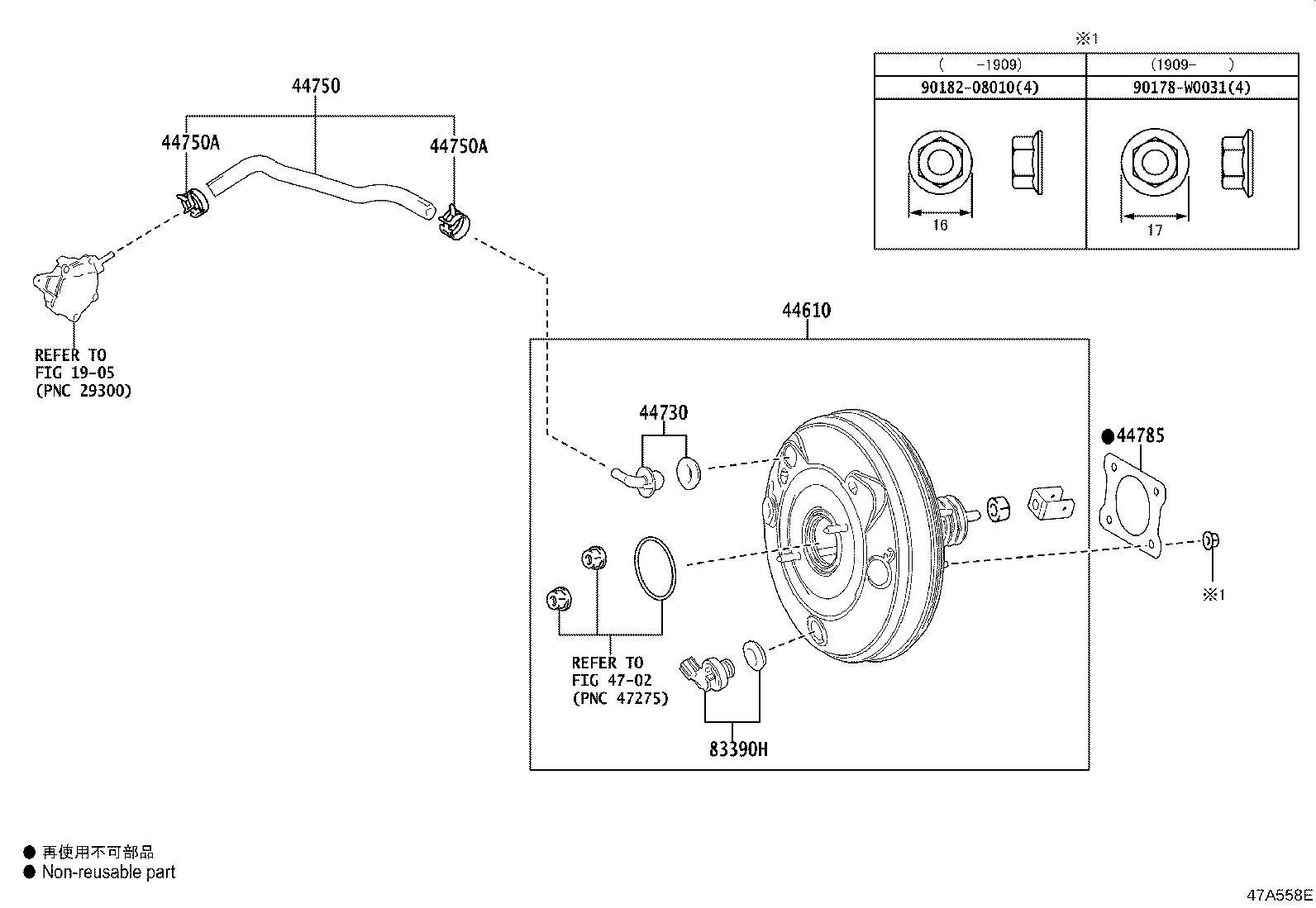

Figure 47A556E 47A556E 2016-10 → — Figure 47A557D 47A557D 2016-10 → — Figure 47A558E 47A558E 2016-10 → —

Part groups

PNCDescription
44610 Booster Assy, Brake
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44750 Hose Assy, Vacuum
44750A Clip(FOR VACUUM HOSE ASSY)
44785 Gasket, Brake Booster
83390H Switch Assy, Vacuum Warning
89420H Sensor Assy, Vacuum
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
