Toyota C-hr

2016-10 → present · chassis MAXH10,NGX10,50,ZGX10,ZYX1# · catalogue 528510 · Europe

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

12 part groups · 4 illustrations

Illustrations

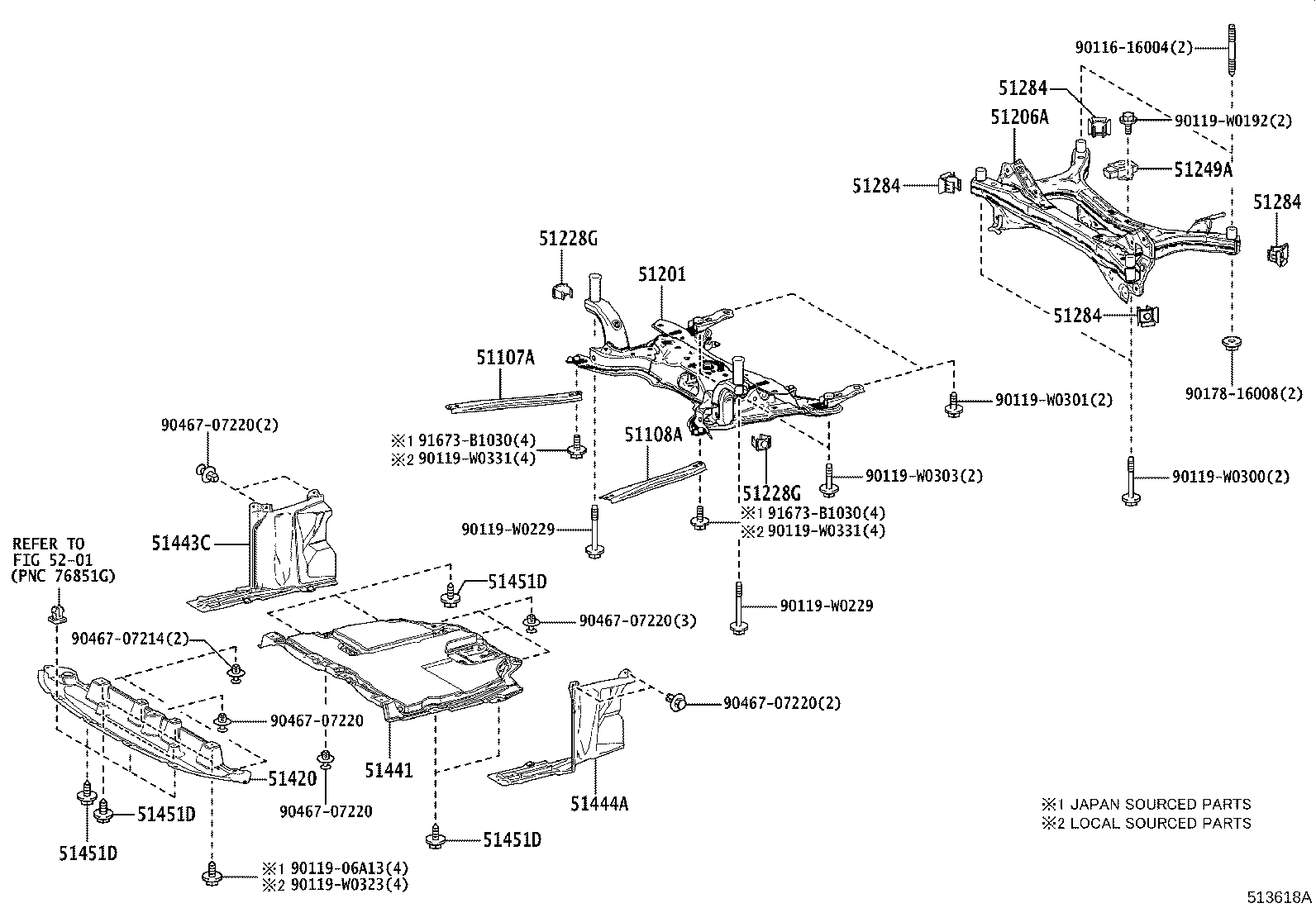

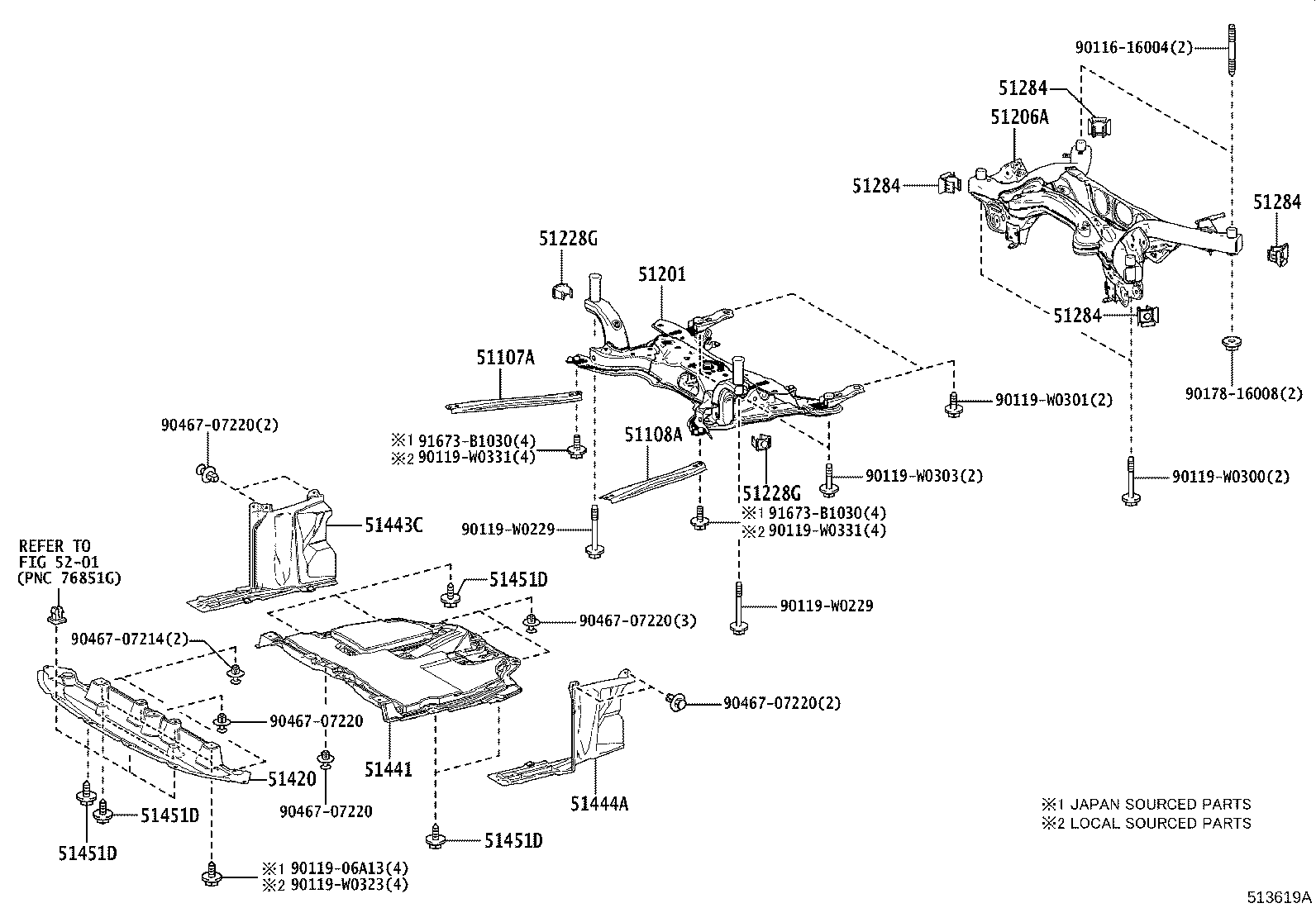

Figure 513080D 513080D 2016-10 → 2019-09 Figure 513081D 513081D 2016-10 → 2019-09 Figure 513618A 513618A 2019-09 → — Figure 513619A 513619A 2019-09 → —

Part groups

PNCDescription
51107A Reinforcement Sub-assy, Side Rail, Rear RH
51108A Reinforcement Sub-assy, Side Rail, Rear LH
51201 Crossmember Sub-assy, Front Suspension
51206A Member Sub-assy, Rear Suspension
51228G Plate, Front Suspension Member
51249A Damper, Rear Suspension Member
51284 Cover, Rear Suspension Member Hole
51420 Cover Assy, Engine Under, NO.2
51441 Cover, Engine Under, NO.1
51443C Cover, Engine Under, Rear RH
51444A Cover, Engine Under, Rear LH
51451D Screw, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
