Toyota C-hr

2016-10 → present · chassis MAXH10,NGX10,50,ZGX10,ZYX1# · catalogue 528510 · Europe

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Insulator

6 part groups · 3 illustrations

Illustrations

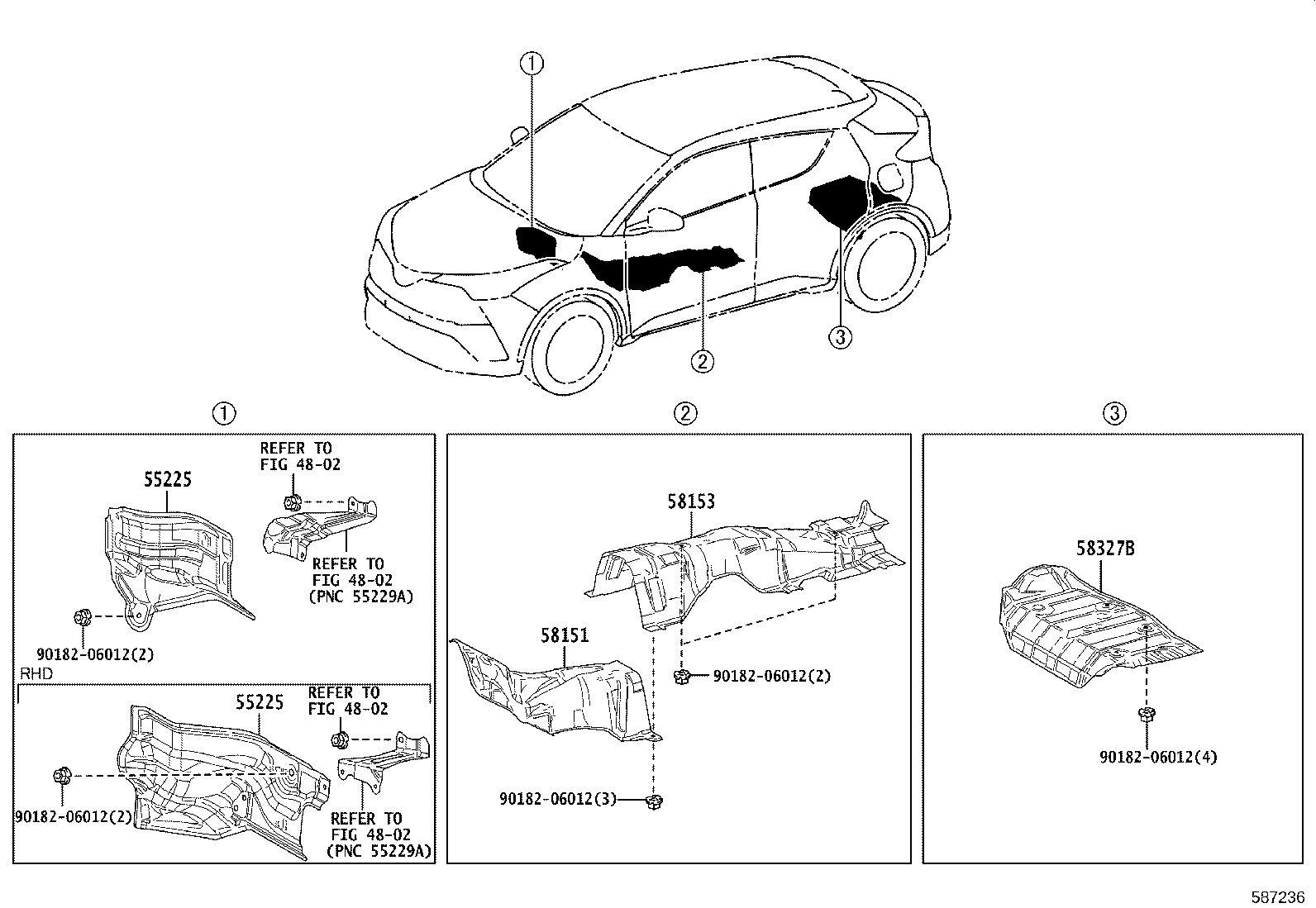

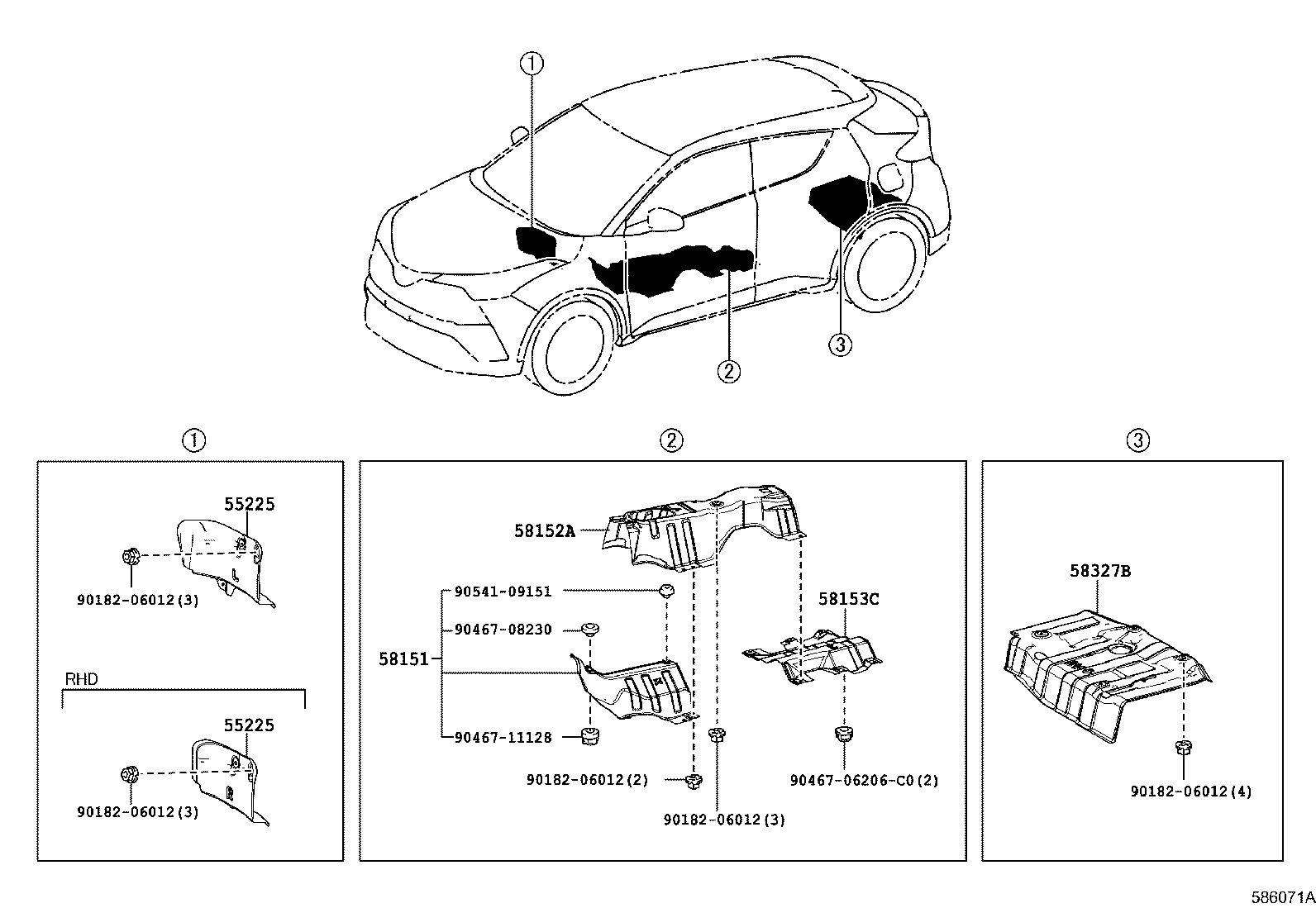

Figure 586070 586070 2016-10 → — Figure 586071A 586071A 2016-10 → — Figure 587236 587236 2019-09 → —

Part groups

PNCDescription
55225 Insulator, Dash Panel Heat
58151 Insulator, Front Floor Heat, NO.1
58152A Insulator, Front Floor Heat, NO.1 Lower
58153 Insulator, Front Floor Heat, NO.2
58153C Insulator, Floor Heat, NO.3
58327B Insulator, Main Muffler Heat
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
