Toyota C-hr

2016-10 → present · chassis MAXH10,NGX10,50,ZGX10,ZYX1# · catalogue 528510 · Europe

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

15 part groups · 2 illustrations

Illustrations

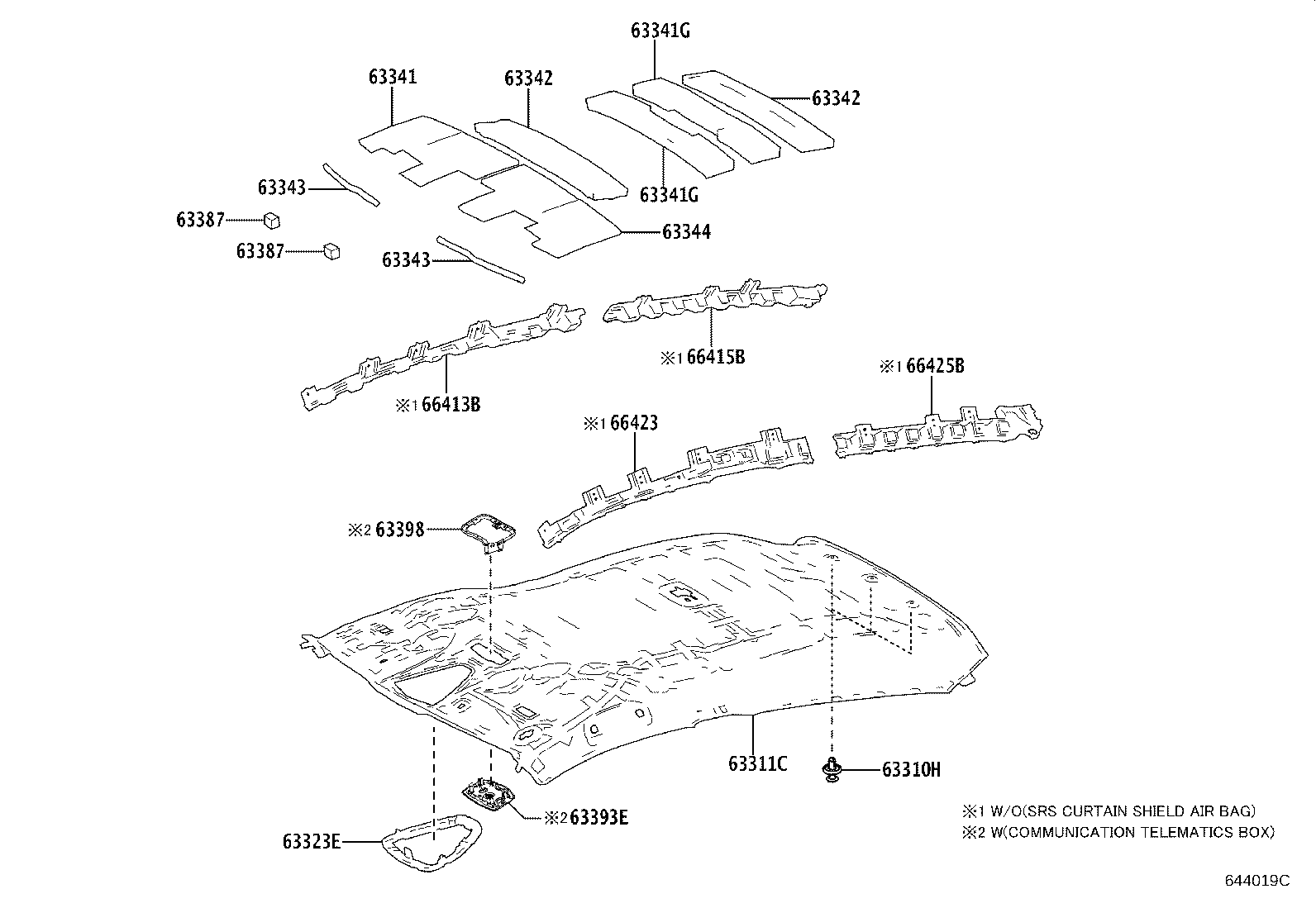

Figure 644032B 644032B 2016-10 → — Figure 644019C 644019C 2016-10 → —

Part groups

PNCDescription
63310H Clip(FOR ROOF HEADLINING)
63311C Headlining, Roof
63323E Case, Headlining Lamp
63341 Pad, Roof Silencer, NO.1
63341G Pad, Roof Silencer
63342 Pad, Roof Silencer, NO.2
63343 Pad, Roof Silencer, NO.3
63344 Pad, Roof Silencer, NO.4
63387 Pad, Roof Headlining Forming
63393E Trim, Roof Headlining
63398 Plate, Roof Headlining Support
66413B Spacer, Side Rail, Front RH
66415B Spacer, Side Rail, Rear NO.2 RH
66423 Spacer, Side Rail, Front LH
66425B Spacer, Side Rail, Rear NO.2 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
