Toyota C-hr

2016-10 → present · chassis MAXH10,NGX10,50,ZGX10,ZYX1# · catalogue 528510 · Europe

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

15 part groups · 2 illustrations

Illustrations

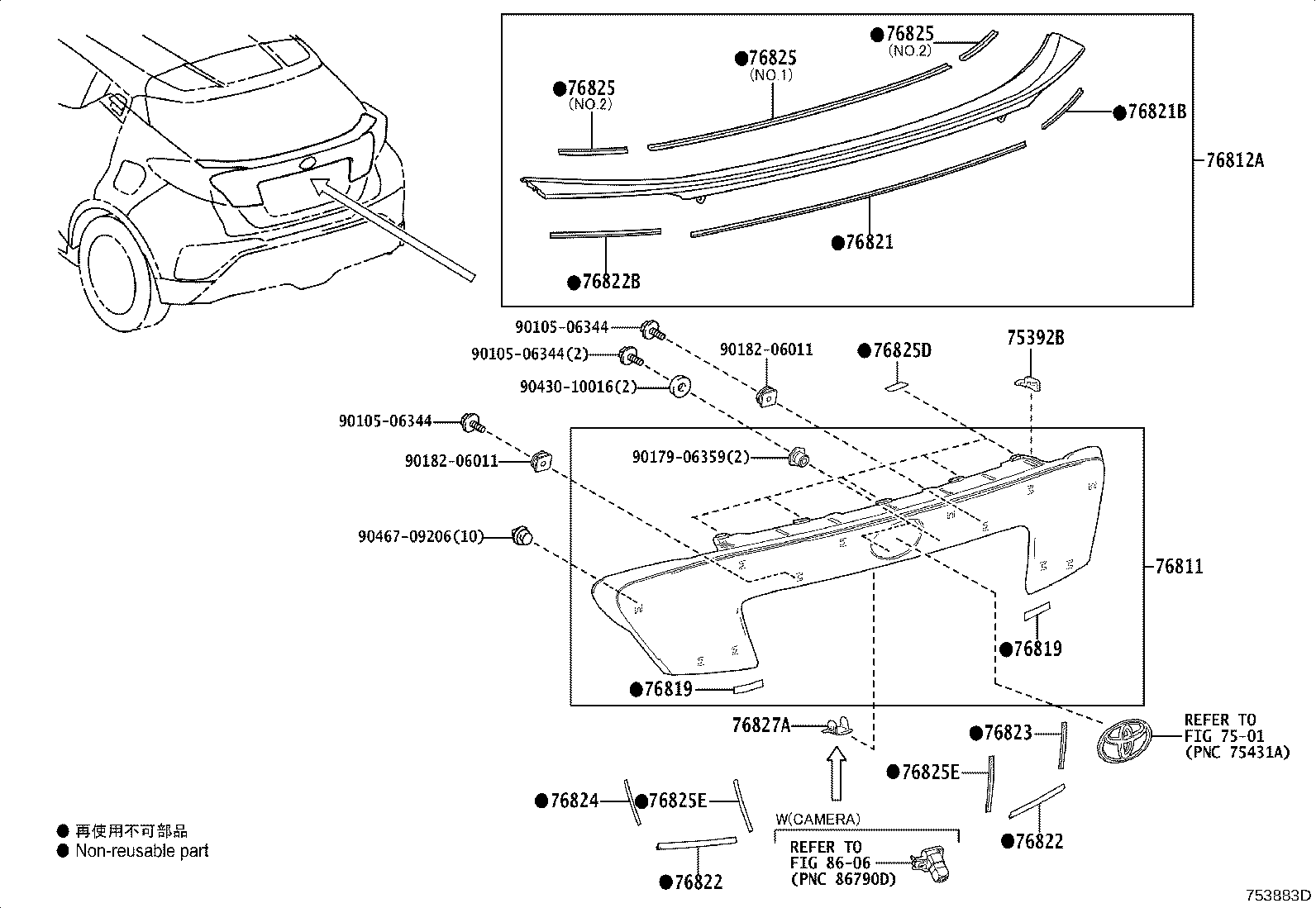

Figure 753407D 753407D 2016-10 → 2019-09 Figure 753883D 753883D 2019-09 → —

Part groups

PNCDescription
75392B Reteiner, Outside Moulding, NO.1
76811 Garnish, Back Door, Outside
76812A Garnish, Back Door, Outside NO.2
76818 Pad, Back Door Outside Garnish
76819 Seal, Back Door Outside Garnish
76821 Protector, Back Door Garnish Moulding, Upper
76821B Protector, Back Door Garnish Side, RH
76822 Protector, Back Door Garnish Moulding, Lower
76822B Protector, Back Door Garnish Side, LH
76823 Protector, Back Door Garnish Moulding, RH
76824 Protector, Back Door Garnish Moulding, LH
76825 Protector, Back Door Outside Garnish
76825D Protector, Back Door Outside Garnish, NO.1
76825E Protector, Back Door Outside Garnish, NO.2
76827A Retainer, Back Door Garnish, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
