Toyota C-hr

2016-10 → present · chassis MAXH10,NGX10,50,ZGX10,ZYX1# · catalogue 528510 · Europe

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Tank & Tube

71 part groups · 16 illustrations

Illustrations

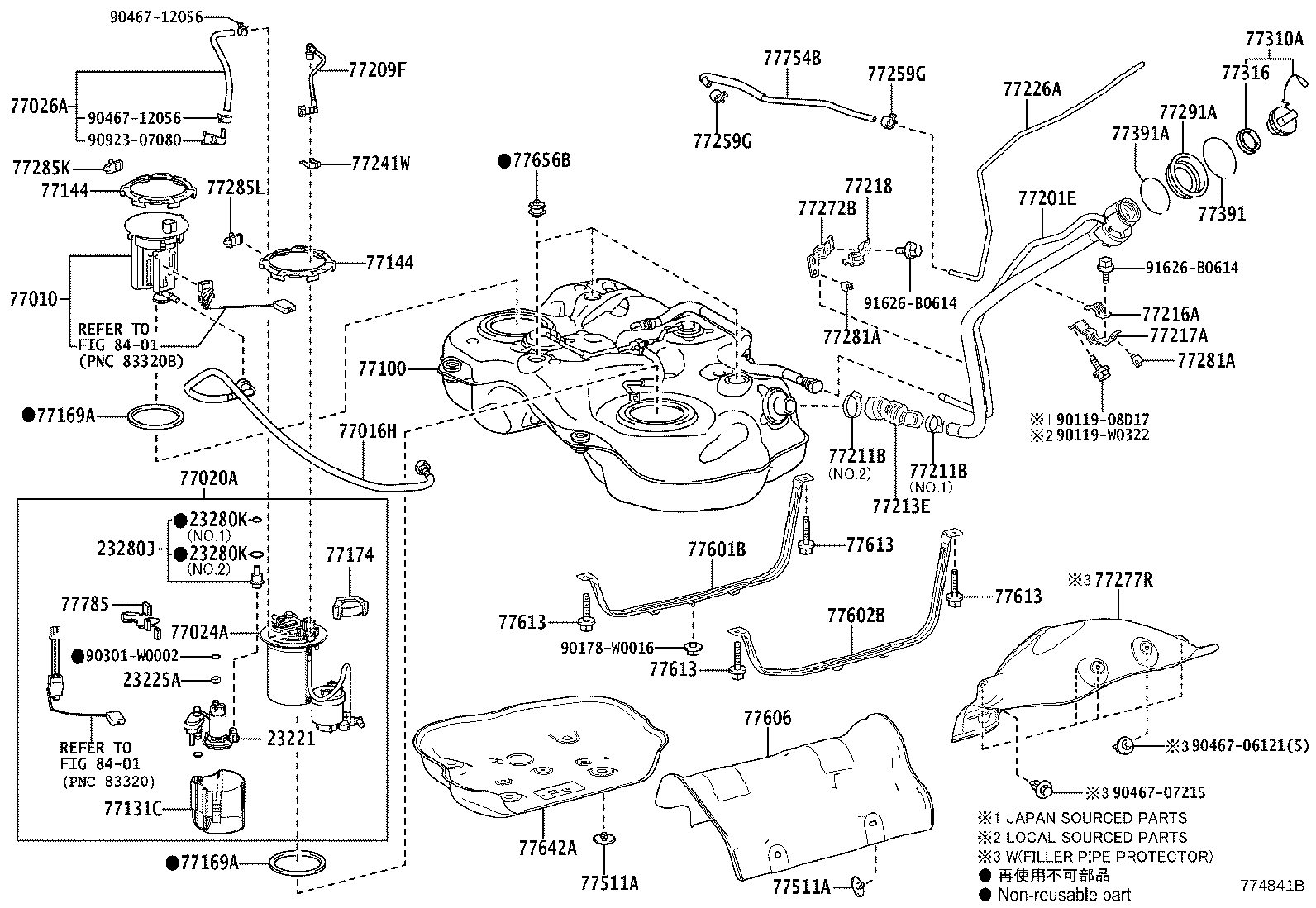

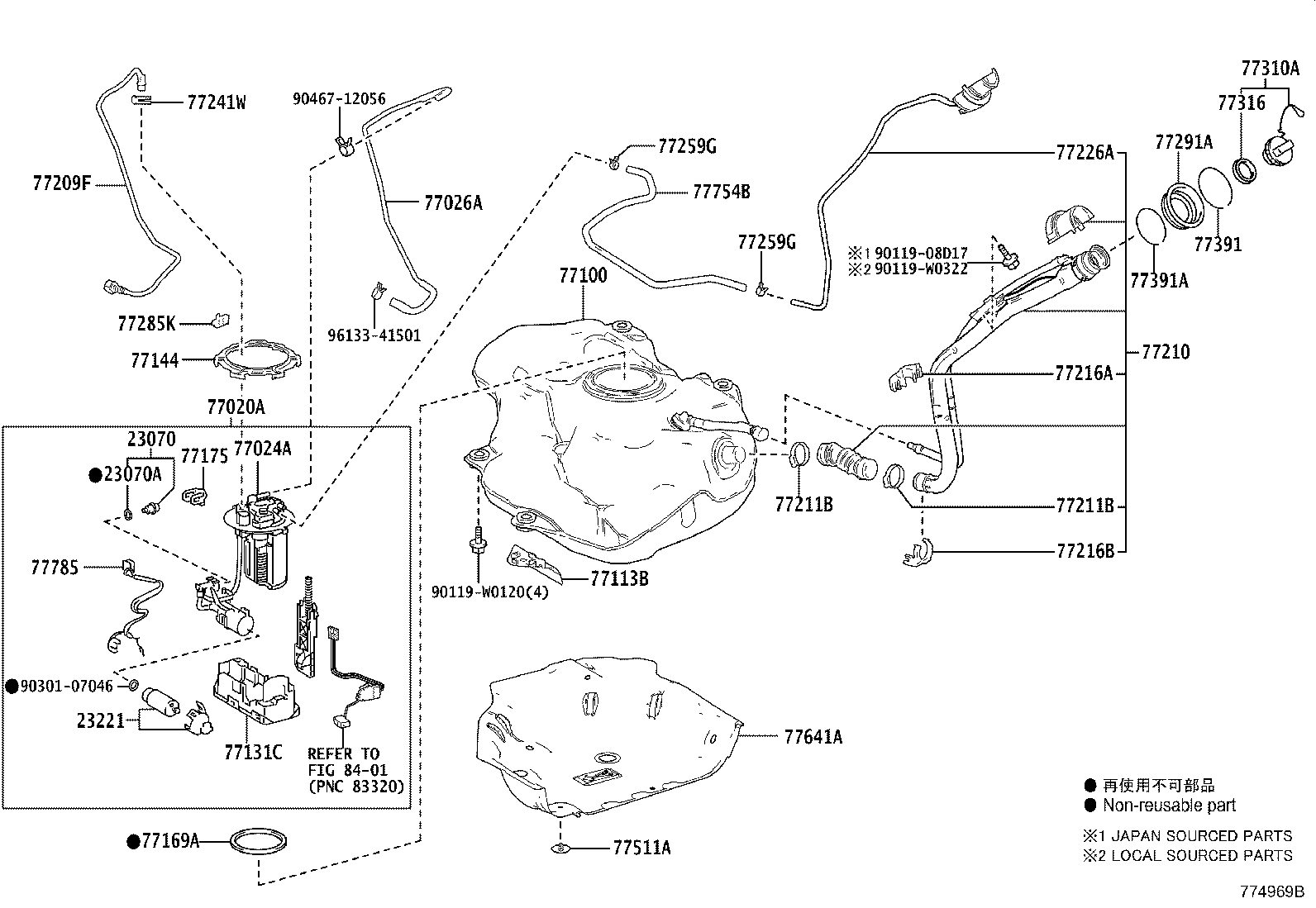

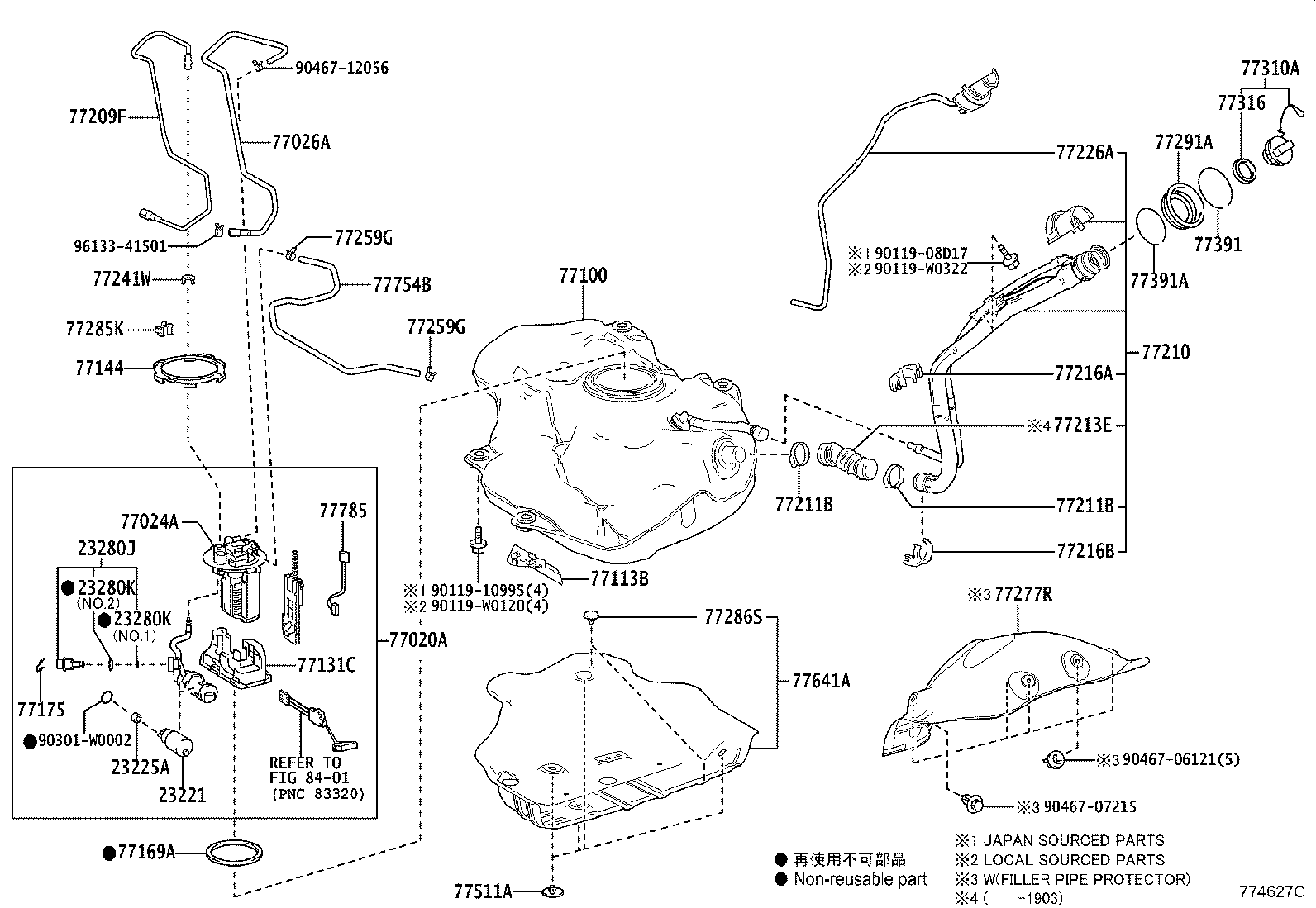

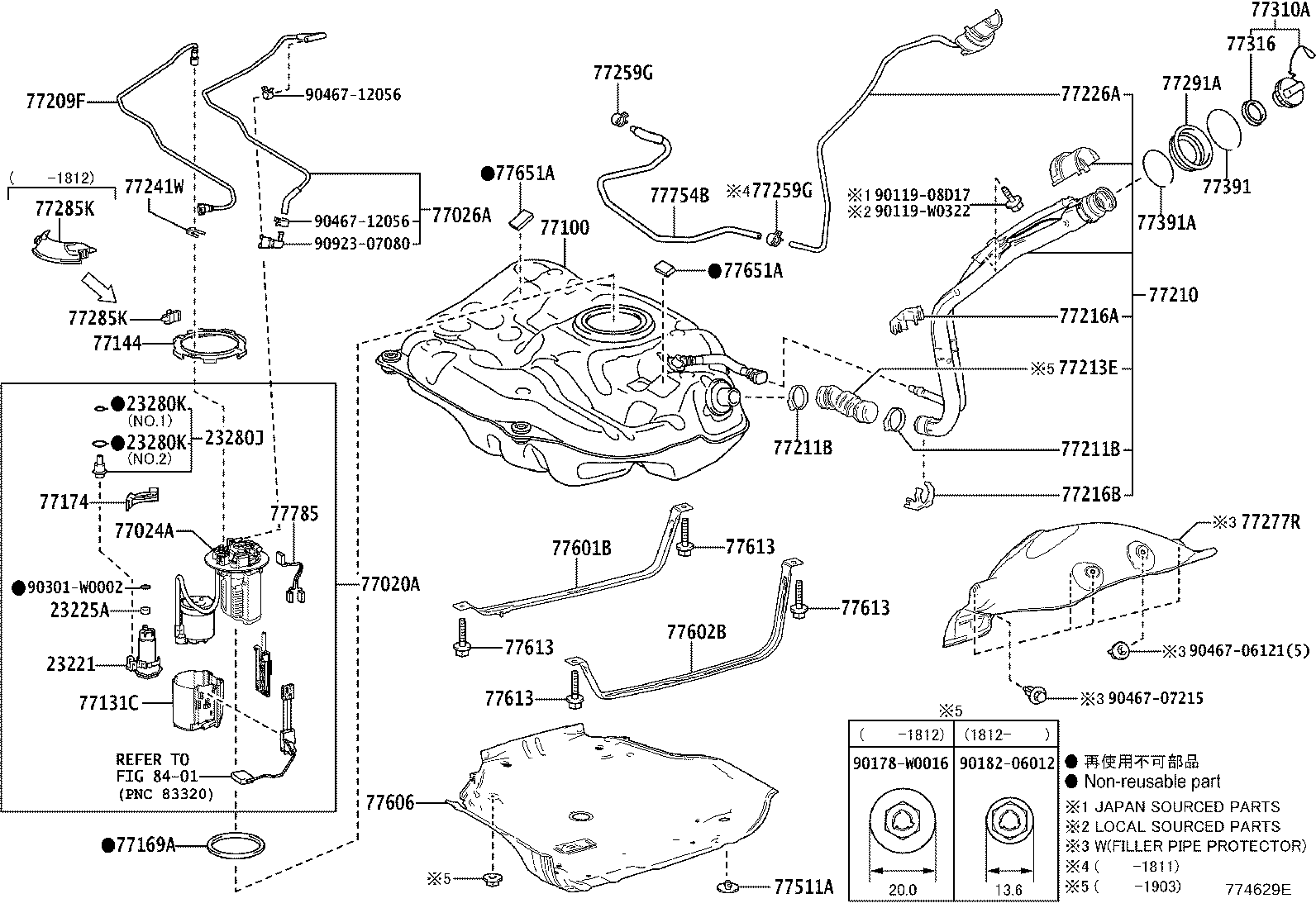

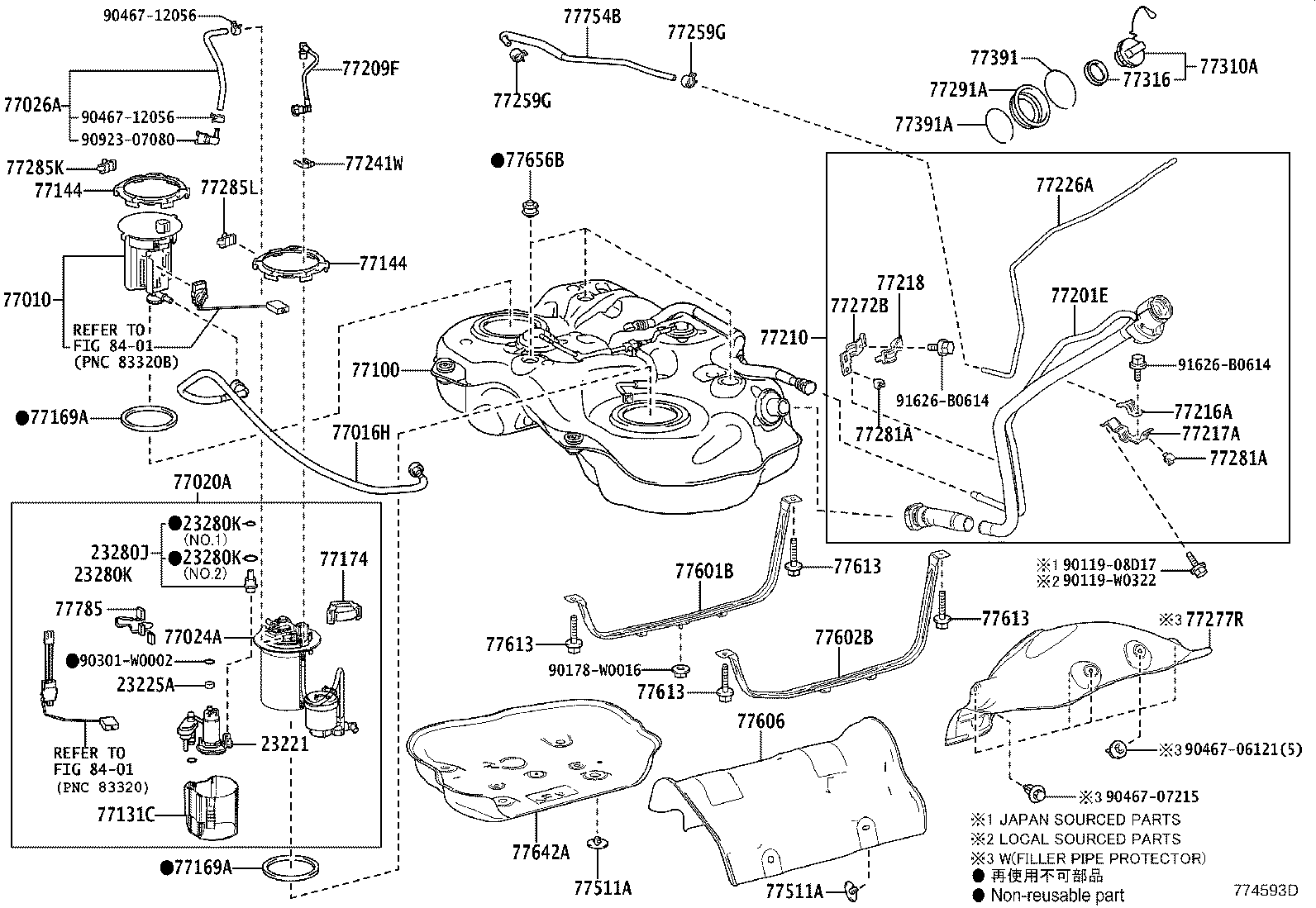

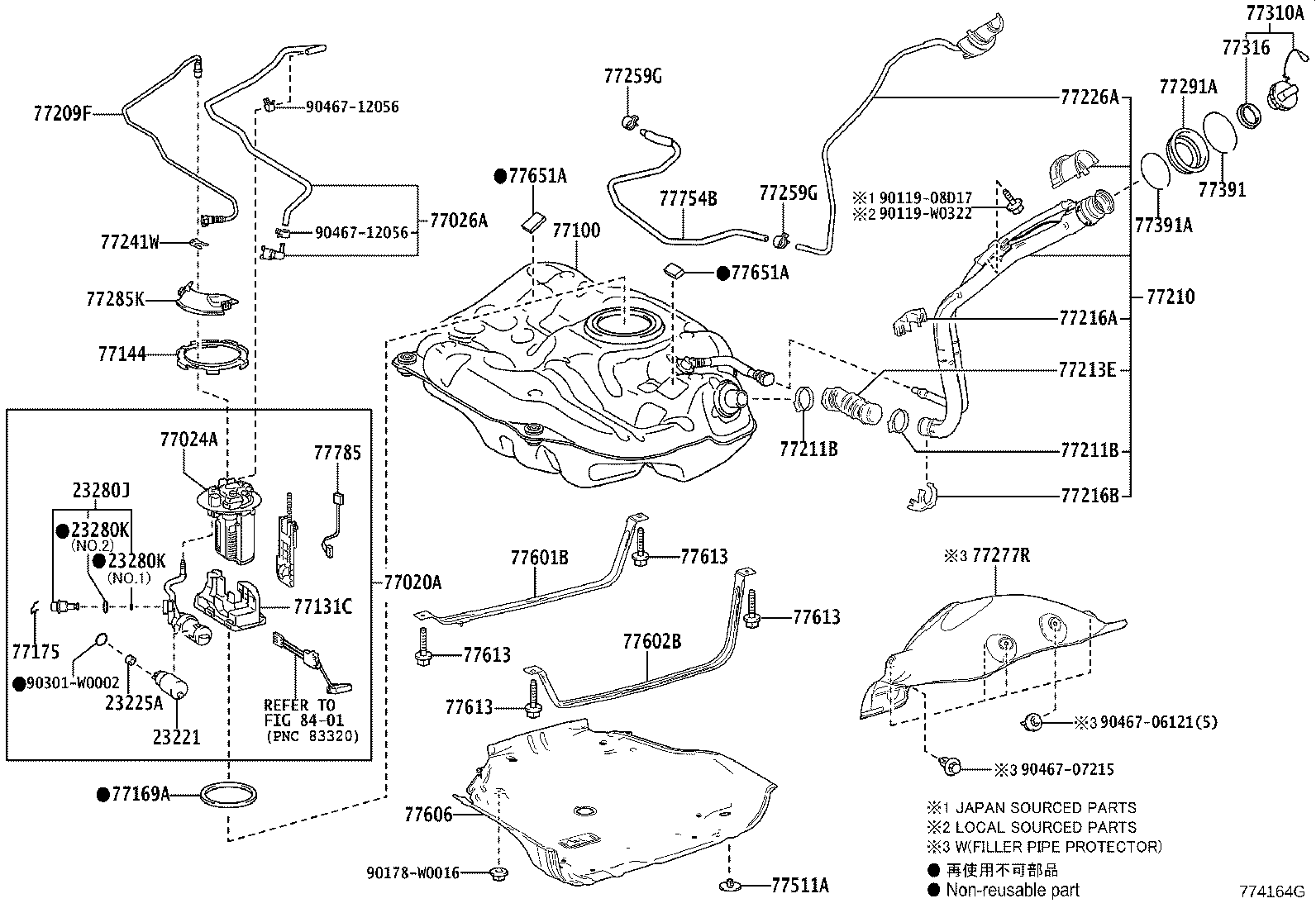

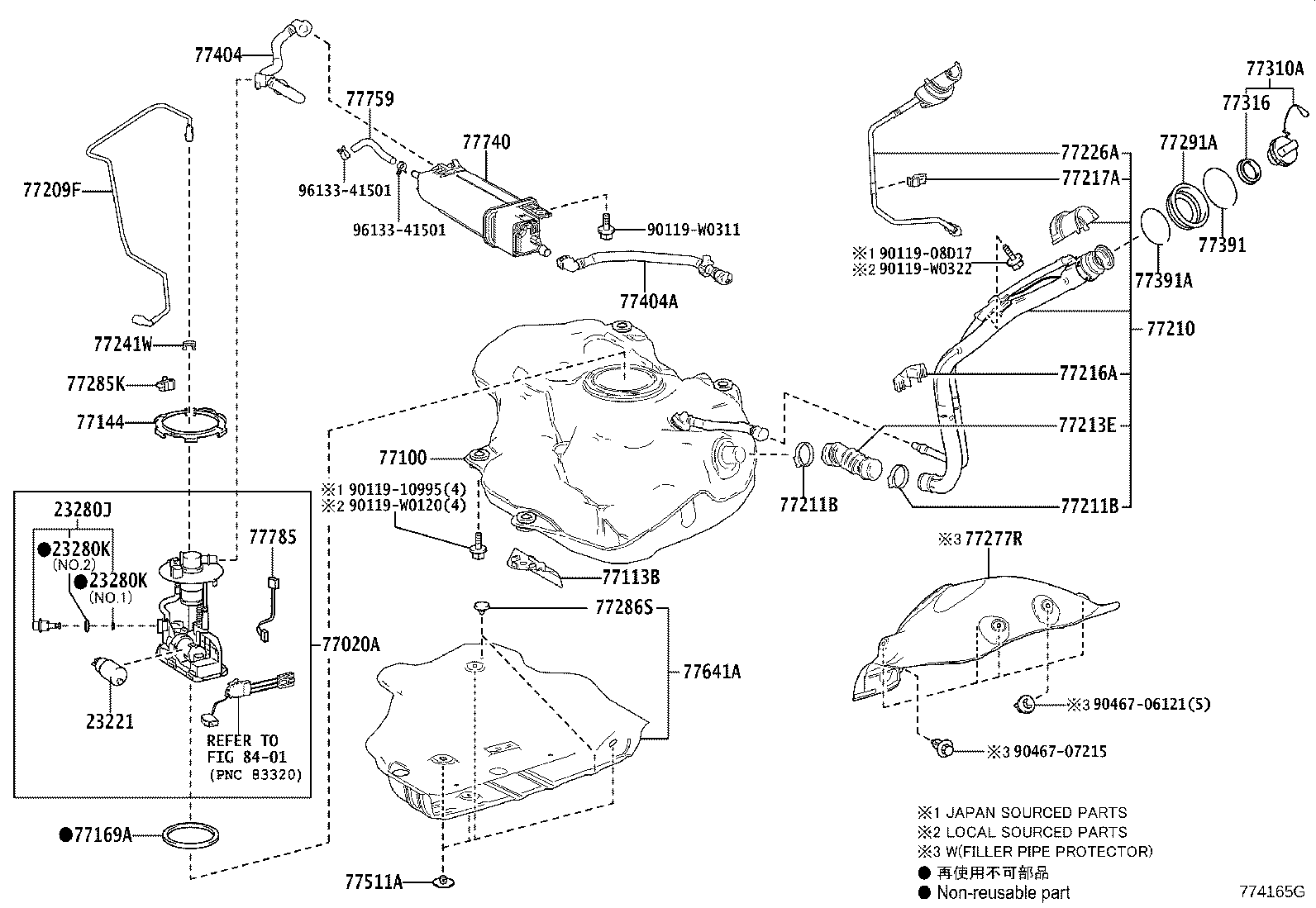

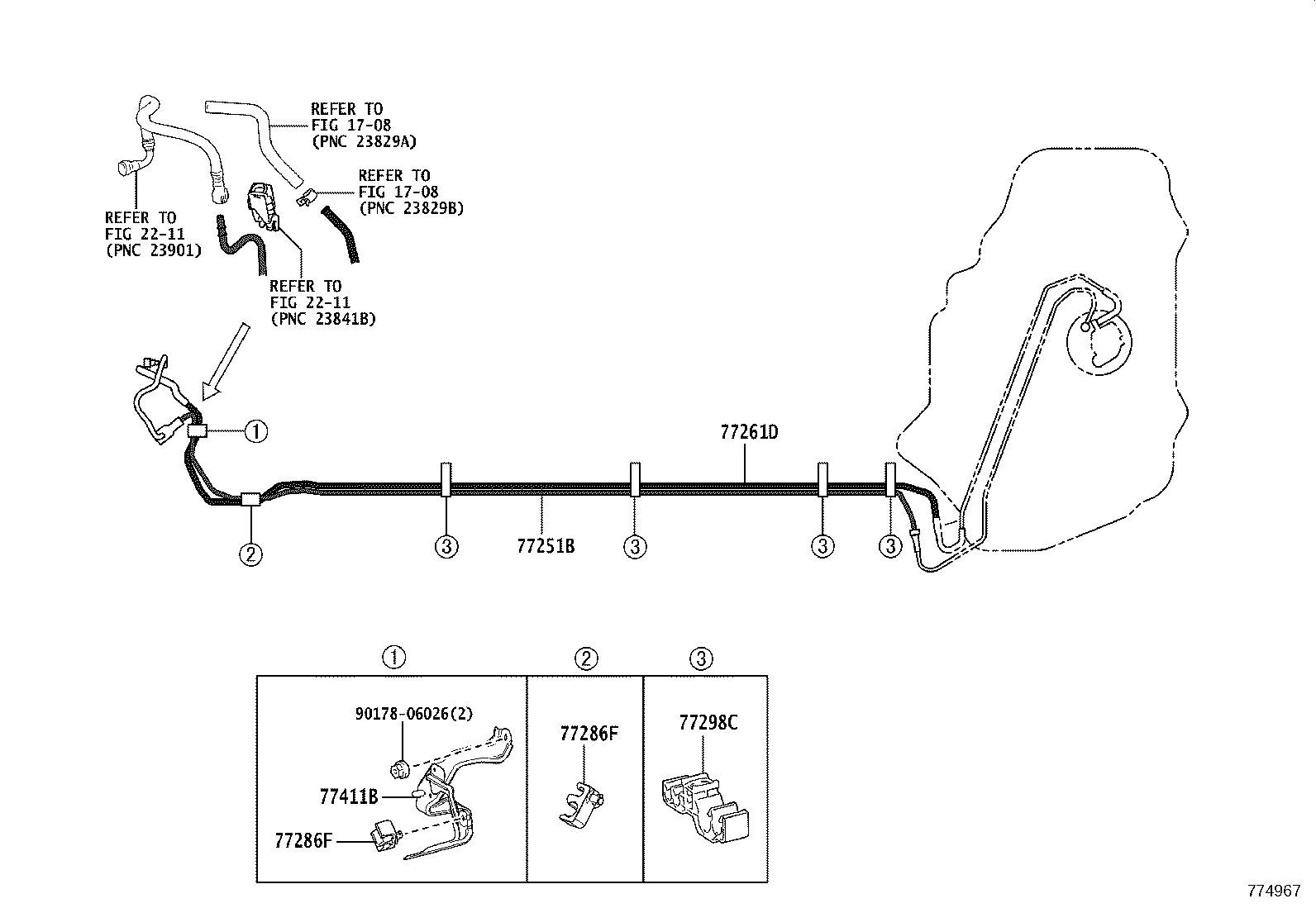

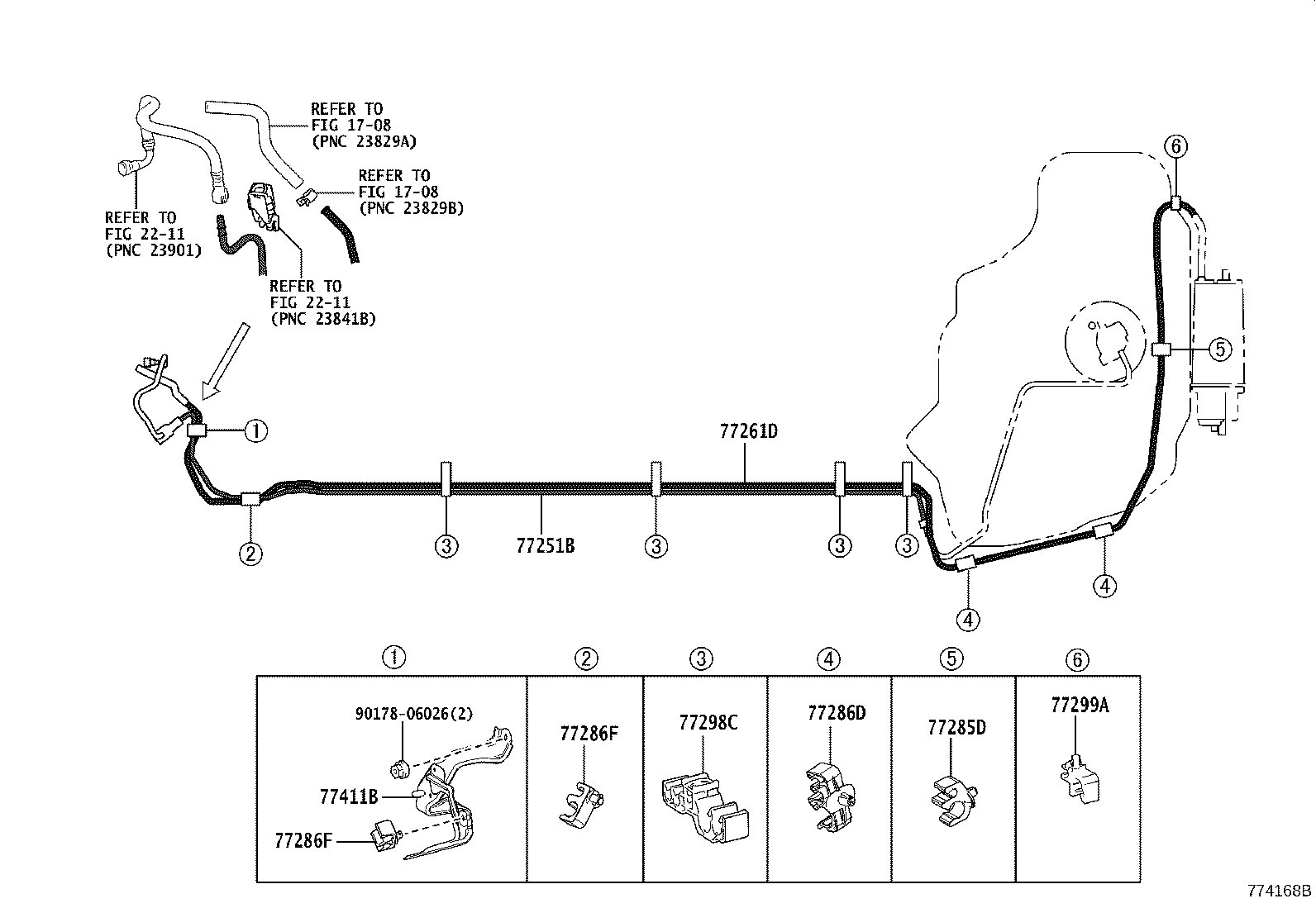

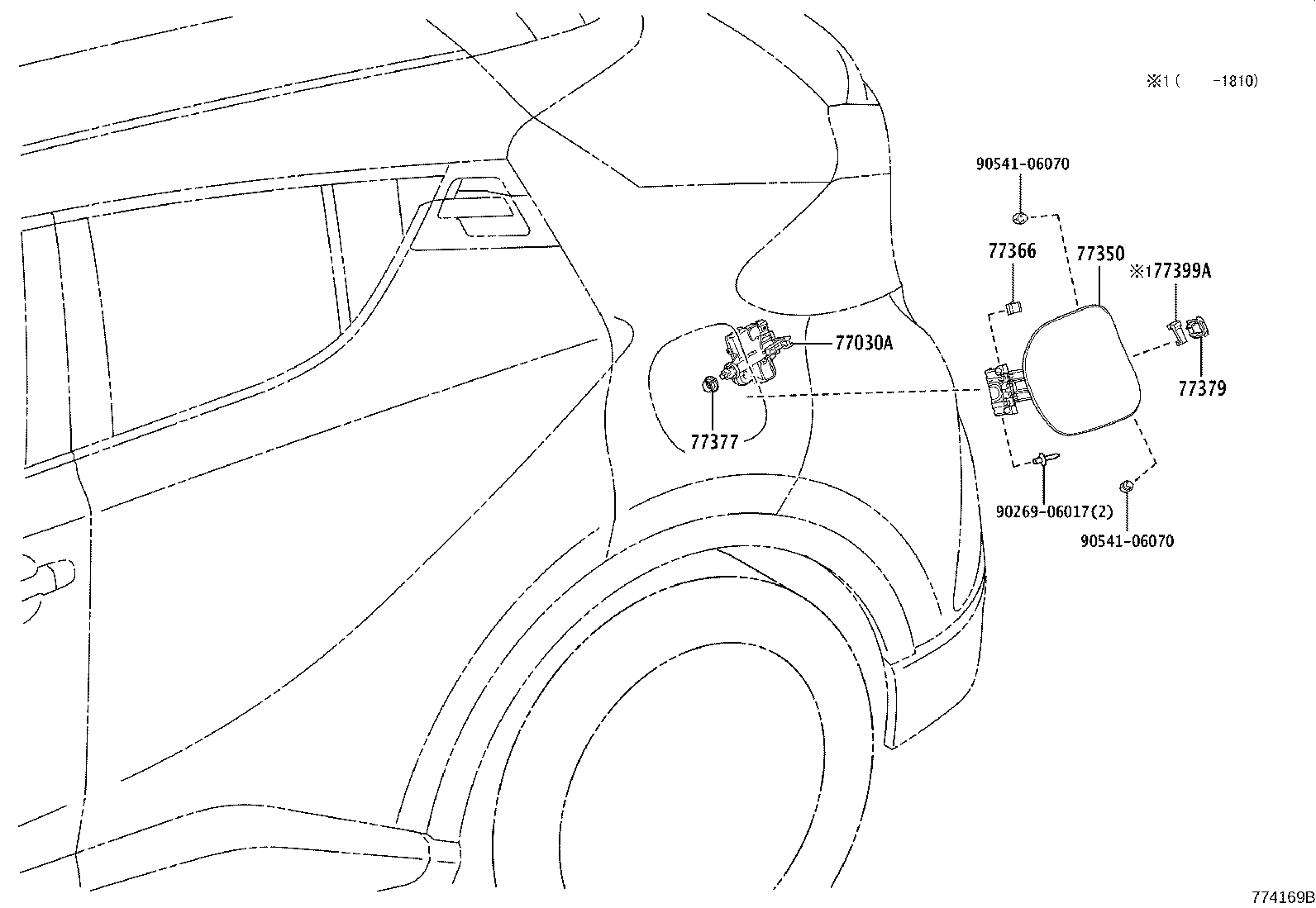

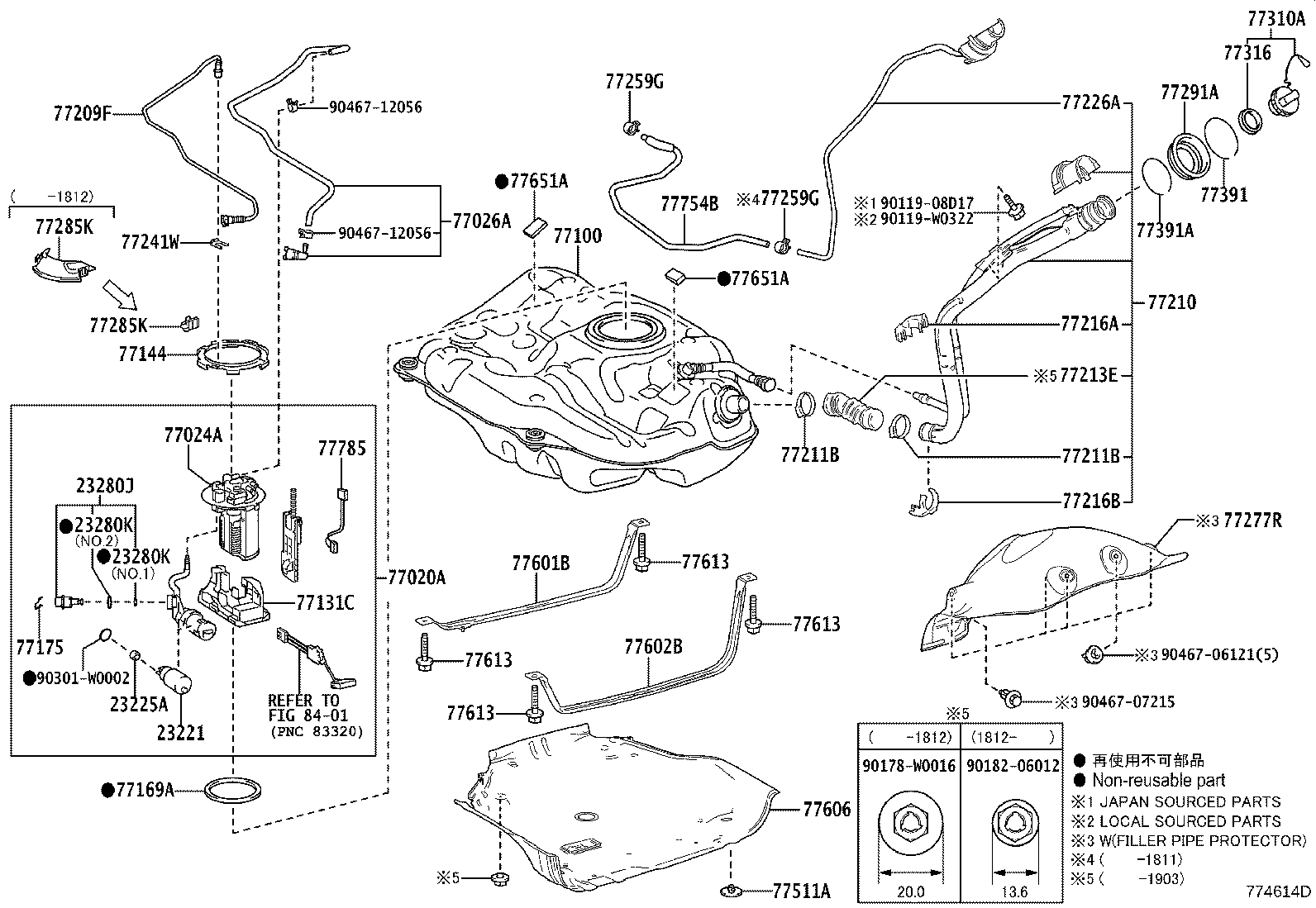

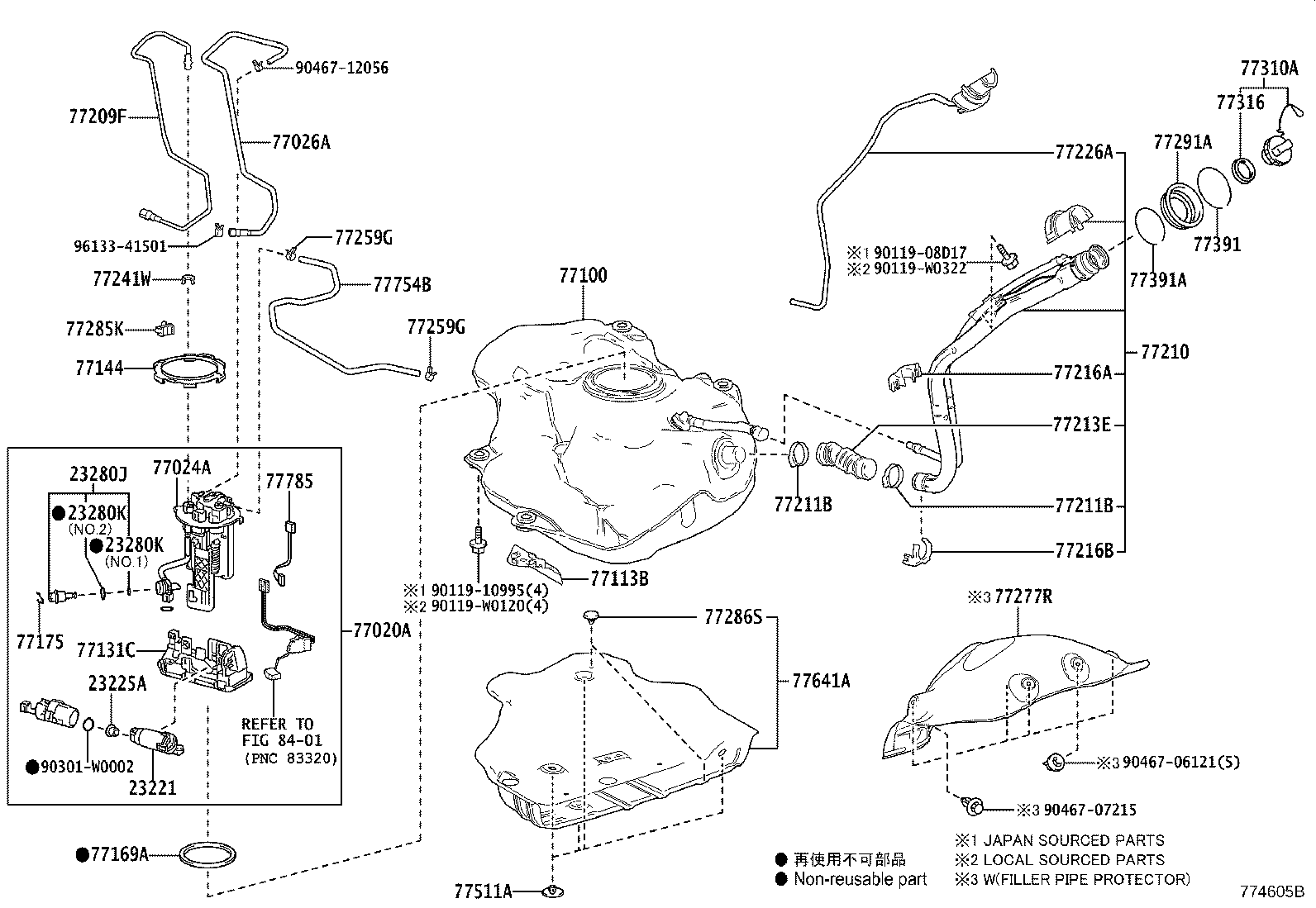

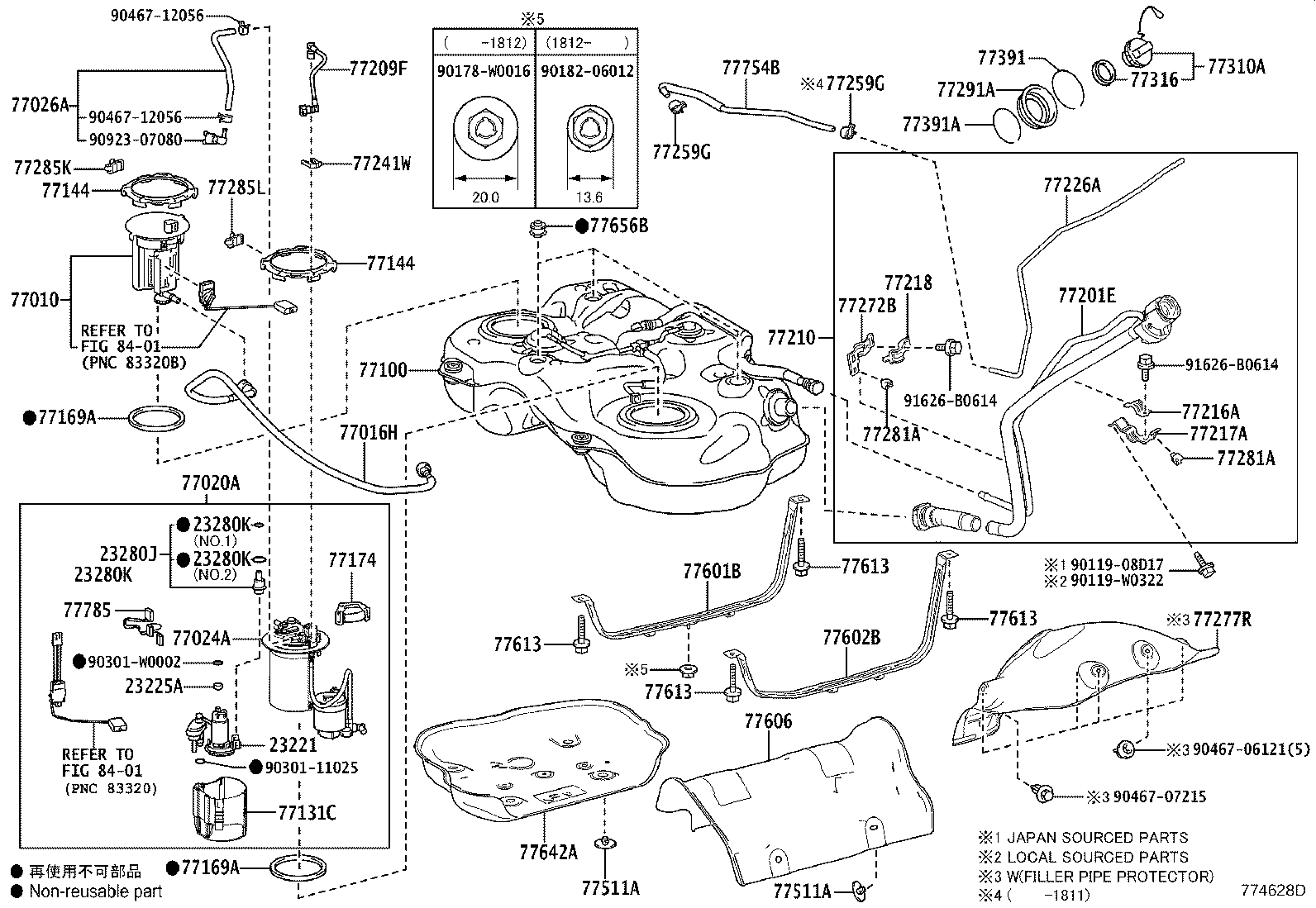

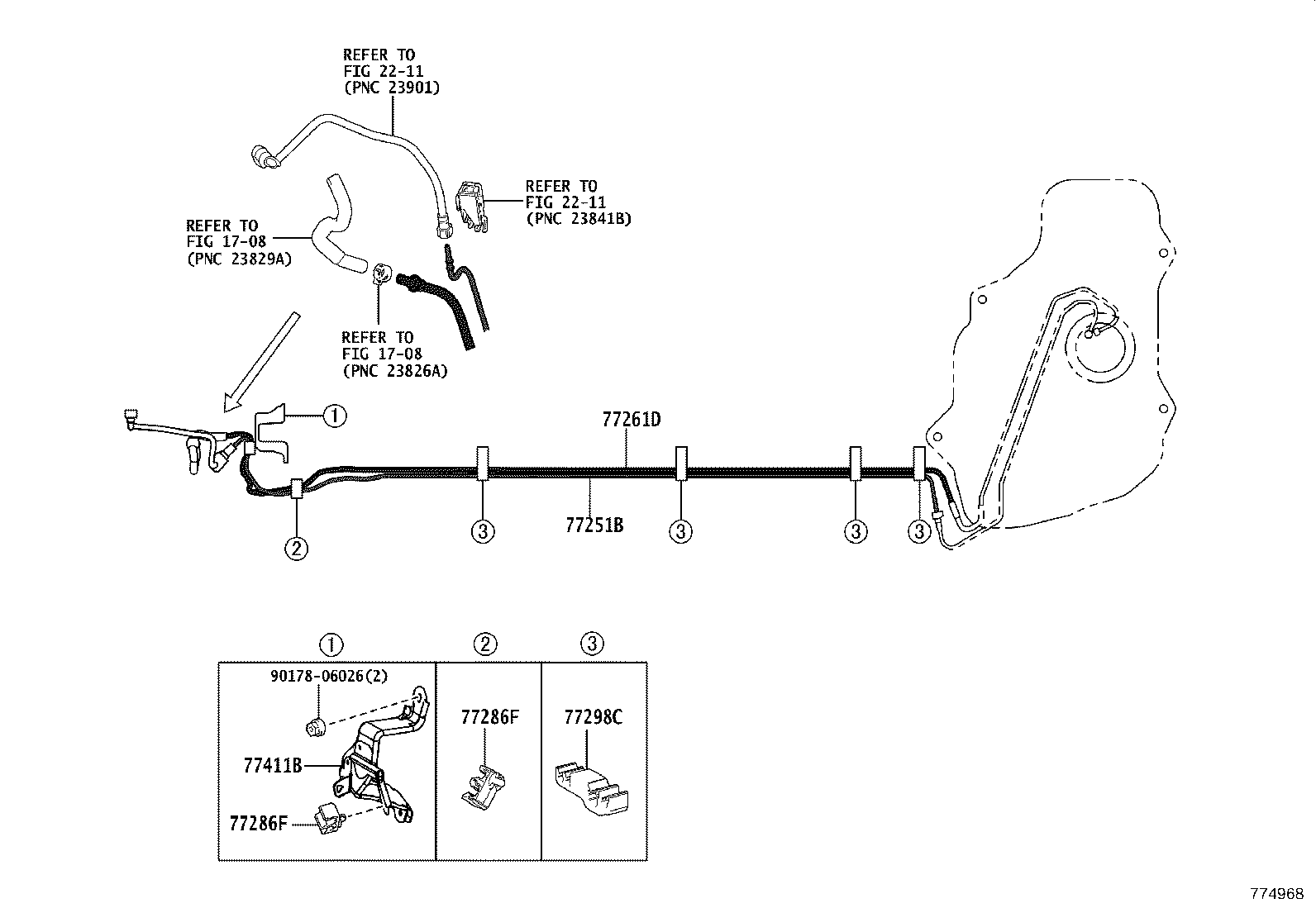

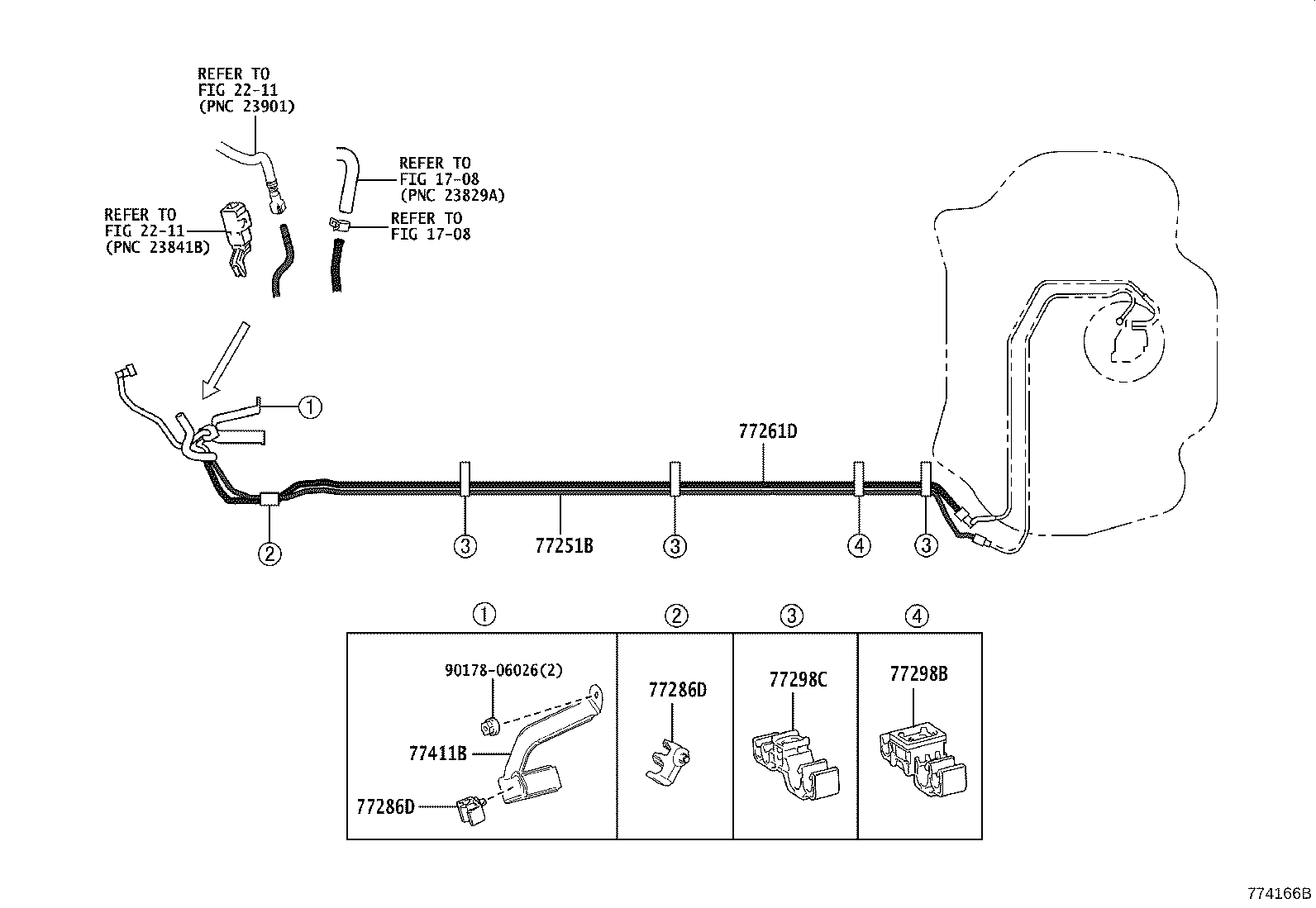

Figure 774161J 774161J 2016-10 → 2018-09 Figure 774629E 774629E 2018-09 → — Figure 774841B 774841B 2016-10 → 2018-05 Figure 774593D 774593D 2018-05 → 2018-09 Figure 774628D 774628D 2018-09 → — Figure 774164G 774164G 2016-10 → 2018-09 Figure 774614E 774614E 2018-09 → — Figure 774165G 774165G 2016-10 → 2018-05 Figure 774605B 774605B 2018-05 → 2018-09 Figure 774627C 774627C 2018-09 → — Figure 774969B 774969B 2019-09 → — Figure 774166B 774166B 2016-10 → — Figure 774168B 774168B 2016-10 → 2018-05 Figure 774967 774967 2018-05 → — Figure 774968 774968 2019-09 → — Figure 774169B 774169B 2016-10 → —

Part groups

PNCDescription
23070 Valve Assy, Fuel Main
23070A Ring, O, NO.1(FOR FUEL MAIN VALVE)
23221 Pump, Fuel
23225A Spacer, Fuel Pump
23280J Regulator Assy, Fuel Pressure
23280K Ring, O(FOR FUEL PRESSURE REGULATOR)
77010 Tube Assy, Fuel Tank Vent
77016H Tube Sub-assy, Fuel Return Vent
77020A Tube Assy, Fuel Suction W/Pump & Gage
77024A Plate Sub-assy, Fuel Suction
77026A Tube Sub-assy, Fuel Evaporation, NO.1
77030A Lock Assy, Fuel Lid W/Motor
77100 Tank Assy, Fuel
77113B Plate, Fuel Tank Side
77131C Sub-tank, Fuel, NO.1
77144 Retainer, Fuel Pump Gauge
77169A Gasket, Fuel Suction Tube Set
77174 Support, Fuel Suction, NO.1
77175 Support, Fuel Suction, NO.2
77201E Pipe Sub-assy, Fuel Tank Filler
77209F Tube Sub-assy, Fuel Tank Main
77210 Pipe Assy, Fuel Tank Filler
77211B Clamp (FOR FUEL FILLER PIPE)
77213E Hose, Fuel Tank TO Filler Pipe
77216A Support, Fuel Tank Filler Pipe, NO.1
77216B Support, Fuel Tank Filler Pipe, NO.2
77217A Support, Fuel Tank Filler Pipe, NO.2
77218 Plate, Fuel Inlet Pipe Set
77226A Tube, Fuel Tank Breather, NO.6
77241W Clip, Tube Joint
77251B Tube, Fuel Main
77259G Clip, Fuel Hose
77261D Tube, Fuel Tank TO Canister
77272B Support, Breather Tube, NO.1
77277R Protector, Fuel Tank Filler Pipe
77281A Clamp, Fuel Filler Pipe
77285D Clamp, Fuel Tube, NO.1
77285K Clamp, Fuel Tube, NO.1
77285L Clamp, Fuel Tube, NO.1
77286D Clamp, Fuel Tube, NO.2
77286F Clamp, Fuel Tube, NO.2
77286S Cushion, Fuel Tank Protector
77291A Shield, Fuel Tank Filler Pipe
77298B Clamp, Fuel Tube, NO.4
77298C Clamp, Fuel Tube, NO.4
77299A Clamp, Fuel Tube, NO.5
77310A Cap Assy, Fuel Tank
77316 Gasket, Fuel Tank Cap
77350 Lid Assy, Fuel Filler Opening
77366 Spring, Fuel Filler Opening Lid Hinge
77377 Retainer, Fuel Filler Opening Lid Lock
77379 Spacer, Fuel Inlet Box Cover, NO.2
77391 Ring, Fuel Inlet Box
77391A Ring, Fuel Inlet Box
77399A Cover, Fuel Filler Opening Lid
77404 Hose Sub-assy, Fuel Tank Vent
77404A Hose Sub-assy, Fuel Tank Vent
77411B Support, Fuel Tube Grommet, NO.1
77511A Bracket, Fuel Tank
77601B Band Sub-assy, Fuel Tank, NO.1 RH
77602B Band Sub-assy, Fuel Tank, NO.1 LH
77606 Protector Sub-assy, Fuel Tank, NO.1
77613 Bolt, Fuel Tank Band Set
77641A Protector, Fuel Tank, NO.1
77642A Protector, Fuel Tank, NO.2
77651A Cushion, Fuel Tank, NO.1
77656B Cushion, Fuel Tank, NO.6
77740 Canister Assy, Charcoal
77754B Hose, Charcoal Canister Outlet
77759 Hose, Charcoal Canister
77785 Harness, Fuel Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
