Toyota C-hr

2016-10 → present · chassis MAXH10,NGX10,50,ZGX10,ZYX1# · catalogue 528510 · Europe

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

1 part groups · 2 illustrations

Illustrations

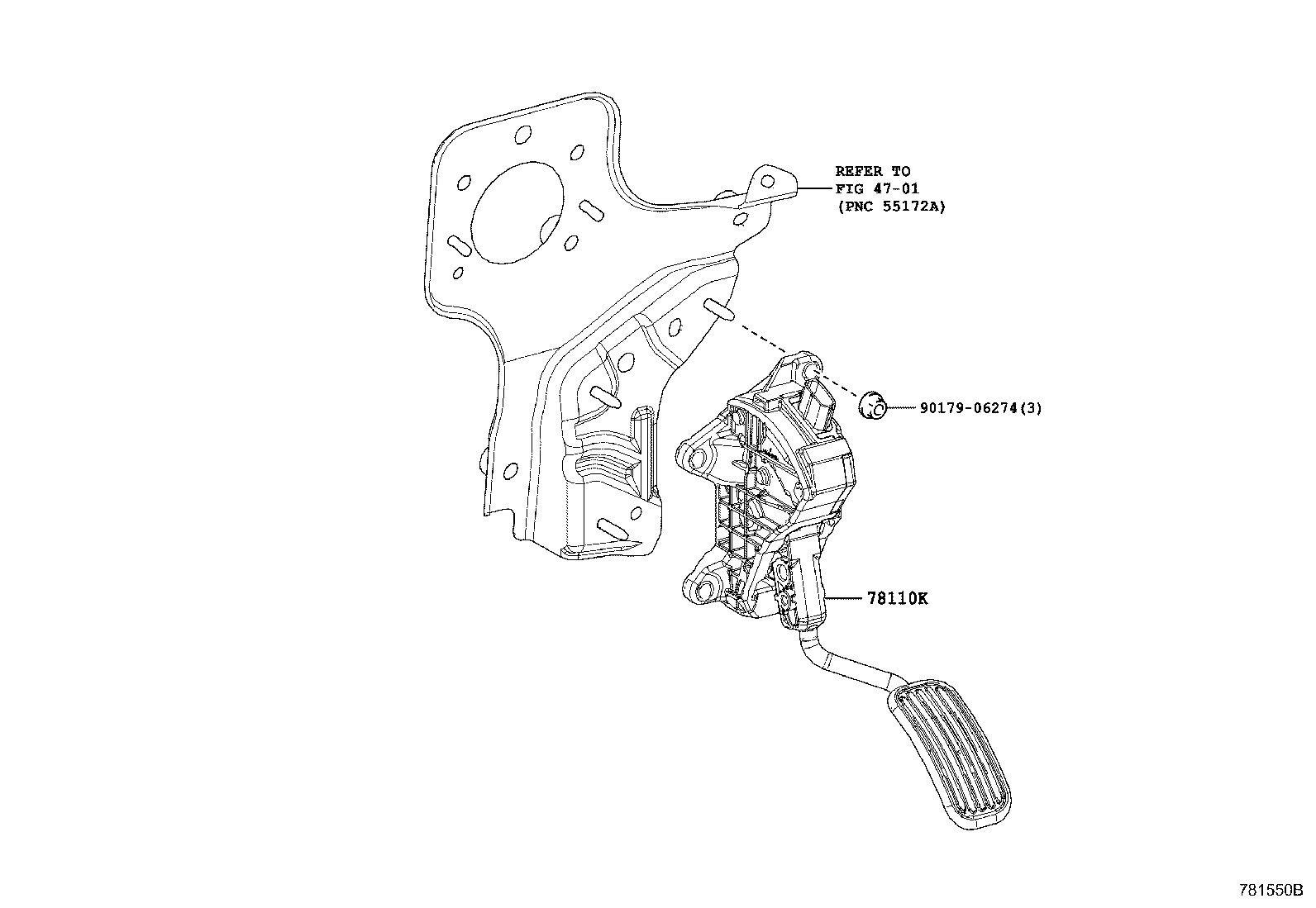

Figure 781548B 781548B 2016-10 → — Figure 781550B 781550B 2016-10 → —

Part groups

PNCDescription
78110K Rod Assy, Accelerator Pedal(W/SENSOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
