Toyota C-hr

2016-10 → present · chassis MAXH10,NGX10,50,ZGX10,ZYX1# · catalogue 528510 · Europe

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

17 part groups · 4 illustrations

Illustrations

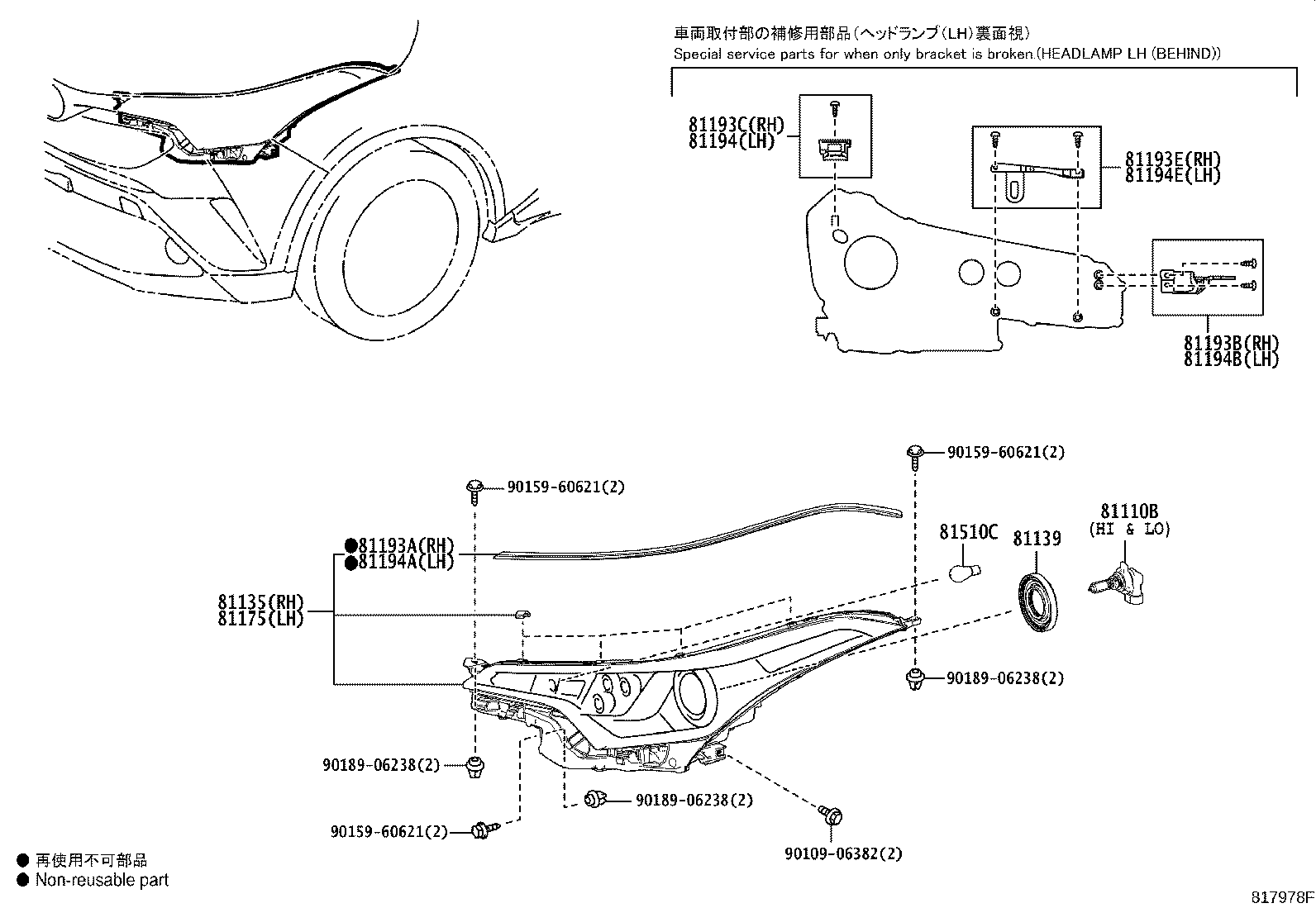

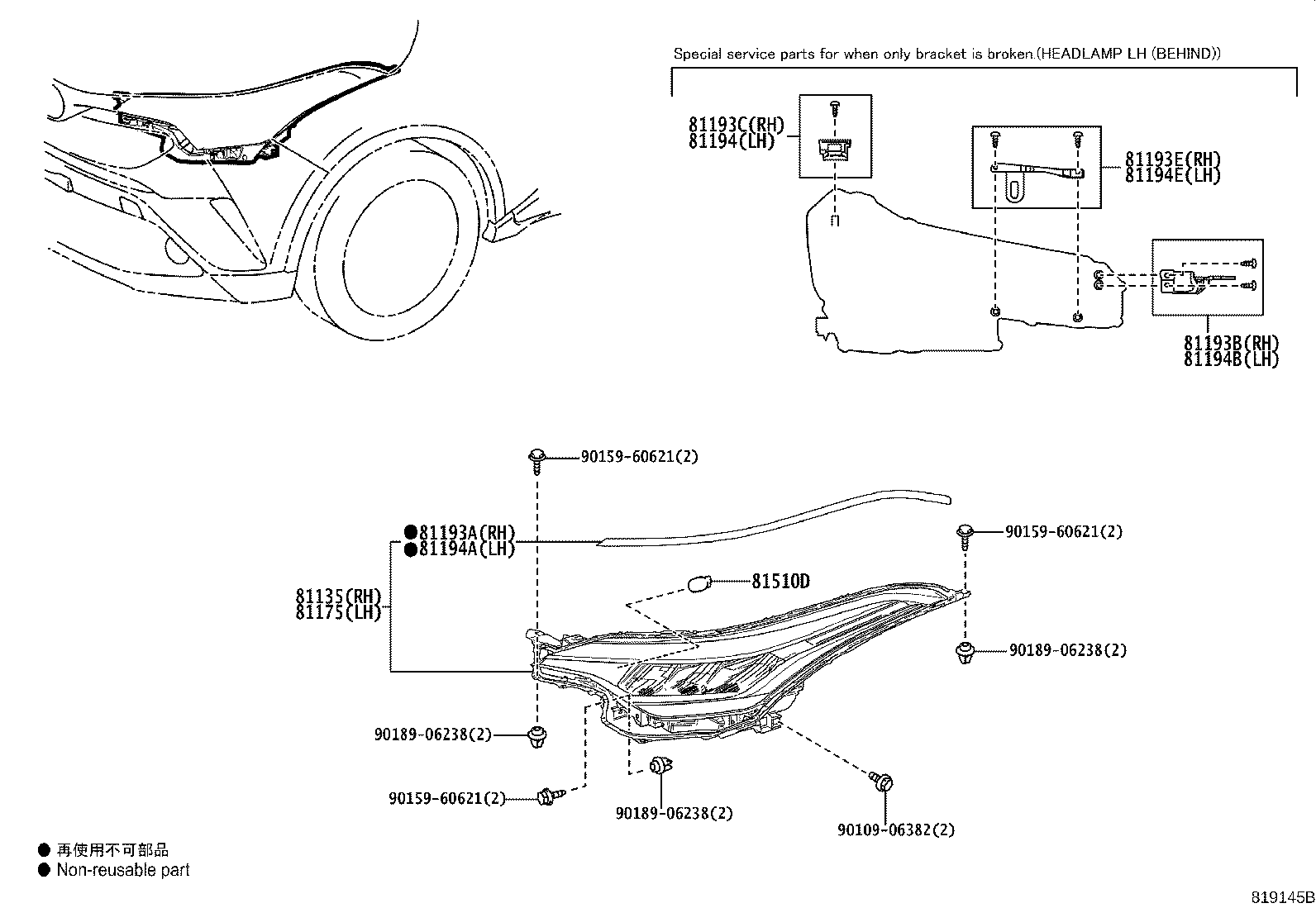

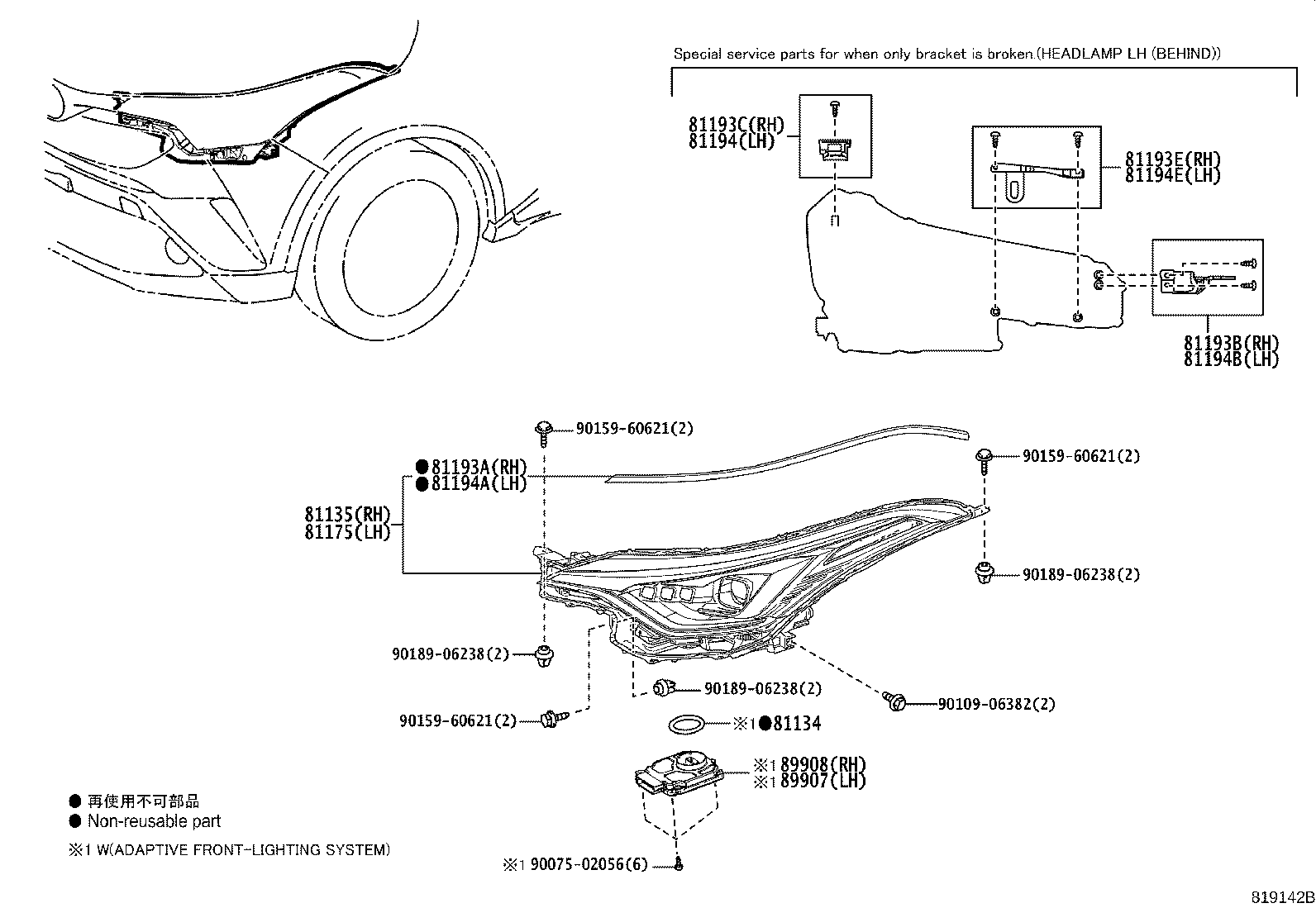

Figure 817946F 817946F 2016-10 → 2019-09 Figure 817978F 817978F 2016-10 → 2019-09 Figure 819145B 819145B 2019-09 → — Figure 819142B 819142B 2019-09 → —

Part groups

PNCDescription
81110B Bulb(FOR HEADLAMP, NO.1)
81134 Gasket, Headlamp
81135 Unit Assy, Headlamp, RH
81139 Cover, Headlamp Socket
81175 Unit Assy, Headlamp, LH
81193A Protector, Headlamp, RH
81193B Retainer, Headlamp Protector, Upper RH NO.2
81193C Retainer, RH Headlamp Protector, Upper RH
81193E Retainer, Headlamp Protector, Upper RH NO.3
81194 Retainer, Headlamp Protector, Upper LH
81194A Protector, Headlamp, LH
81194B Retainer, Headlamp Protector, Upper LH NO.2
81194E Retainer, Headlamp Protector, Upper LH NO.3
81510C Bulb (FOR FRONT TURN SIGNAL LAMP)
81510D Bulb (FOR FRONT TURN SIGNAL LAMP)
89907 Computer Sub-assy, Headlamp, LH
89908 Computer Sub-assy, Headlamp, RH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
