Fog Lamp

8 part groups · 2 illustrations

Illustrations

Figure 817937C

817937C 2016-10 → 2022-12

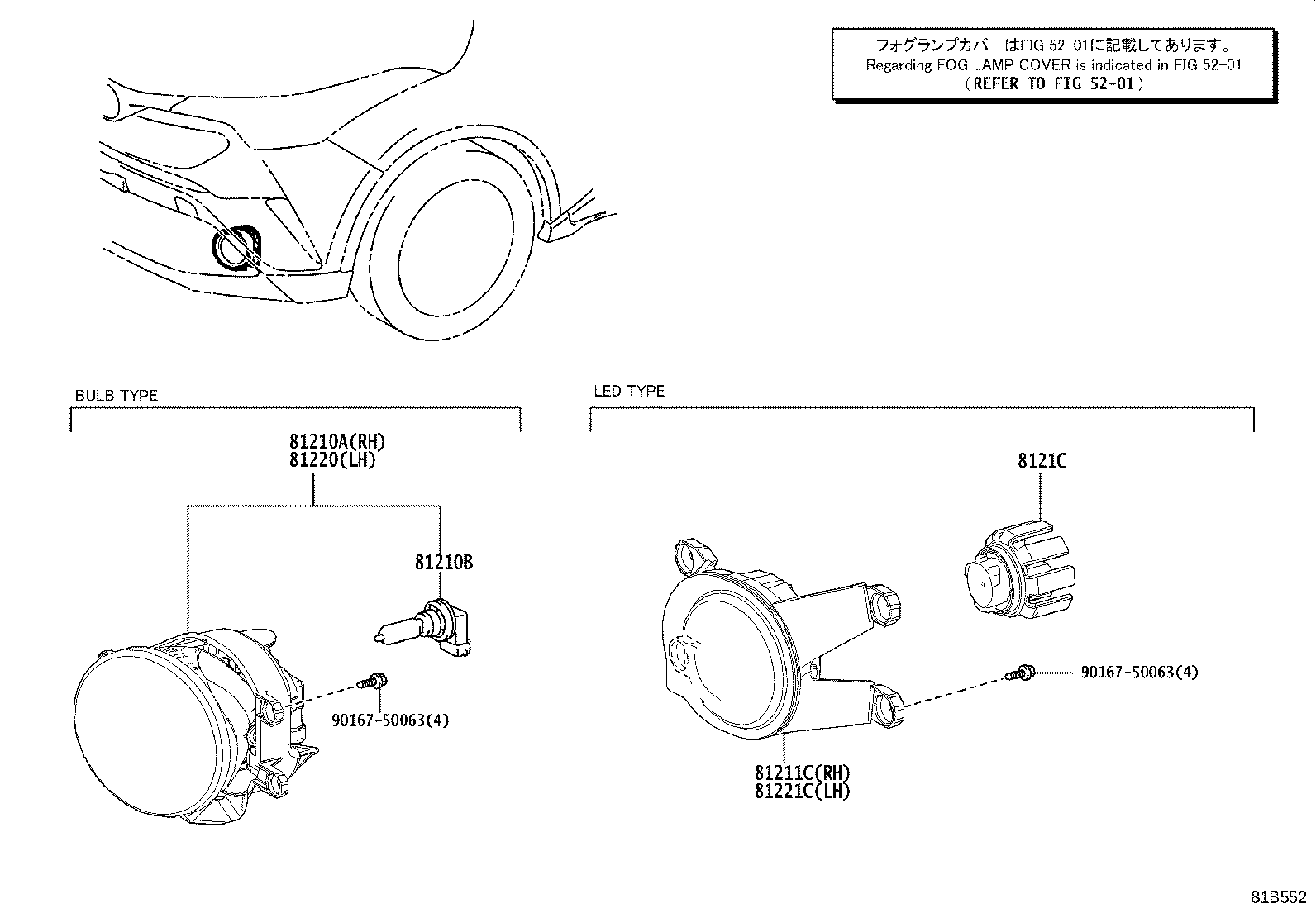

Figure 81B552

81B552 2023-01 → —

Part groups

PNC	Description
81210A	Lamp Assy, Fog, RH
81210B	Bulb, Fog Lamp
81211C	Lamp Unit, Fog Lamp, RH
81219A	Bracket, Fog Lamp, RH
8121C	Led, Fog Lamp
81220	Lamp Assy, Fog, LH
81221C	Lamp Unit, Fog Lamp, LH
81229A	Bracket, Fog Lamp, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
