Toyota C-hr

2016-10 → present · chassis MAXH10,NGX10,50,ZGX10,ZYX1# · catalogue 528510 · Europe

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

117 part groups · 23 illustrations

Illustrations

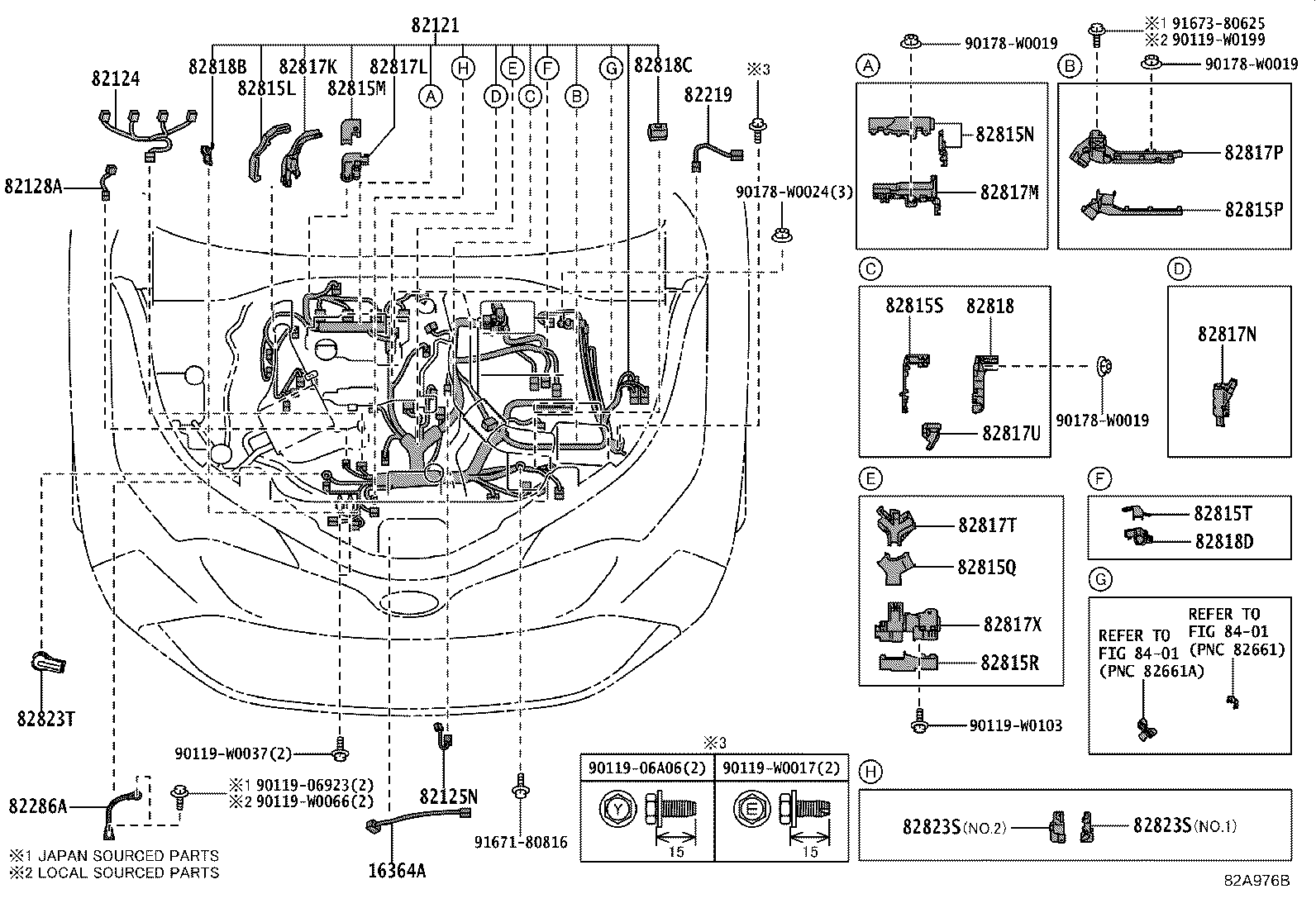

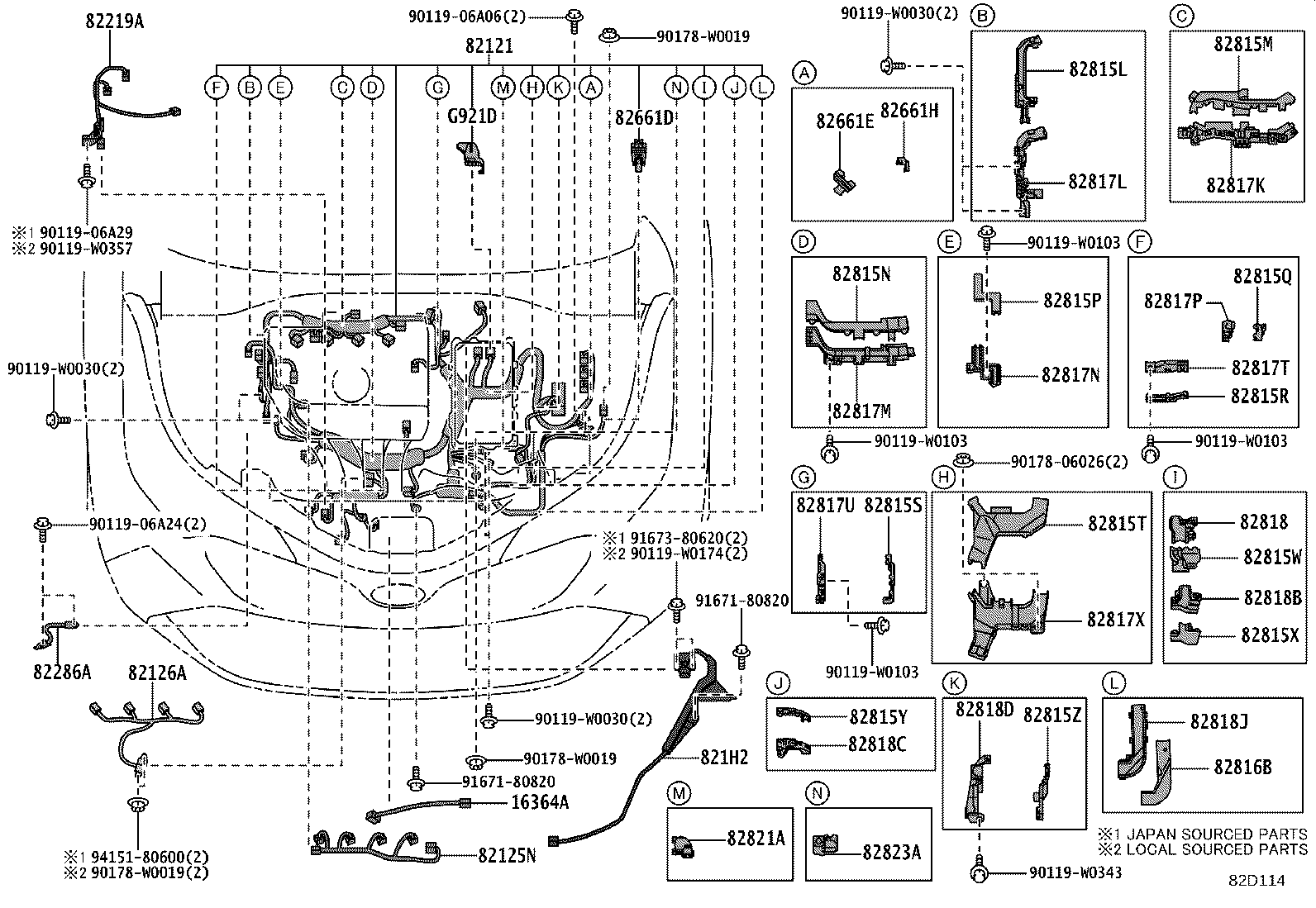

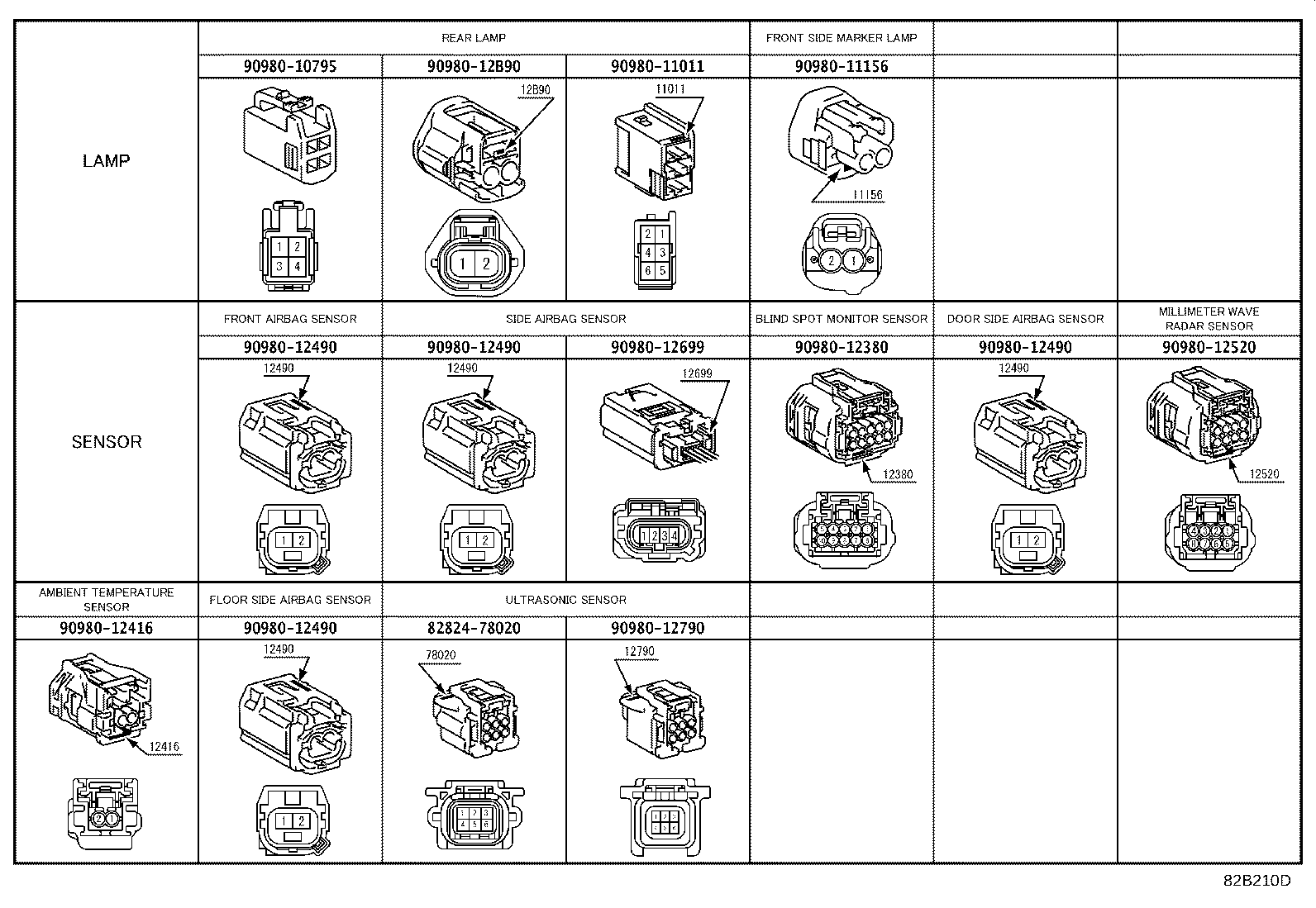

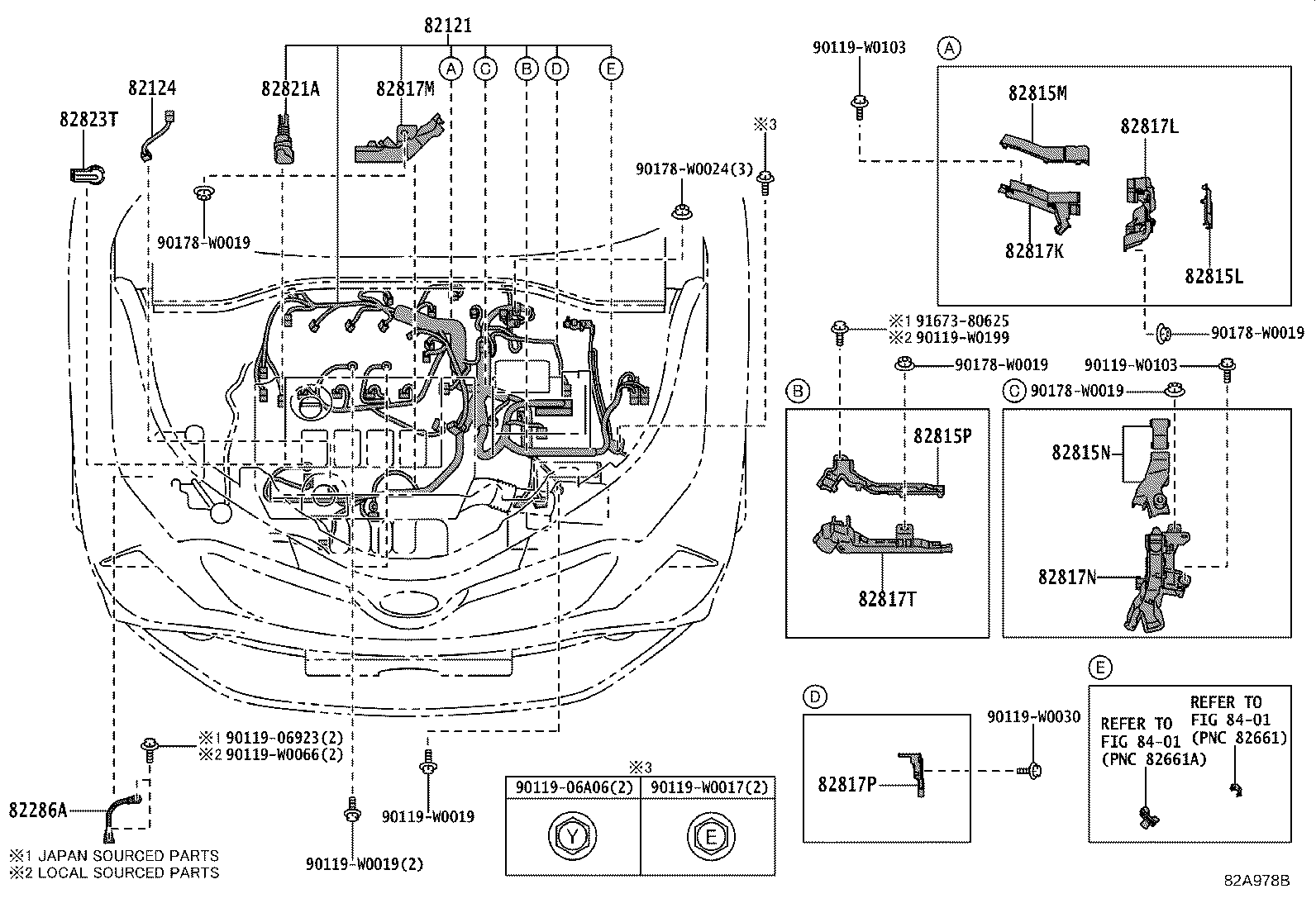

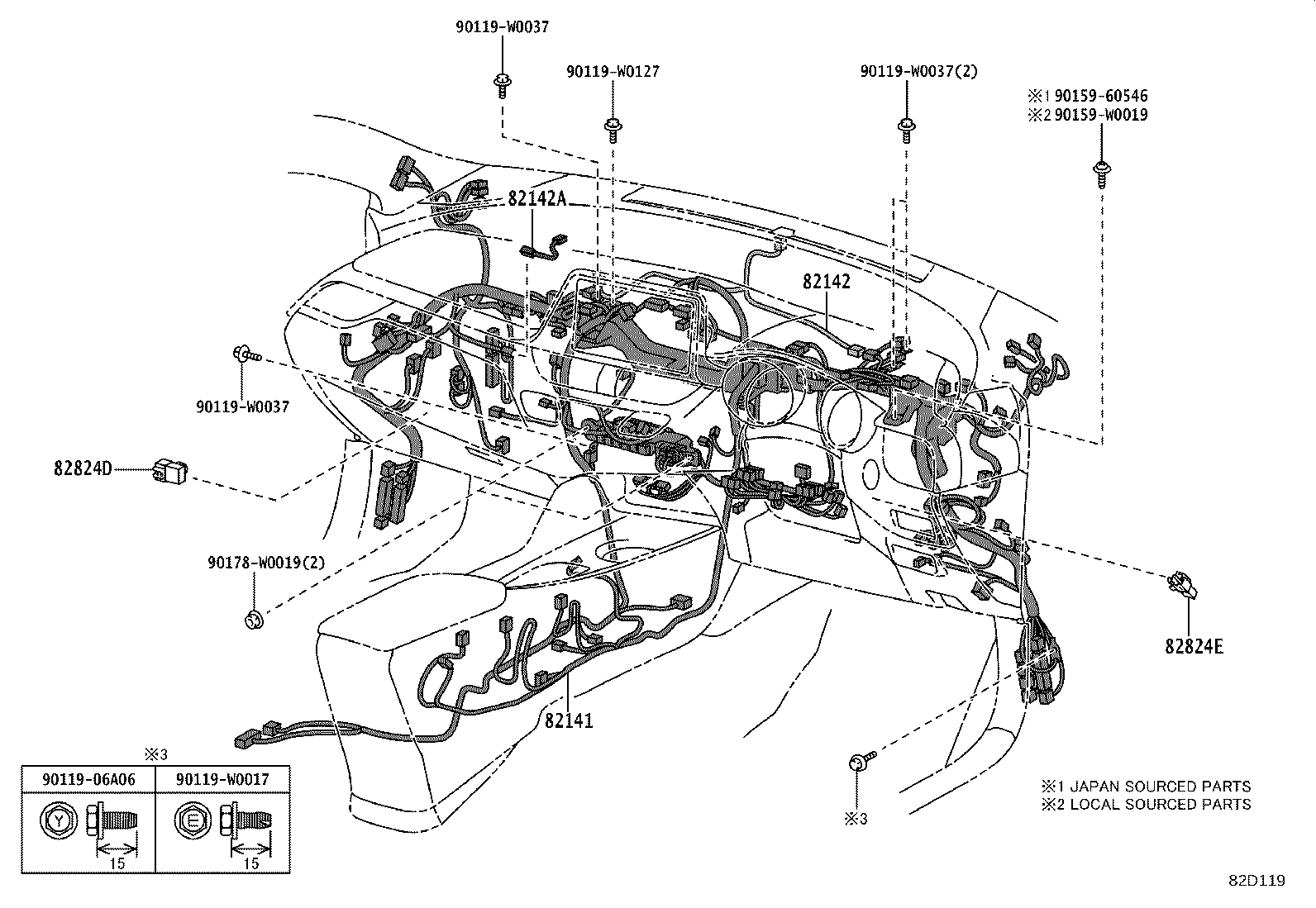

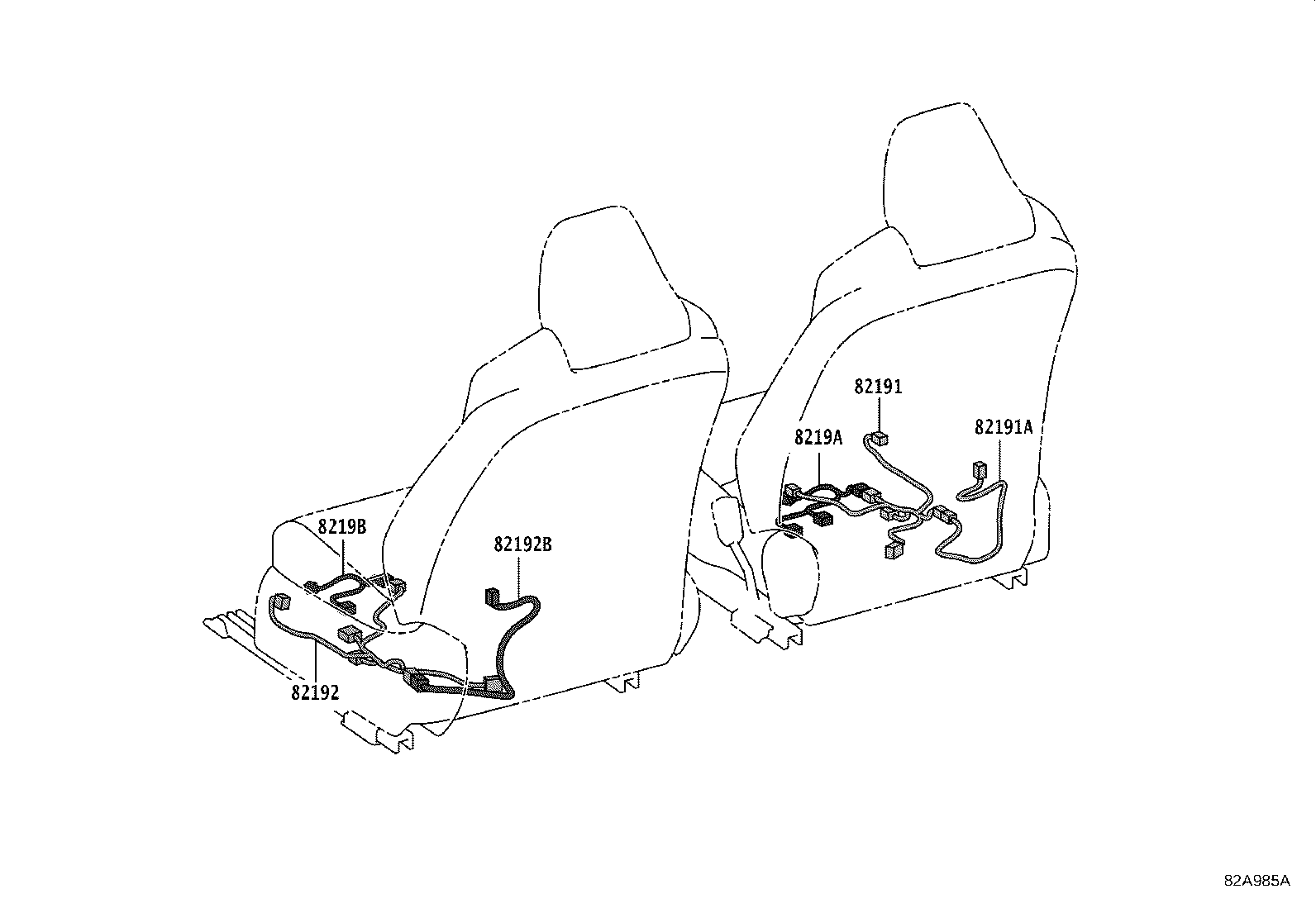

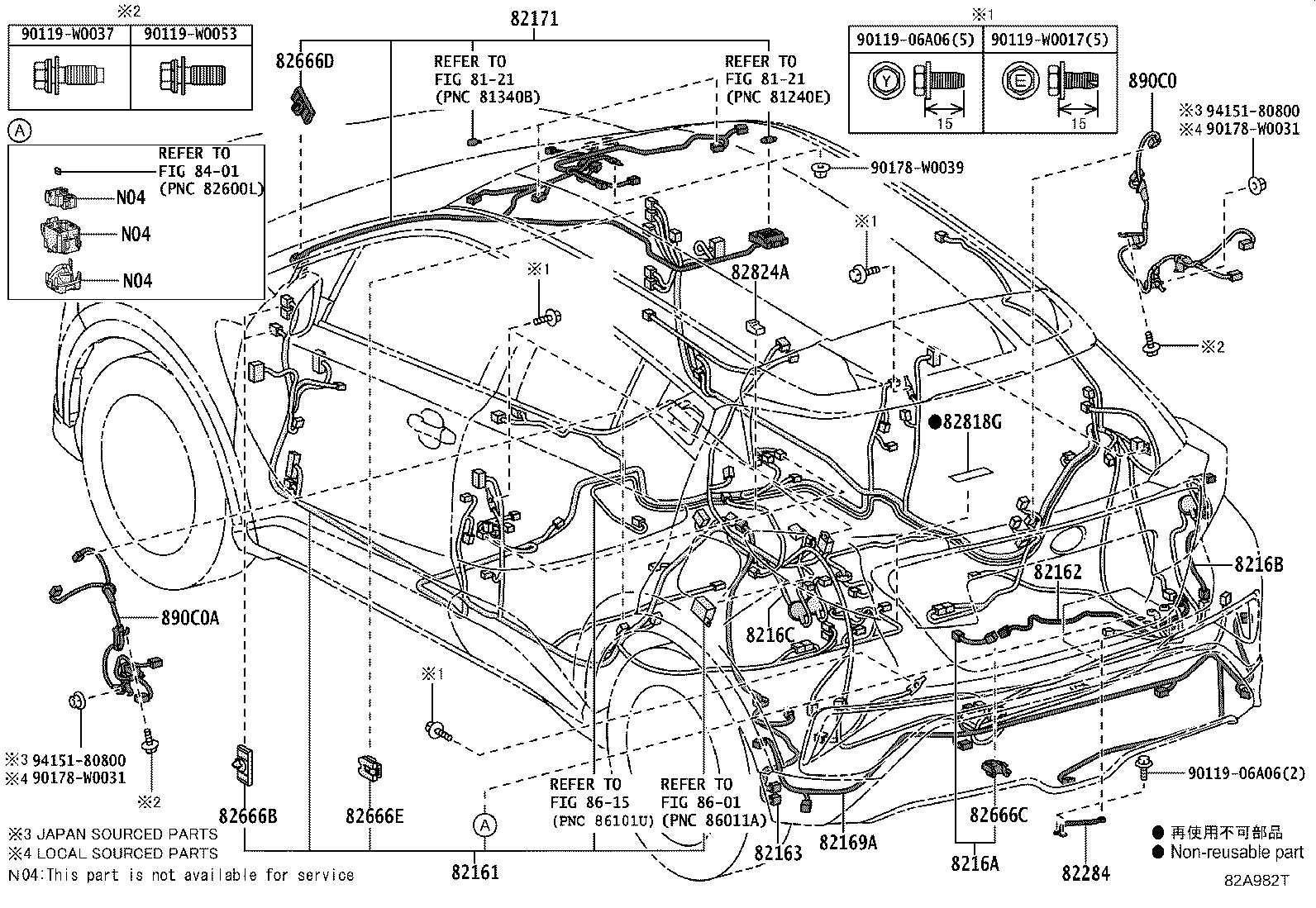

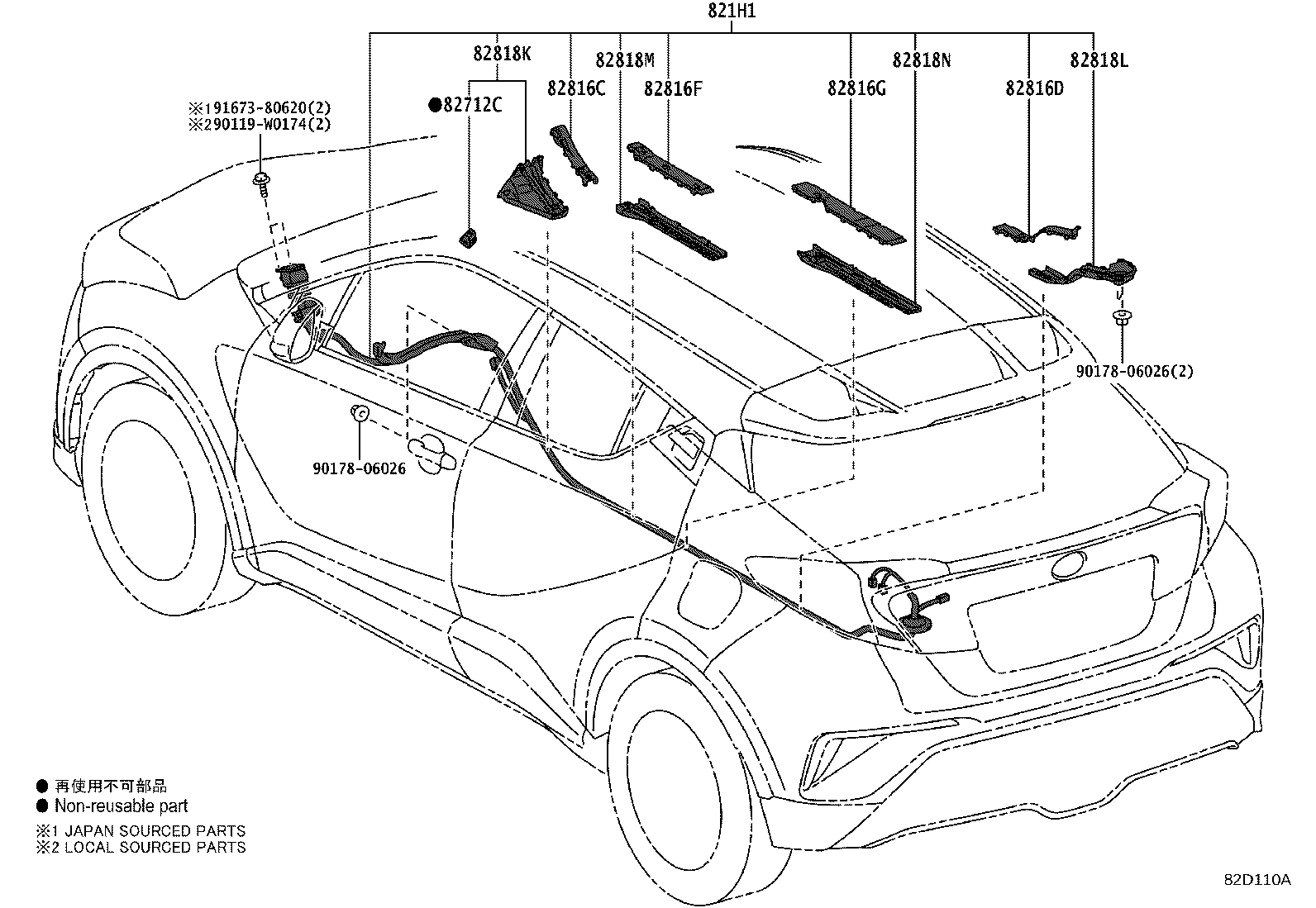

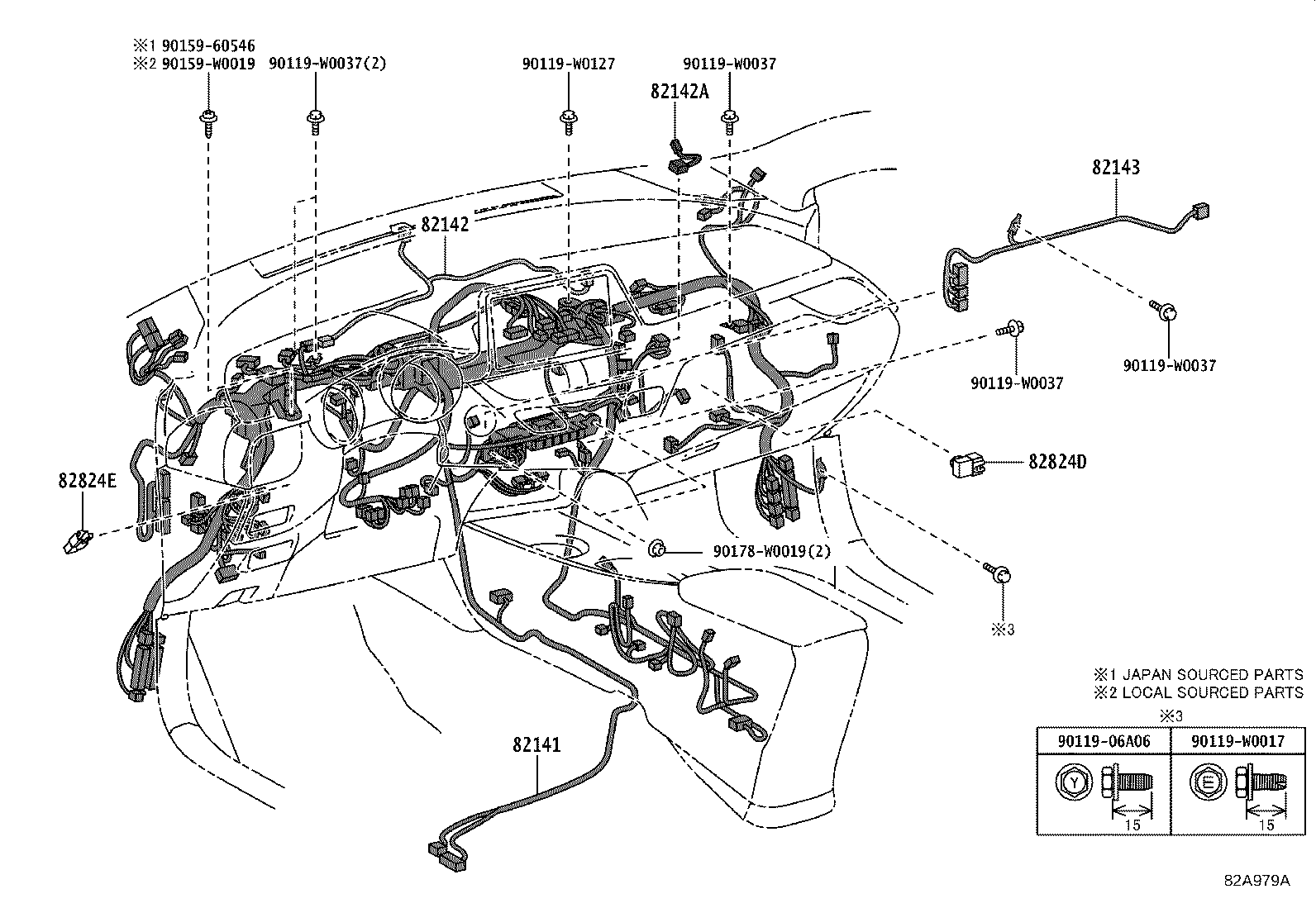

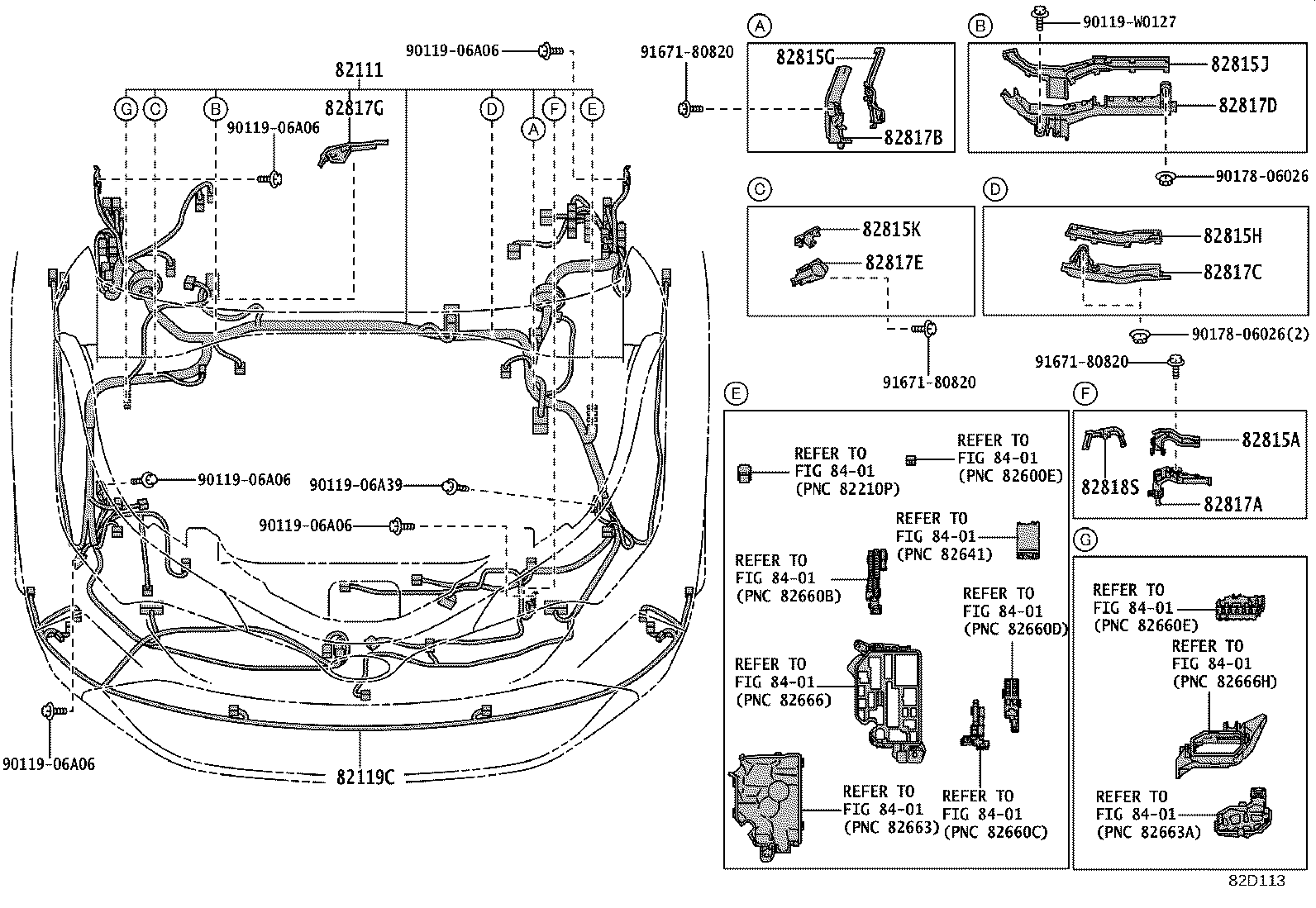

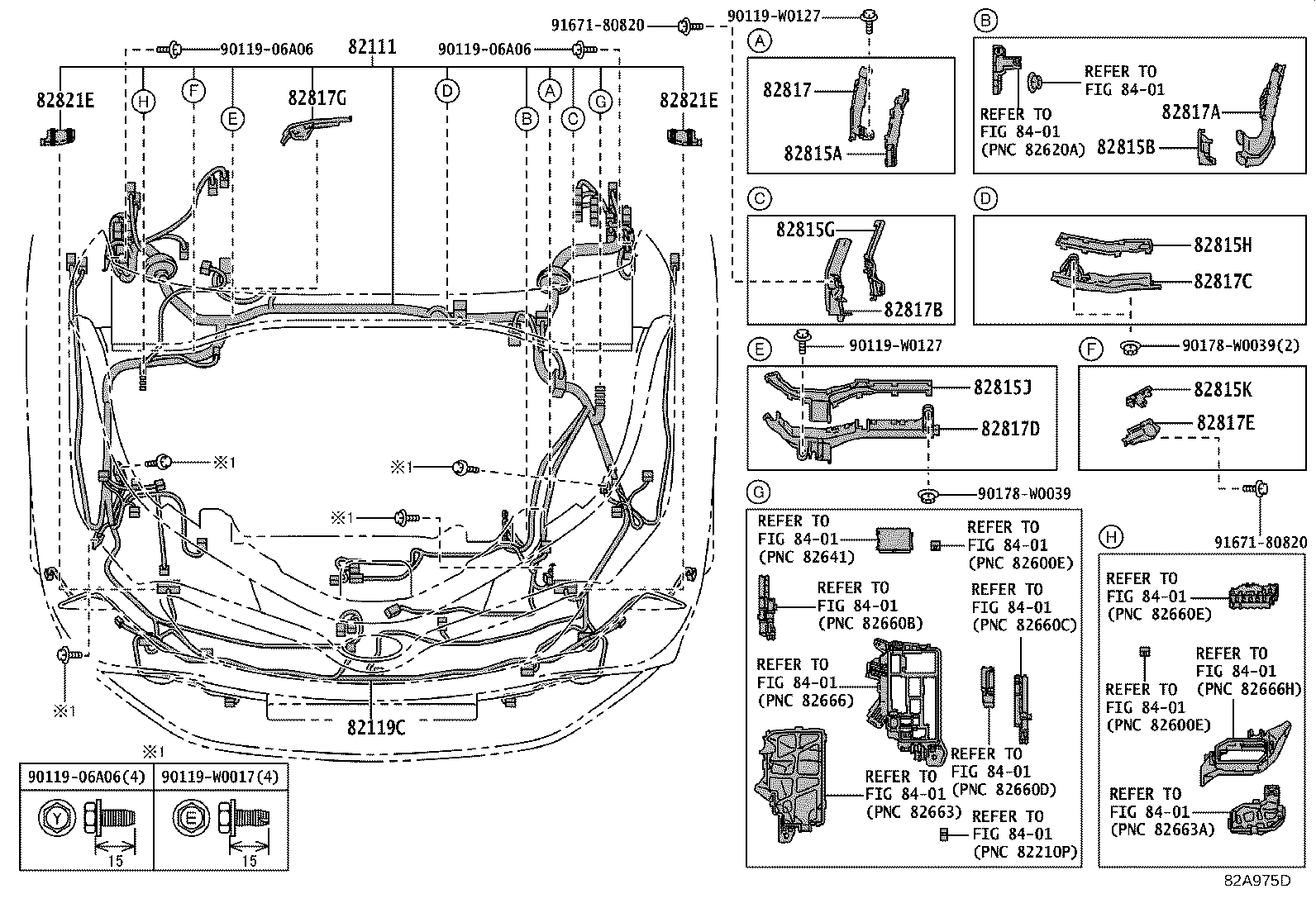

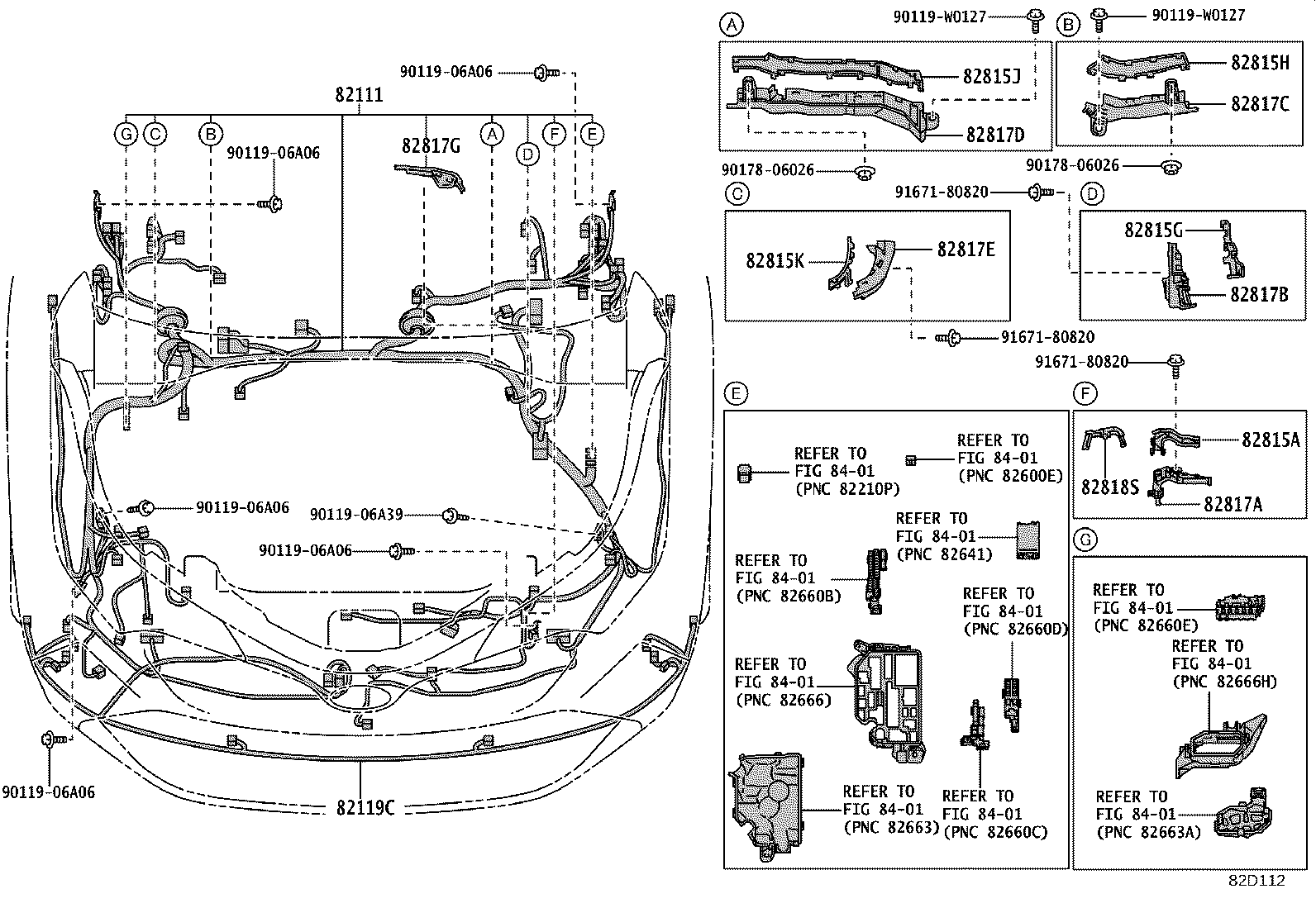

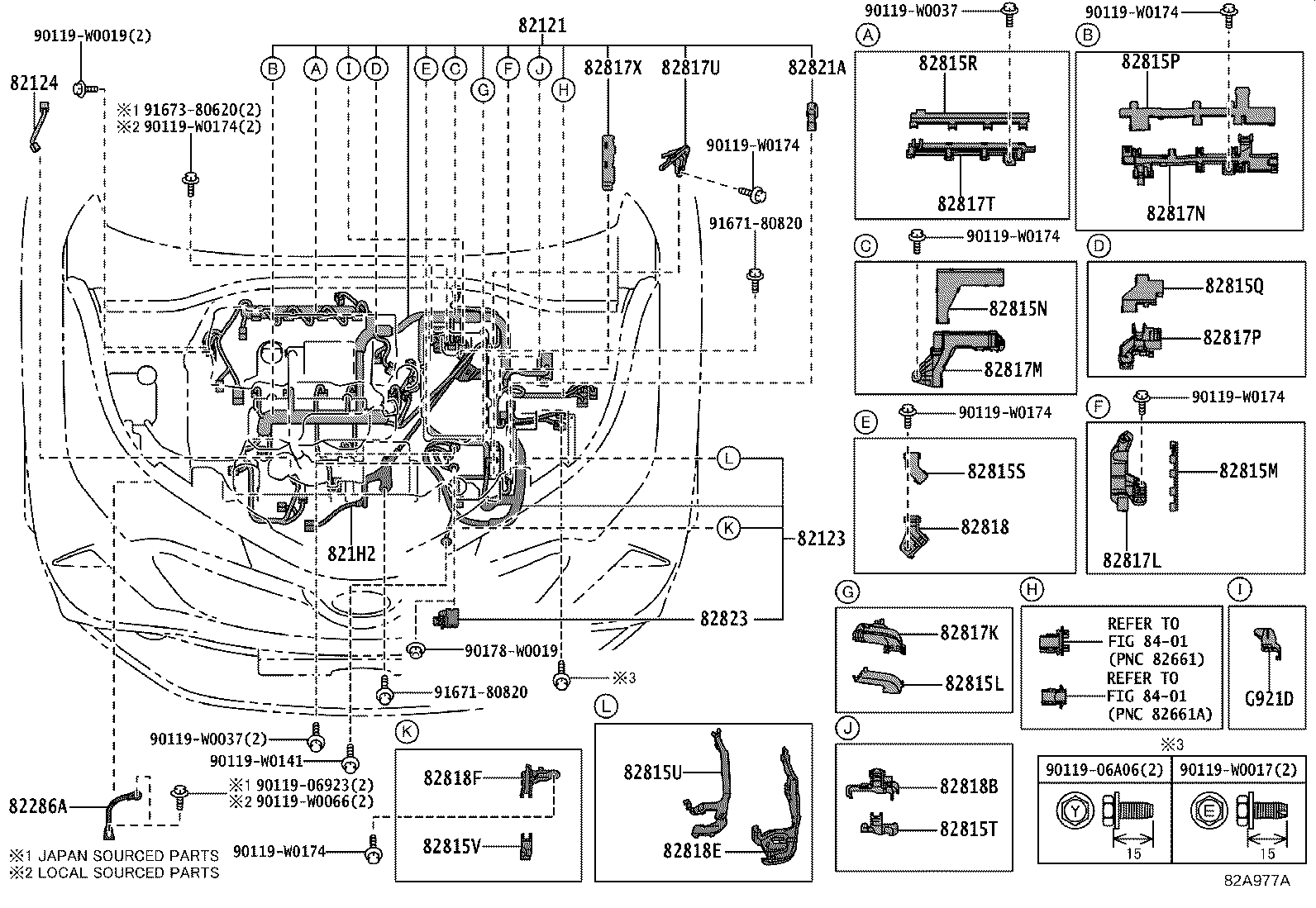

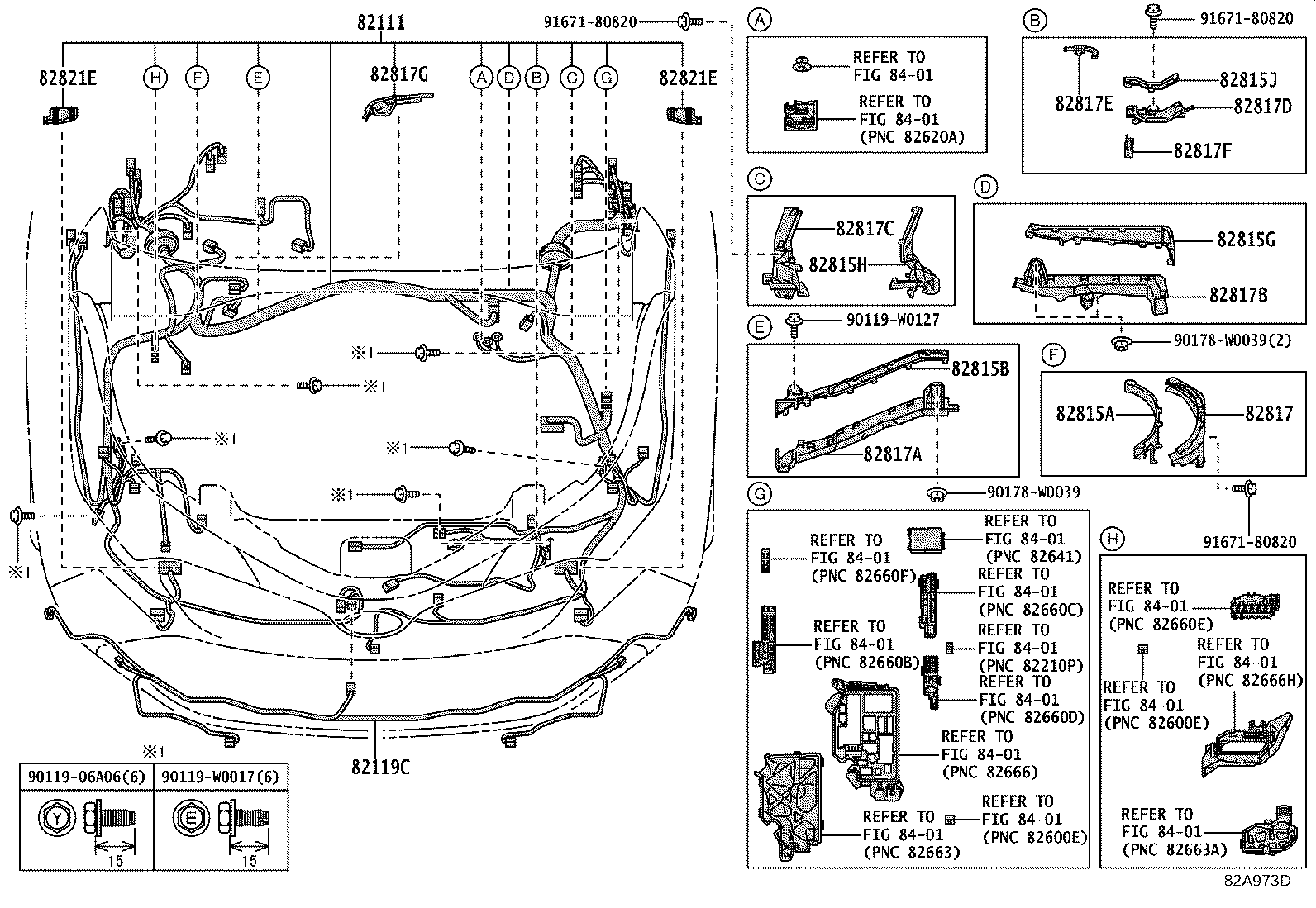

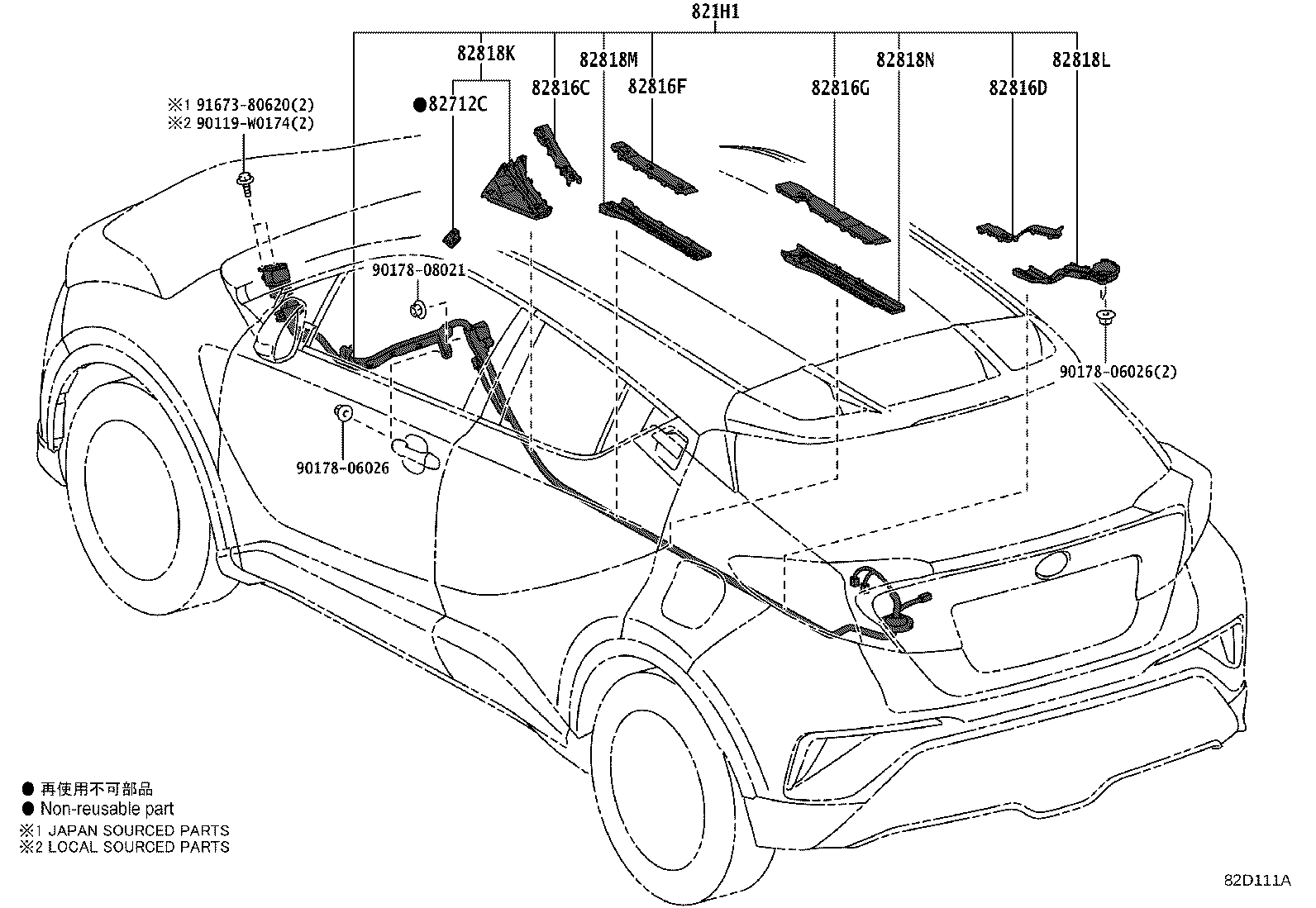

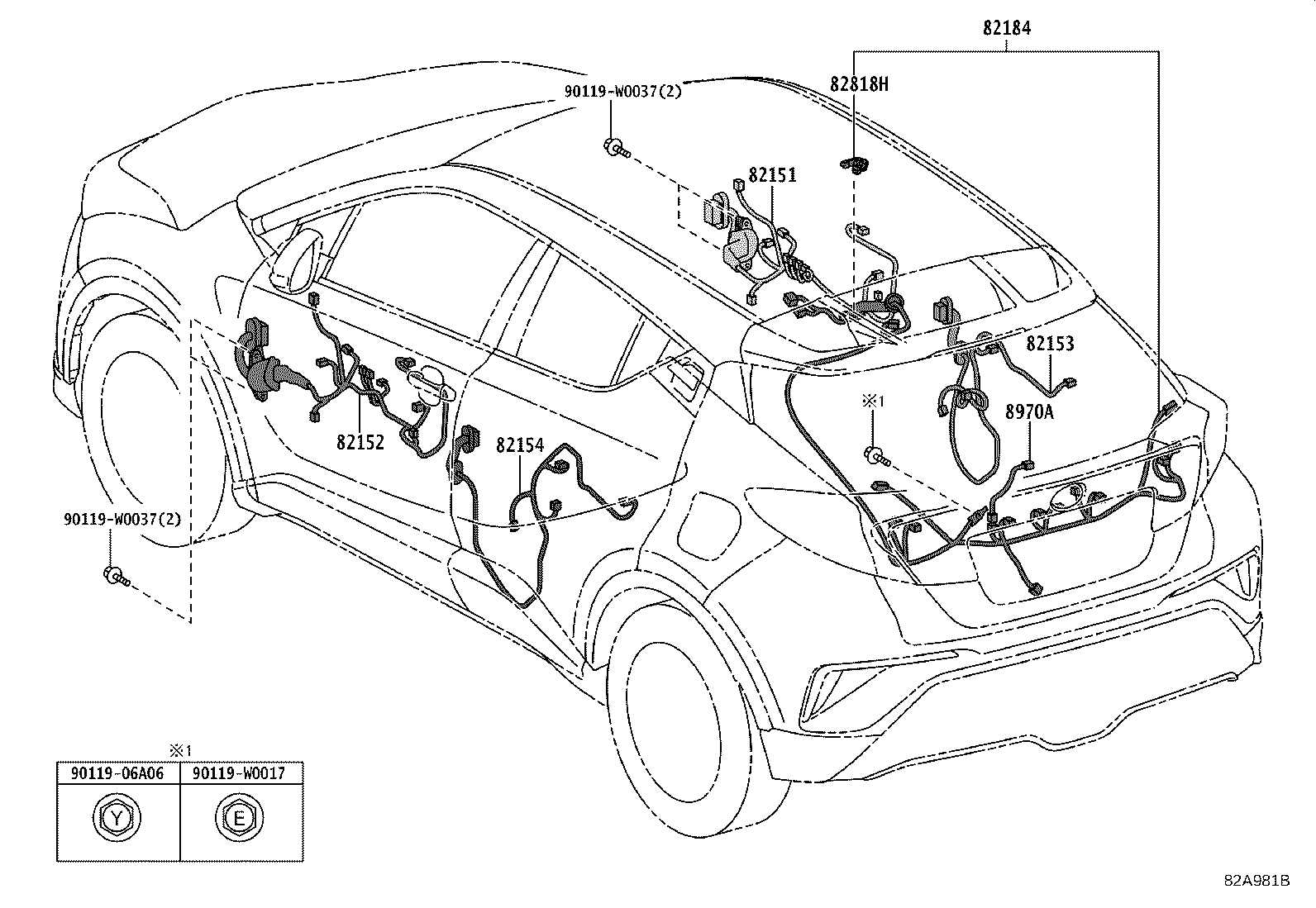

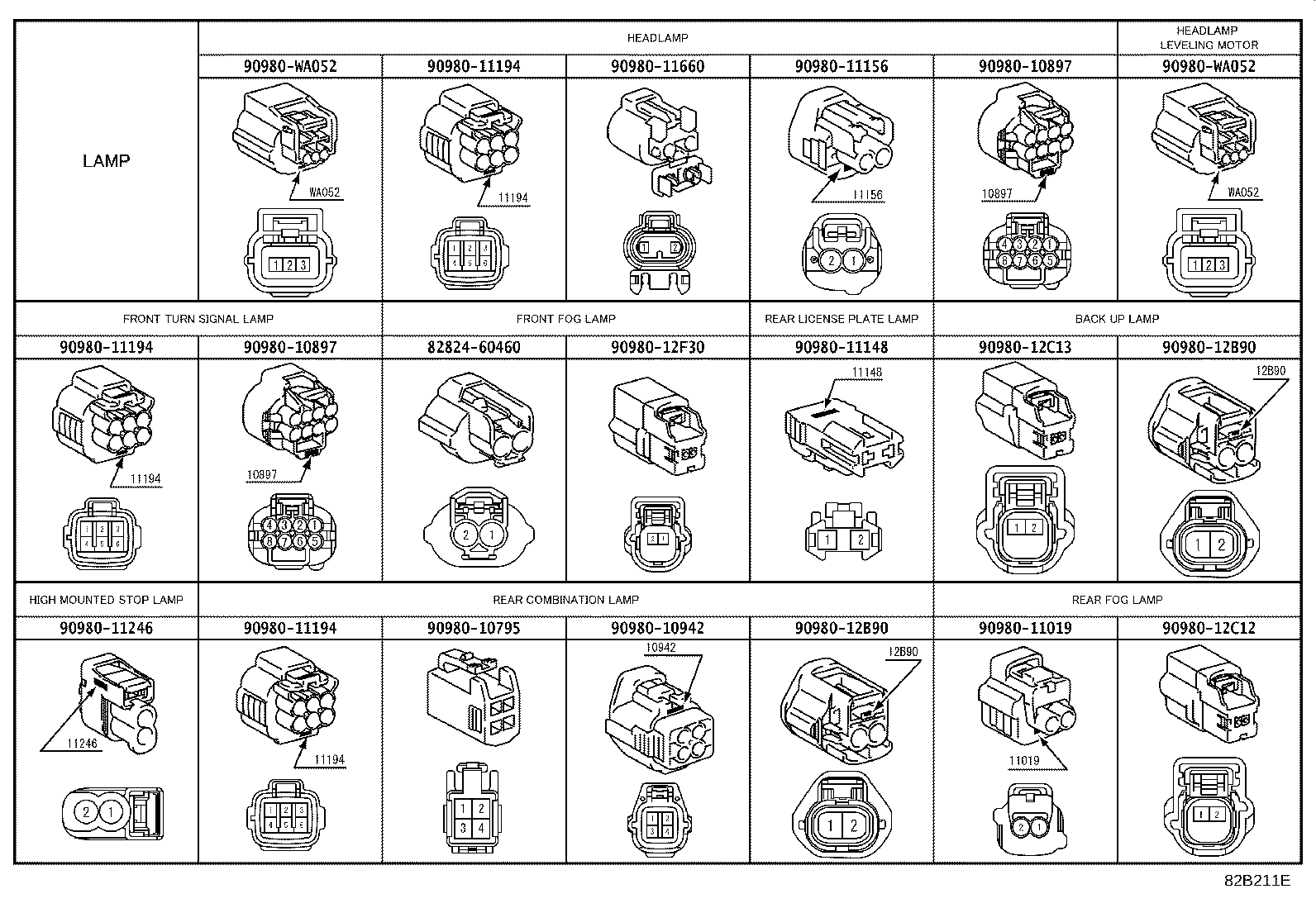

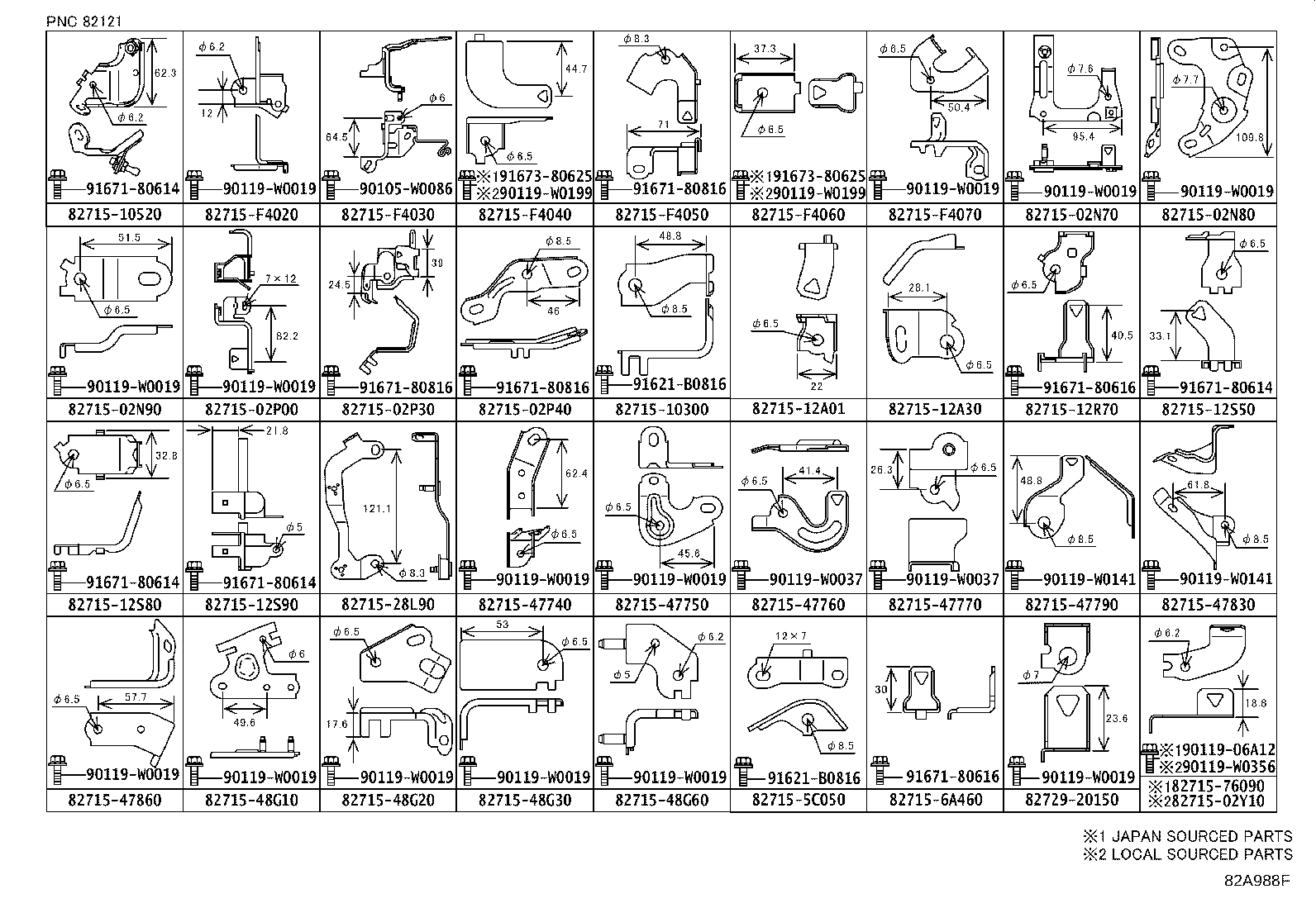

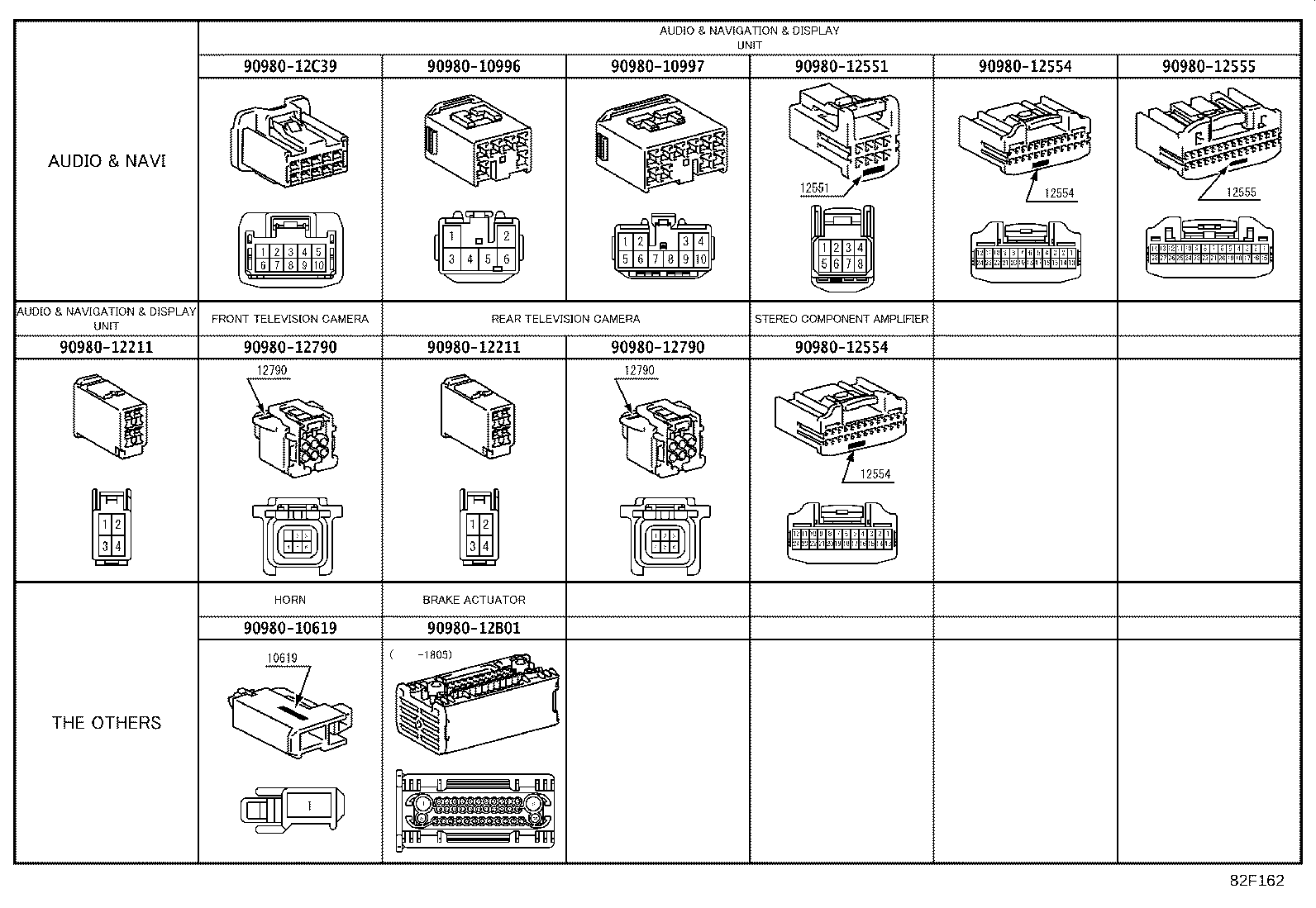

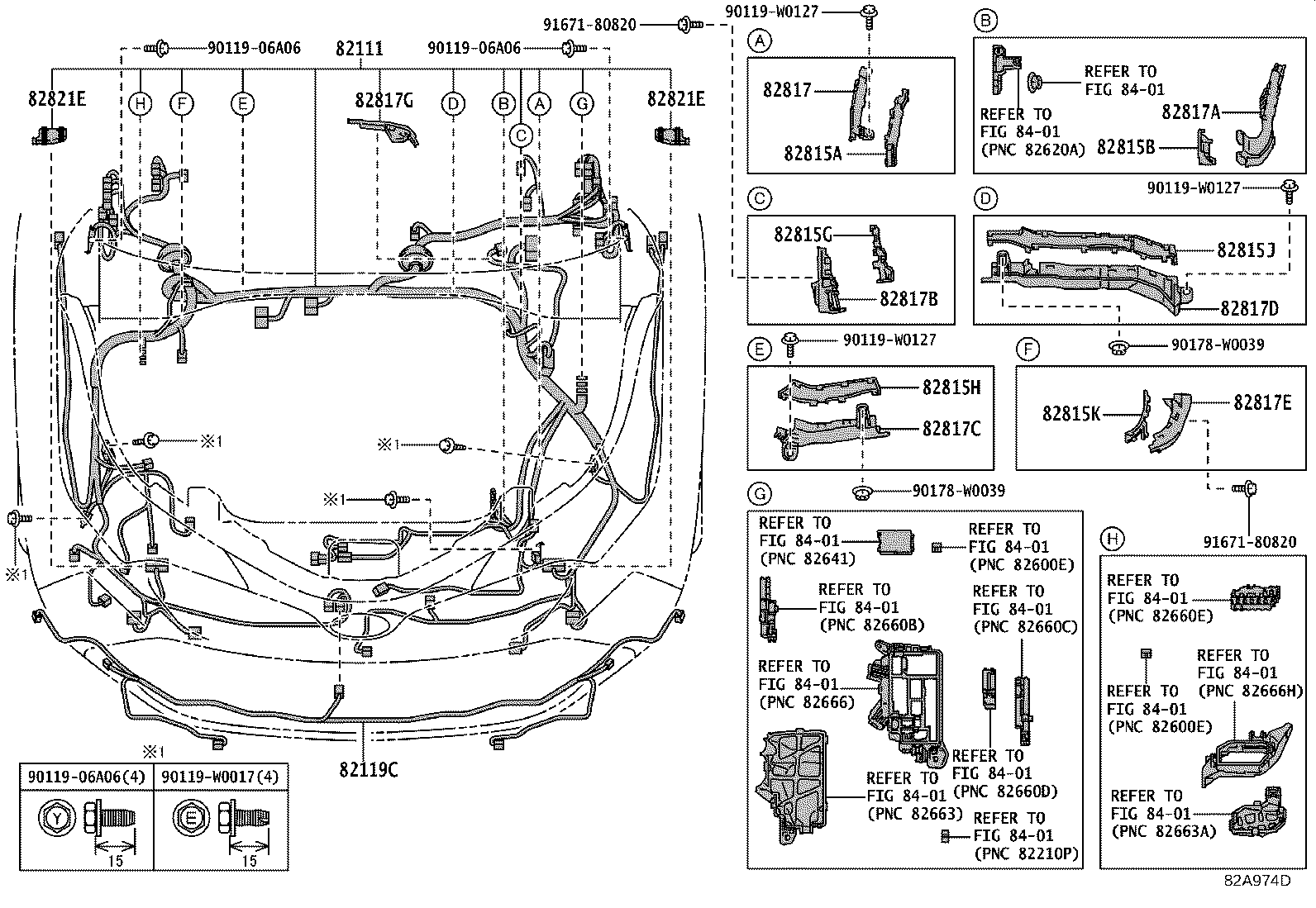

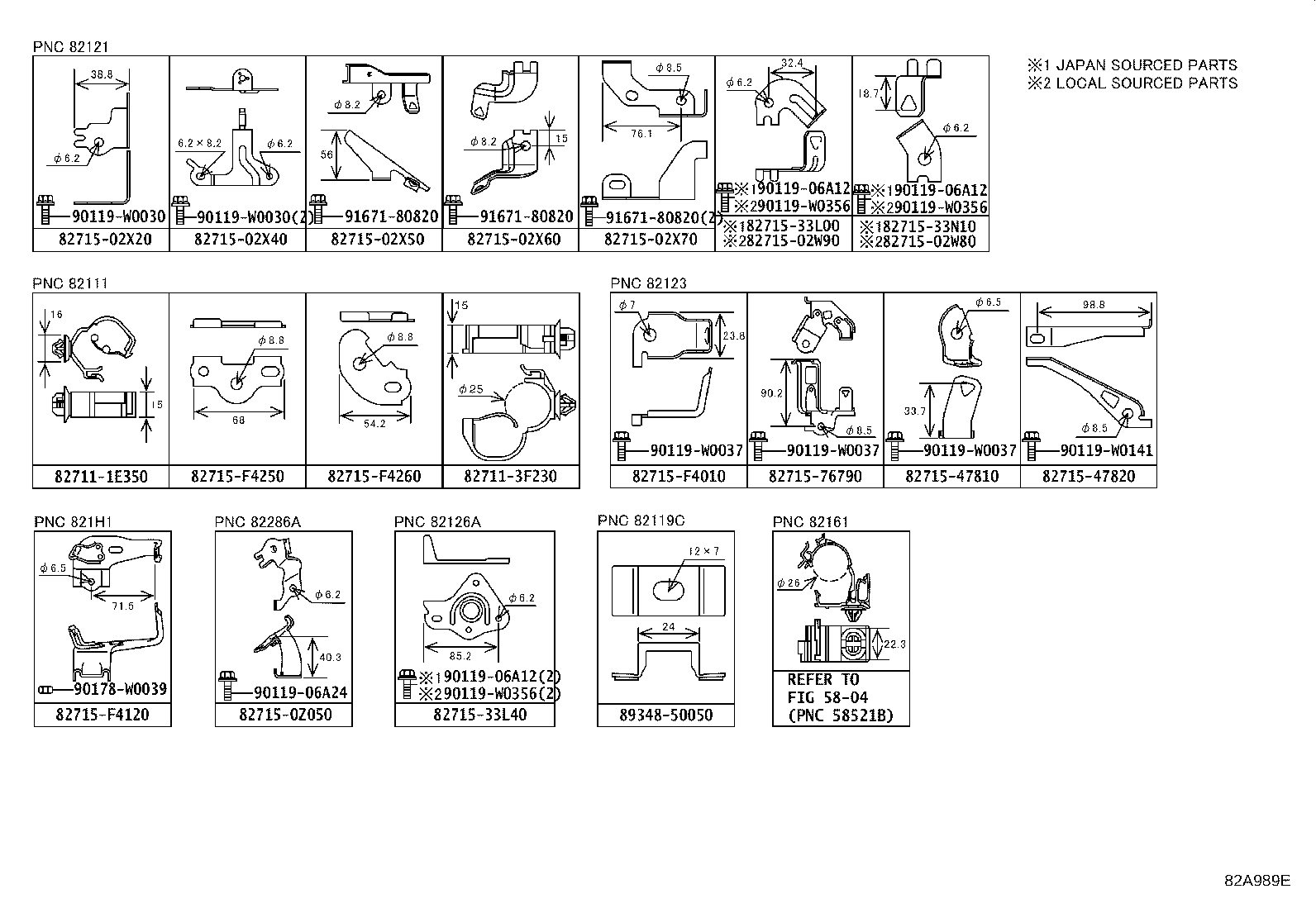

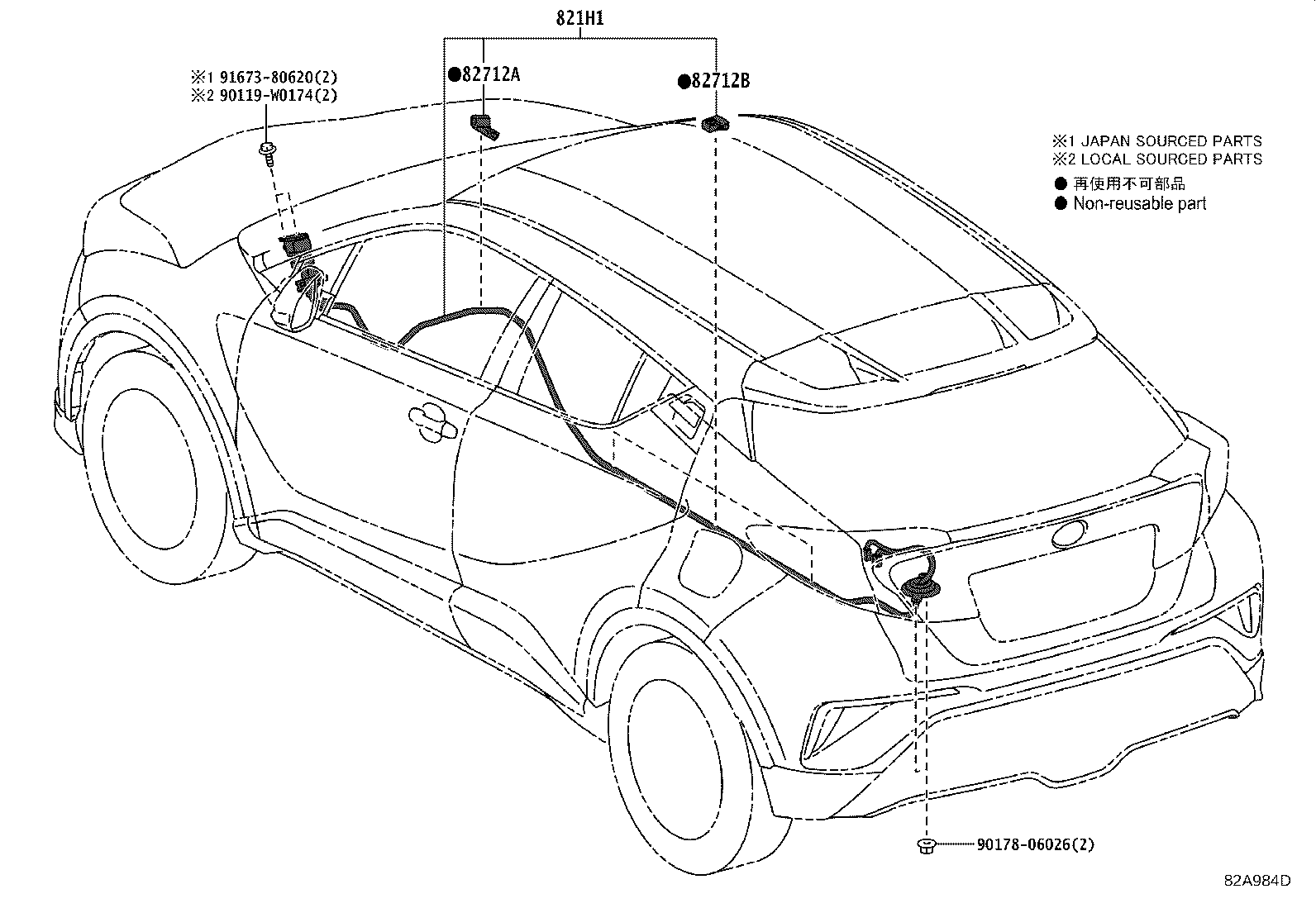

Figure 82A972F 82A972F 2016-10 → — Figure 82A973D 82A973D 2016-10 → — Figure 82A974D 82A974D 2016-10 → — Figure 82A975D 82A975D 2016-10 → — Figure 82D112 82D112 2019-09 → — Figure 82D113 82D113 2019-09 → — Figure 82A976B 82A976B 2016-10 → — Figure 82A978B 82A978B 2016-10 → — Figure 82A977A 82A977A 2016-10 → — Figure 82D114 82D114 2019-09 → — Figure 82A979A 82A979A 2016-10 → — Figure 82D119 82D119 2016-10 → — Figure 82A981B 82A981B 2016-10 → — Figure 82A982T 82A982T 2016-10 → — Figure 82A984D 82A984D 2016-10 → — Figure 82D110A 82D110A 2019-09 → — Figure 82D111A 82D111A 2019-09 → — Figure 82A985A 82A985A 2016-10 → — Figure 82A988F 82A988F 2016-10 → — Figure 82A989E 82A989E 2016-10 → — Figure 82B211E 82B211E 2016-10 → — Figure 82B210D 82B210D 2016-10 → — Figure 82F162 82F162 2016-10 → —

Part groups

PNCDescription
16364A Wire, Cooling Fan
82111 Wire, Engine Room Main
82119C Wire, Engine Room, NO.5
82121 Wire, Engine
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82125N Wire, Engine, NO.5
82126A Wire, Engine, NO.6
82128A Wire, Engine, NO.8
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82142A Wire, Instrument Panel, NO.2
82143 Wire, Instrument Panel, NO.3
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82169A Wire, Floor, NO.6
8216A Wire, Floor NO.7
8216B Wire, Floor NO.8
8216C Wire, Floor, NO.9
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82191 Wire, Front Seat, RH
82191A Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82192B Wire, Front Seat, LH NO.2
8219A Wire, Front Seat, RH NO.2
8219B Wire, Front Seat, LH NO.2
821H1 Wire, Floor Under
821H2 Wire, HV Air Conditioner
82219 Wire, Thermo Sensor
82219A Wire, Sensor
82284 Wire, Earth
82286A Wire, Earth, NO.2
82661D Cover, Relay Block, Side NO.1
82661E Cover, Relay Block, Side NO.2
82661H Cover, Relay Block
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82712A Support, Wiring Harness
82712B Support, Wiring Harness
82712C Support, Wiring Harness, NO.1
82815A Cover, Wiring Harness Protector
82815B Cover, Wiring Harness Protector
82815G Cover, Wiring Harness Protector NO.5
82815H Cover, Wiring Harness Protector NO.6
82815J Cover, Wiring Harness Protector, NO.7
82815K Cover, Wiring Harness Protector, NO.8
82815L Cover, Wiring Harness Protector, NO.9
82815M Cover, Wiring Harness Protector, NO.10
82815N Cover, Wiring Harness Protector, NO.11
82815P Cover, Wiring Harness Protector, NO.12
82815Q Cover, Wiring Harness Protector, NO.13
82815R Cover, Wiring Harness Protector, NO.14
82815S Cover, Wiring Harness Protector, NO.15
82815T Cover, Wiring Harness Protector, NO.16
82815U Cover, Wiring Harness Protector, NO.17
82815V Cover, Wiring Harness Protector, NO.1
82815W Cover, Wiring Harness Protector, NO.2
82815X Cover, Wiring Harness Protector, NO.3
82815Y Cover, Wiring Harness Protector, NO.4
82815Z Cover, Wiring Harness Protector, NO.18
82816B Cover, Wiring Harness Protector, NO.1
82816C Cover, Wiring Harness Protector, NO.2
82816D Cover, Wiring Harness Protector, NO.3
82816F Cover, Wiring Harness Protector, NO.4
82816G Cover, Wiring Harness Protector, NO.5
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82817K Protector, Wiring Harness, NO.10
82817L Protector, Wiring Harness, NO.11
82817M Protector, Wiring Harness, NO.12
82817N Protector, Wiring Harness, NO.13
82817P Protector, Wiring Harness, NO.14
82817T Protector, Wiring Harness, NO.15
82817U Protector, Wiring Harness, NO.16
82817X Protector, Wiring Harness, NO.17
82818 Protector, Wiring Harness, NO.2
82818B Protector, Wiring Harness, NO.3
82818C Protector, Wiring Harness, NO.4
82818D Protector, Wiring Harness, NO.5
82818E Protector, Wiring Harness, NO.6
82818F Protector, Wiring Harness, NO.7
82818G Protector, Wiring Harness, NO.8
82818H Protector, Wiring Harness, NO.9
82818J Protector, Wiring Harness, NO.10
82818K Protector, Wiring Harness, NO.11
82818L Protector, Wiring Harness, NO.12
82818M Protector, Wiring Harness, NO.13
82818N Protector, Wiring Harness, NO.14
82818S Protector, Wiring Harness, NO.15
82821A Cover, Connector
82821E Cover, Connector
82823 Cap, Terminal, NO.1
82823A Cap, Terminal, NO.2
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824A Connector, Wiring Harness
82824D Connector, Wiring Harness
82824E Connector, Wiring Harness
890C0 Wire Assy, Parking Brake, NO.1
890C0A Wire Assy, Parking Brake, NO.2
8970A Cord Sub-assy, Theft Warning Sensor
G921D Protector, Inverter Connector Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
