Toyota C-hr

2016-10 → present · chassis MAXH10,NGX10,50,ZGX10,ZYX1# · catalogue 528510 · Europe

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

12 part groups · 2 illustrations

Illustrations

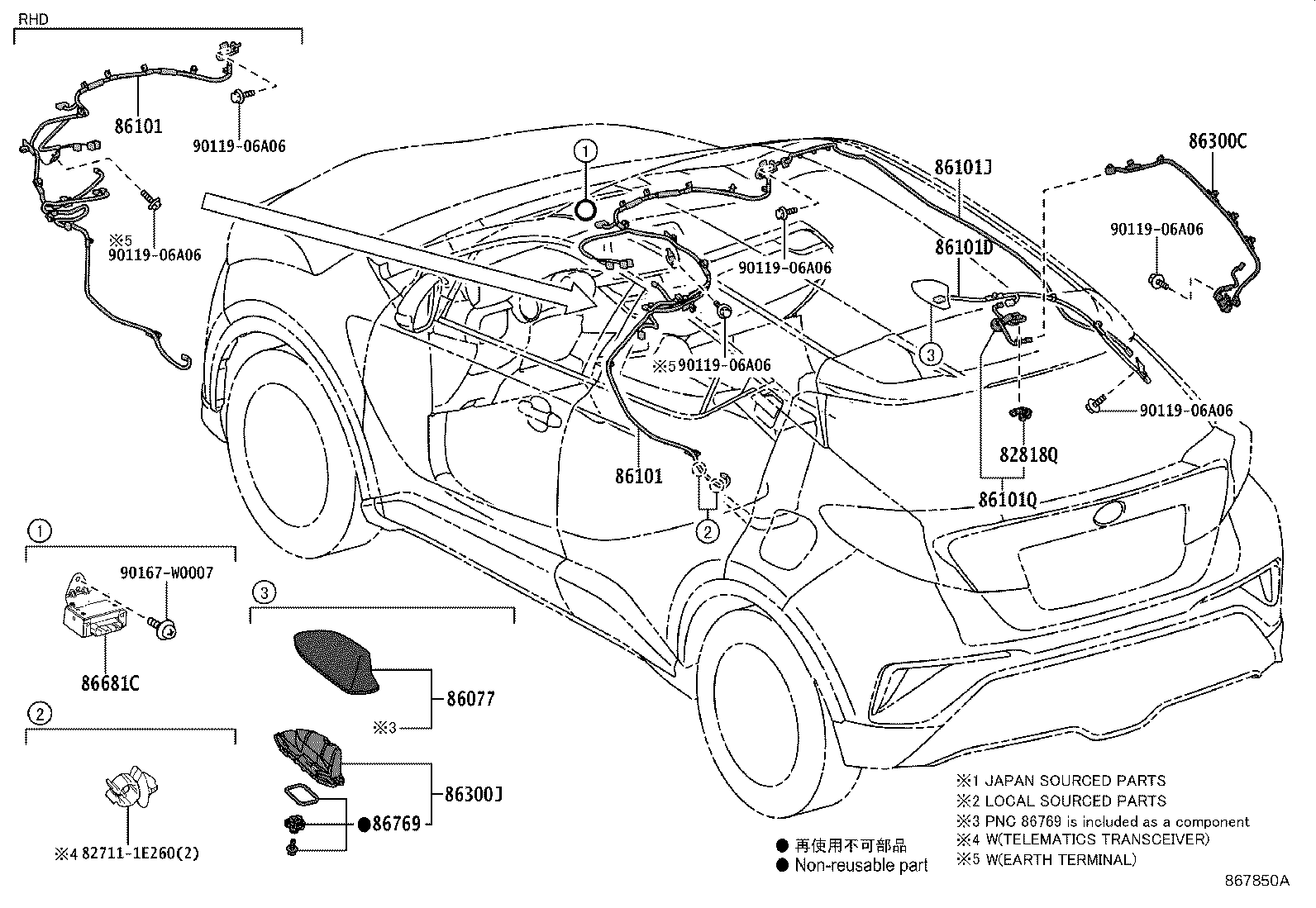

Figure 866675F 866675F 2016-10 → 2019-09 Figure 867850A 867850A 2019-09 → —

Part groups

PNCDescription
82818Q Protector, Wiring Harness, NO.1
86077 Cover Kit, Antenna
86101 Cord Sub-assy, Antenna
86101D Cord Sub-assy, Antenna, NO.3
86101J Cord Sub-assy, Antenna, NO.2
86101Q Cord Sub-assy, Antenna, NO.4
86101R Cord Sub-assy, Antenna, NO.5
86300C Antenna Assy, Amplifier, NO.2
86300J Antenna Assy, Roof
863C0 Antenna Assy, Digital Audio Broadcasting
86681C Divider, Antenna
86769 Housing, Roof Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
