Toyota C-hr

2016-10 → present · chassis MAXH10,NGX10,50,ZGX10,ZYX1# · catalogue 528510 · Europe

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

37 part groups · 8 illustrations

Illustrations

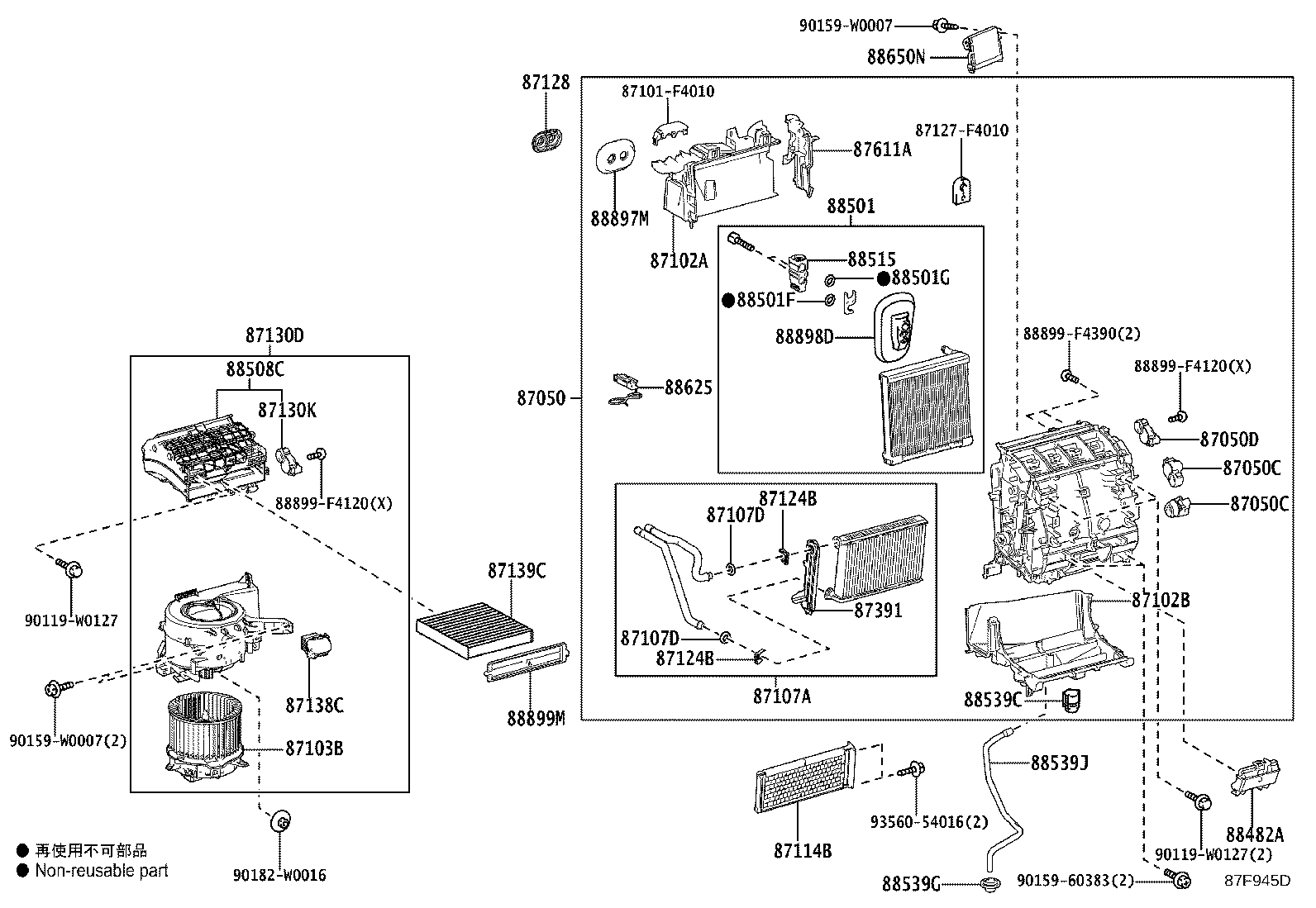

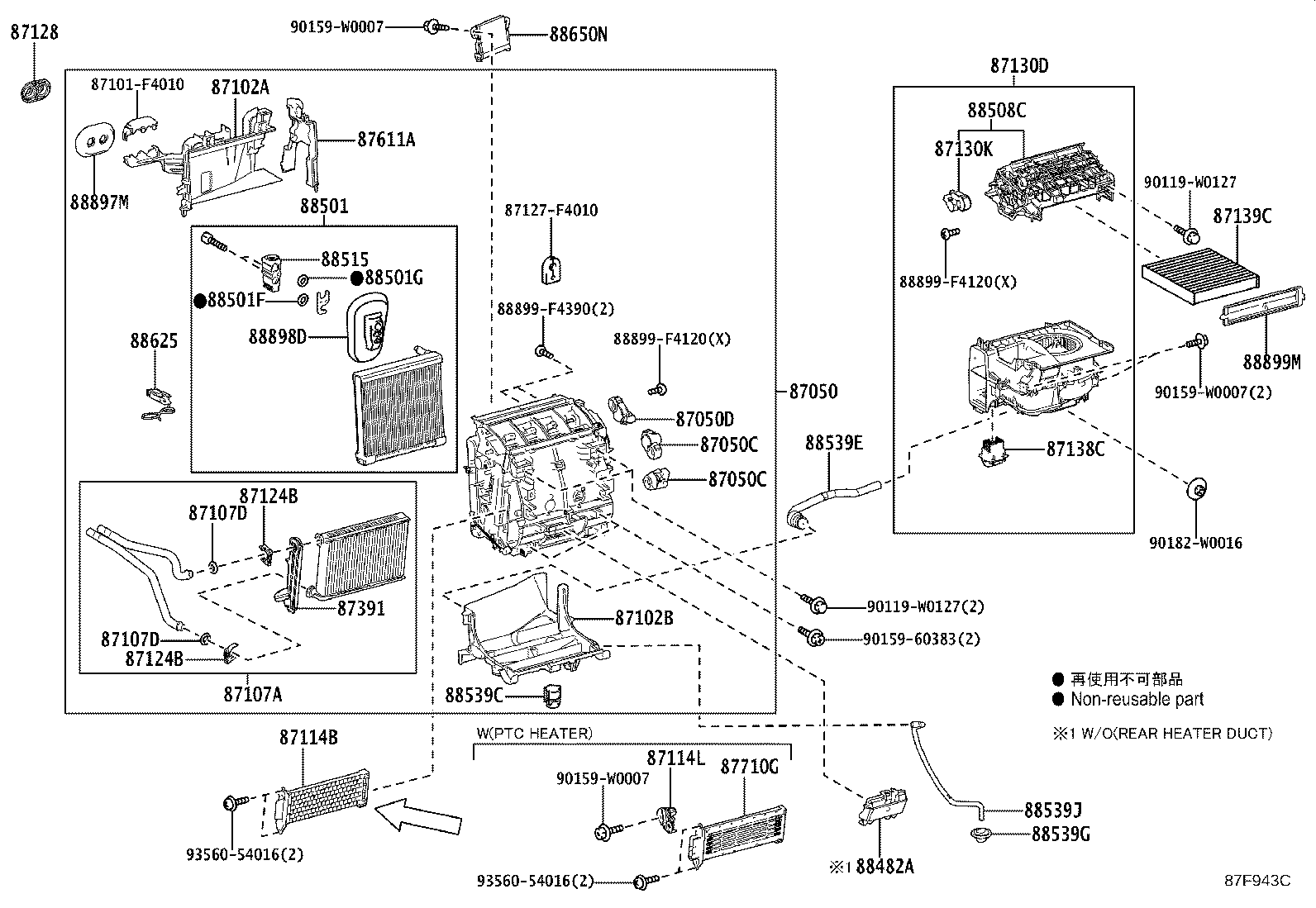

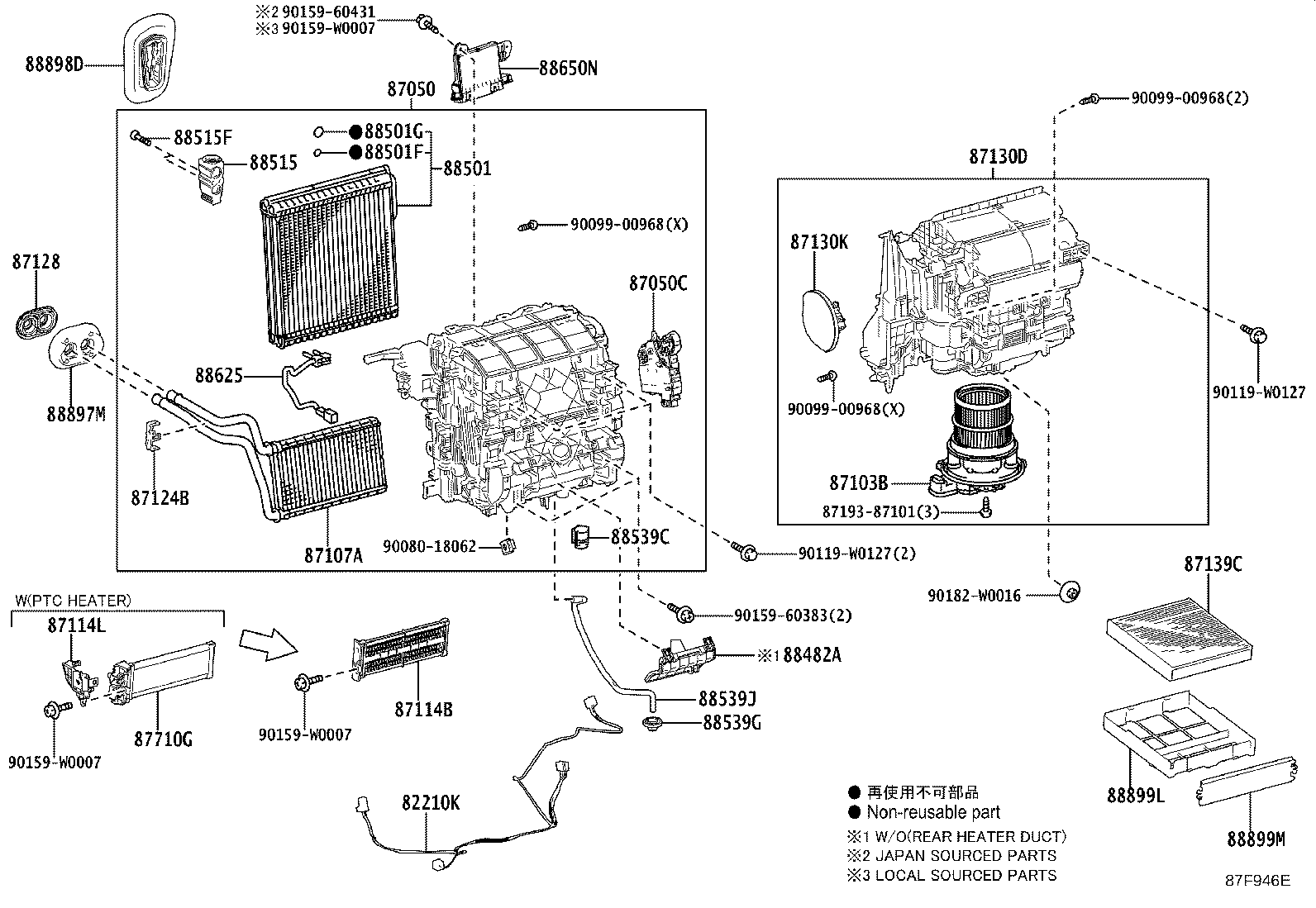

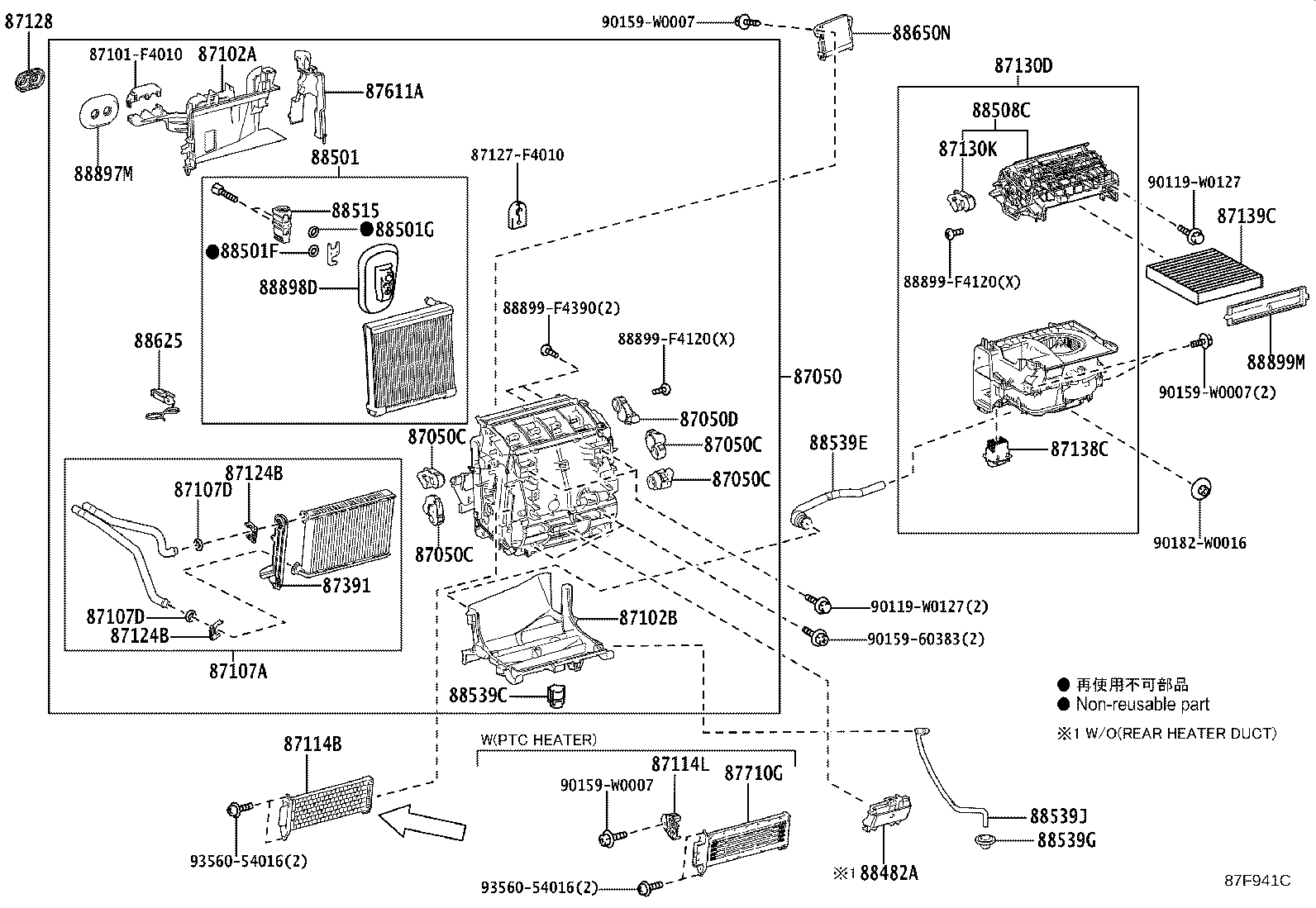

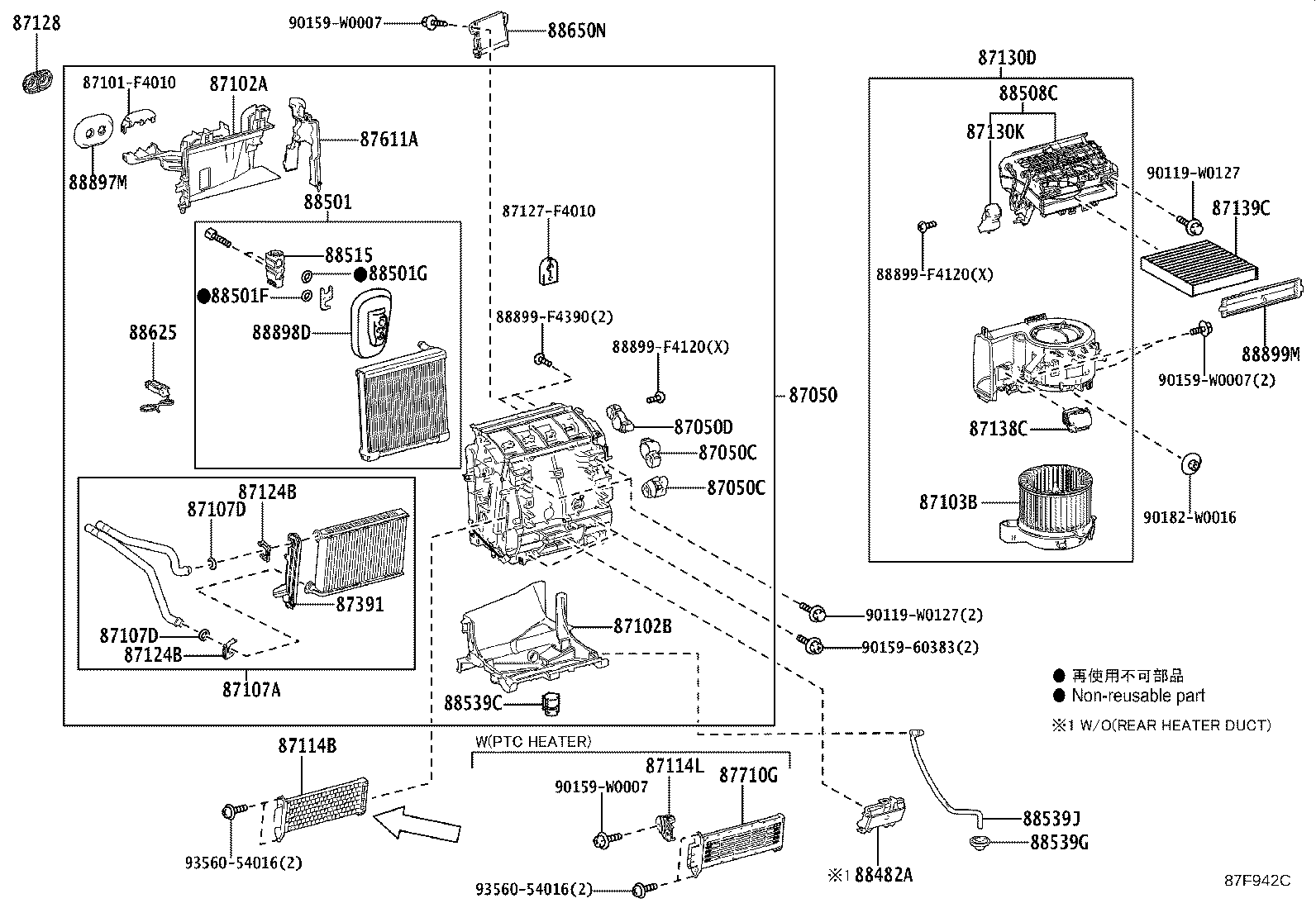

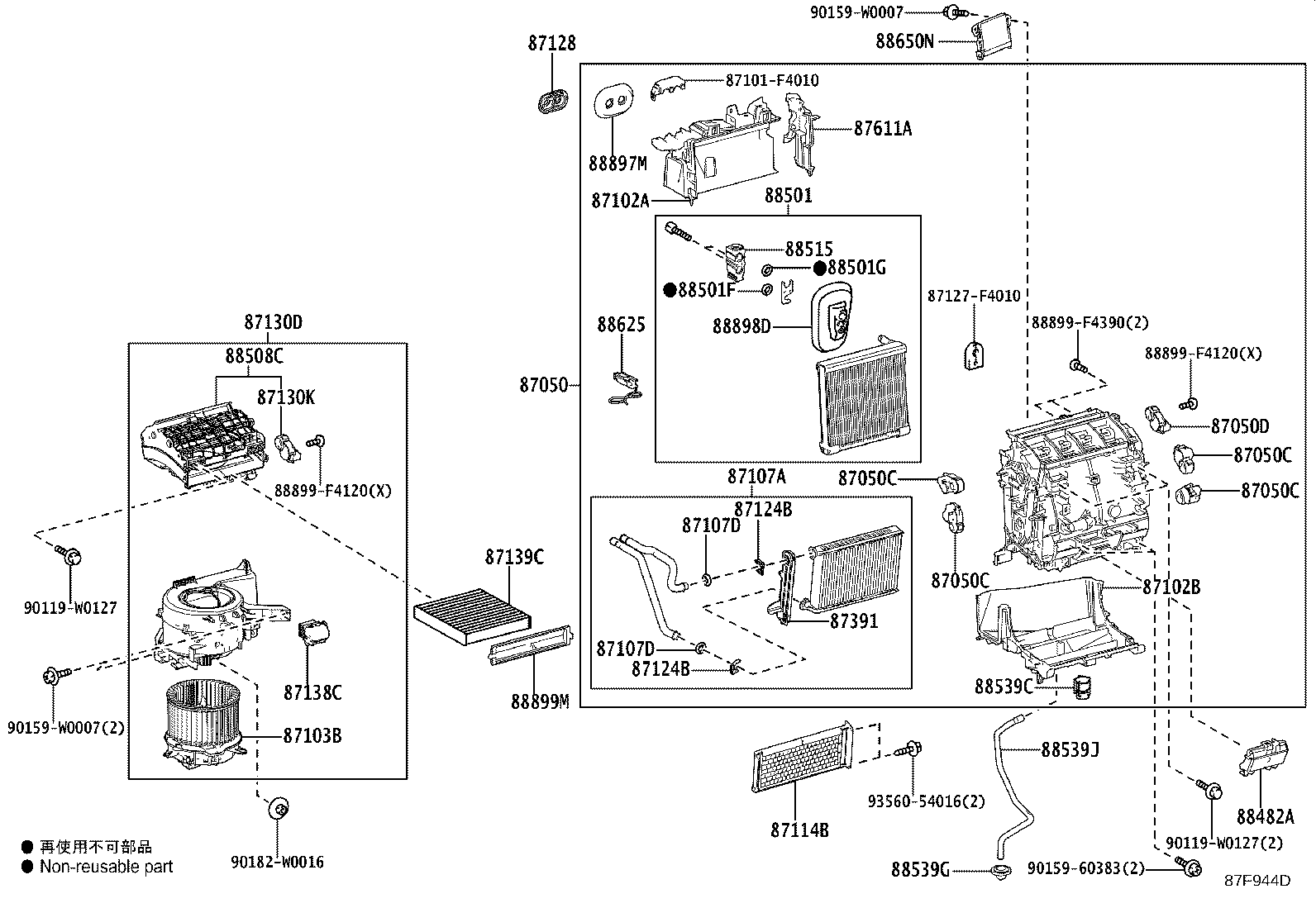

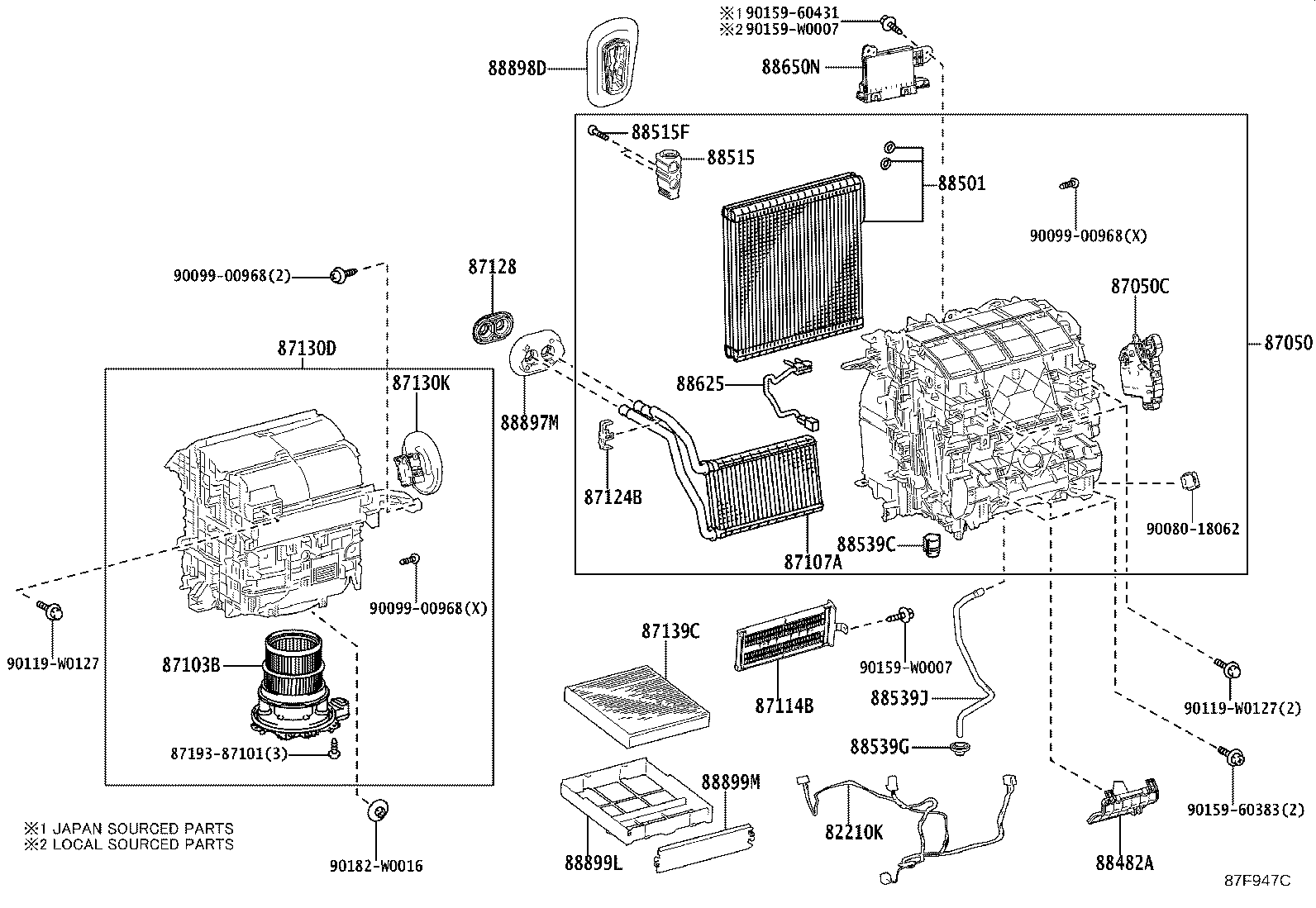

Figure 87F940C 87F940C 2016-10 → — Figure 87F941C 87F941C 2016-10 → — Figure 87F942C 87F942C 2016-10 → — Figure 87F943C 87F943C 2016-10 → — Figure 87F944D 87F944D 2016-10 → — Figure 87F945D 87F945D 2016-10 → — Figure 87F946E 87F946E 2016-10 → — Figure 87F947C 87F947C 2016-10 → —

Part groups

PNCDescription
82210K Harness Assy, Air Conditioner
87050 Radiator Assy, Air Conditioner
87050C Damper Servo Sub-assy, Air Conditioner Radiator, NO.1
87050D Damper Servo Sub-assy, Air Conditioner Radiator, NO.2
87102A Case Sub-assy, Radiator
87102B Case Sub-assy, Radiator, NO.2
87103B Motor Sub-assy, Blower W/Fan
87107A Unit Sub-assy, Heater Radiator
87107D Ring, O (FOR HEATER RADIATOR UNIT)
87114B Cover, Heater
87114L Cover, Heater, NO.2
87124B Clamp, Heater
87128 Grommet, Heater
87130D Blower Assy
87130K Damper Servo Sub-assy, Blower, NO.1
87138C Resistor, Blower
87139C Filter, Clean Air
87391 Cover, Blower Motor
87611A Case, Heat Exchanger
87710G Quick Heater Assy
88482A Cover
88501 Evaporator Sub-assy, Cooler, NO.1
88501F O-ring, Cooler Evaporator NO.1(DISCHARGE)
88501G O-ring, Cooler Evaporator NO.1(SUCTION)
88508C Filter Sub-assy, Air
88515 Valve, Cooler Expansion
88515F Bolt(FOR COOLER EXPANSION VALVE)
88539C Hose, Cooler Unit Drain, NO.2
88539E Hose, Cooler Unit Drain, NO.3
88539G Grommet (FOR COOLER UNIT DRAIN HOSE)
88539J Hose, Drain Cooler
88625 Thermistor, Cooler, NO.1
88650N Amplifier Assy, Air Conditioner
88897M Grommet (FOR HEATER PIPE)
88898D Grommet
88899L Parts, Cooling Unit
88899M Plate, Cover(FOR AIR FILTER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
