Toyota C-hr

2016-10 → present · chassis MAXH10,NGX10,50,ZGX10,ZYX1# · catalogue 528510 · Europe

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

6 part groups · 5 illustrations

Illustrations

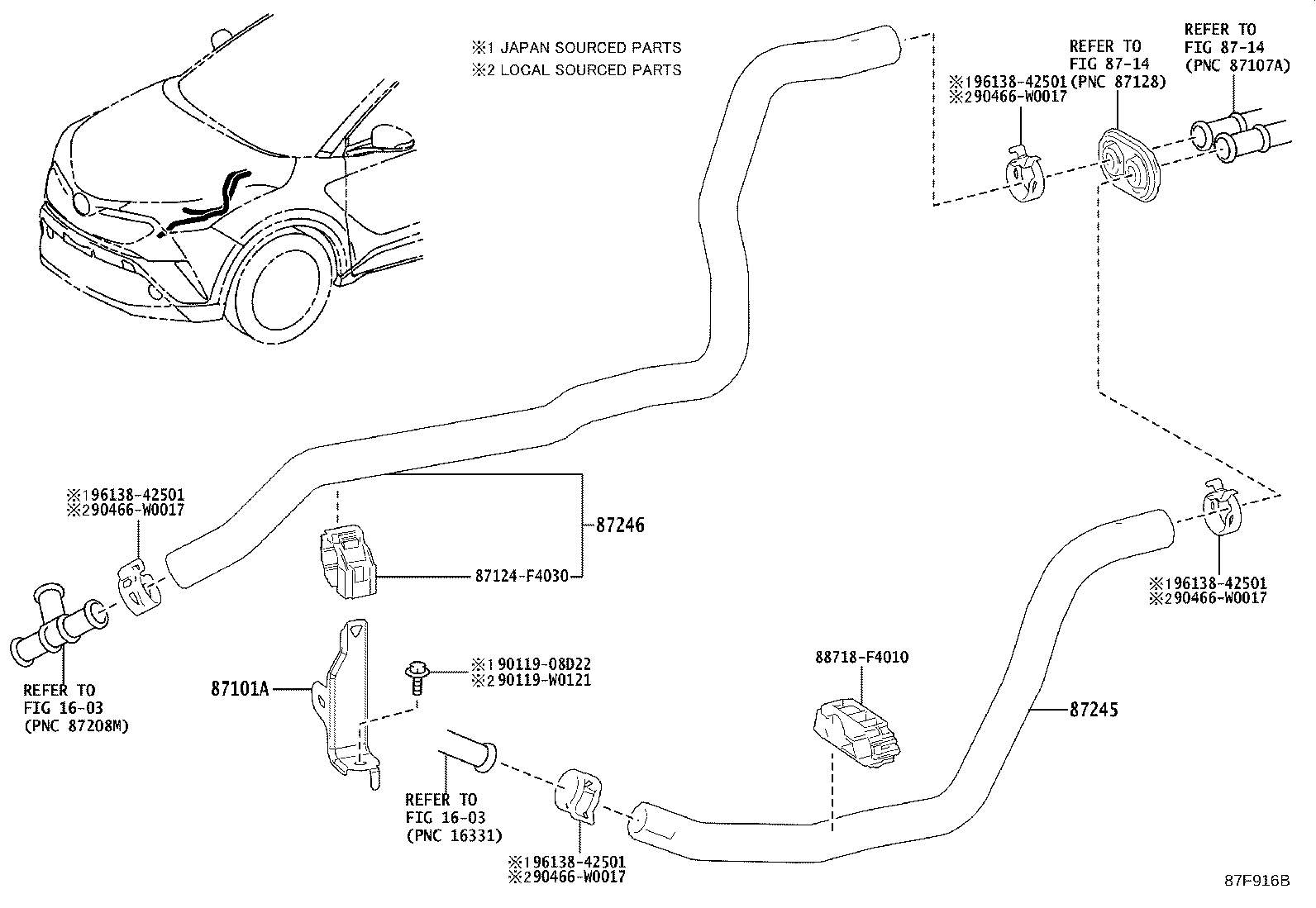

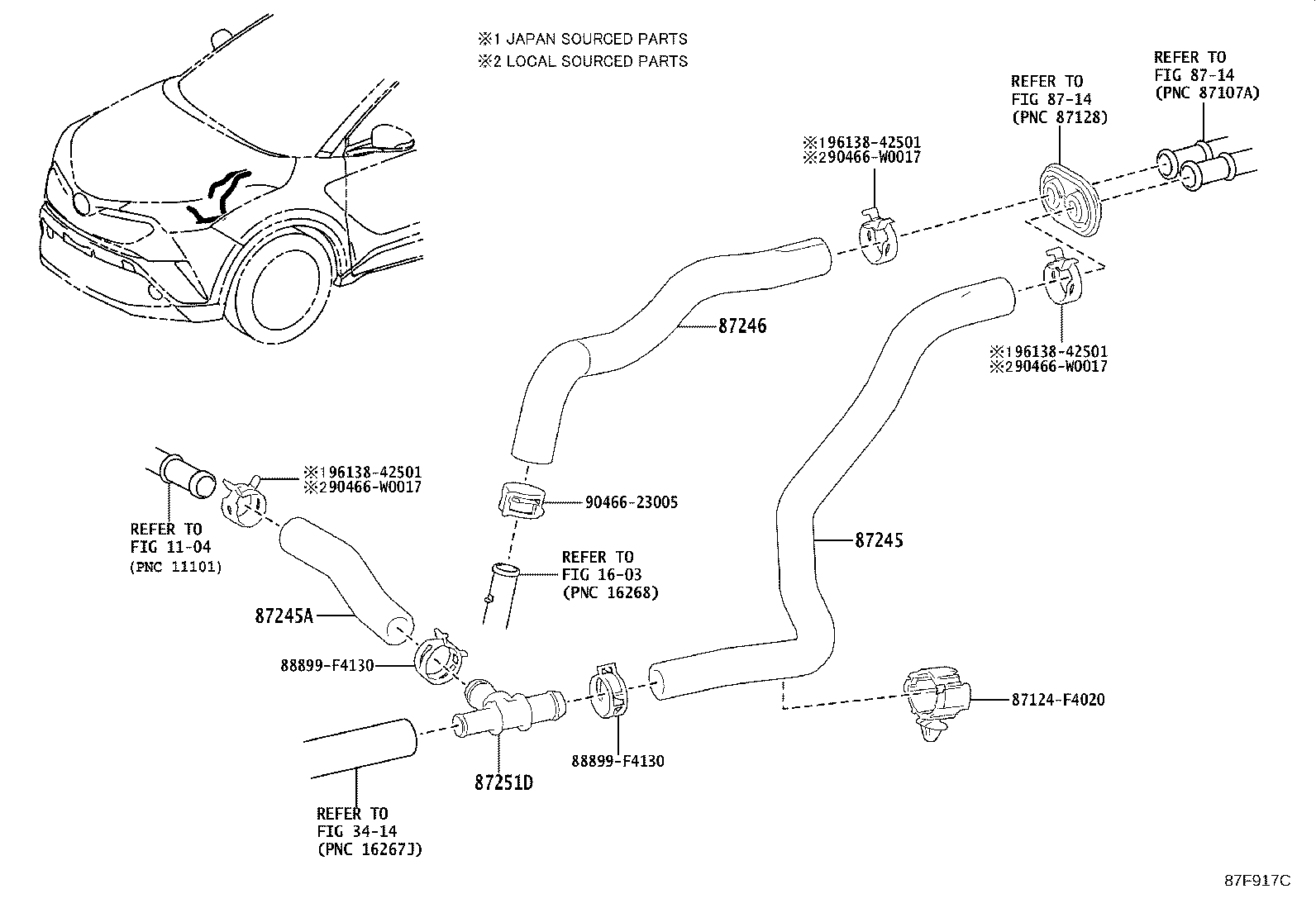

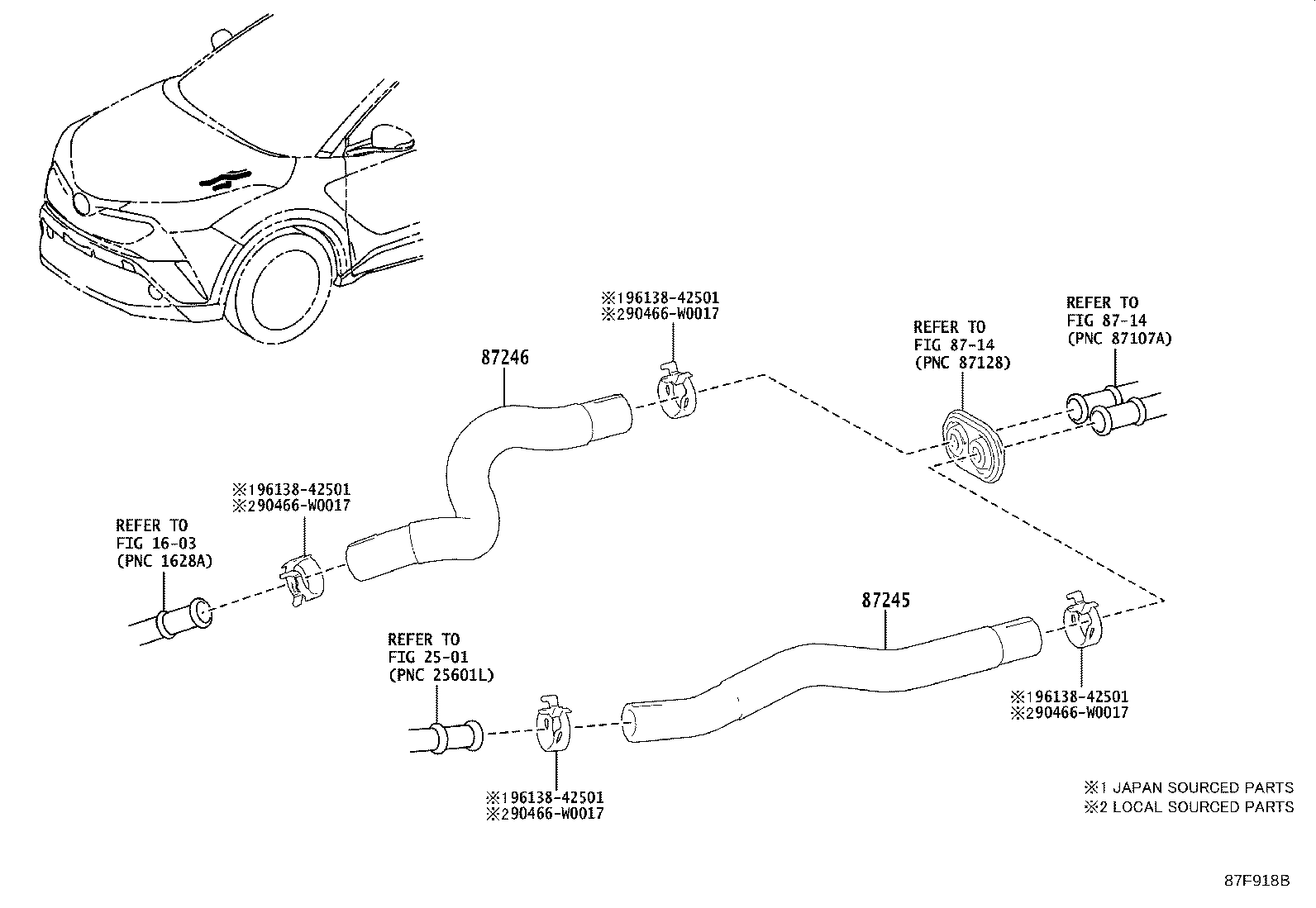

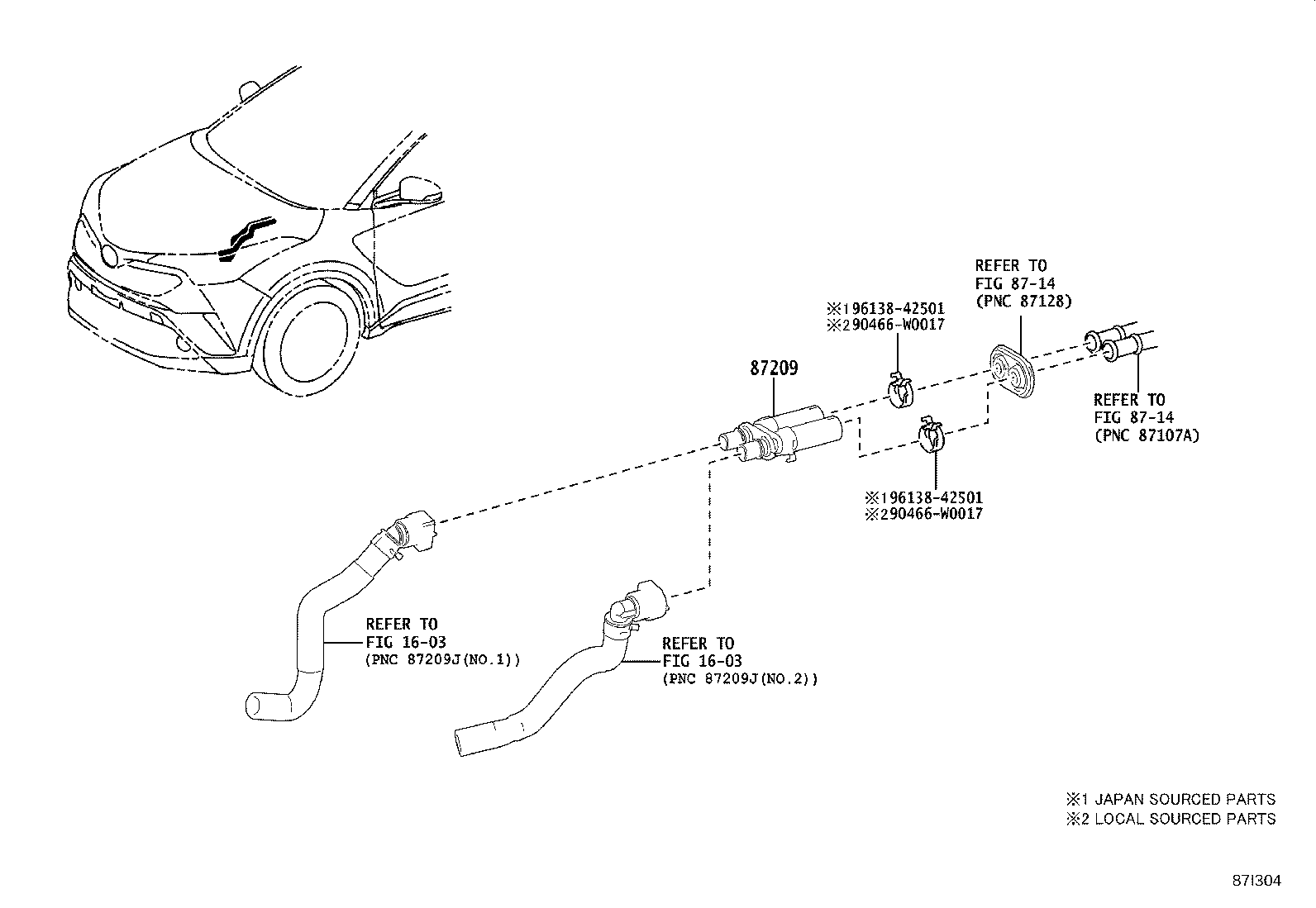

Figure 87F915C 87F915C 2016-10 → — Figure 87F916B 87F916B 2016-10 → — Figure 87F917C 87F917C 2016-10 → — Figure 87F918B 87F918B 2016-10 → — Figure 87I304 87I304 2019-09 → —

Part groups

PNCDescription
87101A Bracket Sub-assy, Heater NO.1
87209 Hose Sub-assy, Water
87245 Hose, Heater Water, Inlet
87245A Hose, Heater Water, Inlet A
87246 Hose, Heater Water, Outlet
87251D Joint, Water, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
