Toyota C-hr

2016-10 → present · chassis MAXH10,NGX10,50,ZGX10,ZYX1# · catalogue 528510 · Europe

Supported model Data version 2019-09

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Purifier OR Ion Generator

3 part groups · 2 illustrations

Illustrations

Figure 87F893A

87F893A 2016-10 → —

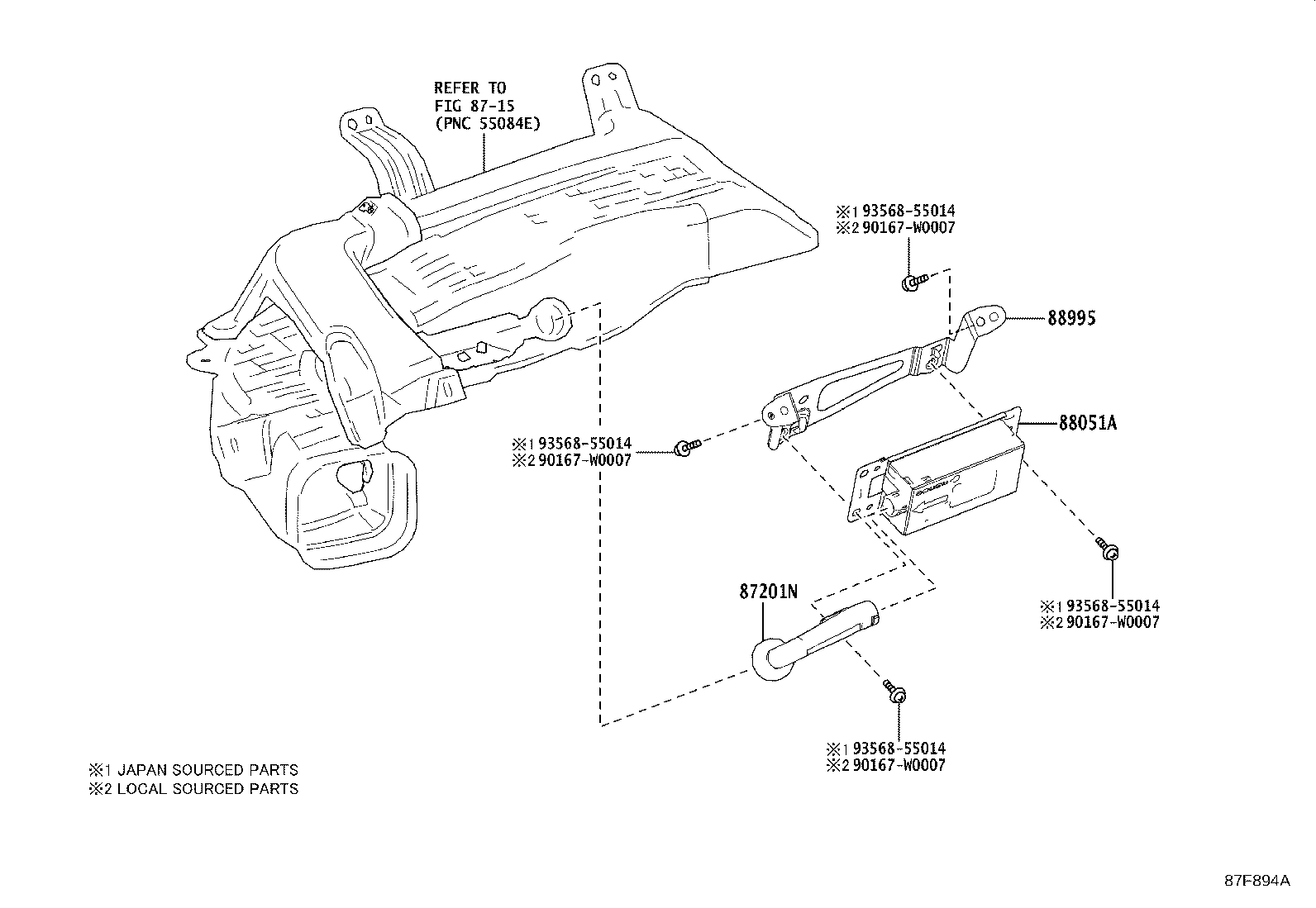

Figure 87F894A

87F894A 2016-10 → —

Part groups

PNC	Description
87201N	Duct Sub-assy, Air
88051A	Generator Sub-assy,Ion
88995	Bracket,Ion Generator, NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
