Toyota Lexus UX200/2##H

2018-10 → 2022-07 · chassis MZAA10,MZAH1# · catalogue 537210 · Europe

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes
Exploded illustration 390556C 30900T — PLUG, BREATHER(FOR REAR TRACTION MOTOR) (1 parts) 41653D — STOPPER, DIFFERENTIAL MOUNT,UPPER (1 parts) 9011912455 — not listed in this catalogue 91552E1255 — not listed in this catalogue 91552E1255 — not listed in this catalogue 9011914109 — not listed in this catalogue 9167180612 — not listed in this catalogue 9167180612 — not listed in this catalogue 9167380616 — not listed in this catalogue 9167380616 — not listed in this catalogue 9167380616 — not listed in this catalogue 9167380616 — not listed in this catalogue 9167380616 — not listed in this catalogue 9043018008 — not listed in this catalogue 9052126004 — not listed in this catalogue 9052126004 — not listed in this catalogue 9011912455 — not listed in this catalogue 41654B — STOPPER, DIFFERENTIAL MOUNT,LOWER (1 parts) 41654B — STOPPER, DIFFERENTIAL MOUNT,LOWER (1 parts) 41653D — STOPPER, DIFFERENTIAL MOUNT,UPPER (1 parts) 52380F — SUPPORT ASSY, DIFFERENTIAL, FRONT (1 parts) 41196B — DAMPER, DIFFERENTIAL DYNAMIC (1 parts) 41651G — CUSHION, DIFFERENTIAL MOUNT (1 parts) 41309L — SHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, LH (3 parts) 41309K — SHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, RH (2 parts) G114D — CAP, MOTOR CABLE TERMINAL (1 parts) G1149 — CABLE(FOR REAR TRACTION MOTOR) (1 parts) G1143 — BRACKET, MOTOR CABLE (3 parts) G1143 — BRACKET, MOTOR CABLE (3 parts) G1143 — BRACKET, MOTOR CABLE (3 parts) 41336M — DUST COVER, DIFFERENTIAL SIDE GEAR SHAFT, LH (1 parts) 41309N — SEAL, TYPE T OIL(FOR DIFFERENTIAL SIDE GEAR SHAFT LH) (1 parts) G1050B — PLUG, DRAIN(FOR REAR TRACTION MOTOR) (1 parts) G1050D — GASKET, DRAIN PLUG(FOR REAR TRACTION MOTOR) (1 parts) G1050E — GASKET, FILLER PLUG(FOR REAR TRACTION MOTOR) (1 parts) 41309E — SEAL, TYPE T OIL(FOR DIFFERENTIAL SIDE GEAR SHAFT RH) (1 parts) 41336L — DUST COVER, DIFFERENTIAL SIDE GEAR SHAFT, RH (1 parts) 9034118023 — not listed in this catalogue 9034118023 — not listed in this catalogue 9043018008 — not listed in this catalogue G1050C — PLUG, FILLER(FOR REAR TRACTION MOTOR) (1 parts) G1050 — MOTOR ASSY, RR TRACTION W/TRANSAXLE (4 parts)

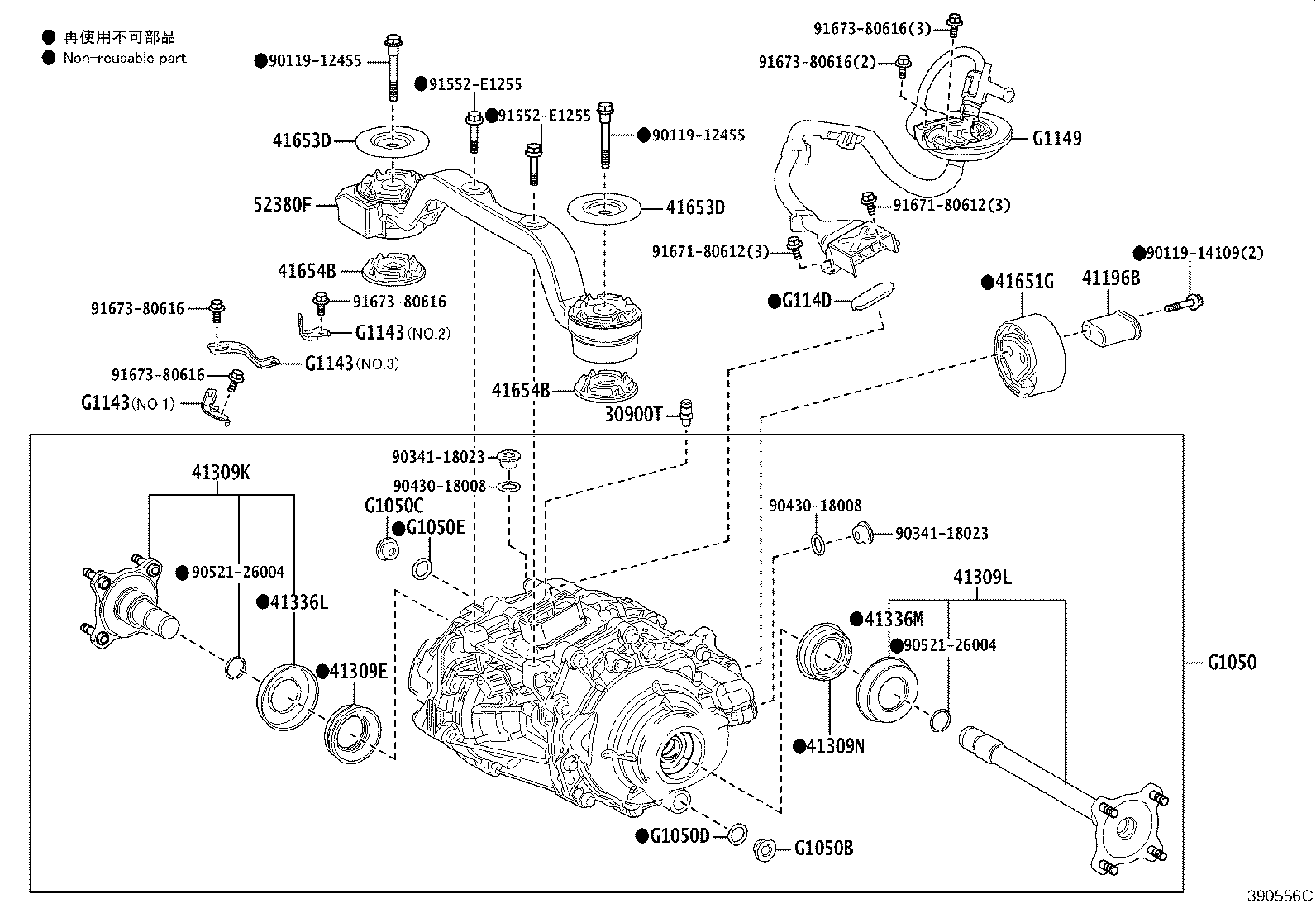

390556C · 24 callouts, 18 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
28 parts on this figure
Part number Description Fitment Price
30900T — Plug, Breather(FOR REAR TRACTION MOTOR)
90930-03031 Plug, Breather(FOR REAR TRACTION MOTOR)
2018-11 → 2022-07 ended
MZAH15 —
41196B — Damper, Differential Dynamic
41196-47010 Damper, Differential Dynamic
2018-11 → 2022-07 ended
MZAH15 —
41309E — Seal, Type T Oil(FOR DIFFERENTIAL SIDE GEAR SHAFT RH)
90311-38097 Seal, Type T Oil(FOR DIFFERENTIAL SIDE GEAR SHAFT RH)
2018-11 → 2022-07 ended
MZAH15 —
41309K — Shaft Sub-assy, Differential Side Gear, RH
41309-47020 Shaft Sub-assy, Differential Side Gear, RH
2018-11 → 2021-07 ended
MZAH15 —
41309-47021 Shaft Sub-assy, Differential Side Gear, RH
2021-08 → 2022-07 ended
MZAH15 —
41309L — Shaft Sub-assy, Differential Side Gear, LH
41309-47010 Shaft Sub-assy, Differential Side Gear, LH
2018-11 → 2021-07 ended
MZAH15 —
41309-47011 Shaft Sub-assy, Differential Side Gear, LH
2021-08 → 2022-06 ended
MZAH15 —
41309-47012 Shaft Sub-assy, Differential Side Gear, LH
2022-06 → 2022-07 ended
MZAH15 —
41309N — Seal, Type T Oil(FOR DIFFERENTIAL SIDE GEAR SHAFT LH)
90311-42056 Seal, Type T Oil(FOR DIFFERENTIAL SIDE GEAR SHAFT LH)
2018-11 → 2022-07 ended
MZAH15 —
41336L — Dust Cover, Differential Side Gear Shaft, RH
41336-47020 Dust Cover, Differential Side Gear Shaft, RH
2018-11 → 2022-07 ended
MZAH15 —
41336M — Dust Cover, Differential Side Gear Shaft, LH
41336-47010 Dust Cover, Differential Side Gear Shaft, LH
2018-11 → 2022-07 ended
MZAH15 —
41651G — Cushion, Differential Mount
41651-48060 Cushion, Differential Mount
2018-11 → 2022-07 ended
MZAH15 —
41653D — Stopper, Differential Mount,Upper
41653-47010 Stopper, Differential Mount,Upper
2018-11 → 2022-07 ended
MZAH15 —
41654B — Stopper, Differential Mount,Lower
41654-47010 Stopper, Differential Mount,Lower
2018-11 → 2022-07 ended
MZAH15 —
52380F — Support Assy, Differential, Front
52380-47010 Support Assy, Differential, Front
2018-11 → 2022-07 ended
MZAH15 —
G1050 — Motor Assy, RR Traction W/Transaxle
G1050-47010 Motor Assy, RR Traction W/Transaxle
2018-11 → 2020-01 ended
MZAH15 —
G1050-47011 Motor Assy, RR Traction W/Transaxle
2020-01 → 2020-12 ended
MZAH15 —
G1050-47012 Motor Assy, RR Traction W/Transaxle
2021-01 → 2021-07 ended
MZAH15 —
G1050-47013 Motor Assy, RR Traction W/Transaxle
2021-08 → 2022-07 ended
MZAH15 —
G1050B — Plug, Drain(FOR REAR TRACTION MOTOR)
90341-18023 Plug, Drain(FOR REAR TRACTION MOTOR)
2018-11 → 2022-07 ended
MZAH15 —
G1050C — Plug, Filler(FOR REAR TRACTION MOTOR)
90341-18023 Plug, Filler(FOR REAR TRACTION MOTOR)
2018-11 → 2022-07 ended
MZAH15 —
G1050D — Gasket, Drain Plug(FOR REAR TRACTION MOTOR)
90430-18008 Gasket, Drain Plug(FOR REAR TRACTION MOTOR)
2018-11 → 2022-07 ended
MZAH15 —
G1050E — Gasket, Filler Plug(FOR REAR TRACTION MOTOR)
90430-18008 Gasket, Filler Plug(FOR REAR TRACTION MOTOR)
2018-11 → 2022-07 ended
MZAH15 —
G1143 — Bracket, Motor Cable
G1143-47070 note Bracket, Motor Cable
2018-11 → 2022-07 ended
MZAH15 —
G1143-76010 note Bracket, Motor Cable
2018-11 → 2022-07 ended
MZAH15 —
G1143-76020 note Bracket, Motor Cable
2018-11 → 2022-07 ended
MZAH15 —
G1149 — Cable(FOR REAR TRACTION MOTOR)
G1149-47010 Cable(FOR REAR TRACTION MOTOR)
2018-11 → 2022-07 ended
MZAH15 —
G114D — Cap, Motor Cable Terminal
G114D-47021 Cap, Motor Cable Terminal
2018-11 → 2022-07 ended
MZAH15 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
