Toyota Lexus UX200/2##H

2018-10 → 2022-07 · chassis MZAA10,MZAH1# · catalogue 537210 · Europe

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

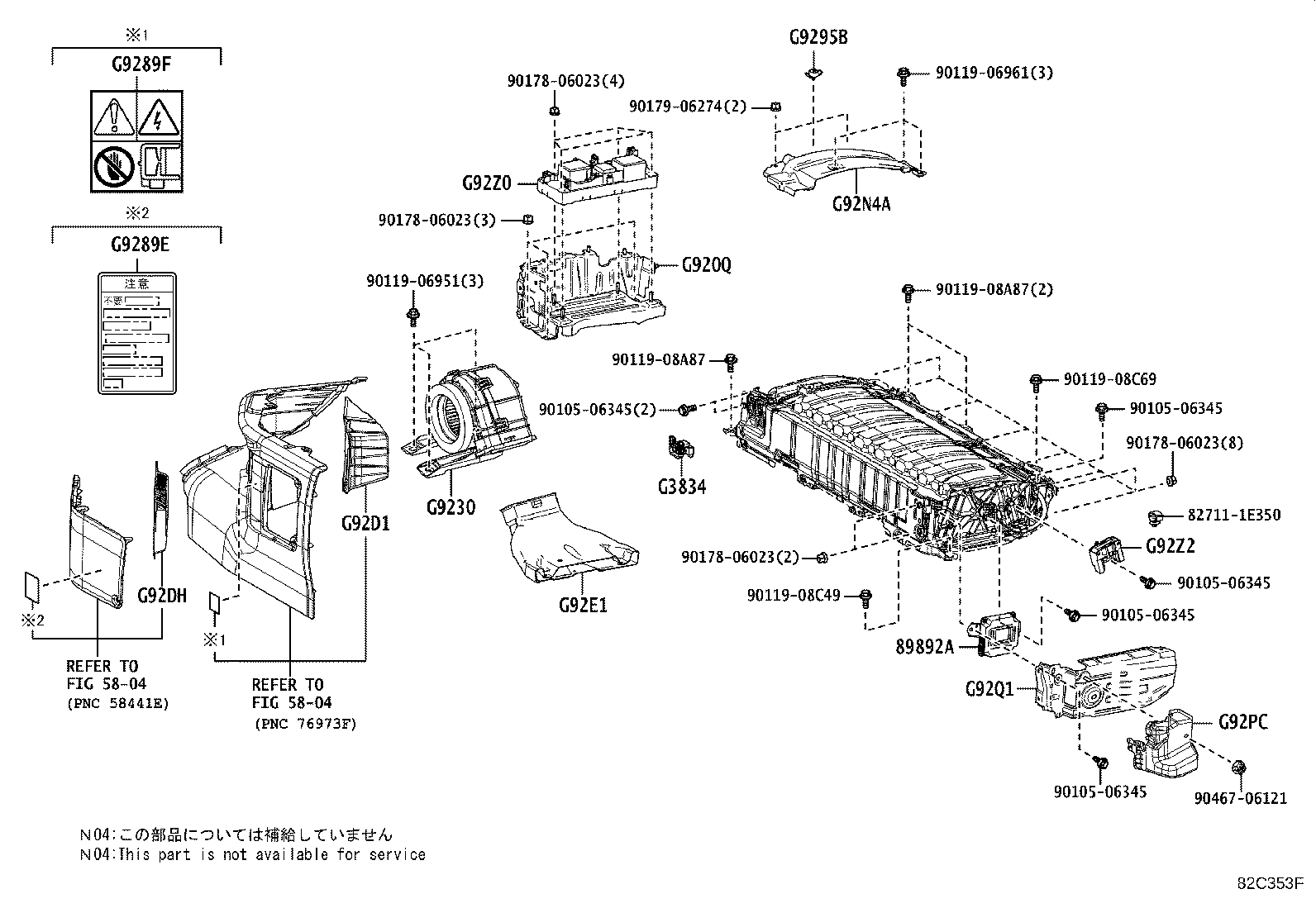

Exploded illustration 82C353F 827111E350 — not listed in this catalogue G9289F — LABEL, BATTERY CAUTION, NO.3 (2 parts) G3834 — GRIP, SERVICE PLUG (1 parts) G92E1 — DUCT, HV BATTERY COVER INTAKE, NO.1 (1 parts) G92PC — PROTECTOR, HV BATTERY, NO.1 (1 parts) G92Q1 — PANEL, HV BATTERY SHIELD, NO.1 (1 parts) G9230 — BLOWER ASSY, BATTERY COOLING (1 parts) G92D1 — DUCT, HYBRID BATTERY INTAKE, NO.1 (1 parts) G92DH — FILTER, HV BATTERY INTAKE, NO.1 (1 parts) 89892A — SENSOR, BATTERY VOLTAGE (1 parts) G92Z2 — BLOCK, HYBRID BATTERY TERMINAL (1 parts) G920Q — SHIELD SUB-ASSY, HYBRID BATTERY, NO.1 (1 parts) G9295B — STRIKER, BATTERY COVER LOCK (1 parts) G92N4A — PANEL, HV BATTERY RH COVER, NO.1 (1 parts) 9010506345 — not listed in this catalogue 9046706121 — not listed in this catalogue 9010506345 — not listed in this catalogue 9010506345 — not listed in this catalogue 9017806023 — not listed in this catalogue 9017806023 — not listed in this catalogue 9017806023 — not listed in this catalogue 9017806023 — not listed in this catalogue 9010506345 — not listed in this catalogue 9010506345 — not listed in this catalogue 9011908C69 — not listed in this catalogue 9011908A87 — not listed in this catalogue 9011908A87 — not listed in this catalogue 9011908C49 — not listed in this catalogue 9011906961 — not listed in this catalogue 9011906951 — not listed in this catalogue 9017906274 — not listed in this catalogue G92Z0 — BLOCK ASSY, HV BATTERY JUNCTION (2 parts) G9289E — LABEL, BATTERY CAUTION, NO.2 (1 parts) 5804 — not listed in this catalogue 5804 — not listed in this catalogue
82C353F · 15 callouts, 20 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
17 parts on this figure
Part number Description Fitment Price
89892A — Sensor, Battery Voltage
89892-76010 Sensor, Battery Voltage
2018-11 → 2022-07 ended
MZAH1# —
G3834 — Grip, Service Plug
G3834-47050 Grip, Service Plug
2018-11 → 2022-07 ended
MZAH1# —
G920Q — Shield Sub-assy, Hybrid Battery, NO.1
G920Q-47041 Shield Sub-assy, Hybrid Battery, NO.1
2018-11 → 2022-07 ended
MZAH1# —
G9230 — Blower Assy, Battery Cooling
G9230-47080 Blower Assy, Battery Cooling
2018-11 → 2022-07 ended
MZAH1# —
G9289E — Label, Battery Caution, NO.2
G928L-33010 Label, Battery Caution, NO.2
2018-12 → 2022-07 ended
MZAH1# CHI —
G9289F — Label, Battery Caution, NO.3
82685-47110 Label, Battery Caution, NO.3
2018-11 → 2021-05 ended
MZAH1# —
82685-47111 Label, Battery Caution, NO.3
2021-06 → 2022-07 ended
MZAH1# —
G9295B — Striker, Battery Cover Lock
G9295-30020 Striker, Battery Cover Lock
2018-11 → 2022-07 ended
MZAH1# —
G92D1 — Duct, Hybrid Battery Intake, NO.1
G92D1-12030 Duct, Hybrid Battery Intake, NO.1
2018-11 → 2022-07 ended
MZAH1# —
G92DH — Filter, HV Battery Intake, NO.1
G92DH-12050 Filter, HV Battery Intake, NO.1
2018-11 → 2022-07 ended
MZAH1# —
G92E1 — Duct, HV Battery Cover Intake, NO.1
G92E1-47040 Duct, HV Battery Cover Intake, NO.1
2018-11 → 2022-07 ended
MZAH1# —
G92N4A — Panel, HV Battery RH Cover, NO.1
G92N4-47060 Panel, HV Battery RH Cover, NO.1
2018-11 → 2022-07 ended
MZAH1# —
G92PC — Protector, HV Battery, NO.1
G92PC-76010 Protector, HV Battery, NO.1
2018-11 → 2022-07 ended
MZAH1# —
G92Q1 — Panel, HV Battery Shield, NO.1
G92Q1-76010 Panel, HV Battery Shield, NO.1
2018-11 → 2022-07 ended
MZAH1# —
G92Z0 — Block Assy, HV Battery Junction
G92Z0-33041 Block Assy, HV Battery Junction
2018-11 → 2021-10 ended
MZAH1# —
G92Z0-47100 Block Assy, HV Battery Junction
2021-11 → 2022-07 ended
MZAH1# —
G92Z2 — Block, Hybrid Battery Terminal
G92Z2-47070 Block, Hybrid Battery Terminal
2018-11 → 2022-07 ended
MZAH1# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
