Ventilation Hose

4 part groups · 3 illustrations

Illustrations

Figure 121569A

121569A 2022-07 → —

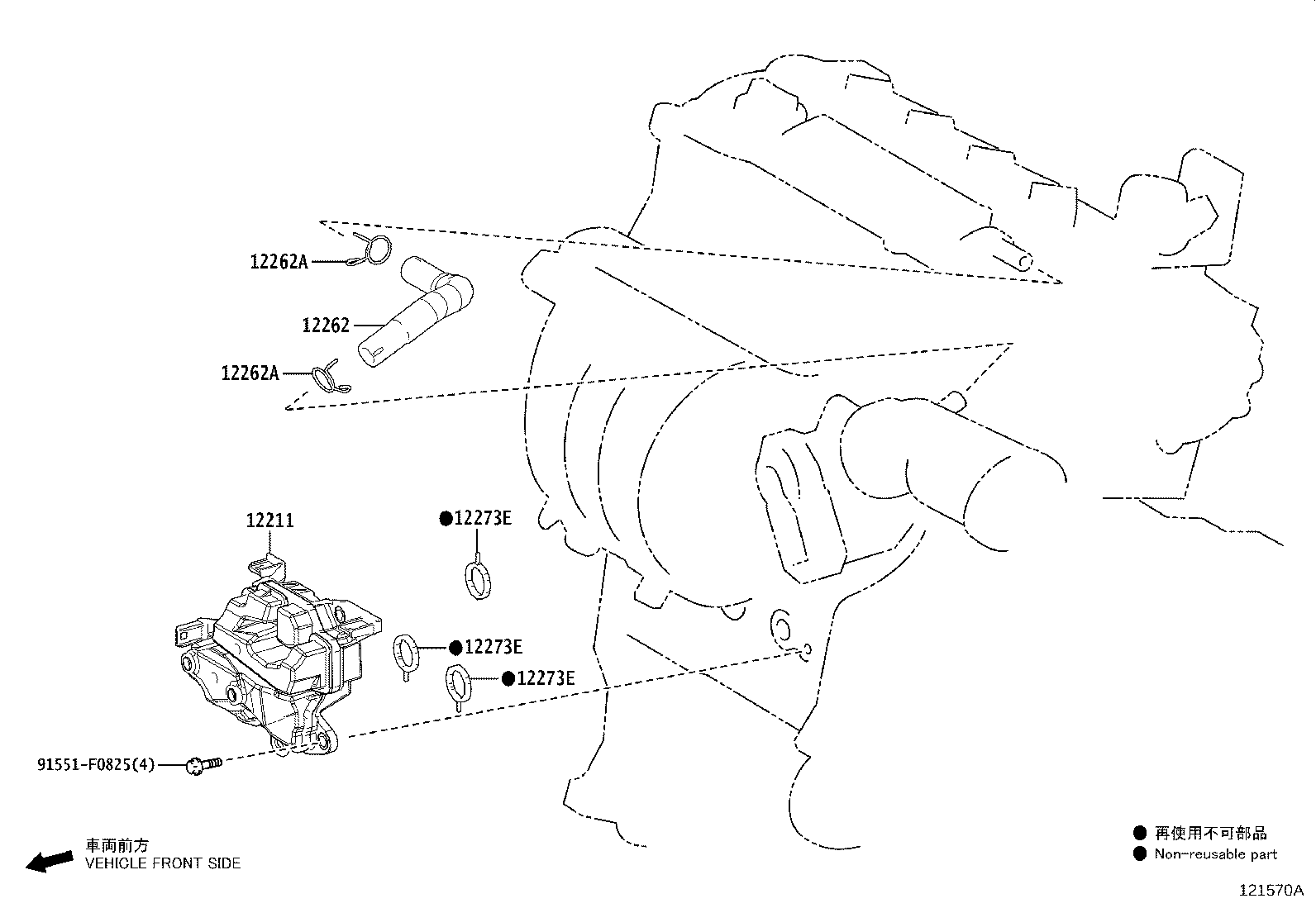

Figure 121570A

121570A 2022-07 → —

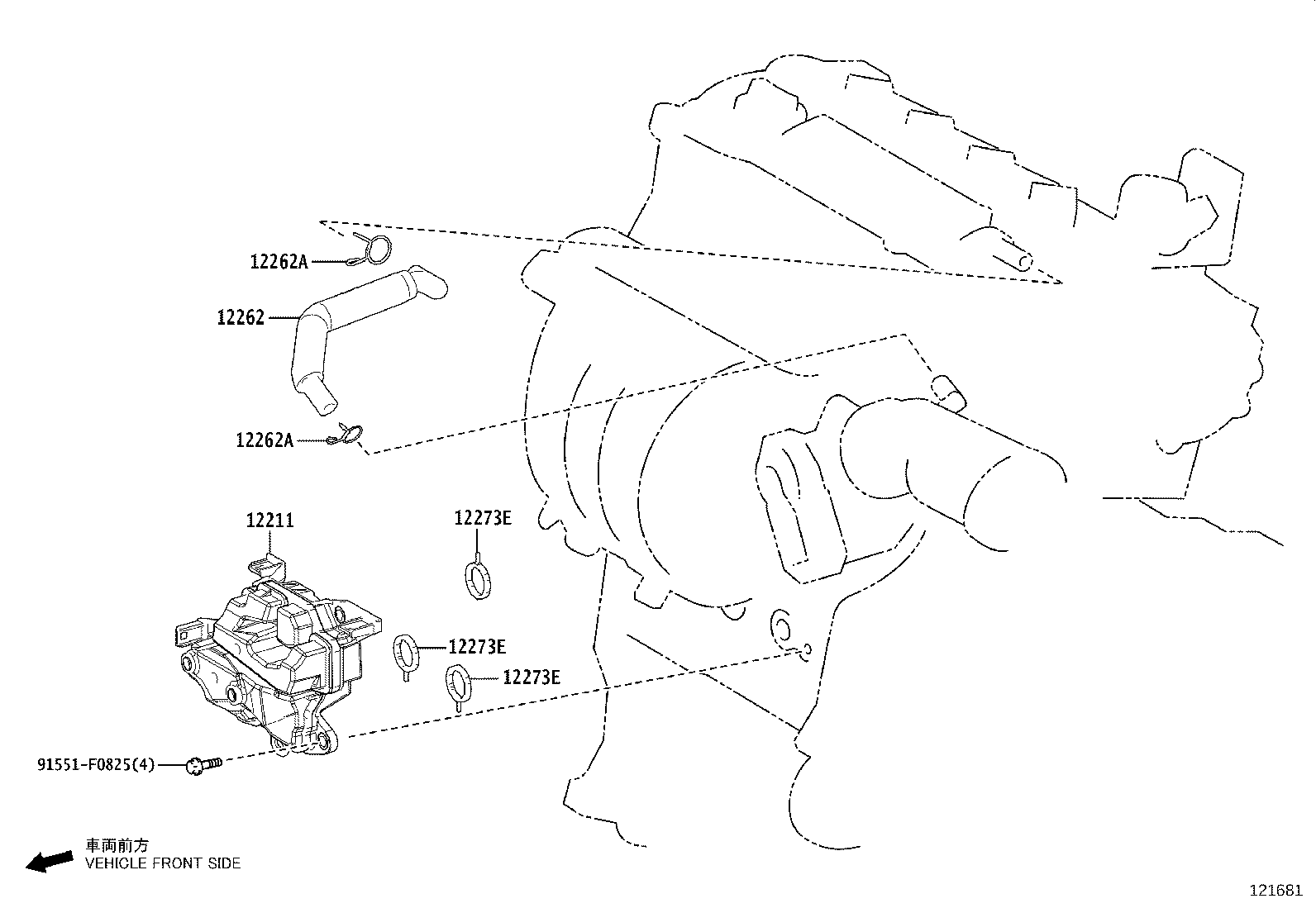

121681 2024-01 → —

Part groups

PNC	Description
12211	Case, Ventilation, NO.1
12262	Hose, Ventilation, NO.2
12262A	Clip(FOR VENTILATION HOSE NO.2)
12273E	Gasket(FOR VENTILATION CASE)

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
