Toyota Lexus UX Series

2022-07 → present · chassis KMA10,MZAA10,MZAH1# · catalogue 537220 · Europe

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Shift Lever & Retainer

13 part groups · 8 illustrations

Illustrations

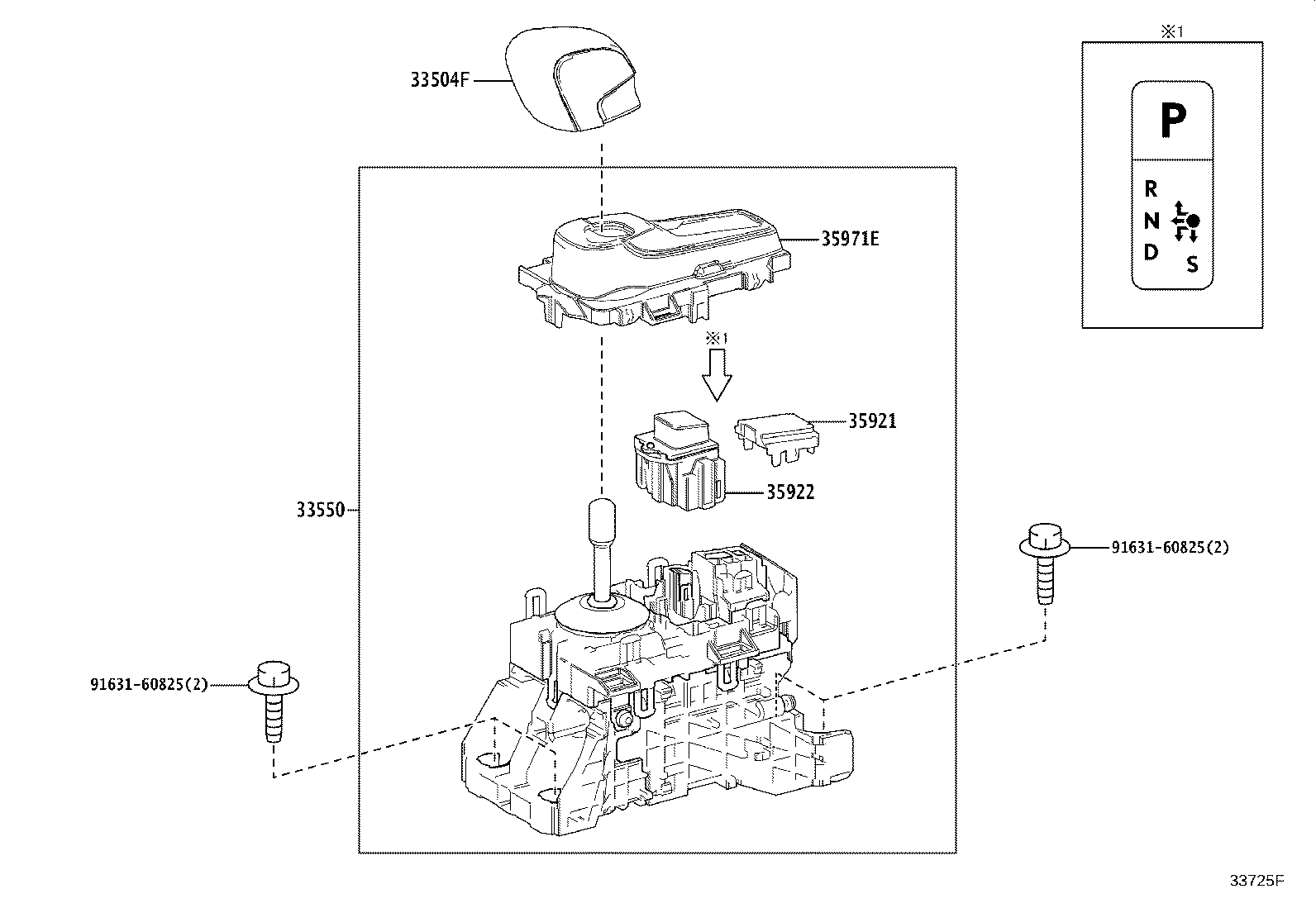

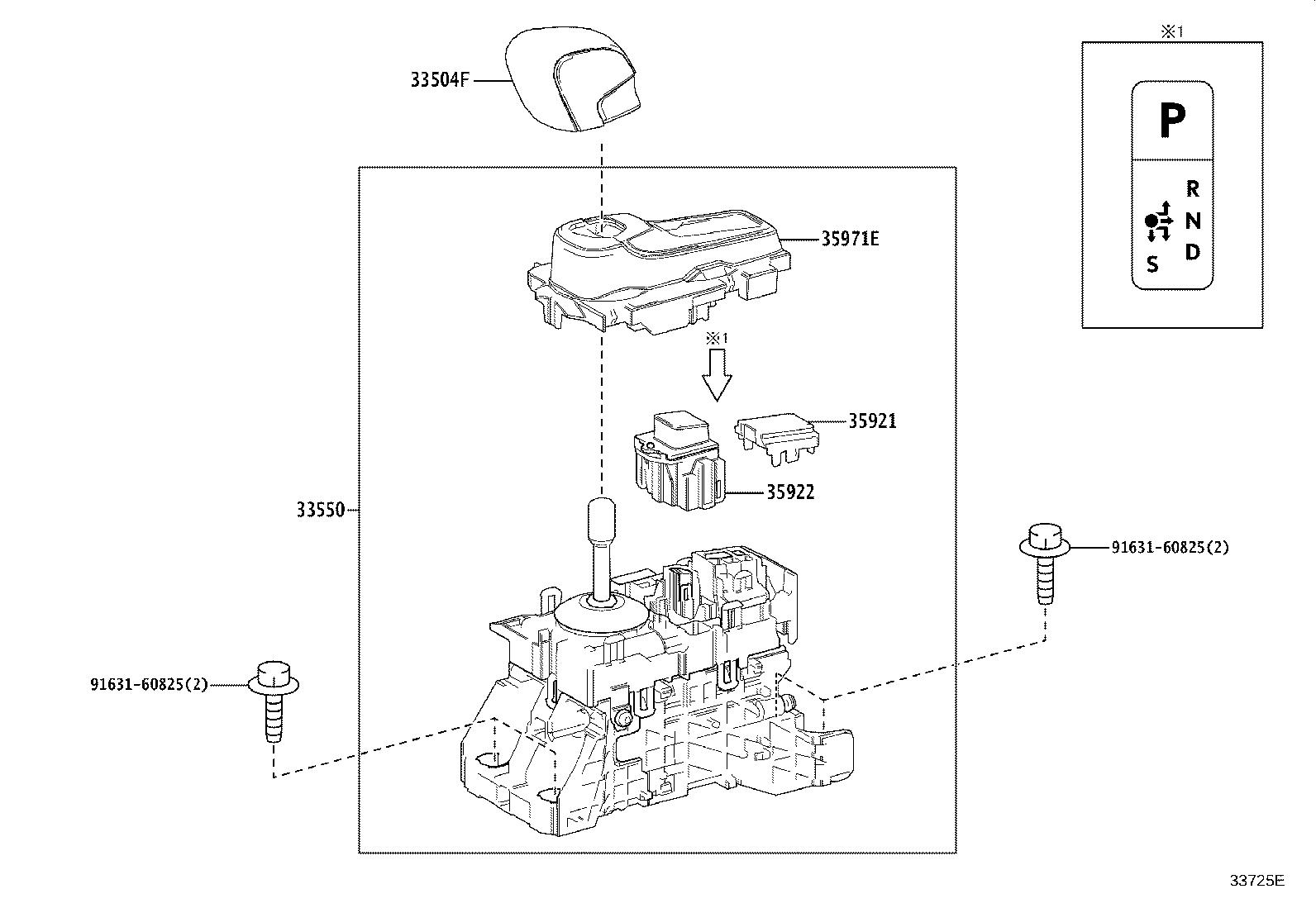

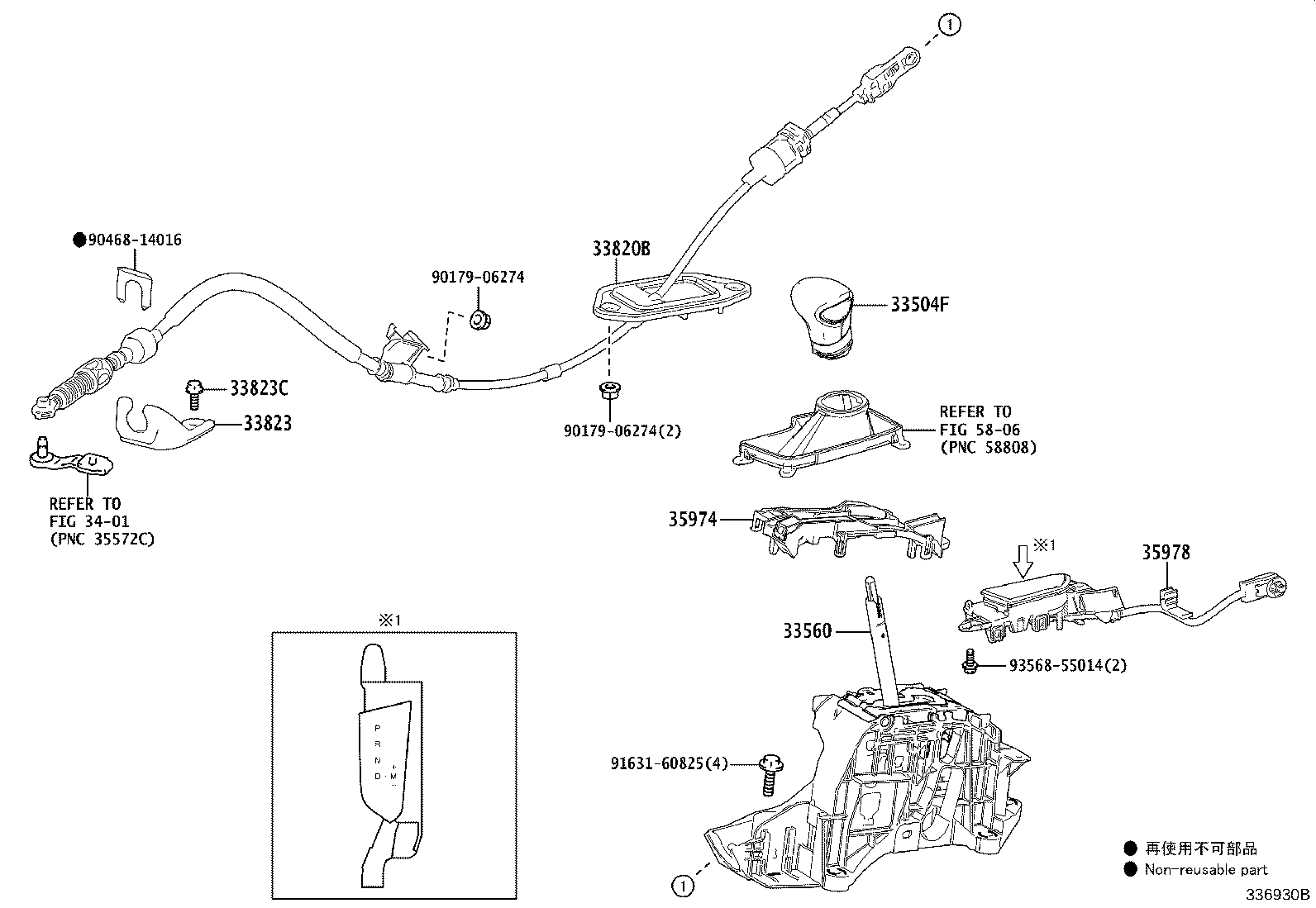

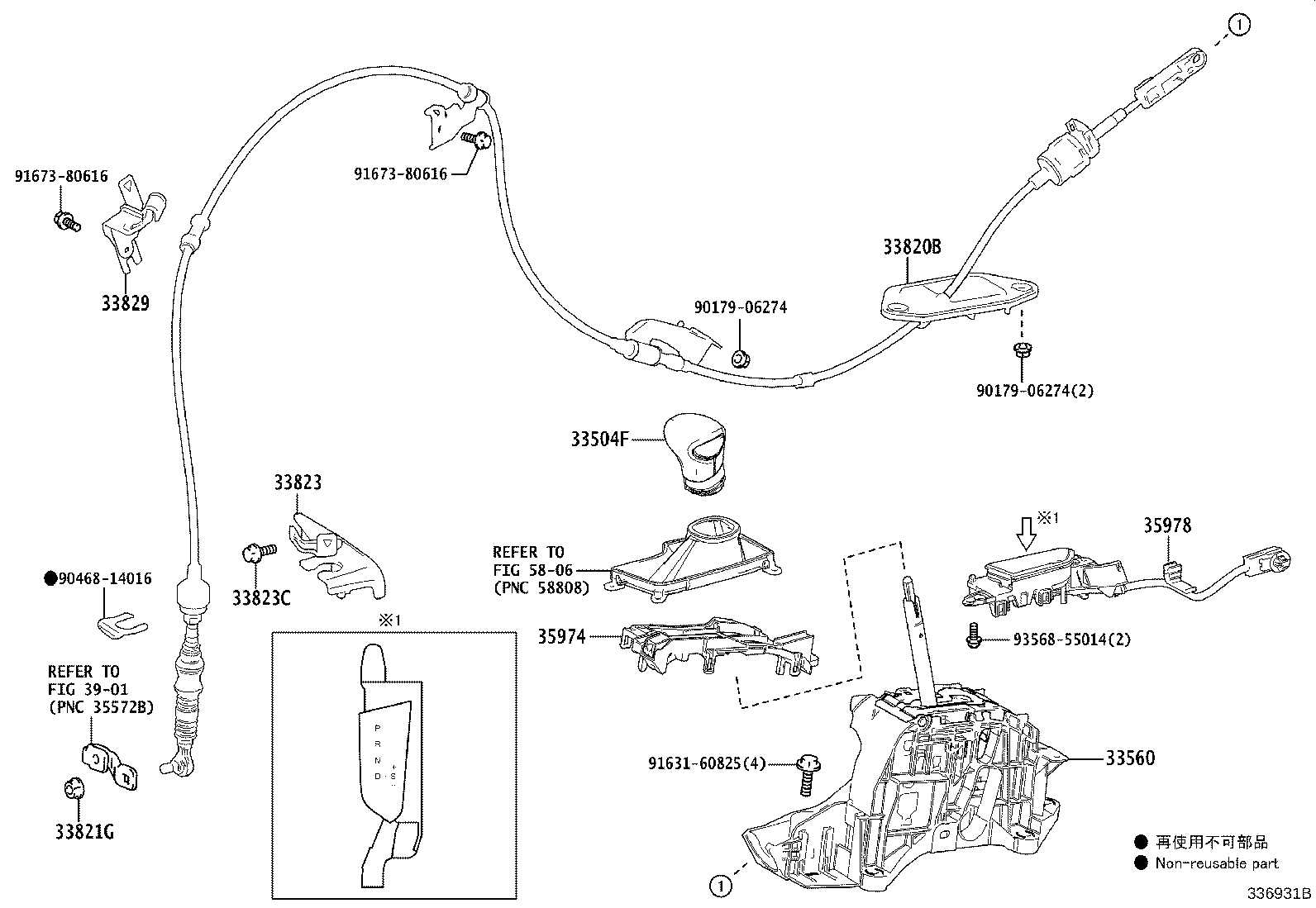

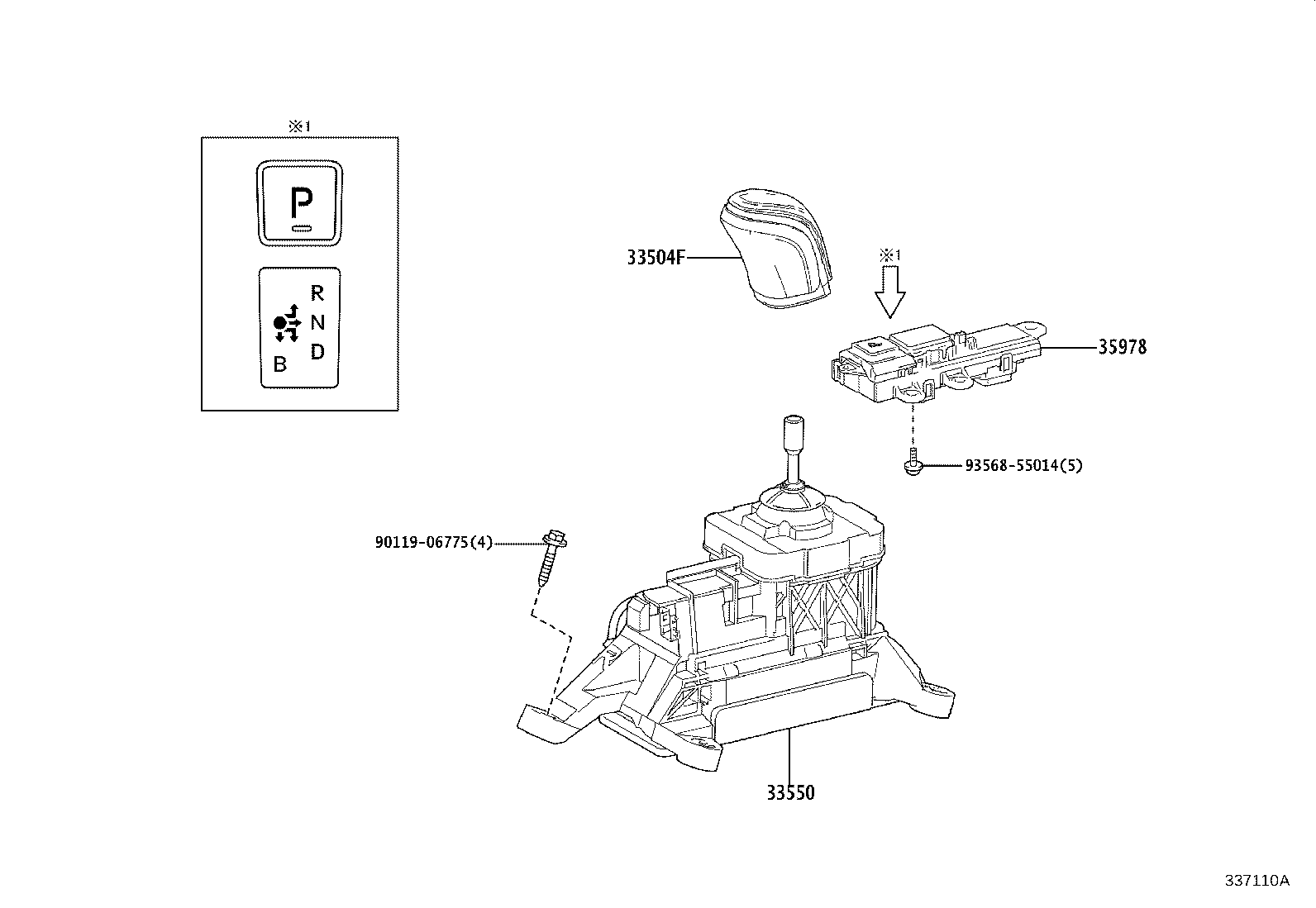

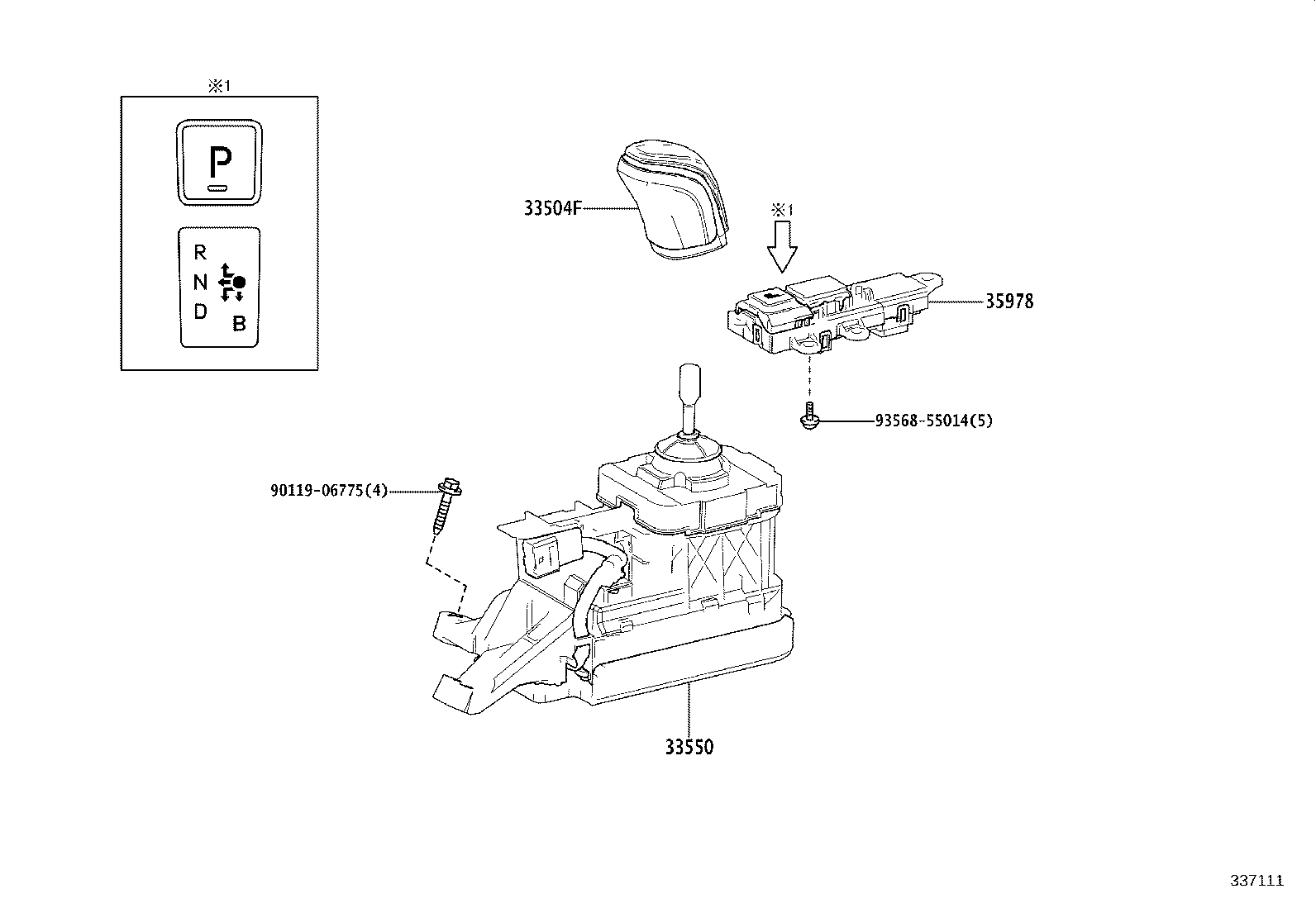

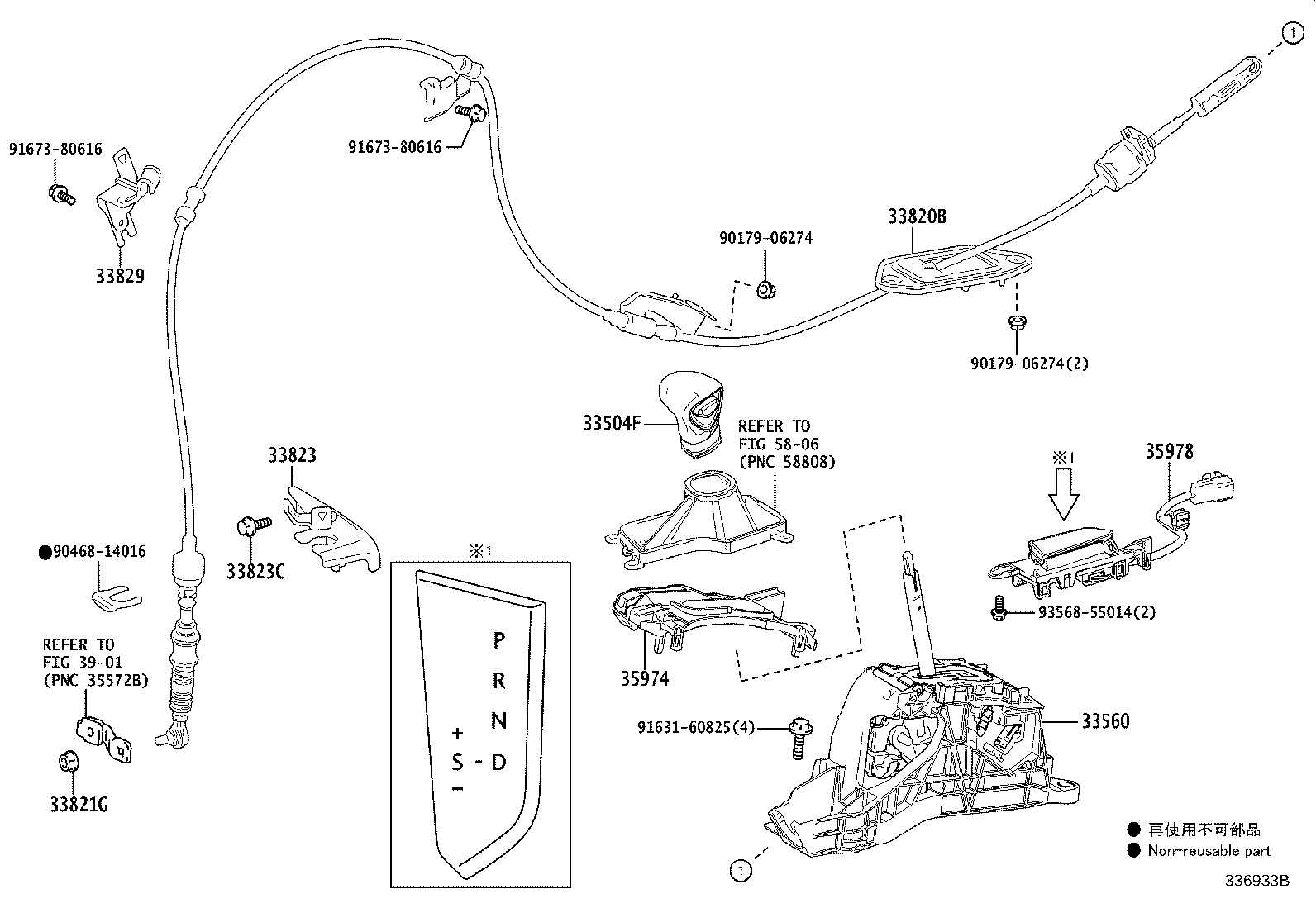

Figure 336932B 336932B 2022-07 → — Figure 336930B 336930B 2022-07 → — Figure 336933B 336933B 2022-07 → — Figure 336931B 336931B 2022-07 → — Figure 337111 337111 2023-03 → — Figure 337110A 337110A 2023-03 → — Figure 33725F 33725F 2024-01 → — Figure 33725E 33725E 2024-01 → —

Part groups

PNCDescription
33504F Knob Sub-assy, Shift Lever
33550 Floor Shift Assy, Transmission
33560 Unit Assy, Shift Lock Control
33820B Cable Assy, Transmission Control
33821G Nut (FOR TRANSMISSION CONTROL CABLE)
33823 Bracket, Transmission Control Cable, NO.1
33823C Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
33829 Support, Transmission Control Cable
35921 Plate, Control Position Indicator
35922 Knob, Transmission Parking Switch
35971E Housing, Position Indicator
35974 Housing, Position Indicator, Lower
35978 Indicator, Shift Position
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
