Toyota Lexus UX Series
2022-07 → present · chassis KMA10,MZAA10,MZAH1# · catalogue 537220 · Europe
Supported model
Data version 2024-01

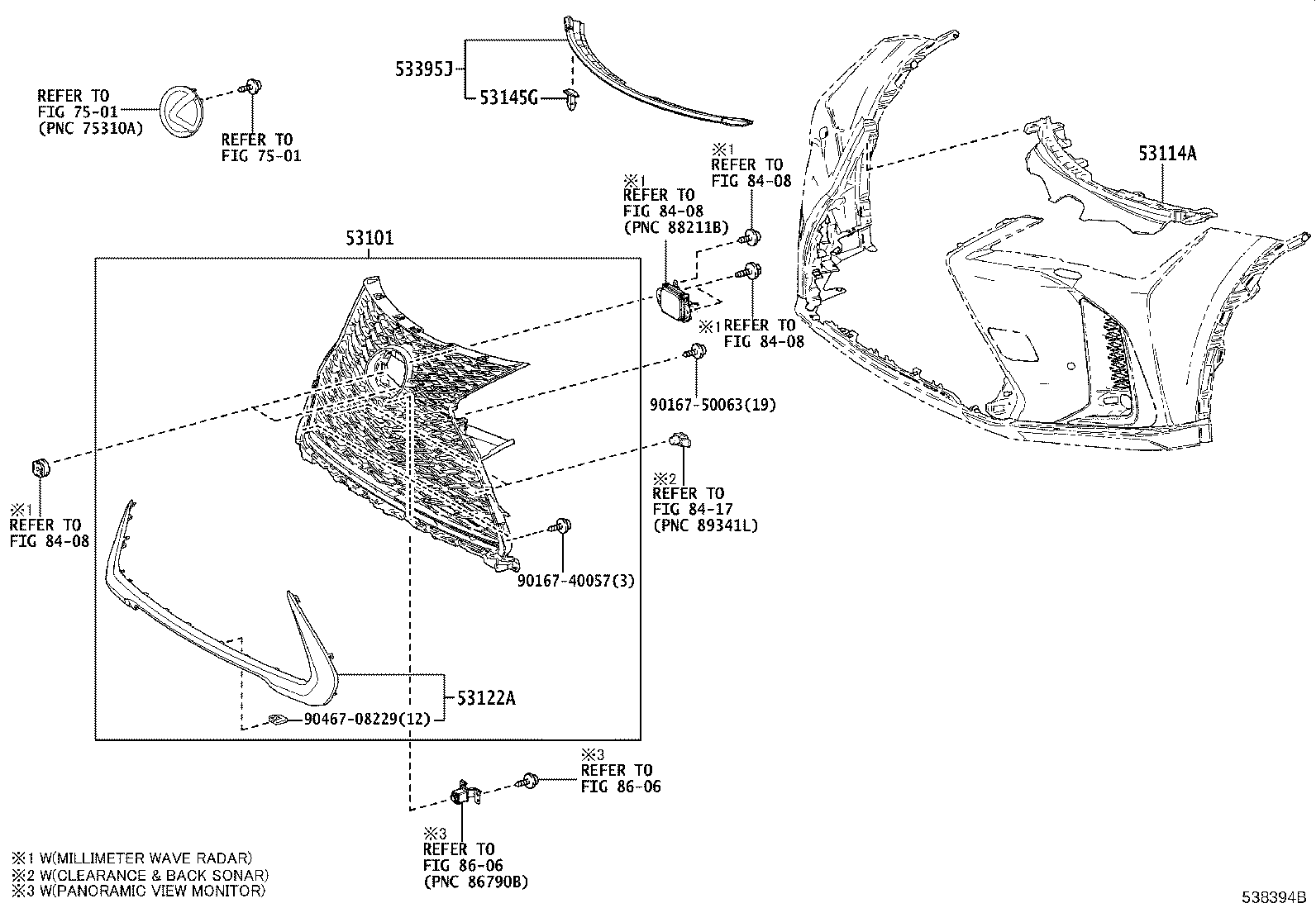

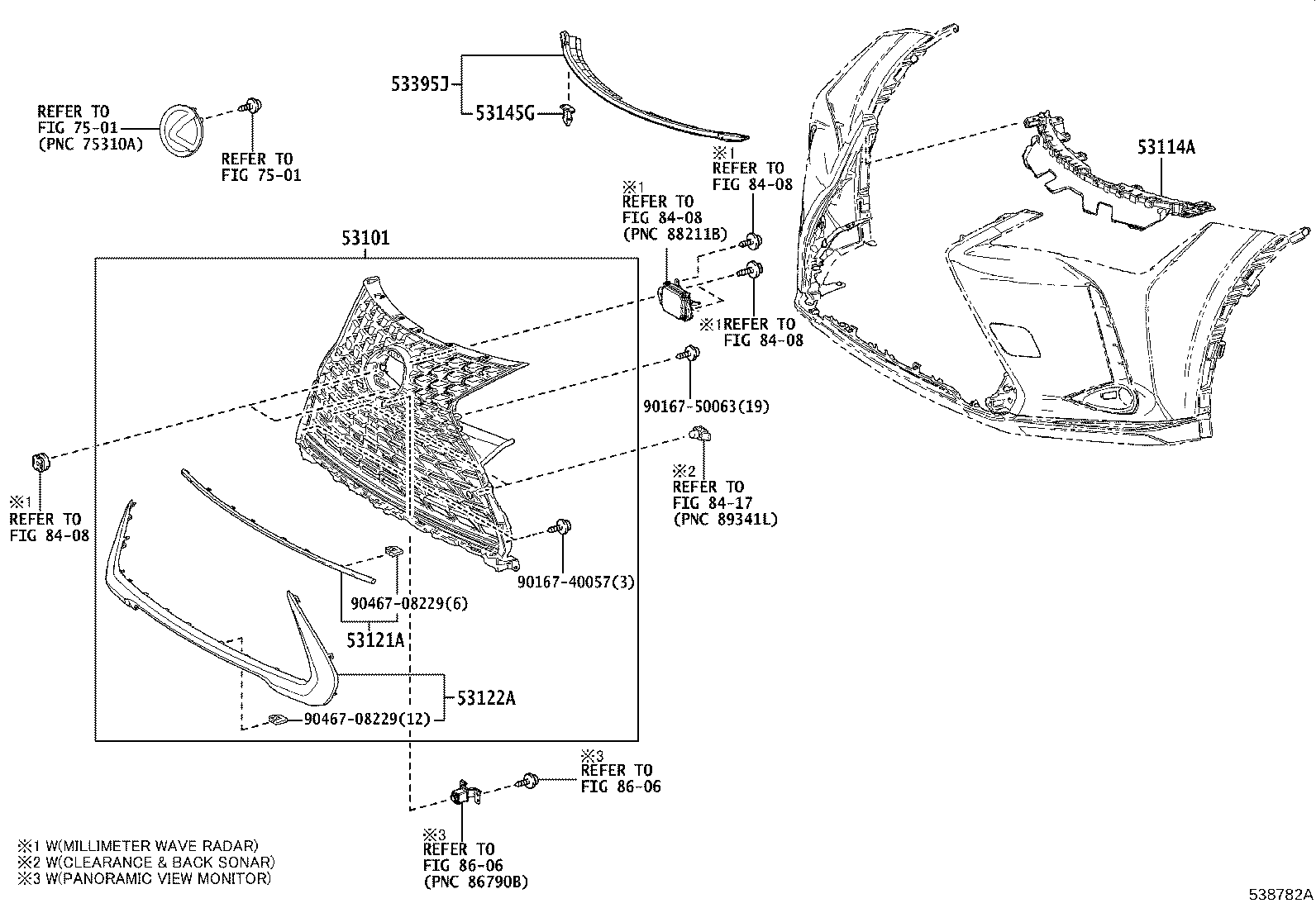

Radiator Grille
7 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 53101 | Grille Sub-assy, Radiator |
| 53114A | Grille, Radiator, Inner |
| 53121A | Moulding, Radiator Grille |
| 53122A | Moulding, Radiator Grille, Lower |
| 53123A | Cushion, Radiator Grille |
| 53145G | Clip, Radiator Grille |
| 53395J | Seal, Hood TO Front End Panel |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
