Toyota Lexus UX Series
2022-07 → present · chassis KMA10,MZAA10,MZAH1# · catalogue 537220 · Europe
Supported model
Data version 2024-01
Front Fender Apron & Dash Panel
57 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 16561C | Seal, Radiator TO Support, NO.1 |
| 16562M | Seal, Radiator TO Support, NO.2 |
| 16592A | Guide, Radiator Air, NO.3 |
| 16593B | Guide, Radiator Air, NO.1 RH |
| 16594A | Guide, Radiator Air, NO.2 |
| 16595B | Guide, Radiator Air, NO.1 LH |
| 17753A | Guide, Air |
| 51025A | Bracket Sub-assy, Frame NO.3 Crossmember, RH |
| 51026 | Bracket Sub-assy, Frame NO.3 Crossmember, LH |
| 51205F | Crossmember Sub-assy, Frame, Center |
| 51465 | Brace, Radiator Support, Upper RH |
| 51466 | Brace, Radiator Support, Upper LH |
| 52081A | Stay Sub-assy, Front Bumper, RH |
| 52082A | Stay Sub-assy, Front Bumper, LH |
| 52143H | Arm, Front Bumper, Inner RH |
| 52144B | Arm, Front Bumper, Inner LH |
| 53028 | Support Sub-assy, Radiator, Lower |
| 53202 | Support Sub-assy, Radiator, RH |
| 53203 | Support Sub-assy, Radiator, LH |
| 53205 | Support Sub-assy, Radiator, Upper |
| 53208A | Support Sub-assy, Hood Lock |
| 53289A | Cover, Radiator Support Opening |
| 53301G | Cushion, Hood Bumper |
| 53381J | Seal, Hood TO Radiator Support |

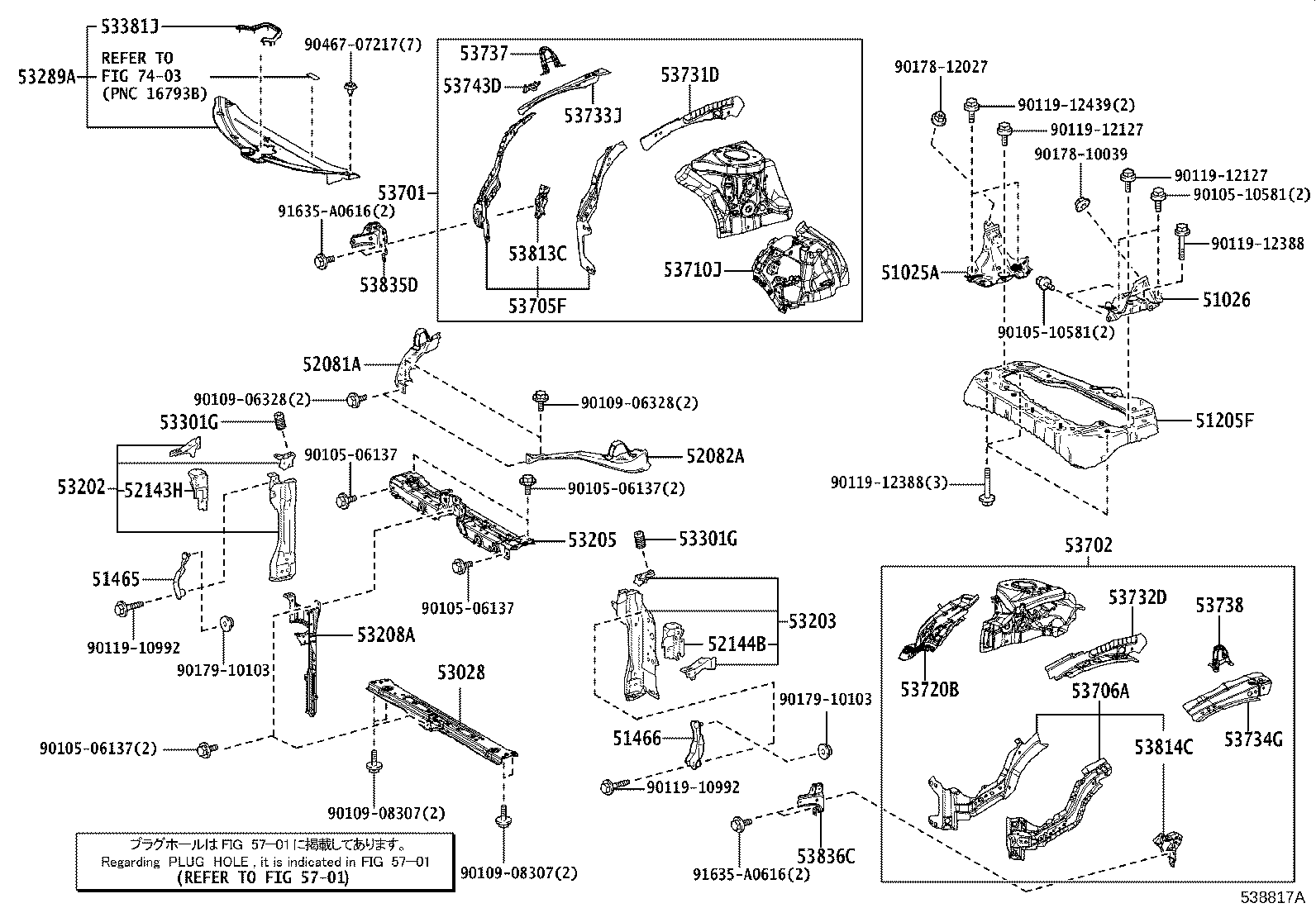

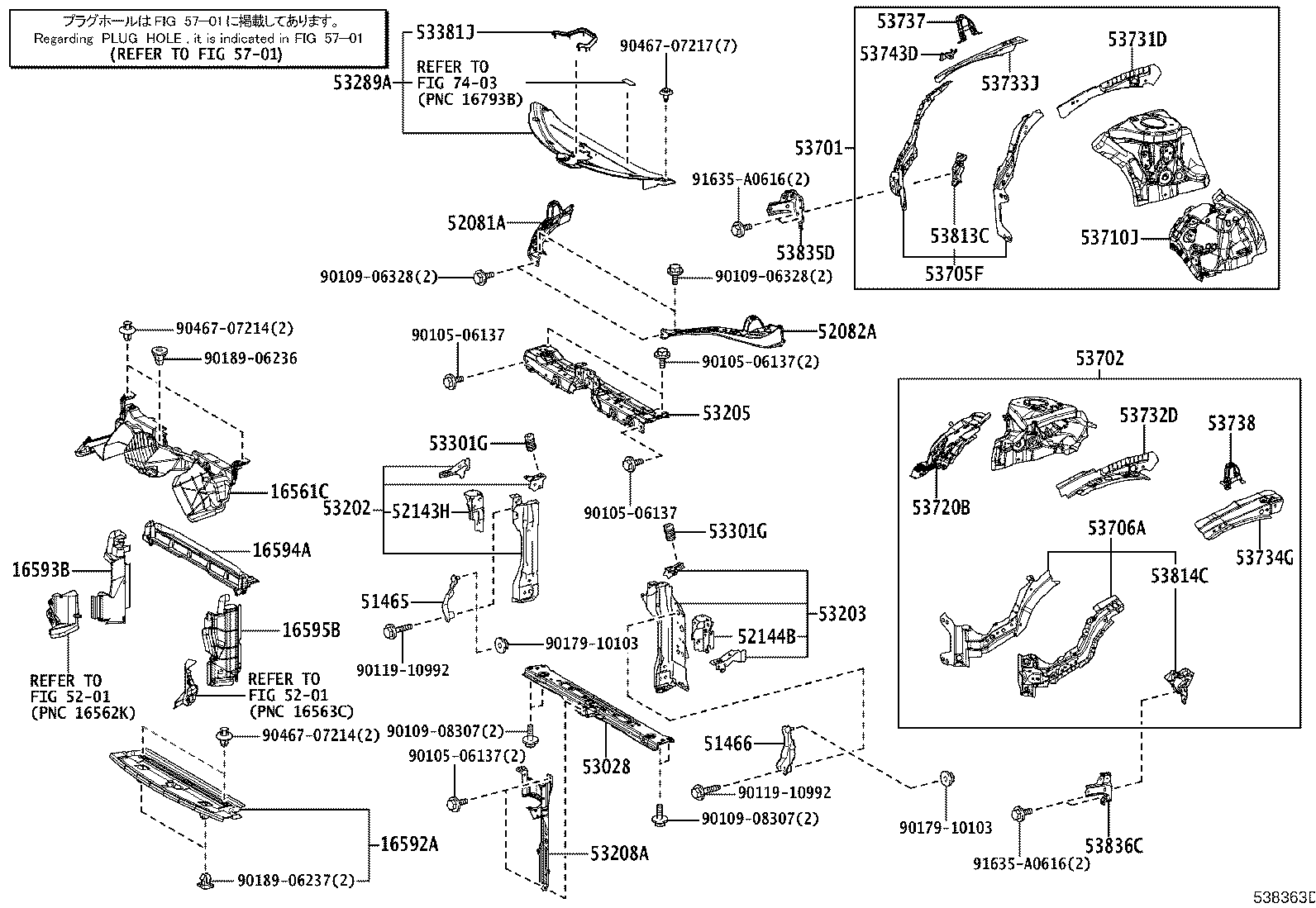

| 53701 | Apron Sub-assy, Front Fender, RH |
| 53702 | Apron Sub-assy, Front Fender, LH |
| 53705F | Brace Sub-assy, Fender Apron, RH |
| 53706A | Brace Sub-assy, Fender Apron, LH |
| 53710J | Apron Assy, Front Fender, RH |
| 53720B | Apron Assy, Front Fender, LH |
| 53731D | Member, Front Apron TO Cowl Side, Upper RH |
| 53732D | Member, Front Apron TO Cowl Side, Upper LH |
| 53733J | Member, Front Apron TO Cowl Side, Outer Front RH |
| 53734G | Member, Front Apron TO Cowl Side, Outer Front LH |
| 53737 | Plate, Front Apron TO Cowl Side Member, RH |
| 53738 | Plate, Front Apron TO Cowl Side Member, LH |
| 53743D | Reinforcement, Front Fender Apron Front Extension, RH |
| 53813C | Extension, Front Fender, RH |
| 53814C | Extension, Front Fender, LH |
| 53835D | Bracket, Front Side Panel, RH |
| 53836C | Bracket, Front Side Panel, LH |

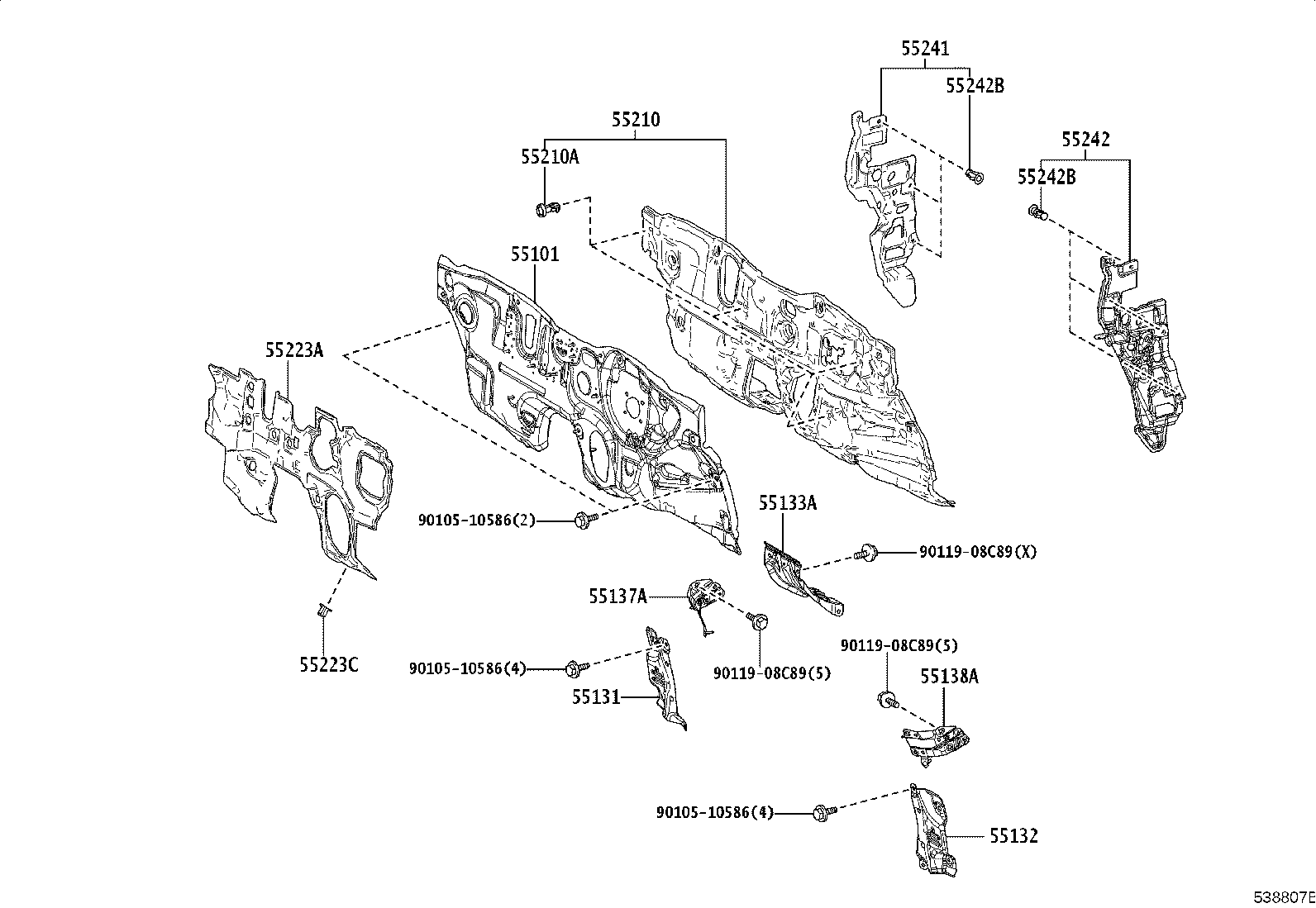

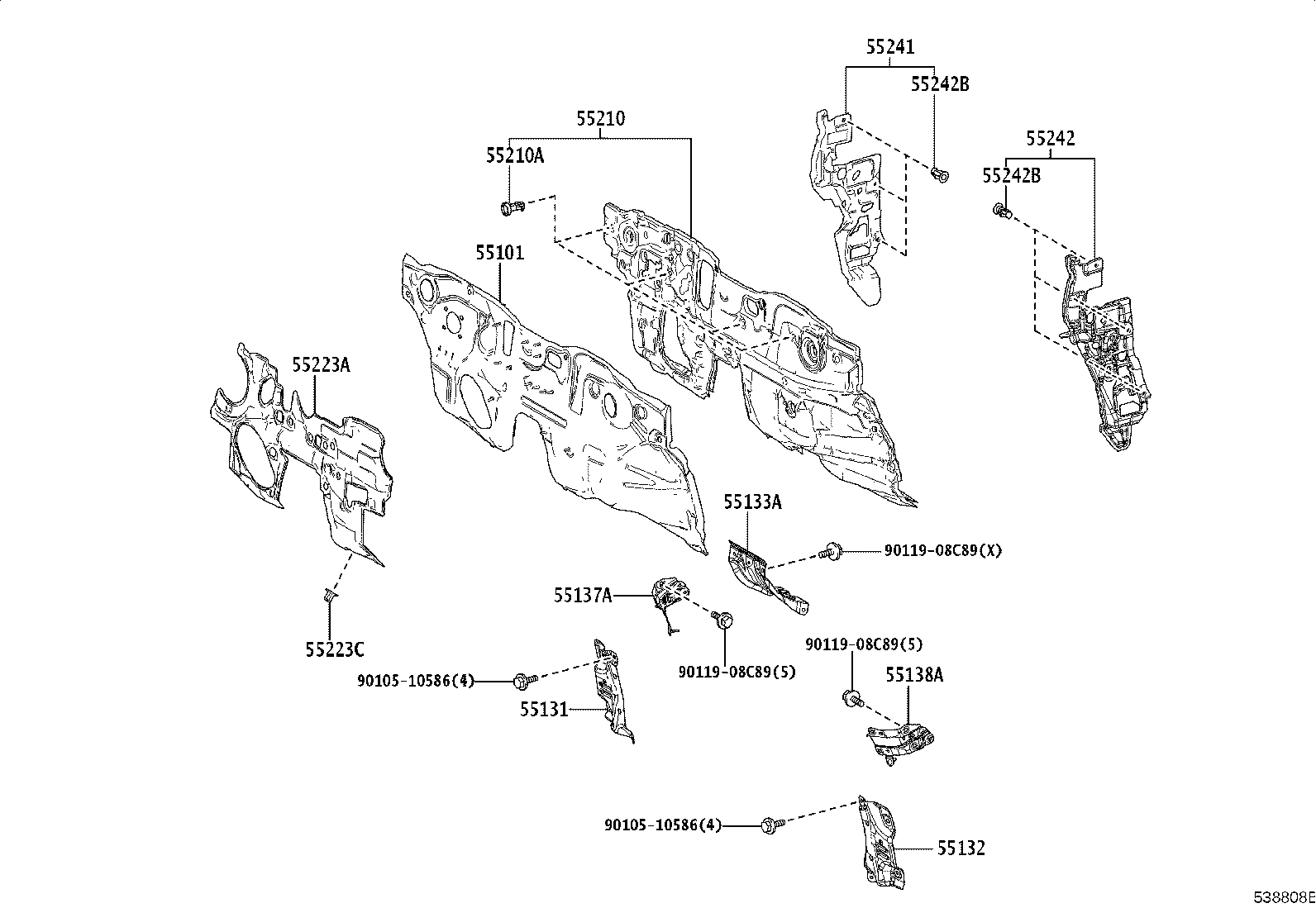

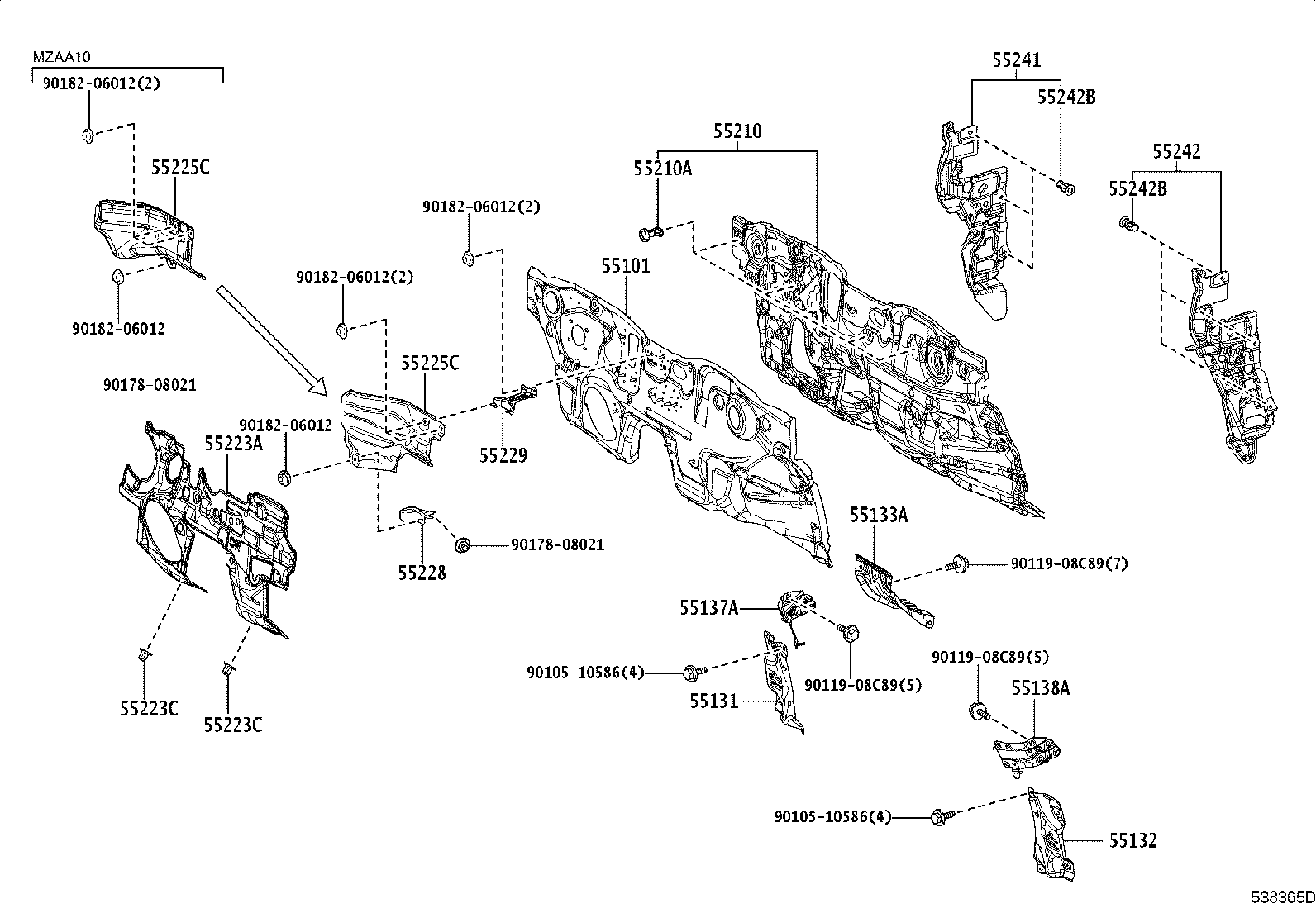

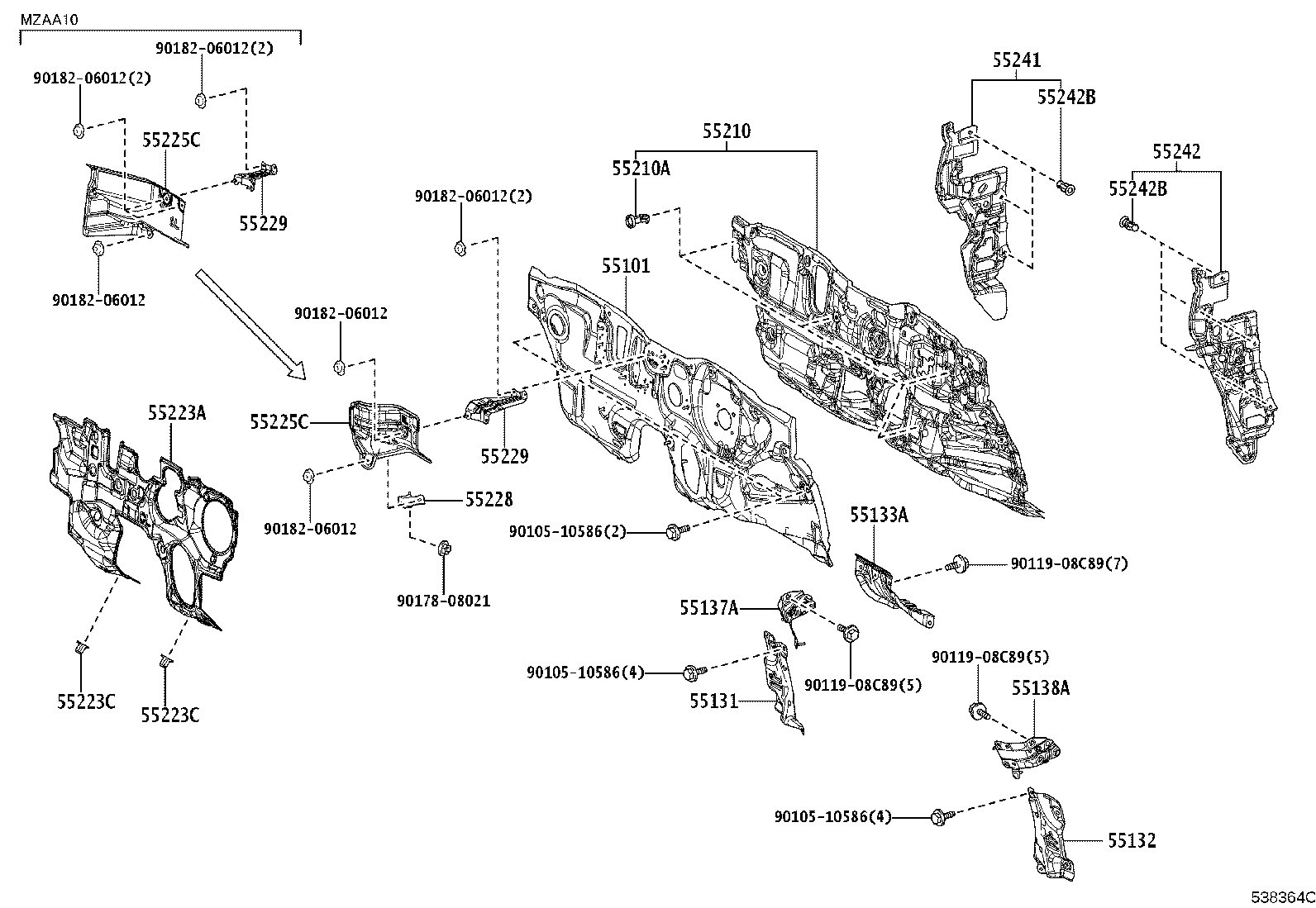

| 55101 | Panel Sub-assy, Dash |
| 55131 | Reinforcement, Dash Panel |
| 55132 | Reinforcement, Dash Panel, NO.2 |
| 55133A | Reinforcement, Dash TO Floor, RH |
| 55137A | Brace, Dash TO Frame, RH |
| 55138A | Brace, Dash TO Frame, LH |
| 55210 | Insulator Assy, Dash Panel |
| 55210A | Clip |
| 55223A | Insulator, Dash Panel, Outer |
| 55223C | Clip |
| 55225C | Insulator, Dash Panel Heat |
| 55228 | Plate, Dash Panel Insulator, NO.5 |
| 55229 | Plate, Dash Panel Insulator, NO.4 |
| 55241 | Silencer, Front Panel Side, NO.1 RH |
| 55242 | Silencer, Front Panel Side, NO.1 LH |
| 55242B | Clip, Front Panel Side Silencer |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
