Toyota Lexus UX Series
2022-07 → present · chassis KMA10,MZAA10,MZAH1# · catalogue 537220 · Europe
Supported model
Data version 2024-01

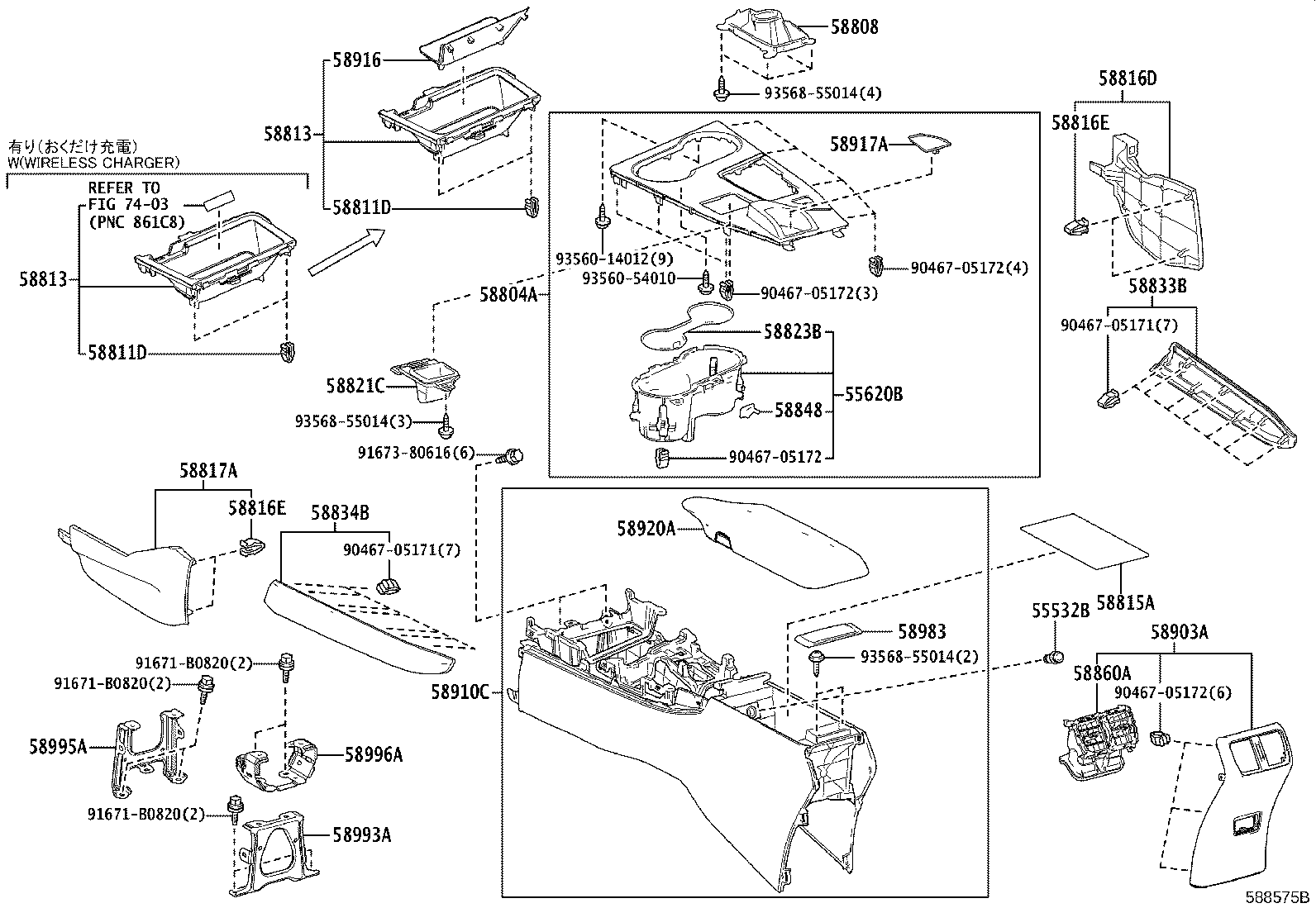

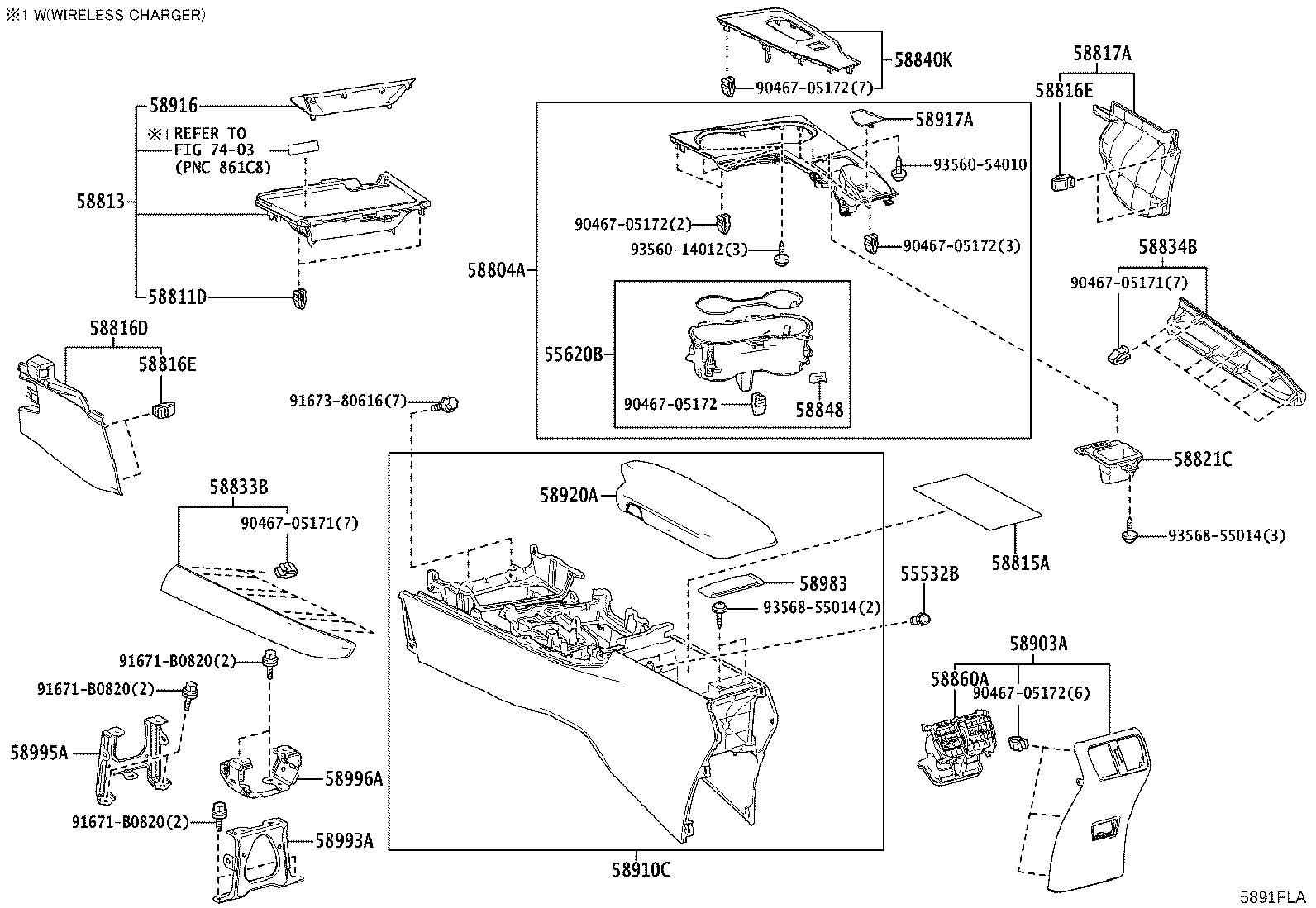

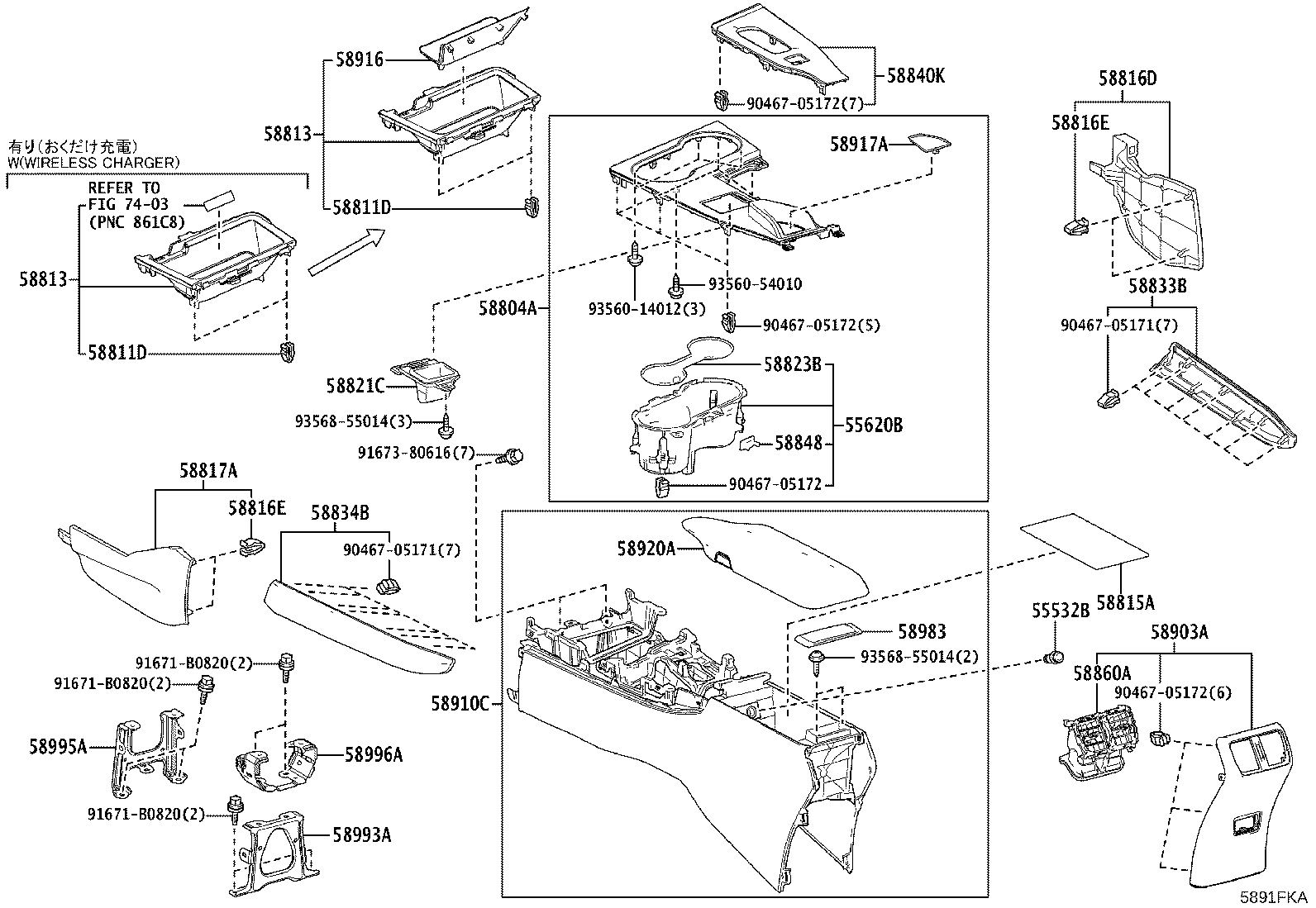

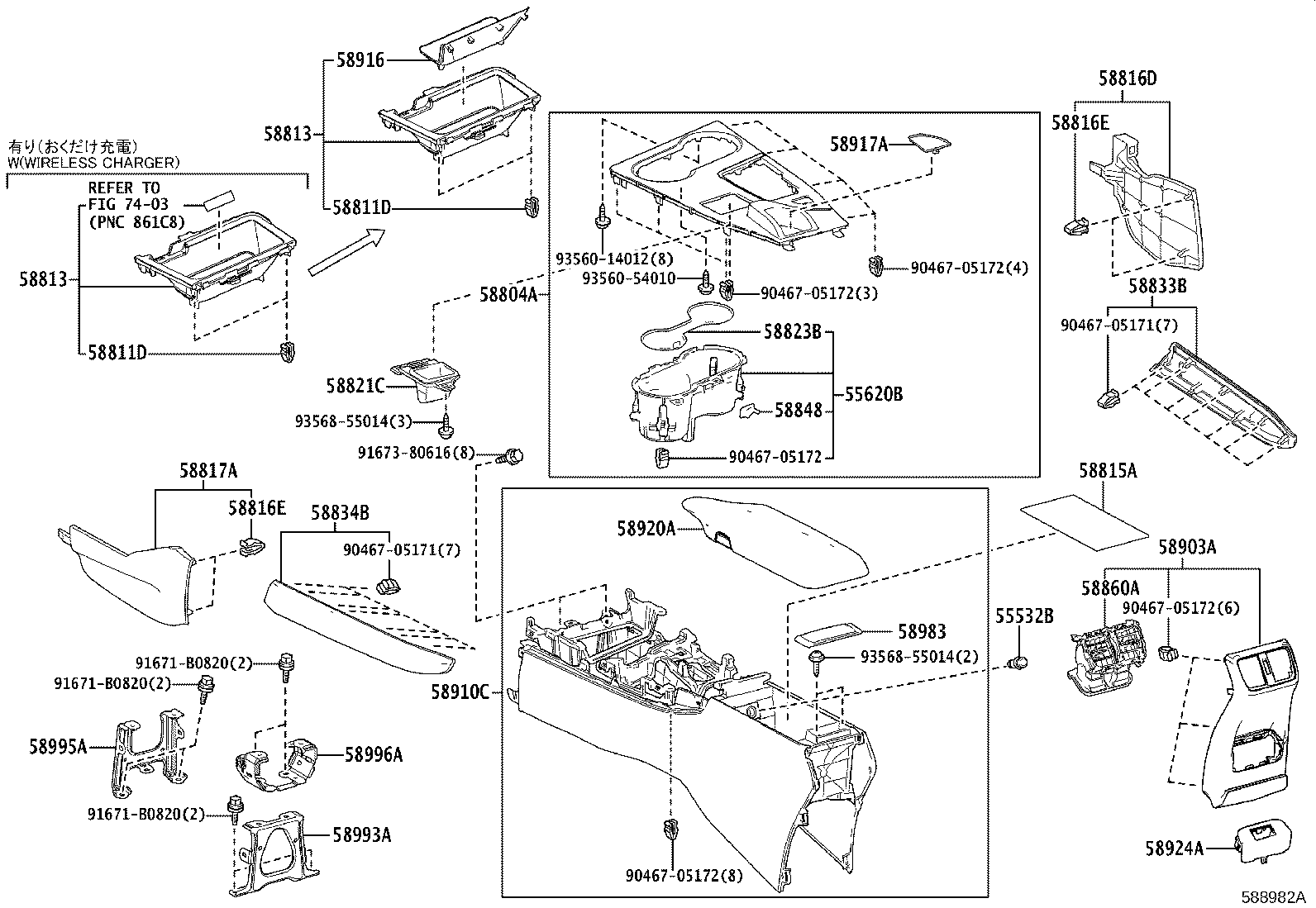

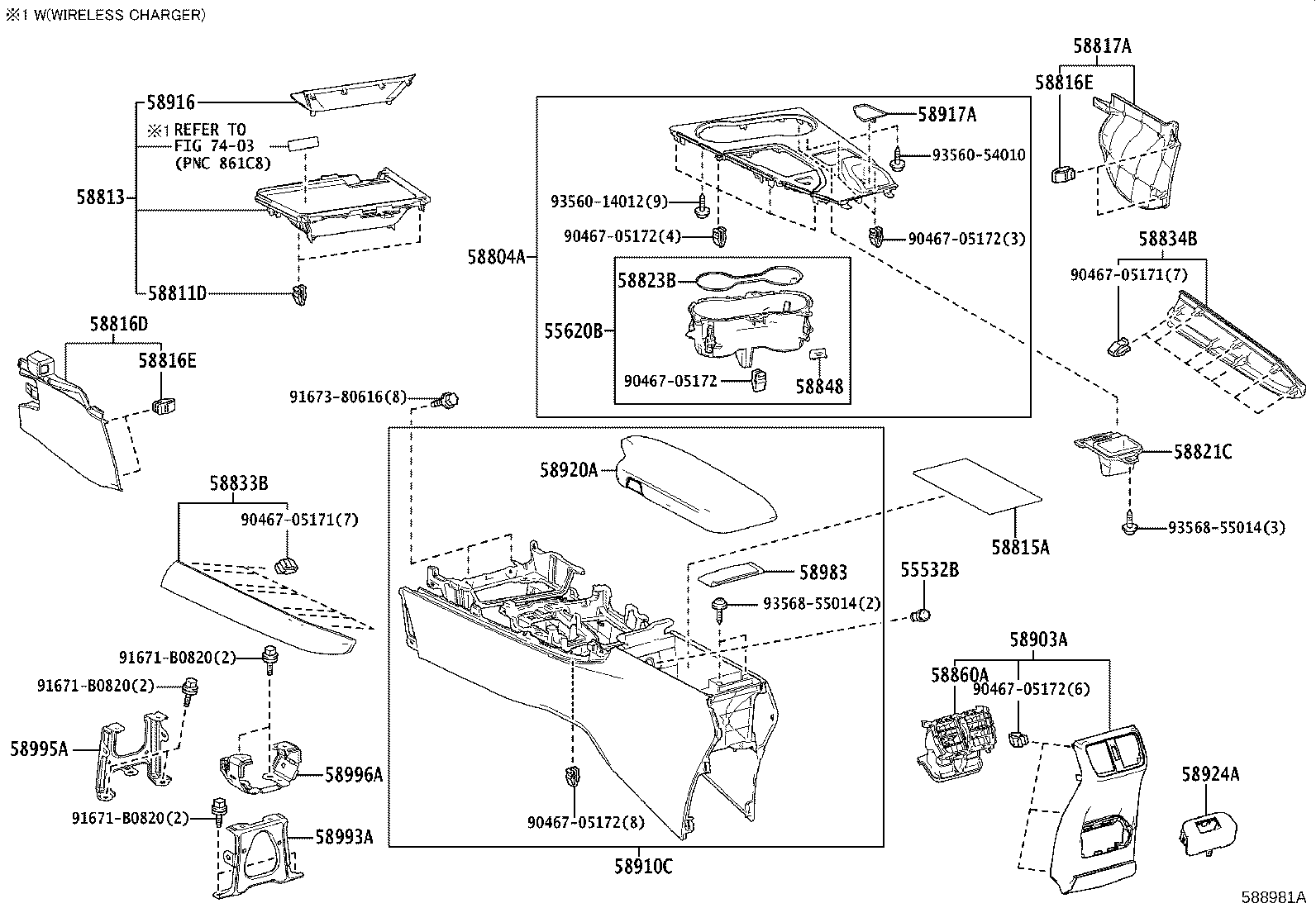

Console Box & Bracket
27 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 55532B | Cover, Cigar Lighter Hole |
| 55620B | Holder, Instrument Panel Cup |
| 58804A | Panel Sub-assy, Console, Upper |
| 58808 | Cover Sub-assy, Shifting Hole |
| 58811D | Clip(FOR CONSOLE BOX) |
| 58813 | Box, Console, Upper |
| 58815A | Carpet, Console Box |
| 58816D | Insert, Console Box, Front NO.1 |
| 58816E | Clip, Console Box Insert, Front |
| 58817A | Insert, Console Box, Front NO.2 |
| 58821C | Panel, Console, Upper |
| 58823B | Box, Console Compartment |
| 58833B | Garnish, Console Upper Panel, NO.1 |
| 58834B | Garnish, Console Upper Panel, NO.2 |
| 58840K | Cover Assy, Shifting Hole |
| 58848 | Cover, Shift Lever Hole |
| 58860A | Register Assy, Console Box |
| 58903A | Panel Sub-assy, Console Rear End |
| 58910C | Box Assy, Console, Rear |
| 58916 | Mat, Box Bottom |
| 58917A | Cover, Console Box, Rear |
| 58920A | Armrest Assy, Rear Console |
| 58924A | Panel, Console Rear End, NO.2 |
| 58983 | Retainer, Upper Console |
| 58993A | Bracket, Console Box Mounting, Lower |
| 58995A | Bracket, Console Box Mounting, NO.1 |
| 58996A | Bracket, Console Box Mounting, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
