Toyota Lexus UX Series

2022-07 → present · chassis KMA10,MZAA10,MZAH1# · catalogue 537220 · Europe

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

10 part groups · 2 illustrations

Illustrations

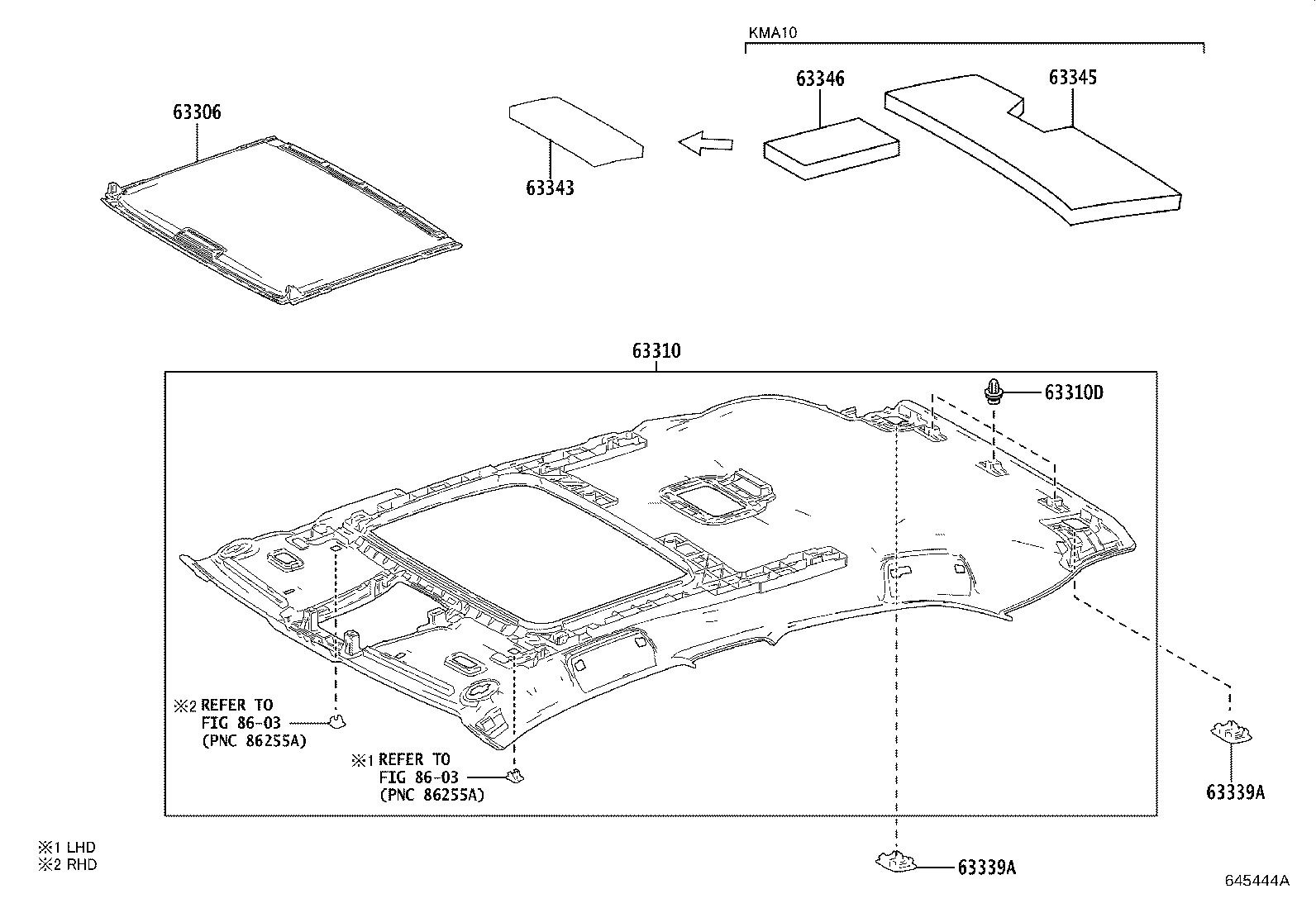

Figure 645443B 645443B 2022-07 → — Figure 645444A 645444A 2022-07 → —

Part groups

PNCDescription
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63310D Clip, Roof Headlining
63339A Cover, Roof Headlining Service Hole
63341 Pad, Roof Silencer, NO.1
63342 Pad, Roof Silencer, NO.2
63343 Pad, Roof Silencer, NO.3
63345 Pad, Roof Silencer, NO.5
63346 Pad, Roof Silencer, NO.6
63357B Silencer, Roof
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
