Toyota Lexus UX Series
2022-07 → present · chassis KMA10,MZAA10,MZAH1# · catalogue 537220 · Europe
Supported model
Data version 2024-01

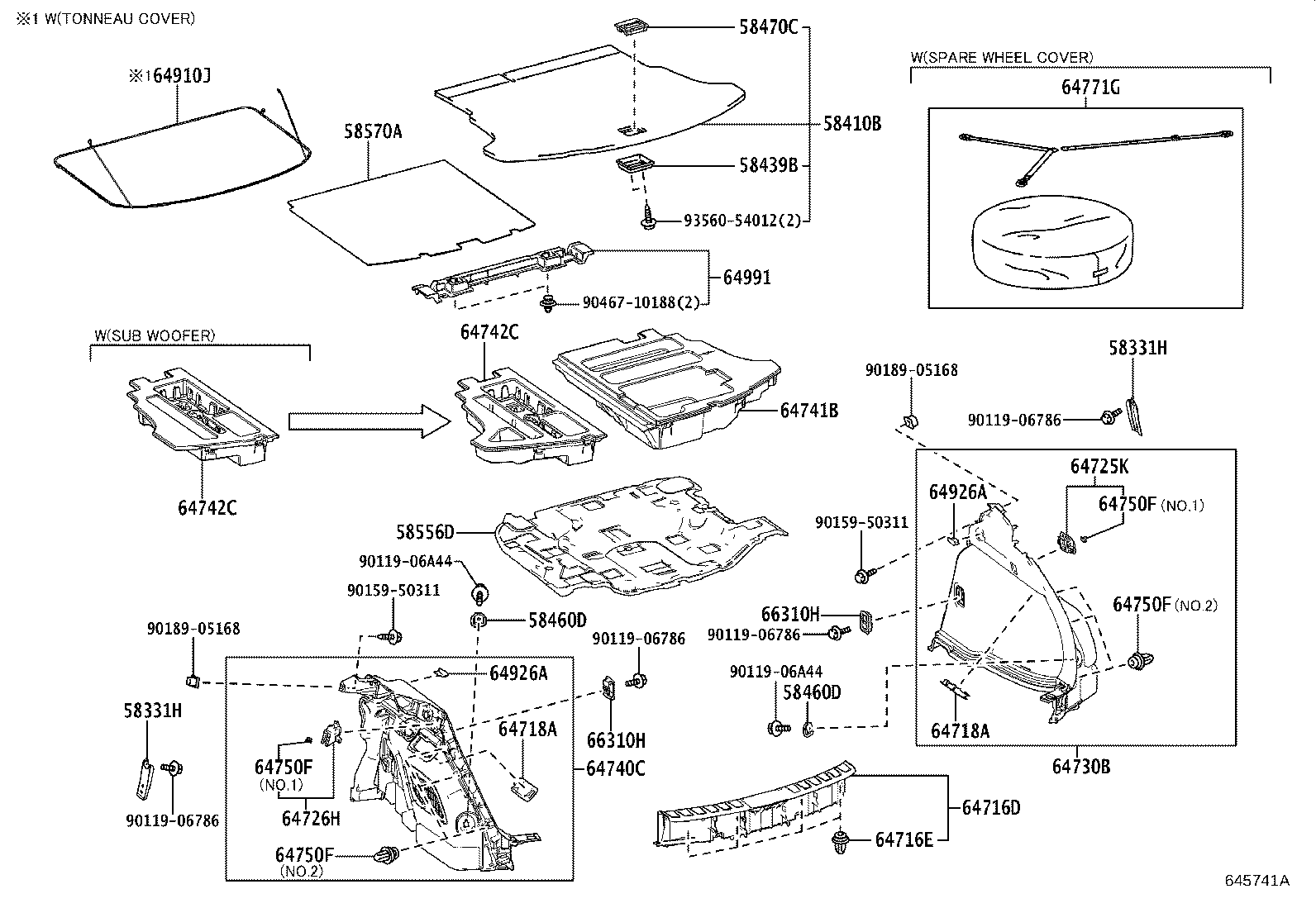

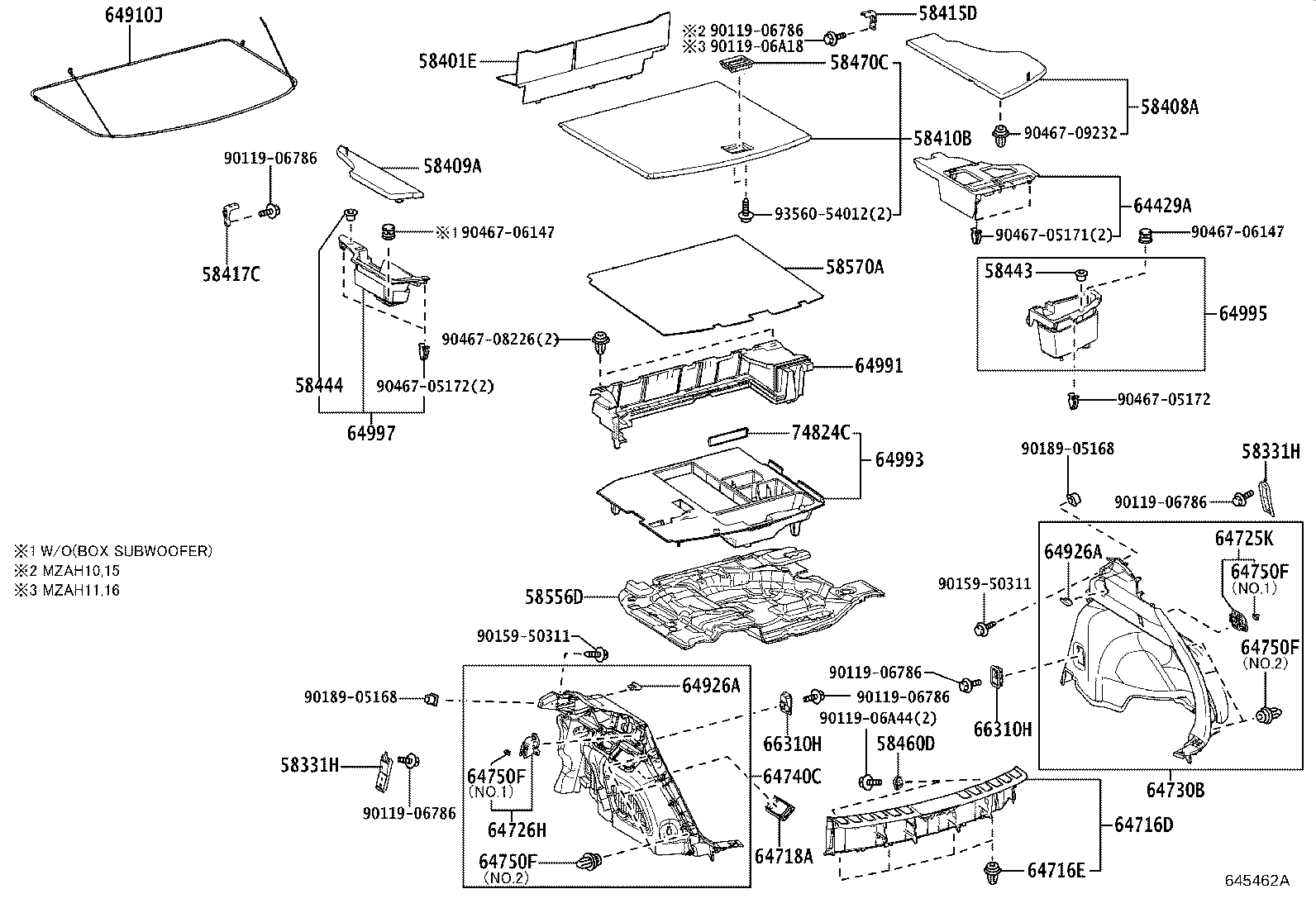

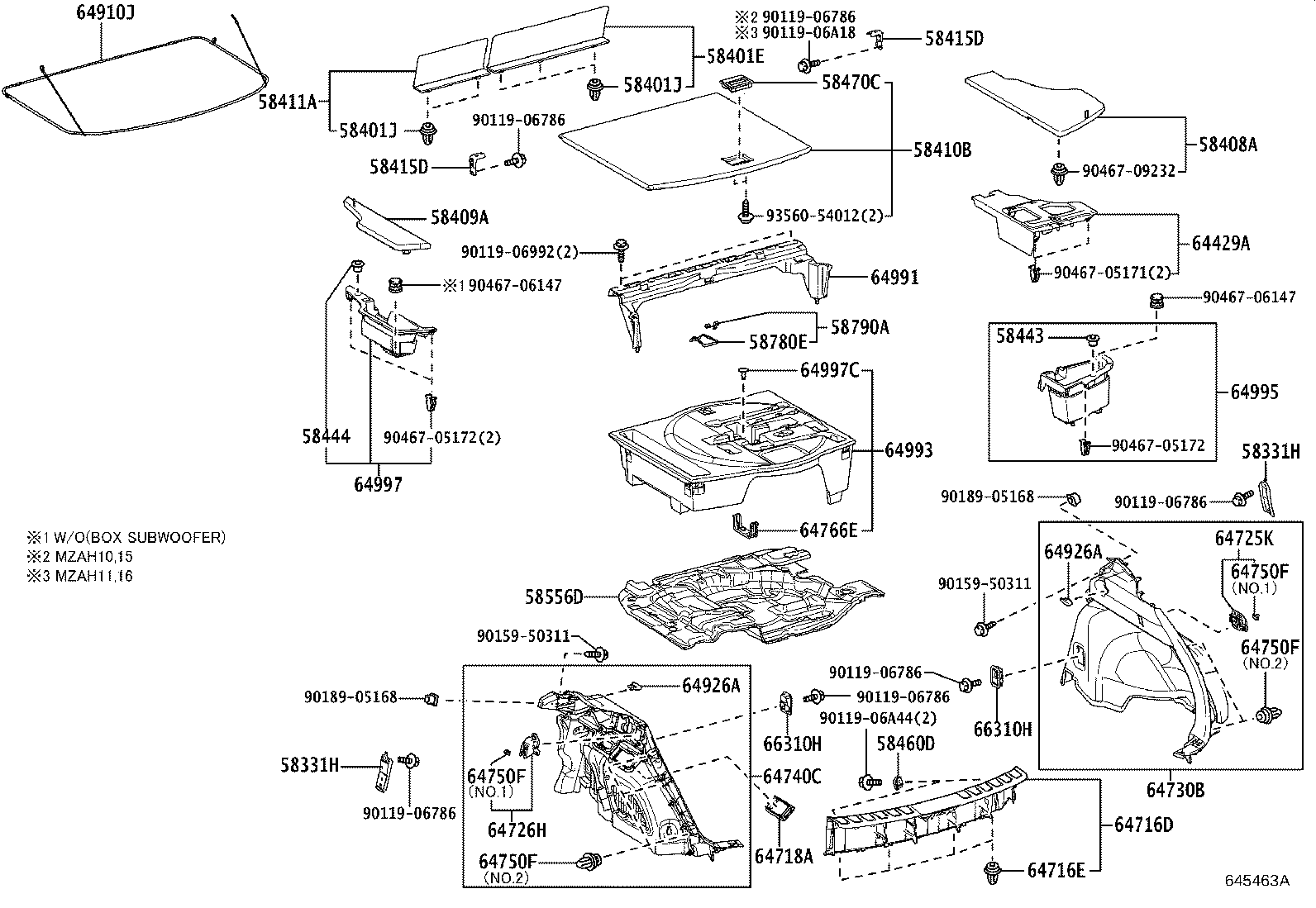

Deck Board & Deck Trim Cover
42 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 58331H | Bracket, Luggage Compartment Trim, NO.1 |
| 58401E | Board Sub-assy, Deck |
| 58401J | Clip(FOR DECK BOAD) |
| 58408A | Board Sub-assy, Deck, NO.2 |
| 58409A | Board Sub-assy, Deck, NO.3 |
| 58410B | Board Assy, Deck |
| 58411A | Board, Deck, NO.1 |
| 58415D | Bracket, Deck Board Support |
| 58417C | Bracket, Deck Board, NO.1 LH |
| 58439B | Protector, Deck Board, NO.1 |
| 58443 | Cushion, Deck Board, NO.1 |
| 58444 | Cushion, Deck Board, NO.2 |
| 58460D | Striker Assy, Luggage Hold Belt |
| 58470C | Handle Assy, Deck Board |
| 58556D | Silencer, Rear Floor |
| 58570A | Mat Assy, Rear Floor |
| 58780E | Band Assy, Tool Box |
| 58790A | Carrier Assy, Jack |
| 64079 | Box Sub-assy, Utility |
| 64079A | Box Sub-assy, Utility |
| 64429A | Box, Luggage Compartment Trim |
| 64716D | Cover, Deck Trim, Rear |
| 64716E | Clip(FOR DECK TRIM REAR COVER) |
| 64718A | Cover, Deck Trim Service Hole |
| 64725K | Hook, Deck Side Trim, NO.1 |
| 64726H | Hook, Deck Side Trim, NO.2 |
| 64730B | Panel Assy, Deck Trim Side, RH |
| 64740C | Panel Assy, Deck Trim Side, LH |
| 64741B | Box, Deck Side Trim, RH |
| 64742C | Box, Deck Side Trim, LH |
| 64750F | Clip(FOR DECK SIDE TRIM PANEL) |
| 64766E | Bezel, Jack Cover, Lower |
| 64771G | Cover, Spare Wheel |
| 64910J | Cover Assy, Tonneau |
| 64926A | Hook, Tonneau |
| 64991 | Box, Deck Floor, Front |
| 64993 | Box, Deck Floor, Rear |
| 64995 | Box, Deck Floor, RH |
| 64997 | Box, Deck Floor, LH |
| 64997C | Clip(FOR DECK FLOOR BOX) |
| 66310H | Hook Assy, Rope |
| 74824C | Plate, Separator Board |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
