Toyota Lexus UX Series

2022-07 → present · chassis KMA10,MZAA10,MZAH1# · catalogue 537220 · Europe

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Interior Lamp

12 part groups · 2 illustrations

Illustrations

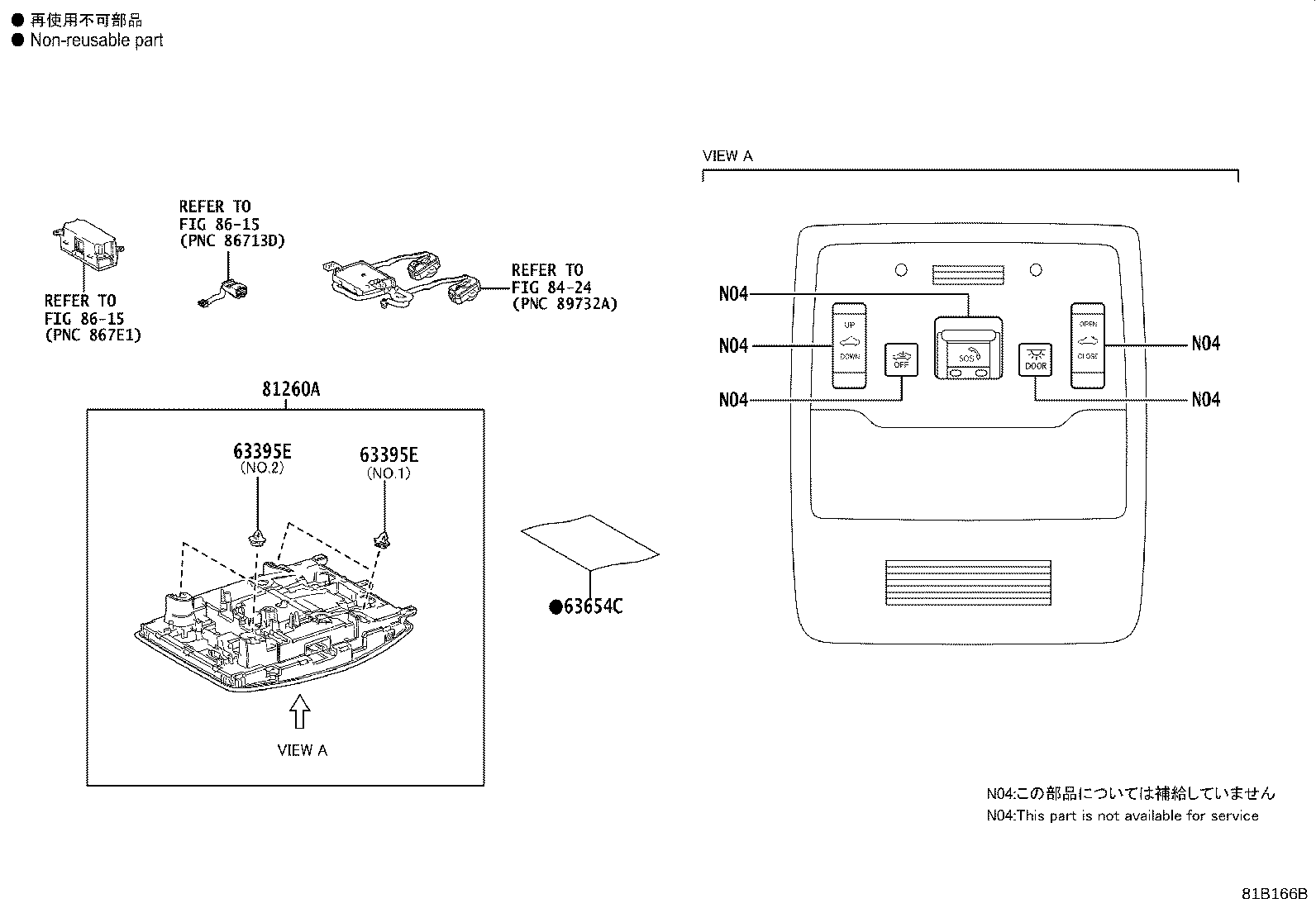

Figure 81B165A 81B165A 2022-07 → — Figure 81B166B 81B166B 2022-07 → —

Part groups

PNCDescription
63395E Clip(FOR MAP LAMP)
63654C Cover, Roof Console Box, Inner
81080J Lamp Assy, Interior Illumination, NO.1
81080M Lamp Assy, Interior Illumination, NO.1
81080N Lamp Assy, Interior Illumination, NO.1
81230 Lamp Assy, Courtesy
81260 Lamp Assy, Glove Box
81260A Lamp Assy, Map
81330 Lamp Assy, Luggage Compartment, NO.1
81340 Lamp Assy, Vanity
81340B Bulb (FOR VANITY LAMP)
81360T Lamp Assy, Spot
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
