Toyota Lexus UX Series

2022-07 → present · chassis KMA10,MZAA10,MZAH1# · catalogue 537220 · Europe

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

171 part groups · 36 illustrations

Illustrations

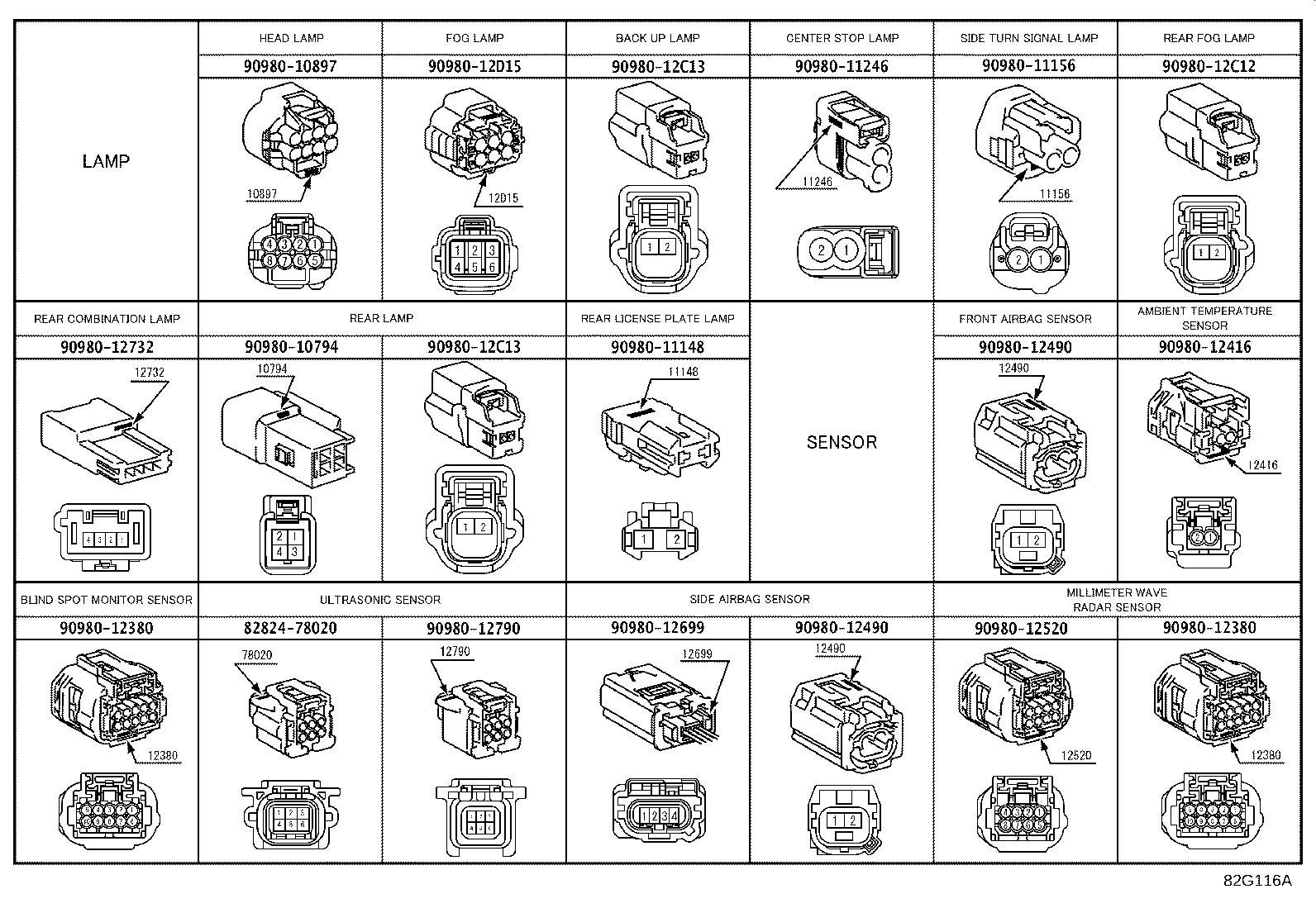

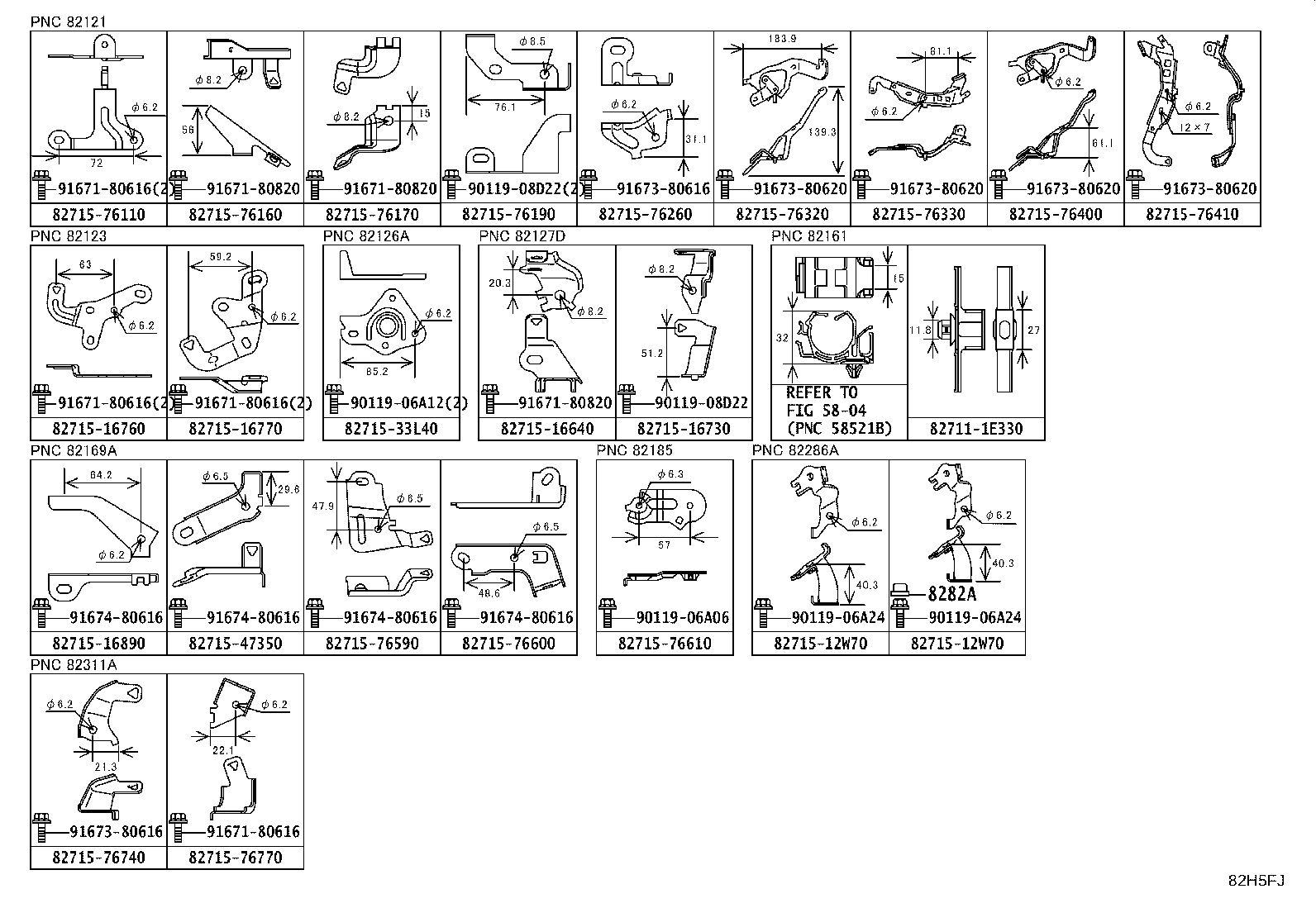

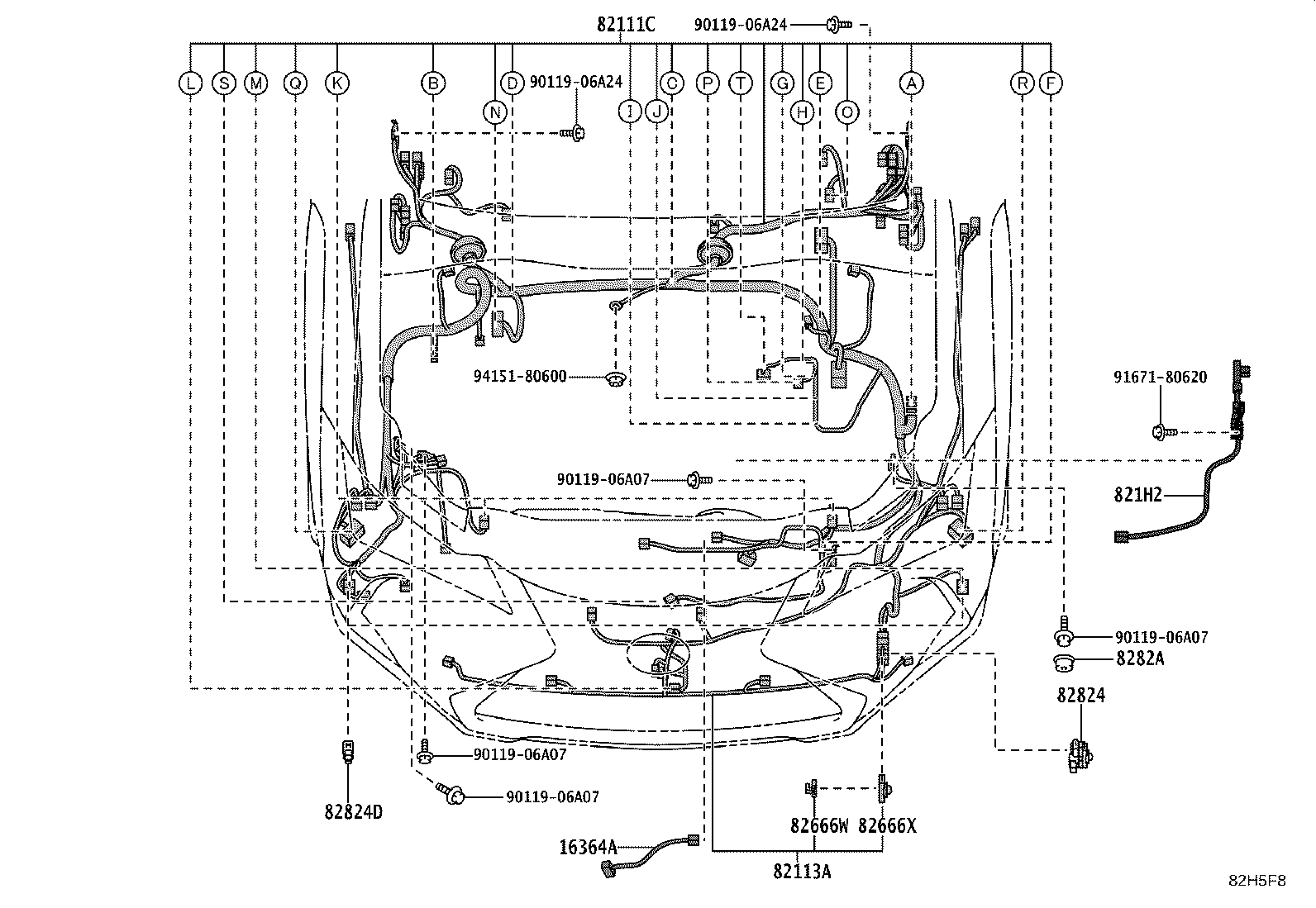

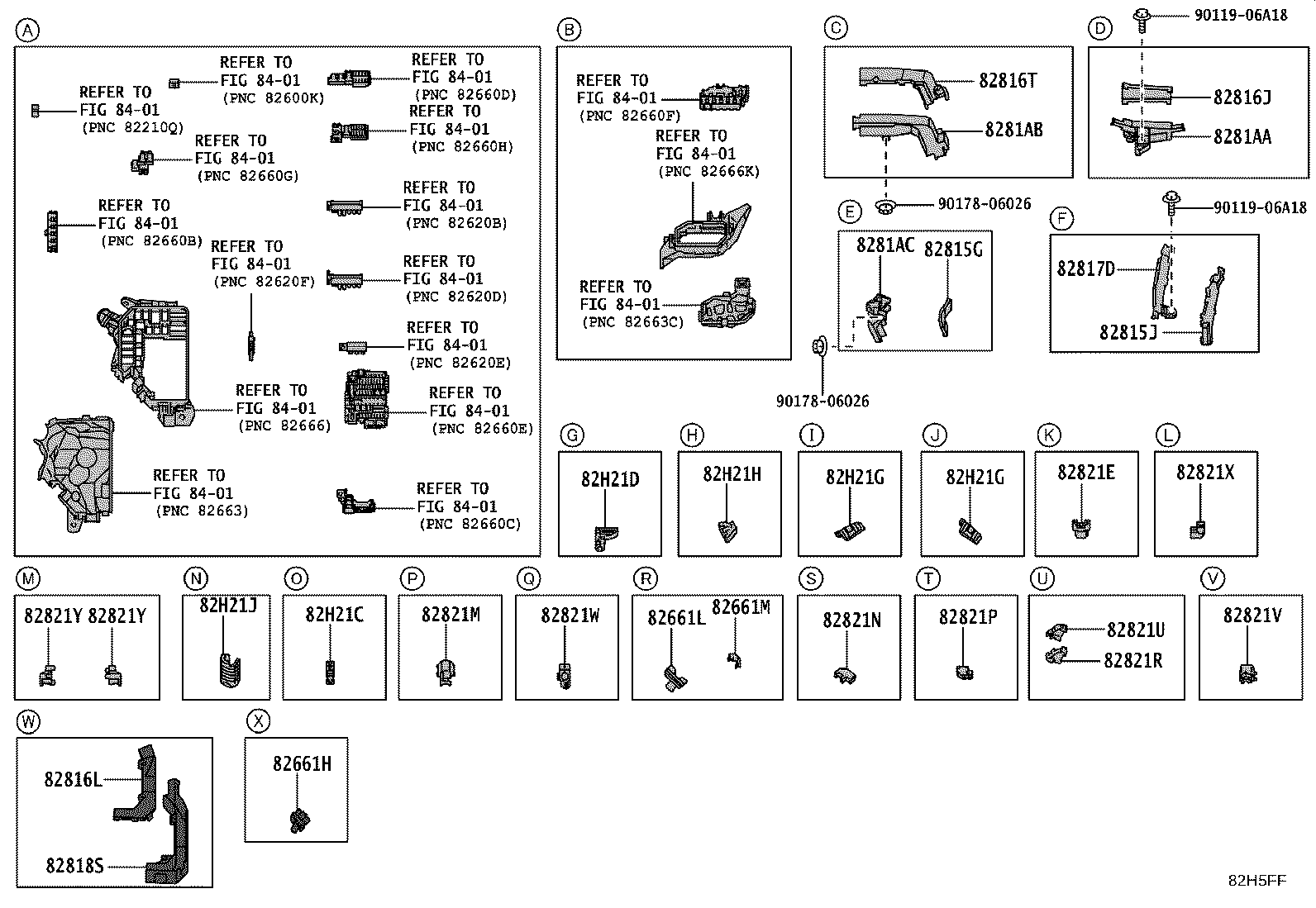

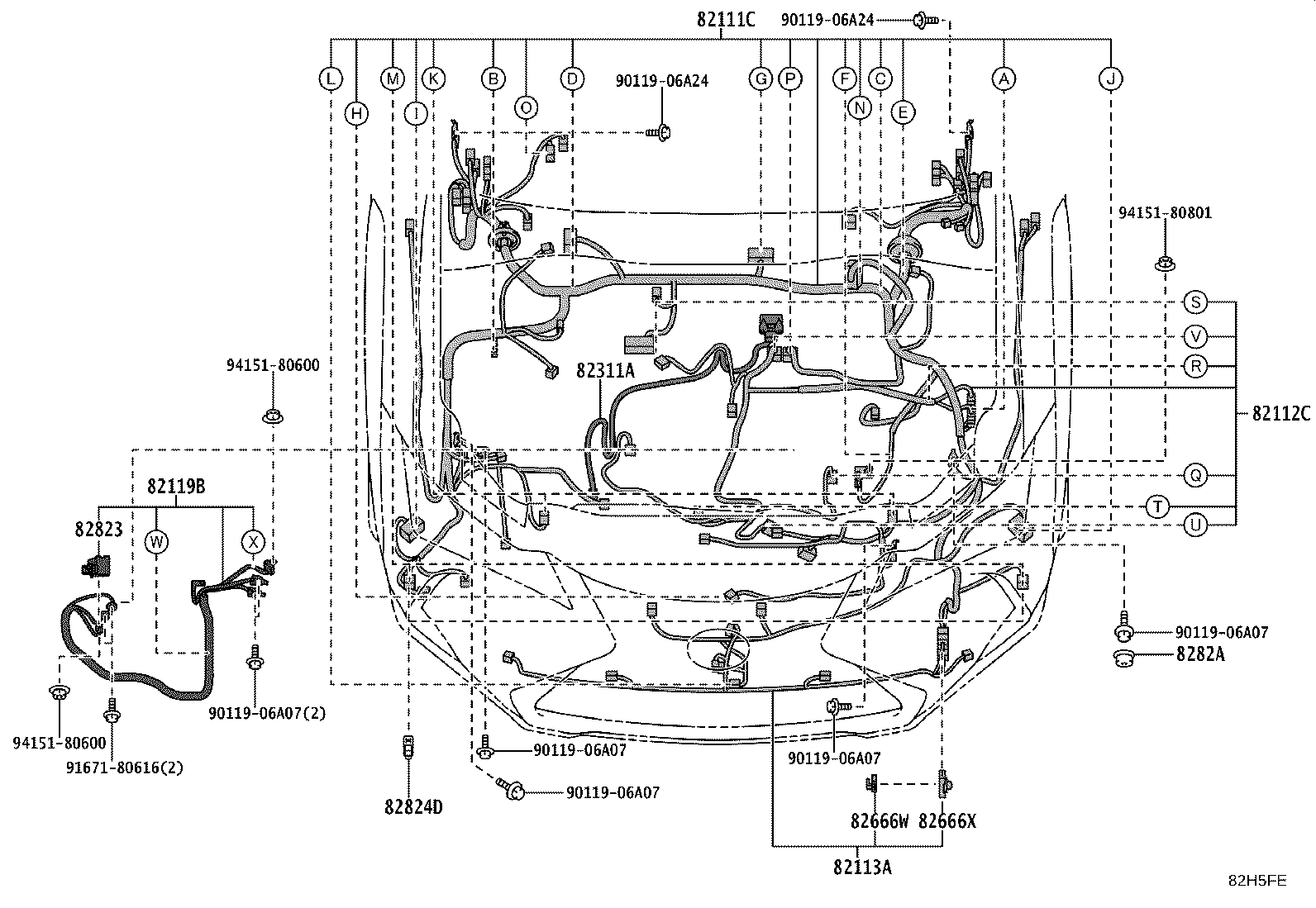

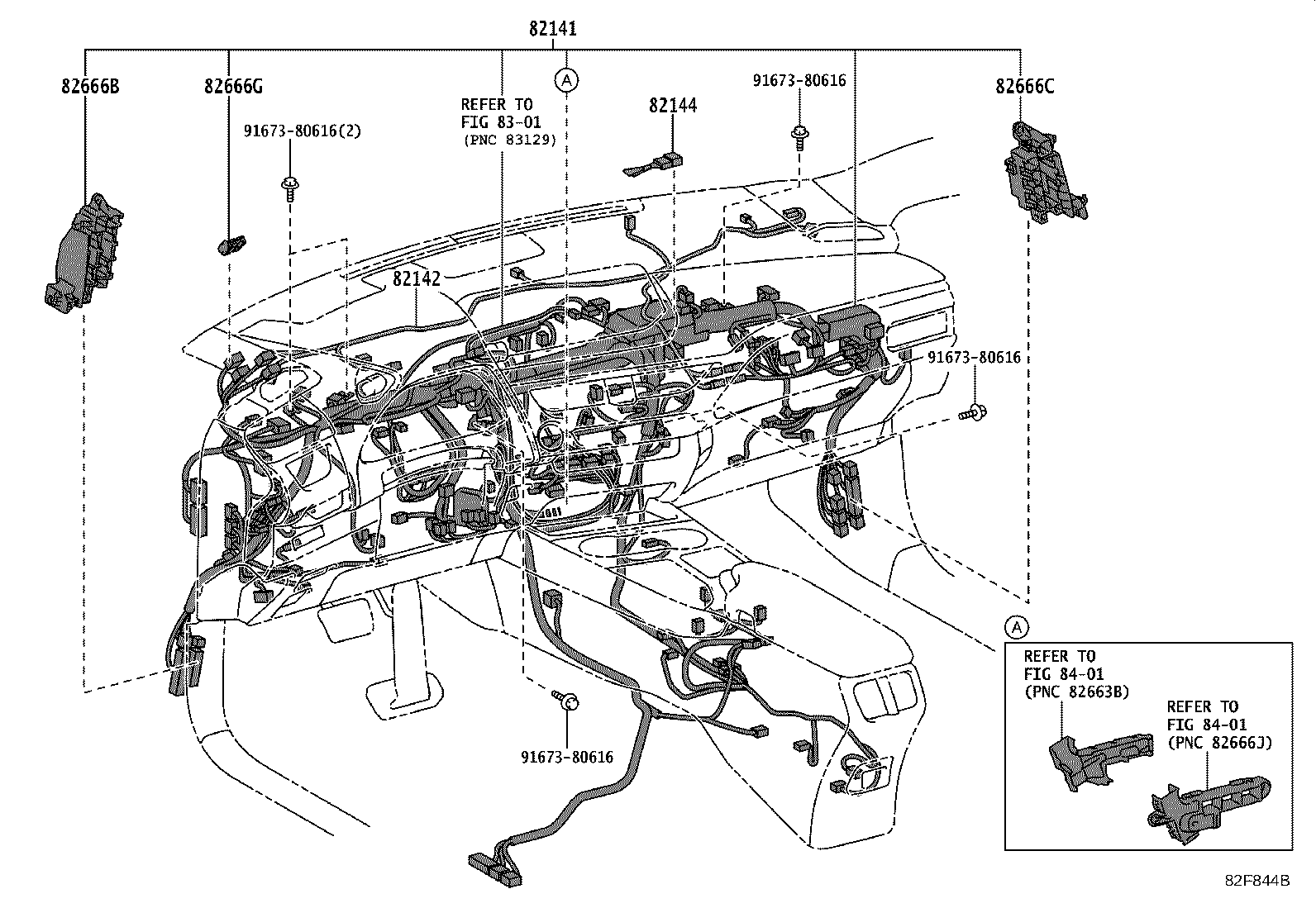

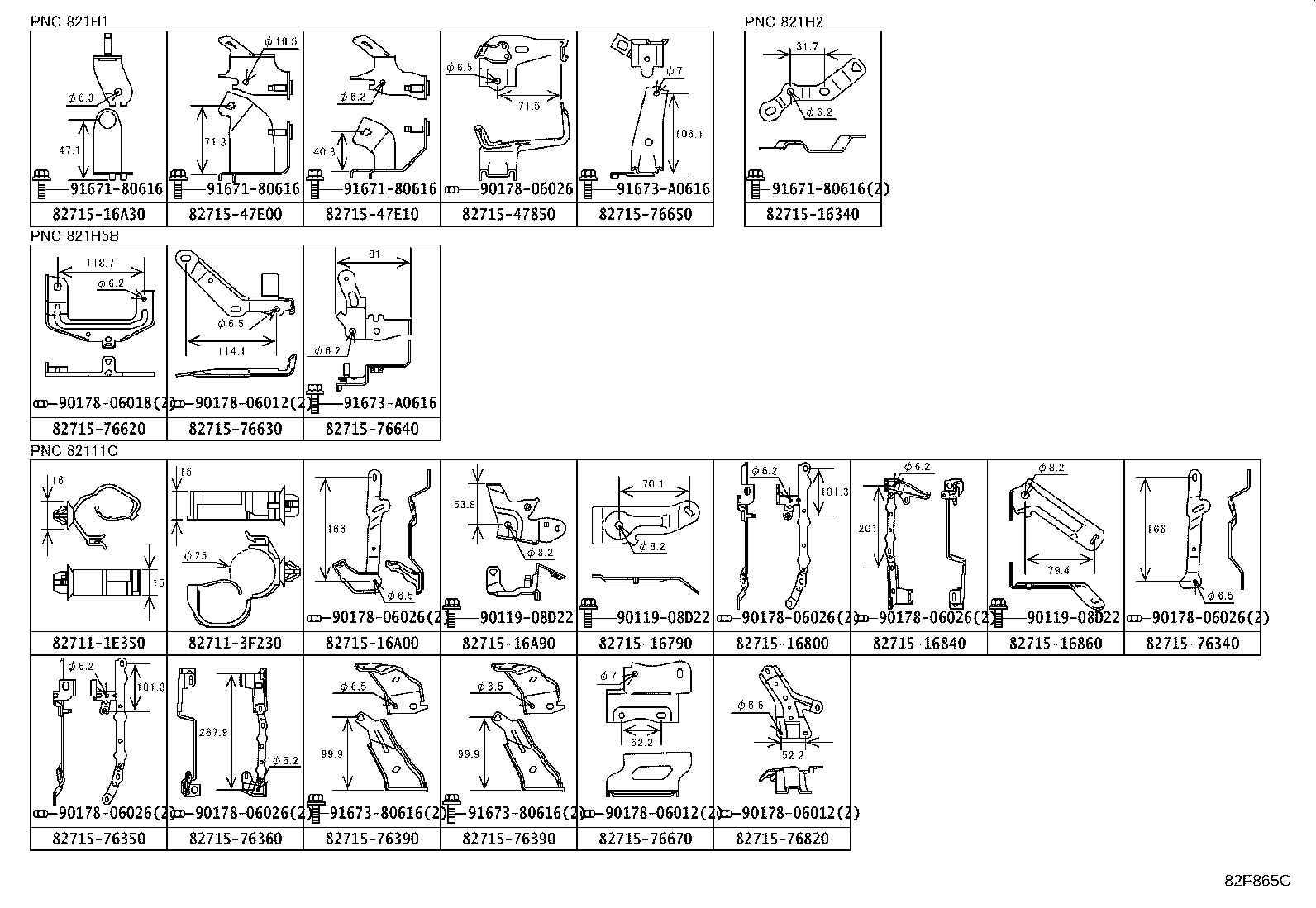

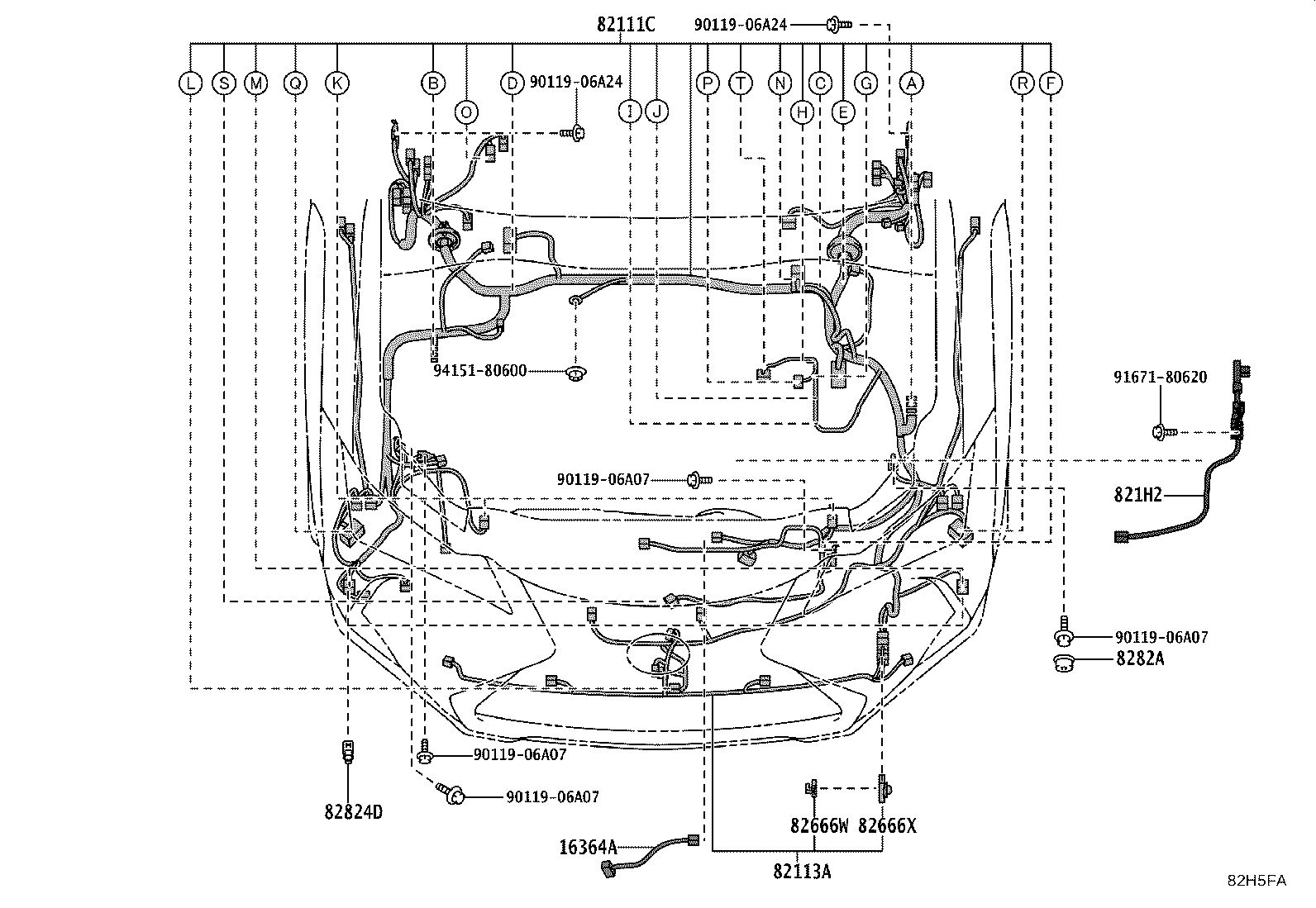

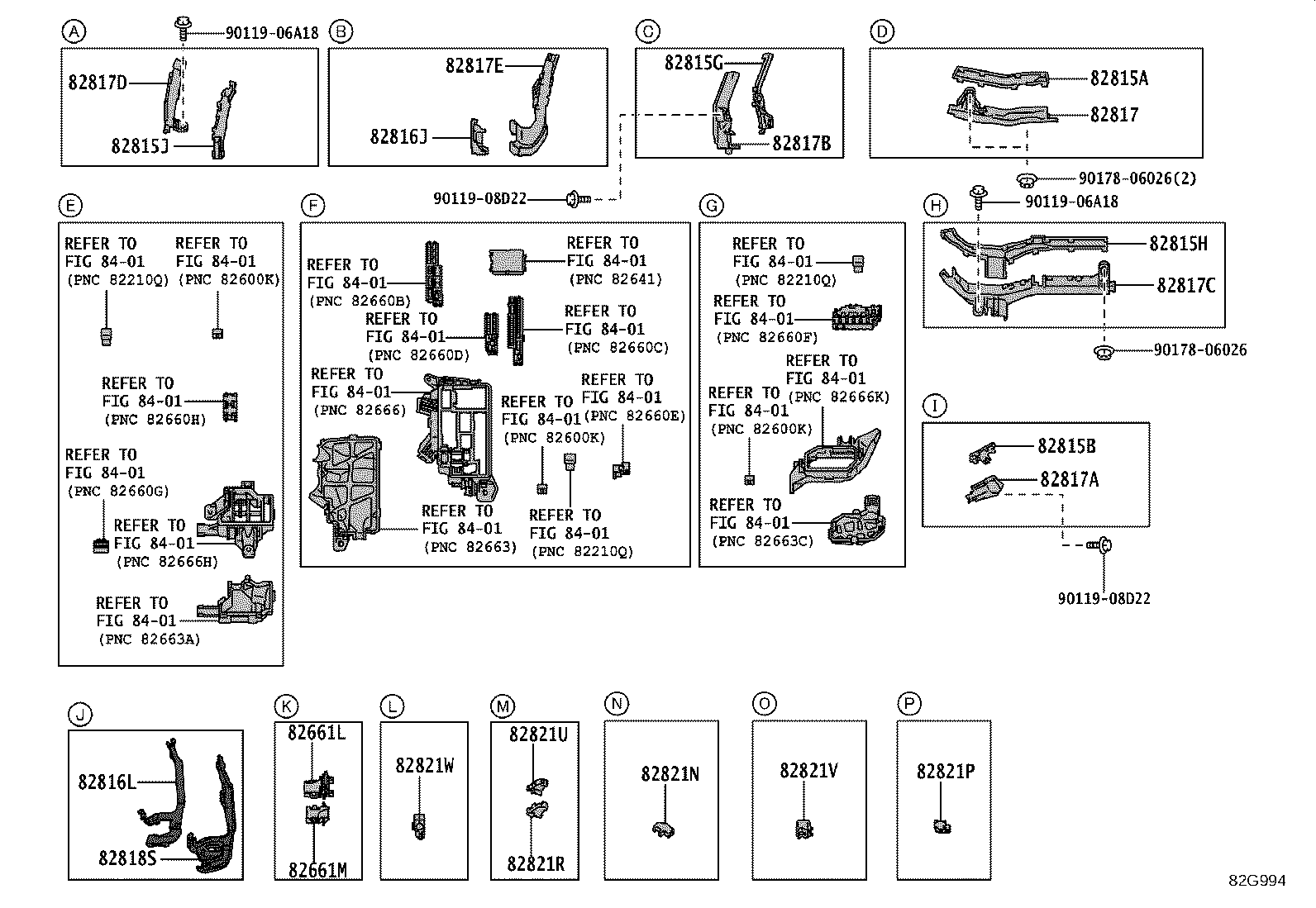

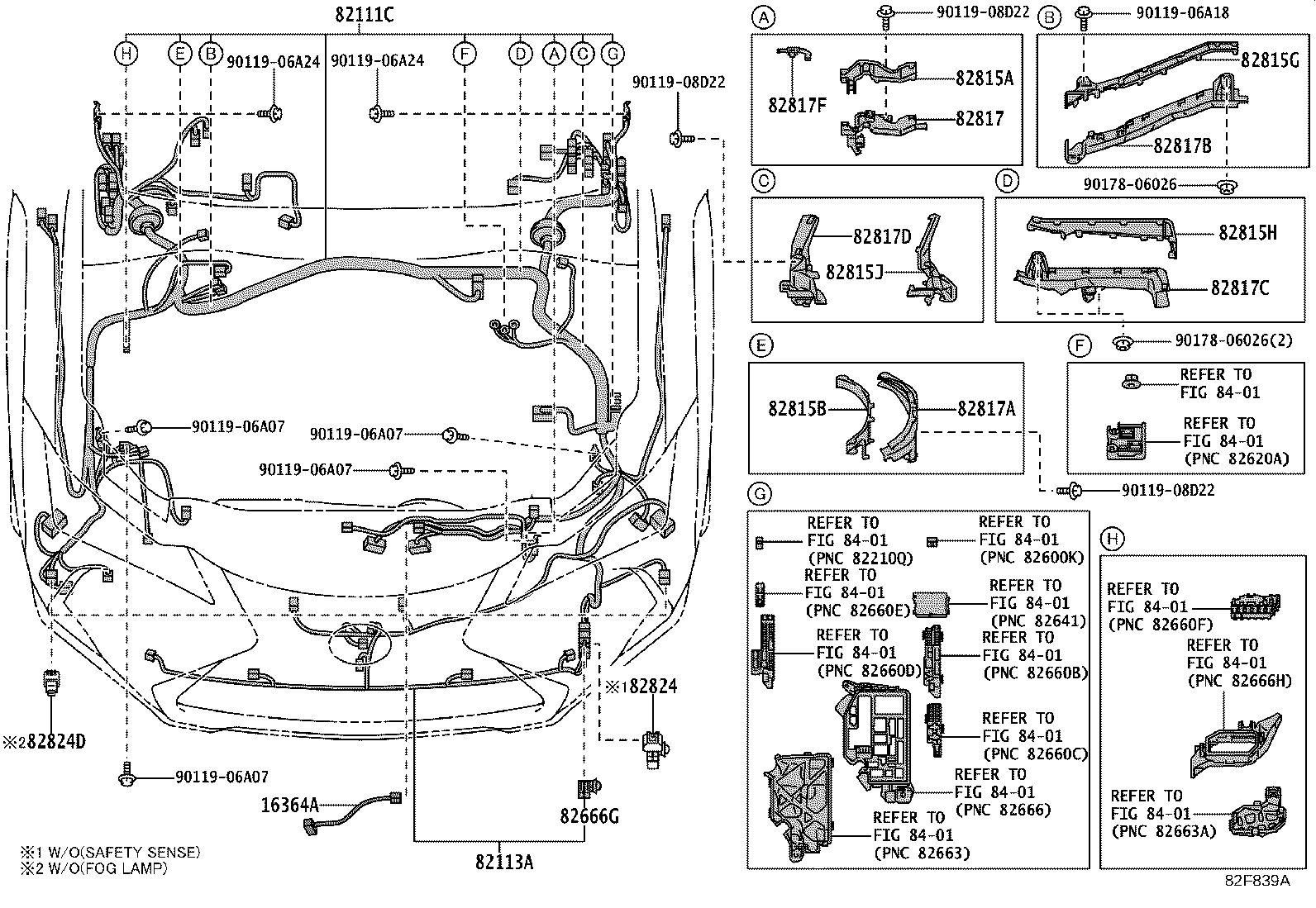

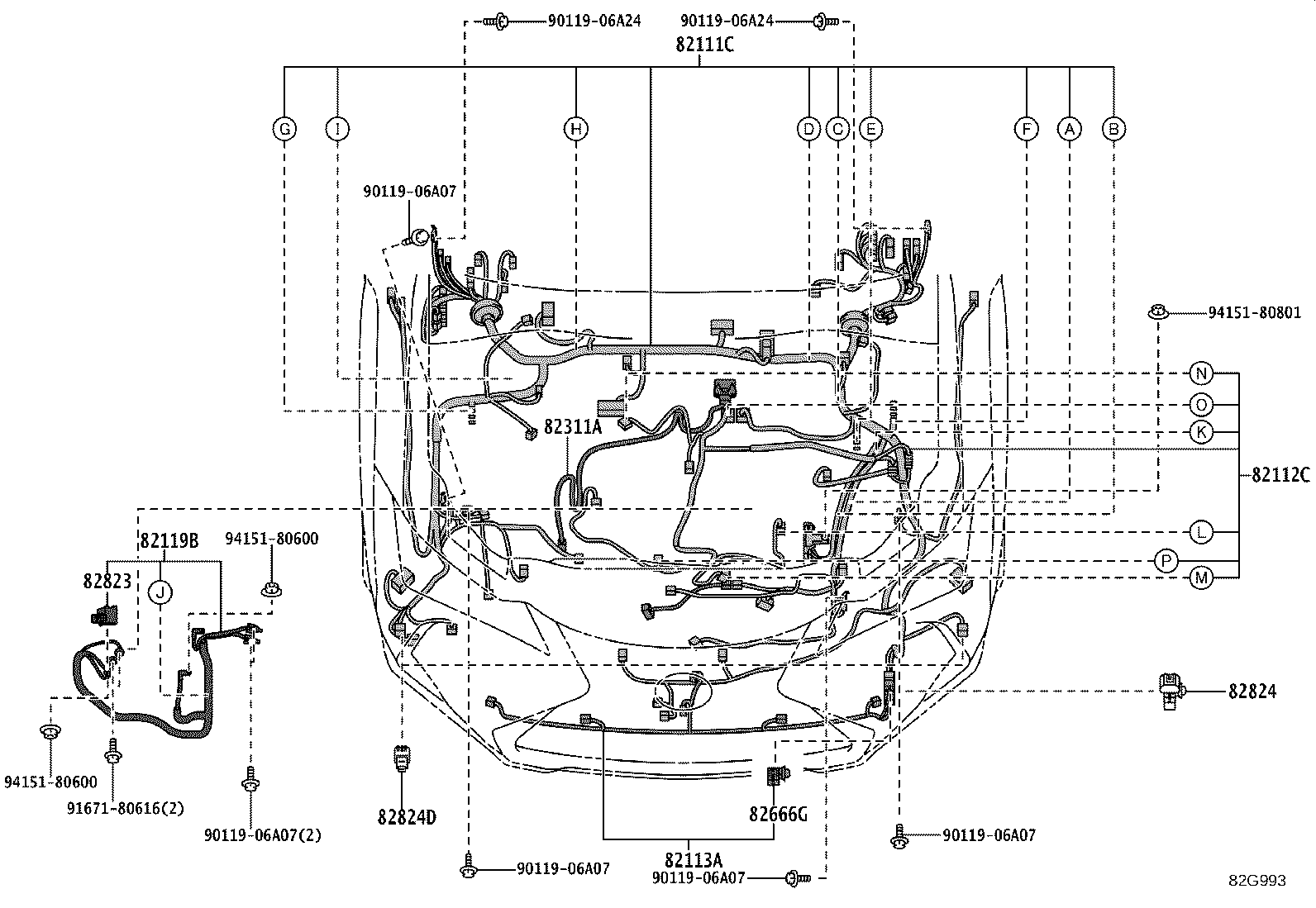

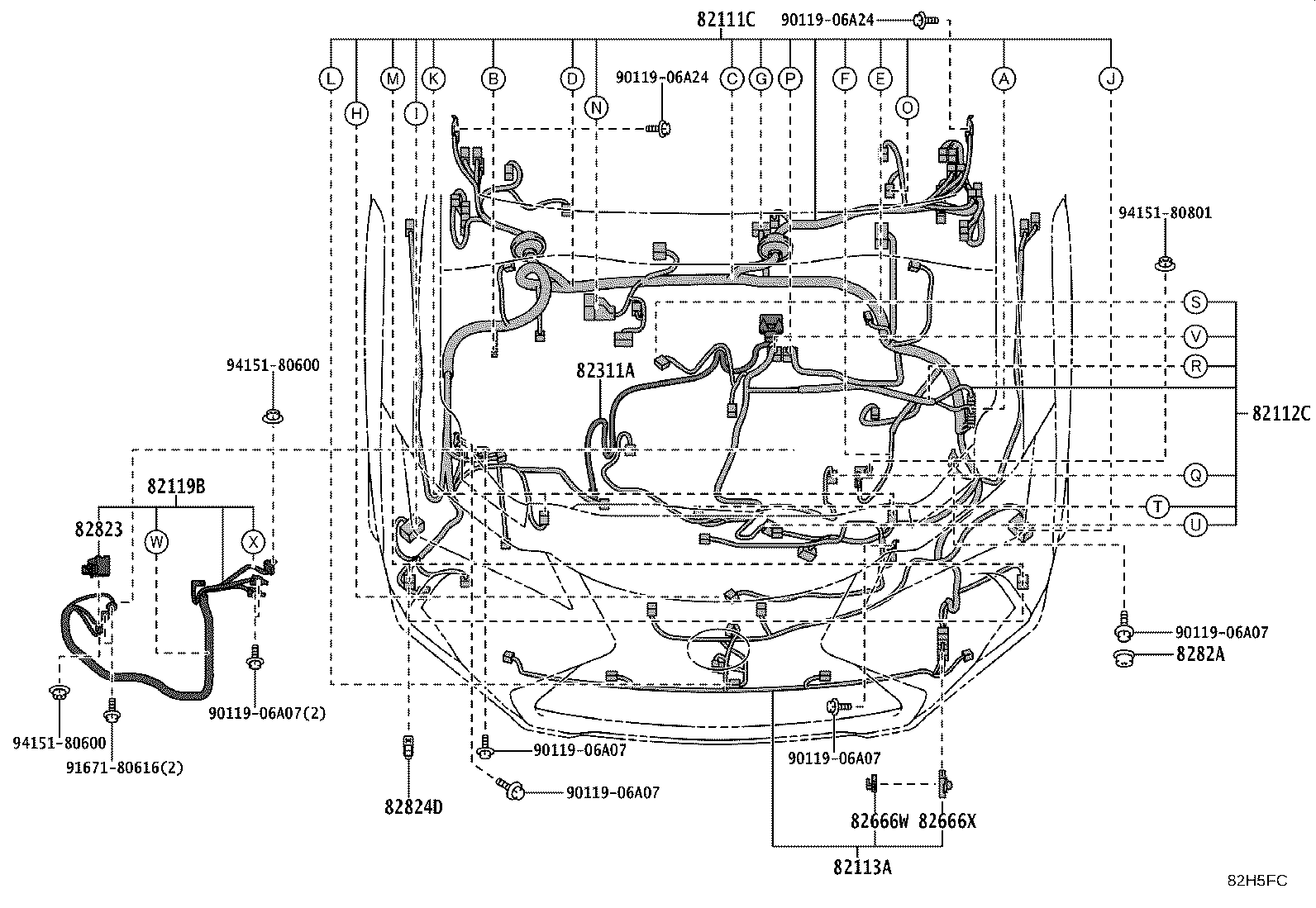

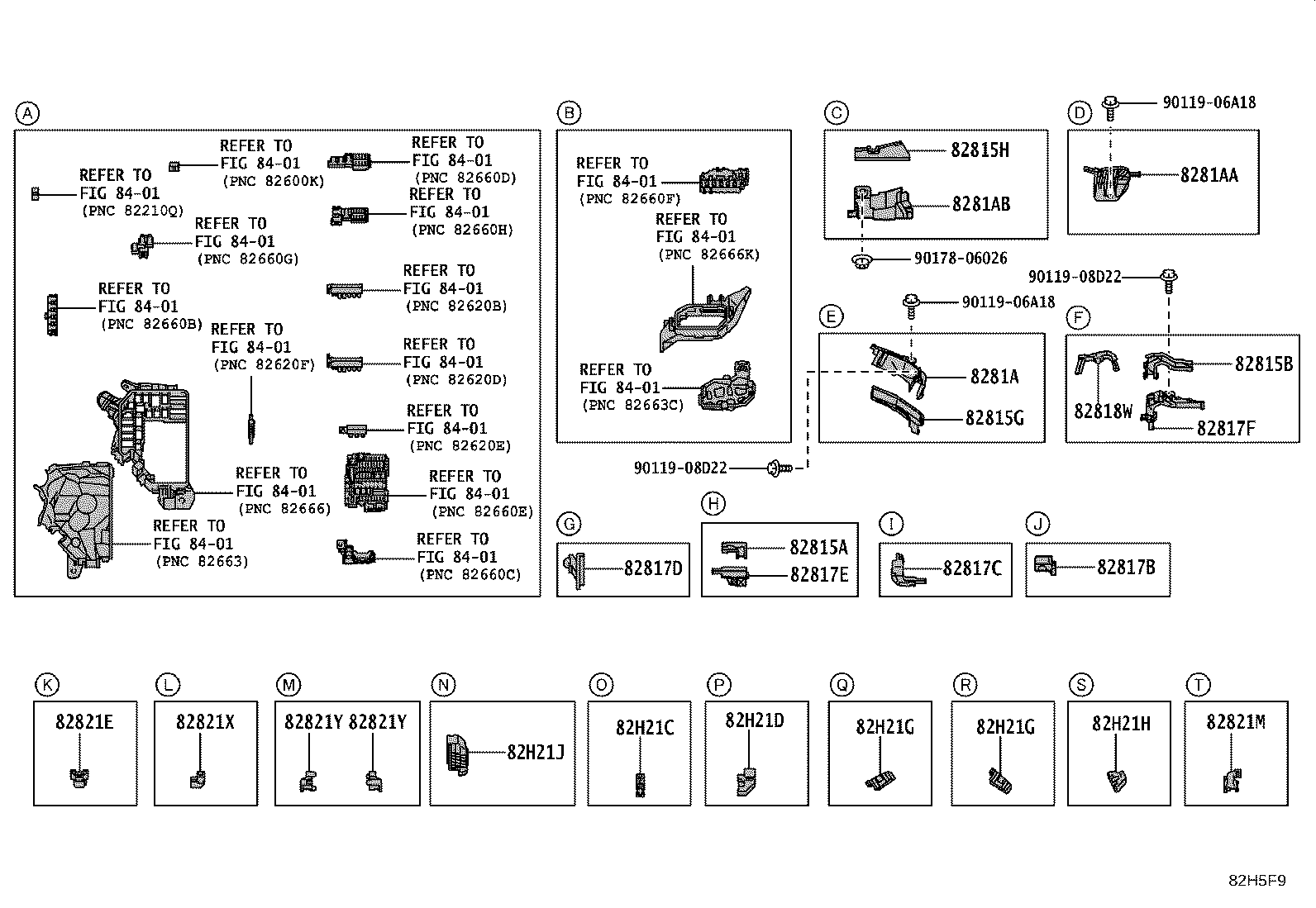

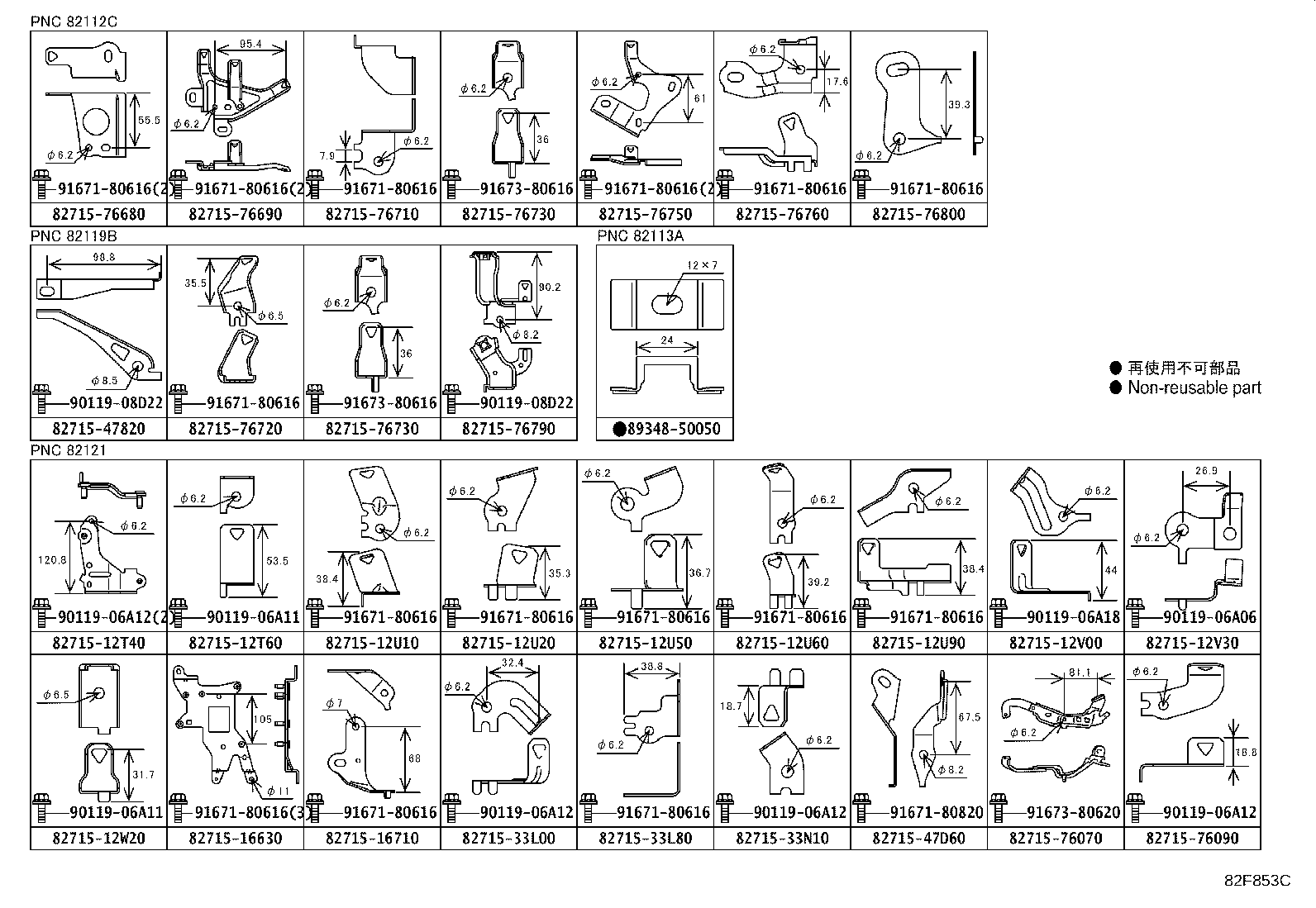

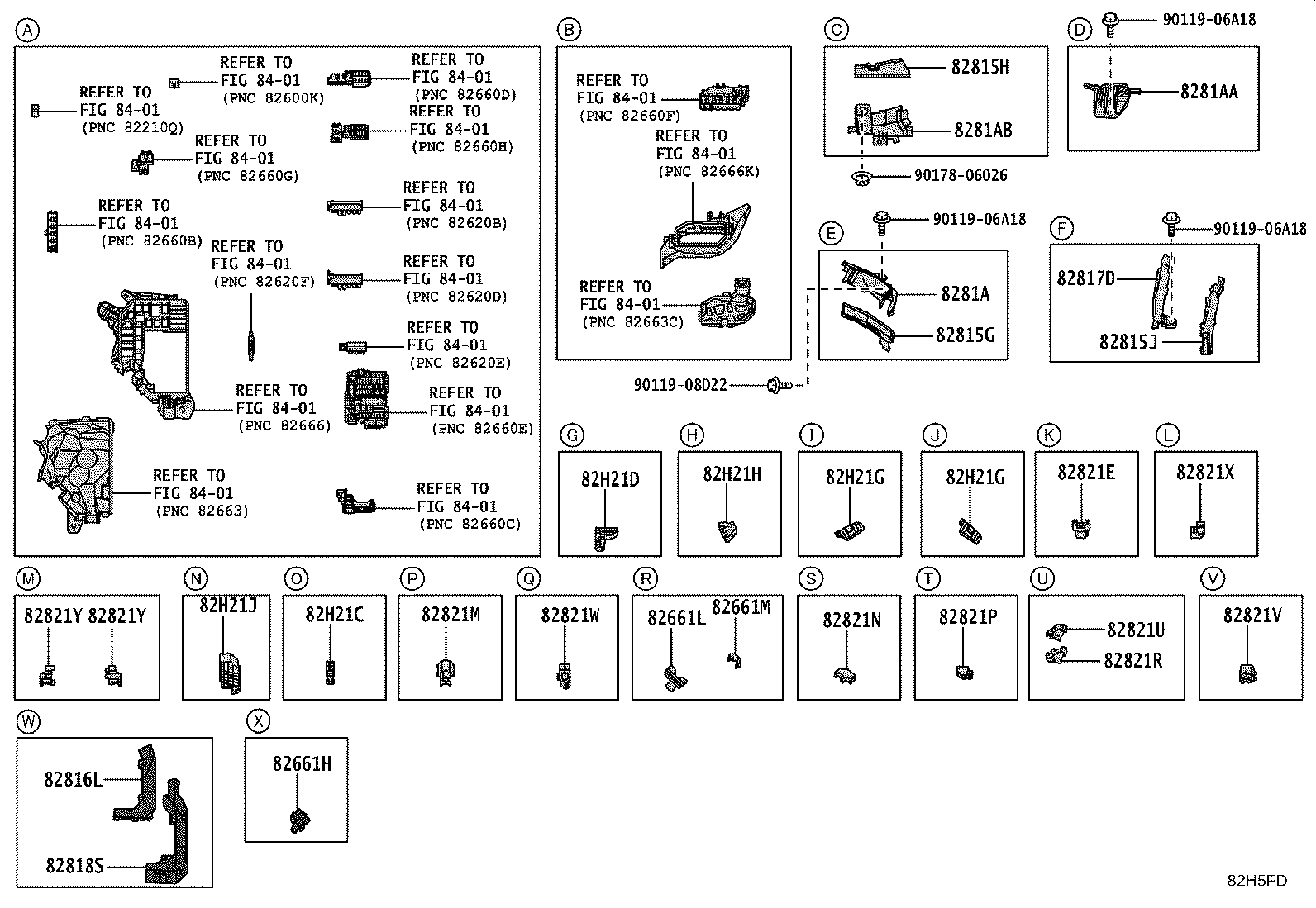

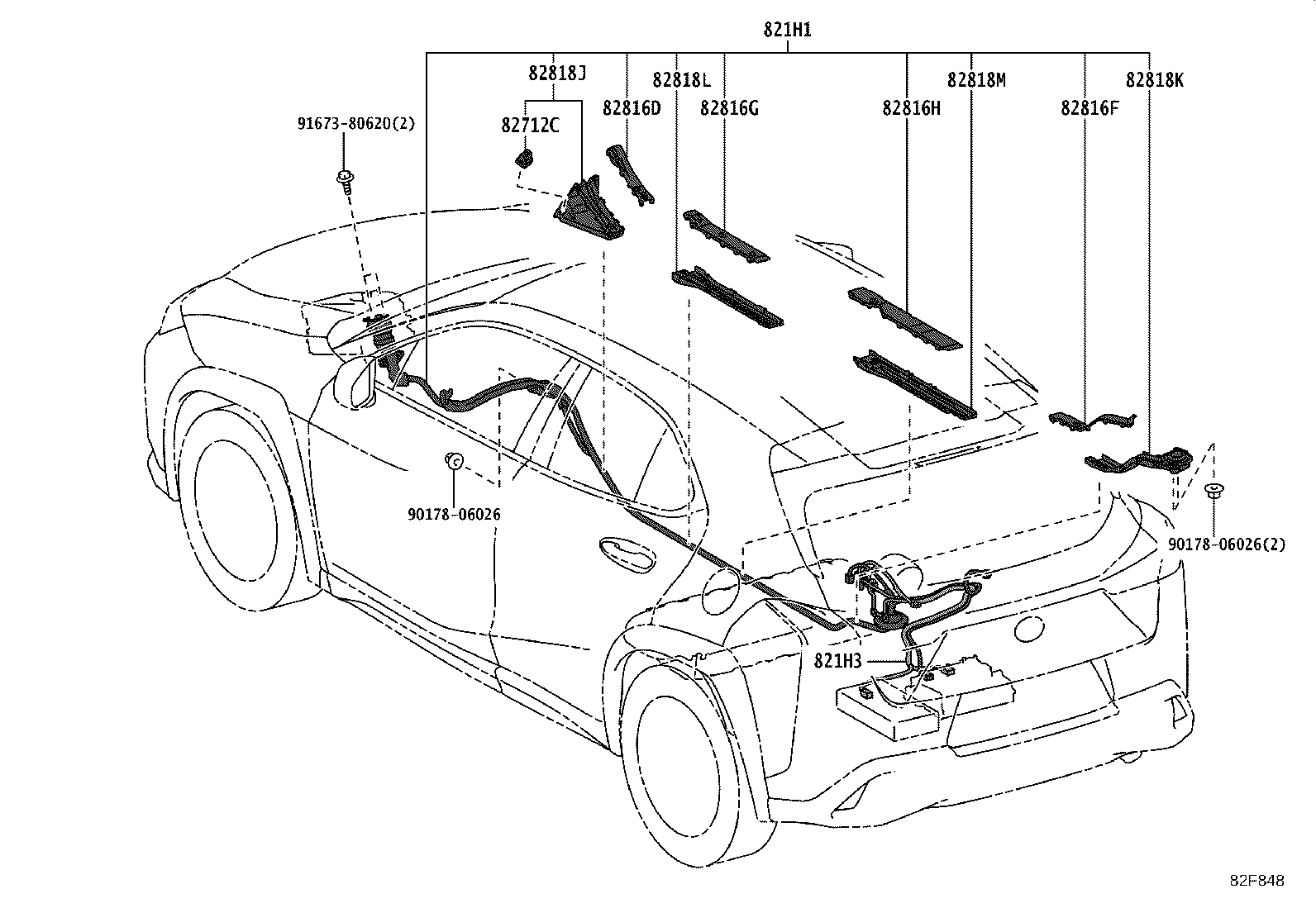

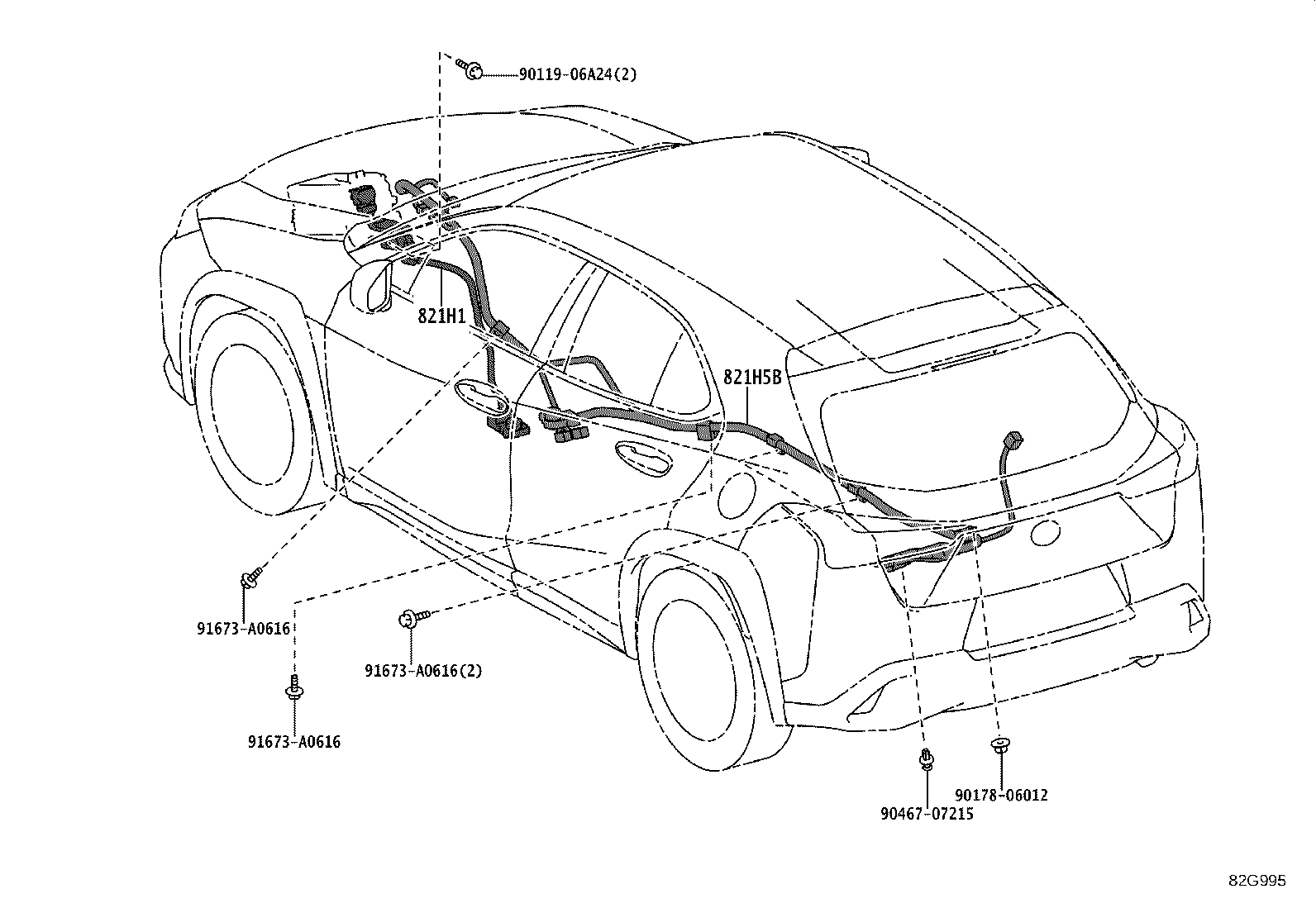

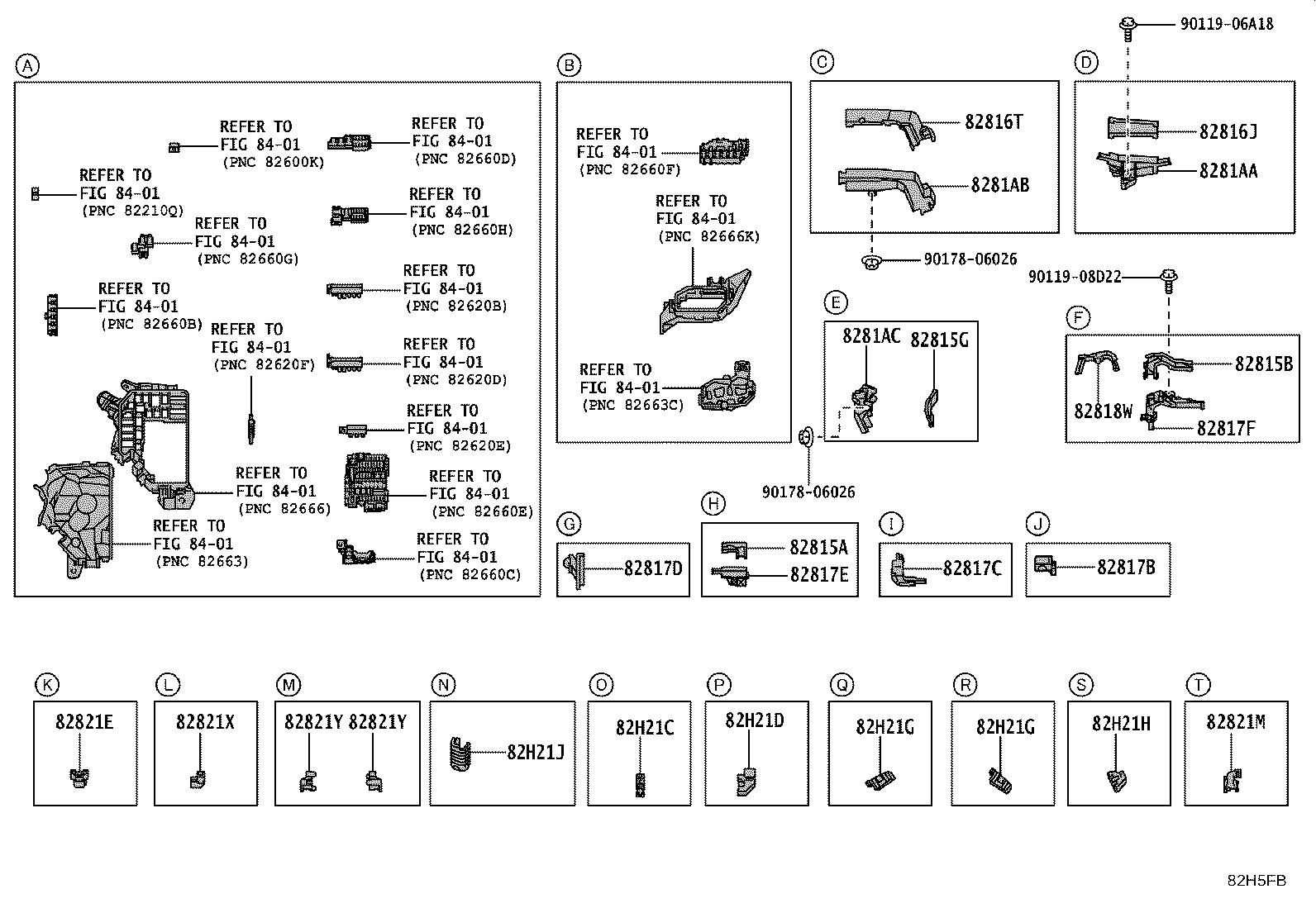

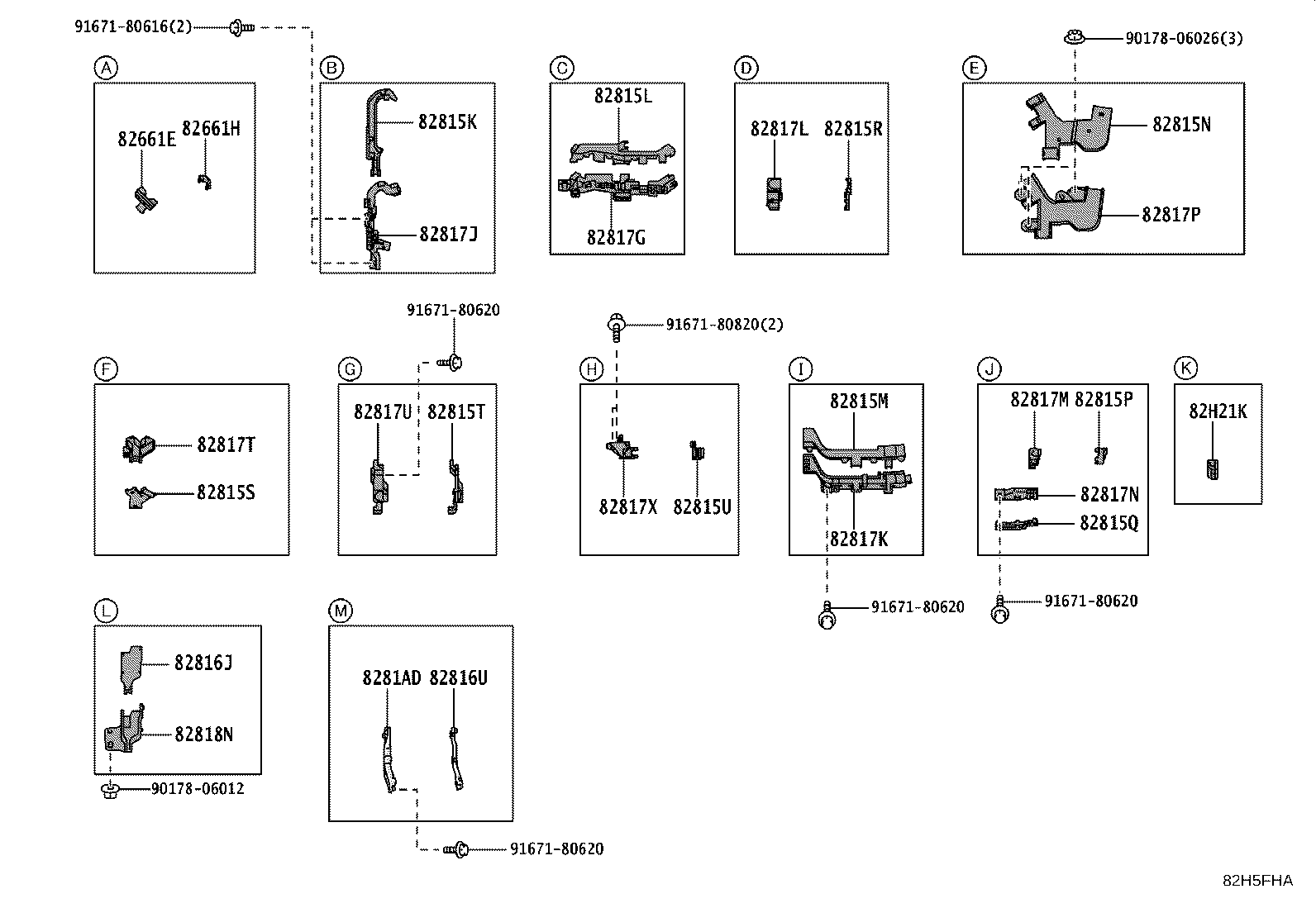

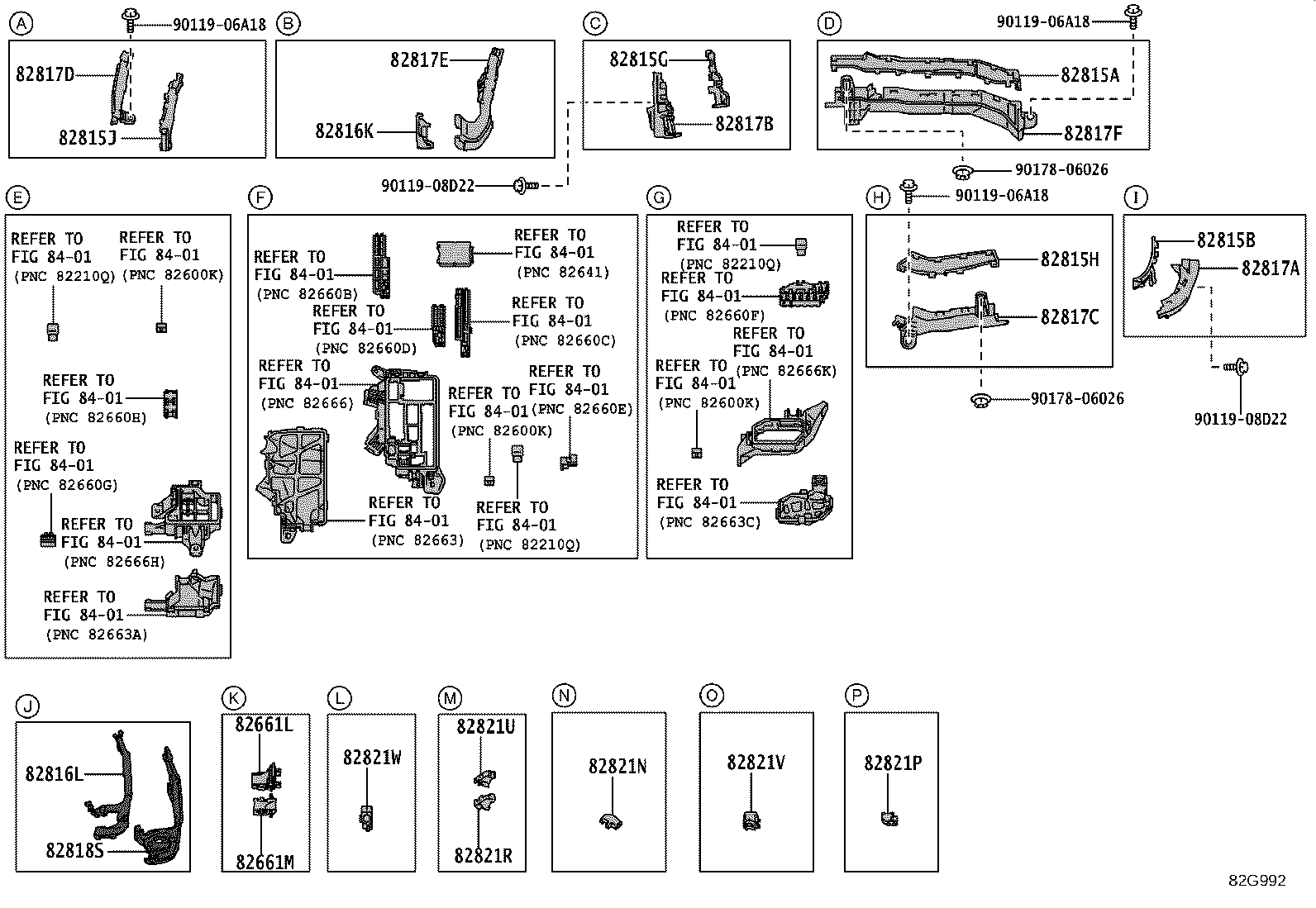

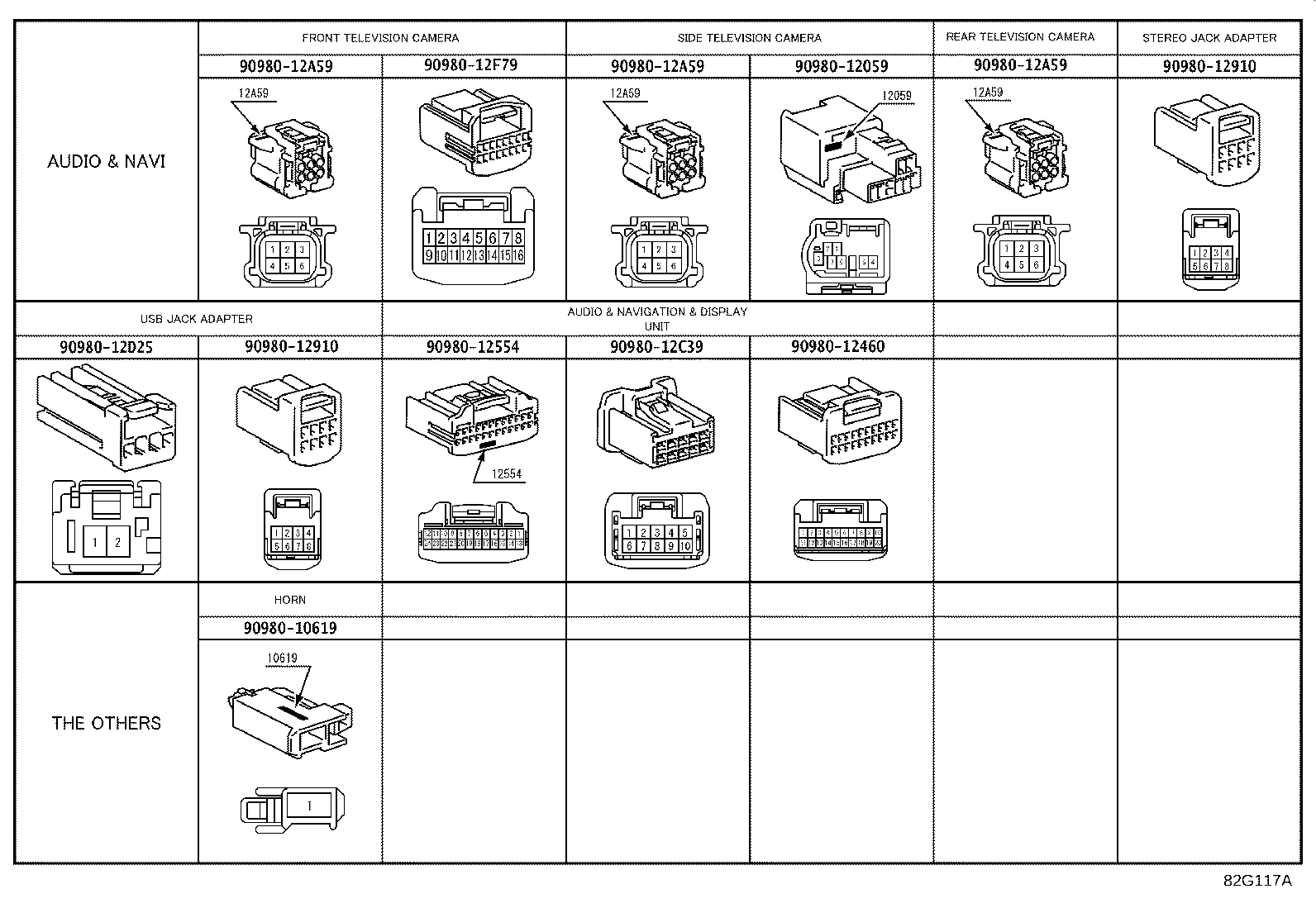

Figure 82F838A 82F838A 2022-07 → — Figure 82F839A 82F839A 2022-07 → — Figure 82F840A 82F840A 2022-07 → — Figure 82F841A 82F841A 2022-07 → — Figure 82G991 82G991 2023-03 → 2024-01 Figure 82G992 82G992 2023-03 → 2024-01 Figure 82G993 82G993 2023-03 → 2024-01 Figure 82G994 82G994 2023-03 → 2024-01 Figure 82H5F8 82H5F8 2024-01 → — Figure 82H5F9 82H5F9 2024-01 → — Figure 82H5FA 82H5FA 2024-01 → — Figure 82H5FB 82H5FB 2024-01 → — Figure 82H5FC 82H5FC 2024-01 → — Figure 82H5FD 82H5FD 2024-01 → — Figure 82H5FE 82H5FE 2024-01 → — Figure 82H5FF 82H5FF 2024-01 → — Figure 82F842 82F842 2022-07 → — Figure 82F843 82F843 2022-07 → — Figure 82H5FGA 82H5FGA 2024-01 → — Figure 82H5FHA 82H5FHA 2024-01 → — Figure 82F844B 82F844B 2022-07 → — Figure 82F845B 82F845B 2022-07 → — Figure 82F846 82F846 2022-07 → — Figure 82F847D 82F847D 2022-07 → — Figure 82F848 82F848 2022-07 → — Figure 82F849 82F849 2022-07 → — Figure 82G995 82G995 2023-03 → — Figure 82H5FI 82H5FI 2024-01 → — Figure 82F850 82F850 2022-07 → — Figure 82F851A 82F851A 2022-07 → — Figure 82F865C 82F865C 2022-07 → — Figure 82F853C 82F853C 2022-07 → — Figure 82H5FJ 82H5FJ 2022-07 → — Figure 82G996 82G996 2023-03 → — Figure 82G116A 82G116A 2022-07 → — Figure 82G117A 82G117A 2022-07 → —

Part groups

PNCDescription
16364A Wire, Cooling Fan

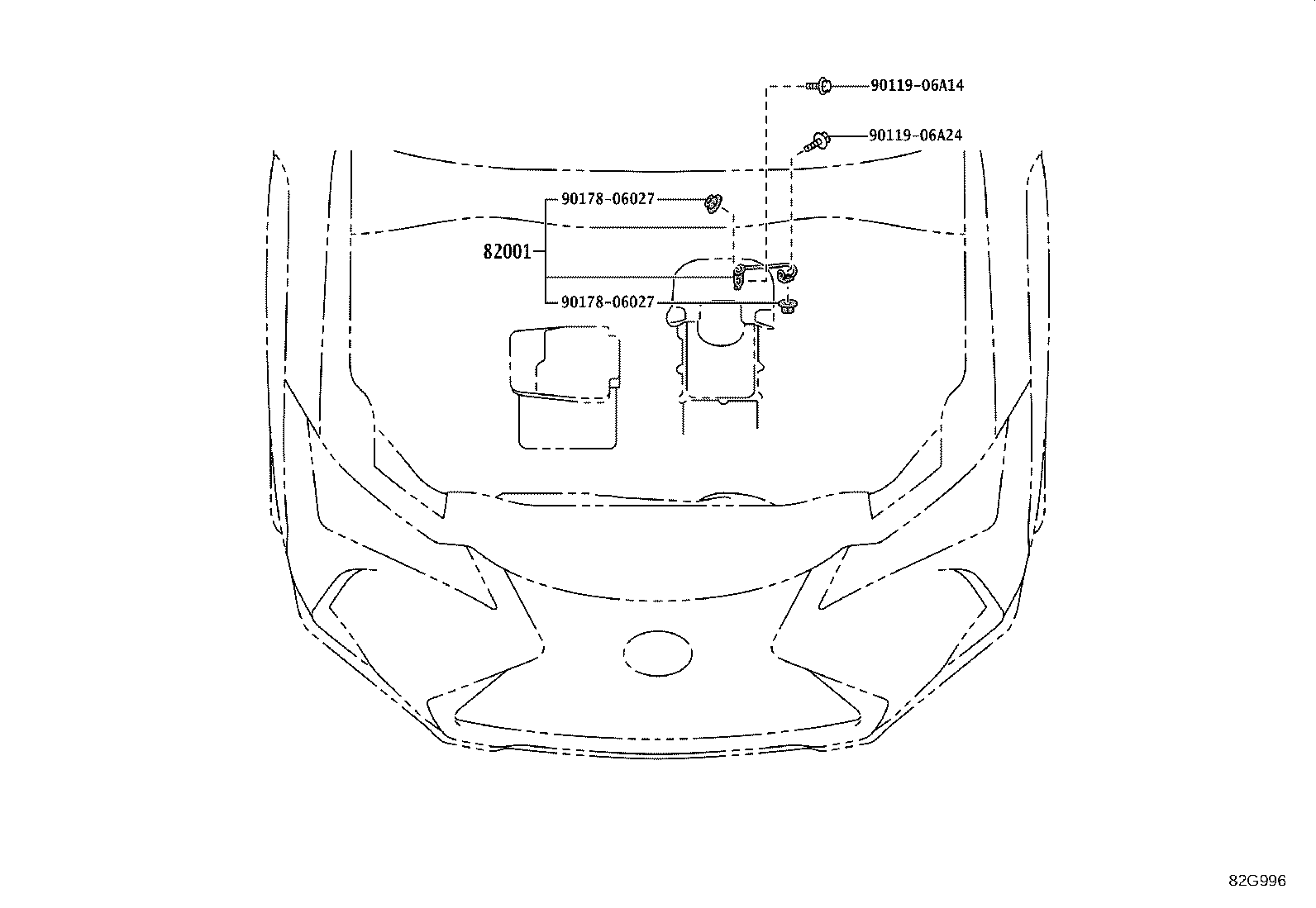

82001 Cable, Bond, NO.1

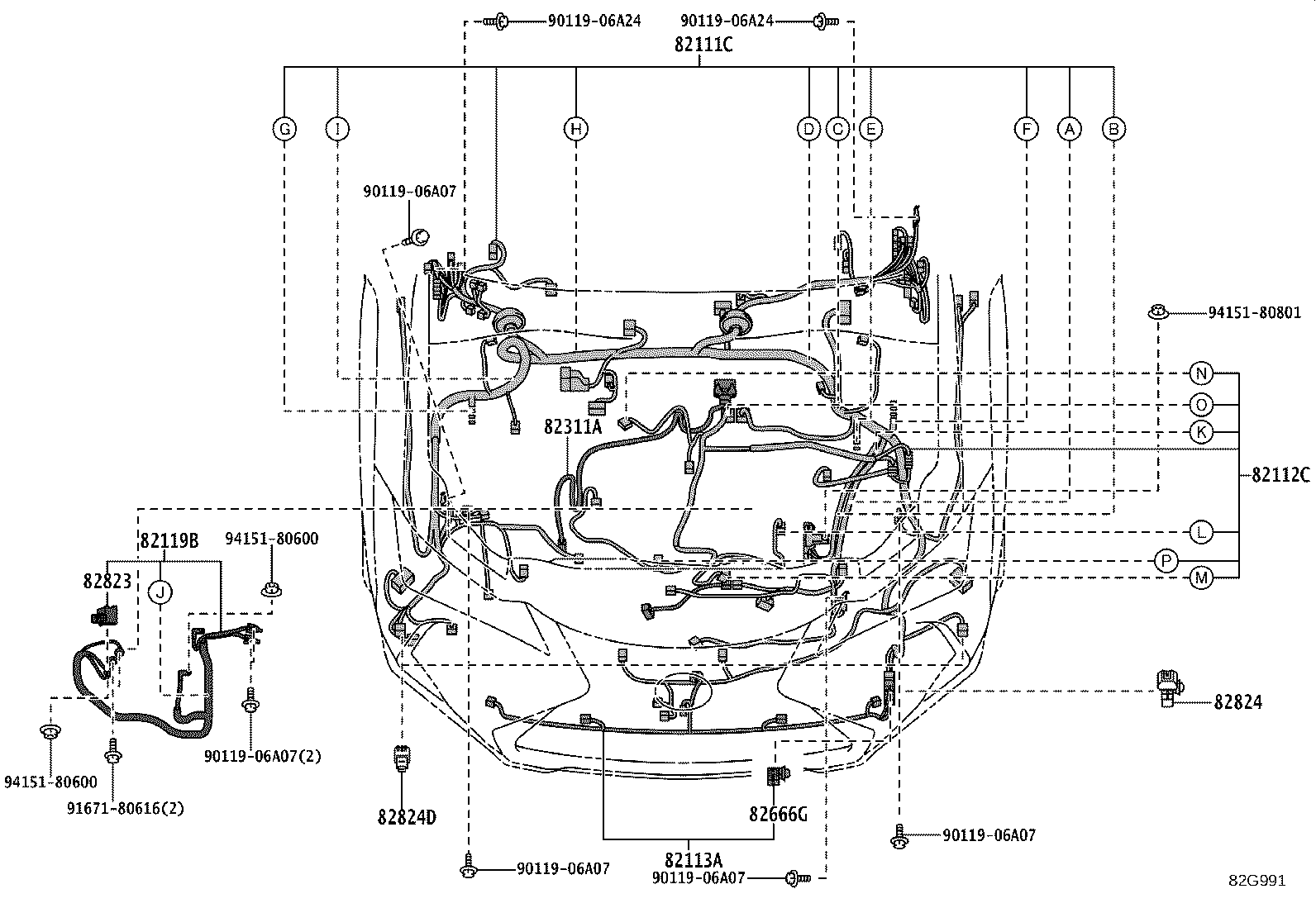

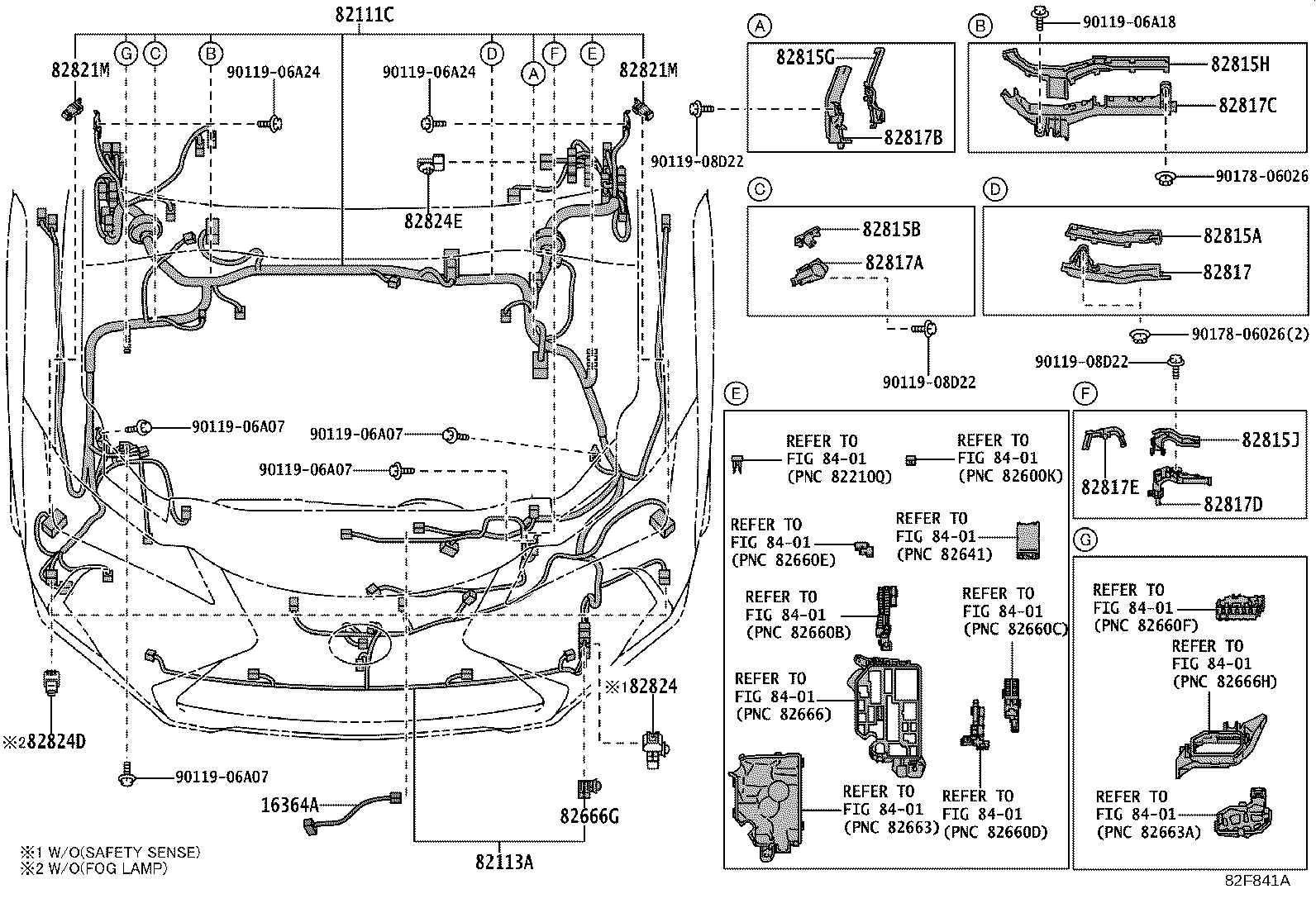

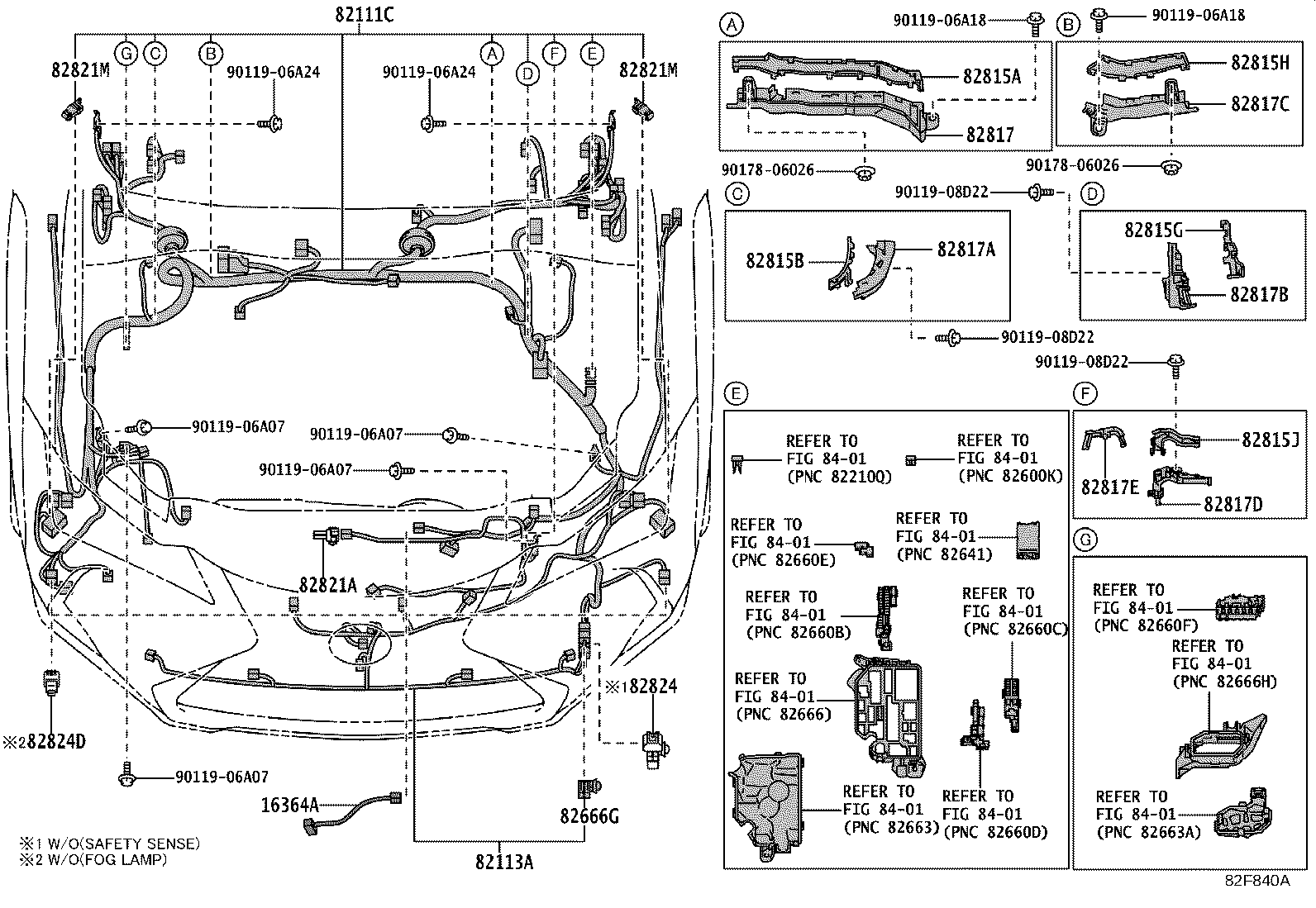

82111C Wire, Front Compartment, Main
82112C Wire, Fromt Compartment, NO.2
82113A Wire, Front Compartment, NO.3
82119B Wire, Front Compartment, NO.5

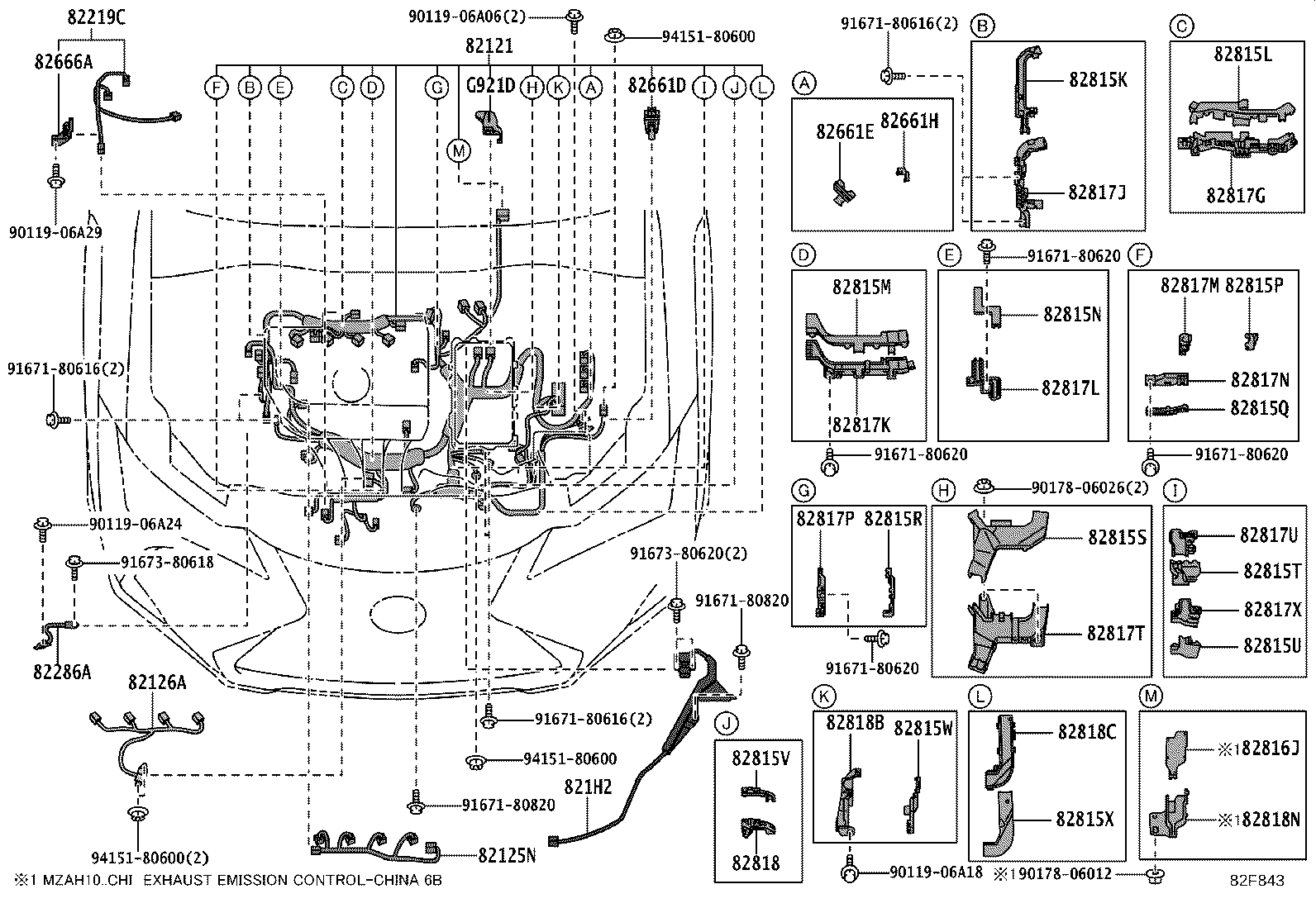

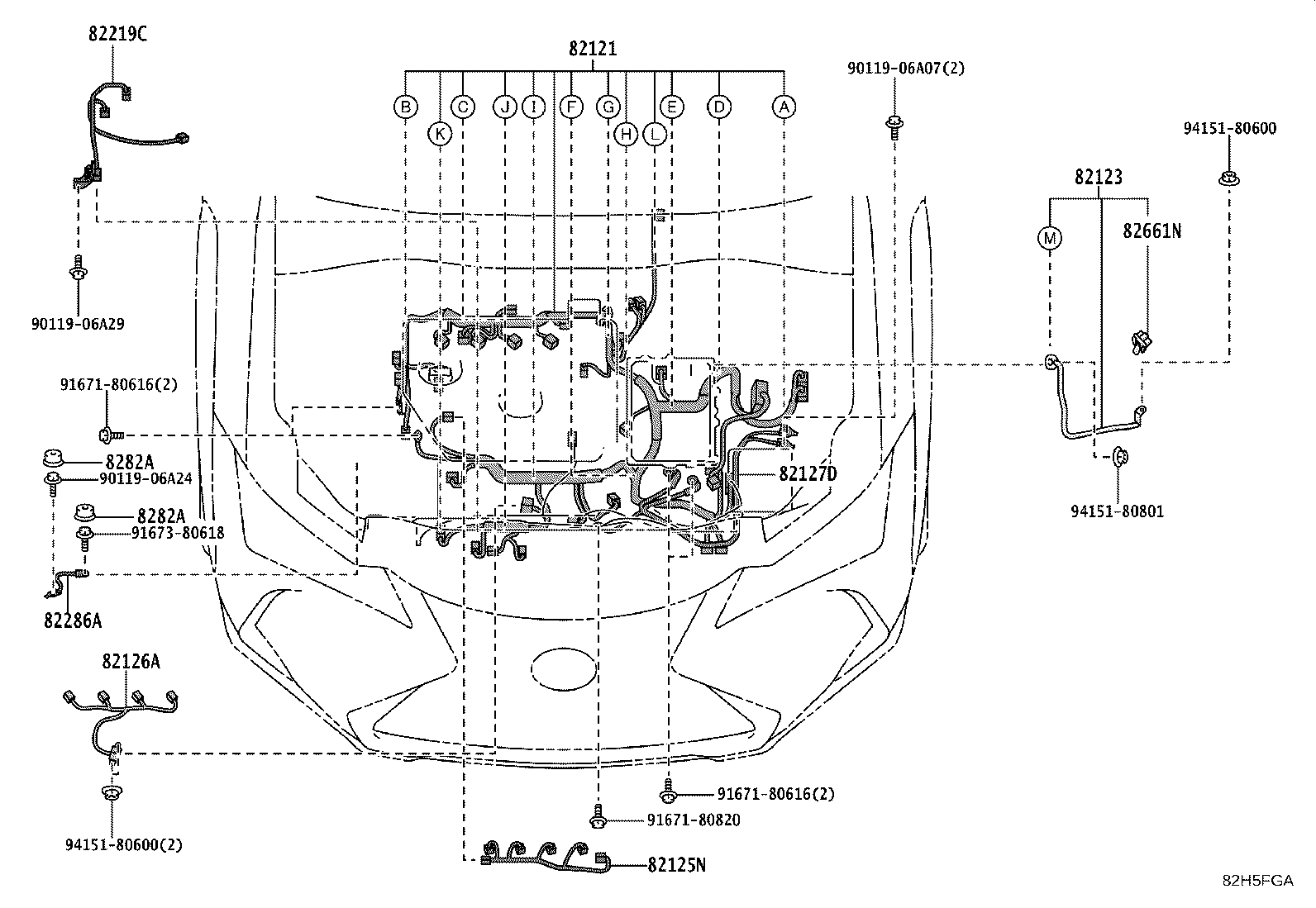

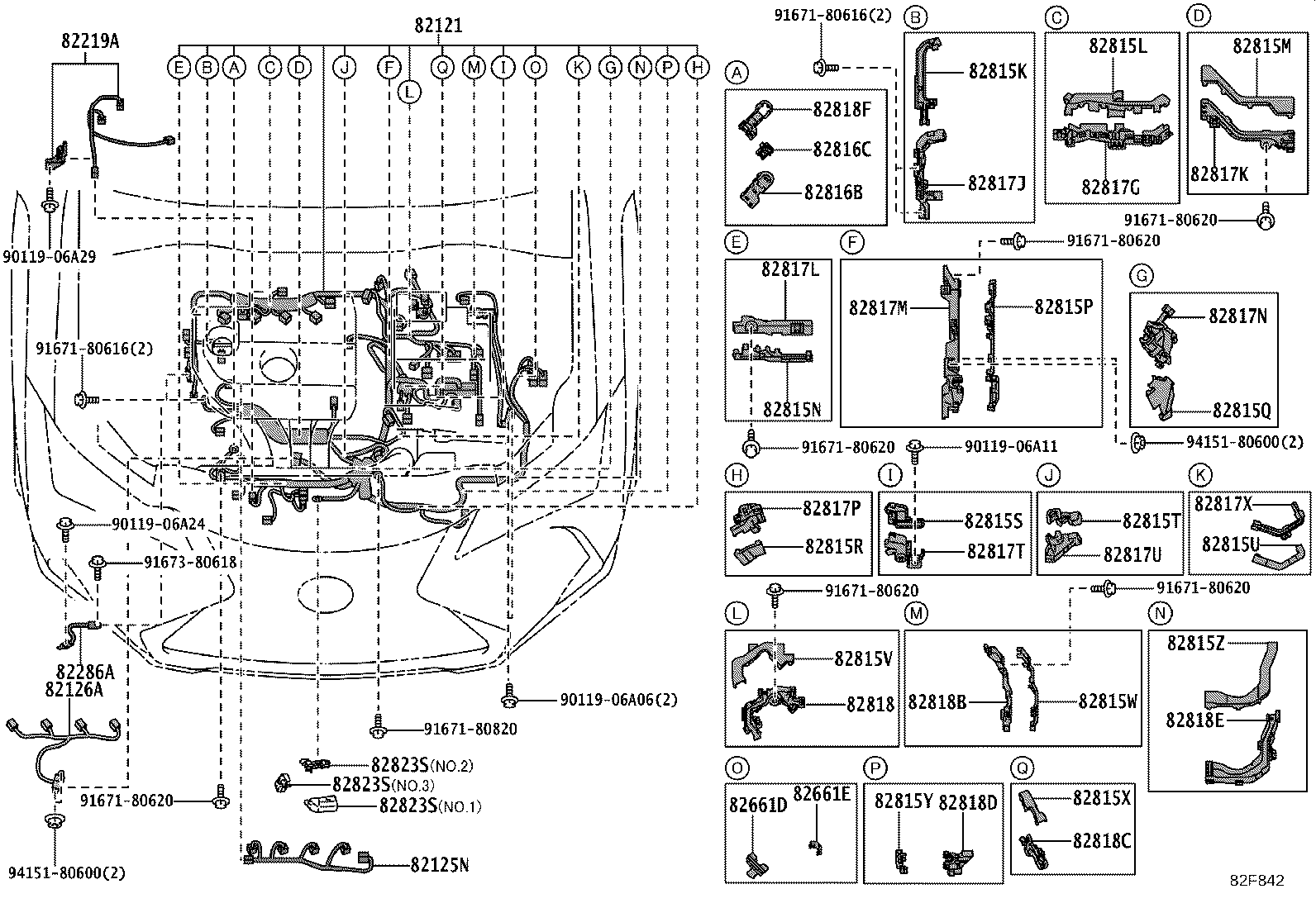

82121 Wire, Engine
82123 Wire, Engine, NO.3
82125N Wire, Engine, NO.5
82126A Wire, Engine, NO.6
82127D Wire, Engine, NO.7

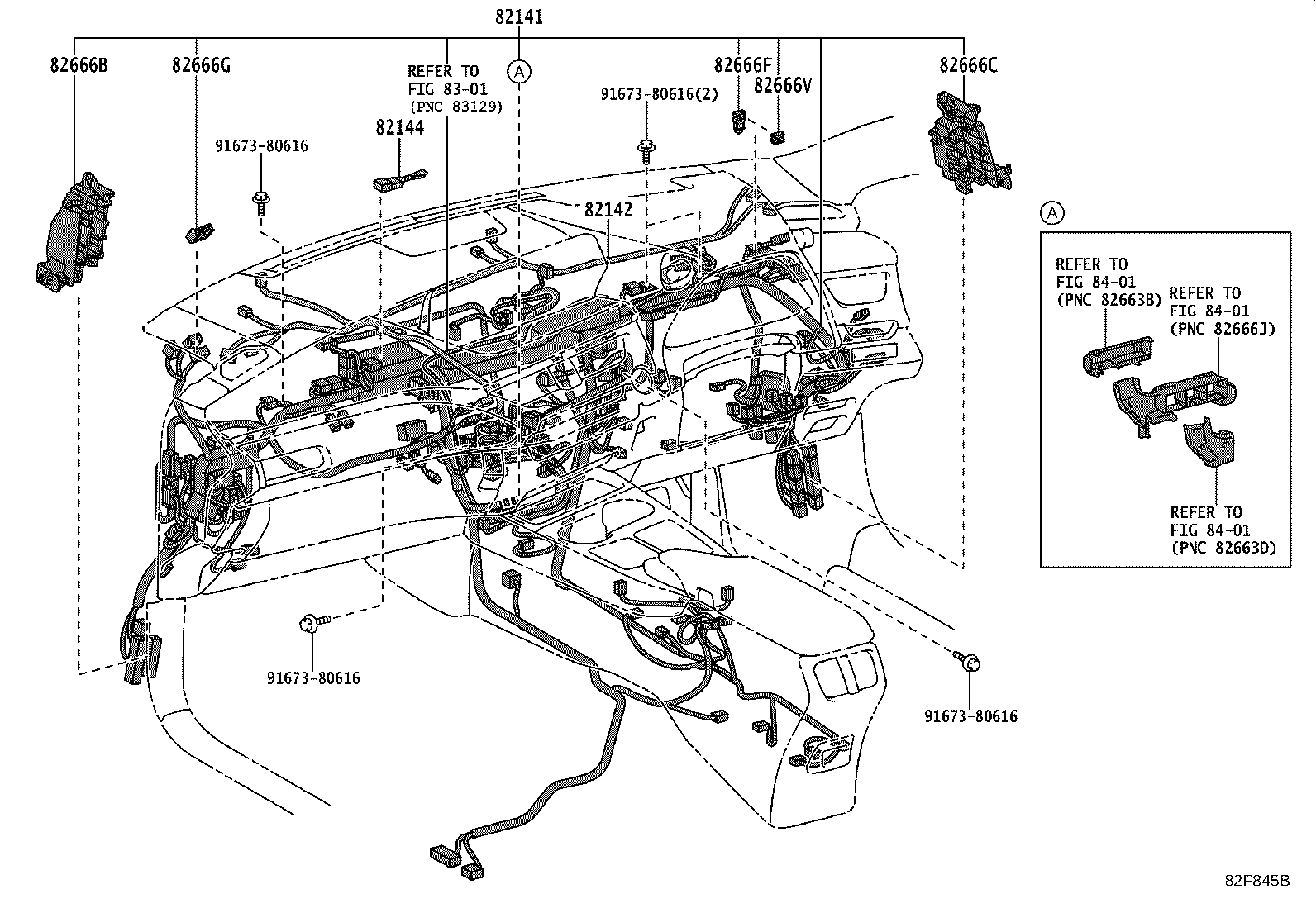

82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82144 Wire, Instrument Panel, NO.4

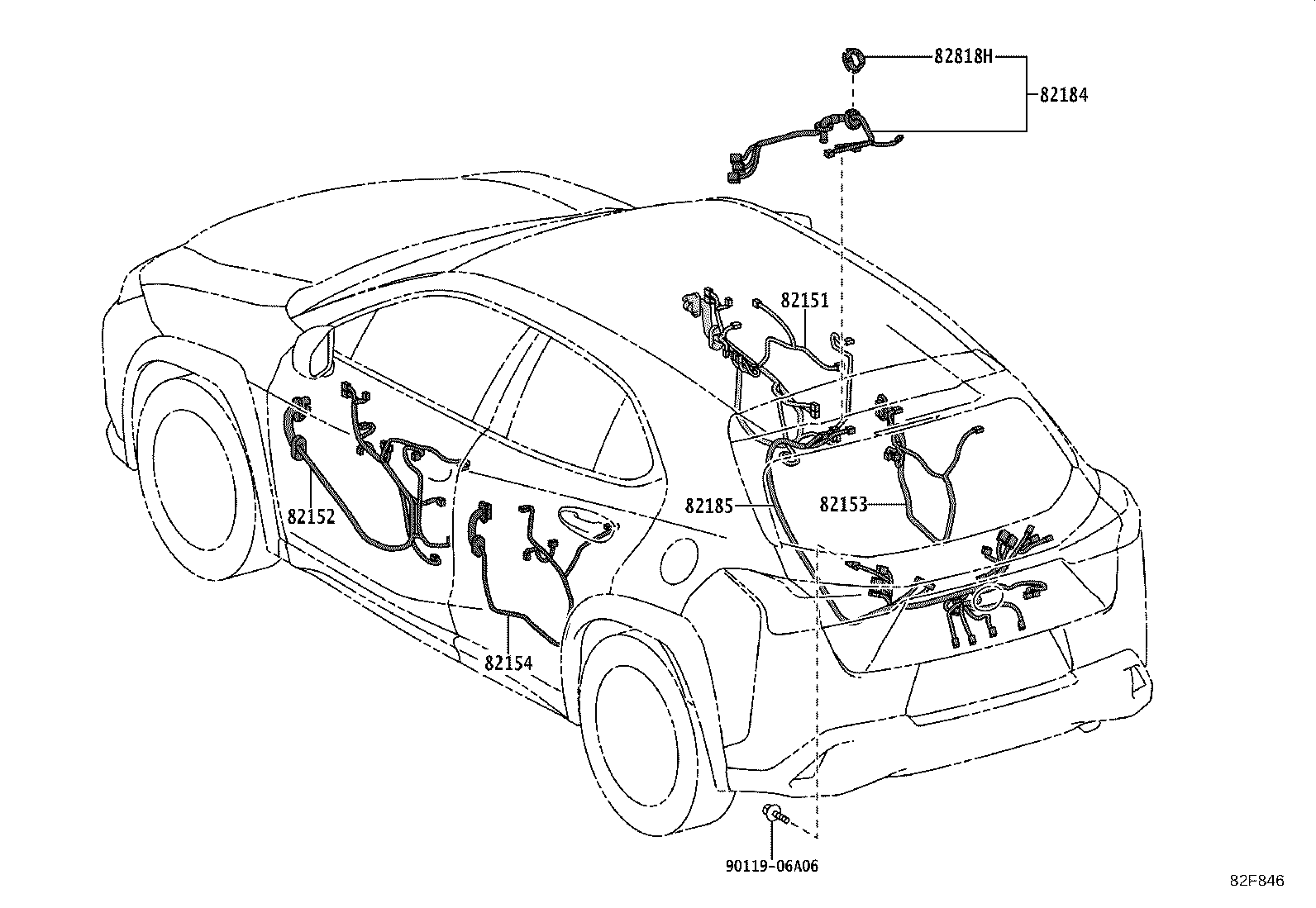

82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2

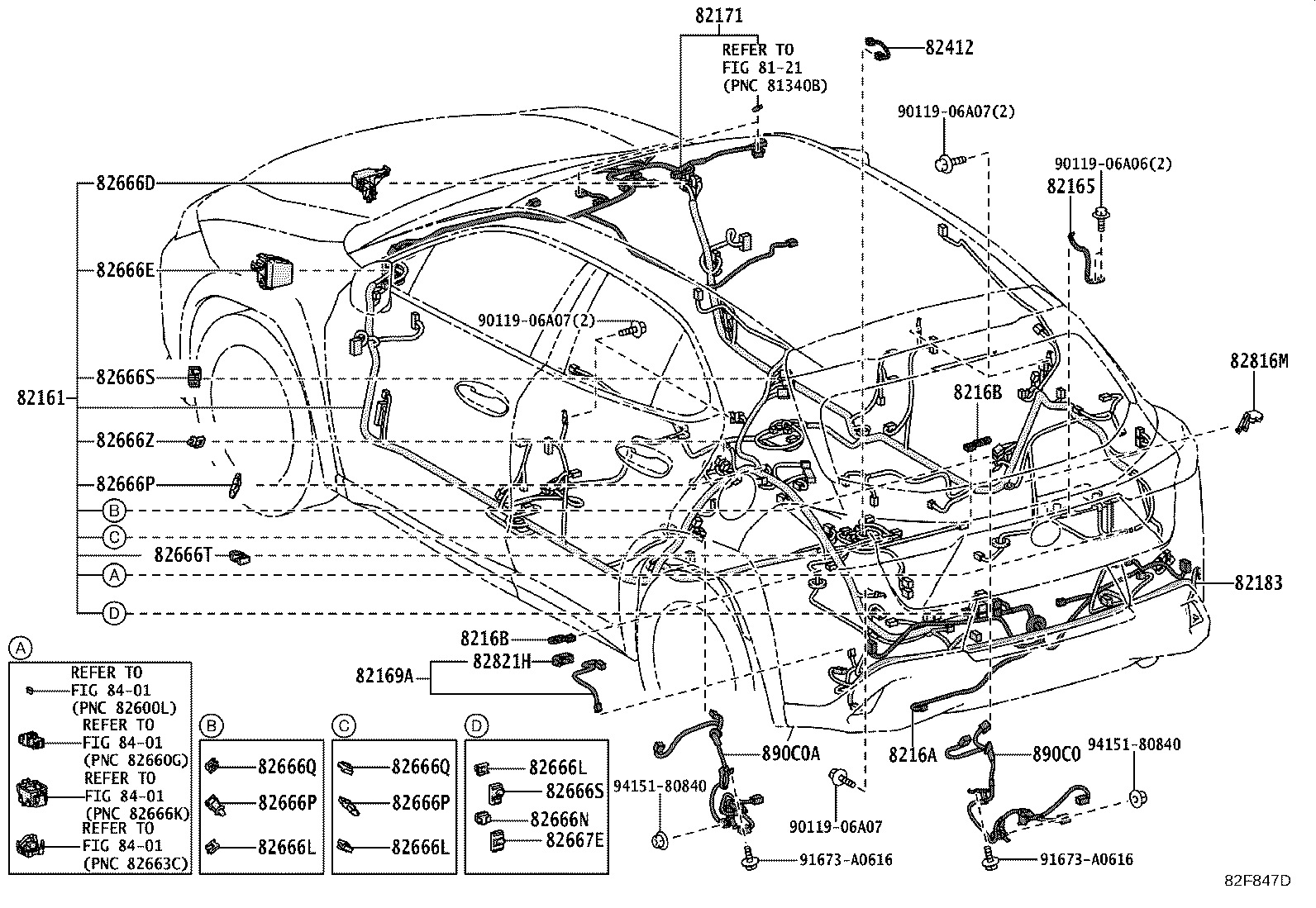

82161 Wire, Floor
82165 Wire, Frame, NO.2
82169A Wire, Floor, NO.6
8216A Wire, Floor NO.7
8216B Wire, Floor NO.8
82171 Wire, Roof, NO.1
82183 Wire, Luggage Room, NO.3
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2

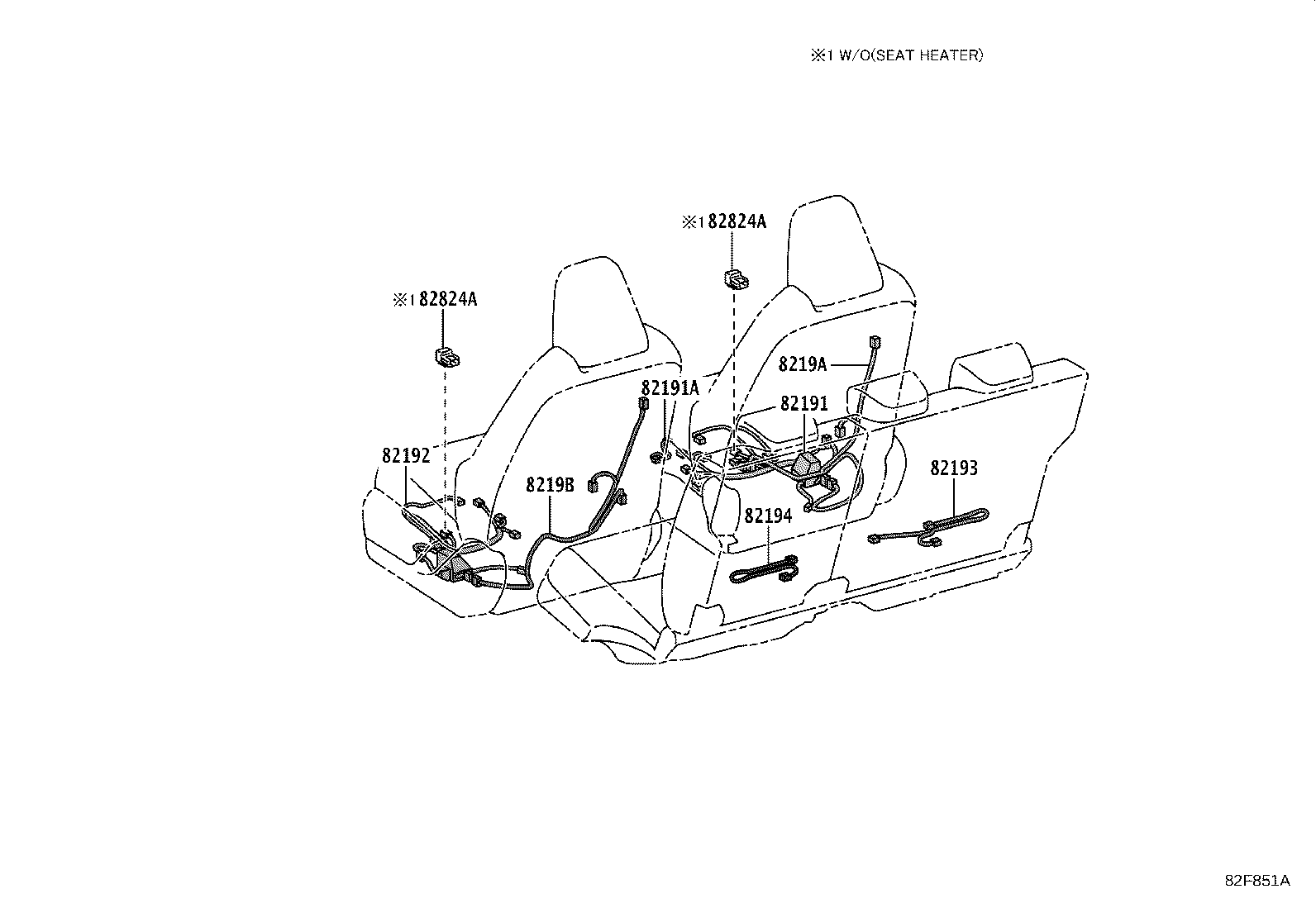

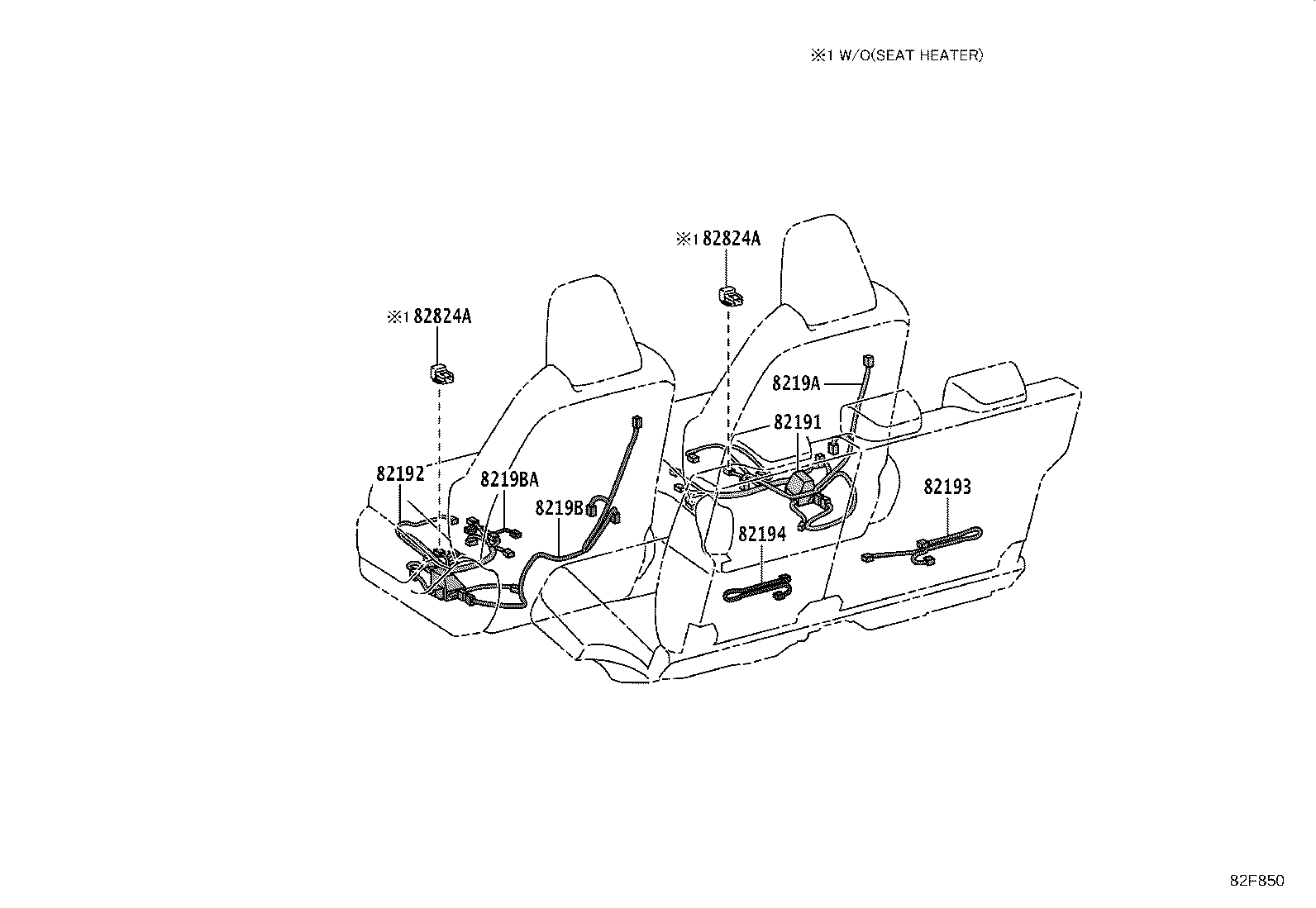

82191 Wire, Front Seat, RH
82191A Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82193 Wire, Rear Seat, RH
82194 Wire, Rear Seat, LH
8219A Wire, Front Seat, RH NO.2
8219B Wire, Front Seat, LH NO.2
8219BA Wire, Front Seat, LH NO.3

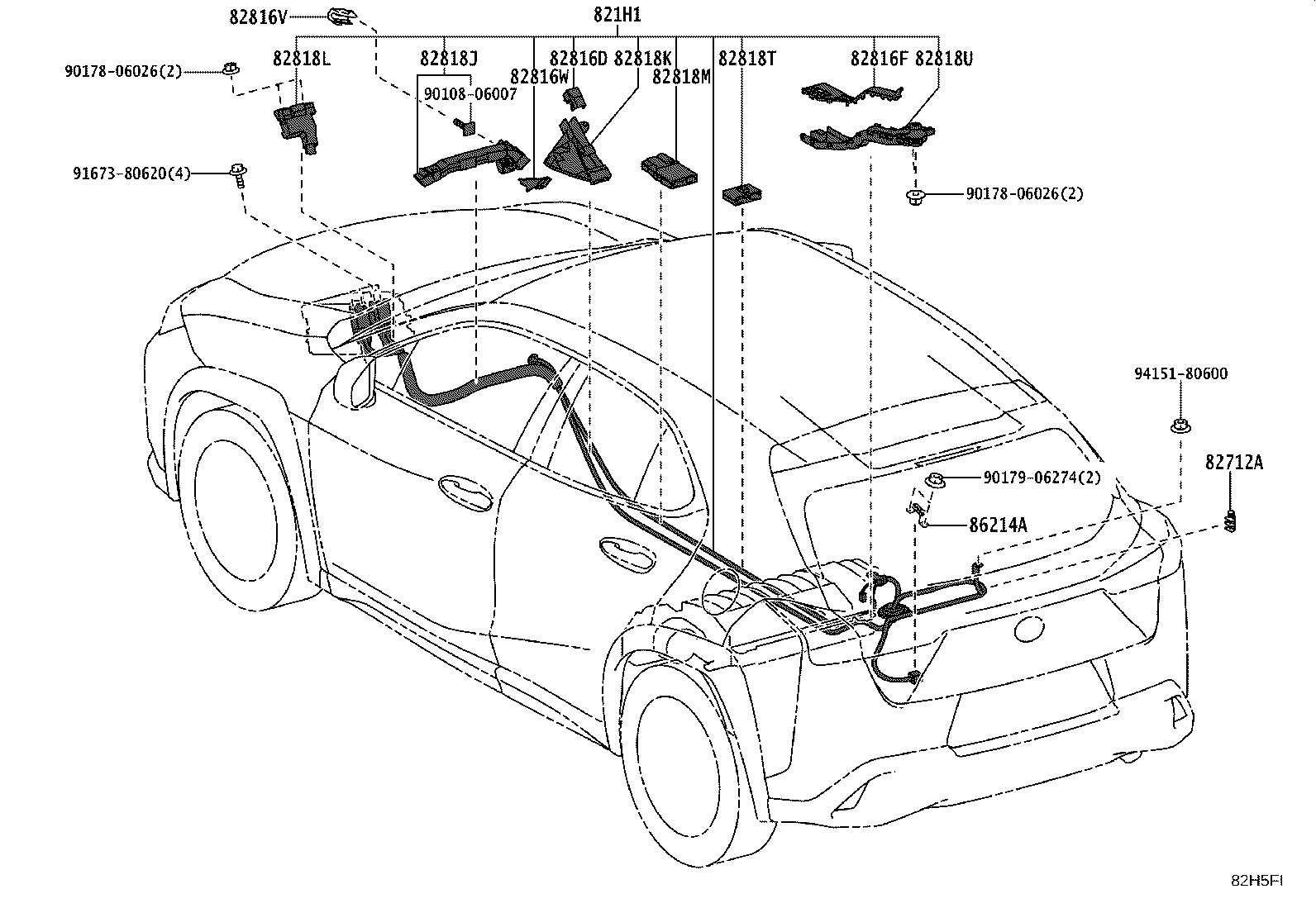

821H1 Wire, Floor Under
821H2 Wire, HV Air Conditioner
821H3 Wire, HV Battery Pack
821H5B Wire, EV Battery Charger
82219A Wire, Sensor
82219C Wire, Sensor
82286A Wire, Earth, NO.2
82311A Wire, Air Conditioner
82412 Wire, Fuel Gage
82661D Cover, Relay Block, Side NO.1
82661E Cover, Relay Block, Side NO.2
82661H Cover, Relay Block
82661L Cover, Relay Block, NO.2
82661M Cover, Relay Block, NO.3
82661N Cover, Relay Block, NO.4
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82666L Holder, Connector NO.9
82666N Holder, Connector NO.10
82666P Holder, Connector NO.11
82666Q Holder, Connector NO.12
82666S Holder, Connector NO.13
82666T Holder, Connector NO.14
82666V Holder, Connector NO.15
82666W Holder, Connector NO.16
82666X Holder, Connector NO.17
82666Z Holder, Connector NO.19
82667E Holder, Connector, NO.20
82712A Support, Wiring Harness
82712C Support, Wiring Harness, NO.1
82815A Cover, Wiring Harness Protector
82815B Cover, Wiring Harness Protector
82815G Cover, Wiring Harness Protector NO.5
82815H Cover, Wiring Harness Protector NO.6
82815J Cover, Wiring Harness Protector, NO.7
82815K Cover, Wiring Harness Protector, NO.8
82815L Cover, Wiring Harness Protector, NO.9
82815M Cover, Wiring Harness Protector, NO.10
82815N Cover, Wiring Harness Protector, NO.11
82815P Cover, Wiring Harness Protector, NO.12
82815Q Cover, Wiring Harness Protector, NO.13
82815R Cover, Wiring Harness Protector, NO.14
82815S Cover, Wiring Harness Protector, NO.15
82815T Cover, Wiring Harness Protector, NO.16
82815U Cover, Wiring Harness Protector, NO.17
82815V Cover, Wiring Harness Protector, NO.1
82815W Cover, Wiring Harness Protector, NO.2
82815X Cover, Wiring Harness Protector, NO.3
82815Y Cover, Wiring Harness Protector, NO.4
82815Z Cover, Wiring Harness Protector, NO.18
82816B Cover, Wiring Harness Protector, NO.1
82816C Cover, Wiring Harness Protector, NO.2
82816D Cover, Wiring Harness Protector, NO.3
82816F Cover, Wiring Harness Protector, NO.4
82816G Cover, Wiring Harness Protector, NO.5
82816H Cover, Wiring Harness Protector, NO.6
82816J Cover, Wiring Harness Protector, NO.7
82816K Cover, Wiring Harness Protector, NO.8
82816L Cover, Wiring Harness Protector, NO.9
82816M Cover, Wiring Harness Protector, NO.10
82816T Cover, Wiring Harness Protector, NO.16
82816U Cover, Wiring Harness Protector, NO.17
82816V Cover, Wiring Harness Protector, NO.18
82816W Cover, Wiring Harness Protector, NO.19
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82817K Protector, Wiring Harness, NO.10
82817L Protector, Wiring Harness, NO.11
82817M Protector, Wiring Harness, NO.12
82817N Protector, Wiring Harness, NO.13
82817P Protector, Wiring Harness, NO.14
82817T Protector, Wiring Harness, NO.15
82817U Protector, Wiring Harness, NO.16
82817X Protector, Wiring Harness, NO.17
82818 Protector, Wiring Harness, NO.2
82818B Protector, Wiring Harness, NO.3
82818C Protector, Wiring Harness, NO.4
82818D Protector, Wiring Harness, NO.5
82818E Protector, Wiring Harness, NO.6
82818F Protector, Wiring Harness, NO.7
82818H Protector, Wiring Harness, NO.9
82818J Protector, Wiring Harness, NO.10
82818K Protector, Wiring Harness, NO.11
82818L Protector, Wiring Harness, NO.12
82818M Protector, Wiring Harness, NO.13
82818N Protector, Wiring Harness, NO.14
82818S Protector, Wiring Harness, NO.15
82818T Protector, Wiring Harness, NO.16
82818U Protector, Wiring Harness, NO.17
82818W Protector, Wiring Harness, NO.19
8281A Protector, Wiring Harness, NO.1
8281AA Protector, Wiring Harness, NO.2
8281AB Protector, Wiring Harness, NO.3
8281AC Protector, Wiring Harness, NO.4
8281AD Protector, Wiring Harness, NO.5
82821A Cover, Connector
82821E Cover, Connector
82821H Cover, Connector
82821M Cover, Connector
82821N Cover, Connector
82821P Cover, Connector
82821R Cover, Connector
82821U Cover, Connector
82821V Cover, Connector
82821W Cover, Connector
82821X Cover, Connector
82821Y Cover, Connector
82823 Cap, Terminal, NO.1
82823S Cap, Starter Terminal
82824 Connector, Wiring Harness
82824A Connector, Wiring Harness
82824D Connector, Wiring Harness
82824E Connector, Wiring Harness
8282A Cap, Earth Bolt, NO.1
82H21C Cover, Connector
82H21D Cover, Connector
82H21G Cover, Connector
82H21H Cover, Connector
82H21J Cover, Connector
82H21K Cover, Connector
86214A Bracket, Radio Earth
890C0 Wire Assy, Parking Brake, NO.1
890C0A Wire Assy, Parking Brake, NO.2
G921D Protector, Inverter Connector Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
