Toyota Lexus UX Series

2022-07 → present · chassis KMA10,MZAA10,MZAH1# · catalogue 537220 · Europe

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

10 part groups · 2 illustrations

Illustrations

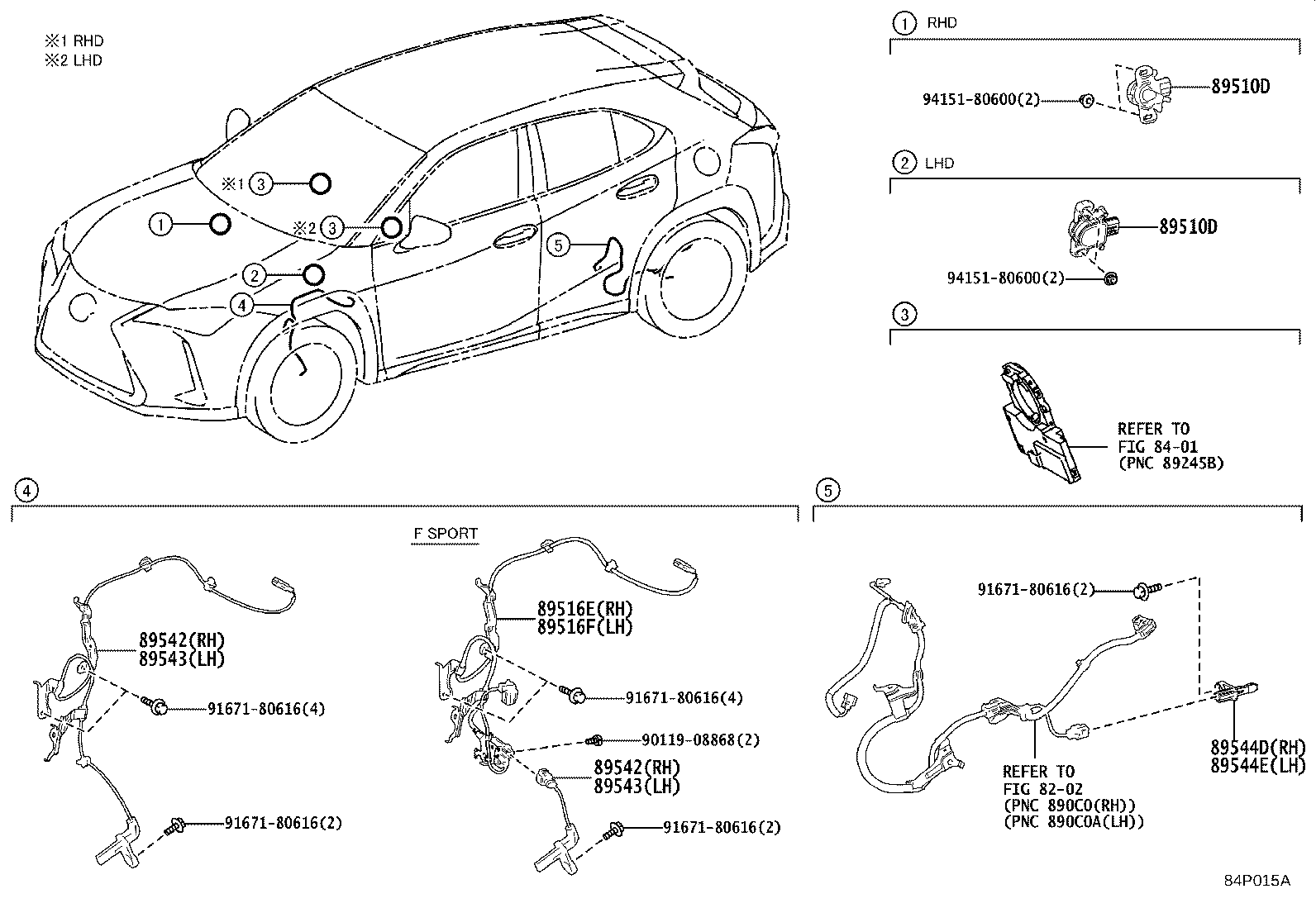

Figure 84P014B 84P014B 2022-07 → — Figure 84P015A 84P015A 2022-07 → —

Part groups

PNCDescription
89510D Sensor Assy, Brake Pedal Stroke
89516E Wire, Skid Control Sensor, Front RH
89516F Wire, Skid Control Sensor, Front LH
89542 Sensor, Speed, Front RH
89543 Sensor, Speed, Front LH
89544D Sensor, Skid Control, Rear RH
89544E Sensor, Skid Control, Rear LH
89680 Supply Assy, Brake Control Power
89686A Bracket, Brake Control Power Supply, NO.1
89687 Bracket, Brake Control Power Supply, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
