Toyota Lexus UX Series

2022-07 → present · chassis KMA10,MZAA10,MZAH1# · catalogue 537220 · Europe

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hev Inverter

14 part groups · 4 illustrations

Illustrations

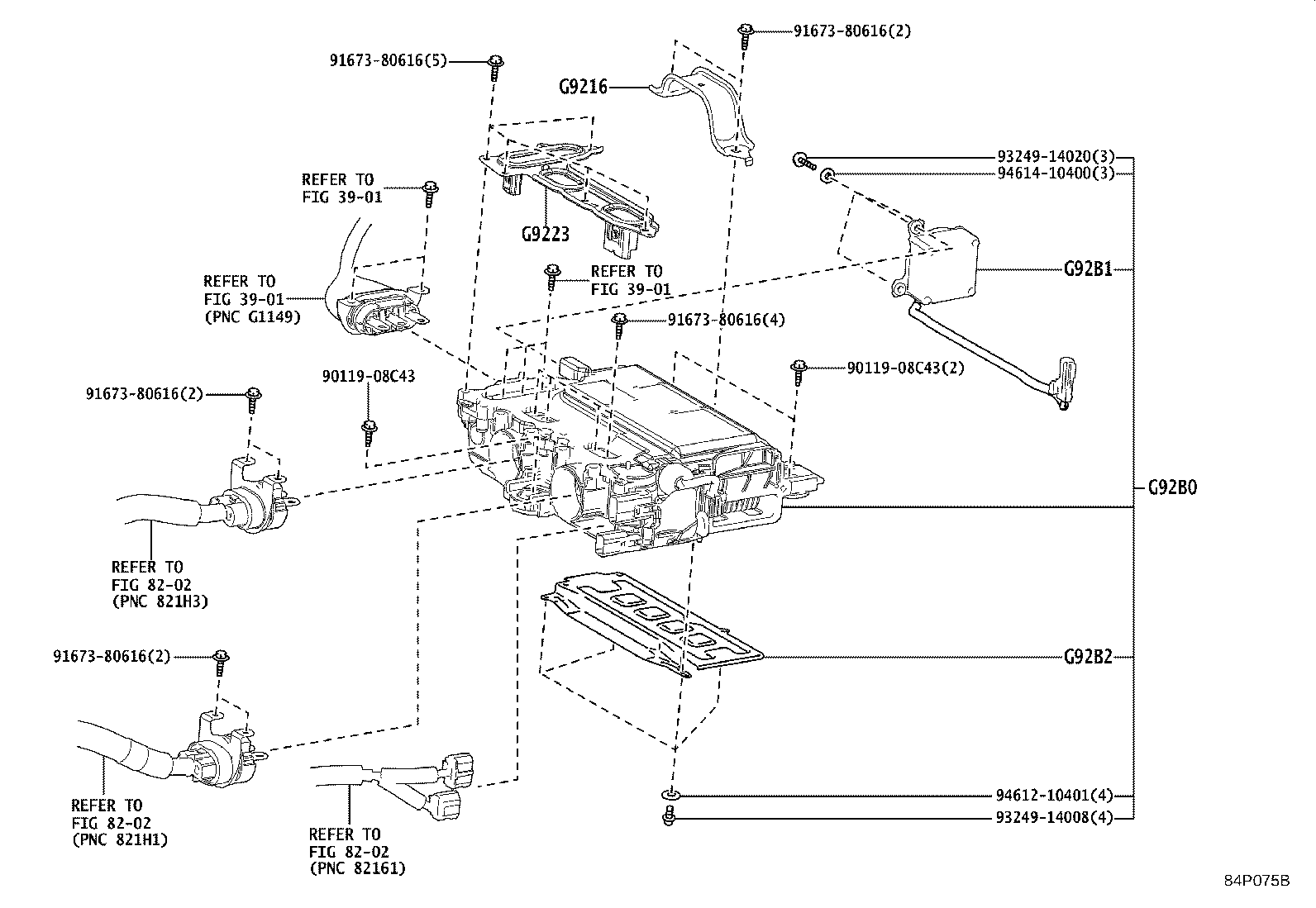

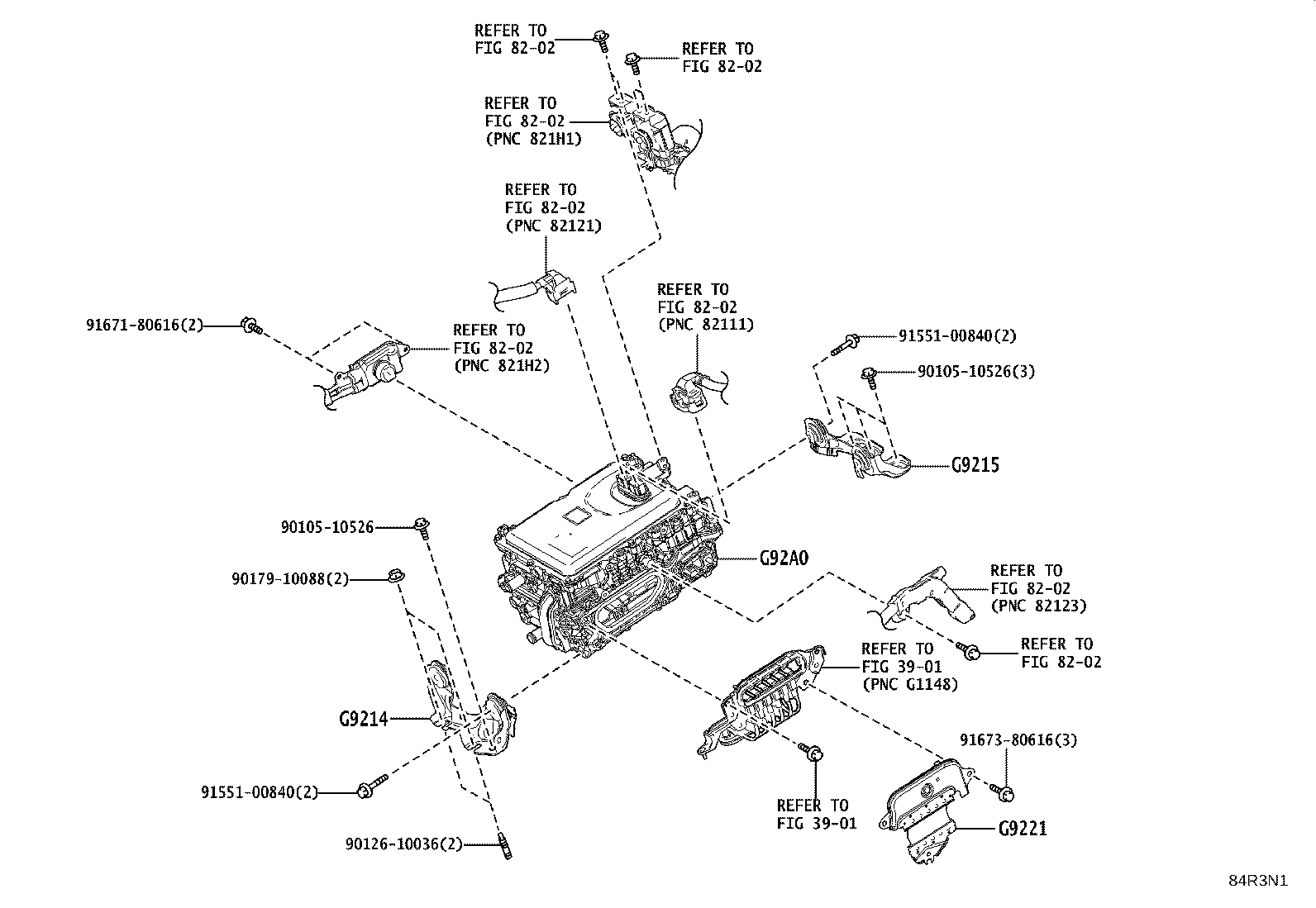

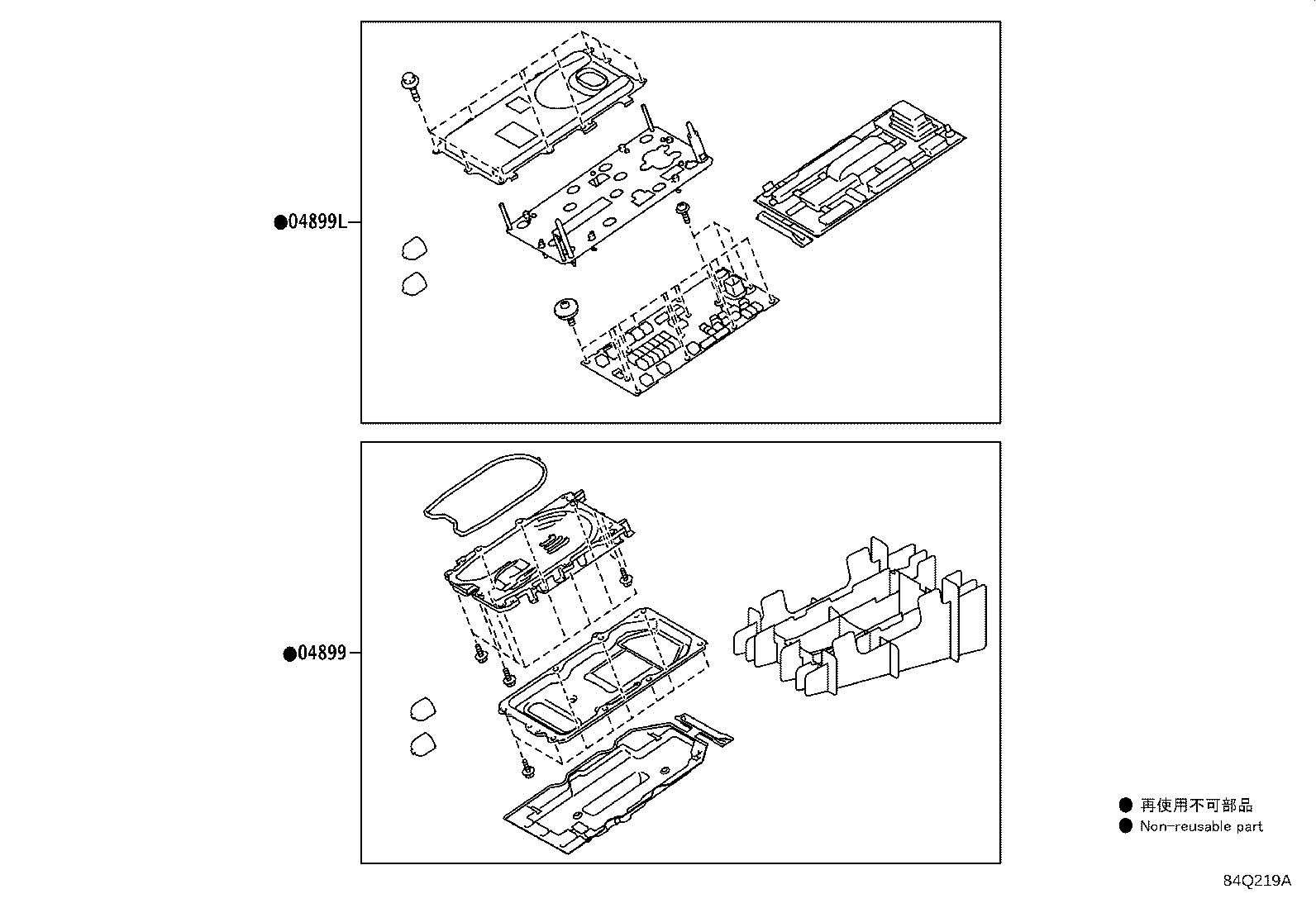

Figure 84P072A 84P072A 2022-07 → — Figure 84R3N1 84R3N1 2024-01 → — Figure 84P075B 84P075B 2022-07 → — Figure 84Q219A 84Q219A 2022-07 → —

Part groups

PNCDescription
04899 Converter Kit, HV
04899L Computer Kit, Motor Generator Control
G9200 Inverter Assy, W/Converter
G9214 Bracket, Inverter, NO.1
G9215 Bracket, Inverter, NO.2
G9216 Bracket, Inverter, NO.3
G921E Protector, Inverter
G9221 Cover, Inverter
G9223 Cover, Inverter Terminal
G92A0 Inverter Assy, Hybrid Motor Control
G92B0 Inverter Assy, Hybrid Motor Control, Rear
G92B1 Fan, HV Inverter Cooling
G92B2 Cover, HV Inverter Cooling
G92D0 Protector Assy, Hybrid Inverter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
